| Product Type | Hammer Drill |
| Brand | Black & Decker |
| Model | KR554CRESXE |
| Power Supply | 230 V AC, 50 Hz |
| Power | 550 W |
| No-load Speed | 0 – 2,800 rpm |
| Drilling Capacity (Concrete) | 13 mm |
| Drilling Capacity (Steel) | 13 mm |
| Drilling Capacity (Wood) | 20 mm |
| Weight | 2.0 kg |
| Sound Pressure Level (LpA) | 97 dB(A) |
| Sound Power Level (LWA) | 108 dB(A) |
| Vibrations (Hammer Drilling) | 16.76 m/s² |
| Chuck | Self-tightening (Single or Double Sleeve) |
| Rotation Direction | Reversible (Forward/Reverse) |
| Mode Selector | Hammer Drilling / Standard Drilling |
| Depth Stop | Yes, adjustable |
| Side Handle | Yes, adjustable |
| Continuous Lock | Yes |
| Double Insulation | Yes |
| Maintenance | Regular cleaning of ventilation slots; cleaning of motor compartment with a damp cloth |
| Warranty | 24 months |
| Recycling | Do not dispose of with household waste; return to an authorized service center |
Frequently Asked Questions - KR554CRESXE BLACK & DECKER
User questions about KR554CRESXE BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hammer in PDF format for free! Find your manual KR554CRESXE - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KR554CRESXE by BLACK & DECKER.
USER MANUAL KR554CRESXE BLACK & DECKER
KR504CRE
KR504CRES
KR554RE
KR554CRES
English (Original instructions) 5


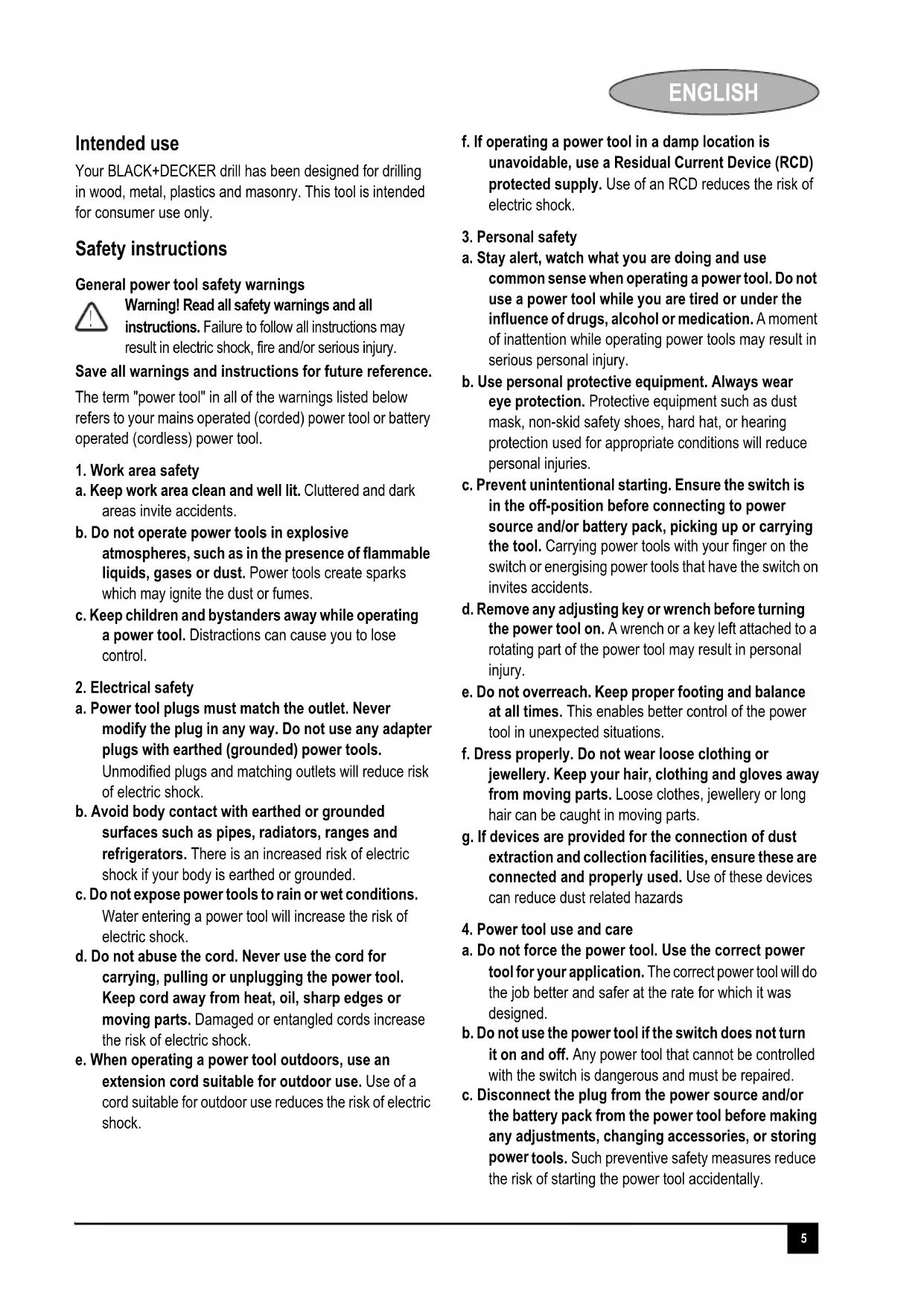

G 6 7Intended use
Your BLACK+DECKER drill has been designed for drilling in wood, metal, plastics and masonry. This tool is intended for consumer use only.
Safety instructions
General power tool safety warnings
Warning! Read all safety warnings and all instructions. Failure to follow all instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Work area safety
a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
- Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a Residual Current Device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards
- Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
ENGLISH
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will make sure that the safety of the power tool is maintained.
Additional power tool safety warnings
Warning! Additional safety warnings for drills and impact drills.
- Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.
Use auxiliary handles supplied with the tool. Loss of control can cause personal injury.
- Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.
Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.
Avoid touching the tip of a drill bit just after drilling, as it may be hot.
◆ The intended use is described in this instruction manual. The use of any accessory or attachment or performance
of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.
Safety of others
This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
◆ Children should be supervised to ensure that they do not play with the appliance.
Vibration
The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.
Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.
When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.
Labels on tools
The following pictograms are shown on the tool.
Warning! To reduce the risk of injury, the user must read the instruction manual.
Electrical safety
This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.

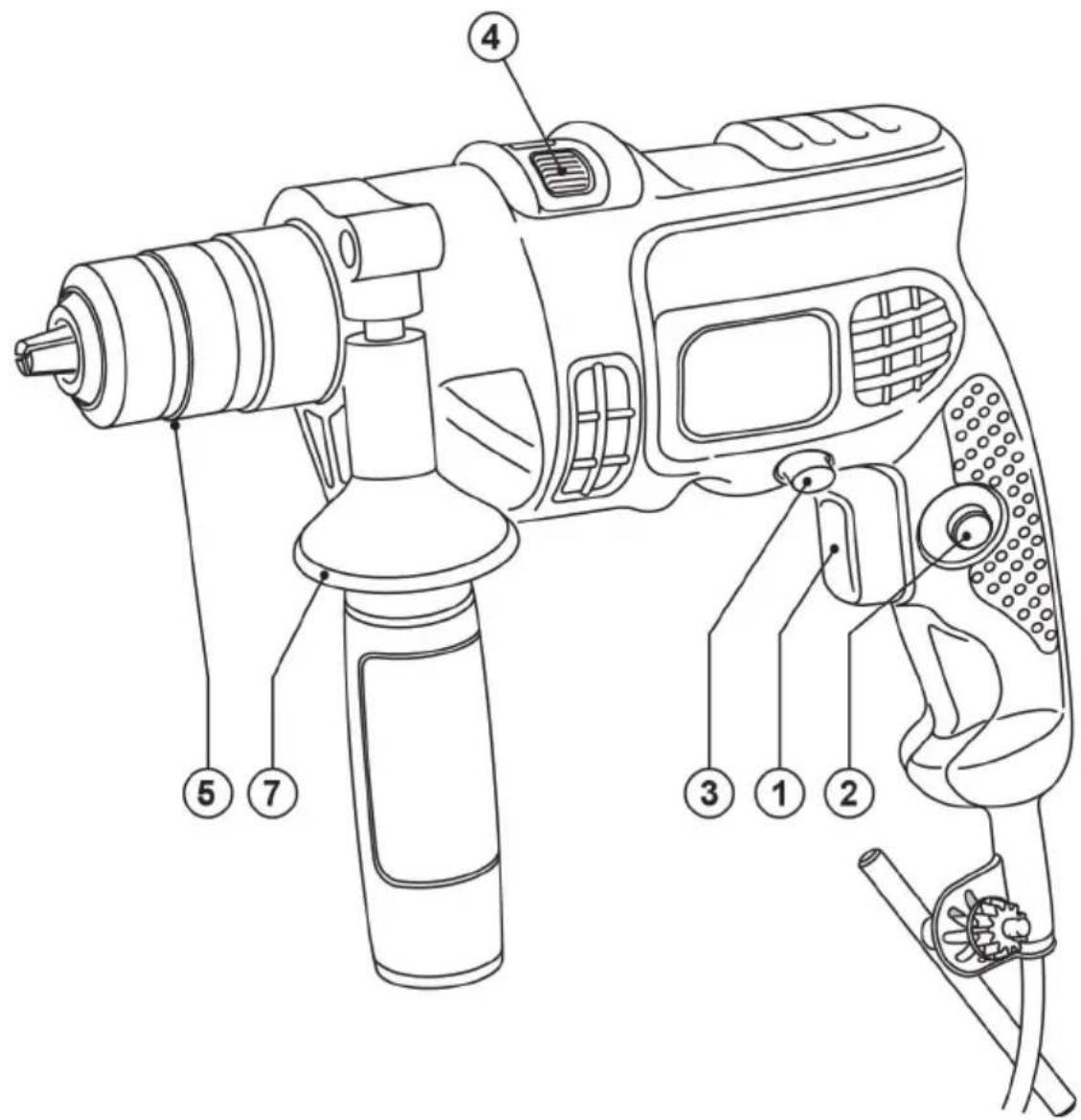

Features
- Variable speed switch
- Lock-on button
- Forward/reverse button
- Drilling mode selector
- Chuck
- Depth stop (not all models)
- Side handle (not all models)
fig. B
- Manual spindle lock button (single sleeve keyless chuck only)
Assembly
Warning! Before assembly, make sure that the tool is switched off and unplugged.
Fitting the side handle and depth stop (fig. A & G)
◆ Turn the grip counter clockwise until you can slide the side handle (7) onto the front of the tool as shown.
◆ Rotate the side handle into the desired position.
◆ Insert the depth stop (6) into the mounting hole as shown.
◆ Set the drilling depth as described below.
◆ Tighten the side handle by turning the grip clockwise.
Fitting a drill bit

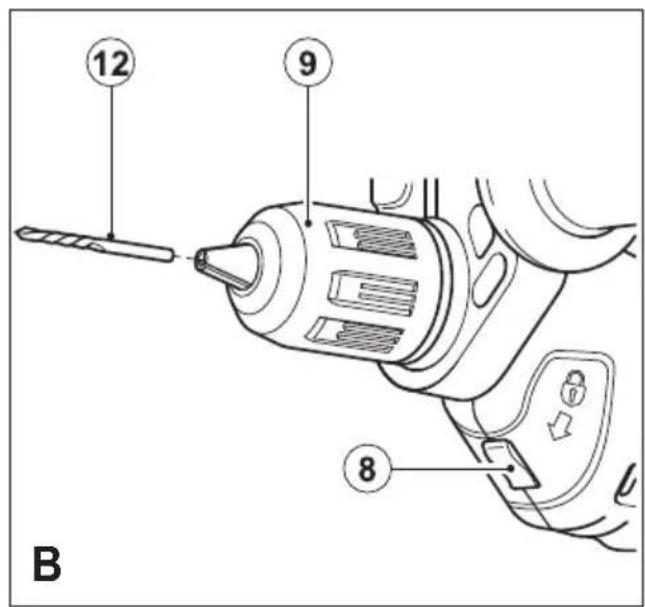

Single sleeve keyless chuck (fig. B)
◆ Open the chuck by pressing the manual spindle lock button (8) and turning the sleeve (9) counter clockwise.
◆ Insert the bit shaft (12) into the chuck.
- Firmly tighten the chuck by pressing the manual spindle lock button (8) and turning the sleeve clockwise until it is tight.

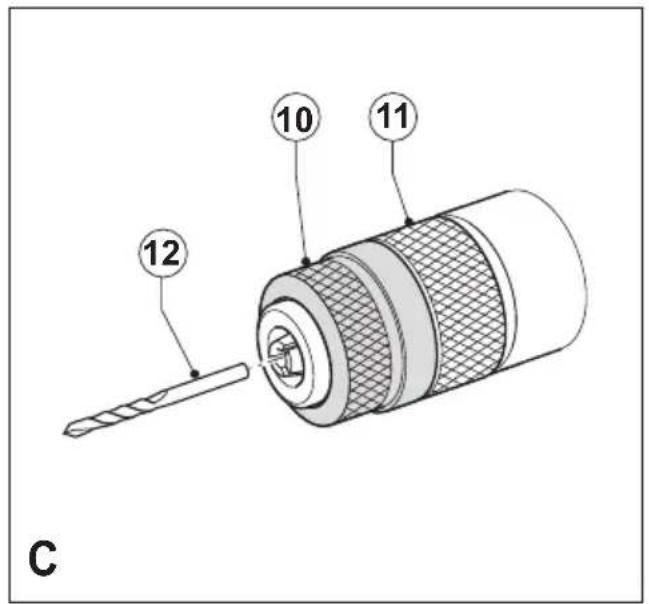

Two sleeve keyless chuck (fig. C)
◆ Open the chuck by turning the front part (10) with one hand while holding the rear part (11) with the other.
◆ Insert the bit shaft (12) into the chuck and firmly tighten the chuck.

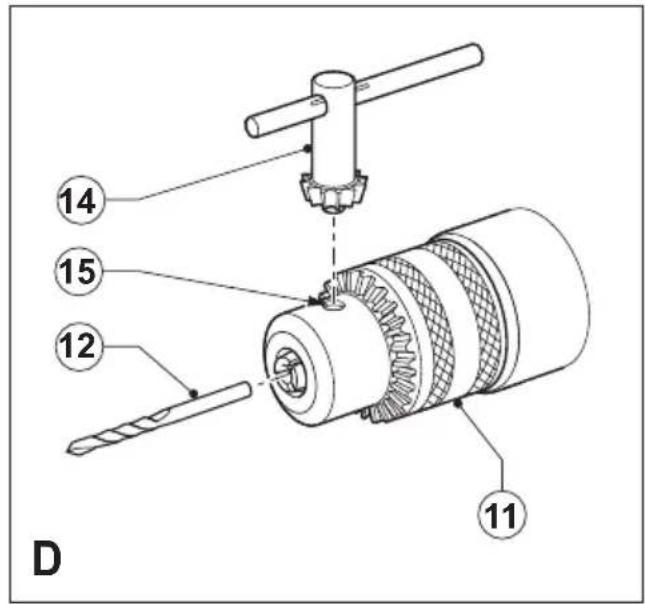

Keyed chuck (fig. D)
◆ Open the chuck by turning the sleeve (11) counter clockwise.
◆ Insert the bit shaft (12) into the chuck.
◆ Insert the chuck key (14) into each hole (15) in the side of the chuck and turn clockwise until tight.

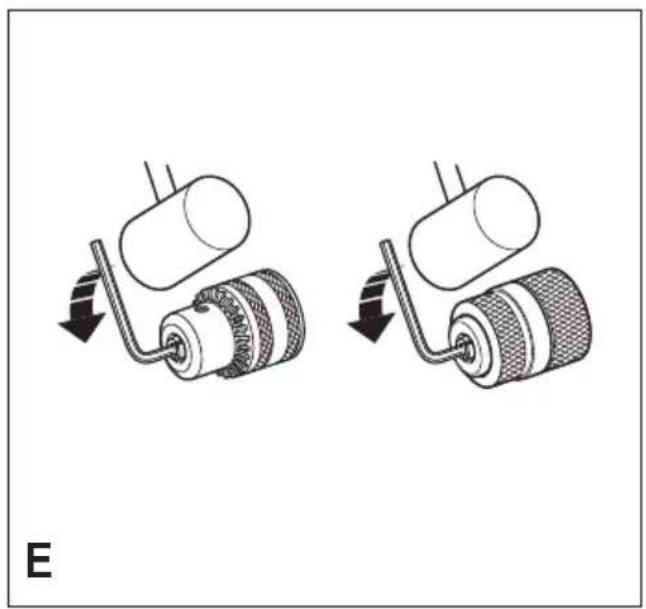

Removing and refitting the chuck (fig. E)
◆ Open the chuck as far as possible.
◆ Remove the chuck retaining screw, located in the chuck, by turning it clockwise using a screwdriver.
♦ Tighten an Allen key into the chuck and strike it with a hammer as shown.
◆ Remove the Allen key.
◆ Remove the chuck by turning it counter clockwise.
◆ To refit the chuck, screw it onto the spindle and secure it with the chuck retaining screw.
Residual risks
Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These include:
◆ Injuries caused by touching any rotating/moving parts.
◆ Injuries caused when changing any parts, blades or accessories.
◆ Injuries caused by prolonged use of a tool. When using any tool for prolonged periods make sure you take regular breaks.
◆ Impairment of hearing.
◆ Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF).
Use
Warning! Let the tool work at its own pace. Do not overload.
Warning! Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.

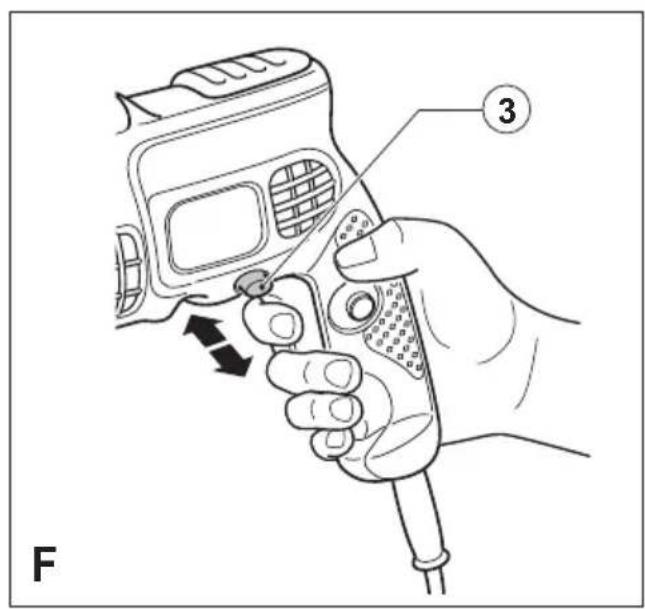

Selecting the direction of rotation (fig. F)
For drilling, use forward (clockwise) rotation.
◆ To select forward rotation, push the forward/reverse button (3) to the left position.
◆ To select reverse rotation, push the forward/reverse button to the right.
Warning! Never change the direction of rotation while the motor is running.
Selecting the drilling mode
- For drilling in masonry, set the drilling mode selector (4) to the position.
- For drilling in other materials, set the drilling mode selector to the position.

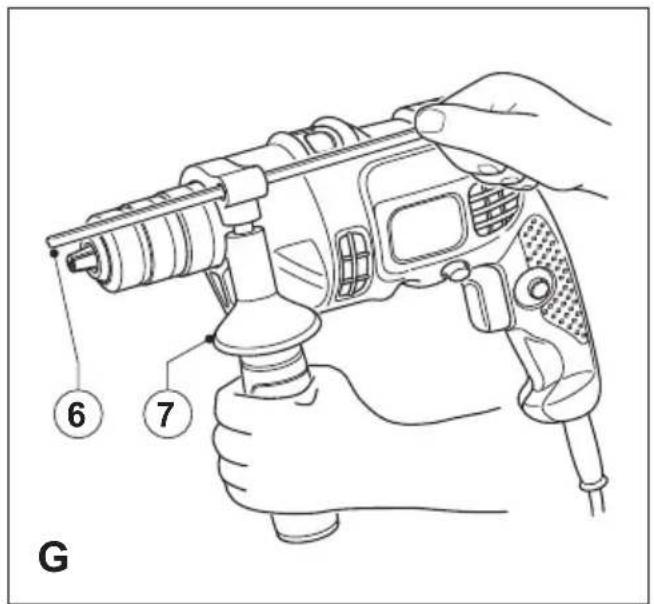

Setting the drilling depth (fig. G)
- Slacken the side handle (7) by turning the grip counter clockwise.
- Set the depth stop (6) to the desired position. The maximum drilling depth is equal to the distance between the tip of the drill bit and the front end of the depth stop.
◆ Tighten the side handle by turning the grip clockwise
ENGLISH
Switching on and off
To switch the tool on, press the variable speed switch (1). The tool speed depends on how far you press the switch. As a general rule, use low speeds for large diameter drill bits and high speeds for smaller diameter drill bits.
- For continuous operation, press the lock-on button (2) and release the variable speed switch. This option is available only at full speed in both forward and reverse modes.
◆ To switch the tool off, release the variable speed switch. To switch the tool off when in continuous operation, press the variable speed switch again and release it.
Accessories
The performance of your tool depends on the accessory used. BLACK+DECKER and Piranha accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.
Maintenance
Your BLACK+DECKER tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Warning! Before performing any maintenance, switch off and unplug the tool.
◆ Regularly clean the ventilation slots in your tool using a soft brush or dry cloth.
◆ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
◆ Regularly open the chuck and tap it to remove any dust from the interior (when fitted).
Mains plug replacement (U.K. & Ireland only)
If a new mains plug needs to be fitted:
- Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the new plug.
◆ Connect the blue lead to the neutral terminal.
Warning! No connection is to be made to the earth terminal.
Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 5 A.
Protecting the environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. BLACK+DECKER provides a facility for the collection and recycling of BLACK+DECKER products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
Technical data
| KR504RE TYPE 3 | KR504CRES TYPE 3 | KR504CRE TYPE 3 | KR554RE TYPE 3 | KR554CRES TYPE 3 | |
| Input voltage Vac 230 230 230 230 230 | |||||
| Power input W 500 500 500 550 550 | |||||
| No load speed min | -1 | 0-2800 0-2800 | 0-2800 0-2800 | 0-2800 | |
| Max drilling capacity | |||||
| Steel/concrete mm 13 13 13 13 13 | |||||
| Wood mm 20 20 20 20 20 | |||||
| Weight kg 1.4 1.6 1.6 2.0 2.0 | |||||
Level of sound pressure according to EN 60745:
Sound pressure ( L_pA ) 97 dB(A), uncertainty (K) 3 dB(A)
Sound power ( L_WA ) 108 dB(A), uncertainty (K) 3 dB(A)
Vibration total values (triax vector sum) according to EN 60745:
Impact drilling into concrete (a_h, ID) = 16.76m / s^2 , uncertainty (K) = 1.5m / s^2
Drilling into Metal (a_h,D) = 3.42m / s^2 , uncertainty (K) = 1.5m / s^2
EC declaration of conformity
MACHINERY DIRECTIVE
KR504RE, KR504CRE KR504CRES, KR554RE, KR554CRES
Black & Decker declares that these products described under "technical data" are in compliance with:
2006/42/EC, 2014/30/EU, 2011/65/EU,
EN60745-1 and EN60745-2-1
For more information, please contact Black & Decker at the following address or refer to the back of the manual.
The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker
R.Laverick
Engineering Manager
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
18-10-2014
Guarantee
Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to make sure of the minimum inconvenience to the customer unless:
The product has been used for trade, professional or hire purposes.
◆ The product has been subjected to misuse or neglect.
The product has sustained damage through foreign objects, substances or accidents.
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.
To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
ENGLISH
Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and to be kept up to date on new products and special offers. Further information on the BLACK+DECKER brand and our range of products is available at www.blackanddecker.co.uk.
Engineering Manager
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD,
Großbritannien
18-10-2014
Garantie
Engineering Manager Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD,
Royaume-Uni
18-10-2014
Garantie
2006/42/CE, 2014/30/UE, 2011/65/UE,
EN60745-1 e EN60745-2-1
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD,
Regno Unito
18-10-2014
Garanzia
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Verenigd Koninkrijk
18-10-2014
Garantie
2006/42/CE, 2014/30/UE, 2011/65/UE,
EN60745-1 y EN60745-2-1
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD,
Reino Unido
18-10-2014
Garantía
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD,
Reino Unido
18-10-2014
Garantia
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD,
Storbritannien
18-10-2014
Garanti
Stille inn boredybden (fig. G)
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD,
Storbritannia
18-10-2014
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD,
Storbritannien
18-10-2014
Garanti
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD,
Iso-Britannia
18-10-2014
Takuu
Black & Decker Europe, 210 Bath Road, Slough,
Berkshire, SL1 3YD
Ηνωμένο Βασίλειο
18-10-2014
