USER MANUAL U16MF3E8 PANASONIC

Line drawing of a multi-tiered industrial refrigerator unit (no text or symbols visible)

Model No.

OUTDOOR UNIT

3WAY (Type MF3)

U-8MF3E8

U-10MF3E8

U-12MF3E8

U-14MF3E8

U-16MF3E8

- Connectable indoor unit lineup

This booklet is the operating instructions for outdoor unit. Regarding the indoor unit, see the operating instructions supplied with the indoor unit.

INDOOR UNIT

1-Way Cassette

2-Way Cassette

4-Way Cassette

4-Way Cassette 60 × 60

Wall-Mounted

Ceiling

Low Silhouette Ducted

Slim Low Static Ducted

High Static Pressure Ducted

Floor Standing

Concealed Floor Standing

ENGLISH 2 \~ 5

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

FRANCAIS 6 \~ 9

Thank you for purchasing this Panasonic product. This product is a commercial air conditioner outdoor unit. Installation Instructions attached.

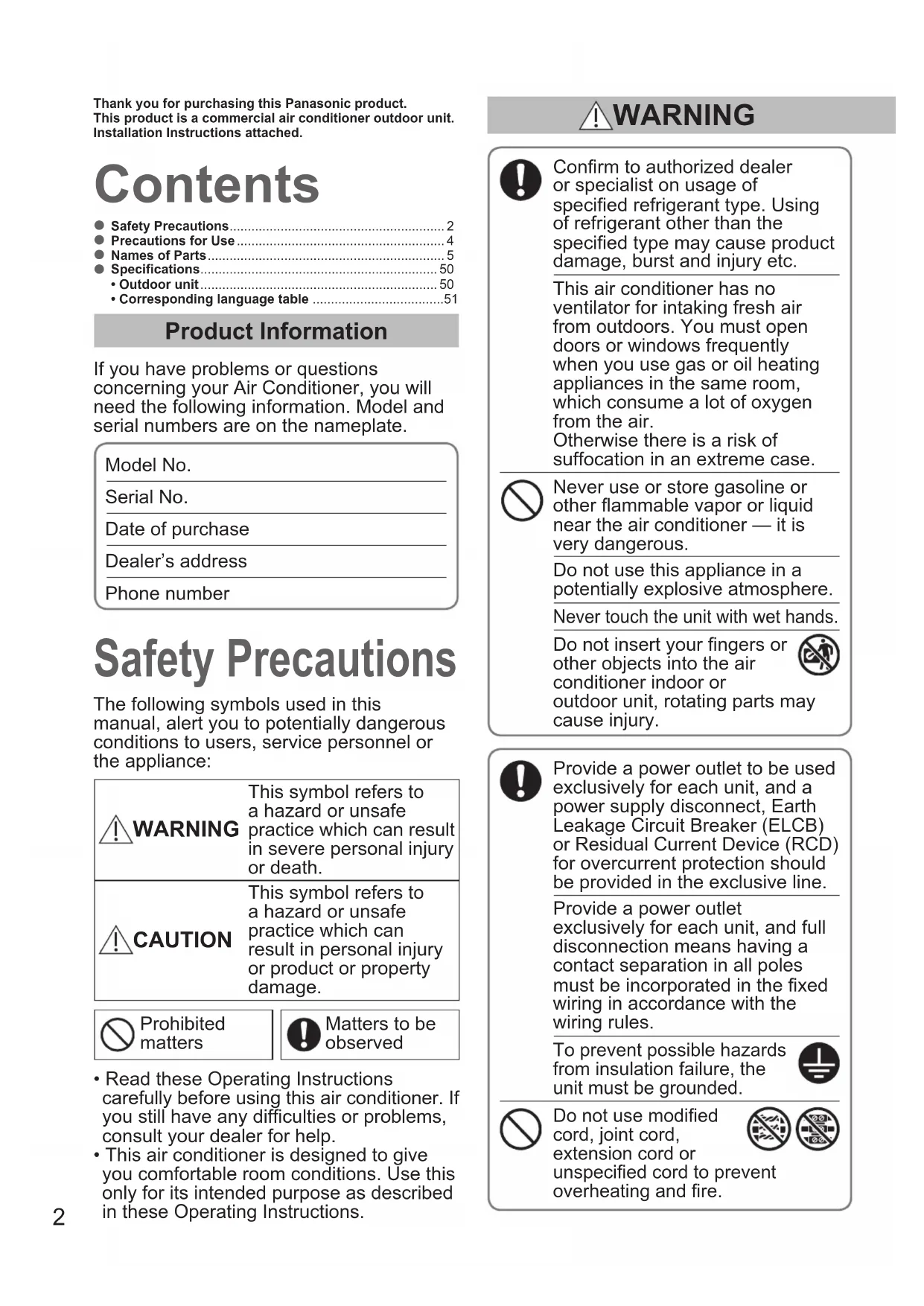

Contents

● Safety Precautions....2
● Precautions for Use 4
- Names of Parts....5
- Specifications....50
• Outdoor unit 50
• Corresponding language table ....51

Product Information

If you have problems or questions concerning your Air Conditioner, you will need the following information. Model and serial numbers are on the nameplate.

Model No.

Serial No.

Date of purchase

Dealer's address

Phone number

Safety Precautions

The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or the appliance:

WARNING

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.

Prohibited matters

Matters to be observed

• Read these Operating Instructions carefully before using this air conditioner. If you still have any difficulties or problems, consult your dealer for help.
• This air conditioner is designed to give you comfortable room conditions. Use this only for its intended purpose as described in these Operating Instructions.

WARNING

Confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the specified type may cause product damage, burst and injury etc.

This air conditioner has no ventilator for intaking fresh air from outdoors. You must open doors or windows frequently when you use gas or oil heating appliances in the same room, which consume a lot of oxygen from the air. Otherwise there is a risk of suffocation in an extreme case.

Never use or store gasoline or other flammable vapor or liquid near the air conditioner — it is very dangerous.

Do not use this appliance in a potentially explosive atmosphere.

Never touch the unit with wet hands.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Provide a power outlet to be used exclusively for each unit, and a power supply disconnect, Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) for overcurrent protection should be provided in the exclusive line.

Provide a power outlet exclusively for each unit, and full disconnection means having a contact separation in all poles must be incorporated in the fixed wiring in accordance with the wiring rules.

To prevent possible hazards from insulation failure, the unit must be grounded.

Do not use modified cord, joint cord, extension cord or unspecified cord to p overheating and fire

If the refrigerant comes in contact with a flame, it produces a toxic gas.

For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning or servicing.

Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply in case of emergency.

Dispose of according to national and/or local legislation.

This product must not be modified or disassembled under any circumstances.

Modified or disassembled unit may cause fire, electric shock or injury.

Do not clean inside the indoor and outdoor units by users. Engage authorized dealer or specialist for cleaning.

In case of malfunction of this appliance, do not repair by yourself. Contact to the sales dealer or service dealer for a repair and disposal.

Stop using the product when any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock)

Examples of abnormality/failure:

• The ELCB trips frequently.
• The product sometimes does not start when turned on.
• The power is sometimes disconnected when the cord is moved.

- Burnt odor or abnormal noise is detected during operation.

• The body is deformed or abnormally hot.

• Water leaks from the indoor unit.

• Power cord or plug becomes abnormally hot.

- Fan speed cannot be controlled.

- The unit stops running immediately even if it is switched on for operation.

- The fan does not stop even if the operation is stopped.

Contact immediately your local dealer for maintenance/repair.

CAUTION

This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Keep the fire alarm and the air outlet at least 1.5m away from the unit.

Do not cool or heat the room too much if babies or invalids are present.

Do not turn the air conditioner on and off from the power mains switch. Use the ON/OFF operation button.

Do not stick anything into the air outlet of the outdoor unit. This is dangerous because the fan is rotating at high speed.

Do not touch the air inlet or the sharp aluminum fins of the outdoor unit. You may get injured.

Do not sit or step on the unit. You may fall down accidentally.

Do not stick any object into the FAN CASE. You may be injured and the unit may be damaged.

NOTICE

• The compressor may occasionally stop during thunderstorms. This is not a mechanical failure. The unit automatically recovers after a few minutes.
• The English text is the original instructions. Other languages are translations of the original instructions.

ENGLISH

Precautions for Use

Installation

● This air conditioner must be installed properly by qualified installation technicians in accordance with the Installation Instructions provided with the unit.
- Before installation, check that the voltage of the electric supply in your home or office is the same as the voltage shown on the nameplate.

WARNING

Avoid the following locations for installation.

• Locations where smoke or combustible gas exists. Also locations of extremely high temperature such as a greenhouse.
• Locations where excessively high heat-generating objects are placed.

Attention:

• Avoid installing the outdoor unit where salty sea water can splash directly onto it or in sulphurous air near a spa. (To protect the air conditioner from heavy corrosion)

Wiring

● All wiring must conform to the local electrical codes. (Consult your dealer or a qualified electrician for details.)
● Each unit must be properly grounded with a ground (or earth) wire or through the supply wiring.
● Wiring must be done by a qualified electrician.

Operation Preparation

Turn the power mains on 5 hours before the start of operation.

(For warm-up)
- Leave the power mains ON for continuous use.

NOTE

Pull off the power plug from a receptacle, or switch off the breaker, or switch off the power disconnecting mean to isolate the air conditioner from the main power supply when not in use for a long time.

Important Information Regarding The Refrigerant Used

This product contains fluorinated greenhouse gases. Do not vent gases into the atmosphere.

Refrigerant type: R410A

GWP ^(1) value: 2088

(1) GWP = global warming potential

Periodical inspections for refrigerant leaks may be required depending on European or local legislation.

Please contact your local dealer for more information.

Operation Condition

Use this air conditioner under the following temperature range.

Outdoor Unit	Indoor temperature range	Outdoor temperature range
3WAY (Type MF3)
Cooling 14°C	~25°C (*WBT)	-10°C ~52°C (*DBT)
		-10°C ~43°C (*DBT)*1
Heating 16°C	~30°C (*DBT)	-20°C -18°C (*WBT)
Cooling & Heating	— -10°C	~24°C (*DBT)

*DBT: Dry bulb temperature

*WBT: Wet bulb temperature

*1: The maximum allowable temperature of this air conditioning system is reduced to 43^ when using the existing R22 pipe.

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Pb

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

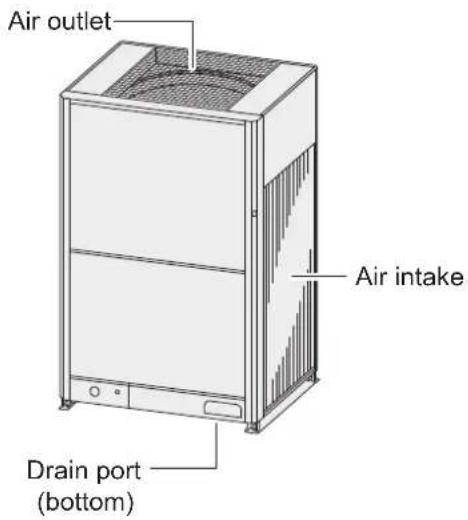

Names of Parts

OUTDOOR UNIT

Air outlet Air intake Drain port (bottom)

ENGLISH

Optional

Wireless Remote Controller

For all indoor units

Timer Remote Controller

Model No. CZ-RTC4
For all indoor units

High-spec Wired Remote Controller

Model No. CZ-RTC5B
For all indoor units

Read the operating instructions included with the Remote Controller.

Operation

Refer to the Operating Instructions attached to the optional Remote Controller.

■ Adjusting Airflow Direction

Refer to the Operating Instructions attached to the indoor unit and optional Remote Controller.

■ Maintenance

Refer to the Operating Instructions attached to the indoor unit.

Troubleshooting

Refer to the Operating Instructions attached to the indoor unit.

Rated conditions (EN14511)

Cooling : Indoor intake air temp. 27°C DB / 19°C WB. Outdoor intake air temp. 35°C DB.

Heating: Indoor intake air temp. 20°C DB. Outdoor intake air temp. 7°C DB / 6°C WB.

Indoor unit combination:

U-8MF3E8 : S-22MF2E5×8 + S-22MU2E5A×2

U-10MF3E8 : S-22MF2E5×9 + S-45MF2E5×1 + S-22MU2E5A×2

U-12MF3E8 : S-22MF2E5×8 + S-60MF2E5×2 + S-22MU2E5A×2

U-14MF3E8 : S-22MF2E5×10 + S-90MF2E5×1 + S-106MF2E5×1

U-16MF3E8 : S-22MF2E5×9 + S-60MF2E5×1 + S-106MF2E5×2

MARKINGS FOR DIRECTIVE 2014/68/EU (PED)

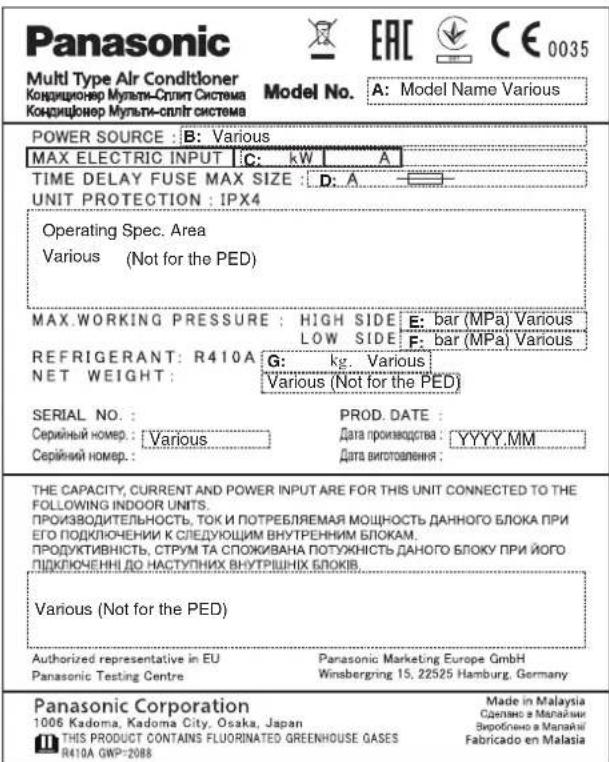

Rating nameplate figure

Panasonic Multi Type Air Conditioner Кондиционер Мульти-сплт Система Кондиционер Мульти-сплт Система Model No. A: Model Name Various POWER SOURCE : B: Various MAX ELECTRIC INPUT C: kW A TIME DELAY FUSE MAX SIZE D: A UNIT PROTECTION : IPX4 Operating Spec. Area Various (Not for the PED) MAX WORKING PRESSURE : HIGH SIDE E: bar (MPa) Various LOW SIDE F: bar (MPa) Various REFRIGERANT : R410A G: kg. Various NET WEIGHT : Various (Not for the PED) SERIAL NO. : PROD. DATE : Серийный номер : Various Дата производства : YYYY.MM Серийный номер : Дата виготовления : THE CAPACITY, CURRENT AND POWER INPUT ARE FOR THIS UNIT CONNECTED TO THE FOLLOWING INDOOR UNITS. ПРОИЗВОДИТЕЛЬНОСТЬ, ТОК И ПОТРЕБЛЯЕМАЯ МОЩНОСТЬ ДАННОГО БЛОКА ПРИ ЕГО ПОДКЛЮЧЕННИИ К СЛЕДУЮЩИМ ВНУТРЕННИМ БЛОКАМ. ПРОДУКТИВНІСТЬ, СТРУМ ТА СПОЖИВАНА ПОТУЖНІСТЬ ДАННОГО БЛОКУ ПРИ ЙОГО ПІДКЛЮЧЕННІ ДО НАСТУПНИХ ВНУТРІШНЫХ БЛОКІВ. Various (Not for the PED) Authorized representative in EU Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Panasonic Corporation Made in Malaysia 1006 Kadoma, Kadoma City, Osaka, Japan Сделанс в Малахии THIS PRODUCT CONTAINS FLUORINATED GREENHOUSE GASES R410A GWP:2088 Звроблено в Малахій Fabricado en Malasia

Tabulation of Various data

A	U-8MF3E8 U-10MF3E8	U-12MF3E8
B	380-400-415 V 3N ~ 50Hz
C	9.36 kW, 14.0 A	11.8 kW, 18.0 A	13.5 kW, 20.0 A
D	25 A	25 A	30 A
E	38.0 bar (3.80 MPa)
F	31.1 bar (3.11 MPa)
G	6.8 kg	6.8 kg	8.3 kg

A	U-14MF3E8	U-16MF3E8
B	380-400-415 V 3N ~ 50Hz
C	19.4 kW, 30.0 A	21.2 kW, 32.0 A
D	40 A	40 A
E	38.0 bar (3.80 MPa)
F	31.1 bar (3.11 MPa)
G	8.3 kg	8.3 kg

Corresponding language table

English Français Español Deutsch
3WAY (Type MF3) 3WAY (Type MF3) 3WAY (Tipo MF3) 3WAY (Typ MF3)
1-Way Cassette Cassette 1 voies Cassette de 1 vías 1-Weg Kassette
2-Way Cassette Cassette 2 voies Cassette de 2 vías 2-Weg Kassette
4-Way Cassette Cassette 4 voies Cassette de 4 vías 4-Weg Kassette
4-Way Cassette 60 × 60 Cassette 4 voies 60 × 60 Cassette de 4 vías 60 × 60 4-Weg Kassette 60 × 60
Wall-Mounted Fixation au mur Montaje en pared Wand montiert
Ceiling	Plafond	Techo	Deckenmontage
Low Silhouette Ducted	Conduit discret	Conducto de perfil bajo	Kanalgerät, flache Bauform
Slim Low Static Ducted	Conduit Mince Faible Statique	Conductos finos de presión estática	Flaches Kanalgerät mit niedriger statischer Pressung
High Static Pressure Ducted	Conduit Haute Pression Statique	Conductos de presión estática alta	Kanalgerät mit hoher statischer Pressung
Floor Standing	Installation au sol	Montaje de suelo	Staand
Concealed Floor Standing	Installation au sol dissimulée	Montaje de suelo oculto	Verborgen staand
MARKINGS FOR DIRECTIVE 2014/68/EU (PED)	REPÈRES POUR LA DIRECTIVE 2014/68/EU (PED)	MARCAS PARA LA DIRECTIVA 2014/68/EU (PED)	MARKIERUNGEN FÜR DIE EG-RICHTLINIE 2014/68/EU (PED)
Rating nameplate figure	Figure de la plaque signalétique nominale	Figura de la placa de características	Abbildung des Typenschilds
Tabulation of Various data	Tableau de données diverses	Tabulación de diversos datos	Tabellarische Übersicht verschiedener Daten

English Italiano	Nederlands	Português
3WAY (Type MF3) 3WAY (Tipo MF3)	3WAY (Type MF3) 3WAY (Tipo MF3)	Cassete de 1 vias
1-Way Cassette A cassetta a 1 vie 1	- weg cassette
2-Way Cassette A cassetta a 2 vie 2	- weg cassette
4-Way Cassette A cassetta a 4 vie 4	- weg cassette
4-Way Cassette 60 × 60	A cassetta a 4 vie 60 × 60	4-weg cassette 60 × 60	Cassete de 4 vias 60 × 60
Wall-Mounted	Montato a parete	Aan de muur gemonteerd	Unidade instalada na parede
Ceiling	A soffitto	Plafond	Tecto
Low Silhouette Ducted	Con condotto a profilo basso	Met laagprofiel kanalen	Com conduta de silhueta baixa
Slim Low Static Ducted	Sottile a condotto a bassa pressione statica	Slim lage statische druk kanaal	Estática baixa fina no tubo
High Static Pressure Ducted	A condotto ad alta pressione statica	Kanaalmodel met hoge statische druk	Pressão estática elevada no tubo
Floor Standing	A pavimento	Staand	Unidade de chão
Concealed Floor Standing	A pavimento a scomparsa	Verborgen staand	Unidade de chão de condutas
MARKINGS FOR DIRECTIVE 2014/68/EU (PED)	CONTRASSEGNI CONFORMI ALLA DIRETTIVA 2014/68/EU (PED)	AANDUIDINGEN VOOR RICHTLIJN 2014/68/EU (PED)	MARCAÇÕES PARA A DIRECTIVA 2014/68/EU (PED)
Rating nameplate figure Targhetta dei dati nominali		Afbeelding naamplaatje met technische gegevens	Figura da placa de identificação dos valores nominais
Tabulation of Various data	Tabelle dei dati tecnici	Tabel met diverse gegevens	Tabulação dos dados Vários

Specifications

Corresponding language table

© Panasonic Corporation 2018

Printed in Malaysia
