Product type	Laser projector for shows and displays
Brand	Laserworld
Model	EL60G II
Laser class	3B
Laser sources	DPSS (532 nm green), guaranteed output 40-60 mW
Scanner	High-performance stepper motors, 2-5 kpps
Scan angle	30° max
Operating modes	Auto / music (sound synchronization)
Beam	Approx. 3 mm / 1.5 mrad
Power supply	100V – 250V AC, 50/60 Hz
Power consumption	30 W
Operating temperature	+10°C to +35°C
Dimensions (L x W x H)	180 x 130 x 65 mm
Weight	1.33 kg
Package contents	1 laser projector, 1 power cable, 2 keys, 1 interlock connector
Installation	Professional use, installation by qualified personnel, minimum distance 15 cm from walls
Safety	Do not look into the beam, wear appropriate safety goggles, use non-reflective tools
Maintenance	Clean fans and cooling fins, avoid moisture and excessive heat, allow 15 min cool-down per hour of operation
Spare parts and repairability	Contact Laserworld dealer; any repair by unauthorized personnel voids warranty
Warranty	Removal of warranty sticker voids all coverage

Frequently Asked Questions - EL60G II Laserworld

What is the laser class of the Laserworld EL60G II?

The Laserworld EL60G II is a class 3B laser projector. This means it emits a visible beam that is potentially hazardous to the eyes. Its use is reserved for professional purposes (shows and displays) and requires wearing appropriate safety goggles.

How to connect and turn on the device?

1. Connect the power cable to the device and to the mains socket. 2. Insert the key into the key switch and turn to 'ON'. 3. Ensure the Interlock connector is plugged in. 4. Press 'ON' to power on. The device starts in music mode. To turn off, press 'OFF', turn the key to 'OFF' and unplug the cable.

What safety precautions should I take before using the laser?

Never look directly at the laser beam. Use non-reflective tools and remove any reflective objects (rings, watches). Wear safety goggles appropriate for the wavelength (532 nm). Ensure the installation respects safety distances and that the power can be shut off in an emergency via an emergency stop or the Interlock connector.

Can I use the laser outdoors?

No, outdoor use is not recommended. The device must be protected from moisture, rain and splashing water. Its environment must be dry and sheltered from the elements. Also, the operating temperature is limited to +10°C to +35°C.

How to maintain the laser projector?

Clean the fans and cooling fins regularly to prevent overheating. Avoid rapid and successive power-ons and power-offs. Allow the device to cool down for about 15 minutes per hour of use. Store and transport it in a suitable flight case. Any internal intervention must be performed by authorized personnel.

What to do if the device does not turn on?

First check that the power cable is properly connected and that the mains voltage matches 100V-250V AC. Make sure the key is in 'ON' position and the Interlock connector is correctly inserted. If the problem persists, contact your Laserworld dealer. Do not open the device yourself, as this will void the warranty.

What is the power of the green laser?

The green laser (532 nm) of the EL60G II has a guaranteed output of 40-60 mW at the module. This power is sufficient for indoor show effects, but requires strict adherence to safety rules.

Can the device be controlled via DMX?

No, the EL60G II does not have a DMX input. It operates in standalone mode (Auto) or synchronized to music (music mode) via a sensitivity potentiometer at the back. For advanced control, other models from the Laserworld range should be considered.

What accessories are included with the projector?

The package contains: 1 laser projector EL60G II, 1 power cable, 2 keys (for the key switch), 1 Interlock connector (already attached), and the user manual. No flight case or safety goggles are included.

How to properly turn off the laser?

To turn off, first press the 'OFF' button on the front of the device. Then turn the key to 'OFF' and unplug the power cable from the mains socket. Even when turned off, the laser remains powered in standby, so unplugging is essential for complete safety.

USER MANUAL EL60G II Laserworld

Please spend a few minutes to read this manual fully before operating this laser!

Thank you for purchasing this Laserworld

product. Due to continual product developments and technical improvements, Laserworld (Switzerland) AG reserves the right to make modifications to its products. This manual and its content have been made with due care but Laserworld (Switzerland) AG cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith. The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.

1. Product and package contents

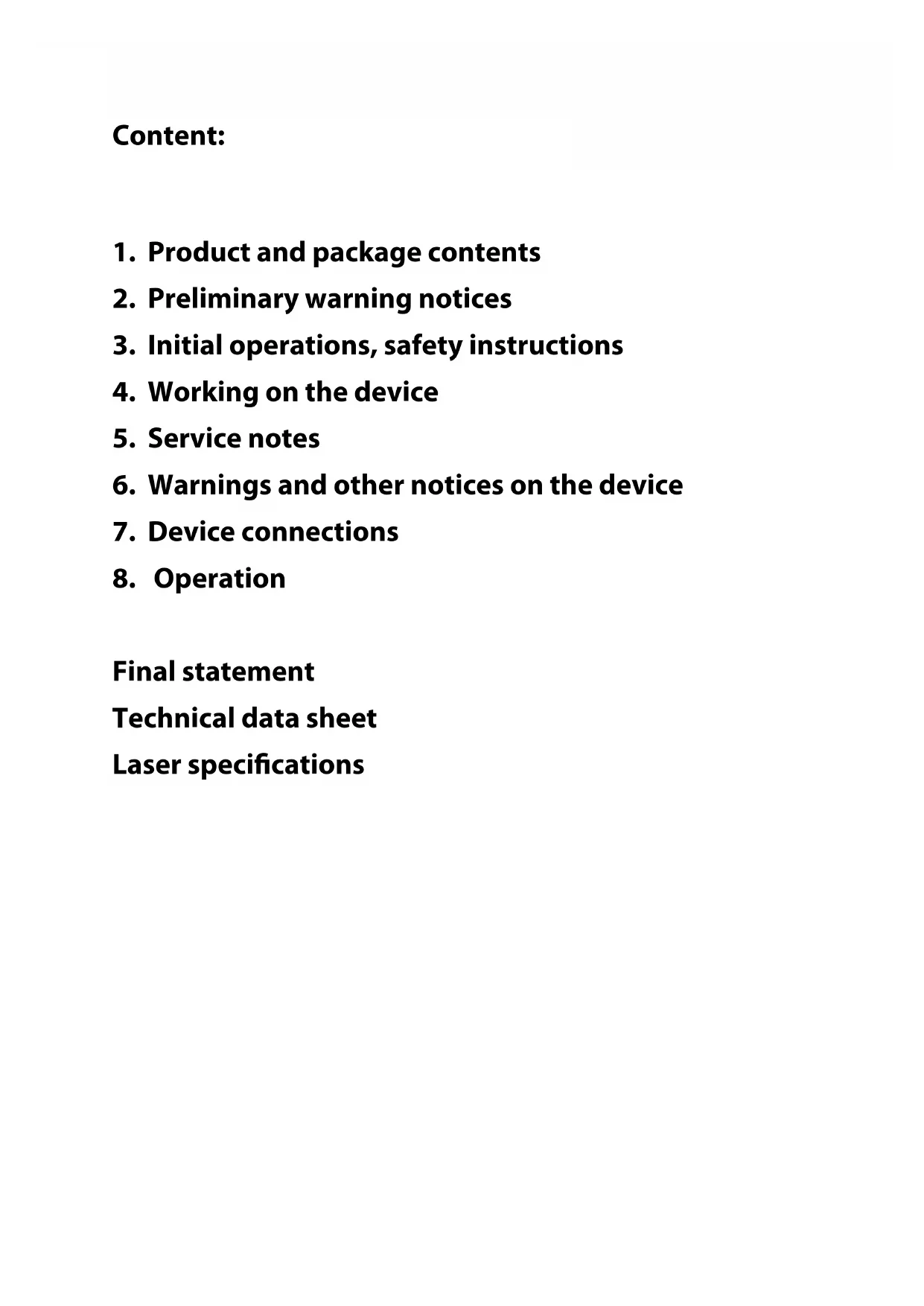

2. Preliminary warning notices
3. Initial operations, safety instructions
4. Working on the device
5. Service notes
   6.Warnings and other notices on the device
6. Device connections
7. Operation

Final statement

Technical data sheet

Laser specifications

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser projector 1 x manual 2 x key (for key switch)

1 x power cable 1 x Interlock connector

(already attached)

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, connector panels, power supplies or power cords.
3. Never look directly into the light source of a laser projector. Danger of damage to the eyes or even blindness in extreme circumstances!
4. Do not operate the device at high humidity, rain or in dusty surroundings.
5. Protect device against dripping or splashing water. Do not place any liquid filled containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered with in any way.

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see information on device & in this manual.
2. Make sure that the device is not connected to mains during installation.
3. Installation has to be done by technical experienced and qualified persons according to safety regulations of the respective country.
4. Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.

5. In some countries an additional inspection by technical control institutes could be necessary.

6. Connectaneasilyaccessible interlock connector or circuit breaker to the projector.

7. The power supply should be easily accessible.
8. When installing the laser keep mount it with a minimum distance of 15cm from walls and objects.

9. For safe setup e.g. on walls or ceilings please use a safety cord. The safety cord should be able to withstand tenfold the weight of the device. Please follow the accident prevention regulations of professional associations and/or comparable regulations for accident prevention.

10. If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation (or any moisture/water formed) may damage device.

11. Never use dimmer, RC or other electronically switched sockets. Whenever possible, do not use the laser projector together with large appliances (especially fog machines) on the same mains!

12. Ensure sufficient ventilation and do not place the device on any warm or heat radiating surface. Especially the ventilation openings must not be covered!

13. Ensure that device does not get overheated. Make sure that the device is not exposed to spotlights (especially moving heads). Heat of spotlights could overheat laser in a little while and leads to a degradation of performance.

4. Working on the device

1. This product has no user serviceable parts inside and should only be maintained and serviced by a qualified engineer.
2. Be sure that the mains plug is not connected to the power supply while installing or opening the device (e.g. for cleaning).
3. Take off all reflecting things like rings, watches etc. before start working with or at the projector.
4. Use only non-reflecting tools to work on device.
5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wavelength of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of the laser system dramatically and expires any warranty claim.
• Quick on/off switching of this device will reduce durability of the laser diode dramatically.
• Avoid sharp knocks and shocks to this device and ensure sufficient protection during transportation. Look after your Laserworld product.
  To increase durability of your laser, protect device against overheating:
  Always ensure sufficient ventilation.
• Do not face spotlights (especially moving heads) to the device.

• Check temperature after approx. 30 minutes with each new installation. If necessary install the projector at a place with different temperature.

• Switch off device when it is not needed. Diodes are switched on and can wear out even if there is no visible laser output.

• Keep the device dry. Protect it from moisture, rain and damp.
  The devices of Ecoline Series are not meant for professional applications. After approx. one hour of operation, the device should cool down for about 15 minutes.
• Please ensure the fans and heatsinks are clear from dust and debris otherwise the risk of overheating may occur. If the unit and

airways appear to be blocked then please contact a qualified service engineer to maintain and service the product.

• Removal of the warranty label as well as damages to the device caused by improper handling, neglect of the safety instructions and service notes will void the warranty.

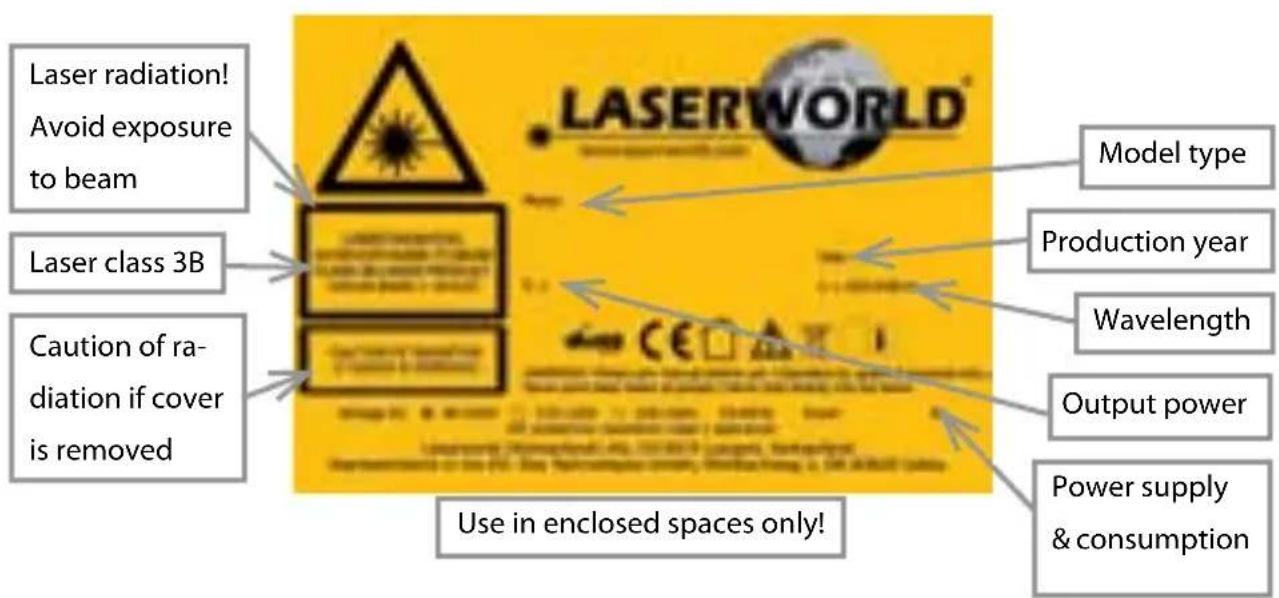

6.Warnings and other notices on the device

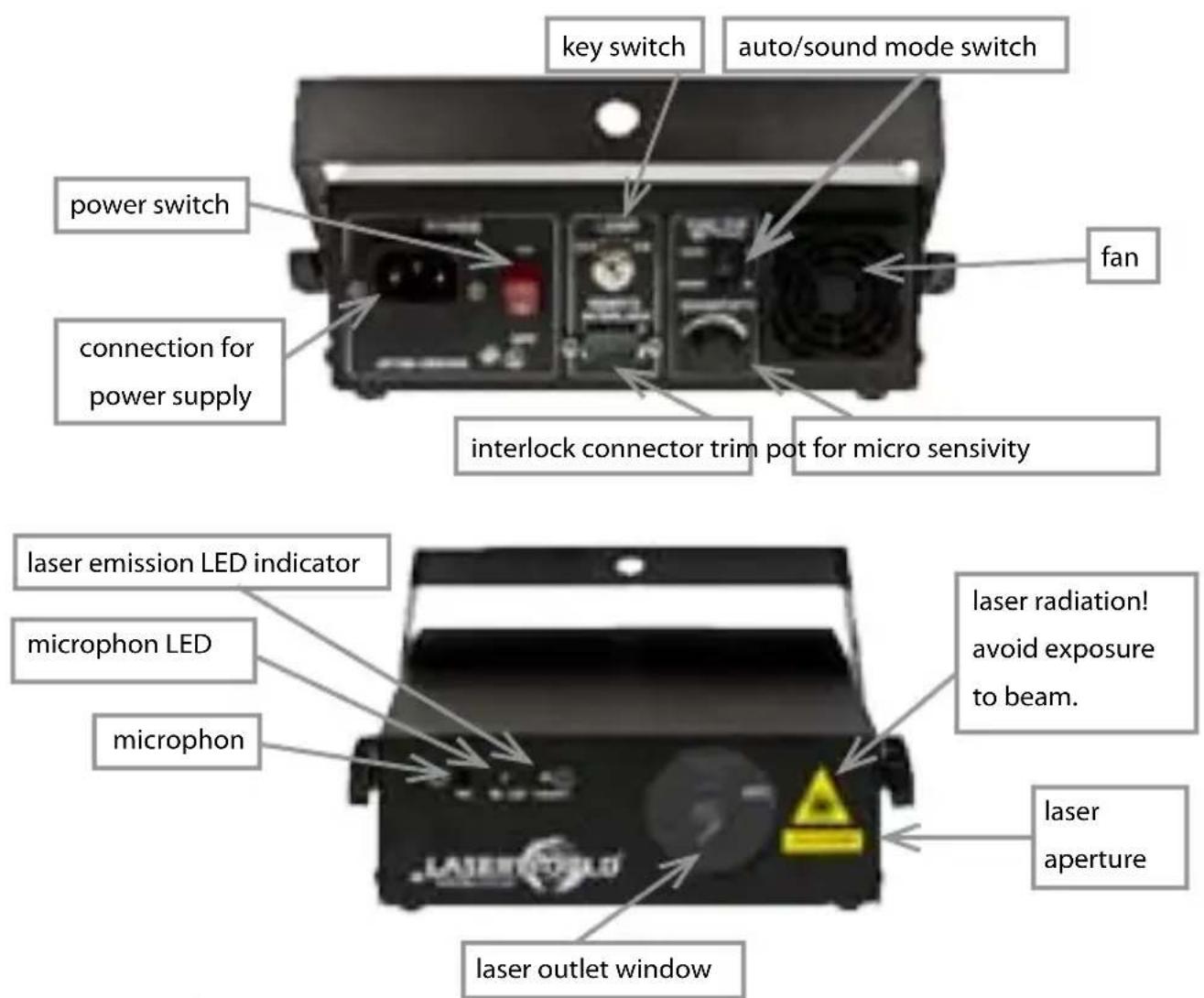

7. Device connections

8. Operation

1. Connect the power cable to the device and then to the mains

2. The Interlock adapter is already attached. There is no need to change anything. The show laser doesn't work if the interlock adapter isn't connected to the device.

3. Press "ON" to switch the device on

4. Insert the key into the key switch and turn it ON

5. Your device will start running in either auto or sound mode now. You can select the mode by using the auto / sound switch located on the rear side of the unit.

6. Control the microphone sensitivity with the trim pot located on the rear side of the unit. The LED is flashing when the device is triggered.

7. To turn off the device, move the key switch to "OFF", switch the device off ("OFF") and disconnect the power cable from the mains.

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse. Users must to follow the local safety regulations and warnings within this manual and adhere to any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products. Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website. For service issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and omissions excepted and products are subject to change.

Laserworld (Switzerland) AG

Kreuzlingerstrasse 5

8574 Lengwil

SWITZERLAND

Registered office:
