USER MANUAL CS1000RGB Laserworld

Please spend a few minutes to read this manual fully before operating this laser!

Thank you for purchasing this Laserworld product.

Due to continual product developments and technical improvements,

Laserworld (Switzerland) AG reserves the right to make modifications to its products.

This manual and its content have been made with due care but Laserworld (Switzerland) AG cannot however, take any responsibility for any errors, omissions or any resulting damages forthwith.

The brands and product names mentioned in this manual are trade marks or registered trade marks of their respective owners.

Attention: This device is a show laser device for commercial use. This device is not a laser pointer, not suitable for pointing purposes and must not be used as a laser pointer.

1. Product and package contents 4
2. Preliminary warning notices 4
3. Initial operations, safety instructions 4
4. Working on the device 5
5. Service notes 5
   6.Warnings and other notices on the device 6
6. Device connections 7
7. Operation 8

8.1. Tum on the Laser system 8

8.2. Set Operation Modes: 8

8.2.1. SOUND-TO-LIGHT 8
8.2.2.STAND-ALONE/AUTO 8
8.2.3. MASTER-SLAVE 9
8.2.4. DMX 512 10
8.2.5. SETTINGS 12
8.2.6. ILDA/COMPUTERCONTROL 14

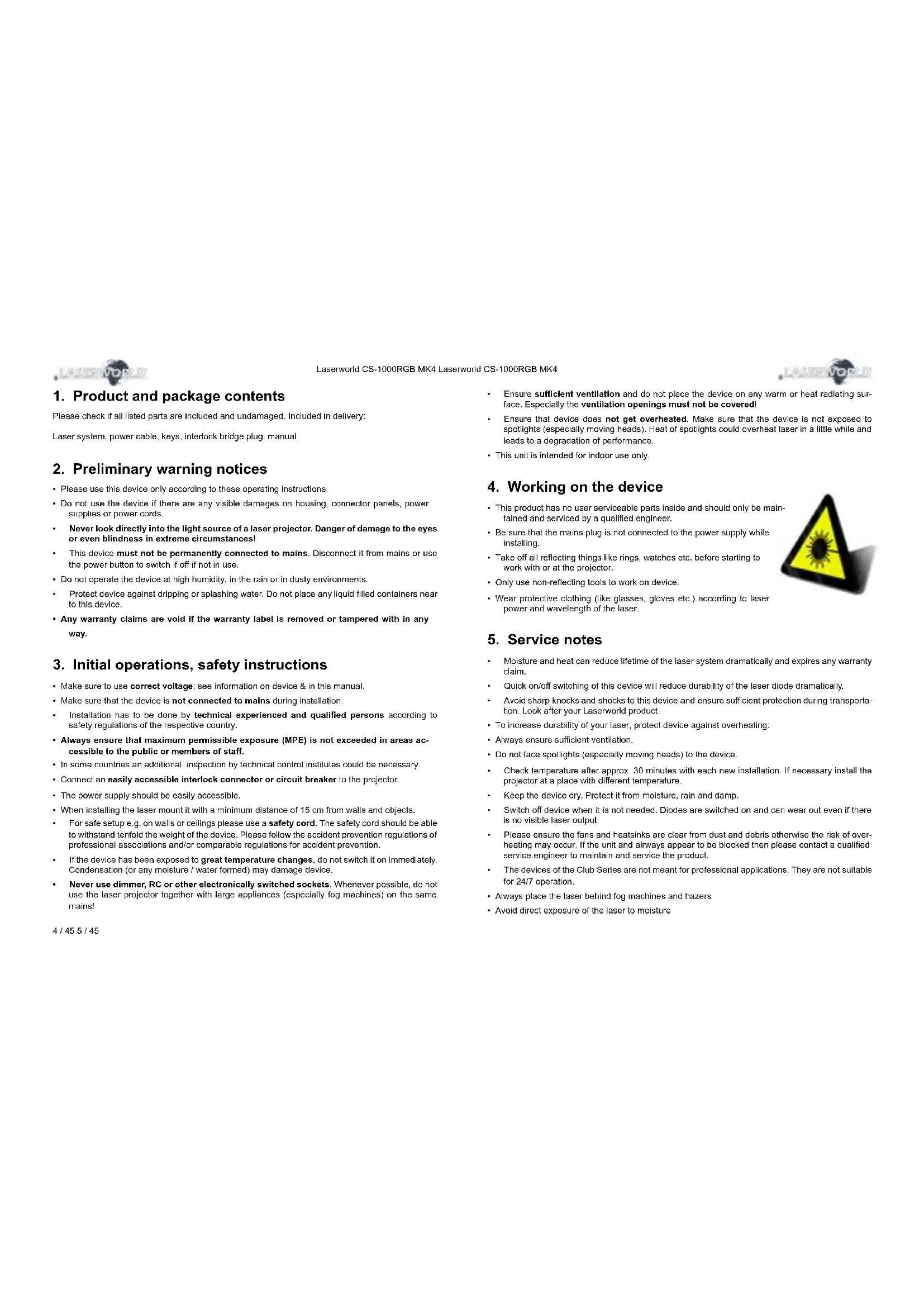

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

Laser system, power cable, keys, interlock bridge plug, manual

2. Preliminary warning notices

• Please use this device only according to these operating instructions.
• Do not use the device if there are any visible damages on housing, connector panels, power supplies or power cords.
• Never look directly into the light source of a laser projector. Danger of damage to the eyes or even blindness in extreme circumstances!
  This device must not be permanently connected to mains. Disconnect it from mains or use the power button to switch if off if not in use.
• Do not operate the device at high humidity, in the rain or in dusty environments.
• Protect device against dripping or splashing water. Do not place any liquid filled containers near to this device.
• Any warranty claims are void if the warranty label is removed or tampered with in any way.

3. Initial operations, safety instructions

Make sure to use correct voltage; see information on device & in this manual.
Make sure that the device is not connected to mains during installation.
- Installation has to be done by technical experienced and qualified persons according to safety regulations of the respective country.
- Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff.
- In some countries an additional inspection by technical control institutes could be necessary.
- Connect an easily accessible interlock connector or circuit breaker to the projector.
The power supply should be easily accessible.
- When installing the laser mount it with a minimum distance of 15 cm from walls and objects.
- For safe setup e.g. on walls or ceilings please use a safety cord. The safety cord should be able to withstand tenfold the weight of the device. Please follow the accident prevention regulations of professional associations and/or comparable regulations for accident prevention.
- If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation (or any moisture / water formed) may damage device.
- Never use dimmer, RC or other electronically switched sockets. Whenever possible, do not use the laser projector together with large appliances (especially fog machines) on the same mains!

• Ensure sufficient ventilation and do not place the device on any warm or heat radiating surface. Especially the ventilation openings must not be covered!
• Ensure that device does not get overheated. Make sure that the device is not exposed to spotlights (especially moving heads). Heat of spotlights could overheat laser in a little while and leads to a degradation of performance.
  This unit is intended for indoor use only.

4. Working on the device

• This product has no user serviceable parts inside and should only be maintained and serviced by a qualified engineer.
• Be sure that the mains plug is not connected to the power supply while installing.
• Take off all reflecting things like rings, watches etc. before starting to work with or at the projector.
• Only use non-reflecting tools to work on device.
• Wear protective clothing (like glasses, gloves etc.) according to laser power and wavelength of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of the laser system dramatically and expires any warranty claim.
  Quick on/off switching of this device will reduce durability of the laser diode dramatically.
• Avoid sharp knocks and shocks to this device and ensure sufficient protection during transportation. Look after your Laserworld product.
  To increase durability of your laser, protect device against overheating:
  Always ensure sufficient ventilation.
• Do not face spotlights (especially moving heads) to the device.
• Check temperature after approx. 30 minutes with each new installation. If necessary install the projector at a place with different temperature.
• Keep the device dry. Protect it from moisture, rain and damp.
• Switch off device when it is not needed. Diodes are switched on and can wear out even if there is no visible laser output.
• Please ensure the fans and heatsinks are clear from dust and debris otherwise the risk of overheating may occur. If the unit and airways appear to be blocked then please contact a qualified service engineer to maintain and service the product.
  The devices of the Club Series are not meant for professional applications. They are not suitable for 24/7 operation.
  Always place the laser behind fog machines and hazers
• Avoid direct exposure of the laser to moisture

Laserworld CS-1000RGB MK4 Laserworld CS-1000RGB MK4

Clean the exit window with glass cleaner from time to time
- Removal of the warranty label as well as damages to the device caused by Improper handling, neglect of the safety instructions and service notes will void the warranty

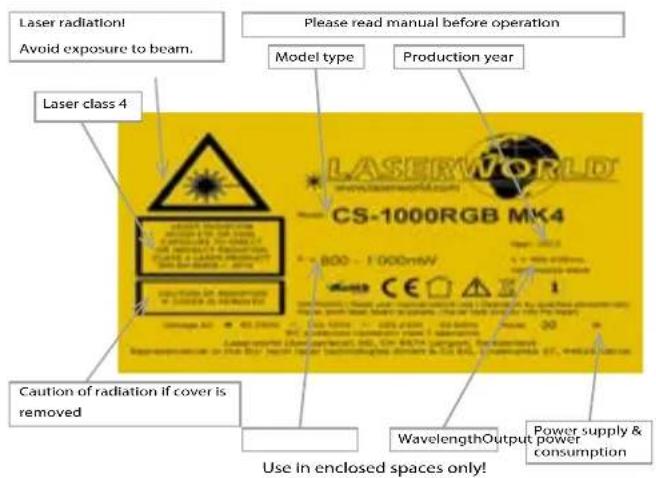

6.Warnings and other notices on the device

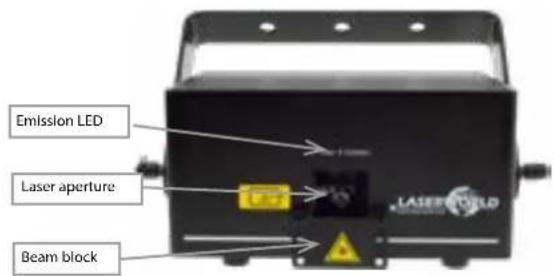

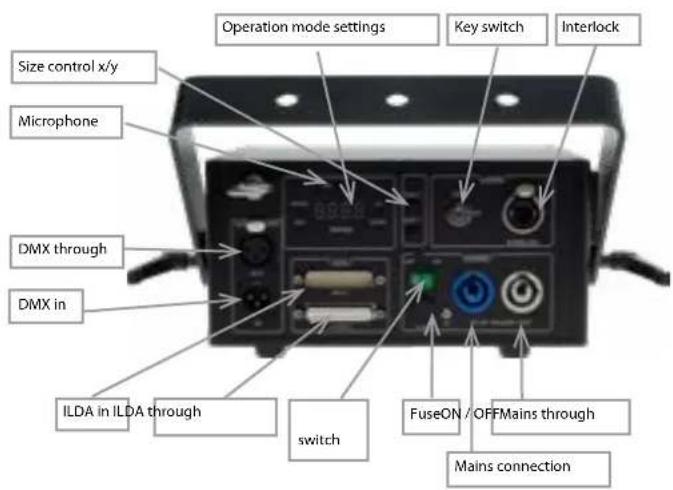

7. Device connections

8. Operation

8.1. Turn on the Laser system

• Connect the power cable to the device and then to the mains
• Insert key and turn it to ON
• Press the ON switch to turn on the device
• An Interlock bridge adapter is included in delivery (small network plug). Attach an E-Stop to the Interlock Interface or use the bridge connector to enable laser output
• Safety Presets

This device has an integrated Scan Safety. Is the Scan Safety active (on), single beams are prevented. Only disable the Scan Safety for testing purposes. Do not switch off the Scan Safety for productive use of the laser! Read more: 8.2.5. Settings

8.2. Set Operation Modes:

The different operation modes can be selected via the four buttons around the .Settings" display.

"Enter" confirms a selection or navigates to the selected menu item

,Up" / ,Down" allows for stepping through the current menu or make a selection

"Exit" exits the current menu item and moves one level higher.

8.2.1. SOUND-TO-LIGHT

Sound-to-light operation allows for playing back the integrated patterns to the beat of the music.

Select „SoUd" by navigating with the „Up“/„Down“ buttons and confirm with „Enter“:

Standard Selection is All, which means that all patterns saved on the main board are played back. L001 & L002 have no functional use, please select ALL:

To set the sensitivity of the internal microphone, refer to chapter 8.2.5. Settings

8.2.2.STAND-ALONE/AUTO

• Stand-alone, or Auto, operation allows for playback of the internal patterns without any control. They are played back according to the internal system settings.

Select AUto by navigating with the,Up" / Down" buttons and confirm with Enter:

Standard Selection is "All", which means that all patterns saved on the main board are played back. L001 & L002 have no functional use, please select ALL:

8.2.3.MASTER-SLAVE

The CS-1000RGB is Master-Slave capable. this means that the Master laser system can hand on a control signal to one or more Slave lasers, so all do the same.

Master-Slave only works with lasers of the same product series of the same product generation.

A: Link lasers with DMX cable

To use Master-Slave operation, link the Master with the Slave lasers with DMX cable. Make sure to use the "DMX out" port on the Master and the "DMX in" on the Slave lasers. If several Slave lasers are used, link the first one to the Master laser and daisy-chain the control signal from the first Slave laser to the second etc..

B:Activate Master Laser

The Master laser needs to be set as control source.

Select SET by navigating with the Up^ /Down" buttons and confirm with Enter:

use the .Up" / .Down" buttons to navigate to .uASI

Press "Enter", use the "Up" / "Down" buttons to switch the option to "on" and confirm with "Enter"

Laserworld CS-1000RGB MK4 Laserworld CS-1000RGB MK4

C: Deactivate Master setting on Slave lasers

As soon as the Master option is set to _on", the laser sends out the control signal for the Slave units. Make sure that all Slave units have the Master setting set to _off":

D: Set Sound-to-Light or Auto mode on Master laser

To use the Master-Slave operation: Set the Master to either Sound-to-Light mode (8.2.1) or Auto mode (8.2.2).

E: Establish link to Slave lasers

The Slave units must be set to DMX (,d512^) mode and must be assigned address 001 (see 8.2.4. DMX 512)

8.2.4.DMX512

The DMX mode requires a DMX controller or a Master laser (see 8.2.3. Master-Slave operation) to be connected to the laser.

To switch to DMX mode, select "d512" by navigating with the "Up" / "Down" buttons and confirm with .Enter:

The submenu for setting the DMX address loads:

Press „Enter" and the „Up" / „Down" buttons to set the desired DMX address.

Confirm with „enter" and press „Exit" to return to the main menu.

DMX Chart

The laser uses 18 DMX channels, so make sure that the next device uses an address that doesn't overlap with this range.

Channel Value Function
1 Intensity 0 Laser off, CH2	-18 not available
	1 - 255 RGB	Intensity 0~100% (also affects sound and auto mode)
2 Pattern select 0 - 255 Pattern selection
3 Rotation (Z-axis) 0 - 127	Rotation angle selection
	128 - 191 Rotation counter-clockwise speed
	192 - 255 Rotation clockwise speed
4 X-axis Rotation 0 - 127 Rotation X position steps
			128 - 255 Rotation X speed
5 Y-axis Rotation 0 - 127 Rotation Y position steps
			128 - 255 Rotation Y speed
6 X-axis Movement	0 - 127	X-axis movement position
	128 - 255 X-axis movement speed
7 Y-axis Movement	0 - 127	Y-axis movement position
	128 - 255 Y-axis movement speed
8 Size X 0 - 255 Size X from big to small
9 Size Y 0 - 255 Size Y from big to small
10 Pattern gradient	0 - 255	Gradient speed
11 Scan speed / Points	0 - 127	Scan speed
	128 - 255 Point speed
12 Color change	0 - 24 Original color
	25 - 199	Color selection
	200 - 224 Automatic color change effect
	225 - 255 Rainbow color change effect
13 Color speed	0 - 255	Speed adjustment for automatic color change effect and multi color step through

Laserworld CS-1000RGB MK4 Laserworld CS-1000RGB MK4

Channel Value Function
14 No use
15 Operation mode 0 - 199		DMX mode	CH 1 - 18 available
		200 - 224 Sound mode, CH 1 & CH 16 - 18 available
		225 - 255 Auto mode, CH 1 & CH 16 - 18 available
16 Red adjust 0 - 255 Red brightness		adjust 100~0% (also affects sound and auto mode)
17 Green adjust 0 - 255 Green brightness		adjust 100~0% (also affects sound and auto mode)
18 Blue adjust 0 - 255 Blue brightness		adjust 100~0% (also affects sound and auto mode)

8.2.5. SETTINGS

To access the settings, select SET by navigating with the Up/Down buttons and confirm with Enter:

The settings menu holds several configuration options for the laser system.

Master Setting

The .μAST" menu allows for the activation and deactivation of the Master mode for the laser. If the laser is set to Master > On, then it can be used as Master-Slave device in a Master-Slave setup. See more in 8.2.3. Master-Slave".

Press Enter to change the settings. Use the Up^ Down button to change the selection.

Confirm with,Enter.

12/4513/45

Safety Setting

The "bEAu" menu can switch the beam block safety on and off. The beam block safety prevents that very intense, single beams can be displayed. It is highly recommended to not switch this feature off. Switching off the beam block safety is at your own risk! Lasers with switched off beam block safety may only be used in safe areas.

Always respect the local laws!

Press Enter to change the settings. Use the ^ / button to change the selection.

The Inve^E -menu controls the orientation of the projection. You can invert the projection and flip it to match the orientation of the laser with the content.

Press „Enter“ to change the settings. A test picture is shown to represent the currently set orientation. Use the „Up“ button to change the selection, and confirm the selection with „Enter“ to change the test picture projection

Press,Exit to return to the settings menu.

Microphone Sensitivity Settings

The sensitivity of the built-in microphone for the control of the sound-to-light operation can be adjusted in the "SEnS" menu. Press "Enter" to change the settings. Use the "Up" / "Down" button to change the selection.

Laserworld CS-1000RGB MK4 Laserworld CS-1000RGB MK4

The sensitivity can be adjusted between 1 and 100. Standard value is 50.

8.2.6. ILDA / COMPUTER CONTROL

The laser can be used with any laser control software that supports the ILDA control signal via sub-d connector. Use an ILDA cable to connect the Digital Analog Converter (DAC / ILDA interface) of the laser software to the ILDA in port at the laser.

The laser automatically detects if a DAC is connected and switches to ILDA operation. For safety reasons always make sure to first switch the laser to DMX operation mode (See 8.2.4. DMX Operation) before you connect the ILDA cable, to prevent unintended laser emission if the ILDA cable is removed by accident.

Recommended computer control software for your laser:

Showeditor Set with ShowNET www.showeditor.com

Showcontroller Set with ShowNET www.showcontroller.com

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse. Users must to follow the local safety regulations and warnings within this manual and adhereto any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products.

Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website.

For service issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and omissions excepted and products are subject to change.

Laserworld AG

Kreuzlingerstrasse 5

8574 Lengwil / SWITZERLAND

Registered office:

8574 Lengwil / Switzerland

Company number: CH-440.3.020.548-6

Commercial Registry Kanton Thurgau

CEO: Martin Werner

VAT no. (Switzerland): 683180

UID (Switzerland):CHE-113.954.689

VAT no. (Germany): DE 258030001

WEEE-Reg-No. (Germany): DE 90759352

www.laserworld.com

[e-mail]

representative according to EMVG:

tarm laser technologies

tGmbH & Co.KG

Lindenallee 27

D-44625 Heme

Laserworld CS-1000RGB MK4 Laserworld CS-1000RGB MK4

Inhalt

Showeditor Set with ShowNET www.showeditor.com

Showcontroller Set with ShowNET www.showcontroller.com

Laserworld CS-1000RGB MK4 Laserworld CS-1000RGB MK4

representative according to EMVG:

tarm laser technologies

ttGmbH&Co.KG

Lindenallee 27

D-44625 Heme

28/45 29/45

Laserworld CS-1000RGB MK4 Laserworld CS-1000RGB MK4

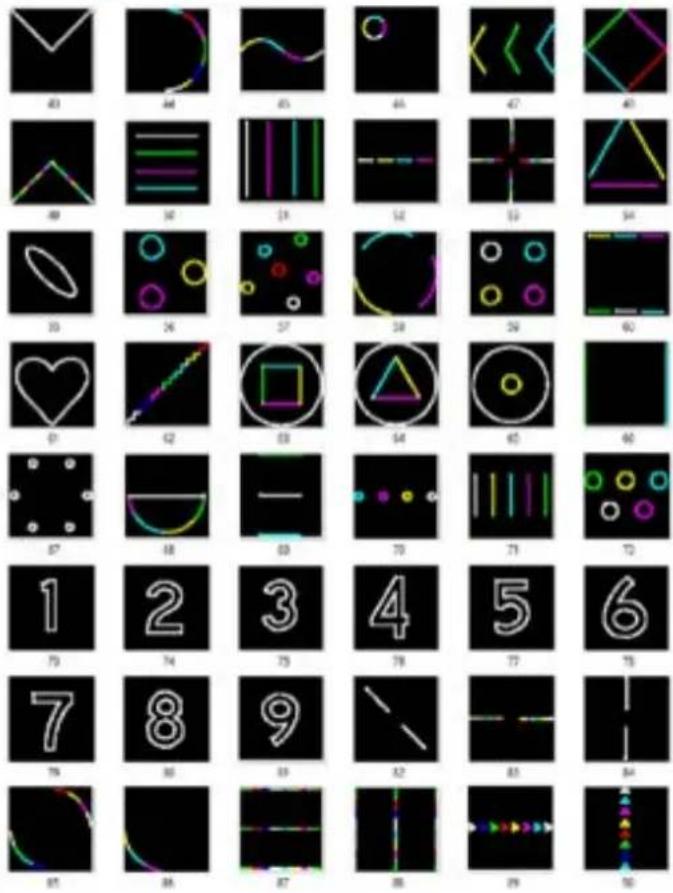

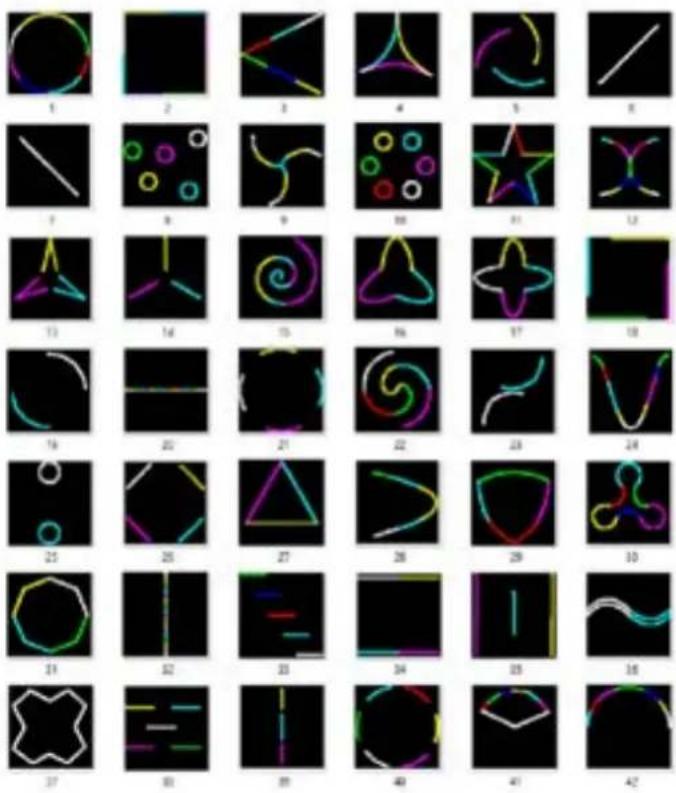

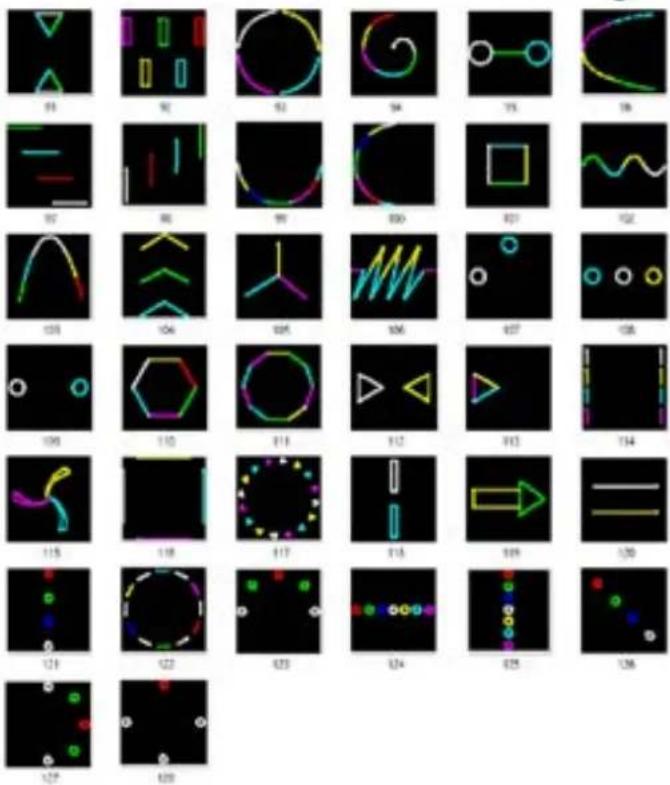

Pattern Overview CS-1000RGB MK4

The following patterns are pre-set in the CS-1000RGB MK4. Some may be pre-animated, others are static and can be custom animated. Colors may vary.

Laserworld CS-1000RGB MK4 Laserworld CS-1000RGB MK4
