USER MANUAL TotalClean APT95 HOMEDICS

3-year limited warranty

INSTRUCTION MANUAL AND WARRANTY INFORMATION

air purifier T95 AP-T95 | L-03855, Rev 1 please take a moment now register your product atwww.Homedics.com/register Your valuable input regarding this product will help us create the products you will want in the future.2 IMPORTANT SAFETY INSTRUCTIONS: WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS. DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Always unplug the air purifier from the electrical outlet immediately after using and before cleaning or replacing filters.

• Keep cord away from heated surfaces.

• Always place the air purifier on a firm, level surface.

• Always place the air purifier at least 6 inches away from walls and 3 feet from heat sources, such as stoves, radiators, or heaters.

• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.

• DO NOT place or store appliance where it can fall or be pulled into a tub or sink.

• DO NOT place in or drop into water or other liquid.

• Keep dry — DO NOT operate in wet or moist conditions.

• Check your air purifier cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tightly in the outlet.3 WARNING – TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK, FIRE, OR INJURY TO PERSONS:

• Always unplug the air purifier when not in use.

• DO NOT operate the air purifier with a damaged cord or plug, or after the air purifier malfunctions, or has been dropped or damaged in any manner. Return to a Homedics Service Center for examination, electrical or mechanical adjustment, or repair.

• This air purifier is not intended for use in bathrooms, laundry areas, or similar moist indoor locations.

• DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.

• DO NOT route cord under furniture or appliances. Arrange cord away from traffic areas where it can be tripped over.

• To disconnect the air purifier, first turn controls to the off position, then remove plug from outlet.

• DO NOT tilt or move the air purifier while it is in operation. Shut off and remove plug from outlet before moving.

• DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air purifier.

• DO NOT block air intakes or exhaust in any manner. Do not use on any soft surface, like a bed, where openings may become blocked.

• Use this air purifier only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

• DO NOT use outdoors.

• This product is intended for household use only.

• WARNING: To Reduce The Risk Of Fire, Electric Shock Or Injury To Persons: DO NOT Use Replacement Parts That Have Not Been Recommended By The Manufacturer (e.g. Parts Made At Home Using A 3D Printer).

• Only use power supply provided with this product. Use of any other power supply may cause risk of fire, electric shock, or injury to persons, or damage to the product. Use only AC Adapter bearing the Part # PP-APT100ADPT. SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE.4

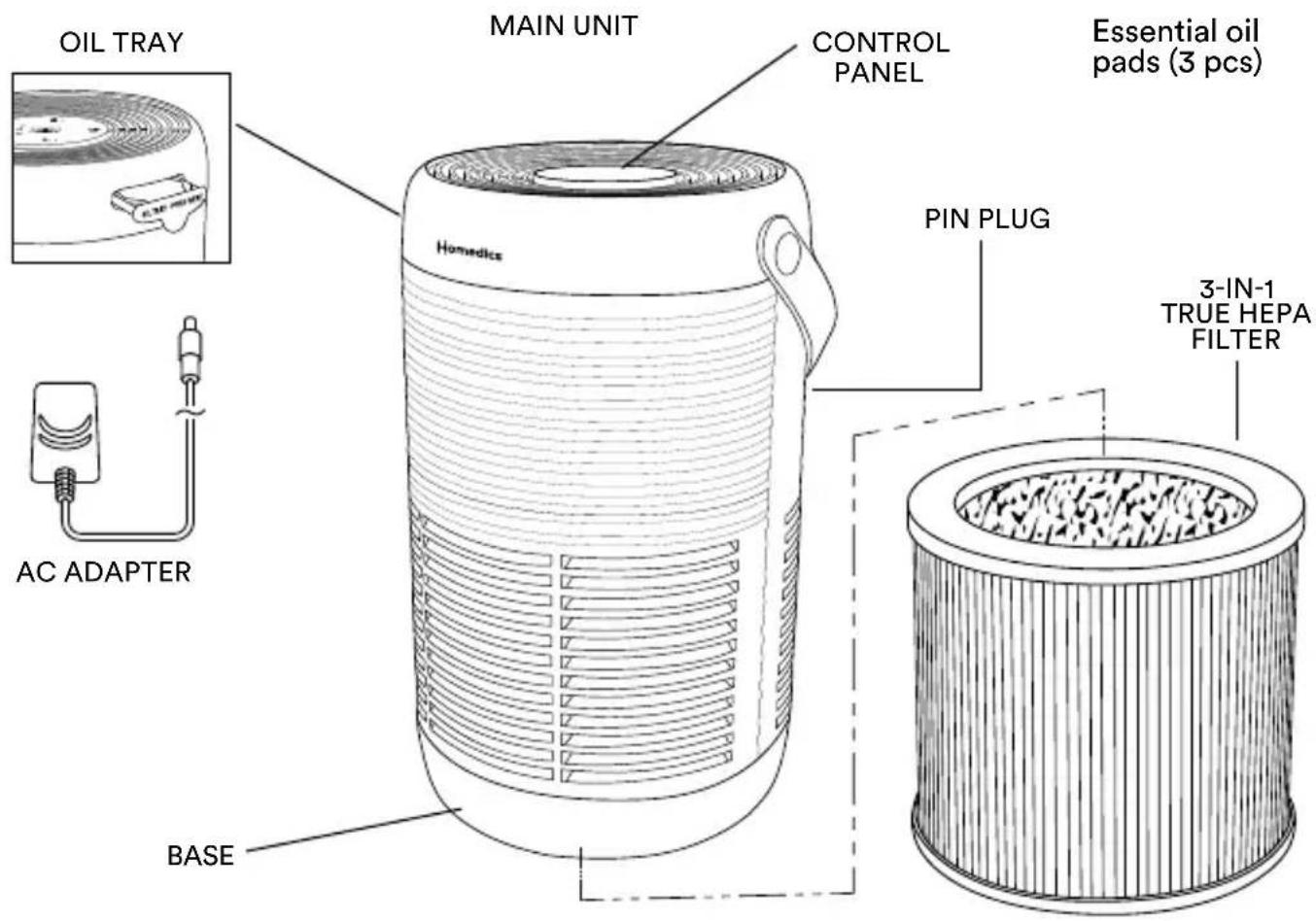

• Take the air purifier out of the box and remove the clear protective plastic bag.

• Place the air purifier on a firm, level surface.

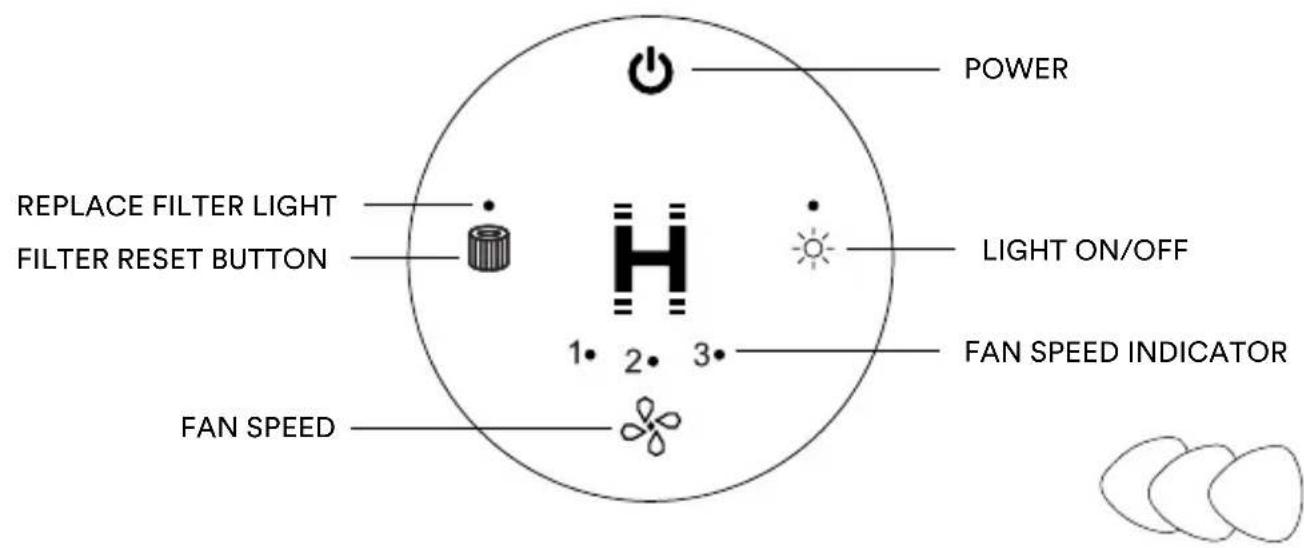

• Insert single pin plug into the back of the air purifier, then plug the adapter into a 120-volt AC electrical outlet. POWER BUTTON Turns the air purifier on/off

Press the light button to turn the control panel lights on/off. FAN SPEED Cycles through 3 fan speed settings: low (1), medium (2), and high (3)

REPLACE FILTER RESET

Push and hold the filter reset button until the replace filter light turns off.6

essential oil to the pad. You may use more or less depending on personal preference.

essential oil on the pad and NOT directly into the tray.

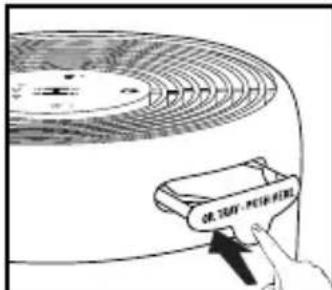

5. Place the oil tray back

in its compartment and push to close. The scent will start automatically when the air purifier is turned on.

located on the side of the air purifier.

essential oil pad in the oil tray (3 total included).

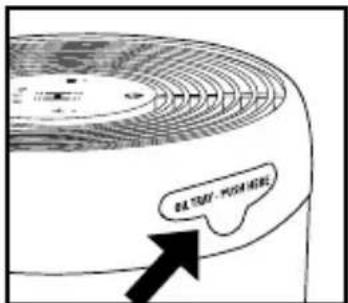

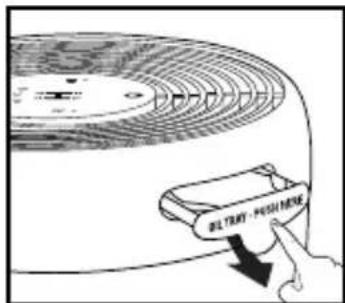

HOW TO USE THE OIL TRAY

WARNING: Putting oil anywhere but the oil tray will damage the air purifier.

NOTE: For use with the included Homedics essential oil pads only. NOTE: Do not leave a used essential oil pad in the oil tray if it will be out of use for a long period of time. ARE ESSENTIAL OILS SAFE TO USE AROUND PETS? We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don’t like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.7

The replace filter light illuminates when it is time to replace the True HEPA filter based on the air purifier’s hours of use.

REPLACING THE TRUE HEPA FILTER

For optimal performance, replace every 12 months under normal usage conditions based on 12 hours per day for 365 days.

5. Plug the power cord into

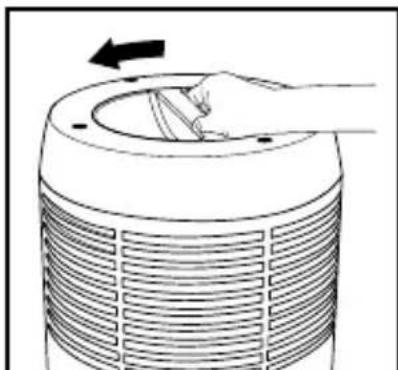

Turn the air purifier upside down and turn the base to the left.

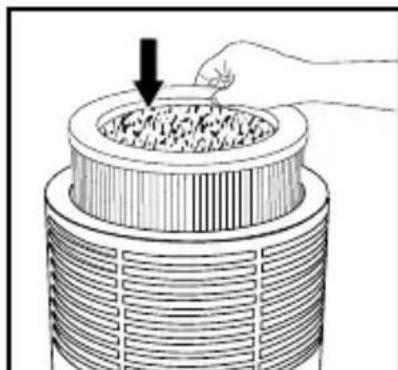

3. Insert the new filter into

the filter compartment.

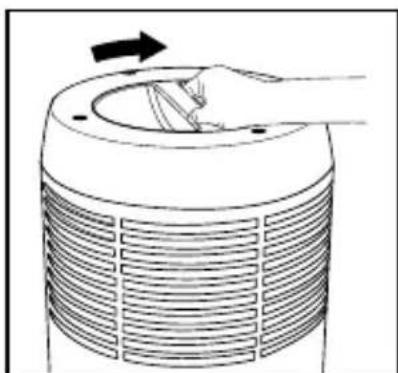

4. Reinstall the base by turning

to the right until it locks into place.

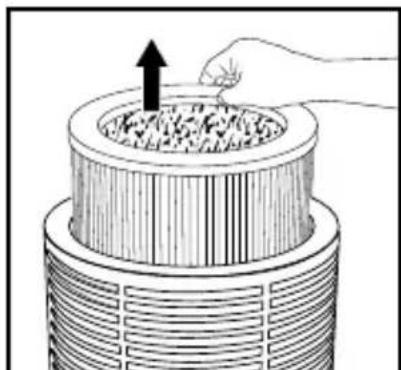

2. Remove the old filter.

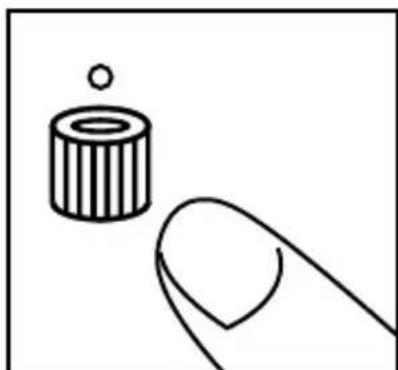

6. Press and hold the filter

reset button until the replace filter light turns off.8

HOW TO CLEAN AND CARE

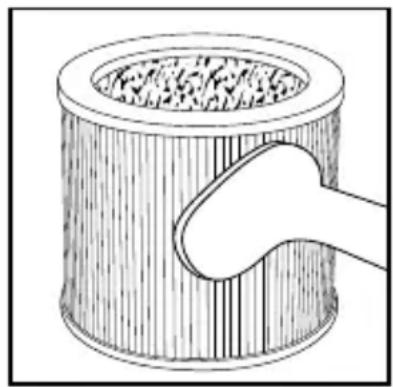

HOW TO CLEAN THE PREFILTER

NOTE: For best performance, vacuum the prefilter once a month under normal usage.

1. Unplug the air purifier.

2. Remove the True HEPA filter as described in the How to

Change the Filter section.

3. Thoroughly vacuum the outside of the True HEPA filter

using the brush attachment of your vacuum cleaner.

4. Place the True HEPA filter back into the air purifier and

5. Plug the power cord into a household electrical outlet.

HOW TO CLEAN THE OIL TRAY

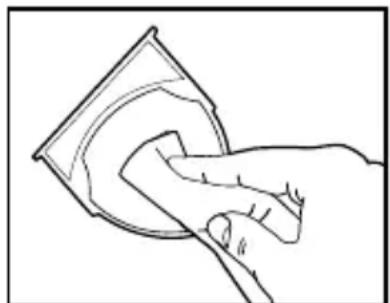

CLEANING THE OIL TRAY

1. Open the oil tray and remove the pad.

2. Rinse the oil tray with water and wipe dry with a soft

cloth. DO NOT clean with detergent or liquid cleaners. NOTE: If continuing to use the same scent, set the oil pad aside for reuse. DO NOT leave a used pad in the oil tray if the air purifier will be out of use for a long period of time. FOR BEST PERFORMANCE:

• NEVER use water or any household cleaners or detergents to clean the True HEPA filter.

• Clean the outside of the unit with a soft, dry cloth as needed.

• NEVER use water, wax, polish, or any chemical solution to clean the outside of the air purifier.

• Clean the grille using a damp cloth or the brush attachment of your vacuum as needed.

• Vacuum the prefilter monthly under normal usage conditions.

• Replace the True HEPA filter every 12 months based on usage of 12 hours per day, 365 days per year.

• Always use a genuine Homedics replacement filter for optimal performance.9 SPECIFICATIONS

THREE-IN-ONE TRUE HEPA FILTRATION SYSTEM

• TRUE HEPA FILTRATION Removes up to 99.97% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odor, mold spores, and smoke that pass through the filter media.

• ACTIVATED CARBON ODOR FILTRATION Reduces formaldehyde and toluene in the air as shown by independent laboratory testing. Reduces common household odors such as pet, bathroom, laundry, diaper pail, cooking, and smoke as shown by independent laboratory testing.

. Portable air purifiers will be more effective in rooms where all the doors and windows are closed. Suggested room size is based on AHAM AC-1 test results.

• AIR CHANGES PER HOUR This air purifier will purify the air in a 201 ft

room (assuming an 8 ft/2.43 m ceiling) every 12.5 minutes or up to 975 ft

once an hour on the highest speed setting in a closed room based on measured smoke CADR volume flow rate and 8-foot ceilings.

• QUIET OPERATION 26-59 dBA

• ELECTRICAL RATING 100-240 VAC, 50/60 Hz, 1.5 A REPLACEMENT PARTS To purchase genuine Homedics Replacement parts, go to the retailer where you purchased your Homedics Air Purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

PROBLEM POSSIBLE CAUSE SOLUTION

Unit will not operate • Unit is not plugged in

• Power button not pressed

• Press the power button to turn the power on

• Check circuits, fuses, try a different outlet Reduced airflow • The grille may be blocked

• Prefilter needs to be vacuumed

• The True HEPA filter needs to be replaced

• Check to make sure nothing is blocking the grille and air outlet

• Vacuum the prefilter with the brush attachment of your vacuum cleaner

• Replace the True HEPA filter Reduced odor removal • The True HEPA filter needs to be replaced

• Replace the True HEPA filter Excessive noise • The unit is not level • Place the unit on a flat, level surface Replace filter light remains lit after filter replacement

• The replace filter indicator needs to be reset

• Press and hold the filter reset button until the replace filter light turns off Control panel lights are off • Light ON/OFF selection • Press the Light ON/OFF button to turn lights on This product earned the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air cleaners have demonstrated the potential for improving air quality and providing health benefits. EPA does not endorse manufacturer claims regarding the degree to which a specific product will produce healthier indoor air. The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model’s CADR for Smoke and the electrical energy it consumes, or CADR/Watt.©2023 Homedics, LLC. All rights reserved. Homedics is a registered trademark of Homedics, LLC. Distributed by Homedics, LLC, 3000 N Pontiac Trail, Commerce Township, MI 48390 IB-APT95 Made in China Homedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of 3 years from the date of original purchase, except as noted below. Homedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers. To obtain warranty service on your Homedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available. Homedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Homedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer’s recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Homedics. This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty. THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT. This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Homedics. This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state and country to country. Because of individual state and country regulations, some of the above limitations and exclusions may not apply to you. For more information regarding our product line in the USA, please visit www.Homedics.com. For Canada, please visit www.Homedics.ca.
