USER MANUAL NN-F663 PANASONIC

© Copyrighted by Matsushita Electric UK, Ltd 2001 Installation and Connection Examine your microwave oven

4. Do not place this oven near an electric or gas cooker range.

5. The feet should not be removed.

Earthing instructions IMPORTANT: THIS UNIT HAS TO BE PROPERLY EARTHED FOR PERSONAL SAFETY. If your AC outlet is not grounded, it is the personal responsibility of the customer to have it replaced with a properly grounded wall socket.

6. This oven is only for household usage. Do not use outdoors.

7. Avoid using the microwave oven in high humidity.

8. The power cord should not touch the outside of the oven.

Keep the cord away from hot surfaces. Do not let the cord hang over the edge of a table or work top. Do not immerse the cord, plug or oven in water. The voltage has to be the same as specified on the label on the oven. If a higher voltage than specified is used, it may cause a fire or other damages.

9. Do not block the air vents on the top and back of the oven. If

these openings are blocked during operation the oven may overheat. In this case the oven is protected by a thermal safety device and resumes operation only after cooling down. Placement of the Oven WARNING Operation voltage

1. Place the oven on a flat and stable surface, more than 85 cm

2. When this oven is installed, it should be easy to isolate the

appliance from the electricity supply by pulling out the plug or operating a circuit breaker.

3. For proper operation, ensure a sufficient air circulation for the

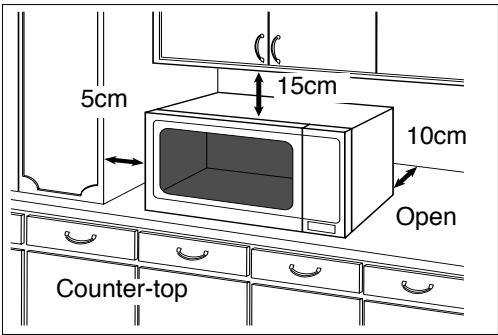

oven. Counter-top use: a. Allow 15 cm of space on the top of the oven, 10 cm at the back, 5 cm on one side, and the other side must be opened more than 40 cm. b. If one side of the oven is placed flush to a wall, the other side or top must not be blocked. 5cm 15cm 10cm Open Counter-top

1. The door seals and door seal areas should be cleaned with a

damp cloth. The appliance should be inspected for damage to the door seals and door seal areas and if these areas are damaged the appliance should not be operated until it has been repaired by a service technician trained by the manufacturer.

2. Do not attempt to tamper with or make any adjustments or

repairs to the door, control panel housing, safety interlock switches or any other part of the oven. Do not remove the outer panel from the oven which gives protection against exposure to microwave energy. Repairs should only be done by a qualified service person.

3. Do not operate this appliance if it has a damaged CORD OR

PLUG, if it is not working properly, or if it has been damaged or dropped. It is dangerous for anyone other than a service technician trained by the manufacturer to perform repair service.

4. If the supply cord of this appliance is damaged, it must be

replaced with the special cord available from the manufacturer.

5. Only allow children to use the oven without supervision when

adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. En-1 English Unpack the oven, remove all packing material, and examine the oven for any damage such as dents, broken door latches or cracks in the door. If you find any damage, notify your dealer immediately. Do not install a damaged microwave oven. Built-in This oven may be built into a wall cabinet by using the proper trim kit, white NN-TKV63WBBP, silver NN-TKV63MBBP, which may be purchased from a local Panasonic dealer. English Safety Instructions Use of your oven Fan Motor Operation

1. Do not use the oven for any reason other than the preparation

of food. This oven is specifically designed to heat or cook food. Do not use this oven to heat chemicals or other non-food products. If the oven gets hot after use, the fan may rotate for 1 minute to cool the electric components. This is perfectly normal, and you can take out the food from the oven while the fan is still in operation.

2. Before use, check that utensils/containers are suitable for use

in microwave ovens. Oven Light

3. Do not attempt to use this microwave oven to dry newspaper,

clothing or any other materials. They may catch on fire.

4. When the oven is not being used, do not store any objects

other than oven accessories inside the oven in case it is accidentally turned on.

5. The appliance shall not be operated by MICROWAVE or

COMBINATION (NN-F663/NN-F623/NN-F653) WITHOUT

FOOD IN THE OVEN. Operation in this manner may damage the appliance. Exception to this is point 1 under heater operation and pre-heating the pizza pan.

6. If smoke or a fire occurs in the oven, press Stop/Cancel button

and leave the door closed in order to stifle any flames. Disconnect the power cord, or shut off power at the fuse or the circuit breaker panel. Heater Operation (NN-F663/NN-F623/NN-F653)

1. Before using COMBINATION or GRILL function for the first

time, wipe excessive oil off in the oven cavity and operate the oven without food and accessories on Grill, for 10 minutes. This will allow the oil that is used for rust protection to be burned off. This is the only time the oven is used empty.

2. Exterior oven surfaces, including air vents on the cabinet and

the oven door will get hot during COMBINATION and GRILLING, take care when opening or closing the door and when inserting or removing food and accessories.

3. The oven has two heaters situated in the top of the oven. After

using the COMBINATION and GRILL function, these surfaces will be very hot. N.B. After cooking by these modes, the oven accessories will be very hot.

4. The accessible parts may become hot when the grill is in use.

Children should be kept away. When it becomes necessary to replace the oven light, please consult your dealer. Accessories The oven comes equipped with a variety of accessories. Always follow the directions given for use of the accessories. Glass Tray

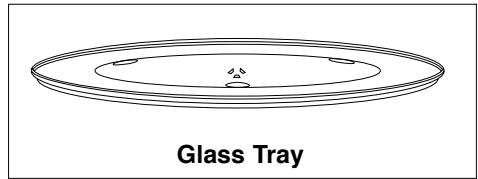

1. Do not operate the oven without the roller ring and the glass

2. Never use another type of glass tray than the one specially

designed for this oven.

3. If the glass tray is hot, let it cool before cleaning or placing in

4. The glass tray can turn in either direction.

5. If the food or cooking vessel on the glass tray touches the

oven walls and stops the tray rotating, the tray will automatically rotate in the opposite direction. This is normal.

6. Do not cook foods directly on the glass tray.

1. The roller ring and the oven floor should be cleaned

frequently to prevent noise and build-up of remaining food.

2. The roller ring must always be used for cooking together with

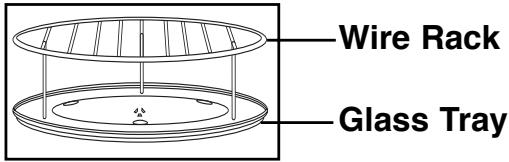

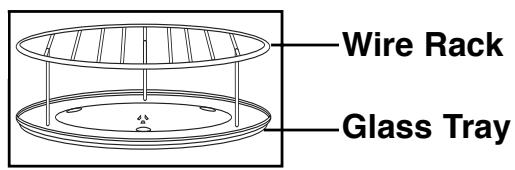

the glass tray. Wire Rack (NN-F663/NN-F623/NN-F653)

1. The Wire Rack is used to facilitate browning of small dishes

and help with the good circulation of the heat.

2. Do not use any metal container directly on the Wire Rack in

COMBINATION with MICROWAVE.

3. Do not use the Wire Rack in MICROWAVE mode only.

Pizza Pan (NN-F663/NN-F623) - See page En-13 En-2

• Cooking times given in the cookbook are approximate. The cooking time depends on the condition, temperature, amount of food and on the type of cookware.

• When heating liquids, e.g. soup, sauces and beverages in your microwave oven, overheating the liquid beyond boiling point can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

• Begin with the minimum cooking time to help prevent overcooking. If the food is not sufficiently cooked you can always cook it for a little longer. N.B.: If the recommended cooking times are exceeded the food will be spoiled and in extreme circumstances could catch fire and possibly damage the interior of the oven.

2) Small Quantities of Foods

• Small quantities of food or foods with low moisture content can burn, dry out or catch on fire if cooked too long. If materials inside the oven should ignite, keep the oven door closed, turn the oven off and remove the plug from the socket.

3) Eggs

• Do not cook eggs in their shells and whole hard-boiled eggs by MICROWAVE. Pressure may build up and the eggs will explode. a) Avoid using straight-sided containers with narrow necks. b) Do not overheat. c) Stir the liquid before placing the container in the oven and again halfway through the cooking time. d) After heating, allow it to stand in the oven for a short time, stir again before carefully removing the container.

7) Paper/Plastic

• When heating food in plastic or paper containers, check the oven frequently as these types of containers ignite if overheated.
• Do not use recycled paper products (e.g. Kitchen Roll) unless the paper product is labelled as safe for microwave oven use. Recycled paper products may contain impurities which may cause sparks and/or fires during use.
• Remove wire twist-ties from roasting bags before placing the bags in the oven.

4) Piercing Skin

• Food with non porous skins, such as potatoes, egg yolks and sausages must be pierced before cooking by MICROWAVE to prevent bursting.

5) Meat Thermometer

• Use a meat thermometer to check the degree of cooking of roasts and poultry only when the meat has been removed from the oven. Do not use a conventional meat thermometer when using MICROWAVE or COMBINATION because it may cause sparking.

8) Utensils/Foil

• Do not heat any closed cans or bottles because they might explode.
• Metal containers or dishes with metallic trim should not be used during Microwave cooking. Sparking will occur.
• If you use any aluminium foil, meat spikes or metalware the distance between them and the oven walls and door should be at least 2 cm to prevent sparking.

9) Feeding Bottles/Baby Food Jars

• The top and teat or lid must be removed from feeding bottles or baby food jars before placing in the oven.
• The contents of feeding bottles and baby food jars are to be stirred or shaken.
• The temperature has to be checked before consumption to avoid burns. En-3 English [1] Door Release Button Press to open the door. When you open the oven door during cooking, the cooking is stopped temporarily without clearing earlier made settings. The cooking is resumed as soon as the door is closed and Start Button pressed. The oven lamp lights as soon as the oven door is opened. [2] Oven Window [3] Door Safety Lock System [4] Oven Air Vent [5] Control Panel [6] Glass Tray [7] Roller Ring [8] External Oven Air Vents [9] Wire Rack (NN-F663/NN-F623/NN-F653) [10] Pizza Pan (NN-F663/NN-F623) [11] Handle (NN-F663/NN-F623) If you wish to purchase the pizza pan as an optional accessory (for model NN-F653), contact your Panasonic dealer. Please quote part number NN-CP298BEPG. En-4 Control Panels NN-F663/NN-F623 (2) (1) (4a) English NN-F653 (1) (2) (4b) (5) (3) (3) (5) (6) (6) (9) (9)

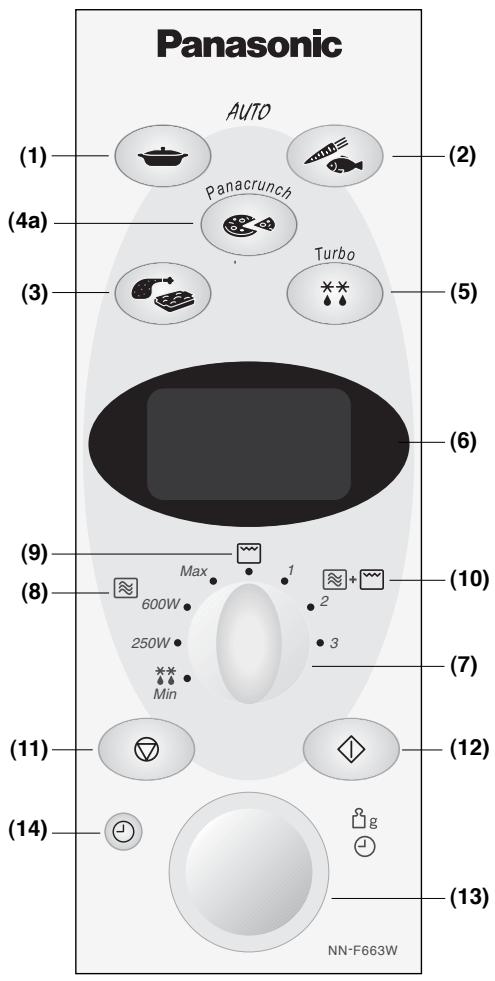

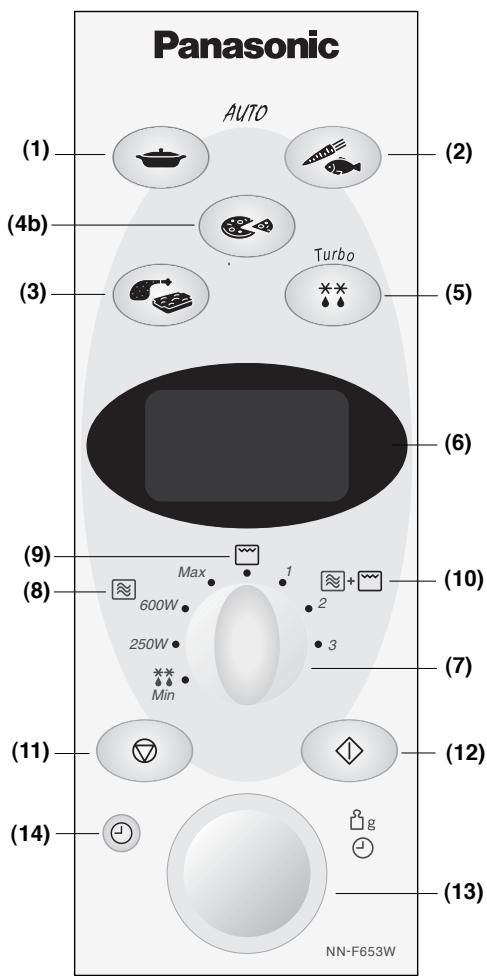

600W 250W (8) Max 600W

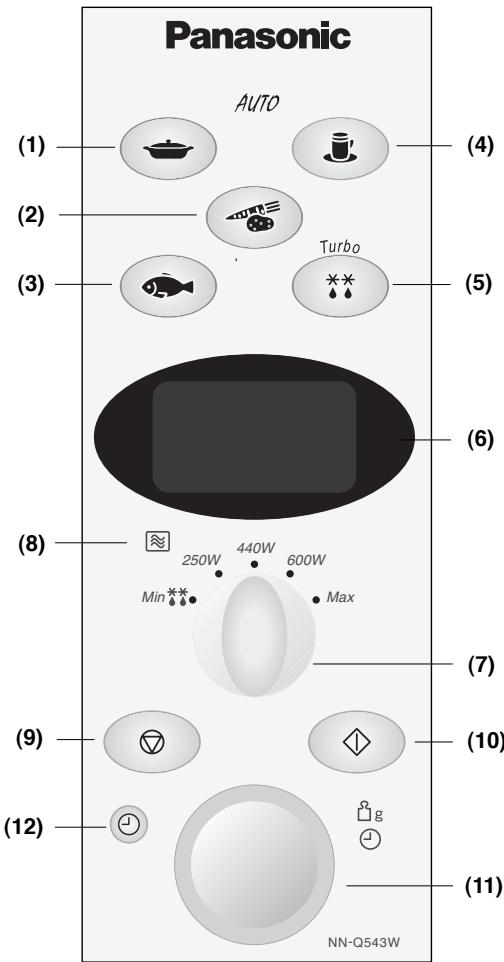

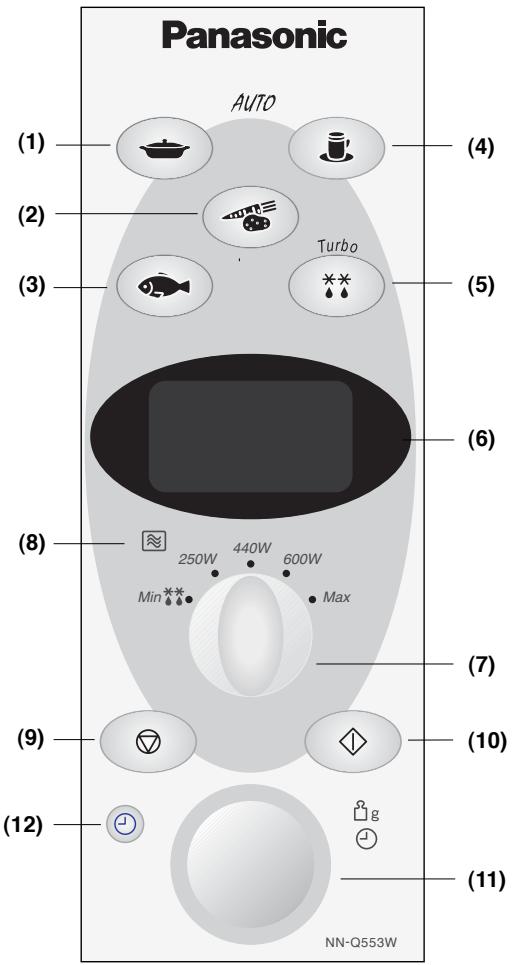

(7) (7) Min Min (12) (11) (14) (11) (12) (14) (13) (13) NN - F653W NN - F663W Auto Weight Reheat Auto Weight Cook Auto Weight Combination Auto Weight Panacrunch (NN-F663/NN-F623) (4b) Auto Weight Pizza (NN-F653) (5) Auto Weight Defrost (6) Display Window (7) Mode Selector Dial Microwave Power Grill Power Combination Power Stop/Cancel Button: Before cooking: one press clears your instructions. During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display. (12) Start Button: Press to start operating the oven. If during cooking the door is opened or Stop/ Cancel Button is pressed once, Start Button has to be pressed again to continue cooking. (13) Time/Weight Dial (14) Clock/Timer Button Beep Sound: A beep sounds when a button is pressed. If this beep does not sound, the setting is incorrect. When the oven changes from one function to another, two beeps sound. After completion of cooking, five beeps sound. En-5 Control Panels NN-Q553 English NN-Q543/NN-Q523 (1) (4) (2) (1) (4) (2) (3) (5) (5) (3) (6) (8) 250W Min 440W (6) (8) 600W Max 250W 440W 600W Min Max (7) (9) (10) (12) (7) (9) (10) (12) (11) (11) NN - Q553W (1 Auto Weight Reheat (2) Auto Weight Cook Vegetables (3) Auto Weight Cook Fish (4) Auto Reheat Cup/Bowl (5) Auto Weight Defrost (6) Display Window (7) Mode Selector Dial (8) Microwave Power (9) Stop/Cancel Button: Before cooking: one En-6 press clears your instructions. During cooking: one press temporarily stops the cooking program. Another press cancels all your instructions and the time of day will appear in the display. (10) Start Button: Press to start operating NN - Q543W the oven. If during cooking the door is opened or Stop/ Cancel Button is pressed once, Start Button has to be pressed again to continue cooking. (11) Time/Weight Dial (12) Clock/Timer Button Beep Sound: A beep sounds when a button is pressed. If this beep does not sound, the setting is incorrect. When the oven changes from one function to another, two beeps sound. After completion of cooking, five beeps sound. Controls and Operation Procedure Plug-in “88:88” Press “ITALIANO” Press “ESPANOL” Press “NEDERLANDS” Press “FRANCAIS” Press “DEUTSCH” Press Word Prompting In Italian In Spanish In Dutch In French These models have a unique function “Word Prompting” which guides you through the operation of your microwave. After plugging in the oven press the Start Button until you locate your language. As you press the buttons, the display will scroll the next instruction eliminating the opportunities for mistakes. If for any reason you wish to change the language displayed, unplug the oven and repeat this procedure. In German “EΛΛHNIKA” In Greek Press “PORTUGUES” Press “POLSKI” Press “ENGLISH” In Portuguese In Polish In English

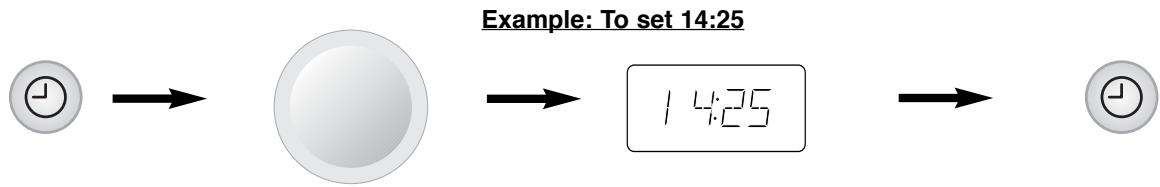

• Press Clock/Timer Button twice. ☛The colon starts to blink.

• Enter the time by turning the Time/Weight Dial. ☛ The time appears in the display and the colon blinks.

• Press Clock/Timer Button. ☛ The colon stops blinking and the time of day is entered. NOTE:

1. To reset the time of day repeat all the above steps.

2. The time of day is displayed, unless the power supply is interrupted.

3. This clock has a 24 hour display.

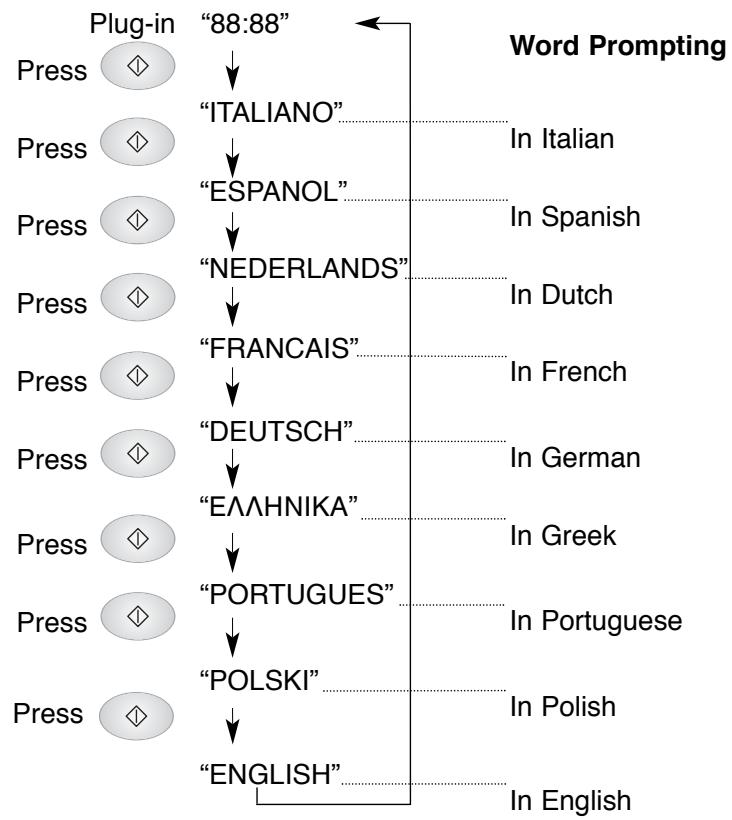

En-7 English Word Prompting: English Controls and Operation Procedure Child Safety Lock: Using this system will make the oven controls inoperable; however, the door can be opened. Child Lock can be set when the display shows a colon or the time. To Set: To Cancel:

• Press Start Button three times.

• Press Stop/Cancel Button three times. ☛ The time of day will reappear in the display. ☛ The time of day will disappear. Actual time will not be lost. A \ is indicated in the display. Microwave Cooking and Defrost There are 4 (NN-F663/NN-F623/NN-F653) and 5 (NN-Q553/NN-Q523/NN-Q543) different microwave power levels available. The chart below shows the approximate wattage for each power level. Use of accessory: Power Level MAX (HIGH) Power MEDIUM Power LOW Power (NN-Q553/NN-Q523/NN-Q543) SIMMER Power MIN (DEFROST) Power Glass Tray NN-F663/NN-F623/NN-F653 Max 600W 250W Wattage 1000W 600W 440W 250W 270W

• Turn Mode Selector Dial to your desired power level. NOTE:

• Set the cooking time using the Time/Weight Dial (HIGH power: up to 30 minutes Other powers: up to 99 minutes). The display will alternate between the start prompt, the power level and the set cooking time. The microwave symbol will also be displayed. 1. You can change the cooking time during cooking, if required. Turn Time/Weight Dial to increase or decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking. 2. You can change the cooking mode during cooking, if required (NN-F663/NN-F623/NN-F653). Turn mode selector dial to the desired mode and power level. Ensure suitable containers and accessories are used when changing the cooking mode. 3. You can change the power level during cooking if required (NN-Q553/NN-Q523/NN-Q543). Turn mode selector dial to desired power level. En-8 Grilling(NN-F663/NN-F623/NN-F653) Wire Rack The Grill provides 1 Grill setting of 1300W. Glass Tray Max

• Turn Mode Selector to Grill setting.

• Set the cooking time using the Time/Weight Dial (up to 99 minutes). The display will alternate between the start prompt and the set cooking time. The grill symbol will also be displayed. NOTE:

1. The Grill will only operate with the oven door closed.

2. You can change the cooking time during cooking, if required. Turn Time/Weight Dial to increase/decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking. 3. You can change the cooking mode during cooking, if required. Turn mode selector dial to the desired mode and power level. Ensure suitable containers and accessories are used when changing the cooking mode. Combination Cooking (NN-F663/NN-F623/NN-F653) Use of accessory: Wire Rack Glass Tray Max 600W 250W

There are 3 combination settings. The following chart shows the approximate wattage for each power level. Word Combination Grill Microwave Prompt Setting G1-600W 1300W 600W G1-440W 1300W 440W G1-250W 1300W 250W

• Turn Mode Selector to desired Combination setting.

• Set the cooking time using the Time/Weight Dial (up to 99 minutes). The display will alternate between the start prompt, combi level and the set cooking time. The microwave and grill symbol are also displayed. NOTE:

1. The Combination mode will only operate with the oven door closed.

2. You can change the cooking time during cooking, if required. Turn Time/Weight Dial to increase/decrease the cooking time. Time can be increased/decreased in 1 minute increments, up to 10 minutes. Turning the dial to zero will end cooking. 3. You can change the cooking mode during cooking, if required. Turn mode selector dial to the desired mode and power level. Ensure suitable containers and accessories are used when changing the cooking mode. En-9 English Use of accessory: English Auto Defrost With this feature you can defrost frozen foods according to the weight. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category.

• Select the desired Auto Defrost Program. 1 press for small pieces 2 presses for big pieces Program Word Prompt 1 Small pieces SMALL 2 Big pieces BIG

• Set the weight of the frozen food by using the Time/Weight dial. Turn clockwise, weight counts-up in 10g increments. Turn anti-clockwise, weight counts-down in 10g increments. Weight Suitable Foods Small pieces of meat, escallop, sausages, fish fillets, steaks, chops

100 - 1200g (each 100g to 400g). Turn at beeps.

400 - 2000g Big pieces of meat, roast, whole chicken. Turn at beeps.

1. When defrosting time is over 60 minutes the time will appear as Hours and Minutes.

2. The shape and size of the food will determine the maximum weight the oven can accommodate.

3. For further information see defrosting guidelines in cook book.

Auto Weight Programs This feature allows you to cook most of your favourite foods by setting the weight only. The oven determines Microwave power level, Grill power (NN-F663/NN-F623/NN-F653) and cooking time automatically. Select the category and set the weight of the food. The weight is programmed in grams. For quick selection, the weight starts from the most commonly used weight for each category. e.g.

• Select the desired Auto

• Set the weight of the food by using the Time/Weight Dial. Turn clockwise weight counts-up in 10g increments. Turn anti-clockwise, weight counts down in 10g increments. The start prompt will be indicated. NOTE:

1. When cooking time is over 60 minutes, the time will appear as Hours and Minutes.

2. Follow the charts overleaf for the recommended weight and accessories to be used.

En-10 Auto Weight Programs Word Prompt Recommended Weight Reheat Cup (1 press) CUP 150g For reheating a cup of hot drink (e.g. tea, coffee, milk and soup). Select reheat cup, enter weight (150ml), press start button. Reheat Bowl (2 presses) BOWL 300g For reheating a bowl of hot drink. Select reheat bowl, enter weight (300ml), press start button. Reheat Fresh (3 presses) FRESH

200 - 1500g

For reheating plated meal, or casserole. All foods should be at room or refrigerated temperatures. Stir at beep. Allow a few minutes standing time.

200 - 1500g

For reheating frozen plated meal, or casserole. All food must be pre-cooked and frozen. Stir at beep. At the completion of cooking, stir the foods and allow 2 to 3 minutes standing time.

200 - 1000g

For cooking fresh vegetables. Place the prepared vegetables in a suitable sized container. Sprinkle with 6 tbsp (90ml) of water. Cover them lightly with pierced cling film or a lid. Large quantities will require stirring at beep.

200 - 1000g

For cooking frozen vegetables. Place them in a suitable sized container, add 2 tbsp (30ml) water. Cover them lightly with pierced cling film or a lid. Large quantities will require stirring at beep.

100 - 1000g

For cooking fresh fish (whole, fillets, steaks). Shield the thinner portions, place it in a suitable sized container. Add 2 tbsp (30ml) liquid. Cover it with pierced cling film or a lid.

100 - 900g

For cooking frozen fish steaks and fillets. Place it in a suitable sized container, add 2 tbsp (30ml) water, cover it lightly with pierced cling film or a lid. Category REHEAT Reheat Frozen (4 presses) WEIGHT COOK English Cook Fresh Vegetable (1 press) Cook Frozen Vegetable (2 presses) Cook Fresh Fish (3 presses) Cook Frozen Fish (4 presses) FROZEN VEG VEG FISH FISH Accessories Instructions Hints for reheating cup and bowl.

1. Stir the liquid before heating (Heated liquids can erupt if not mixed with air).

2. Do not cover hot drinks such as tea or coffee.

Cover soup with a saucer to avoid any risk of eruption.

3. After heating, stir again and allow to stand for a short time.

En-11 English Auto Weight Programs NN-F653 Word Prompt Recommended Weight Chicken Pieces (1 press) PIECES

200 - 1200g

For cooking chicken pieces eg. chicken legs, thighs or drumsticks. Place the chicken in a heatproof dish on Wire Rack on Glass Tray. For even cooking spread out the chicken and turn it at beep. Whole Chicken (2 presses) WHOLE 1000 - 2000g For cooking whole fresh unstuffed chicken. Cook the stuffing separately. Place the chicken in a heatproof dish on Glass Tray. Start cooking the breast side down and turn it at beep.

300 - 1000g

For reheating and browning frozen gratin/lasagne. Remove all packaging and place the gratin/lasagne in a heatproof dish on Glass Tray. Frozen Gratin/ Lasagne (3 presses) GRATIN Frozen Bread (1 press) BREAD Frozen Pizza (2 presses) PIZZA Frozen Quiche (3 presses) QUICHE Accessories Instructions

50 - 400g

For reheating frozen bread, rolls and croissants. Remove all packaging and place on Wire Rack on Glass Tray. Turn at beep.

100 - 500g

For reheating and browning the top of frozen (NOT Fresh) purchased pizza. Remove all packaging and place the pizza on Wire Rack on Glass Tray.

100 - 500g

For reheating pre-cooked, frozen quiche. Remove all packaging and place the quiche on Wire Rack on Glass Tray. Frozen Bread (1 press) Recommended Weight Accessories Instructions

50 - 400g

For reheating frozen bread, rolls and croissants. Remove all packaging and place on Wire Rack on Glass Tray. Turn at beep. BREAD Chicken Pieces (2 presses) PIECES

200 - 1200g

For cooking chicken pieces eg. chicken legs, thighs or drumsticks. Place the chicken in a heatproof dish on Wire Rack on Glass Tray. For even cooking spread out the chicken and turn it at beep. Whole Chicken (3 presses) WHOLE 1000 - 2000g For cooking whole fresh unstuffed chicken. Cook the stuffing separately. Place the chicken in a heatproof dish on Glass Tray. Start cooking the breast side down and turn it at beep.

300 - 1000g

For reheating and browning frozen gratin/lasagne. Remove all packaging and place the gratin/lasagne in a heatproof dish on Glass Tray. Frozen Gratin/ Lasagne (4 presses) En-12 Word Prompt GRATIN Auto Weight Programs Category PANACRUNCH Word Prompt Fresh Pizza (1 press) PIZZA Accessories QUICHE Frozen Quiche (4 presses) QUICHE Frozen Potato Products (5 presses) CHIPS Instructions

150 - 600g

For reheating, crisping the base and browning the top of fresh purchased pizza. Remove all packaging and place the pizza in the preheated pizza pan.

120 - 600g

For reheating, crisping the base and browning the top of frozen purchased pizza. Remove all packaging and place the pizza in the preheated pizza pan.

120 - 600g

For reheating, crisping the pastry base and browning the top of fresh purchased quiche. Remove all packaging and place the quiche in the preheated pizza pan.

120 - 600g

For reheating, crisping the pastry base and browning the top of frozen purchased quiche. Remove all packaging and place the quiche in the preheated pizza pan.

100 - 500g

For reheating, crisping and browning frozen potato products. After pre-heating the pan, spread out potato products in the pan. For best results cook in a single layer and turn at beep. PIZZA Frozen Pizza (2 presses) Fresh Quiche (3 presses) Recommended Weight English NN-F663/NN-F623 Panacrunch Programs (NN-F663/NN-F623)

1. Select the desired program

and place the pizza pan in the oven directly on the glass tray.

2. Press the start button to

pre-heat the pizza pan.

3. After pre-heating beeps

sound. Place the food in the pan, set weight.

4. Press start.

En-13 English Pizza Pan (For NN-F663/NN-F623) THE ‘CONCEPT’ NOTES: Some foods cooked by microwave can have soft and soggy crusts. Your pizza pan accessory will brown and crisp pizzas, quiches, pies, breaded products just as a conventional oven. Your Panasonic pizza pan works in three ways: heating the pan by absorbing microwaves, heating the food directly by microwaves and heating the food by the grill. The base of the pan absorbs the microwaves and transfers them into heat. Then the heat is conducted through the pan to the food. The heating effect is maximised by the non-stick surface.

1. Do not pre-heat the pan more than 8 minutes.

2. Always place the pan in the centre of the glass tray and

ensure it does not touch the wall of the oven cavity. Failure to do so, may cause sparking which would damage the cavity.

3. Always use the pan on the glass turntable. Do not use with

4. Always use the pizza pan handle or oven gloves when

handling the hot pan.

5. Ensure all food packaging is removed before cooking.

6. Do not place any heat-sensitive materials on the hot pan as

this may cause burning.

7. The pan can be used in a conventional oven.

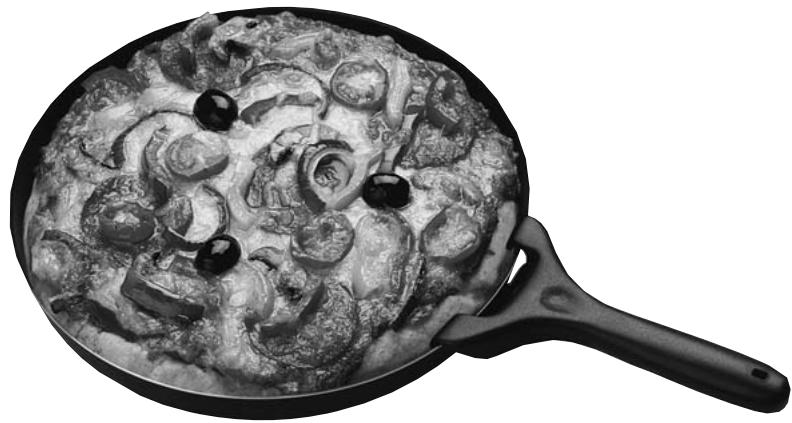

USING THE PIZZA PAN (Manual operation)

For best results, pre-heat the pan before using. Place directly on the glass turntable and pre-heat on Combination 1 (Grill 1 + 600 Watt) for 3 minutes. To assist browning, brush the pan with oil before preheating for items such as sausages and beefburgers. Remove the pan from the oven and place the food in the pan. Use the pizza pan handle or oven gloves as the pan will be very hot. For best results, it is important that the food is placed on the pan immediately after pre-heating. Performance cannot be guaranteed with a time delay. Place the pan on the glass turntable and cook according to the guidelines shown in the cooking chart in the cookbook. En-14

8. For best results, use the pan in COMBINATION GRILL and

MICROWAVE. ◆ Never use any sharp utensils on the pan as this will damage the non-stick surface. ◆ After use, wash the pan in hot soapy water and rinse in hot water. Do not use any abrasive cleaning substances or scouring pads as this will damage the surface of the pan. ◆ The pan is dishwasher safe. Auto Weight Programs Category REHEAT Reheat Meal Word Prompt Recommended Weight FRESH

200 - 1500g

For reheating plated meal, or casserole. All foods should be at room or refrigerated temperatures. Stir at beep. Allow a few minutes standing time.

200 - 1500g

For reheating frozen plated meal, or casserole. All food must be pre-cooked and frozen. Stir at beep. At the completion of cooking, stir the foods and allow 2 to 3 minutes standing time.

200 - 1000g

For cooking fresh vegetables. Place the prepared vegetables in a suitable sized container. Sprinkle with 6 tbsp (90ml) of water. Cover them lightly with pierced cling film or a lid. Large quantities will require stirring at beep.

200 - 1000g

For cooking frozen vegetables. Place them in a suitable sized container, add 2 tbsp (30ml) water. Cover them lightly with pierced cling film or a lid. Stir the vegetables at beep.

100 - 1000g

For cooking fresh fish (whole, fillets, steaks). Shield the thinner portions, place it in a suitable sized container. Add 2 tbsp (30ml) liquid. Cover it with pierced cling film or a lid.

100 - 900g

For cooking frozen fish steaks and fillets. Place it in a suitable sized container, add 2 tbsp (30ml) water, cover it lightly with pierced cling film or a lid. CUP 150g For reheating a cup of hot drink (e.g. tea, coffee, milk and soup). Select reheat cup, enter weight (150ml), press start button. 1 BOWL 300g For reheating one bowl of hot drink. Select reheat bowl, enter weight (300ml), press start button. 2 BOWLS 600g For reheating two bowls of hot drink. Select reheat 2 bowls, enter weight (600ml), press start button. (1 press) Reheat Frozen Meal FROZEN (2 presses) (1 press) Cook Frozen Vegetables FROZEN (2 presses) COOK FISH Cook Fresh Fish FRESH (1 press) Cook Frozen Fish FROZEN (2 presses) REHEAT CUP/BOWL Reheat Cup (1 press) Reheat 1 bowl (2 presses) Reheat 2 bowls (3 presses) English NN-Q553/NN-Q523 Accessories Instructions Hints for reheating cup and bowl.

1. Stir the liquid before heating (Heated liquids can erupt if not mixed with air).

2. Do not cover hot drinks such as tea or coffee.

Cover soup with a saucer to avoid any risk of eruption.

3. After heating, stir again and allow to stand for a short time.

En-15 English Auto Weight Programs NN-Q543 Category REHEAT Reheat Meal Word Prompt Recommended Weight FRESH

200 - 1500g

For reheating plated meal, or casserole. All foods should be at room or refrigerated temperatures. Stir at beep. Allow a few minutes standing time.

200 - 1500g

For reheating frozen plated meal, or casserole. All food must be pre-cooked and frozen. Stir at beep. At the completion of cooking, stir the foods and allow 2 to 3 minutes standing time. FRESH

200 - 1000g

For cooking fresh vegetables. Place the prepared vegetables in a suitable sized container. Sprinkle with 6 tbsp (90ml) of water. Cover them lightly with pierced cling film or a lid. Large quantities will require stirring at beep. FRESH

100 - 1000g

For cooking fresh fish (whole, fillets, steaks). Shield the thinner portions, place it in a suitable sized container. Add 2 tbsp (30ml) liquid. Cover it with pierced cling film or a lid. CUP 150g For reheating a cup of hot drink (e.g. tea, coffee, milk and soup). Select reheat cup, enter weight (150ml), press start button. 1 BOWL 300g For reheating one bowl of hot drink. Select reheat bowl, enter weight (300ml), press start button. (1 press) Reheat Frozen Meal FROZEN (2 presses) COOK VEGETABLES Cook Vegetables (1 press) COOK FISH Cook Fresh Fish (1 press) REHEAT CUP/BOWL Reheat Cup (1 press) Reheat 1 bowl (2 presses) Accessories Instructions Hints for reheating cup and bowl.

1. Stir the liquid before heating (Heated liquids can erupt if not mixed with air).

2. Do not cover hot drinks such as tea or coffee.

Cover soup with a saucer to avoid any risk of eruption.

3. After heating, stir again and allow to stand for a short time.

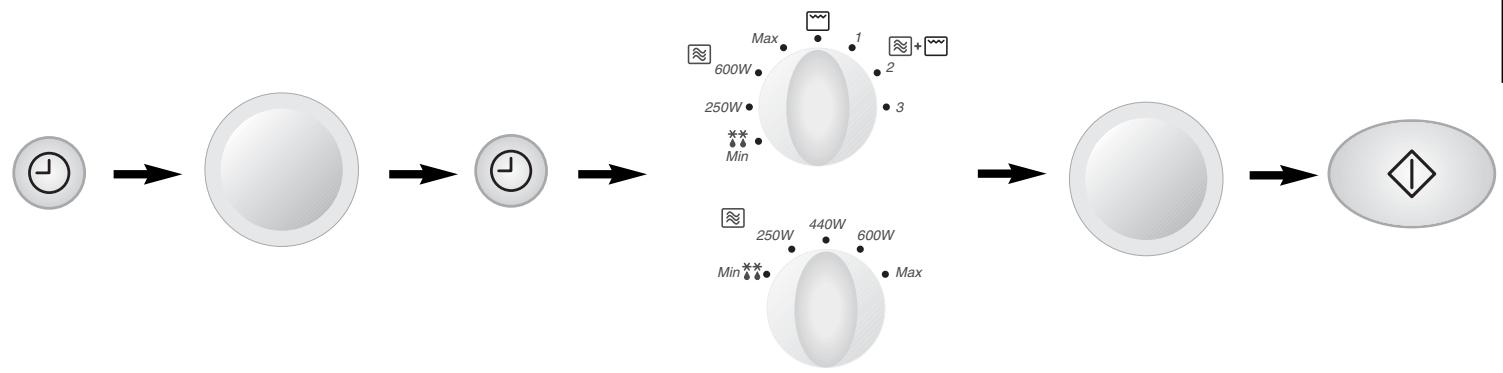

En-16 Delay Start Cooking English By using the Clock/Timer Button, you are able to program Delay Start cooking.

Min 250W 440W 600W Min

• Set the delay time Clock/Timer Button once. by turning the Time/Weight Dial. (up to 9 hours 90 minutes).

• Press Clock/Timer Button again. Max

• Set the desired cooking program by using Mode Selector dial and Time/Weight Dial. NOTE: 1. If the set delay time exceeds one hour, the time will count down in units of minutes. If less than one hour, the time will count down in units of seconds.

2. Delay Start cannot be programmed before any Auto Programs.

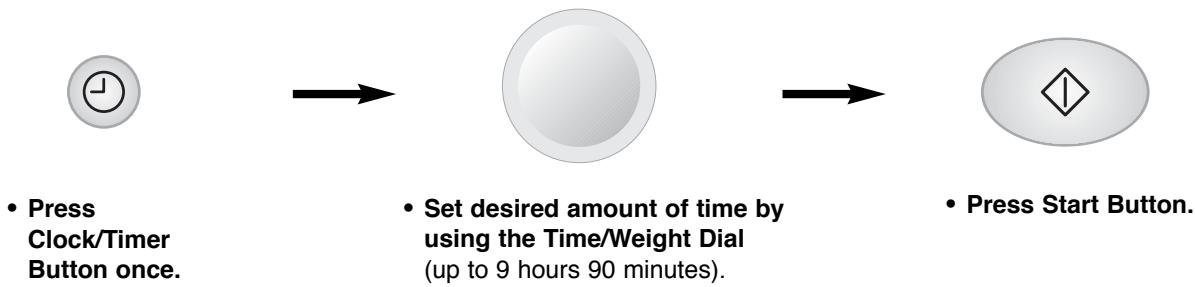

Timer By using the Clock/Timer button, you can program the oven as a minute timer.

• Press Clock/Timer Button once.

• Set desired amount of time by using the Time/Weight Dial (up to 9 hours 90 minutes). NOTE: If the oven door is opened when the Minute Timer is in operation, the time in the display window will continue to count down. En-17 English Questions and Answers Q: Why won’t my oven turn on? A: When the oven does not turn on, check the following:

1. Is the oven plugged in securely? Remove the plug from the outlet, wait 10

seconds and reinsert.

2. Check the circuit breaker and the fuse. Reset the circuit breaker or replace

the fuse if it is tripped or blown.

3. If the circuit breaker or fuse is all right, plug another appliance into the outlet.

If the other appliance works, there probably is a problem with the oven. If the other appliance does not work, there probably is a problem with the outlet. If it seems that there is a problem with the oven, contact an authorized Service Center. Q: My microwave oven causes interference with my TV. Is this normal? A: Some radio and TV interference might occur when you cook with the microwave oven. This interference is similar to the interference caused by small appliances such as mixers, vacuums, blow dryers, etc. It does not indicate a problem with your oven. Q: The oven won’t accept my program. Why? A: The oven is designed not to accept an incorrect program. For example, the oven will only accept one stage cooking (excluding Delay Start), and will not accept an Auto Weight Program after Delay Start. Q: Sometimes warm air comes from the oven vents. Why? A: The heat given off from the cooking food warms the air in the oven cavity. This warmed air is carried out of the oven by the air flow pattern in the oven. There are no microwaves in the air. The oven vents should never be blocked during cooking. Q: “D” appears in the display and the oven does not cook. Why? A: The oven has programmed DEMO MODE. This mode is designed for retail store display. Deactivate this mode by pressing Clock Button four times. Q: Can I use a conventional oven thermometer in the oven? A: Only when you are using GRILL cooking mode (NN-F663/NN-F623/NN-F653). The metal in some thermometers may cause arcing in your oven and should not be used on MICROWAVE and COMBINATION cooking modes. (NN-F663/NN-F623/NN-F653) Q: There are humming and clicking noises from my oven when I cook by COMBINATION. What is causing these noises? A: The noises occur as the oven automatically switches from MICROWAVE power to GRILL to create the combination setting. This is normal. Q: My oven has an odour and generates smoke when using the COMBINATION and GRILL function. Why? A: After repeated use, it is recommended to clean the oven and then run the oven without food, glass tray, and roller ring on Grill for 5 minutes. This will burn off any food, residue or oil which may cause an odour and/or smoking. En-18 Care of Your Oven

1. Turn the oven off before cleaning.

3. The outside oven surface should be cleaned with a damp

cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. If the Control Panel becomes dirty, clean it with a soft, dry

cloth. Do not use harsh detergents or abrasives on the Control Panel. When cleaning the Control Panel, leave the oven door open to prevent the oven from accidentally turning on. After cleaning touch STOP/CANCEL Button to clear the display window.

5. If steam accumulates inside or around the outside of the

oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

7. The roller ring and oven cavity floor should be cleaned

regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent and hot water then dry with a clean cloth. The roller ring may be washed in mild soapy water. Cooking vapours collect during repeated use but in no way affects the bottom surface or roller ring wheels. After removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.

8. When using the GRILL or COMBINATION mode, (NNF663/NN-F623/NN-F653) some foods may inevitably splatter

grease on to the oven walls. If the oven is not cleaned occasionally, it may start to “smoke” during use.

9. A steam cleaner is not to be used for cleaning.

10. This oven should only be serviced by qualified personnel. For

maintenance and repair of the oven contact the nearest authorized dealer. Technical Specifications NN-F663/NN-F623/NN-F653 1260 W NN-Q553/NN-Q523 1160 W NN-Q543 Microwave; 1000 W (IEC 60705) Outside Dimensions: Oven Cavity Dimensions: Specifications subject to change without notice. En-19 English

2. Keep the inside of the oven, door seals and door seal areas

clean. When food splatters or spilled liquids adhere to the oven walls, door seals and door seal areas wipe off with a damp cloth. Mild detergent may be used if they get very dirty. The use of harsh detergent or abrasive is not recommended. DO NOT USE COMMERCIAL OVEN CLEANERS.

6. It is occasionally necessary to remove the glass tray for

cleaning. Wash the tray in warm soapy water or in a dishwasher. Wattleistung 1000W 600W 440W 250W 270W Min 440W 600W Max

Min Panacrunch-Programme (NN-F663/NN-F623) Wattage 1000W 600W 440W 250W 270W Min 440W 600W Max

Min Panacrunch Programma (NN-F663/NN-F623) 230 V, 50 Hz Maximum; Magnetron; Grill; 230 V, 50 Hz 2500 W 1260 W 1350 W Capaciteit: Magnetron; Grill-element; 1000 W (IEC-60705) 1300 W 510 (B) x 380 (D) x 304 (H) mm 359 (B) x 352 (D) x 217 (H) mm 12.5Kg Netvoeding Stroomverbruik: Magnetron; 1260 W NN-Q553/NN-Q523 1160 W NN-Q543 Magnetron; 1000 W (IEC-60705) 510 (B) x 380 (D) x 304 (H) mm 359 (B) x 352 (D) x 217 (H) mm 11.5Kg Watts 1000 W 600 W 440 W 250 W 270 W 600W Max

Min Lasagne/ gratin surgelé (3 pressions) GRATIN Pizza surgelée (2 pressions) PIZZA Quiche surgelée (3 pressions) QUICHE

300 - 1000g

Lasagne/ gratin surgelé (4 pressions) Quiche congelée (4 pressions) QUICHE NN-Q553/NN-Q523/NN-Q543 230 V, 50 Hz 2500 W 1260 W 1350 W Micro-ondes; 1260 W NN-Q553/NN-Q523 1160 W NN-Q543 Micro-ondes; 1000 W (IEC-60705) Micro-ondes; 1000 W (IEC-60705) Résistance; 1300 W 510 (L) x 380 (P) x 304 (H) mm 510 (L) x 380 (P) x 304 (H) mm 359 (L) x 352 (P) x 217 (H) mm 359 (L) x 352 (P) x 217 (H) mm

12.5 Kg

11.5 Kg

Wattaggio 1000W 600W 440W 250W 270W Min 440W 600W Max

Min Programmi Panacrunch (NN-F663/NN-F623) 510 (L) x 380 (P) x 304 (A) mm 359 (L) x 352 (P) x 217 (A) mm

12.5 Kg

510 (L) x 380 (P) x 304 (A) mm 359 (L) x 352 (P) x 217 (A) mm 11.5Kg Pulse Pulse Pulse Pulse Programas Panacrunch (NN-F663/NN-F623) Watts 1000W 600W 440W 250W 270W Min 440W 600W Max

Min Micro-ondas; 1000 W (IEC 60705) 510 (L) x 380 (P) x 304 (A) mm 359 (L) x 352 (P) x 217 (A) mm

12.5 Kg

1000W (IEC 60705) 1300W 510 (L) x 380 (P) x 304 (A) mm 359 (L) x 352 (P) x 217 (A) mm

11.5 Kg

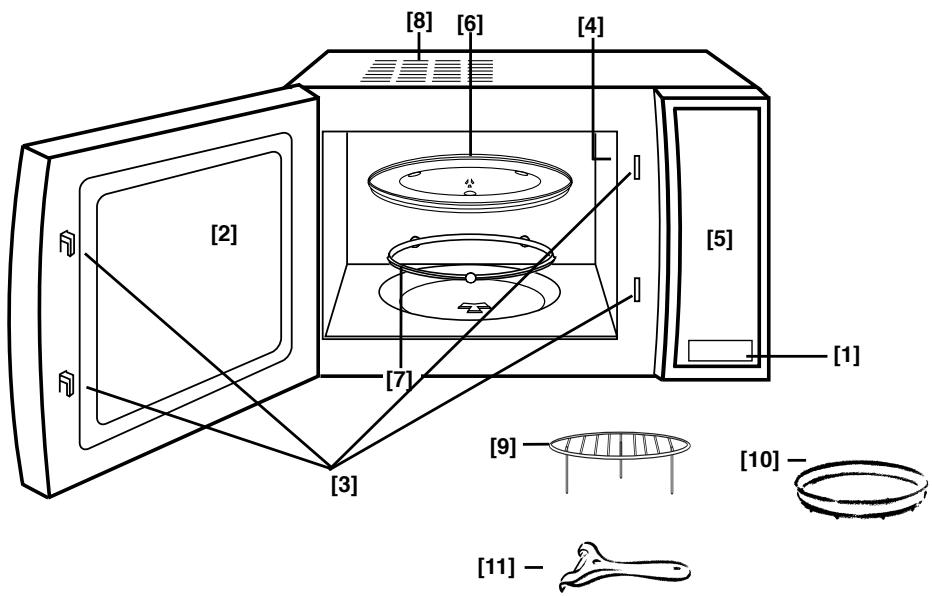

[9] Ruszt (NN-F663/NN-F623/NN-F653) [10] Talerz do pizzy (NN-F663/NN-F623) [11] Uchwyt (NN-F663/NN-F623) Pl-4 NN-Q553/NN-Q523/NN-Q543 250W

Moc w Watach 1000 W 600 W 440 W 250 W 270 W Min 440W 600W Max

Min Polski Programów Panacrunch (NN-F663/NN-F623) 1260 W NN-Q553/NN-Q523 1160 W NN-Q543 Mikrofale: Polski Moc wyjściowa: Mikrofale: 1000 W (IEC-60705) §ÂÈÙÔ˘ÚÁ›· ÙˆÓ ıÂÚÌ·ÓÙÈÎÒÓ ·ÓÙÈÛÙ¿ÛÂˆÓ (NN-F663/NNF623/NN-F653) ∂ÏÏËÓÈο NN-F663/NN-F623/NN-F653 Max 600W 250W ∂›Â‰Ô ÈÛ¯‡Ô˜ ΔÈÌ‹ ÈÛ¯‡Ô˜ 1000 W (IEC-60705) 1300 W ∞ÓÙ›ÛÙ·ÛË °ÎÚÈÏ: 510 (W) x 380 (D) x 304 (H) mm 359 (W) x 352 (D) x 217 (H) mm

12.5 ÎÈÏ¿

ªÈÎÚÔ·̷ٷ: 1000 W (IEC-60705) ªÈÎÚÔ·̷ٷ: Matsushita Electric (UK) Ltd Wyncliffe Road Pentwyn Industrial Estate Cardiff CF23 7XB
