Product Type	Endoscopic Video Camera
Brand	Vevor
Model	SM7
Camera Diameter	8.5 mm
Viewing Angle	70°
Focal Distance	2 - 7 cm
Light Source	8 Adjustable Brightness LEDs
Functions	Photo and Video
USB Interface	Lightning, Micro USB, Type-C (depending on version)
Cable Length	3 m, 5 m or 15 m (depending on version)
Compatibility	Android 6.0+, iOS 9.0+
App	Useeplus (download via QR code)
Power Supply	Via USB (smartphone/tablet)
Control Box	Yes, with brightness adjuster
Accessories	Clip, mirrors (depending on receipt)
Maintenance	Wipe the lens with a clean cloth; dry in a ventilated place if wet.
Safety	Do not use as a medical product; keep out of reach of children.
Manufacturer	Shanghai Xinmuye Co., Ltd.
Support	www.vevor.com/support
Warning	Read the manual carefully before use.

Frequently Asked Questions - SM7 Vevor

How to install the Useeplus app?

Use your phone's browser to scan the QR code provided in the manual. Download the app from Google Play for Android or the App Store for iOS.

The image is blurry, what should I do?

Adjust the focal distance between 2 and 7 cm from the object. Wipe the lens with a clean cloth. Adjust the LED brightness. If the camera has been wet, dry it in a ventilated place.

Is my smartphone compatible?

Your device must run Android 6.0 or later, or iOS 9.0 or later. It must also have a USB port matching the camera's interface (Lightning, Micro USB, or Type-C).

Can I record videos?

Yes, the Useeplus app allows you to take photos and record videos via the app interface.

How to adjust the LED brightness?

Use the brightness adjuster on the control box to adjust the intensity of the 8 LEDs.

Is the cable detachable?

No, the cable is fixed. The length depends on the version: 3 m, 5 m or 15 m.

What to do if the camera does not connect?

Check that the interface type matches your device. Reinsert the connector firmly. Restart the app. If the problem persists, contact support at www.vevor.com/support.

Can I use this endoscope for medical use?

No, this device is prohibited for medical use. It is designed for general inspection purposes.

How to clean the camera?

Gently wipe the lens with a clean, dry cloth. Do not immerse the camera in water. If wet, dry it in a ventilated place before use.

Where to find technical support?

Visit the website www.vevor.com/support for technical support and the electronic warranty certificate.

USER MANUAL SM7 Vevor

Affordable. Reliable. Home Improvement.

ENDOSCOPE

MODEL:SM7

Technical Support and E-Warranty Certificate www.vevor.com/support

MODEL:SM7

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the produ received. Please forgive us that we won't inform you again if there a technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instru manual carefully.
	CORRECT DISPOSAL This product is subject to the provision of european Direct 2012/19/EU. The symbol showing a wheelie bin crossed the indicates that the product requires separate refuse collection European Union. This applies to the product and all acces marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken a collection point for recycling electrical and electronic device
FC	FCC Information: CAUTION: Changes or modifications not expressly approved the party responsible for compliance could void the user's to operate the equipment! This device complies with Part 15 of the FCC Rules. Ope subject to the following two conditions: 1) This product may cause harmful interference. 2)This product must accept any interference received, incl interference that may cause undesired operation. WARNING: Changes or modifications to this product not ex approved by the party.responsible for compliance could void user's authority to operate the product. Note: This product has been tested and found to comply limits for a Class B digital device pursuant to Part 15 of Rules, These limits are designed to provide reasonable pro against harmful interference in a residential installation. This product generates, uses and can radiate radio frequen energy, and if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfere will not occur in a particular installation. If this product does harmful interference to radio or television reception,which can
	determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more following measures. ·Reorient or relocate the receiving antenna. ·Increase the distance between the product and receiver. ·Connect the product to an outlet on a circuit different from which the receiver is connected. ·Consult the dealer or an experienced radio/TV technician assistance.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in injury.

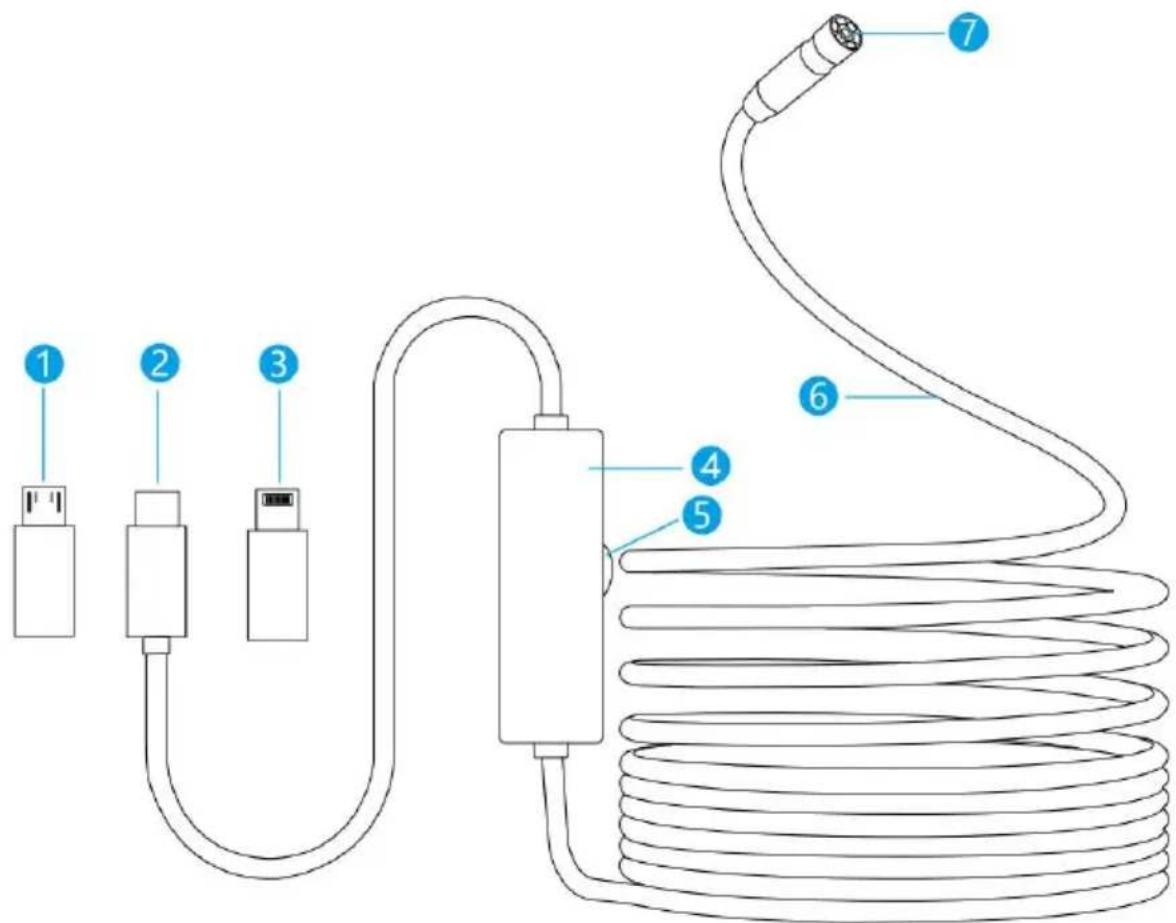

Product Details

1. Type-c to Micro-USB
2. Type-c
3. Type-c to Lightning
4. Control box
5. Dimming gear: Adjust the brightness of the camera LEDs lighting
6. Cable
7. HD Camera

APP Download

Please use the built-in browser on your phone to scan the QR code below the app, Android>Android (google)>to download,iOS>iOS App Store>to download

Useoplus

How to use

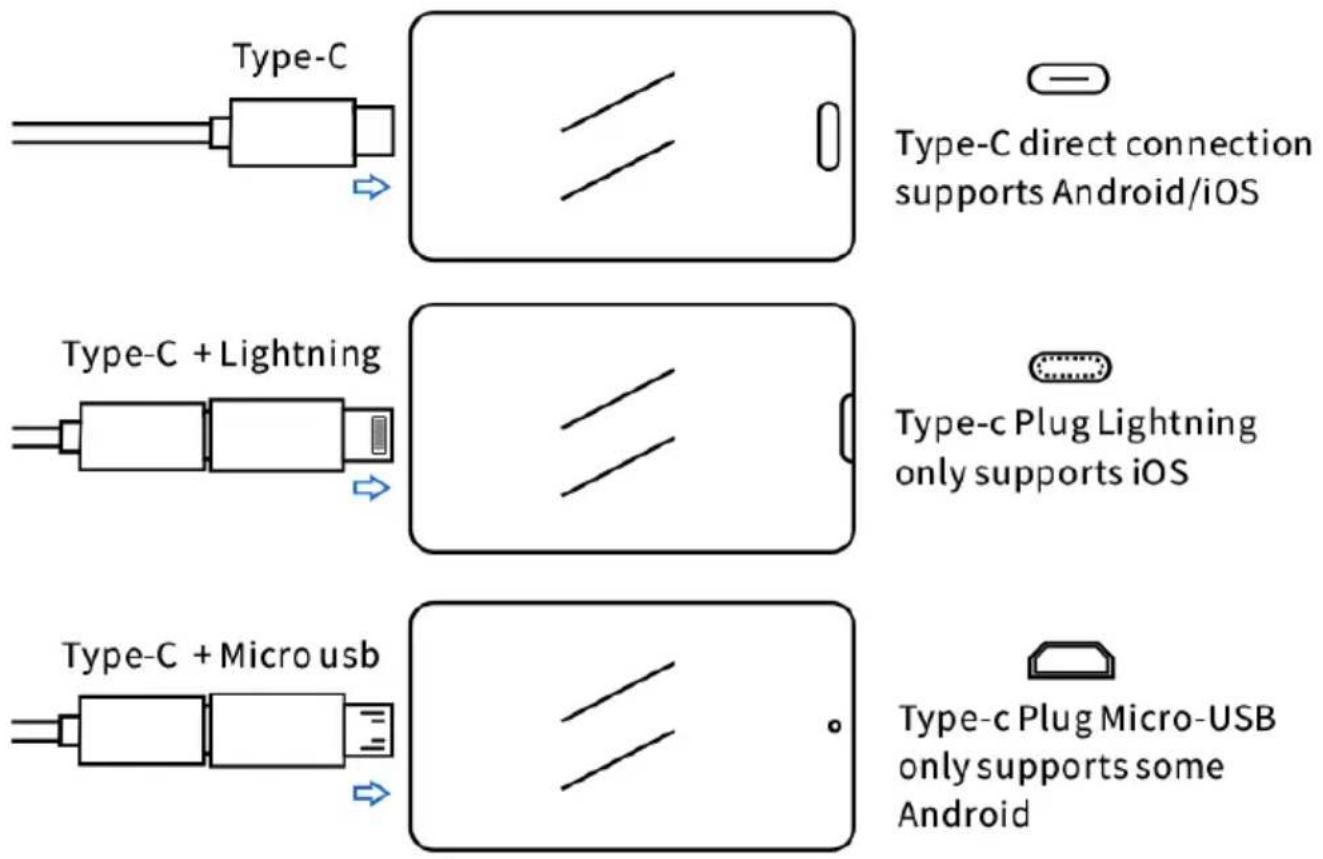

Insert the endoscope into your smartphones or Pad, paying attention to the interface type of the device. Please refer to the following Schematic diagram.

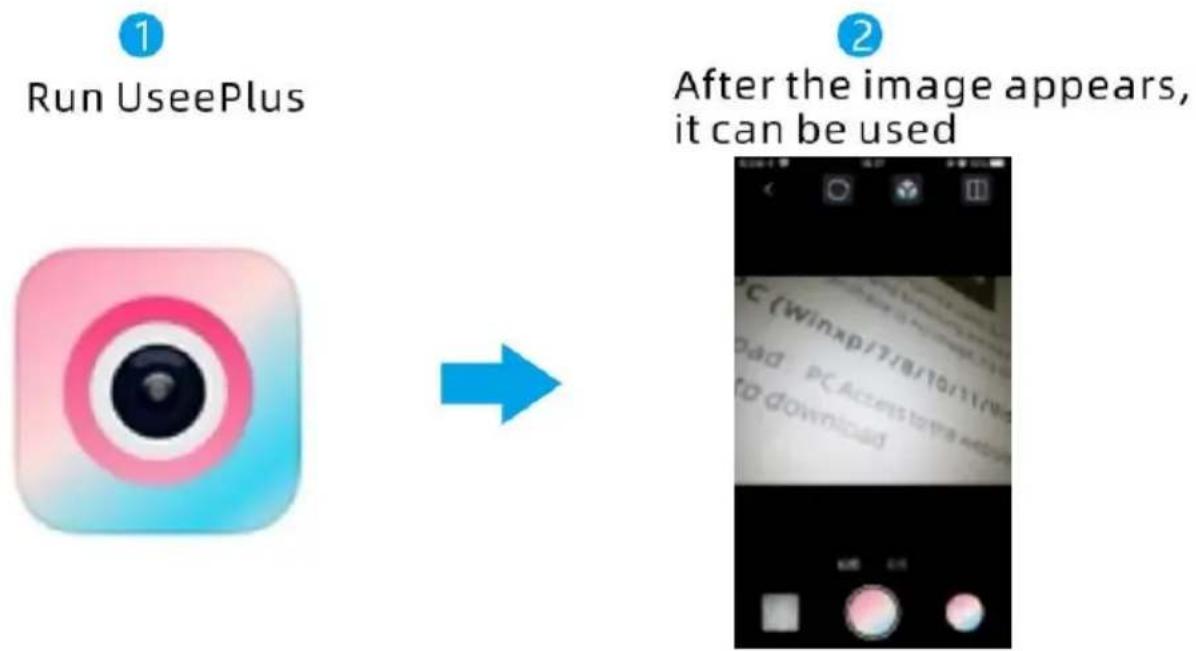

Run the APP

Note: Taking photos/videos can be done within the app

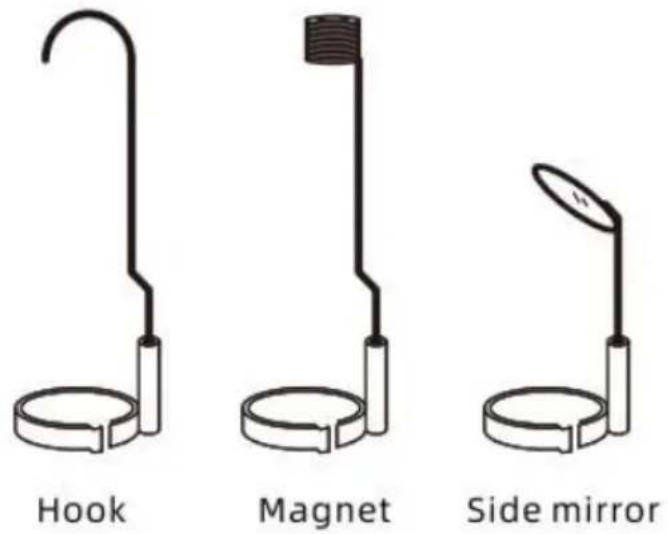

Accessory installation

There are many models of this product, subject to actual receipt

Installation for snap Fit Accessories

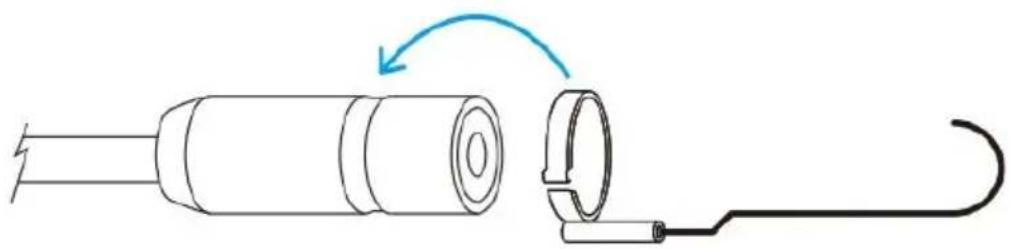

Figure1

Step 1: Align the accessory with the slot position of the Camera

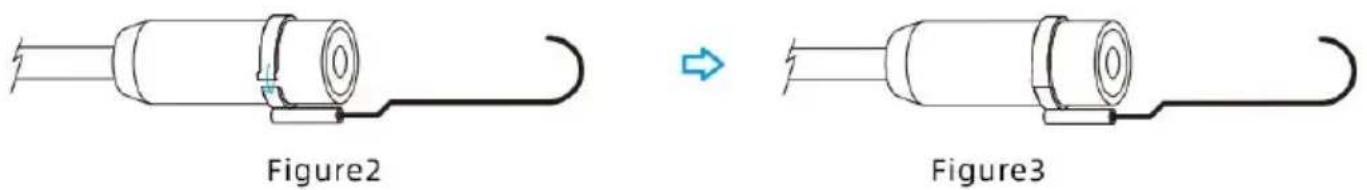

Step2: Close the clip of the accessory(see Figure 2-3)

Model	SM7
Camera diameter	Φ8.5mm	Φ8.5mm	Φ8.5mm
Photo/video	Support	Support	Support
Light source	8 LED adjustable brightness	8 LED adjustable brightness	8 LED adjustable brightness
Focal length	2-7cm	2-7cm	2-7cm
View angle	70°	70°	70°
USB interface	Lightning type-c Micro	Lightning type-c Micro	Lightning type-c Micro
Supprot os	Android 6.0+, i0s9.0+	Android 6.0+, i0s9.0+	Android 6.0+, i0s9.0+
cable length	15m	5m	3m

FAQ

1. Images are blurry

A. Adjust the focus range
B. Wipe the lens with a clean cloth
C. Adjust the camera light brightness
D. If the camera is flooded, dry it in a ventilated place before use questions, please contact the supplier

Warm reminder

1. It is prohibited to use as a medical product

2. here are many models of this product, the specific subject to the physical receipt, including but not limited to Packaging, color, appearance, etc., but the direction of use is basically the same

3. Please keep this product out of reach of children to avoid unnecessary use Want damage and property damage

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A

Technical Support and E-Warranty Certificate www.vevor.com/support
