A305M - Aroma diffuser Vevor - Free user manual and instructions

Product Type	Professional Aroma Diffuser
Brand	Vevor
Model	A305M
Tank Capacity	850 ml
Power	7 W
Power Supply	DC 12 V, 0.7 A max
Material	Plastic
Maximum Coverage	Approximately 5,000 ft² (465 m²)
Control	Bluetooth Mobile App (Scent Marketing)
Intensity Levels	20 levels (G1 to G20) + custom
Schedule Programming	Up to 5 work periods per day, adjustable by day of the week
Additional Functions	Built-in fan, auto-lock, factory reset (password 8888)
Installation	Wall-mounted with bracket and expansion bolts (included)
Maintenance and Cleaning	Clean with industrial alcohol for 5-10 minutes when changing oil or when flow decreases
Safety	Do not use outdoors, keep away from children and animals, do not tilt the machine
Spare Parts Available	Atomization core, atomizing head, seals, air pump, tube
Warranty	Technical support and electronic warranty certificate at www.vevor.com
Recommended Use	Hotels, conference rooms, retail stores, spas, exhibition halls

Frequently Asked Questions - A305M Vevor

How to set up the diffusion via the app?

Download the Scent Marketing app from Google Play or App Store. Enable Bluetooth and location on your phone, then follow the app instructions to connect the diffuser.

What to do if the diffuser does not diffuse oil?

First check the selected mode and that the machine is not in a stop period. If the problem persists, the air pump may be damaged and needs to be replaced.

How to clean the diffuser before changing essential oil?

Fill a clean bottle with industrial alcohol, install it on the machine and run it for 5-10 minutes. This cleans the internal circuit.

What to do in case of oil leakage?

Check that the bottle is tightly screwed and that the atomizing head seal is not damaged or loose. Replace the seal if necessary.

How to set the password and reset the machine?

The default password is 8888. To reset, press the reset button (restores factory settings). To change the password, use the app.

What intensity levels are available?

There are 20 levels (G1 to G20) with variable work and stop durations. You can also set a custom mode via the app.

How to program the diffuser to run at specific times?

Press SET to set work periods. You can define up to 5 periods per day, with start and end times, for each day of the week.

What does the display '-Cu-' mean on the screen?

The display '-Cu-' indicates that the quality (level) is set to custom mode via the Bluetooth app.

How to install the diffuser on the wall?

Drill holes in the wall, insert wall plugs, attach the bracket with screws, then hang the machine on the bracket. Use the expansion bolts provided.

What are possible abnormal noises and how to resolve them?

An abnormal noise may come from a loose air pump (tighten it) or a damaged air pump (replace it).

USER MANUAL A305M Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

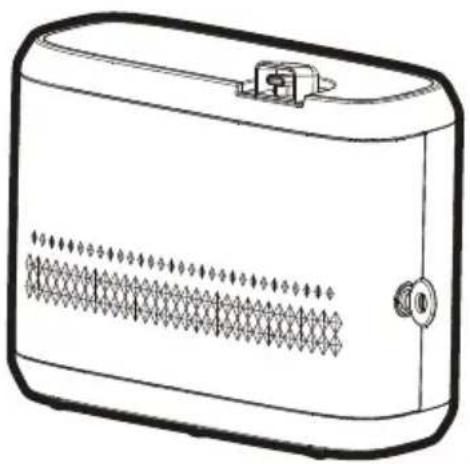

Aroma Diffuser MODEL: A305M

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: A305M

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
3. Weight and elastic and other product properties are only applicable to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is a equipment, not a toy, it needs to be used under the guidance of a professional. Do not allow children and pets to play alone or approach this item.
7. Use as intended only. Do not sit or stand on the product.
8. Inspect before every use. Do not use it if parts are loose or damaged.
9. Do not apply this unit to any other purposes than the indicated usage.
10. The Aroma diffuser cannot place items to avoid damage.
11. Do not use it for commercial purposes.
12. Do not clean it with any abrasive material.
13. Never leave it unattended while in use.
14. Pet urine and feces can damage the product, please keep away.
15. Do not place the product on or near hot air, electric burners or heaters.

Fireworks, cigarettes, flares, and other items can ignite the product. Please stay away from them.

WARNING:

1. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes and falls.

People or pets hanging on the product will cause injury or death.

TECHNICAL SPECIFICATIONS

Model Bottle Power Material
A305M 850ml 7W plastic
Input Coverage		/	/
DC 12V-0.7A MAX 5000ft² /			/

PARTS LIST

Parts No.			Parts No.	PictureType Qty
①		1 PCS	②		1 PCS
③		1 PCS	④		5 PCS
⑤		1 PCS	⑥		1 PCS
⑦		2 PCS	⑧		1 PCS
⑨		1 PCS	⑩		1 PCS
⑪		1 PCS

Note:

Checking and make sure the packaging is complete when you first open it, If any problem please contact with us soon.

Where to get the app:

Please search for "scent marketing " in Google play or App store .

Android system

IOS system

If the QR code cannot be scanned, please search for "Scent Marketing" in Google play or APPstore.

Note:

1. Please make sure that the Bluetooth function is turned on;
2. Please make sure that the location function of the mobile phone is turned on .

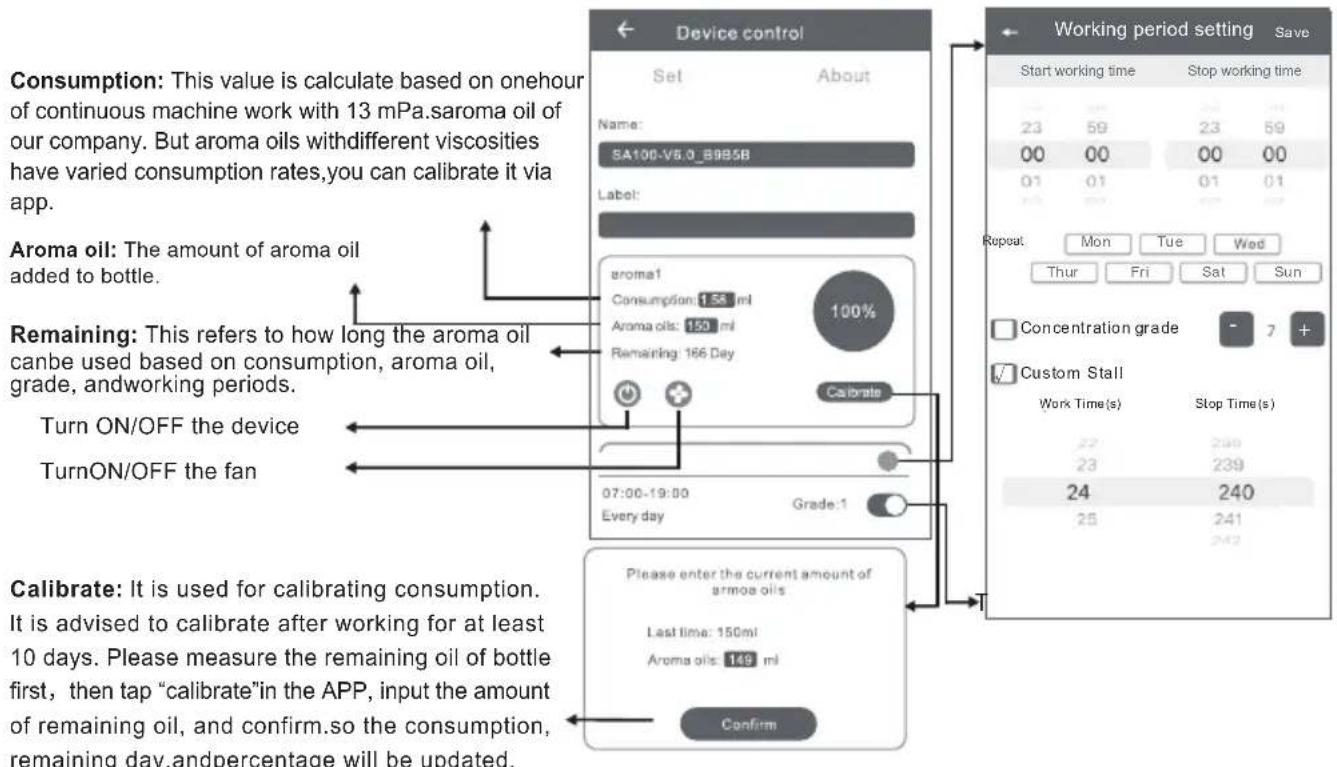

Select version

Bluetooth version

WIFI version

Device

AAA

AAA

AAA

password

Input password

(factory default password is 8888)

Login

Remember password

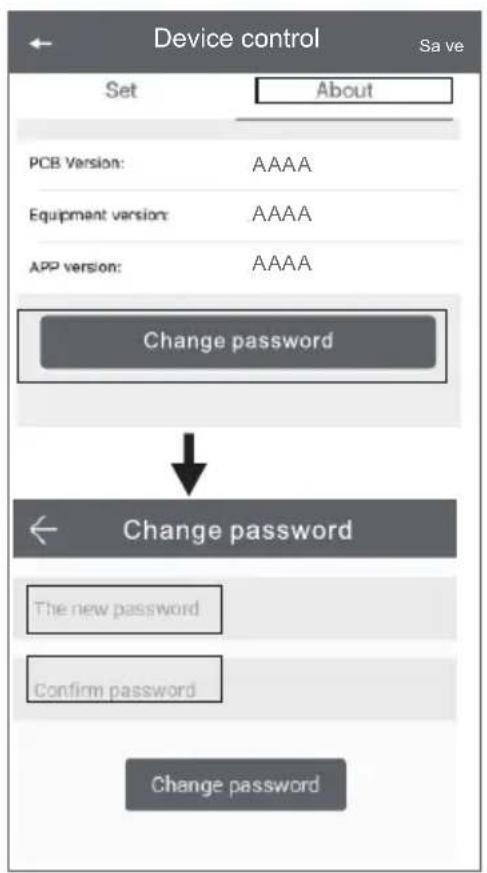

AMEND PASSWORD

If you forget the password, please press the reset button to restore the factory setting. The factory settings password is 8888.

Usage of sealing tape:

1. Before replacing atomizing core, wrap sealing tape around atomized core thread about 3-5 turns to avoid air leakage;
2. Before connecting atomized connector, wrap sealing tape around atomized connector thread about 3-5 turns to avoid air leakage.

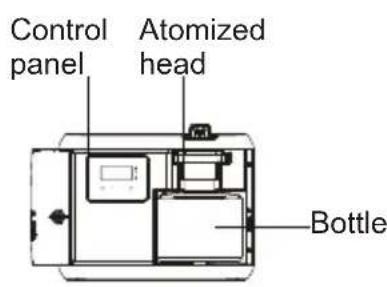

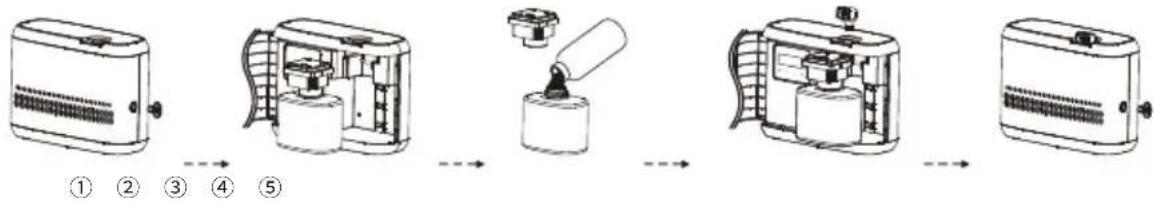

1. Open the door by key;
2. Uns crew the atomiz ed nozzle, take out the bottle;
3. Twist the bottle and fill essential oil;
4. Put atomiz ed head to bottle and screw the atomiz ed nozzle;
5. Finis h time s etting and lock machine.

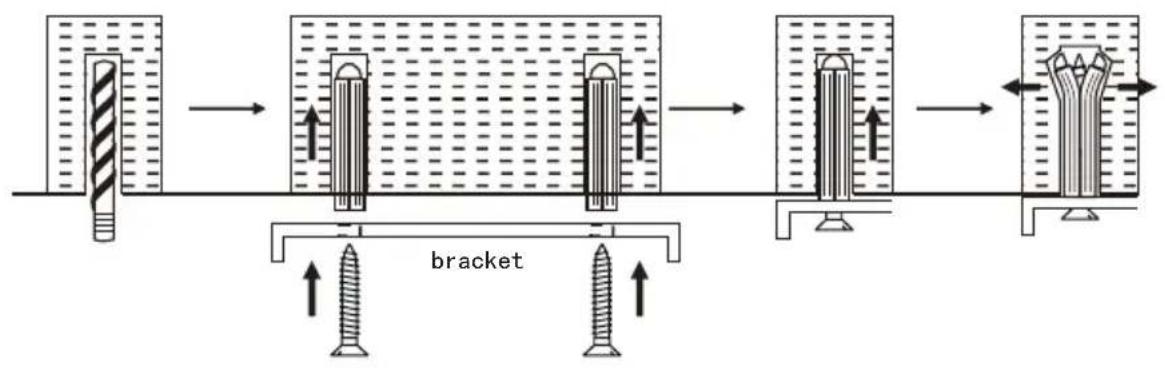

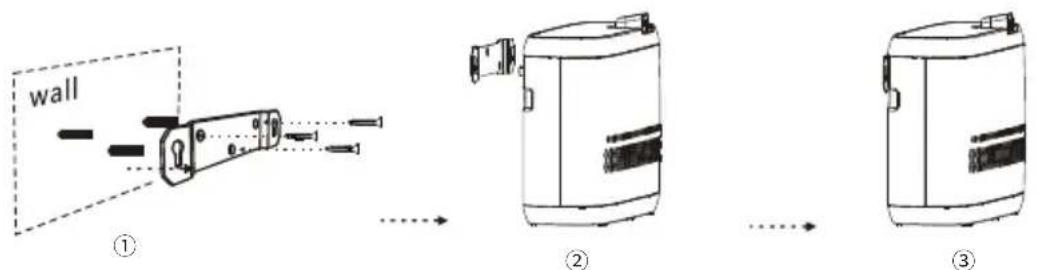

The method of using expansion bolts:

Drill holes in the wall, and insert the wall anchors into the hole, then secure the bracket with screws.

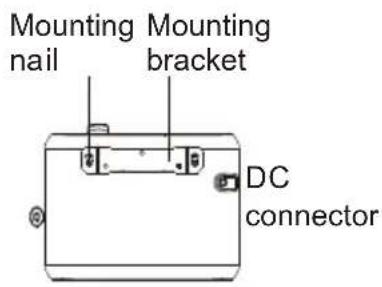

1. Aim at the position of the mounting bracket, then drill the hole in the wall and insert the expansion bolts into the hole in the wall;
2. Install the mounting bracket on the wall with screws, and finally hang the machine on the mounting bracket.

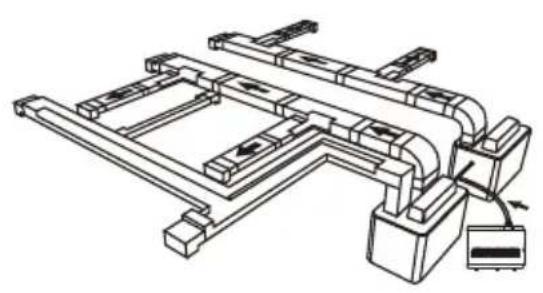

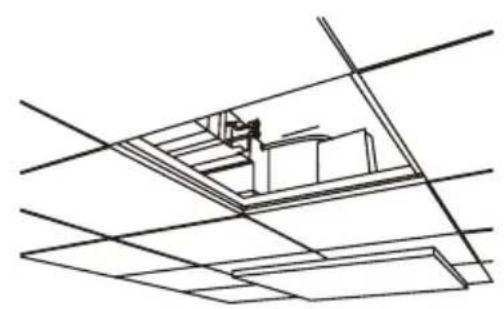

INSTALLATION METHOD

Idea for Hotels, Conference rooms, Malls, Exhibition halls, Major retailers, Bars, SPAS, Business places or anywhere you want to a fragrance experience.

Grade Work time(s) Stop time(s) Consum mption(g/h)
G1 15s 300s 0.10
G2 15s 150s 0.20
G3 20s 120s 0.30
G4 20s 85s 0.40
G5 25s 80s 0.50
G6 30s 75s 0.60
G7 30s 60s 0.70
G8 30s 50s 0.80
G9 30s 40s 0.90
G10 30s 33s 1.10
G11 33s 30s 1.10
G12 40s 30s 1.20
G13 50s 30s 1.30
G14 60s 30s 1.40
G15 75s 30s 1.50
G16 80s 25s 1.60
G17 85s 20s 1.70
G18 120s 20s 1.80
G19 150s 15s 1.90
G20 300s 15s 2.00
Customized 5-500s 5-500s ---

Note: The above data is for reference only. If customers use essential oils with different viscosities, the oil consumption will vary.

1. Please always keep the machine upright, tilting or placing it flat will cause oil leakage, which will lead to machine damage.
2. When the screen is in lock status, the button cannot be operated and there is no display on the screen.
3. The machine will not work when it is not in the working periods, even the atomization icon is displayed on the screen.

Restore factory setting

Step: Tap the ENT button and hold about 3 seconds until the "beep" sound coming out.

Before asking to have the machine repaired, please try to diagnose the problem first following to bellow instructions.

Breakdown Solution
Does not diffuse	-Check whether the mode you choose is correct or not. -Check if the machine is during "Non-Working period" -Air pump may be damaged, change to new one.
Weak diffuse	-The atomizing core is blocked, clean by alcohol or change a new component. -Check whether the gasket is damage/loose or not. -Check whether the tube is loose or.
Oil leaking	-Check whether the bottle is loose or not -The gasket in the atomized head is damaged or loose.
Oil sprinkle	-The atomized head is damaged, change to new one -The machine is tilted or laying down, keep machine vertical.
Abnormal noise	-The air pump is loose, retighten the pump -The air pump is damaged, change to new one.

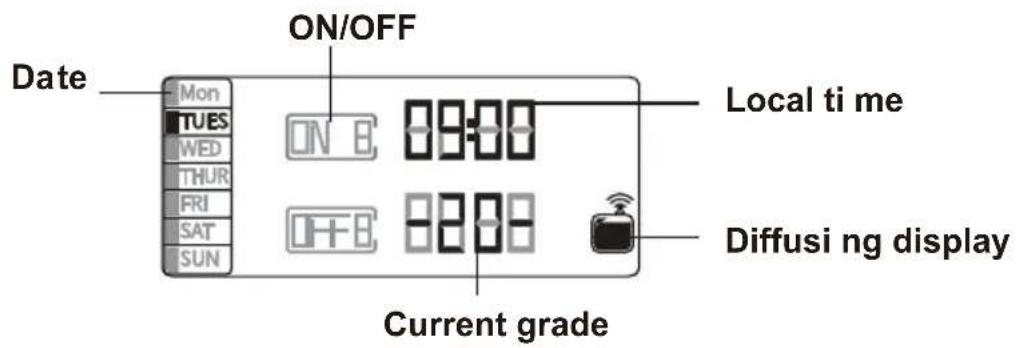

Power on/off

Connect power supply, power on with a sound "beep", and the screen displays initial time and current grade. The screen will be off when disconnect the power.

Fan on/off

Touch button (3s) to turn on fan, touch button (3s) to turn off fan.

Auto-lock and un-lock

Button will be locked automatically if there is no any fur ther man uual man ni pul a ti on i n 60s; Touch SET (about 3s) comes out wi th sound "be ep" and screen I lights on to unlock machi ne.

Local time setting

Touch SET button (about 3s) till a sound "beep" comes out for day setting; touch or to adjust the day; touch ENT button for local time setting, touch or to adjust the time (Fi gure 1)

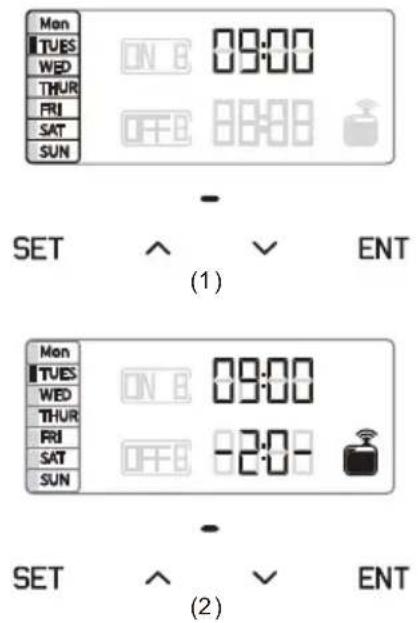

Concentration grade setting

There are 20 grades available. Touch to increase grade, touch to decrease grade (Figure 2).

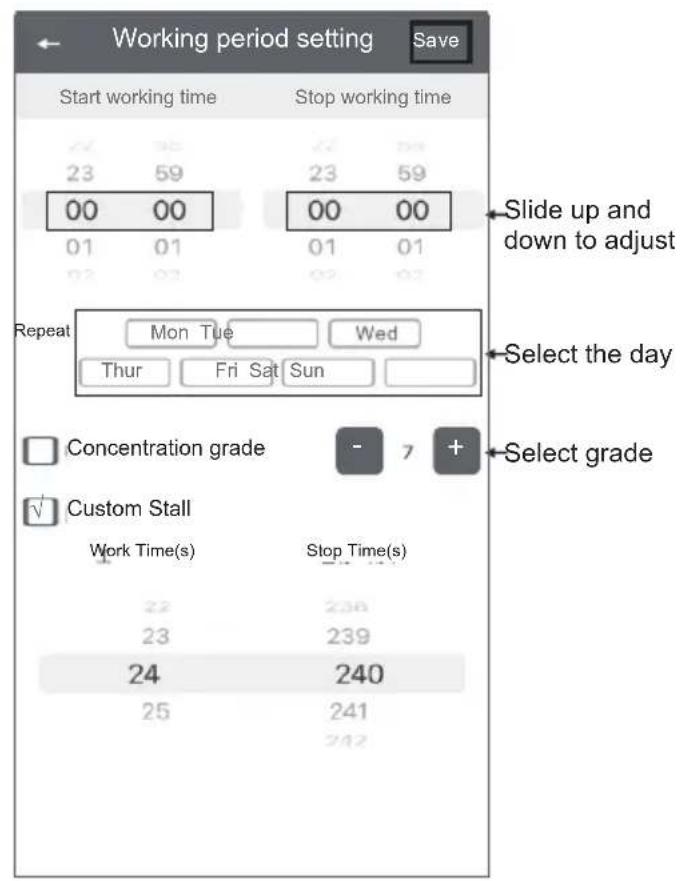

There are 5 working periods available to be set every day(Figure 3). Touch SET button to set working period (ON1), touch or to choose working period (1-5); touch ENT button for the working period switch, touch or to choose ON or OFF, touch ENT button again to move to thaoperationtime, touch or to adjust number.

Touch ENT again for grade. Next touch ENT to choose theday (MON), touch button to turn on the working period(ON1)(Figure4), touch button to turn off the workingperiod (OFF1)(Figure5).

Touch ENT to move to the next day and repeat the stepsfor TUES to SUN.

Once finish, touch SET to confirm and exit, Repeat the same setting steps of ON1 for ON2, ON3 ON4 and ON5.

PS:Grade display with "-Cu-" is for customized grade setby APP only(Figure6).

Machine doesn't work when the start working period is assame as stop working time.

Working time period	00:00 00:00	00:00 00:00	00:00 00:00	00:00 00:00	00:00 00:00
Mon	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Thues	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Wed	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Thur	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Fri	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Sat	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Sun	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF

(PS: The first working period is factory defaults with start working time 07:00 and stop working time 19:00, the rest are all with 00:00.)

The machine needs to be cleaned when below situations happen:

1. You're about to change to another essential oil;
2. The atomization volume becomes weak.

Cleaning steps:

1. Find a clean bottle and fill it with industrial alcohol;
2. Install this bottle to the machine and turn the machine on. Let it work for 5-10 minutes;
3. Turn off the electric, finish the cleaning.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU.

The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union.

This applies to the product and all accessories marked with this symbol.

Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place,

Rancho Cucamonga, CA 91730

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609 shi

Shanghai

UK	REP
EC	REP

PooledasGroupLtd

Unit 5 Albert Edward House, The

Pavilions Preston,United Kingdom

SHUNSHUN GmbH

Romeracker 9 Z2021,76351

Technical Support and E-Warranty Certificate www.vevor.com/support
