USER MANUAL SE8150D-V2.0 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Aroma Diffuser

MODEL: SE8150D-V2.0

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.

You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: SE8150D-V2.0

Simple line drawing of a cylindrical object with a flange at the base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
3. Weight and elastic and other product properties are only applicable to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is a equipment, not a toy, it needs to be used under the guidance of a professional. Do not allow children and pets to play alone or approach this item.
7. Use as intended only. Do not sit or stand on the product.
8. Inspect before every use. Do not use it if parts are loose or damaged.
9. Do not apply this unit to any other purposes than the indicated usage.
10. The Aroma diffuser cannot place items to avoid damage.
11. Do not use it for commercial purposes.
12. Do not clean it with any abrasive material.
13. Never leave it unattended while in use.
14. Pet urine and feces can damage the product, please keep away.
15. Do not place the product on or near hot air, electric burners or heaters.

Fireworks, cigarettes, flares, and other items can ignite the product. Please stay away from them.

WARNING:

1. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes and falls.

People or pets hanging on the product will cause injury or death.

TECHNICAL SPECIFICATIONS

Model Bottle Power Material
SE8150D-V2.0	120ml 5W aluminum
Input Coverage		/	/
DC 12V-1A MAX 1000ft ^2 /			/

PARTS LIST

Parts No.	Parts No.Picture Qty		Picture	Qty
		1 PCS ^1 ^2		1 PCS
^3		1 PCS ^4		1 PCS

Note:

Checking and make sure the packaging is complete when you first open it, If any problem please contact with us soon.

Where to get the app:

Please search for "scent marketing" in Google play or App store.

Android system

IOS system

If the QR code cannot be scanned, please search for "Scent Marketing" in Google play or APPstore.

Note:

1. Please make sure that the Bluetooth function is turned on;
2. Please make sure that the location function of the mobile phone is turned on.

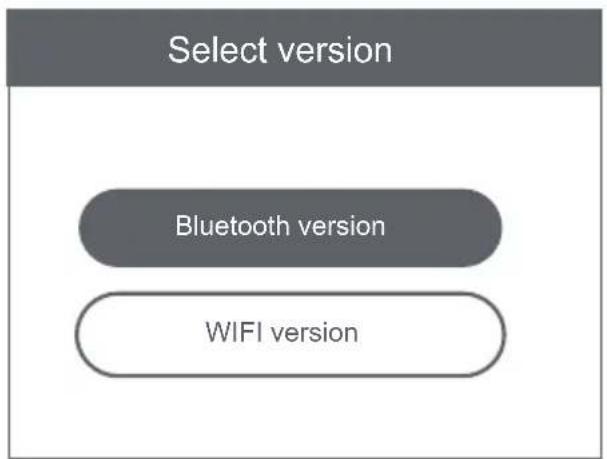

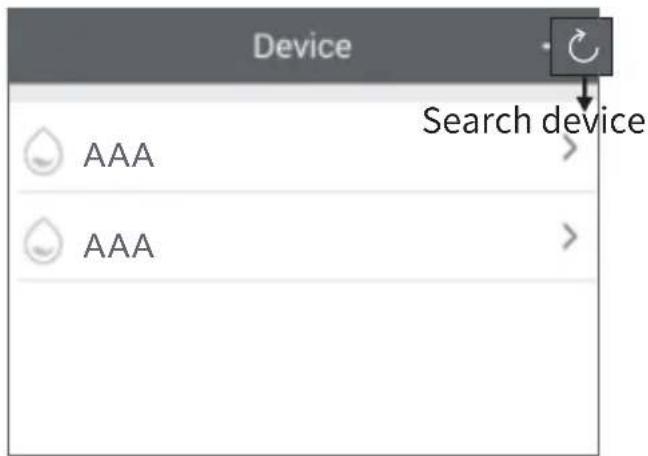

Device Search device AAA AAA

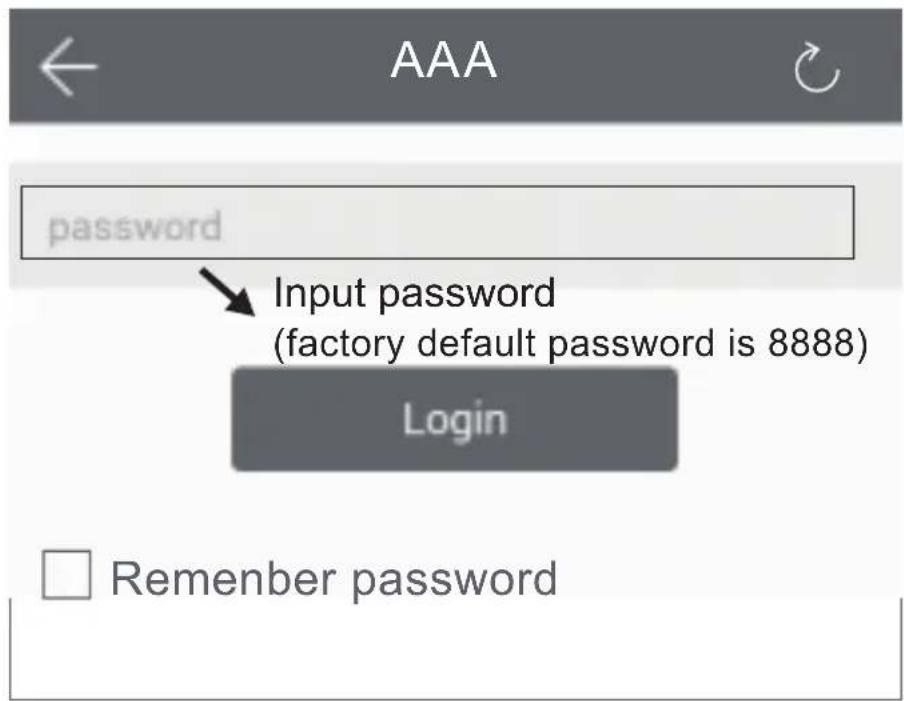

AAA password Input password (factory default password is 8888) Login □ Remember password

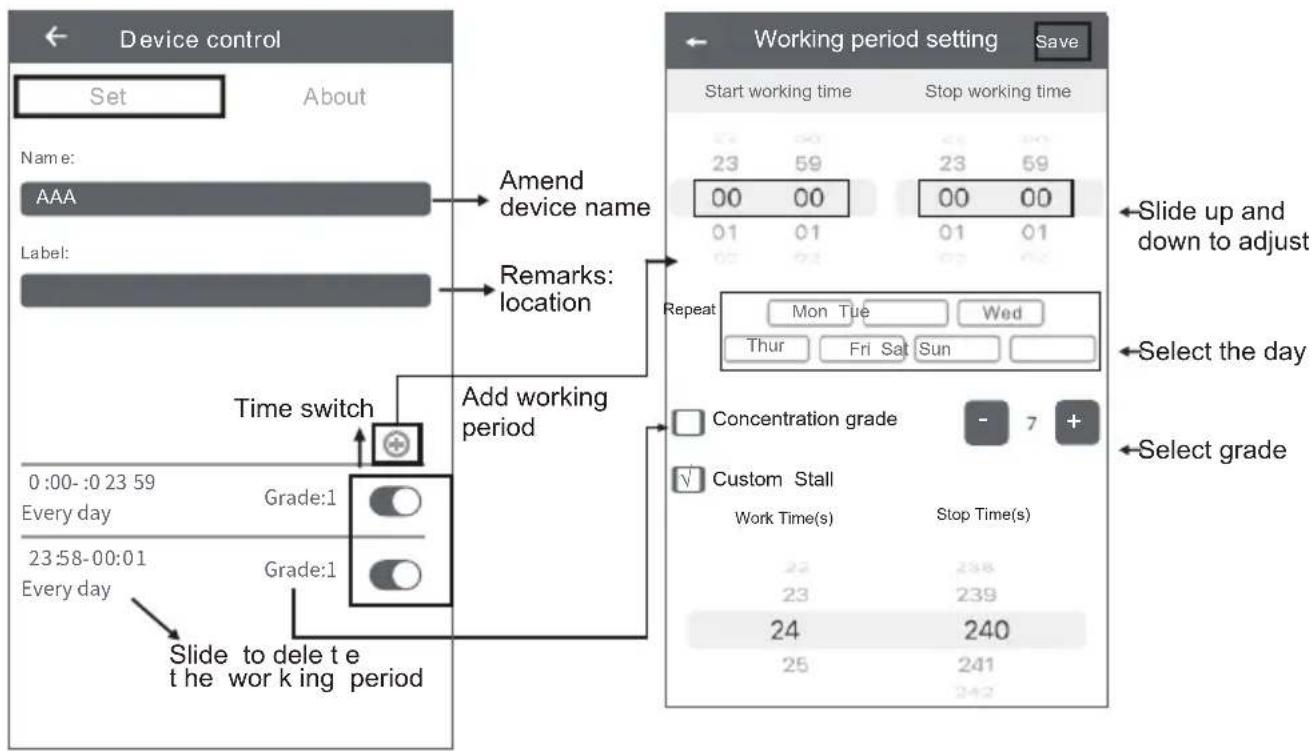

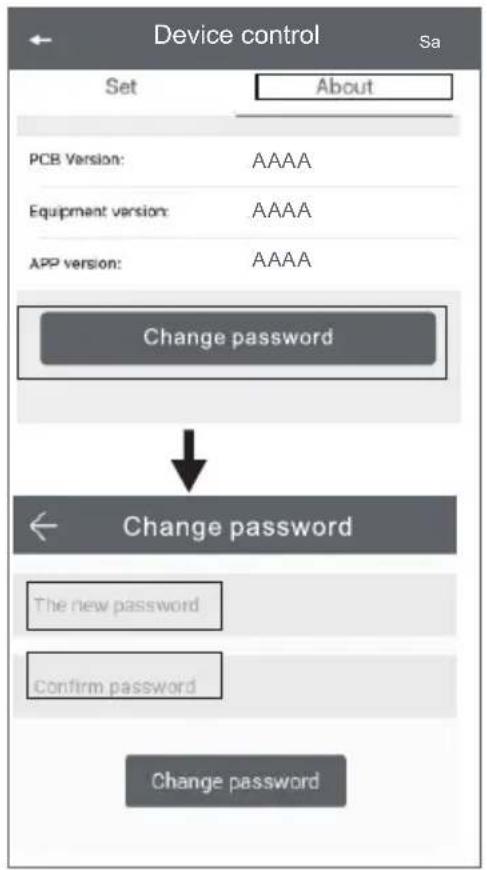

AMEND PASSWORD

Device control Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

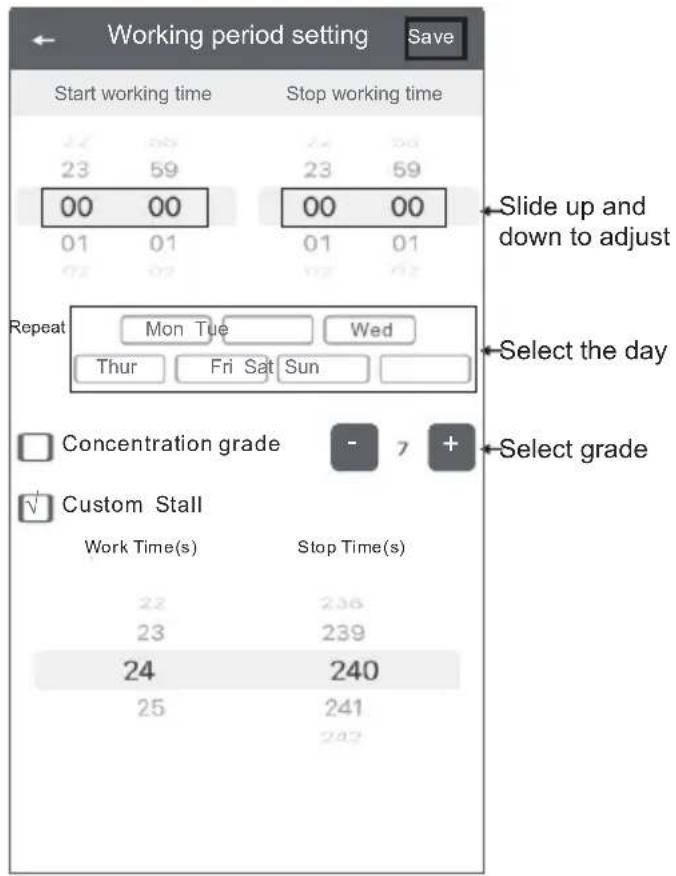

Working period setting Save Start working time Stop working time 23 59 24 58 00 00 00 00 01 01 01 01 02 02 02 Slide up and down to adjust Repeat Mon Tue Wed Thur Fri Sat Sun Select the day Concentration grade - 7 + Select grade Custom Stall Work Time(s) Stop Time(s) 22 236 23 239 24 240 25 241 242

If you forget the password, please press the reset button to restore the factory setting. The factory settings password is 8888.

Before asking to have the machine repaired, please try to diagnose the problem first following to bellow instructions.

Breakdown Solution
No diffuse	- Check if the power is ON or OFF; - The pump is damaged and needs replacing; - If there is no diffusion or it is weak, replace the oil with rubbing alcohol and run it through the machine for 5 minutes.
Little or no Spray coming out	- Atomization head is blocked. Clean diffuser by running rubbing alcohol through it. Or replace diffuser core; - Diffuser core with straw is missing or damaged. Replace with a new one; - Pump is damaged and may need replacing.
Diffuser spraying liquid	- Diffuser core is damaged, Replace diffuser core. - Machine is tilted or angled, Make sure it 's upright at all times.
Oil leaking	- Bottle is loose. Screw it in properly and straight; - Seal is broken or missing. Replace the supplied seal that came with the machine
Abnormal sound	- Pump is loose or damaged, Tighten the pump or replace.
No display onscreen	- Make sure the power is ON; - Check the plug for damage, Try another outlet, If plug is damaged replace; - Display screen is damaged, Replace.

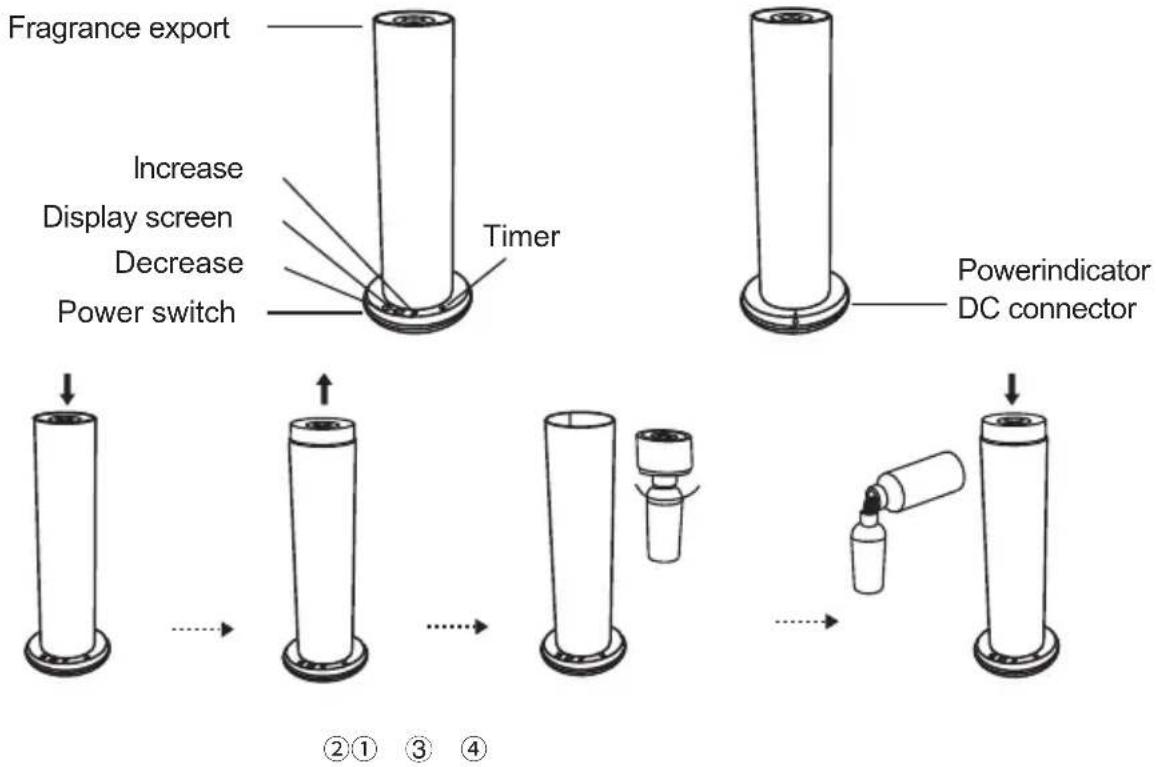

ASSEMBLY STEPS
1. Press on the top cover to open the machine;
2. Take out the top cover with diffusion head and bottle;
3. Unscrew the bottle;
4. Fill the bottle with fragrance.

OPERATIONS

power on

Connect with 12V 1A power supply, there is "beep" voice coming out.

power off

Press ⏻ to turn off the machine

Intensity setting

The machine has 10 intensity levels, Press to increase the intensity, press to decrease the intensity.

Power indicator

indicating the direction of the power supply.

Reset Bluetooth App password

press and hold ⏻ for 3 seconds to reset password to 8888.

INTENSITY AND OIL CONSUMPTION

Grade Work time(s) Stop time(s) Consu mption(g/h)
G1 5s 240s 0.03
G2 10s 220s 0.05
G3 15s 200s 0.07
G4 15s 180s 0.11
G5 20s 160s 0.15
G6 20s 120s 0.20
G7 25s 100s 0.25
G8 25s 80s 0.30
G9 25s 60s 0.38
Customized 5-25s 60-600s ---

Note: The above data is for reference only. If customers use essential oils with different viscosities, the oil consumption will vary.

1. Please keep the machine vertical after installation. Tilting or lying flat can cause oil to overflow, and the circuit board may be contaminated, which could affect its efficiency;
2. Should not modify, dismantle or repair the machine arbitrarily. Any malfunction occurs, please contact the relevant technician immediately.

The machine needs to be cleaned when below situations happen:

1. You're about to change to another essential oil;
2. The atomization volume becomes weak.

Cleaning steps:

1. Find a clean bottle and fill it with industrial alcohol;
2. Install this bottle to the machine and turn the machine on. Let it work for 5-10 minutes;
3. Turn off the electric, finish the cleaning.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

UK	REP	Pooledas Group LtdUnit 5 Albert Edward House,ThePavilions Preston,United Kingdom
EC	REP	SHUNSHUN GmbHRömeräcker 9 Z2021,76351Linkenheim-Hochstetten, Germany

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a cylindrical mechanical part with flange and base (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

Warning-To reduce the risk of injury, user must read instructions manual carefully.

AVERTISSEMENTS ET PRÉCAUTIONS DE SÉCURITÉ

INSTRUCTIONS BLUETOOTH

Line drawing of a cylindrical mechanical part with flange and base (no text or symbols)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Gerätesteuerung An ve Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

Simple line drawing of a cylindrical object with a separate cylindrical component, no text or symbols present.

Simple line drawing of a bottle being dispensed into a cylindrical container with an arrow indicating downward motion (no text or symbols)

ÿ

ÿ

ÿ

ÿ

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Line drawing of a cylindrical mechanical part with flange base and circular top (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Controllo del dispositivo Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

Line drawing of a cylindrical mechanical part with flange and base (no text or symbols)

www.vevor.com/support

Warning-To reduce the risk of injury, user must read instructions manual carefully.

QR, busque "Scent Marketing"

en Google Play o APPstore.

Nota:

Control del dispositivo Set About PCB Version: AAAAA Equipment version: AAAAA APP version: AAAAA Change password Change password The new password Confirm password Change password

Line drawing of a cylindrical mechanical part with flange and base (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Kontrola urządzenia NA Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Geurverspreider

MODEL:SE8150D-V2.0

Line drawing of a cylindrical mechanical part with flange and base (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Warning-To reduce the risk of injury, user must read instructions manual carefully.

VEILIGHEIDSWAARSCHUWINGEN EN VOORZORGSMAATREGELEN

"Scent Marketing" in Google Play of APPstore.

Opmerking:

Apparaatcontrole Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Line drawing of a cylindrical mechanical part with flange and base (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

www.vevor.com/support

Warning-To reduce the risk of injury, user must read instructions manual carefully.

SÄKERHETSVARNINGAR OCH FÖRSIKTIGHETSÅTGÄRDER

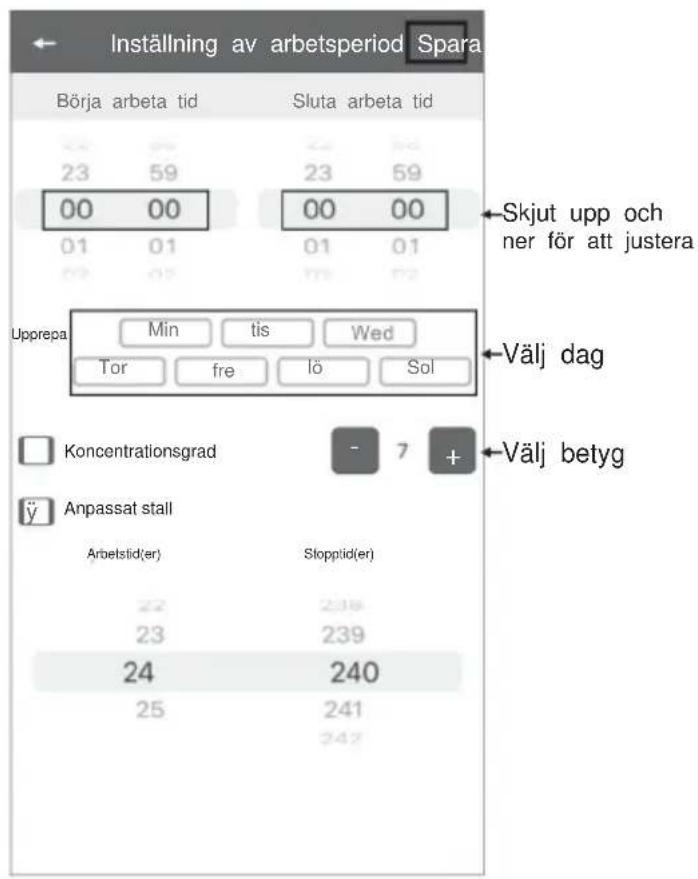

Enhetskontroll Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password
