USER MANUAL A1-V3.1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Aroma Diffuser

MODEL: A1-V3.1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: A1-V3.1

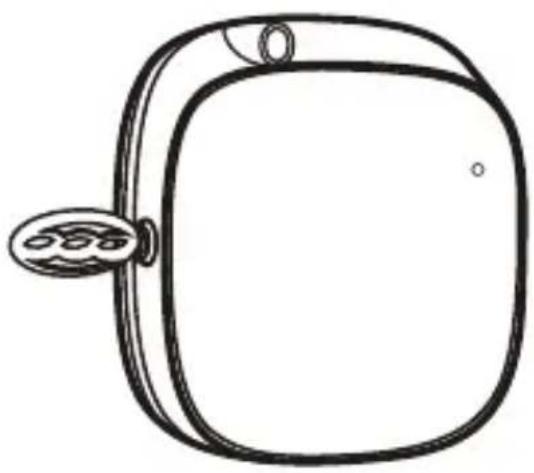

Simple line drawing of a square-shaped object with a handle and circular button (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
3. Weight and elastic and other product properties are only applicable to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is a equipment, not a toy, it needs to be used under the guidance of a professional. Do not allow children and pets to play alone or approach this item.
7. Use as intended only. Do not sit or stand on the product.
8. Inspect before every use. Do not use it if parts are loose or damaged.
9. Do not apply this unit to any other purposes than the indicated usage.
10. The Aroma diffuser cannot place items to avoid damage.
11. Do not use it for commercial purposes.
12. Do not clean it with any abrasive material.
13. Never leave it unattended while in use.
14. Pet urine and feces can damage the product, please keep away.
15. Do not place the product on or near hot air, electric burners or heaters.

Fireworks, cigarettes, flares, and other items can ignite the product. Please stay away from them.

WARNING:

1. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes and falls.

People or pets hanging on the product will cause injury or death.

TECHNICAL SPECIFICATIONS

Model Bottle Power Material
A1-V3.1 100ml 1.5W plastic, acrylic
Input Coverage	/	/
USB 5V-0.3A MAX 1000ft^2 / /

PARTS LIST

Parts No.	Parts No.Picture Qty		Picture Qty
1		1 PCS	2	1 PCS
3		1 PCS	4	2 PCS
5		5 PCS

Note:

Checking and make sure the packaging is complete when you first open it, If any problem please contact with us soon.

Where to get the app:

Please search for "scent marketing" in Google play or App store.

Android system

IOS system

If the QR code cannot be scanned, please search for "Scent Marketing" in

Google play or APPstore.

Note:

1. Please make sure that the Bluetooth function is turned on;
2. Please make sure that the location function of the mobile phone is turned on.

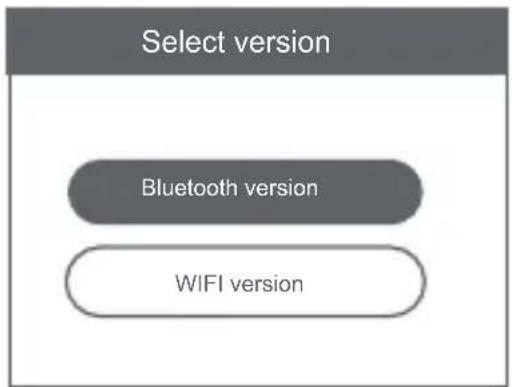

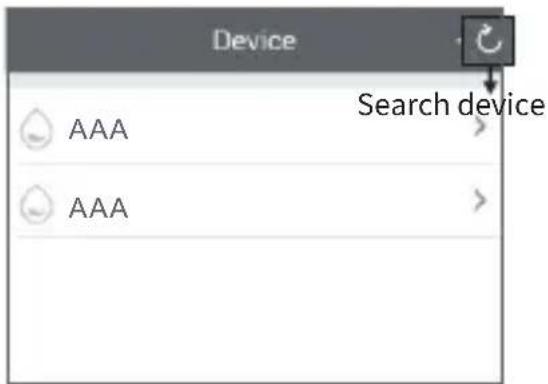

Device Search device AAA AAA

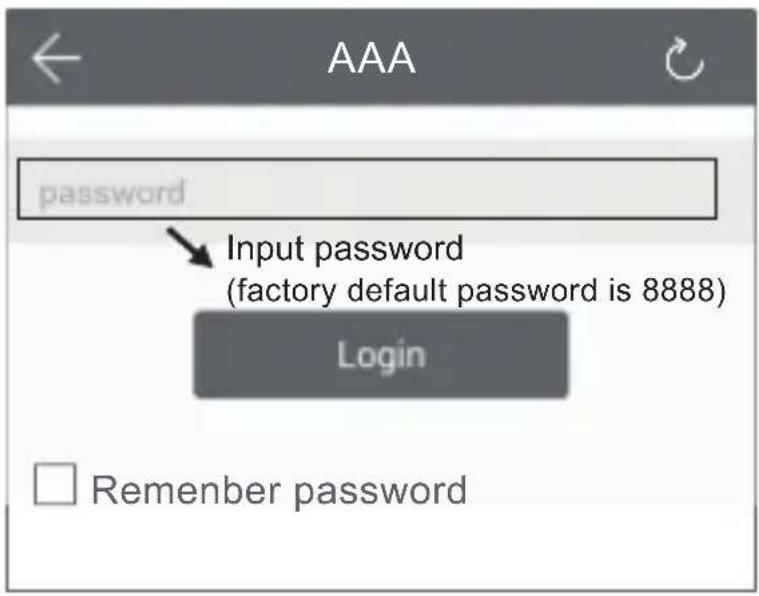

AAA password Input password (factory default password is 8888) Login □ Remember password

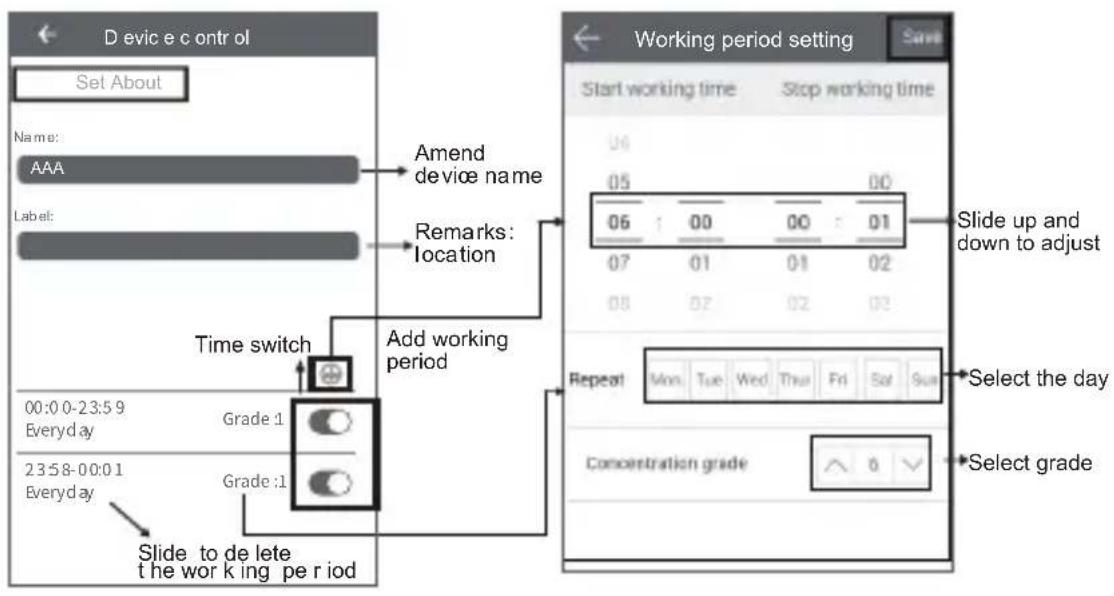

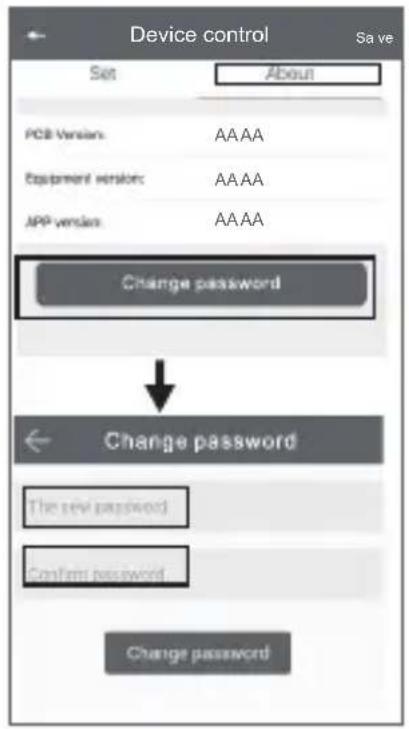

AMEND PASSWORD

Device control Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

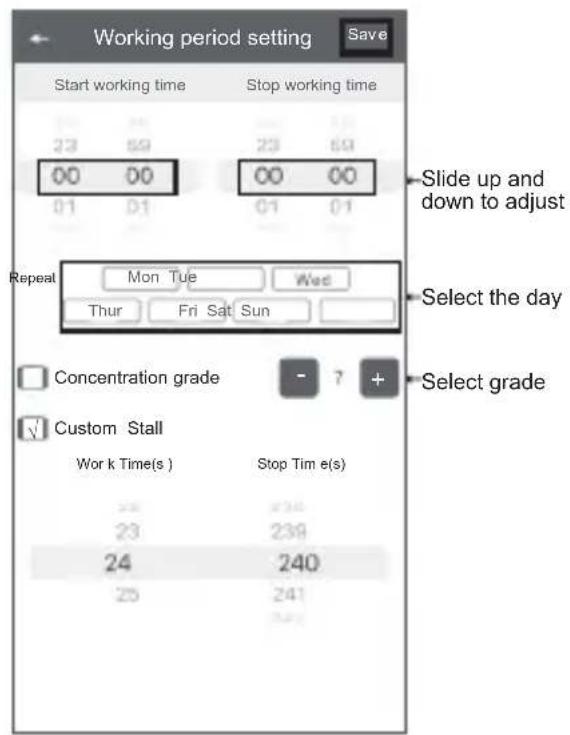

Working period setting Start working time Stop working time 23 59 00 00 01 01 23 59 00 00 01 01 Slide up and down to adjust Repeat Mon Tue Wed Thur Fri Sat Sun Select the day Concentration grade - ? + Custom Stall Work Time(s) Stop Time(s) 23 239 24 240 25 241 24 240

If you forget the password, please press the reset button to restore the factory setting. The factory settings password is 8888.

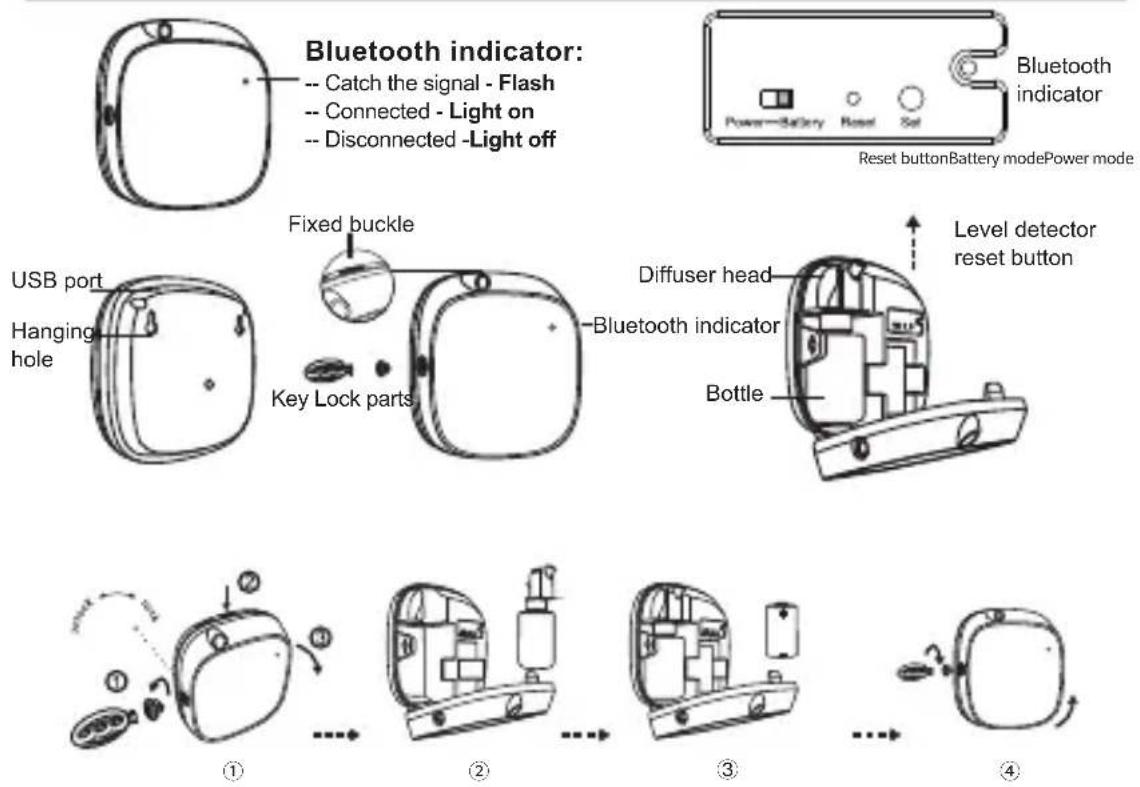

ASSEMBLY STEPS

Bluetooth indicator: -- Catch the signal - Flash -- Connected - Light on -- Disconnected -Light off Fixed buckle USB port Hanging hole Key Lock parts Bluetooth indicator Diffuser head Level detector reset button Bottle Reset buttonBattery modePower mode Bluetooth indicator

1. Insert the key and the mating part, twirl to "unlock" and then pull them out. Press the fixed button on the top and push forward.
2. Tightly connect the atomizer head and the fragrance bottle, and install them to the machine
3. Choose "Power mode" or "Battery mode", plug in or insert the battery. (Please wait about 4 minutes to let machine charged on the first time connect with power.)
4. Insert the key to the mating parts, then insert them to the keyhole, twirl to "lock" for locking.

wall ①

1. Drill the 3 screws into wall

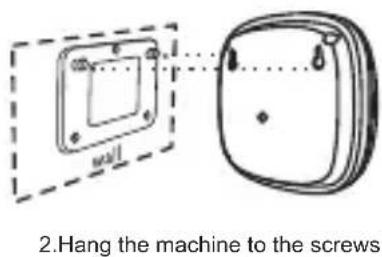

2.Hang the machine to the screws

Note: 3M adhesive should only be applied to clean, flat tiles or wooden boards. It is important to secure the adhesive edge with sealant on the wall, since 3M adhesive has poor fixation performance, which may result in the machine falling down if mounted only with 3M adhesive.

BLUETOOTH INSTRUCTION

Grade Work time(s) Stop time(s) Consu mption(g/h)
G1 3s 900s 0.04
G2 3s 810s 0.05
G3 3s 720s 0.06
G4 3s 630s 0.07
G5 3s 540s 0.08
G6 3s 450s 0.13
G7 3s 360s 0.19
G8 3s 270s 0.24
G9 3s 180s 0.30
G10 3s 90s 0.35

Note:

1. 100ml oils can diffuse 6300-6700 times under normal circumstances;
2. All of the above grade atomization work time is 3 seconds;
3. Different grade and oil may with different consumption.

1. Please keep the machine vertical, Tilt or lie flatly may cause oil overflow, The machine efficiency may be affected.
2. Shall not modify, disassemble or repair the machine. If any failure happens to the machine, please contact our technical personnel.
3. Do NOT use quick charger for device.
4. When the machine is first used or hasn't been used for more than 7 days, the controlling board is out of power. Please insert the batteries/plug in and wait for 4 minutes, the machine will be back on auto maticlly.

TROUBLESHOOTING

Before asking to have the machine repaired, please try to diagnose the problem first following to bellow instructions.

Breakdown Solution
Does not diffuse	- Check whether the mode you choose is correct or not.- Check if the machine is during "Non-Working period"- Air pump may be damaged, change a new one.- Check whether the tube is loose or not
Low diffuse	- The atomizing core is blocked, clean by alcohol or change a new component.- Check whether the gasket is damage/loose or not.- Check whether the tube is loose or not
Oil spill	- Check whether the bottle is loose or not- The gasket in the atomized head is damaged or loose.
Oil sprinkle	- The atomized head is damaged, change a new one- The machine is tilled or lie down, keep the machine vertical.
Abnormal noise -The air pump is loose, retighten the pump-The air pump is damaged, change a new one.

The machine needs to be cleaned when below situations happen:

1. You 're about to change to another essential oil;
2. The atomization volume becomes weak.

Cleaning steps:

1. Find a clean bottle and fill it with industrial alcohol;
2. Install this bottle to the machine and turn the machine on. Let it work for 5-10 minutes;
3. Turn off the electric, finish the cleaning.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609 shi Shanghai

UK	REP	Pooledas Group LtdUnit 5 Albert Edward House,The Pavilions Preston,United Kingdom
EC	REP	SHUNSHUN GmbHRömeräcker 9 Z2021,76351Linkenheim-Hochstetten, Germany

Made In China
