USER MANUAL A316 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Aroma Diffuser

MODEL: A316

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.

You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

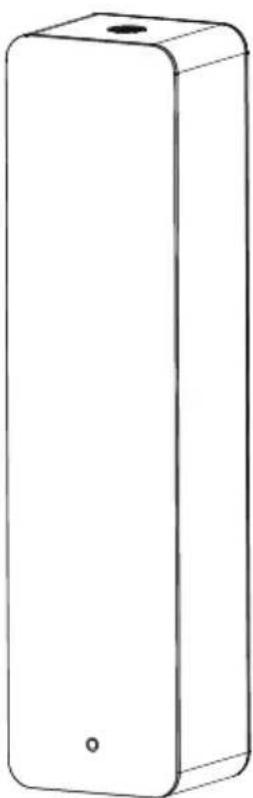

MODEL: A316

Line drawing of a smartphone with a rounded top and front panel, showing no text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received.

Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
3. Weight and elastic and other product properties are only applicable to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is a equipment, not a toy, it needs to be used under the guidance of a professional. Do not allow children and pets to play alone or approach this item.
7. Use as intended only. Do not sit or stand on the product.
8. Inspect before every use. Do not use it if parts are loose or damaged.
9. Do not apply this unit to any other purposes than the indicated usage.
10. The Aroma diffuser cannot place items to avoid damage.
11. Do not use it for commercial purposes.
12. Do not clean it with any abrasive material.
13. Never leave it unattended while in use.
14. Pet urine and feces can damage the product, please keep away.
15. Do not place the product on or near hot air, electric burners or heaters.

Fireworks, cigarettes, flares, and other items can ignite the product. Please stay away from them.

WARNING:

1. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes and falls.

People or pets hanging on the product will cause injury or death.

TECHNICAL SPECIFICATIONS

Model	Bottle	Power	Material
A316	950ml	6W	plastic
Input	Coverage	/	/
DC 12V-2A MAX	3000ft^2	/	/

PARTS LIST

Parts No.	Picture	Qty Parts No.		Picture Qty
1		1 PCS	2		1 PCS
3		1 PCS	4		6 PCS
5		2 PCS	6		1 PCS
7		1 PCS	8		1 PCS
9		1 PCS	10		1 PCS

Note:

Checking and make sure the packaging is complete when you first open it, If any problem please contact with us soon.

Where to get the app:

Please search for "scent marketing" in Google play or App store.

Android system

IOS system

If the QR code cannot be scanned, please search for "Scent Marketing" in Google play or APPstore.

Note:

1. Please make sure that the Bluetooth function is turned on;
2. Please make sure that the location function of the mobile phone is turned on.

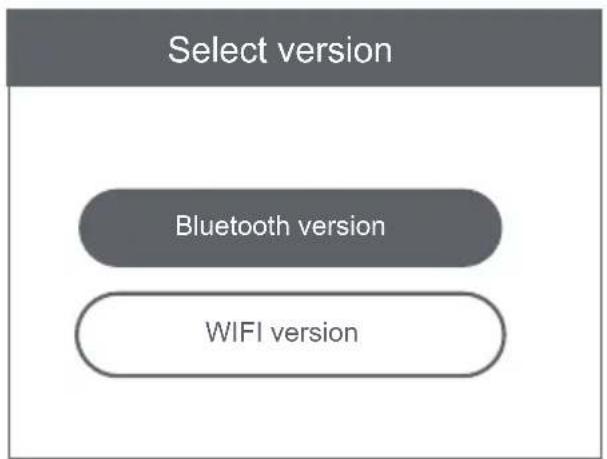

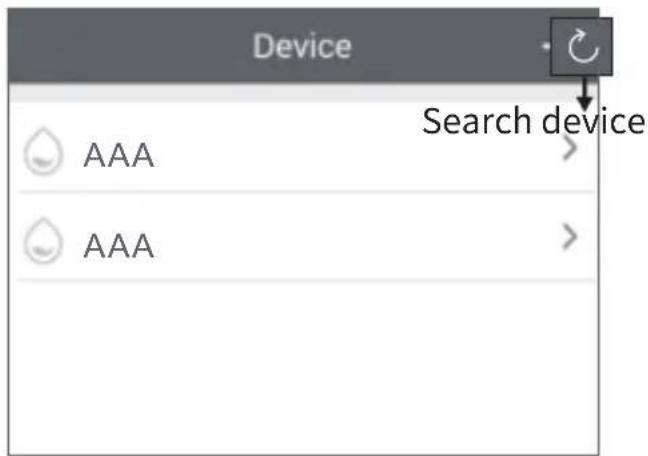

Device Search device AAA AAA

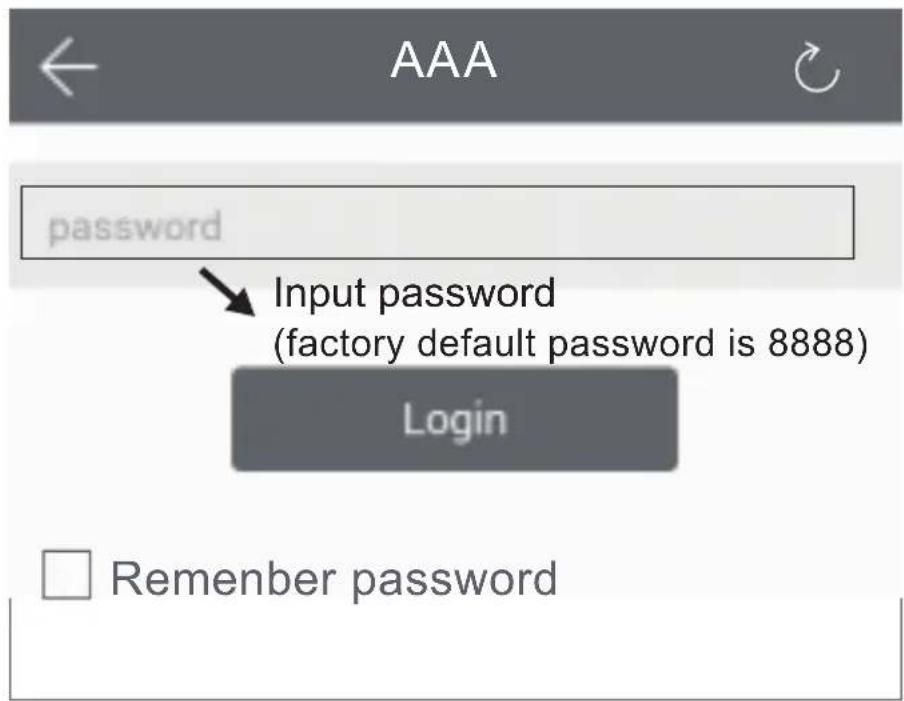

AAA password Input password (factory default password is 8888) Login □ Remember password

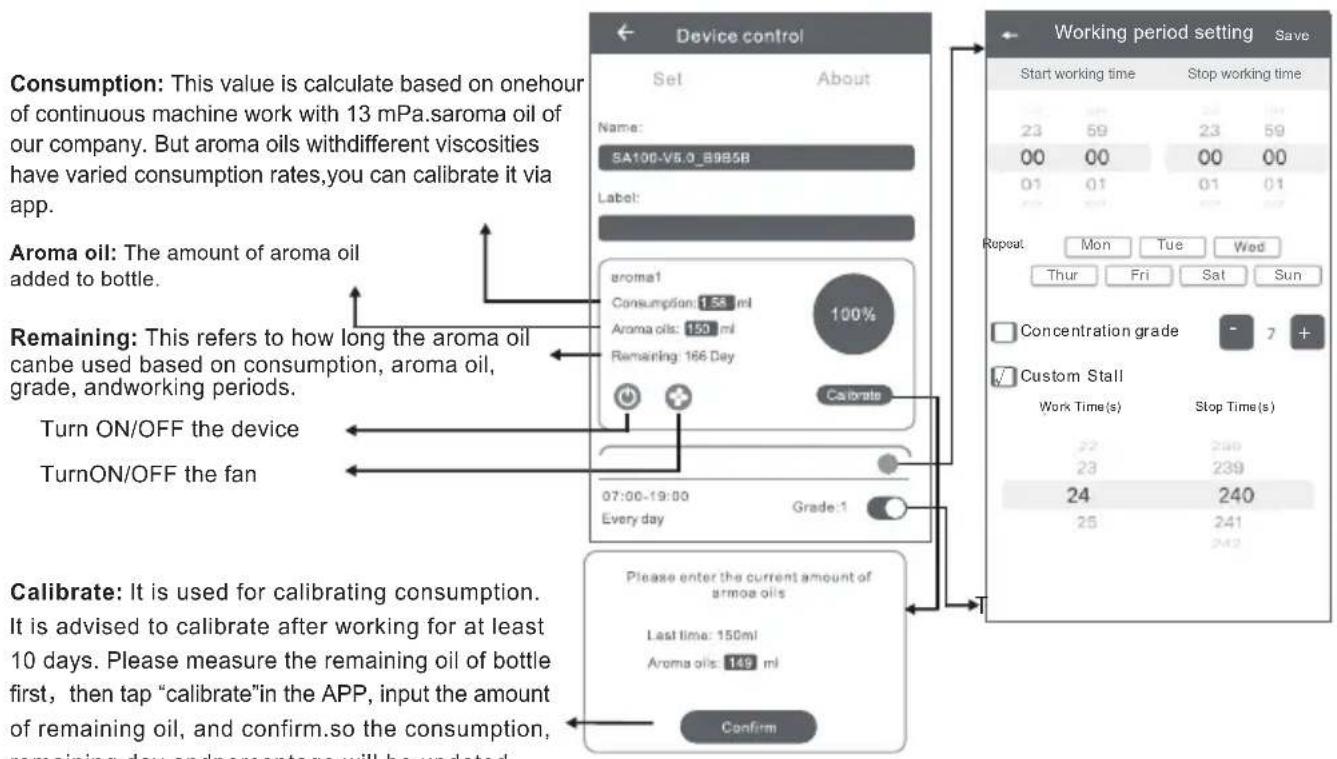

Consumption: This value is calculate based on one hour of continuous machine work with 13 mPa.saroma oil of our company. But aroma oils with different viscosities have varied consumption rates,you can calibrate it via app. Aroma oil: The amount of aroma oil added to bottle. Remaining: This refers to how long the aroma oil canbe used based on consumption, aroma oil, grade, andworking periods. Turn ON/OFF the device TurnON/OFF the fan Device control Set About Name: SA100-V5.0_B985B Label: aroma1 Consumption: 1.56 ml 100% Aroma oils: 150 ml Remaining: 166 Day Calibrate 07:00-19:00 Grade:1 Every day Please enter the current amount of armoa oils Last time: 150ml Aroma oils: 149 ml Confirm Working period setting Save Start working time Stop working time 23 59 23 59 00 00 00 00 01 01 01 01 Repeat Mon Tues Wed Thur Fri Sat Sun Concentration grade - 7 + Custom Stall Work Time(s) Stop Time(s) 22 250 23 239 24 240 25 241 242 Calibrate: It is used for calibrating consumption. It is advised to calibrate after working for at least 10 days. Please measure the remaining oil of bottle first, then tap "calibrate" in the APP, input the amount of remaining oil, and confirm.so the consumption, remaining day andpercentage will be updated.

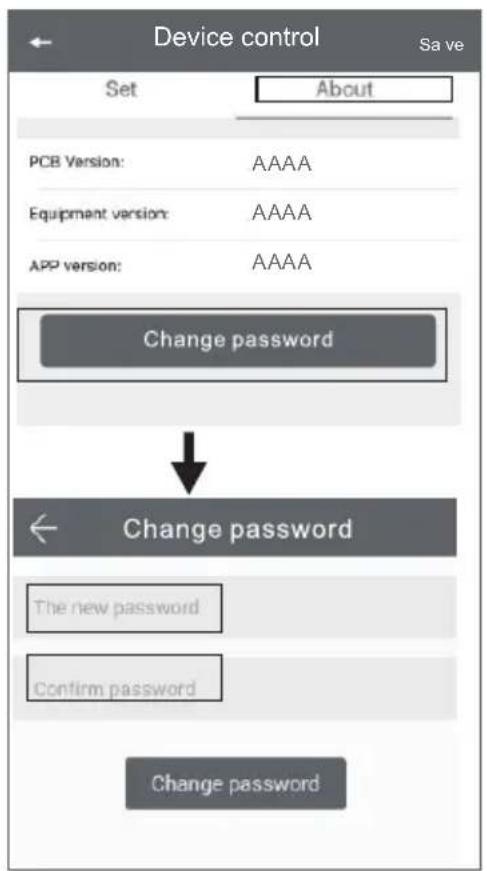

AMEND PASSWORD

Device control Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

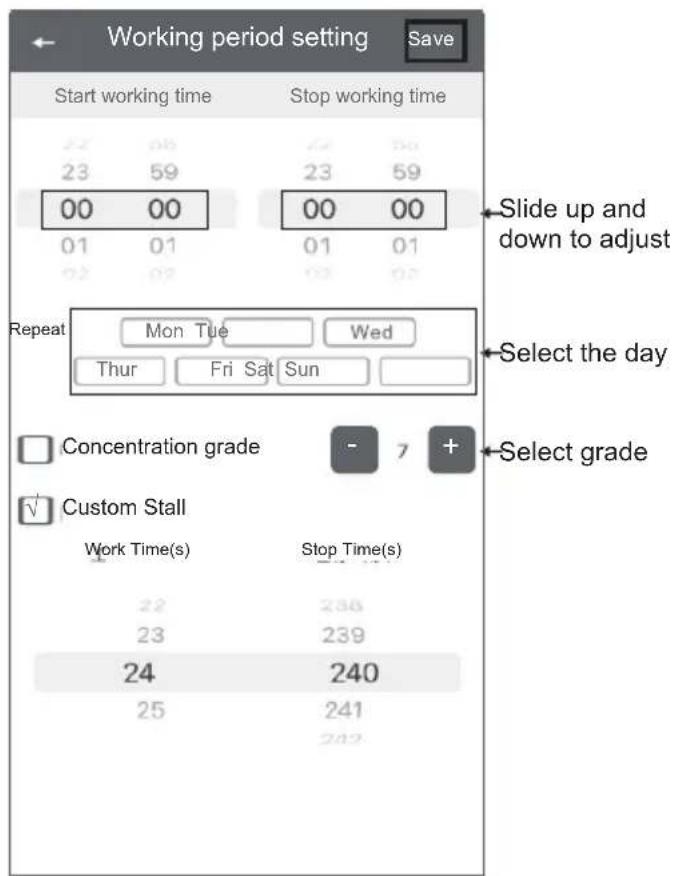

Working period setting Save Start working time Stop working time 22 08 24 50 23 59 23 59 00 00 00 00 01 01 01 01 02 02 02 02 Repeat Mon Tue Wed Thur Fri Sat Sun Select the day Concentration grade - 7 + Custom Stall Work Time(s) Stop Time(s) 22 236 23 239 24 240 25 241 242

If you forget the password, please press the reset button to restore the factory setting. The factory settings password is 8888.

TROUBLESHOOTING

Before asking to have the machine repaired, please try to diagnose the problem first following to bellow instructions.

Breakdown Solution
Does not diffuse	-Check whether the mode you choose is correct or not.-Check if the machine is during "Non-Working period"-Air pump may be damaged, change to new one.
Weak diffuse	-The atomizing core is blocked, clean by alcohol or change a new component.-Check whether the gasket is damage/loose or not.-Check whether the tube is loose or.
Oil leaking	-Check whether the bottle is loose or not-The gasket in the atomized head is damaged or loose.
Oil sprinkle	-The atomized head is damaged, change to new one-The machine is tilted or laying down, keep machine vertical.
Abnormal noise	-The air pump is loose, retighten the pump-The air pump is damaged, change to new one.

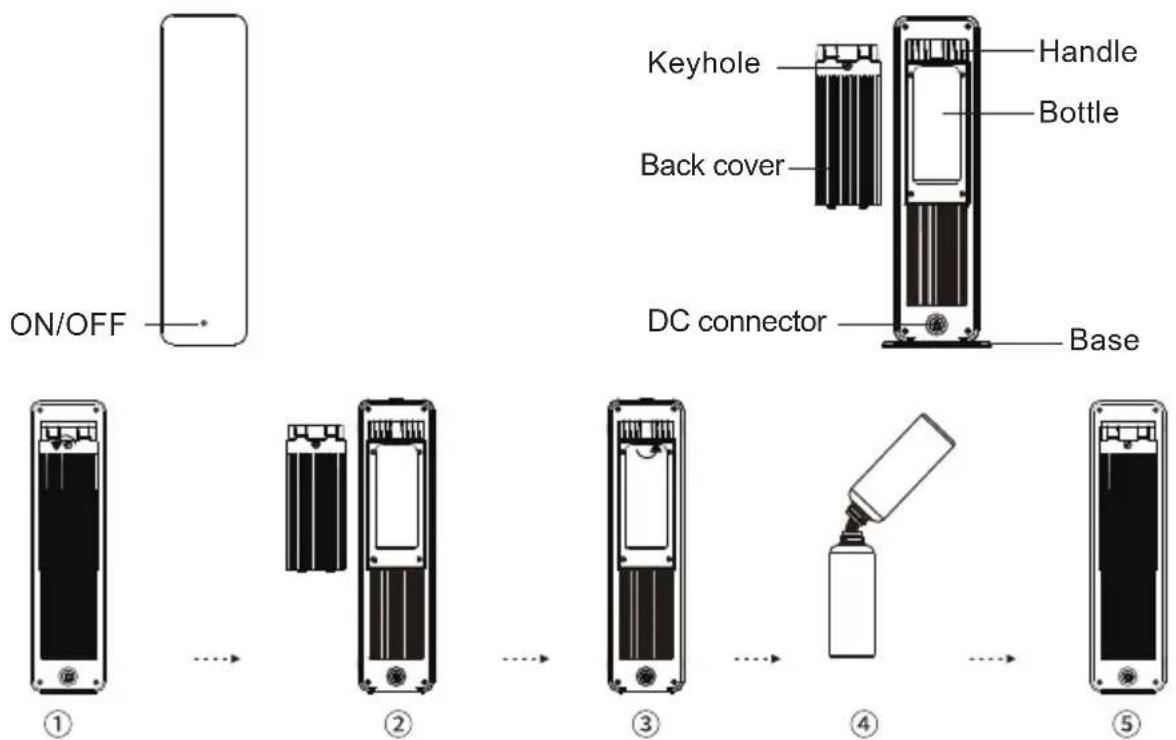

ASSEMBLY STEPS

1. Open the back cover with key;
2. Remove the back cover;
3. Twist off the bottle cap;
4. Add fragrance oil into the bottle;
5. Tighten the bottle cap, place the bottle backin the machine, and lock the back cove with a key.

INSTALLATION MODE

①

②

OR

①

②

Floor standing:

1. Make sure the base is aligned with the 4 holes at the bottom of the machine, then fix the screws;
2. Align the base with the holes on the bottle of the machine, and secure it with screws.

Wall mount:

1. Drill the 4 screws into wall;
2. Hang the machine to the screws.

INTENSITY AND OIL CONSUMPTION

Grade Work time(s) Stop time(s) Consu mption(g/h)
G1 15s 300s 0.19
G2 15s 150s 0.24
G3 20s 120s 0.34
G4 20s 85s 0.40
G5 25s 80s 0.41
G6	30s	75s	0.42
G7	30s	60s	0.44
G8 30s 50s 0.48
G9 30s 40s 0.58
G10 30s 33s 0.66
G11 33s 30s 0.84
G12 40s 30s 1.14
G13 50s 30s 1.23
G14	60s	30s	1.25
G15	75s	30s	1.31
G16	80s	25s	1.42
G17	85s	20s	1.42
G18 120s 20s 1.90
G19 150s 15s 2.01
G20 300s 15s 2.07
Customized 5-500s 5-500s ---

Note: The above data is for reference only. If customers use essential oils with different viscosities, the oil consumption will vary.

1. Please keep the machine vertical afterinstallation.Tilting orlying flat can cause oil tooverflow,and the circuit board may be contaminated, which could affect its efficiency.
2. Should not modify, dismantle or repair the machine arbitrarily. Any malfunction occurs, please contact the relevant technician immediately.
3. The machine does not work when it is not in the programmed working period, even the atomization icon is displayed on the screen;
4. When the machine is in lock status, the button can not be operated and there is noanydisplay on screen.

The machine needs to be cleaned when below situations happen:

1. You're about to change to another essential oil;
2. The atomization volume becomes weak.

Cleaning steps:

1. Find a clean bottle and fill it with industrial alcohol;
2. Install this bottle to the machine and turn the machine on. Let it work for 5-10 minutes;
3. Turn off the electric, finish the cleaning.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609 shi Shanghai

UK	REP
EC	REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a smartphone with a rounded top and rectangular body, showing no text or symbols.

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

Warning-To reduce the risk of injury, user must read instructions manual carefully.

AVERTISSEMENTS ET PRÉCAUTIONS DE SÉCURITÉ

INSTRUCTIONS BLUETOOTH

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

②

③

④

5

Line drawing of a smartphone with a rectangular body and a small circular hole on top (no text or symbols)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Line drawing of a smartphone with a rectangular body and a small circular hole on top (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Warning-To reduce the risk of injury, user must read instructions manual carefully.

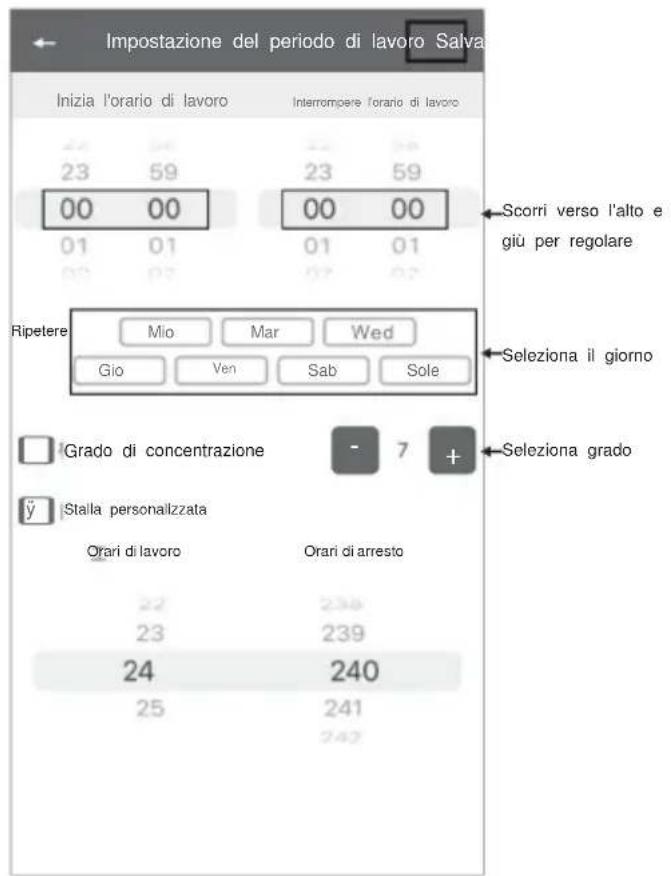

Controllo del dispositivo SU Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

Line drawing of a smartphone with a rectangular body and a small circular hole on top (no text or symbols)

www.vevor.com/support

Warning-To reduce the risk of injury, user must read instructions manual carefully.

QR, busque "Scent Marketing"

en Google Play o APPstore.

Nota:

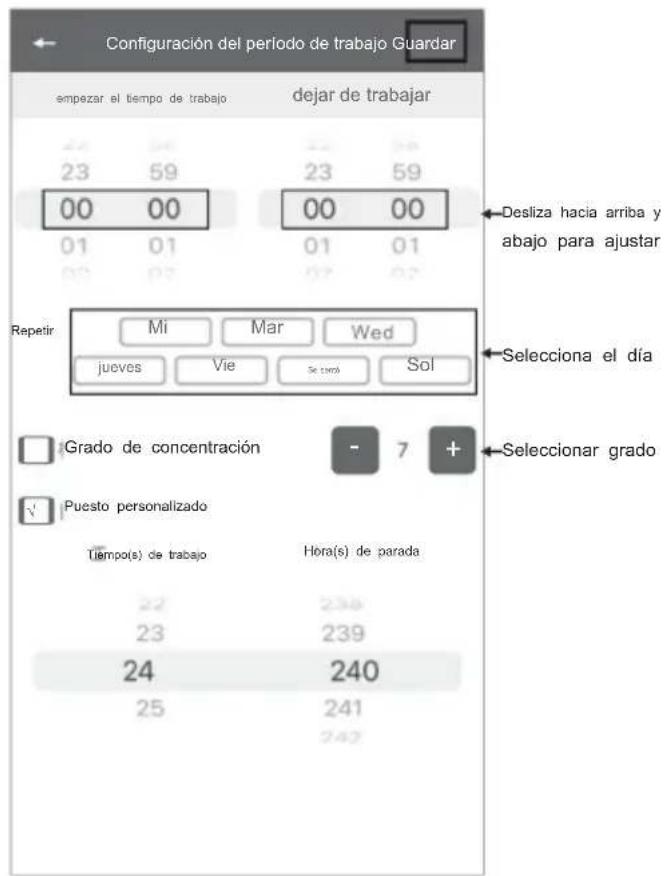

Control del dispositivo Set About PCB Version: AAAAA Equipment version: AAAAA APP version: AAAAA Change password Change password The new password Confirm password Change password

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Line drawing of a smartphone with a rectangular body and a small circular hole on top (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Kontrola urządzenia Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

Line drawing of a smartphone with a rectangular body and a small circular hole on top (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

www.vevor.com/support

Warning-To reduce the risk of injury, user must read instructions manual carefully.

VEILIGHEIDSWAARSCHUWINGEN EN VOORZORGSMAATREGELEN

"Scent Marketing" in Google Play of APPstore.

Opmerking:

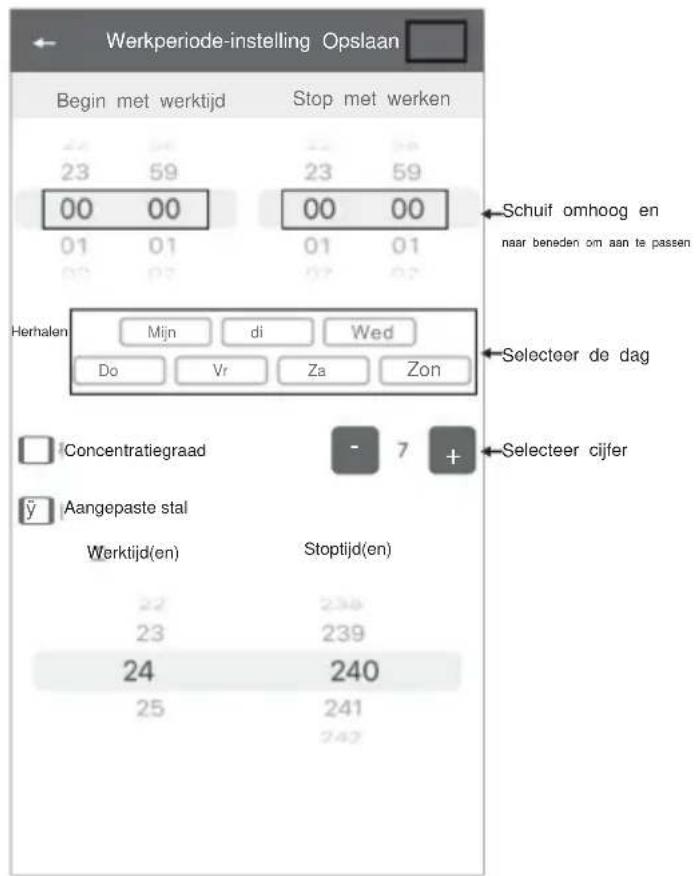

Apparaatcontrole Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password
