USER MANUAL A311 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Aroma Diffuser

MODEL: A311

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.

You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: A311

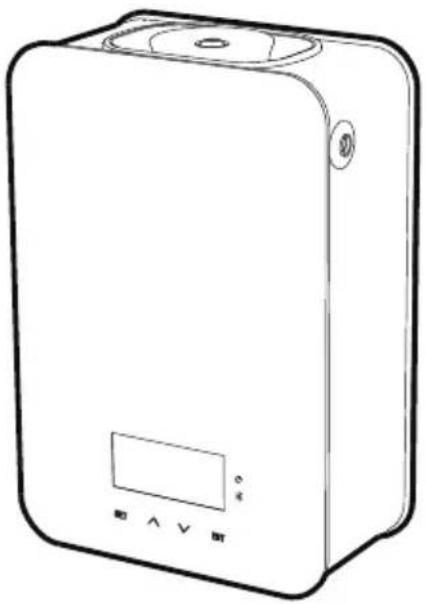

Line drawing of a rectangular electronic device with control panel and buttons (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
3. Weight and elastic and other product properties are only applicable to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is a equipment, not a toy, it needs to be used under the guidance of a professional. Do not allow children and pets to play alone or approach this item.
7. Use as intended only. Do not sit or stand on the product.
8. Inspect before every use. Do not use it if parts are loose or damaged.
9. Do not apply this unit to any other purposes than the indicated usage.
10. The Aroma diffuser cannot place items to avoid damage.
11. Do not use it for commercial purposes.
12. Do not clean it with any abrasive material.
13. Never leave it unattended while in use.
14. Pet urine and feces can damage the product, please keep away.
15. Do not place the product on or near hot air, electric burners or heaters.

Fireworks, cigarettes, flares, and other items can ignite the product. Please stay away from them.

WARNING:

1. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

Do not use outdoors in rainy and cloudy days, avoid lightning strikes and falls.

People or pets hanging on the product will cause injury or death.

TECHNICAL SPECIFICATIONS

Model Bottle Power Material
A311 180ml	5W		plastic, aluminum, glass
Input Coverage		/
DC 12V-1A MAX	2000ft ^2 /		/

PARTS LIST

Parts No.	Parts No.Picture Qty		Picture Qty
1		1 PCS	2
3		1 PCS	4
5		1 PCS	6
7		2 PCS	8
9		1 PCS

Note:

Checking and make sure the packaging is complete when you first open it, If any problem please contact with us soon.

Where to get the app:

Please search for "scent marketing" in Google play or App store.

Android system

IOS system

If the QR code cannot be scanned, please search for "Scent Marketing" in Google play or APPstore.

Note:

1. Please make sure that the Bluetooth function is turned on;
2. Please make sure that the location function of the mobile phone is turned on.

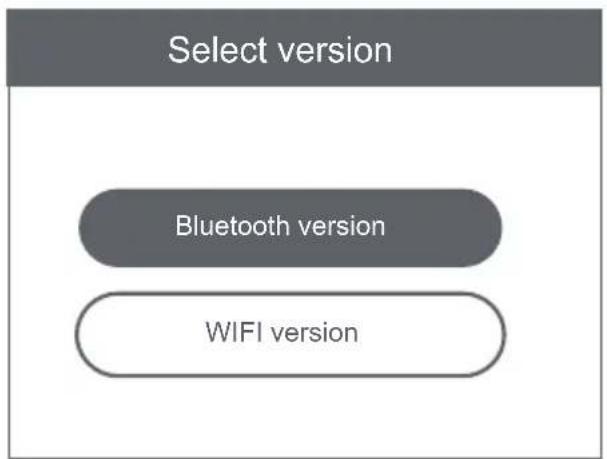

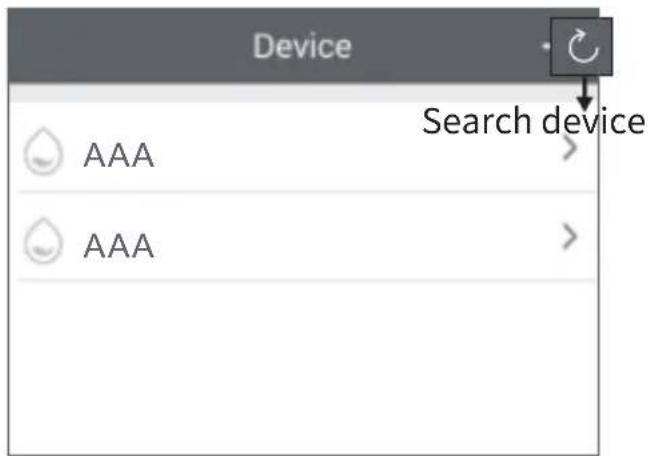

Device Search device AAA AAA

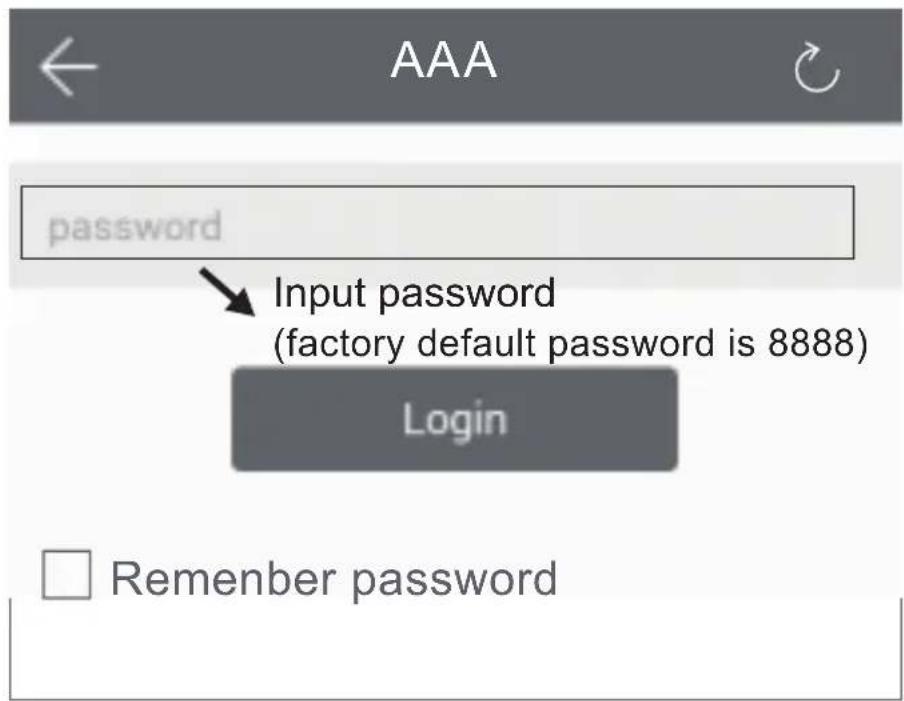

AAA password Input password (factory default password is 8888) Login □ Remember password

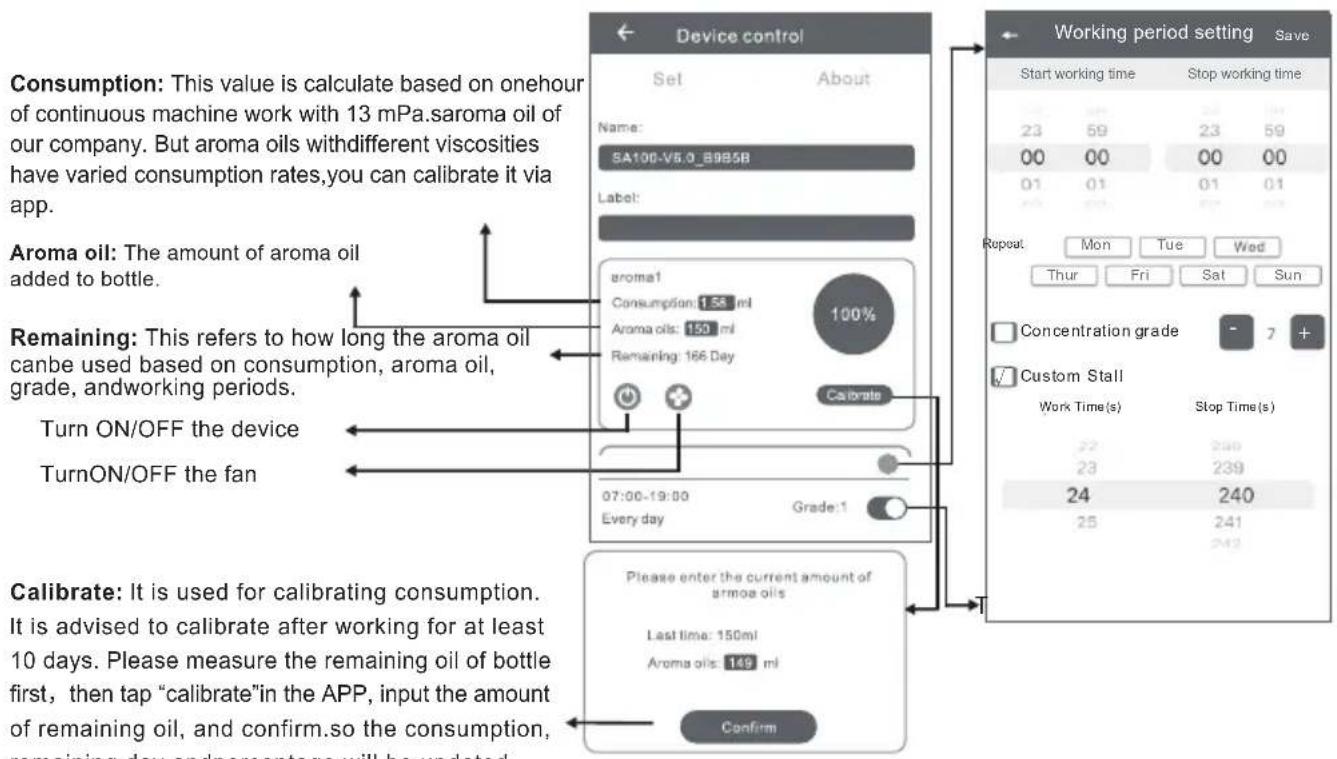

Consumption: This value is calculate based on one hour of continuous machine work with 13 mPa.saroma oil of our company. But aroma oils with different viscosities have varied consumption rates,you can calibrate it via app. Aroma oil: The amount of aroma oil added to bottle. Remaining: This refers to how long the aroma oil canbe used based on consumption, aroma oil, grade, andworking periods. Turn ON/OFF the device TurnON/OFF the fan Device control Set About Name: SA100-V5.0_B985B Label: aroma1 Consumption: 1.56 ml 100% Aroma oils: 150 ml Remaining: 166 Day Calibrate 07:00-19:00 Grade:1 Every day Please enter the current amount of armoa oils Last time: 150ml Aroma oils: 149 ml Confirm Working period setting Save Start working time Stop working time 23 59 23 59 00 00 00 00 01 01 01 01 Repeat Mon Tues Wed Thur Fri Sat Sun Concentration grade - 7 + Custom Stall Work Time(s) Stop Time(s) 22 250 23 239 24 240 25 241 242 Calibrate: It is used for calibrating consumption. It is advised to calibrate after working for at least 10 days. Please measure the remaining oil of bottle first, then tap "calibrate" in the APP, input the amount of remaining oil, and confirm.so the consumption, remaining day andpercentage will be updated.

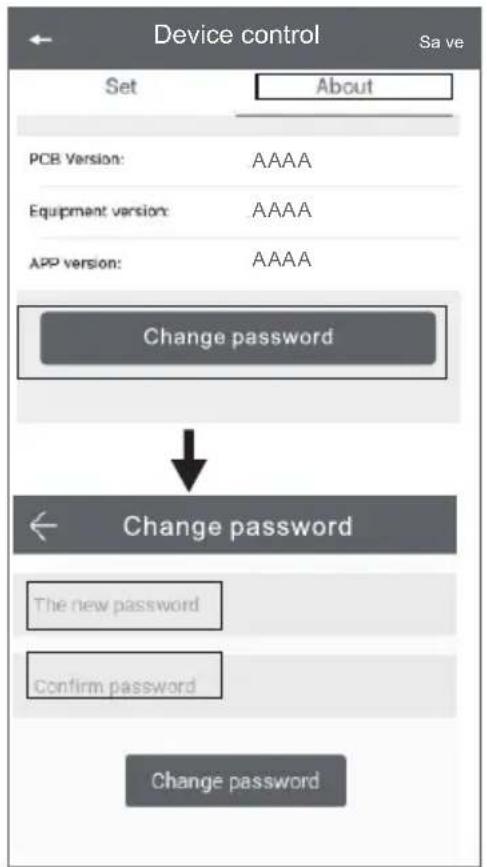

AMEND PASSWORD

Device control Set About PCB Version: AAAA Equipment version: AAAA APP version: AAAA Change password Change password The new password Confirm password Change password

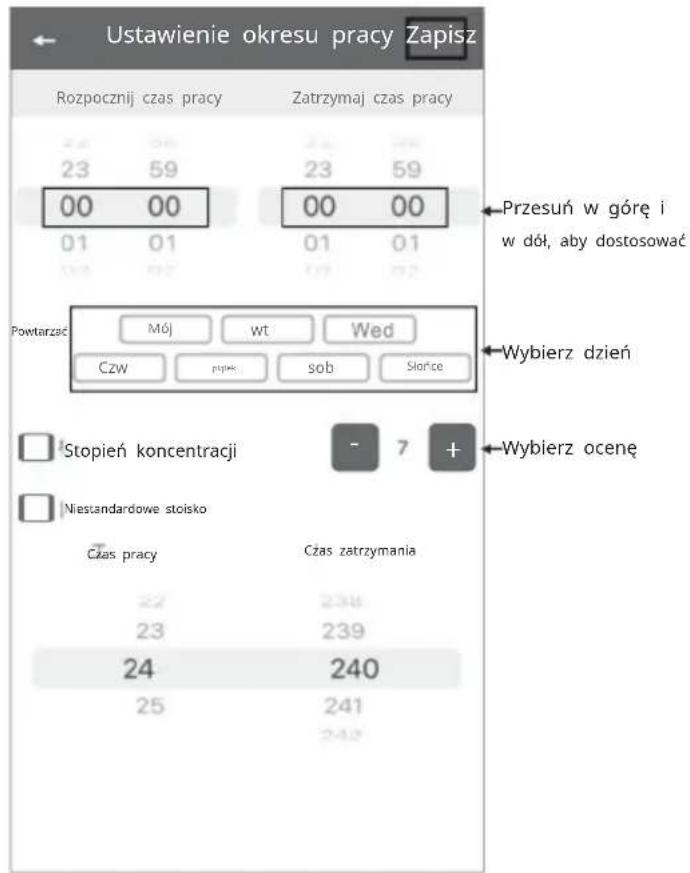

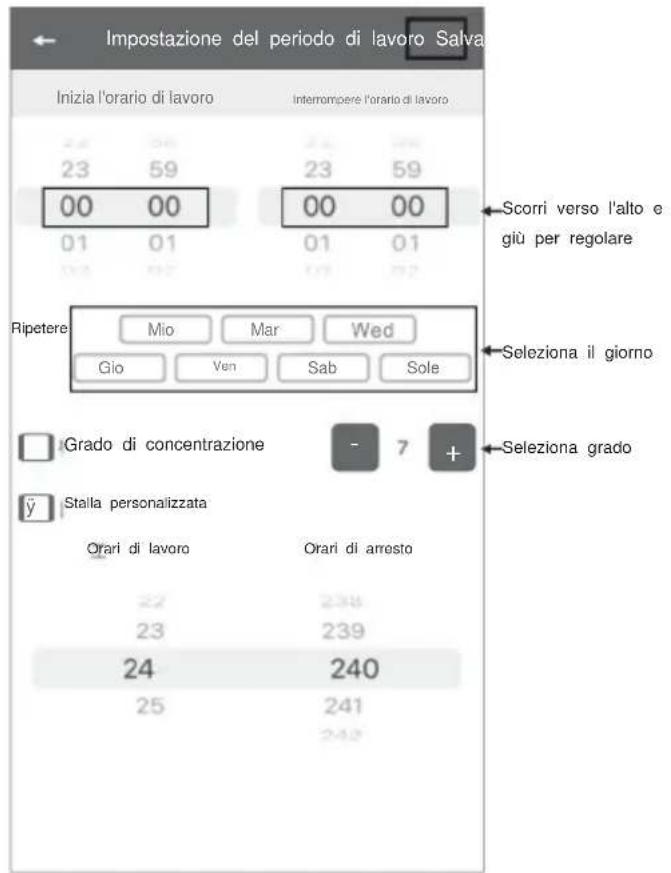

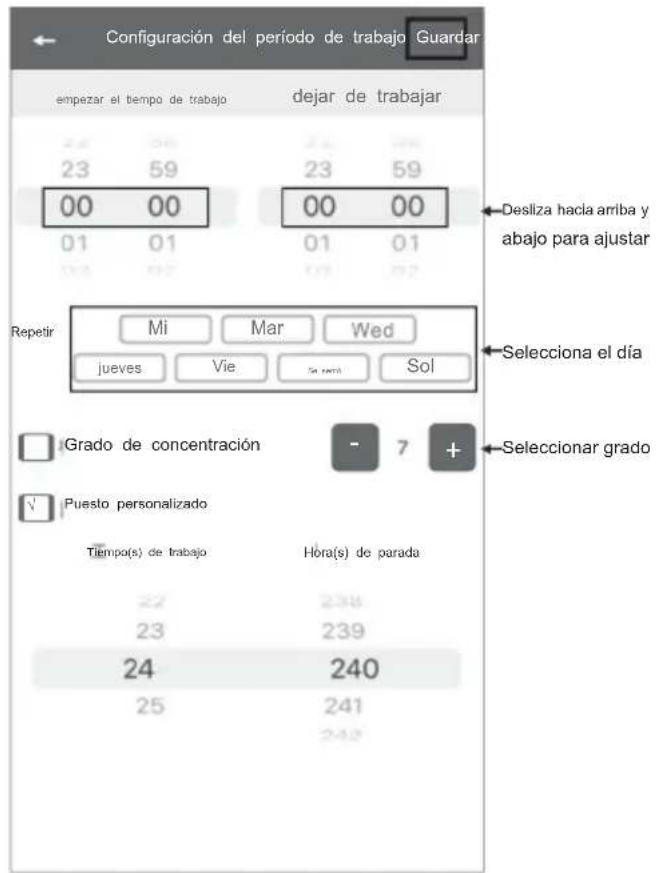

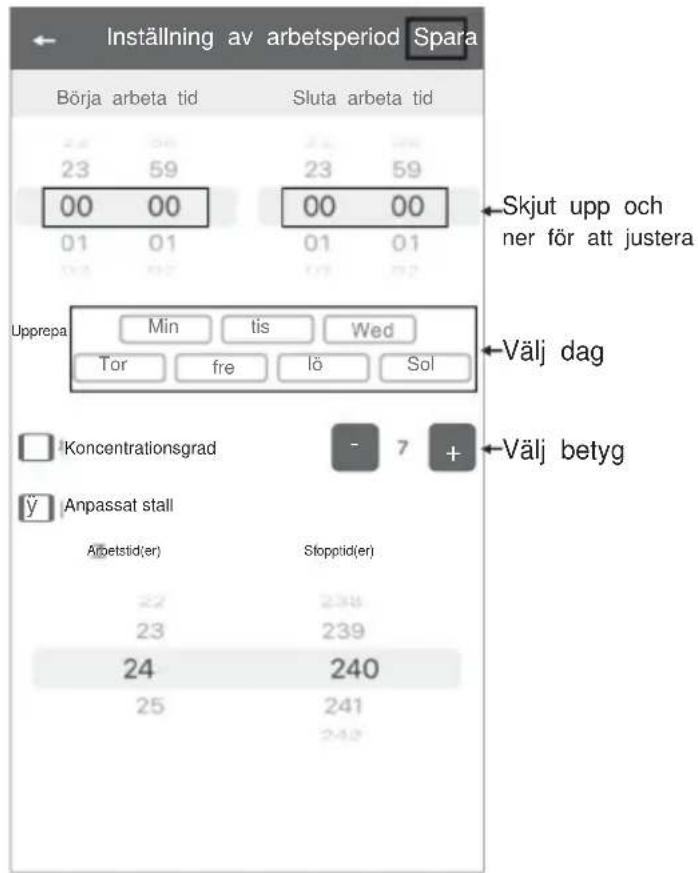

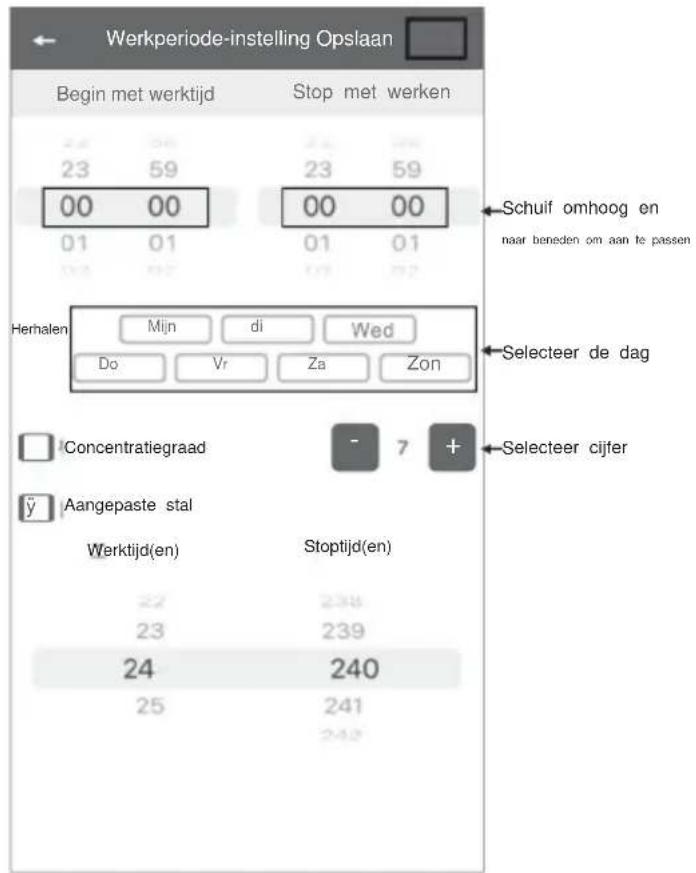

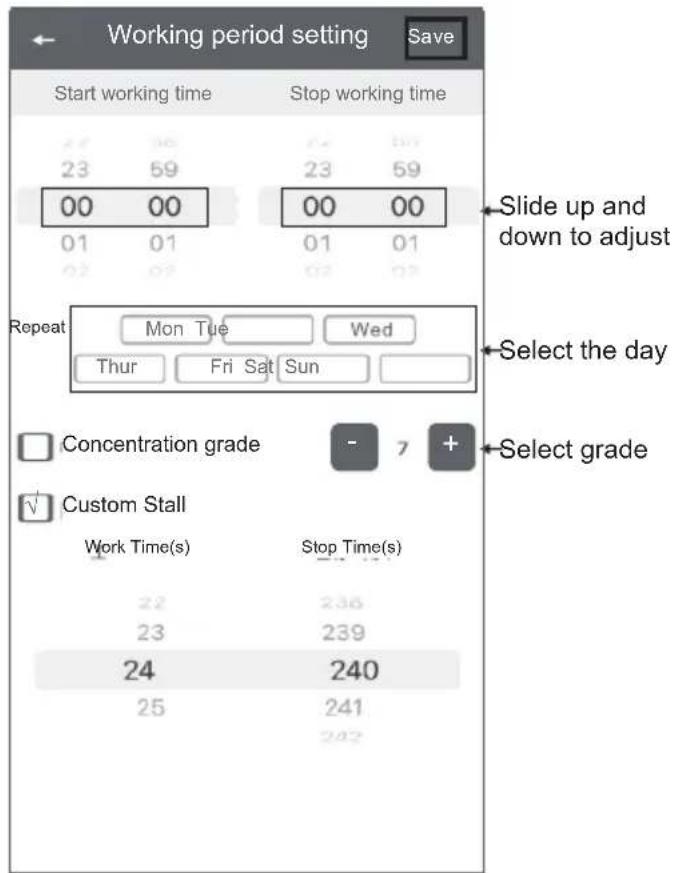

Working period setting Save Start working time Stop working time 23 59 23 59 00 00 00 00 01 01 01 01 02 02 02 02 Repeat Mon Tue Wed Thur Fri Sat Sun Select the day Concentration grade - 7 + Custom Stall Work Time(s) Stop Time(s) 22 236 23 239 24 240 25 241 242

If you forget the password, please press the reset button to restore the factory setting. The factory settings password is 8888.

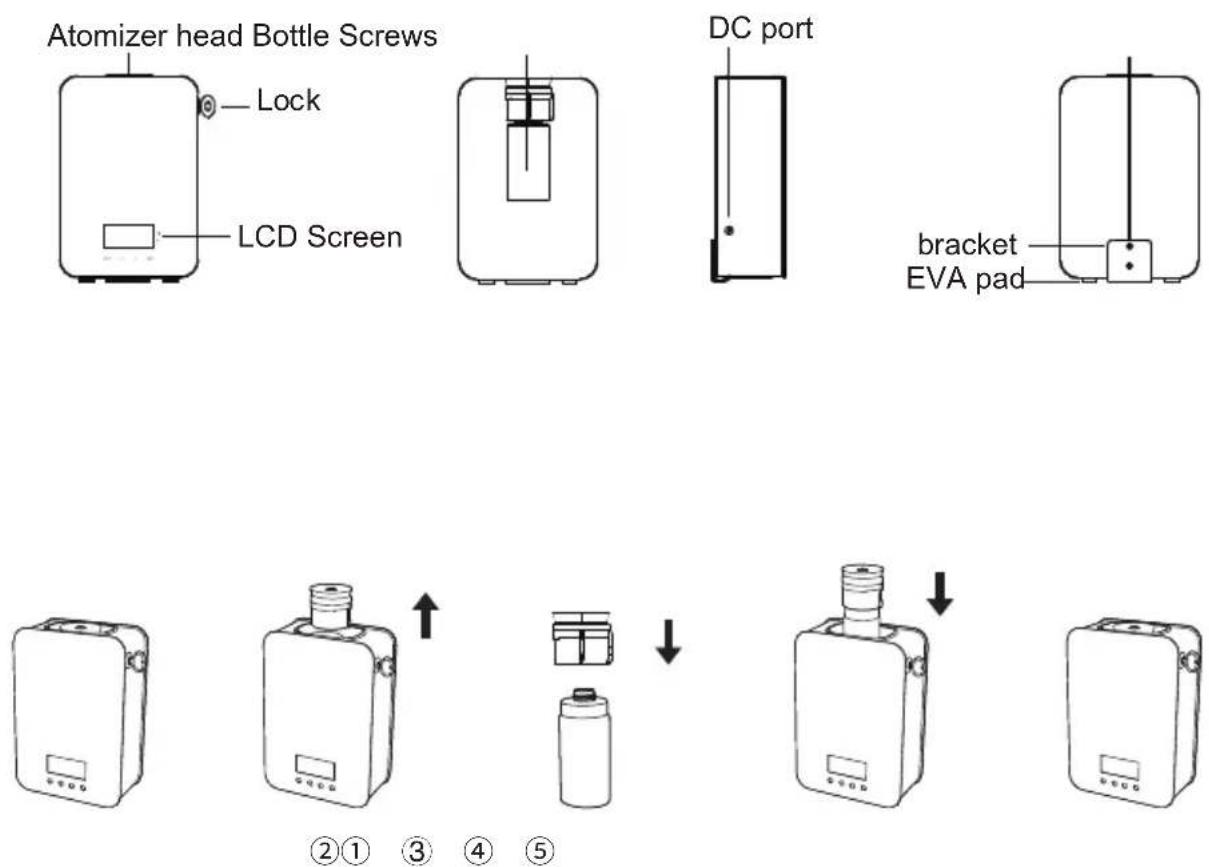

1. Open the machine with key, and don't remove the key
2. Pull out the atomizer head
3. Take out the bottle, and fill with essential oil, then tightly close the head.
4. Place the bottle back into themachine, after aligning with theposition, press downward theatomizer head.
5. Adjust the working periods, the lock the machine with key.

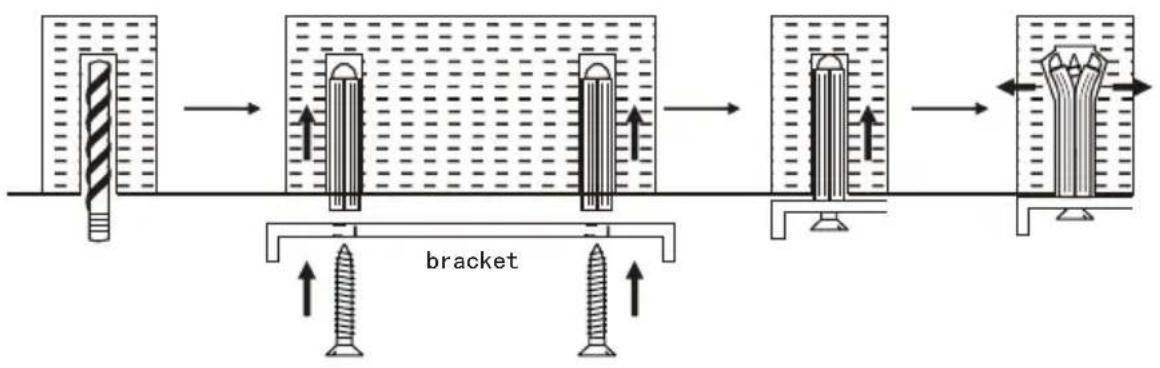

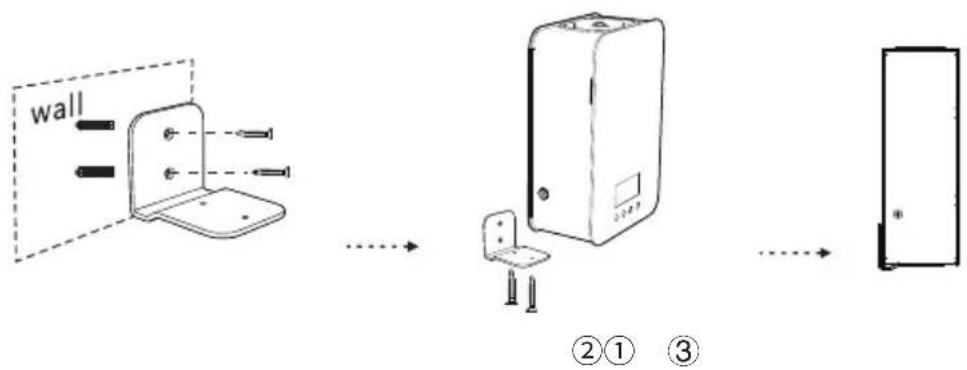

The method of using expansion bolts:

Diagram illustrating a mechanical assembly or mounting process with labeled components and directional arrows indicating movement.

Drill holes in the wall, and insert the wall anchors into the hole, then secure the bracket with screws.

wall ②① ③

1. Position the bracket holes, then drill holes on the wall, the insert the wall anchors into the wall holes.
2. Secure the bracket with screws on the wall, and align with the holes of the machine on the bottom, then secure the machine with screws from the bottom.

INTENSITY AND OIL CONSUMPTION

Grade Work time(s) Stop time(s) Consu mption(g/h)
G1 15s 300s 0.05
G2 15s 150s 0.10
G3 20s 120s 0.15
G4 20s 85s 0.20
G5 25s 80s 0.25
G6 30s 75s 0.30
G7 30s 60s 0.35
G8 30s 50s 0.40
G9 30s 40s 0.45
G10 30s 33s 0.50
G11 33s 30s 0.55
G12 40s 30s 0.60
G13 50s 30s 0.66
G14 60s 30s 0.71
G15 75s 30s 0.76
G16 80s 25s 0.81
G17 85s 20s 0.86
G18 120s 20s 0.90
G19 150s 15s 0.96
G20 300s 15s 1.01
Customized 5-500s 5-500s ---

Note: The above data is for reference only. If customers use essential oils with different viscosities, the oil consumption will vary.

1. Please always keep the machine upright, tilting or placing it flat will cause oil leakage, which will lead to machine damage.

2. When the screen is in lock status, the button cannot be operated and there is no display on the screen.

3. The machine will not work when it is not in the working periods, even the atomization icon is displayed on the screen.

Restore factory setting

Step: Tap the ENT button and hold about 3 seconds until the "beep" sound coming out.

Before asking to have the machine repaired, please try to diagnose the problem first following to bellow instructions.

Breakdown Solution
No diffuse	- Check if the power is ON or OFF;- The pump is damaged and needs replacing;- If there is no diffusion or it is weak, replace the oil with rubbing alcohol and run it through the machine for 5 minutes.
Little or no Spray coming out	- Atomization head is blocked. Clean diffuser by running rubbing alcohol through it. Or replace diffuser core;- Diffuser core with straw is missing or damaged. Replace with a new one;- Pump is damaged and may need replacing.
Diffuser spraying liquid	- Diffuser core is damaged, Replace diffuser core.- Machine is tilted or angled, Make sure it 's upright at all times.
Oil leaking	- Bottle is loose. Screw it in properly and straight;- Seal is broken or missing. Replace the supplied seal that came with the machine
Abnormal sound	- Pump is loose or damaged, Tighten the pump or replace.
No display onscreen	- Make sure the power is ON;- Check the plug for damage, Try another outlet, If plug is damaged replace;- Display screen is damaged, Replace.

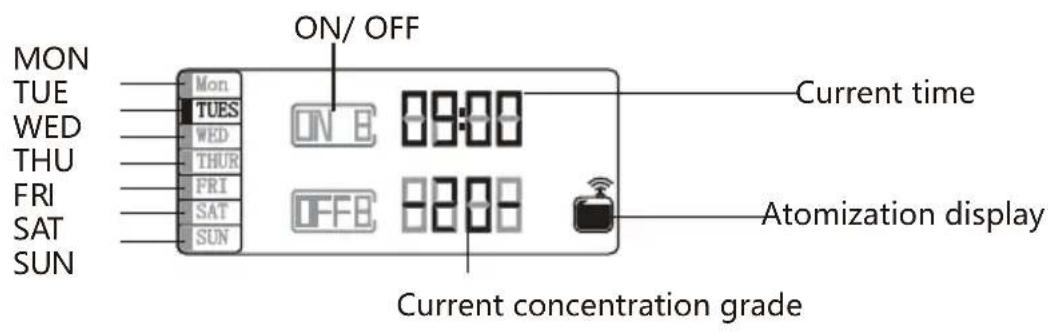

ON/ OFF MON TUE WED THU FRI SAT SUN Mon TUES WED THUR FRI SAT SUN ON E 89:00 OFFB 82:00 Current time Atomization display Current concentration grade

Turn on the power

Connect the power and turn on the switch with a sound "Beep" coming out, Then the screen shows the initial time and the current grade.

Turn off the power

The screen will be off when turn off the switch and disconnect the power.

Fan control

Long press and hold ▲ for 3 seconds to turn on the fan, then long press and hold ▼ for 3 seconds to turn off the fan.

Screen lock or unlock

Screen lock: If there is no any operation in 60s, the screen will be locked automatically.

Unlock: Tap the SET button and hold for 3 seconds, the screen will be unlock, and screen is ilt up.

Current time setting

1. Tap SET button and hold for 3 seconds until the "beep" sound coming out, you can start to set the working periods.

2. Tap ▲ or ▼ to select the current working day, then tap ENT to start to set the current time, Tap ▲ or ▼ to adjust the current time, then tap SET to save the setting. (Fi gure 1)

Mon PUBS WED THUR FRT SAT SUN 09:00 OFF: 88:00 SET (1) ENT

Not: TUES WED TIER FRI SAT SIN ON B 09:00 OFFB -09- SET ^ (2) ▼ ENT

Concentration Grade setting

There are 9 grades available. Tap ▲ button to increase the scent concentration Tap ▼ to decrease the scent concentration(F i gure 2)

1. There are total 5 working periods available (Figure 3).
2. Tap SET to start setting the first working period, and the working time will be flashing on the screen.

3Tap ▲ or ▼ to adjust the working time, then confirm by tapping ENT.

1. Tap ENT can turn to the next setting (order: the switch of the current working periods start/stop working time grades working day the next working period), then you can tap ▲ or ▼ to adjust the current setting.. (Figure 5).

The start working time can not be same with the stop working time, otherwise this working periods will not be displayed on APP.

Working time period	00:00-00:00	00:00-00:00	00:00-00:00	00:00-00:00	00:00-00:00
Mon	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Thues	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Wed	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Thur	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Fri	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Sat	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF
Sun	ON/OFF	ON/OFF	ON/OFF	ON/OFF	ON/OFF

(PS: The first working period is factory defaults with start working time 07:00 and stop working time 19:00, the rest are all with 00:00.)

Mon TUES WED THUR TRI SAT SLN ON 5 09:00 OFF 2:00 - SET ^ < ENT (3)

MOS TLES WED THUR FRI SAT SLN ON B OFFS 88:88 88:88 SET (4) ENT

DON TUES RED HUR TRI SET SEN ON B 88:88 OFF 1 88:88 SET ^ √ ENT (5)

The machine needs to be cleaned when below situations happen:

1. You're about to change to another essential oil;
2. The atomization volume becomes weak.

Cleaning steps:

1. Find a clean bottle and fill it with industrial alcohol;
2. Install this bottle to the machine and turn the machine on. Let it work for 5-10 minutes;
3. Turn off the electric, finish the cleaning.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609 shi Shanghai

UK	REP	Pooledas Group LtdUnit 5 Albert Edward House,ThePavilions Preston,United Kingdom
EC	REP	SHUNSHUN GmbHRömeracker 9 Z2021,76351Linkenheim-Hochstetten, Germany

Made In China
