USER MANUAL CRIS36SS300 FABER

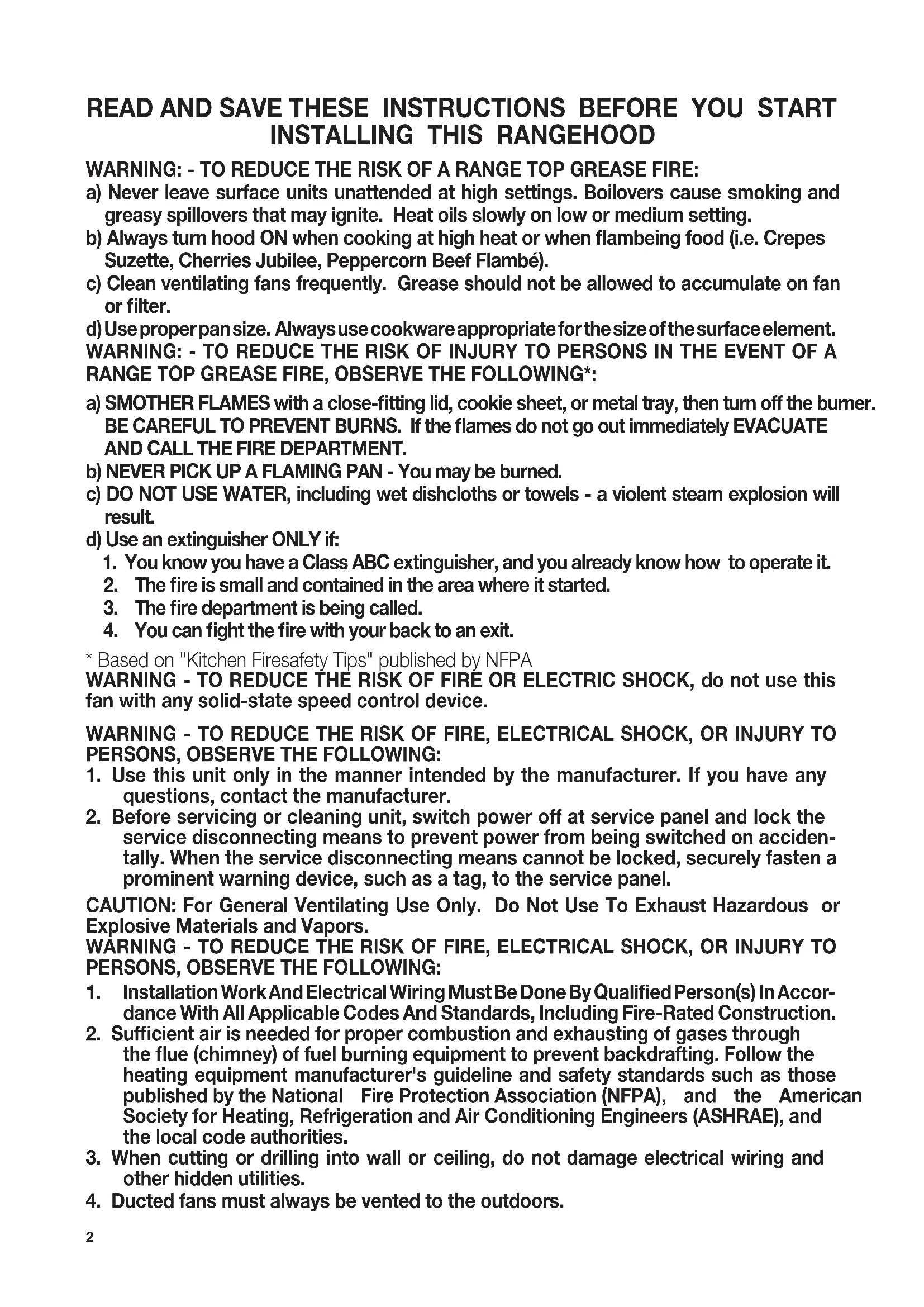

WARNING: - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high

settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium setting. b) Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Pepper-corn Beef Flambé). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING:aBased on “Kitchen Firesafety Tips” published by NFPA. - TO REDUCE THE RISK OF INJURY TO PERSONS

IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately EVACUATE AND CALL THE FIRE DEPARTMENT. NEVER PICK UP A FLAMING PAN - You may be burned. DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it. 2. The fire is

small and contained in the area where it started. 3. The fire department is being called. 4. You can fight the fire with your back to an exit. ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD IS INSTALLED MUST BE SEALED. This rangehood requires at least 24" of clearance between the bottom of the rangehood and the cooking surface or countertop. This minimum clearance may be higher depending on local building code. For example, for gas ranges, a minimum of 30" may be required. Overhead cabinets on both sides of this unit must be a minimum of 24" above the cooking surface or countertop. Consult the cooktop or range installation instructions given by the manufacturer before making any cutouts. MOBILE HOME INSTALLATION The installation of this rangehood must conform to the Manufactured Home Construction and Safety Standards, Title 24 CFR, Part 3280 (formerly Federal Standard for Mobile Home Construction and Safety, Title 24, HUD,

Part 280). Four wire power supply must be used and the appliance wiring must be revised. See Electrical Requirements.

• Installation Instructions

• Use and Care Information

READ AND SAVE THESE INSTRUCTIONS

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium setting. b)AlwaysturnhoodONwhencookingathighheatorwhenambeingfood(i.e.Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan orlter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

2. Thereissmallandcontainedintheareawhereitstarted.

3. Theredepartmentisbeingcalled.

4. Youcanghttherewithyourbacktoanexit.

• Based on "Kitchen Firesafety Tips" published by NFPA WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this fan with any solid-state speed control device. WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have any

questions, contact the manufacturer.

2. Before servicing or cleaning unit, switch power off at service panel and lock the

service disconnecting means to prevent power from being switched on acciden- tally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or Explosive Materials and Vapors. WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. InstallationWorkAndElectricalWiringMustBeDoneByQualiedPerson(s)InAccor-

dance With All Applicable Codes And Standards, Including Fire-Rated Construction.

2. Sufcientairisneededforpropercombustionandexhaustingofgasesthrough

theue(chimney)offuelburningequipmenttopreventbackdrafting.Followthe heating equipment manufacturer's guideline and safety standards such as those publishedbytheNational FireProtectionAssociation(NFPA), and the American SocietyforHeating,RefrigerationandAirConditioningEngineers(ASHRAE),and the local code authorities.

3. When cutting or drilling into wall or ceiling, do not damage electrical wiring and

other hidden utilities.

4. Ducted fans must always be vented to the outdoors.3

ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD IS INSTALLED MUST BE SEALED. This rangehood requires at least 24" of clearance between the bottom of the rangehood and the cooking surface or countertop. This hood has been approved by UL at this distance from the cooktop. This minimum clearance may be higher depending on local building codes. For gas cooktops and combination ranges, a minimum of 30" is recommended and may be required. The maximum depth of overhead cabinets is 13". Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking surface or countertop. Consult the cooktop or range installation instructions given by the manufacturer before making any cutouts. MOBILE HOME INSTALLATION The installation of this rangehood must conform to the Manufactured Home Construction and Safety Standards, Title 24 CFR, Part 3280 (formerly Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280). See Electrical Requirements.

• Venting system MUST terminate outside the home.

• DO NOT terminate the ductwork in an attic or other enclosed space.

• DO NOT use 4" laundry-type wall caps.

• Flexible-type ductwork is not recommended.

• DO NOT obstruct the ow of combustion and ventilation air.

• Failure to follow venting requirements may result in a re. WARNING

Cold Weather installations An additional back draft damper should be installed to minimize backward cold air ow and a nonmetallic thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house. VENTING REQUIREMENTS Determine which venting method is best for your application. Ductwork can extend either through the wall or the roof. The length of the ductwork and the number of elbows should be kept to a minimum to provide efcient performance. The size of the ductwork should be uniform. Do not install two elbows together. Use duct tape to seal all joints in the ductwork system. Use caulking to seal exterior wall or oor opening around the cap. Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air turbulence that greatly reduces performance. Make sure there is proper clearance within the wall or oor for exhaust duct before making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed. WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork. CAUTION-Toreduceriskofreandtoproperlyexhaustair,besuretoductairoutside–Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.4

• Electrical ground is required on this rangehood.

• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO NOT use for grounding.

• DO NOT ground to a gas pipe.

• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit could result in electrical shock.

• Check with a qualied electrician if you are in doubt as to whether the rangehood is properly grounded.

• Failure to follow electrical requirements may result in a re. WARNING

The Cristal HC comes with a stainless steel front strip installed. Optional black and white kits are available for purchase. For a custom front strip, a local cabinet shop can make a strip to match your cabinets.

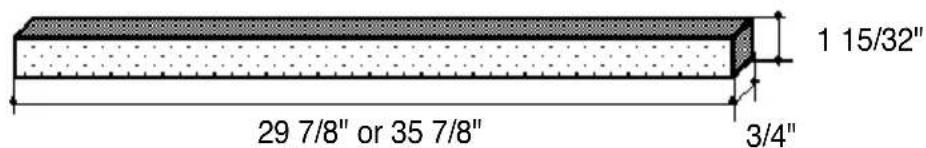

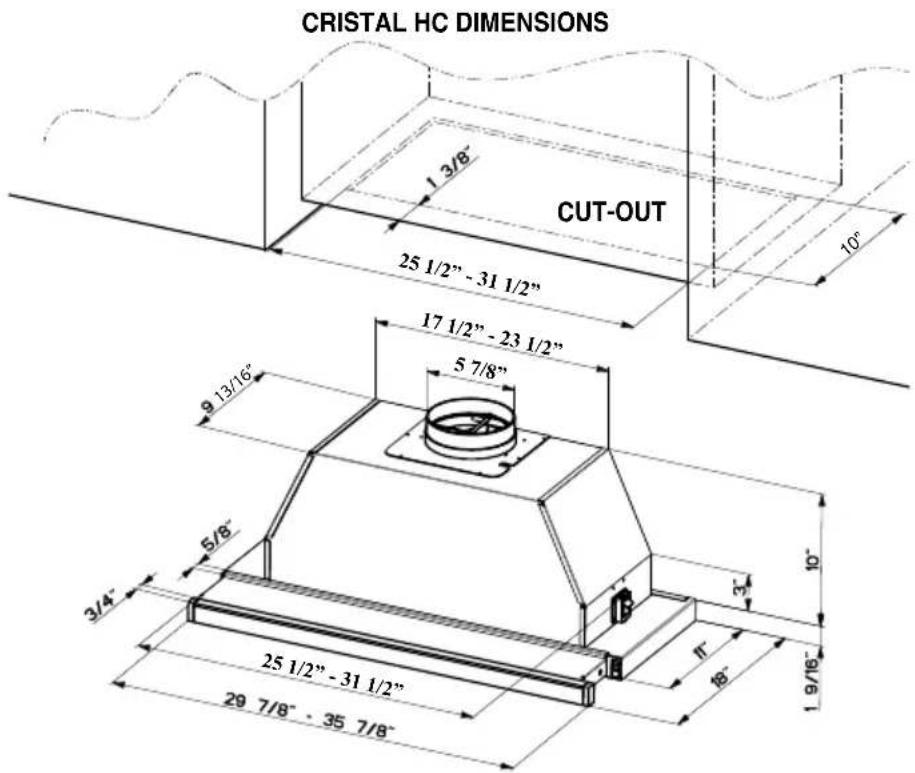

CUSTOM FRONT TRIM DIMENSIONS

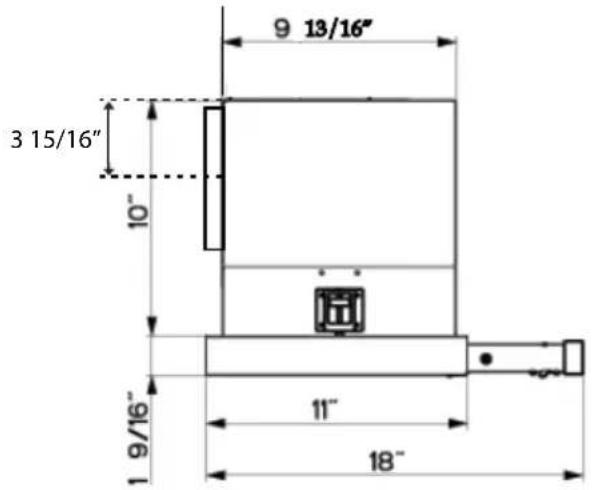

1 15/32" 3/4" 29 7/8" or 35 7/8" 25 1/2” - 31 1/2” 10” 25 1/2” - 31 1/2”13/16”17 1/2” - 23 1/2”5 7/8” Pre-Planning Your Installation - Important: The recommended height to install this hood off the cooktop is a minimum of 24" and a maximum of 30” for maximum effectiveness. Also consult the cooktop manufacturer’s recommendation. NOTE: If direct rear venting, use the side dimensional diagram below on the right. For top venting (comes standard in this position), use the left dimensional diagram. Refer to page 5 for directions for direct rear venting. 3 15/16”

• Phillips Screwdriver

• 1 Vent Grate (for recirculating installations only)

The Cristal HC slideout rangehood is designed to offer wide exibility of installations. The rangehood can be ducted vertically or horizontally through a 6" round vent. The unit can also be installed in a recirculating conguration. The unit comes standard in the top venting position. FIGURES 1 and 2 show vertical and horizontal installations for this unit. FIGURE 3 shows recirculating installation. The Cristal HC requires 6" round ductwork. To ensure that the blower performs to its highest possible capacity, ductwork should be as short and straight as possilbe. RECIRCULATING INSTALLATIONS For recirculating installations (FIGURE 3), Charcoal Filters are necessary. Remove all four grease lters and set aside. Attach one charcoal lter to each end of the blower. Each charcoal lter attaches to the black grid on the side of the blower. Rotate the lter clockwise to install and counterclockwise to remove (FIGURE 3A). Replace all four grease lters. Some ductwork must be installed to exhaust the rangehood back into the kitchen, either at the top of the cabinet or at the face of the soft. A plastic vent grate (FIGURE 3B) supplied with the rangehood can be used to cover the duct opening. This duct work must not terminate into a dead air space. FIGURE 3A 45˚ Elbow 90˚ Elbow 90˚ Flat Elbow Wall Cap FIGURE A 9 Feet Straight Duct

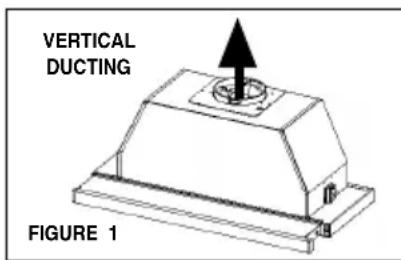

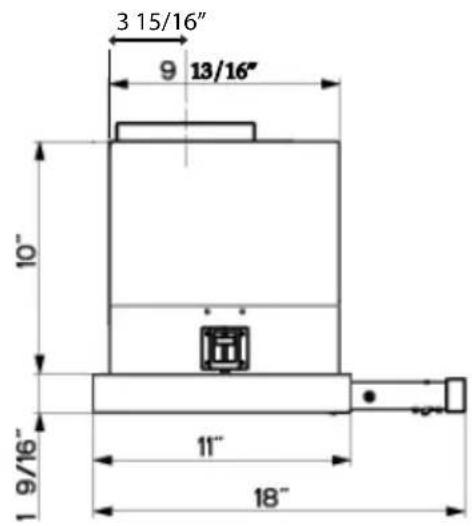

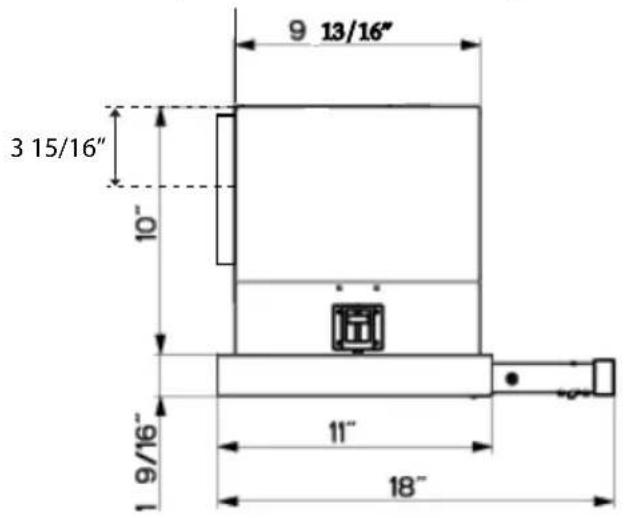

VERTICAL DUCTING FIGURE 2 HORIZONTAL DUCTING FIGURE 1 For direct rear venting (FIGURE 2), you must change the blower position. Remove the 12 screws that hold the metal housing to the rangehood body. Remove the 4 screws that hold the blower housing to the metal housing. Rotate the blower 90 degrees toward the back and then ip it over 180 degrees. Be sure that the power supply cable is properly positioned. Replace all screws, making sure that they are rmly fastened. cabinet ceiling 6” round duct hood cabinet ceiling 6” round duct hood soft vent grate vent grate FIGURE 3B FIGURE 3 For satisfactory performance the duct run should not exceed 50 equivalent feet if ducted using the required minimum 6" round duct. The equivalent feet in FIGURE A for each piece of duct in the system An example is given in FIGURE B. For best results, use no more than three 90° elbows. Make sure that there is a minimum of 24" of straight duct between elbows if more than one is used. Do not install two elbows together. If you must elbow right away, do it as far away from the hood's exhaust opening as possible.7 Version 06/14 - Page 6

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

1. Remove the rangehood from the carton and place on a

at surface. Cover the surface to prevent accidental damage. Remove all parts including the backdraft damper, plastic grille and literature package before discarding the carton. Remove the grease lters and set aside.

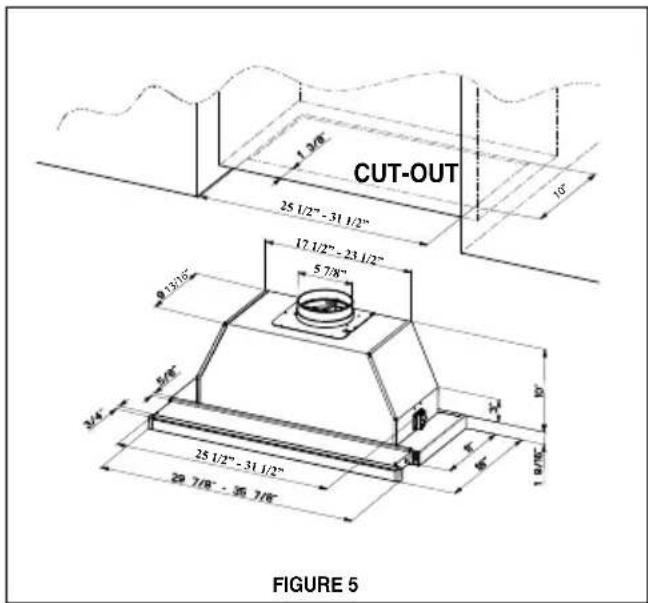

2. Place the round damper into the exhaust opening of the

rangehood and press down. FIGURE 5

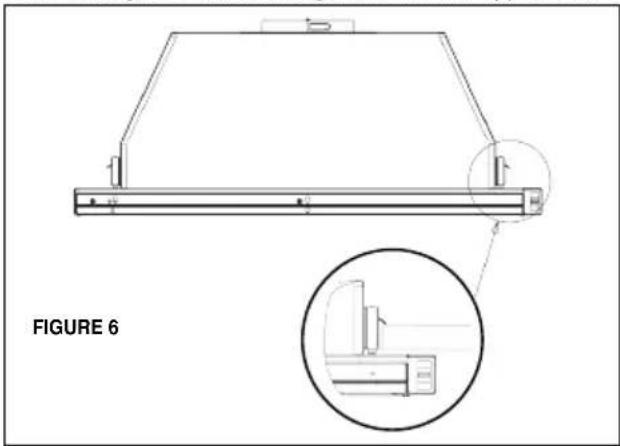

3. The rangehood mounts to the cabinet by two spring loaded

brackets, one on each side of the rangehood (FIGURE 6). Lift the rangehood into the cutout opening in the cabinet. Be careful not to damage the cabinet, rangehood or other appliances. CUT-OUT

1. Disconnect and move freestanding range from cabinet

opening to provide easier access to upper cabinet and rear wall. Put a thick, protective covering over cooktops, set-in ranges or countertops to protect from damage or dirt.

2. Determine and clearly mark with a pencil the center line

of the cabinet on the wall and on the underside of the cabinet where the rangehood will be installed.

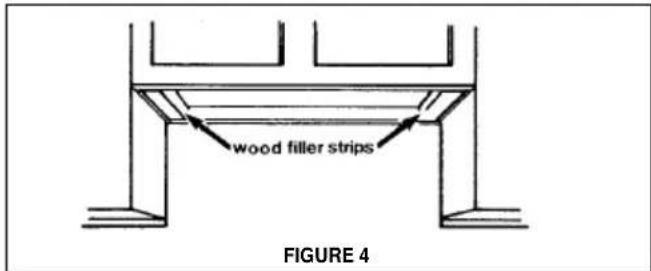

3. If the cabinet bottom is recessed, wood blocks need to

be installed to insure proper alignment with the cabinet bottom. Wood blocks should be ush or recessed 1/16" to 1/8" within the cabinet bottom as indicated in FIGURE 4. FIGURE 4 MAKE THE CUT-OUT OPENING (FIGURE 5) WHERE THE RANGEHOOD WILL BE INSTALLED.

4. Determine the proper cutouts for the ductwork. Make all

necessary cuts in the walls or cabinets for the ductwork. Install the ductwork before mounting the rangehood.

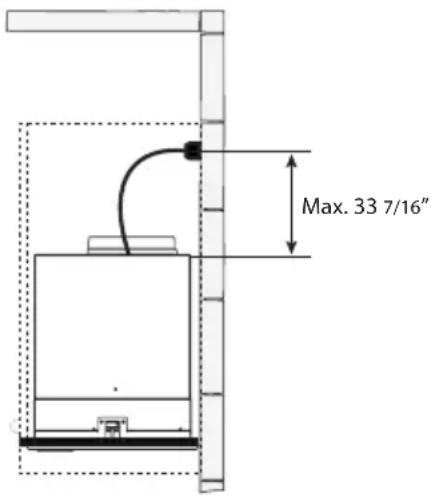

5. Determine and make the proper cutout for the Power Supply

Cable. Use a 1 1/4" Drill Bit to make this hole. Run the Power Supply Cable through the wall or cabinet. DO NOT turn on the power until installation is complete. Use caulking to seal around the wire opening. FIGURE 6

4. The spring loaded brackets are factory set to accomo-

date a thickness between 1 3/16" and 2 1/4". If your cabinet bottom is less than 1 3/16" thick, the spring loaded brackets can be removed and repositioned down from the top setting to the bottom setting by removing the four phillips screws.

5. Tighten the rangehood to the cabinet by rotating the

screws with a phillips screw driver.

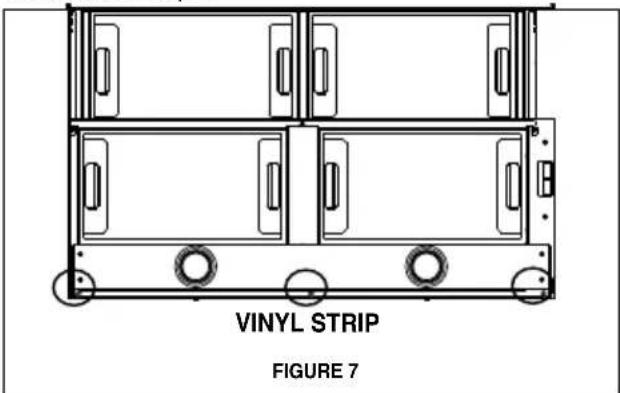

6. A grey vinyl strip (FIGURE 7) is included to cover the

underside of any remaining exposed cabinet. Attach the grey vinyl strip to the bottom of the back of the rangehood with the three screws provided. If necessary, the strip can be cut to t the cabinet depth.

7. Remove the cover from the eld wiring compartment with

a phillips screwdriver. Feed the Power Supply Cable through the electrical knockout. Connect the Power Supply Cable to the rangehood cable. Attach the White lead of the power supply to the White lead of the rangehood with a twist-on type wire connector. Attach the Black lead of the power supply to the Black lead of the rangehood with a twist-on type wire connector. Attach the Power Supply Cable grounding lead to the green screw provided. Using the 4 holes provided, screw the eld wiring compartment to the wall or cabinet as dictated by your Power Supply Cable location (screws not provided). Replace the cover.

8. Replace the grease lters. Connect the ductwork to the

damper and seal all connections.

9. Turn the power supply on. Turn on the blower and light.

If the rangehood does not operate, check that the circuit breaker is not tripped or the house fuse blown. If the unit still does not operate, disconnect the power supply and check that the wiring connections have been made properly. FIGURE 7 VINYL STRIP 25 1/2” - 31 1/2” 10” 25 1/2” - 31 1/2” 13/16” 17 1/2” - 23 1/2” 5 7/8”9

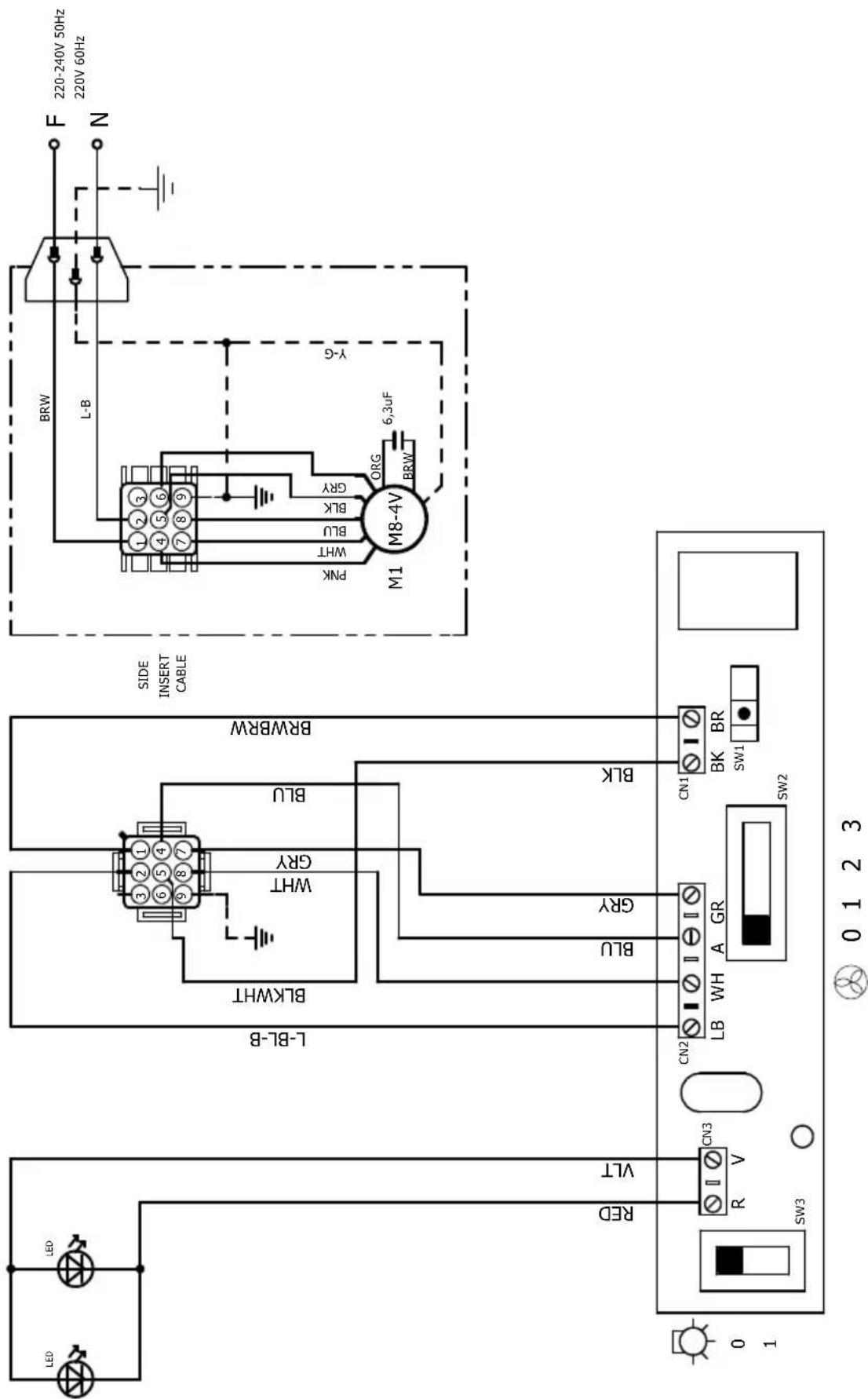

Direct Connect Wiring Box Accessory sku # WIREBOX (purchased separately) Created by -Denomination-Lang ENSheet 1/1Modif.by Approved by Approval date Doc. status Drawing N.NEW_DRAWING_BOXRev01 ELECTRICAL INSTALLATION WITH OPTIONAL WIRING BOXFor Permanent wiring Installation-Use only with Listed rangehood Wiring Box kit sku # WIREBOX, manufactured by Faber.Max. 33 7/16”GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.WARNING - Improper grounding can result in a risk of electric shock.Consult a qualied electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.Do not use an extension cord. If the power supply cord is too short, have a qualied electrician install an outlet near the appliance. Version 06/14 - Page 8

USE AND CARE INFORMATION

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/O Switch TheOn/O switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light o. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower o. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut o when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop after cooking is complete to clear all smoke and odors from the kitchen. Cleaning detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is o, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The New Cristal comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9 . FIGURE 8

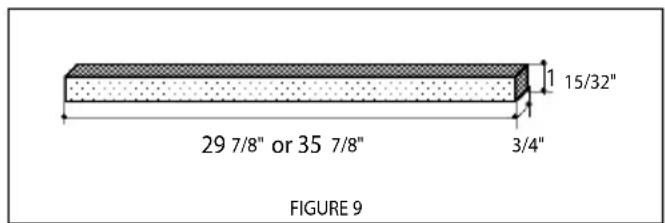

15/32" FIGURE 9 3/4"

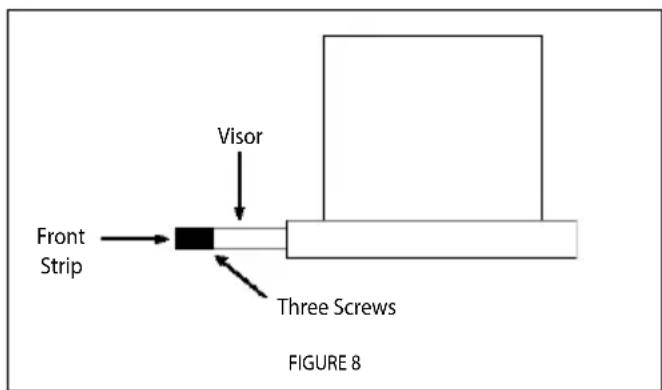

7/8" or 35 7/8" Visor Front Strip Three Screws

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/O Switch TheOn/O switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light o. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower o. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut o when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop after cooking is complete to clear all smoke and odors from the kitchen. Cleaning detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is o, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The New Cristal comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9 . FIGURE 8 1 15/32" FIGURE 9 3/4" 29 7/8" or 35 7/8" Visor Front Strip Three Screws

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/O Switch TheOn/O switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light o. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower o. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut o when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop after cooking is complete to clear all smoke and odors from the kitchen. Cleaning detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is o, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The New Cristal comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9 . FIGURE 8

15/32" FIGURE 9 3/4"

7/8" or 35 7/8" Visor Front Strip Three Screws

For Best Results Start the rangehood several minutes before cooking to develop proper airow. Allow the rangehood to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen. Version 06/14 - Page 8

USE AND CARE INFORMATION

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/Off Switch TheOn/Off switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light off. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower off. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut off when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop proper airow. Allow the unit to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen. Cleaning The metal grease lters should be cleaned frequently in hot detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring agents can scratch rangehood nishes and should not be used to clean nished surfaces. Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is off, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The Cristal HC comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9. FIGURE 8 1 15/32" FIGURE 9 3/4" 29 7/8" or 35 7/8" Visor Front Strip Three Screws

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/Off Switch TheOn/Off switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light off. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower off. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut off when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop proper airow. Allow the unit to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen. Cleaning The metal grease lters should be cleaned frequently in hot detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring agents can scratch rangehood nishes and should not be used to clean nished surfaces. Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is off, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The Cristal HC comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9. FIGURE 8 1 15/32" FIGURE 9 3/4" 29 7/8" or 35 7/8" Visor Front Strip Three Screws

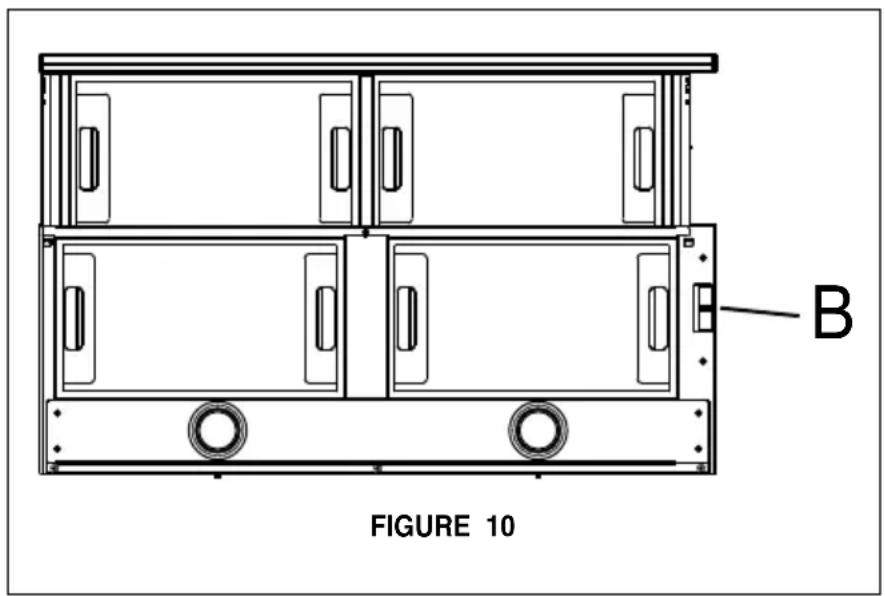

FIGURE 1111 CleaningmetalgreaseltersThe metal grease lters can be cleaned in hot detergent solution or washed in the dishwasher. They should be cleaned every 2 months use, or more frequently if use is particularly heavy. • Open the visor by pulling it. • Remove the lter, pushing the lever towards the back of the unit and at the same time pulling downward.• Wash the lter without bending it, leave it to dry thoroughly before replacing (if the surface of the lter changes color over time, this will have absolutely no effect on its efciency).• Replace, taking care to ensure that the handle faces forward.• Cleaning in dishwasher may dull the nish of the metal grease lter.• Close the visor.Replacing Activated Charcoal FilterThe Activated Charcoal Filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.• Open the visor by pulling it.• Remove the Filter, pushing it towards the back of the unit and at the same time pulling downward.

• Remove the saturated Activated Charcoal Filters, as indicated (A).

• Fit the new Filters, as indicated (B).
• Replace, taking care to ensure that the handle faces forwards.• Close the visor.

• Disconnect the wires to the Commands at the connectors.

• Disconnect the wires to the Light at the con- nectors.

• The Hood can be installed directly on the underside of the wall unit (Minimum 650 mm from the Cooker Hob).

• Create an opening in the bottom of the wall unit, as shown.

• Insert the hood until the side supports snap into place.

• Fasten using the 10 screws 12a provided.

• Lock in position by tightening the screws Vf from underneath the hood.

• Open the suction panel by turning the specific knob.

• Disconnect the panel from the hood canopy by sliding the fixing pin lever.

• Remove grease filters.

• Screw the Frame into place using the 6 scr ews 12f, re- connect the wires to the Commands and Light, re- place the metal grease filter and the Panel.

Gu10 self-ballasted led lamps – listed in ac- cordance with ul 1993/nmx- j-578/1-ance/ csa c22.2 No.

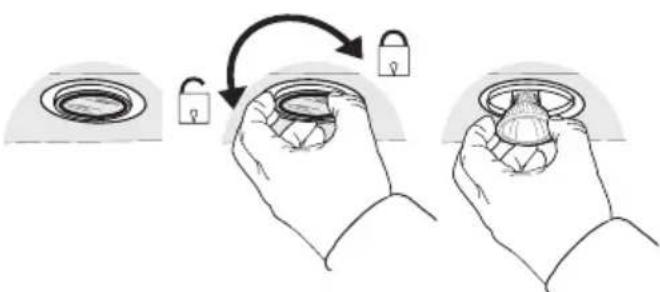

Lighting unit• Turn off electrical supply before replacing bulbs, and make sure bulbs are cool to touch before proceeding. • Remove the lamp at the base and turn slightly to the left and the pull out from the connector and turn slightly to the left.• Replace the lamp with a new one of the same type, making sure that you insert the two pins properly into the housings on the lamp holder.• Once the bulb pins are in place turn slightly to the right to secure.12 Wiring Diagram

All Faber products are warranted against any defect in materials or workmanship for the original purchaser for a period of 1 year from the date of original purchase (requires proof of purchase). This warranty covers labor and replacement parts. Faber, at its option, may repair or replace the product or components necessary to restore the product to good working condition. To obtain warranty service, contact the dealer from whom you purchased the range hood, or the local Faber distributor. If you cannot identify a local Faber distributor, contact us at (508) 358-5353 for the name of a distributor in your area. The following is not covered by Faber's warranty:

1. Service calls to correct the installation of your range hood, to instruct you how to use your range hood, to

replace or repair house fuses or to correct house wiring or plumbing.

2. Service calls to repair or replace range hood light bulbs, fuses or filters. Those consumable parts are

excluded from warranty coverage.

3. Repairs when your range hood is used for other than normal, single-family household use.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,

installation not in accordance with electrical or plumbing codes or Faber documentation, or use of products not approved by Faber.

5. Replacement parts or repair labor costs for units operated outside the United States or Canada, including

any non-UL or C-UL approved Faber range hoods.

6. Repairs to the hood resulting from unauthorized modifications made to the range hood.

7. Expenses for travel and transportation for product service in remote locations and pickup and delivery

charges. Faber range hoods should be serviced in the home. THIS WARRANTY DOES NOT ALLOW RECOVERY OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, PERSONAL INJURY/WRONGFUL DEATH OR LOST PROFITS FABER WARRANTY IS LIMITED TO THE ABOVE CONDITIONS AND TO THE WARRANTY PERIOD SPECIFIED HEREIN AND IS EXCLUSIVE. EXCEPT AS EXPRESSLY SPECIFIED IN THIS AGREEMENT, FABER DISCLAIMS ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS, AND WARRANTIES INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE

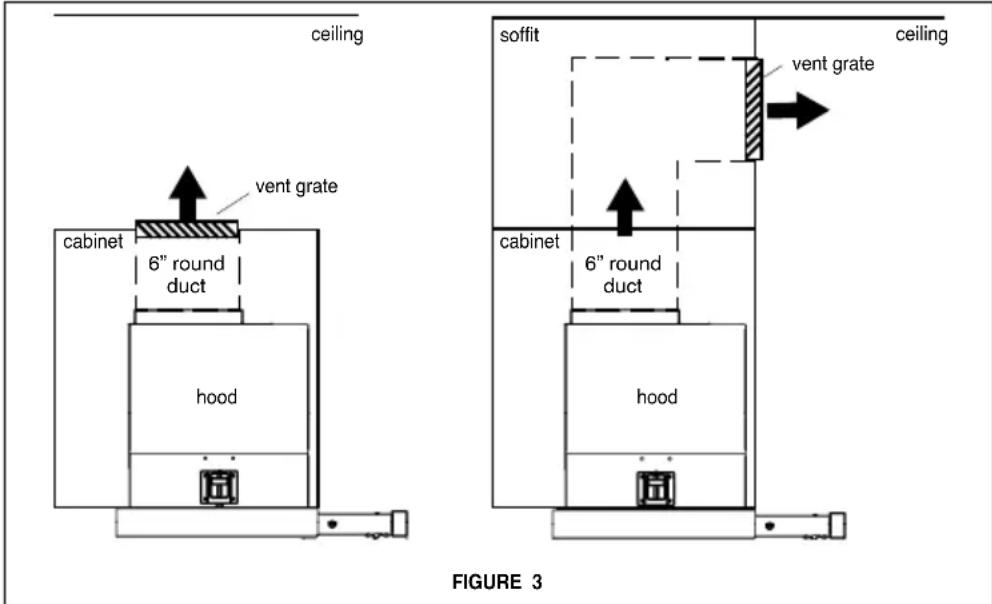

INSTALLATIONS AVEC RECYCLAGE

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

• Charcoal Filters For non-vented installations only, replace charcoal lters as needed part # FILTER1

• CFM Reducer Kit To reduce cfm to below 300 cfm for use in make up air environments part # CFMRED

• Universal Make Up Air Damper 6" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER6

• Universal Make Up Air Damper 8" Brings fresh air back into the home thru an automatic damper when the hood is on #MUDAMPER8

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/O Switch TheOn/O switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light o. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower o. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut o when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop after cooking is complete to clear all smoke and odors from the kitchen. Cleaning detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is o, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The New Cristal comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9 . FIGURE 8 1 15/32" FIGURE 9 3/4" 29 7/8" or 35 7/8" Visor Front Strip Three Screws

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/O Switch TheOn/O switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light o. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower o. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut o when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop after cooking is complete to clear all smoke and odors from the kitchen. Cleaning detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is o, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The New Cristal comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9 . FIGURE 8

15/32" FIGURE 9 3/4"

7/8" or 35 7/8" Visor Front Strip Three Screws

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/Off Switch TheOn/Off switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light off. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower off. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut off when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop proper airow. Allow the unit to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen. Cleaning The metal grease lters should be cleaned frequently in hot detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring agents can scratch rangehood nishes and should not be used to clean nished surfaces. Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is off, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The Cristal HC comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9. FIGURE 8 1 15/32" FIGURE 9 3/4" 29 7/8" or 35 7/8" Visor Front Strip Three Screws

• Disconnect the wires to the Commands at the connectors.

• Disconnect the wires to the Light at the con- nectors.

• The Hood can be installed directly on the underside of the wall unit (Minimum 650 mm from the Cooker Hob).

• Create an opening in the bottom of the wall unit, as shown.

• Insert the hood until the side supports snap into place.

• Fasten using the 10 screws 12a provided.

• Lock in position by tightening the screws Vf from underneath the hood.

• Open the suction panel by turning the specific knob.

• Disconnect the panel from the hood canopy by sliding the fixing pin lever.

• Remove grease filters.

• Screw the Frame into place using the 6 scr ews 12f, re- connect the wires to the Commands and Light, re- place the metal grease filter and the Panel.

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/O Switch TheOn/O switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light o. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower o. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut o when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop after cooking is complete to clear all smoke and odors from the kitchen. Cleaning detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is o, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The New Cristal comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9 . FIGURE 8 1 15/32" FIGURE 9 3/4" 29 7/8" or 35 7/8" Visor Front Strip Three Screws

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/O Switch TheOn/O switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light o. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower o. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut o when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop after cooking is complete to clear all smoke and odors from the kitchen. Cleaning detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is o, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The New Cristal comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9 . FIGURE 8

15/32" FIGURE 9 3/4"

7/8" or 35 7/8" Visor Front Strip Three Screws

Rangehood Control Panel All controls are located on the right side of the rangehood. Light On/Off Switch TheOn/Off switch for the halogen light is located behind the front trim. Moving the switch to the 1 Position turns the light On. Moving the switch to the 0 position turns the light off. Blower Speed Switch B in FIGURE 10 shows the speed control switch for the blower. Moving the switch to the 1 Position turns the blower on LOW. Moving the switch to the 2 Position turns the blower on MEDIUM. Moving the switch to the 3 Position turns the blower on HIGH. Moving the switch to the 0 Position turns the blower off. Automatic Operation As long as the blower and light switches are on, the blower and light will automatically operate when the visor is opened and shut off when the visor is closed. For Best Results Start the rangehood several minutes before cooking to develop proper airow. Allow the unit to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen. Cleaning The metal grease lters should be cleaned frequently in hot detergent solution or placed in the dishwasher. Clean exterior surfaces with hot soapy water. Using abrasives and scouring agents can scratch rangehood nishes and should not be used to clean nished surfaces. Replacing the halogen lamp CAUTION the bulb MAY BE HOT To replace the halogen bulb, see (Figure 11) Before attempting to replace the lamp, make sure the light switch is off, the bulb CAUTION may be hot. Remove the cover snap-on lamp levering under the metal ring, supporting it with one hand. Remove the halogen lamp from the lamp holder by pulling gently. Replace the lamp with a new one of the same type, making sure that you insert the two pins into the slots on the lamp holder. Replace the cover snap-on lamp. FIGURE 10

The Cristal HC comes with a stainless front strip installed. Optional black and white strips are available as accessories for purchase. To change the front strip, remove the three phil- lips screws located behind the strip (FIGURE 8). If necessary, the front strip can be adjusted by loosening the three phillips screws and sliding the strip up or down. Tighten screws when you have the strip properly placed. For a custom front strip, a local cabinet shop can make a strip to match your cabinets. The front strip dimensions are given in FIGURE 9. FIGURE 8 1 15/32" FIGURE 9 3/4" 29 7/8" or 35 7/8" Visor Front Strip Three Screws

• Disconnect the wires to the Commands at the connectors.

• Disconnect the wires to the Light at the con- nectors.

• The Hood can be installed directly on the underside of the wall unit (Minimum 650 mm from the Cooker Hob).

• Create an opening in the bottom of the wall unit, as shown.

• Insert the hood until the side supports snap into place.

• Fasten using the 10 screws 12a provided.

• Lock in position by tightening the screws Vf from underneath the hood.

• Open the suction panel by turning the specific knob.

• Disconnect the panel from the hood canopy by sliding the fixing pin lever.

• Remove grease filters.

• Screw the Frame into place using the 6 scr ews 12f, re- connect the wires to the Commands and Light, re- place the metal grease filter and the Panel.

All Faber products are warranted against any defect in materials or workmanship for the original purchaser for a period of 1 year from the date of original purchase (requires proof of purchase). This warranty covers labor and replacement parts. Faber, at its option, may repair or replace the product or components necessary to restore the product to good working condition. To obtain warranty service, contact the dealer from whom you purchased the range hood, or the local Faber distributor. If you cannot identify a local Faber distributor, contact us at (508) 358-5353 for the name of a distributor in your area. The following is not covered by Faber's warranty:

1. Service calls to correct the installation of your range hood, to instruct you how to use your range hood, to

replace or repair house fuses or to correct house wiring or plumbing.

2. Service calls to repair or replace range hood light bulbs, fuses or filters. Those consumable parts are

excluded from warranty coverage.

3. Repairs when your range hood is used for other than normal, single-family household use.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation,

installation not in accordance with electrical or plumbing codes or Faber documentation, or use of products not approved by Faber.

5. Replacement parts or repair labor costs for units operated outside the United States or Canada, including

any non-UL or C-UL approved Faber range hoods.

6. Repairs to the hood resulting from unauthorized modifications made to the range hood.

7. Expenses for travel and transportation for product service in remote locations and pickup and delivery
