USER MANUAL GLN 2500 K Adventys

• Do not operate this equipment unless you have read and understood the contents of this manual. Failure to follow the instructions contained in this manual may result in serious injury or death. This manual contains important safety information con- cerning the maintenance. Keep this manual in a safe location for future reference. CAUTION : Read the instruc- tions before using the product. Download manual Operating and installation manual Service manual EN22 Content Product symbols …………………………….…….…………………… p. 23
• Use your devise safely………………………………………………… p. 24
• -26 Technical information.…………………………….…………………… How does your device works…… …………………………………….28-29 Pans……… …………………………….…………………………………30 Preserve and maintain your appliance …………………………………30-31 Declaration of conformity and wastes p. 27
• ……………………………… p. 32

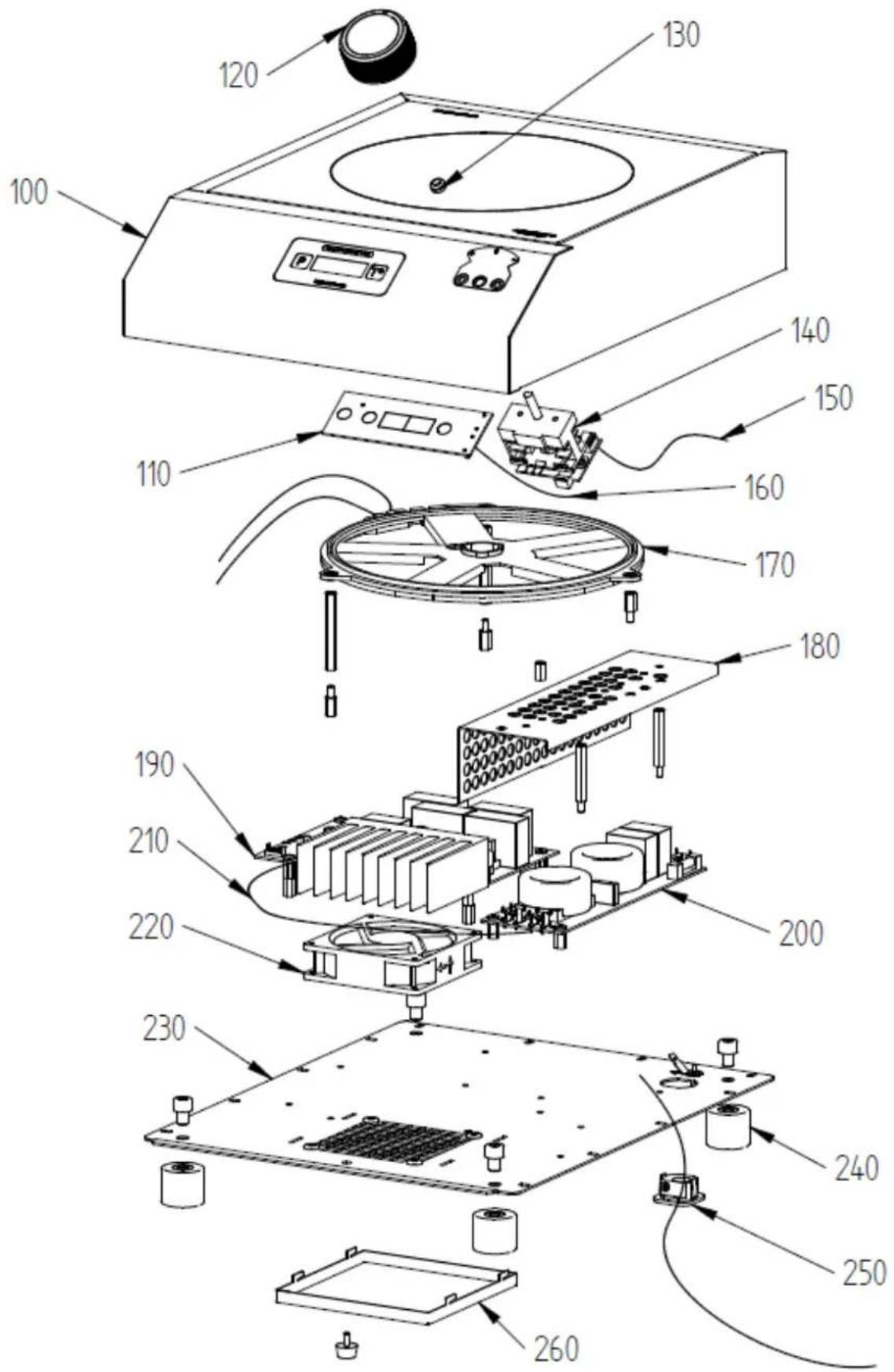

• Guarantee………………………………………………………………….33 Service manual - Technical informations……………………………….34 Service manual - Error codes ……………………………………………35 Service manual - Connection and guarantee.………………………….36 Exploded views ………………………………………………………… Spare parts list…………… p. 37

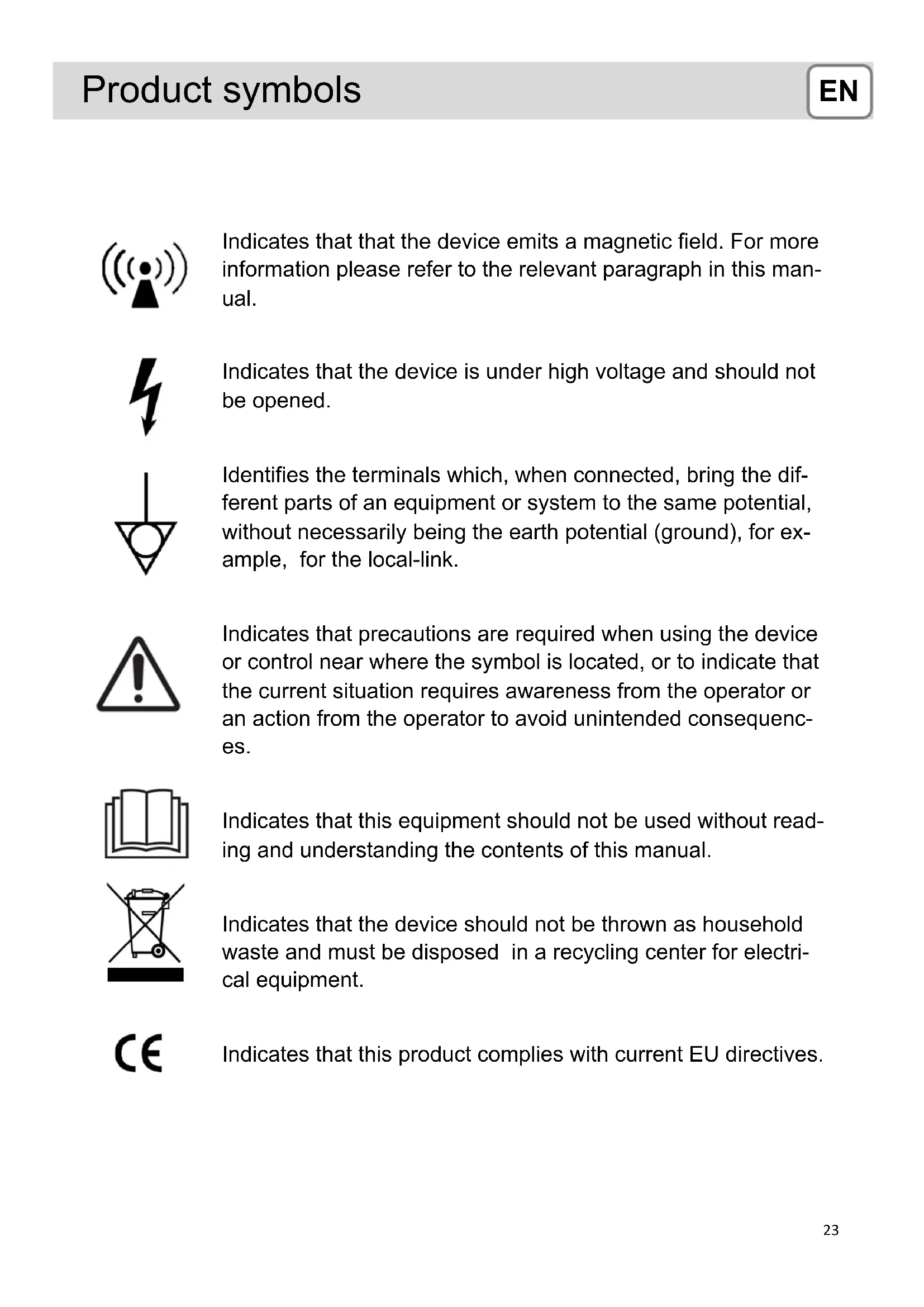

• …………………………………………… Indicates that that the device emits a magnetic field. For more information please refer to the relevant paragraph in this man- ual. Indicates that the device is under high voltage and should not be opened. Identifies the terminals which, when connected, bring the dif- ferent parts of an equipment or system to the same potential, without necessarily being the earth potential (ground), for ex- ample, for the local-link. Indicates that precautions are required when using the device or control near where the symbol is located, or to indicate that the current situation requires awareness from the operator or an action from the operator to avoid unintended consequenc- es. Indicates that this equipment should not be used without read- ing and understanding the contents of this manual. Indicates that the device should not be thrown as household waste and must be disposed in a recycling center for electri- cal equipment. Indicates that this product complies with current EU directives. Product symbols EN24 THE PRINCIPLE OF INDUCTION: When the device is switched on, as soon as a power level is selected, the electronic circuits produce induced currents in the bottom of the container which instantly restores the heat produced to the food. p. 3823

DANGER OF ELECTRONIC INTERFERENCES: This device generate electromagnetic fields at short range. It has been devel- oped to respect applicable standards and to avoid interfering with other elec- tronic devices. Make sure that other nearby electronic devices such as pace- maker are not located within 305mm (12”). PEOPLE EQUIPED WITH PACEMARKERS OR ACTIVE IMPLANTS. The hob complies with electromagnetic standards. This induction hob there- fore fully meets legal requirements (directives 89 / 336 / CEE). It has been de- signed so that it does not interfere with working or other electric appliances provided that they respect the same regulations. This induction hob generates electromagnetic fields in its very close environ- ment.

RISK OF EXPLOSION : Do not warm closed food containers. Sealed and heated containers can ex- plode. (ex: tin can). This product can’t be used by children or people with impaired physical, sen- sory or mental abilities. Make sure that children are well supervised and keep them away from the device. Make sure that every users have been trained in the saf e and correct used of the device. CAUTION Use your device safely25 If a crack appears in the glass surface, immediately disconnect the appliance to avoid the risk of electric shock. To do this, remove the fuses or operate the circuit-breaker. Do not use your device before replacing the vitro-ceramic glass. The device must not be used to store anything. Make sure that the power cable of an electrical device plugged into an outlet near the device is not in contact with the cooking zones. If the power cable is damaged, it had to be replaced by the manufacturer, the customer service or a person with similar qualifications in order to avoid dan- ger. Plug the unit to a dedicated power outlet with a 16A circuit-breaker powered by a 30mA Type A differential switch (No multi-socket). If the plug and socket do not match, contact a qualified electrician to determine and install an outlet of correct size and voltage.

CAUTION Use your device safely EN26 Be careful not to place metal and/or plastic objects such as cutlery, cooking utensils, etc. on the cooking hob because they could heat up. This product should not be used as a surface to place objects. Be careful to objects worn by the user when using the device such as: rings, watches or similar objects which can heat up if they are placed very close to the hob. Only use containers of the type and size recommended. After use, switch of the device with the control and do not rely on the pan de-tector. Those appliances are intended to be used for commercial applications, for example in restaurant kitchens, canteens, hospitals and in commercial en-terprises such as bakeries, butchers, etc., but not for the continuous produc-tion of a big quantity of foods.

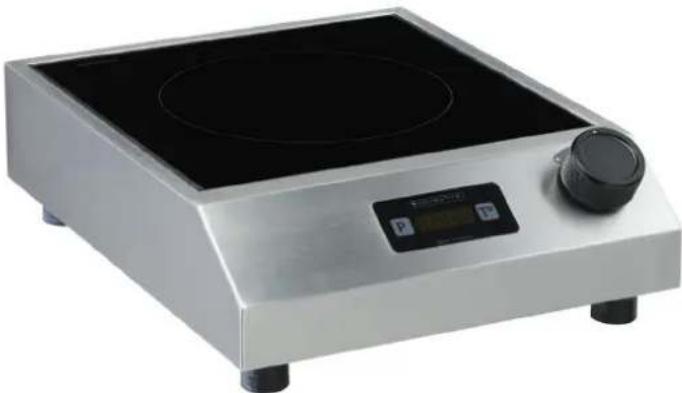

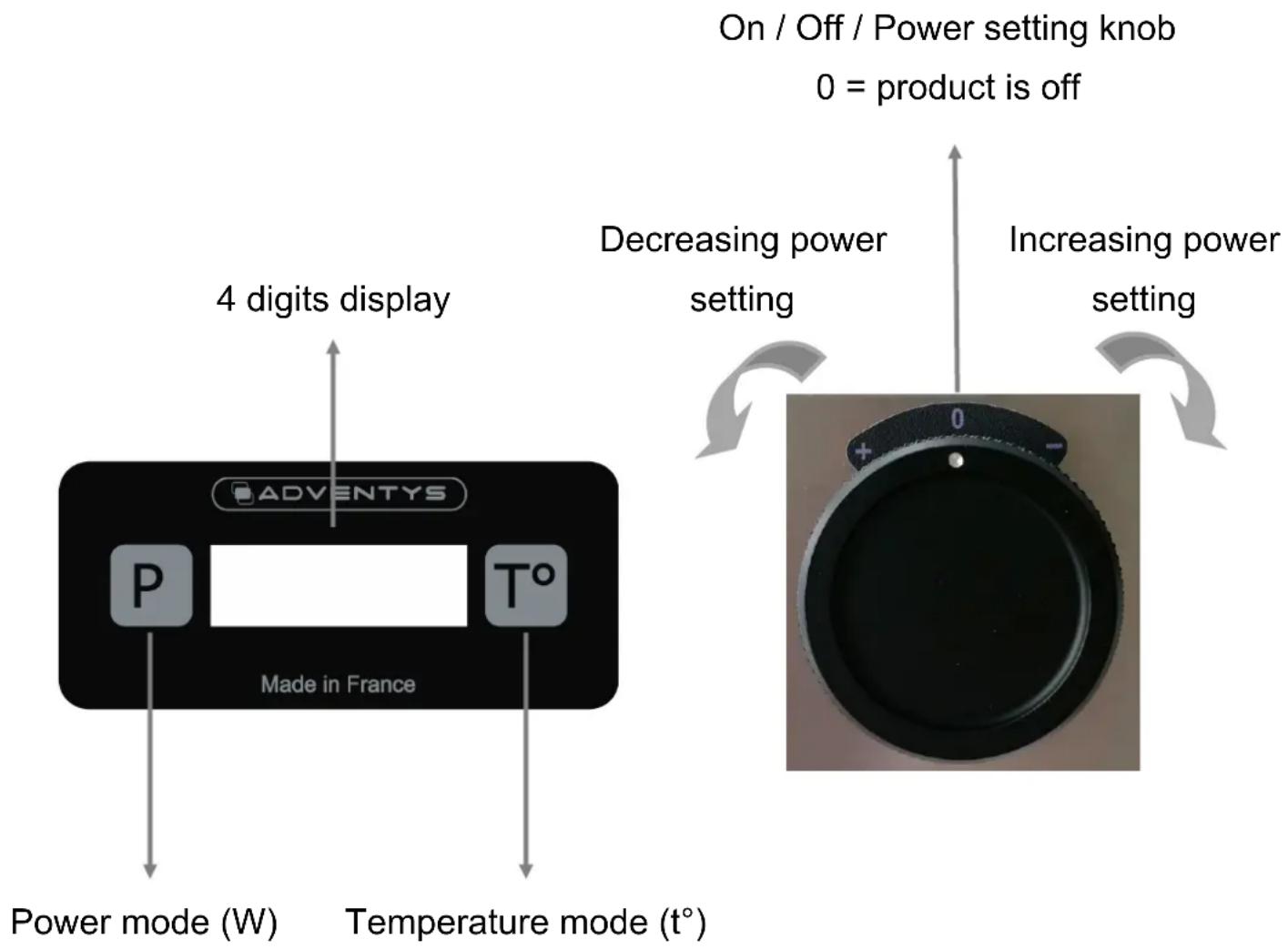

CAUTION CAUTION Use your device safely27 Model: GLN MANETTE 2500 / 3000 / 3500 Name: Freestanding induction cooking appliance Materials: Stainless steel / Aluminum / Vitroceramic glass Power: 2500 / 3000 / 3500 Watts Electricity network: Monophasé 230V +/-10% 50Hz Current: 11A (2500W) 13A (3000W) 16A (3500W) Control: Keyboard capacitive touches + lever Product dimensions: L 310 x P 395 x H 113 mm Vitroceramic glass dimensions: L 280 x P 280 x H4 mm Min. allowed diameter of pan (bottom): 160 mm Max. diameter of pan: 280 mm Maximum allowed distributed weight on the product: 20kg Net weight of the product: 5 kg -Make sure to respect the minimum spaces (100mm) between the product and its environment. -DO NOT disassemble the feet of the product, they are essential for the aeraulics and the good functioning. CAUTION Technical information EN28 When a pan compatible with induction technology is placed on the fire- place, the display shows the wattage or the temperature in °C. The tem- perature setting is 30 to 250°C in increments of 5°C. Power settings: As soon as the pan is removed from the fireplace, the display indicates the absence of the pan by a flashing light. If the display flashes when a pan covers the fireplace, it means that the pan material is incompatible with the induction technology. How does your device works Power mode (W) 4 digits display On / Off / Power setting knob 0 = product is off Temperature mode (t°) Decreasing power setting Increasing power setting The default display of the device is the power level mode, it will return to this mode each time it is started29 How does your device works

Your induction cooking appliance is able to recognize most contain- ers. Container test : Place your container on the cooking hob with the power level set on the 300W position: If the indicator 300W remains fixed, your container is compatible, if it flashes, your container is not recognized and cannot be used. The induction-compatible contain- ers are:

• Containers in enameled steel with or without non-stick coating.

• Containers in cast iron with or without enameled bottom. An enam- eled bottom prevents the glass top of your appliance from being scratched.

• Stainless steel containers suita- ble for induction. Most stainless steel containers are suitable if they meet the container test. (saucepan, stockpan, frying pan, chip fryer, etc.)

• NOTE Glass, ceramic or clay, aluminum (without special bottom), copper and some non-magnetic stainless steel containers are incompatible with in- duction cooking. The level indicator of the selected power will flash to inform you. You should choose pans with thick and flat bottoms, which guarantee more even cooking (the heat is better distributed).

Before any intervention to disassemble the filter, it is ESSENTIAL to disconnect the power supply from the product. Remove the filter and then clean the filter under the appliance with soapy water (or in the dish- washer) approximately every week. Put it back when it is dry before use your device again. This filter protects your device from dust and grease. Pans Preserve and maintain your appliance31 Avoid hitting it with pans. The glass top is very tough but it is not unbreakable. Avoid rubbing containers on the top of the appliance. They can, in the long run, degrade the printing on the vitroceramic glass. Avoid using containers with rough or dented bottoms. They can retain and transport mate- rials which may cause stains or scratches on the vitroceramic glass. Centre your container on the cook- ing area. Do not leave an empty container on the cooking hob. Do not heat a closed tin can. It may explode. Do not preheat food on the maxi- mum set power level when you use a container with a non-stick inside coating (Teflon) without liquid or with very little fat. The maximum power level is re- served for boiling and frying. All these faults which do not lead to non-functioning or inability to be used, do not fall within the framework of the warranty. CAUTION Powder Abrasive sponge Cream Sanitary sponge Preserve and maintain your appliance Your device is easy to clean, here is some advice: Types of spots How to proceed Use Slight Dilute well the zone to clean with hot water then wipe. Sanitary sponges Accumulation of recooked spots Dilute well the zone to clean with hot water, use a special scraper for glass to rough-hew, finish with the scraper side of a sanitary sponge, then wipe. Sanitary sponges Special scraper for glass Haloes and tracks of limes-tone Apply some hot spirit vinegar to the spot, leave few minutes, wipe with a soft cloth. Use a domestic product. Special vi- troceramic glass dough Inlays following the over-flowing of sugar, aluminum or molten plastic Apply to the surface a special product for vitroceramic glass, rather containing some silicone (protective effect). Special vi- troceramic glass product EN32 This product complies with the current EC directives. We certify this in the EC declaration of compliance. We can send you the declaration of compliance upon request. The packaging materials used for this appliance are recyclable. Please re-cycle them and help protect the environment by depositing them in the municipal waste containers provided for this purpose.

At the end of its useful life, the appliance to be scrapped must be destroyed in accordance with the ap-plicable national regulations that govern the elimination and recycling of waste. We recommend you contact a company that specializes in waste disposal.

To avoid all risks associated with the destruction of the appliance, ensure that it is disconnected from the mains and that the mains cable is re-moved.

When destroying the appliance, local rules and the applicable regulations in your country or geographical zone must be adhered to.

CAUTION CAUTION Declaration of conformity and waste33 Keep the proof of purchase to use the guarantee service of your product. Any modification such as drilling, welding, crimping, clinching, etc., is not permitted and is not covered by the manufacturer’s warranty. Any intervention resulting from an installation or use not complying with the requirements of this notice will not be accepted under the manufacturer’s warranty and it will be permanently suspended. The manufacturer warranty is subject to the non-modification of the product and its mechanical and electrical characteristics. Problems of appearance caused by the use of abrasive products or the friction of the containers on the vitroceramic glass hob which does not cause failure or inability to be used do not fall within the framework of the warranty. All repairs should be performed by a qualified technician. Only the distributors of our brand : - KNOW YOUR APPLIANCE AND ITS OPERATION PERFECTLY. - FULLY APPLY OUR METHODS OF ADJUSTMENT, MAINTENANCE AND REPAIRS. - USE ONLY ORIGINAL PARTS. In case of a claim or if you wish to order spare parts from your distributor, please specify the full reference numbers of your appliance (appliance type and serial number). This information appears on the plate fixed under the metal casing of the appliance. The descriptions and characteristics given in this booklet are for information purposes only and do not imply commitment from the manufacturer. Concerned about the quality of our products, we reserve the right to carry out necessary changes or improvements without prior notice. Original spare parts: ask your retailer for certified original spare parts during a maintenance operation.

Operating Instructions : FX Servicing guide : --- DESCOVERALL DESCRIPTION Manufacturing date : 05/2022 Type : Electronic Material type : Stainless steel + steel CHARACTERISTICS Power supply : 190V AC to 260VAC; 50 Hz or 60 Hz Current at nominal voltage 230V : 11A (IGLN 2500); 13A (GLN-3000) 16A (GLN 3500) Maximum power returned (CEI) : >90% Weight bare: : 4 Kg Coil : 180 mm of diameter Consumption in stand-by-state : 2.5W Emballage Produit Encastre-ment Hauteur - mm 113 mm - Largeur - mm 310mm - Profondeur - mm 395 mm - This is an electronic product. Some parts of the product are under electric, and the other parts have to be connected with the ground. Do not remove the top case when the power cord is connected to the wall plug. Do not switch on when the top case is removed. When dismantling the product, it is absolutely necessary to test it before plug- ging it. TEST OF GROUND ( < 0,1 Ohm) / TEST OF HIGH TENSION ( 1250 V / 2 sec ) DANGER TENSION! When cleaning the filter, please disconnect the device of the main line. Replace it before use. BE CAREFUL! TECHNICAL FEATURES Manual service DIMENSIONS35 Manual service

GLN MANETTE 2500 / 3000 / 3500 TECHNICAL FEATURES SECURITY AND PROBLEMS: If you read on the keyboard a message ER.XX (with XX 01 to 19), see the follo- wing table. Display Key-board error Potenal causes Intervenon ER.01 In vitro sensor in short circuit slave home AFTER SALES ER.02 In vitro sensor cut o or absent slave home AFTER SALES ER.03 Sensor in vitro short-circuit master focus AFTER SALES ER.04 In vitro sensor cut o or absent master replace AFTER SALES ER.05 IGBT sensor shorted AFTER SALES ER.05 Sensor temperature generator card cut or missing AFTER SALES ER.06 IGBT temperature sensor switched o or missing AFTER SALES ER.06 Sensor temperature generator in short circuit AFTER SALES ER.07 Temperature on IGBT too high Press on / o key to acknowledge fault, or dis- ER.08 The temperature of the in vitro sensor does not vary Press the on / o key to acknowledge the fault or disconnect / reconnect product. If error code sll present: Call Aer sales service. ER.13 One or more fans missing or defecve ER.14 One or more fans missing or defecve ER.15 Measuring fault of the inducve current ER.16 Failure to measure the phase of the inducve current ER.18 Internal 13.8-volt generator voltage fault ER.29 Analogue safety fault ER.31 Slave generator communicaon fault ER.09 Mains voltage below 85 Vac ER.20 Mains frequency below 285 Hz ER.10 Line voltage greater than 285 Vac ER.19 Mains frequency greater than 70 Hz36

FREE STANDING INDUCTION

GLN MANETTE 2500 / 3000 / 3500 NO CONSIDERATION OF THE CONTRACTUAL GUARANTEE MANUFACTURER: HOW TO DISCONNECT THE CONNECTIONS INSIDE PRODUCT:

1 - Be sure that the unit is disconnected of the main line

2 - Open the vitroceram top casing

3 - Disconnect the keyboard with precaution. It is necessary to hold the connector of

the flat cable with 2 fingers. You should not remove directly the flat cable.

4 - During the reassembly, It is necessary to be sure of the good connection of the

keyboard and also of the good connection of the power cord sockets. • Vitro glass breakage or cracking (with flat or wok unit) • Breakage of the adjustment knob after a bad using. • Failure after an intervention on the power cord ( replacing of the plug, cut of the cord, plucking of the cord or degradation of the cord) • Consequential failure resulting in improper electrical connection on the main line (ex: 400V instead of 230V)

• Failure following product disassembly and/or after an intervention inside the unit

• Failure due to lack of product maintenance (air filter not clean or clogged)

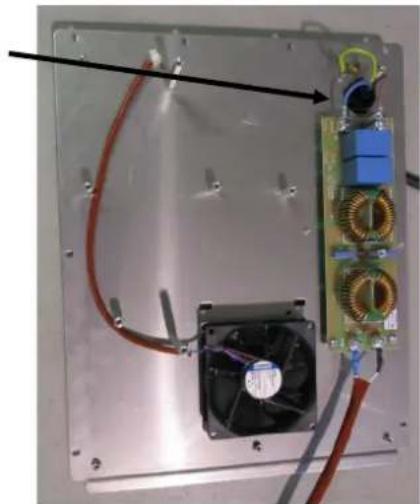

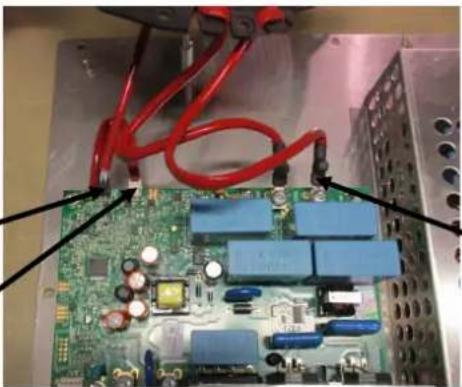

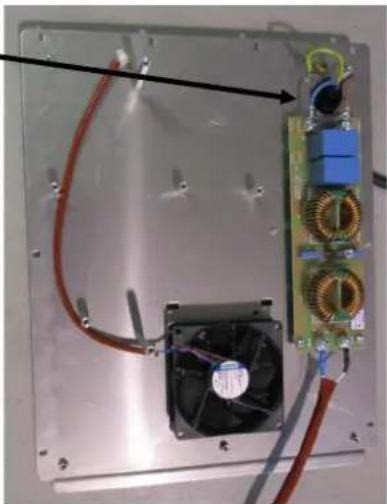

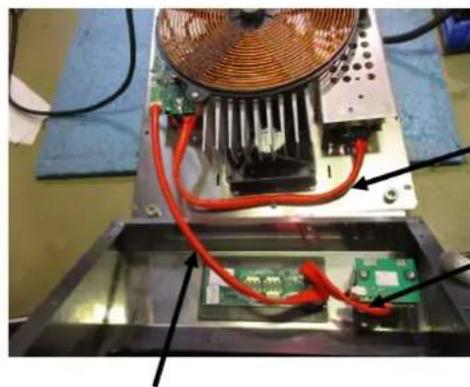

• Failure following the absence of the air filter or due to the presence of water, foreign body or fluids inside the unit (on the electronic boards) Manual service Mains cable Generator supply cable Coil cables Fan cable Sonde cable Link cable keyboard / lever Link cable keyboard / generator37
