USER MANUAL Induc-Elegance 300 Adventys

Exterior view of a modern office building (no signage)

Chère cliente, cher client,

Simple line drawing of a trash bin with no text or symbols

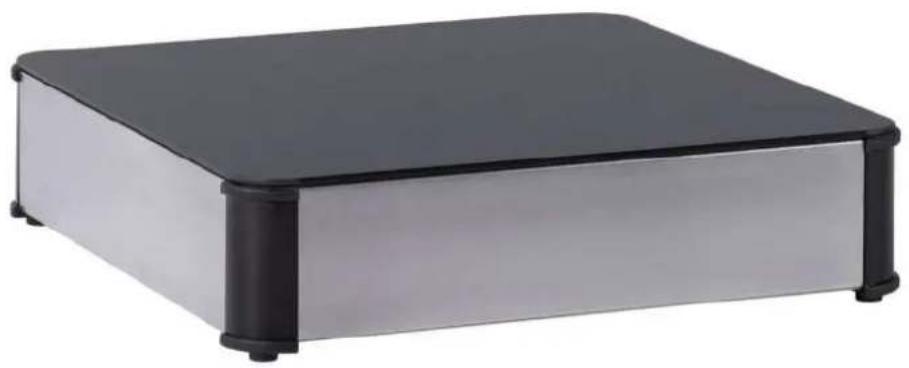

User's guide for your induction buffet

Exterior view of a modern office building (no signage)

Dear Customer,

We congratulate you for the purchase of this product.

This products has been manufactured according to the most recent knowledge and with modern and safe electrical and electronic components. Before using this appliance, please take time to read this user guide.

Thank you for your trust.

Contents

Technical information on the product Induc-Elegance

Product presentation

Declaration of conformity and waste and precautions for installation

User guide to your induction cooking appliance 15

How does your appliance work

Recommended cookware

How to preserve and maintain your appliance

Minor problems and remedies

Electrical interconnection 21

Warranty 22

12

Throughout this guide:

13

This symbol

14

16-17

18

19

20

indicates important safety information

Technical information

Model:	Induc-Elegance
Name:	Induction warming countertop
Power:	300-1000 watts
Electrical mains:	220-240V mono (50/60 Hz)
Current:	10 A
Control:	Keyboard with 3 capacitive keys.12 setting levels.
Product dimensions:	L 390 x P 390 x H 96.3 mm
Glass ceramic dimensions:	L 390 x P 390 x H4 mm
Min. allowed diameter of pan (bottom):	200 mm
Net weight of the product:	5.5 kg

Product presentation

IE 300: 4 appliances maximum per branch circuit

Control panel

Power cord connection with fuse holder
Cord to connect INDUC-ELEGANCE with each other

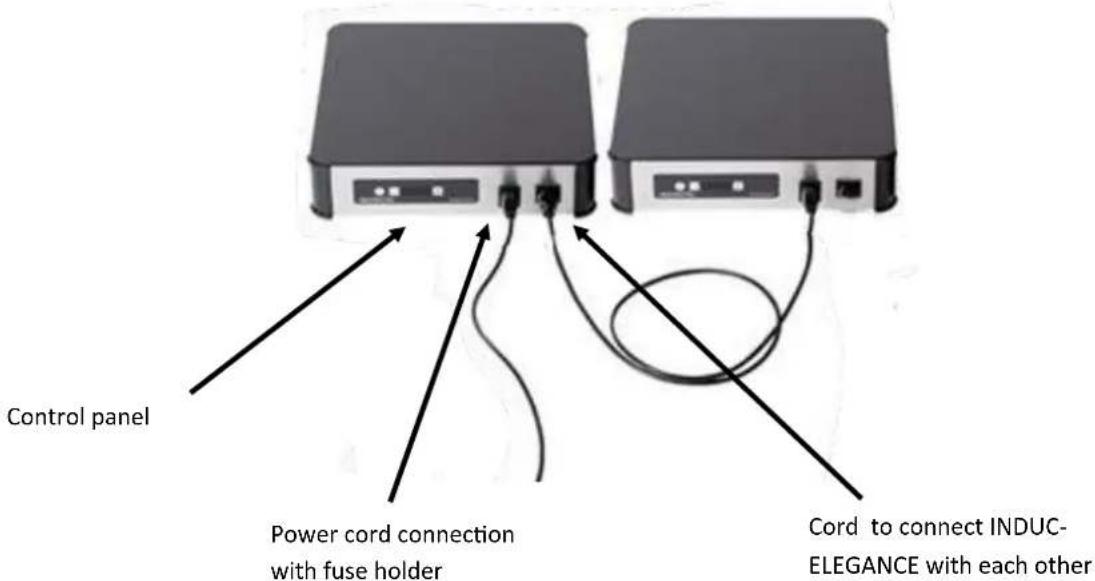

IE 1000: 2 appliances maximum per branch circuit

Control panel Power cord connection with fuse holder Cord to connect INDUC- ELEGANCE with each other

Declaration of conformity and waste

This product complies with current EU directives. We certify this in the EU compliance statement. We can send you a copy of the compliance statement in question if required.

The packing materials in which this appliance is packed are recyclable. Please recycle them by disposing of them in the appropriate containers at your local facility. In so doing, you will be making a contribution to the protection of the environment.

Symbol of a trash bin crossed out by diagonal lines, no text or labels present

At the end of its useful life, the appliance to be scrapped must be destroyed in accordance with the applicable national regulations that govern the elimination and recycling of waste. We recommend you contact a company that specialises in waste disposal.

WARNING :

To avoid all risks associated with the destruction of the appliance, ensure that it is disconnected from themains and that the mains cable is removed.

Installation precautions

When installing your product; be sure to leave a safety area of 10 cm around your appliance for it to be properly ventilated.

Using your hob safety

If this unit is to be placed in close proximity to a wall, partition, kitchen cabinet, decorative trim, etc., it is recommended that they be made of non-combustible materials. If this is not the case, they must be covered with a suitable material, thermal insulation and non-combustible, with particular attention being paid to fire prevention regulations.

If you have a heart pacemaker

Or other active implant fitted :

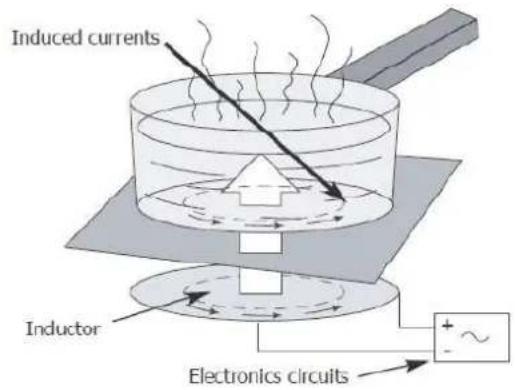

Induced currents Inductor Electronics circuits

The functioning of the hob complies with the currently applicable norms concerning electromagnetic disturbance. Your induction cooking hob therefore fully meets the legal requirements (89/336/CEE directives). It has been designed not to cause disturbance to other electric appliances insofar as they also meet the requirements of the same regulations. Your induction hob emits magnetic fields in its immediate surroundings.

To avoid the possibility of interference between your cooking hob and a heart pacemaker, the latter must be designed to comply with the regulations that apply to it.

In this respect, we can therefore only guarantee the compliance of our own appliance. With regard to the compliance of a heart pacemaker or any eventual incompatibility, we recommend that you consult its manufacturer or your doctor.

If a crack appears in the surface of the glass, disconnect the appliance immediately from the mains supply to avoid the risk of electric shock. To do this, remove the fuses or operate the cut-off switch.

Do not use your appliance again until the vitroceramic glass has been replaced.

Only appropriate cookware should be placed on the hob. Do not put any other object on it, no matter what it is.

Ensure that the mains cable of any electric appliance that is plugged into a socket located in the immediate vicinity of the hob does not come into contact with the cooking zones.

When cooking, never use aluminium foil and never place products that are wrapped in aluminium or frozen products in aluminium trays, on the hob. The aluminium will melt and will permanently damage your appliance.

Do not clean your hob with huge amounts of water. Use a little bit of household alcohol.

Do not use a steam cleaner.

If the mains cable is damaged, it must be replaced by the manufacturer, their After Sales Service or a person with similar qualifications to avoid risk.

This appliance is not intended for use by anyone (including children) whose physical, sensory or mental capacities are reduced, or lacking experience or knowledge, unless they have been able to benefit from prior instructions as to the use of the appliance or supervision by a person who is responsible for their safety.

Supervise children to ensure that they do not play with the appliance.

Users should exercise caution if wearing items such as rings, watches or similar objects when using the appliance since these may heat up when positioned very close to the cooking surface.

Only use pans of the type and size recommended.

Repairs must only be carried out by a technician who has been trained or recommended by the manufacturer.

Take care that the coating and the surrounding areas do not contain metal surfaces.

Your induction cooking appliance is not intended to be operated by means of an external timer or a separate remote control.

How does your appliance work?

Use your appliance simply.

Controls :

Setting (-) Setting level I — — + ADVENTYS Made In France On / Off button Setting (+) Setting level

How does your appliance work?

Use your appliance simply.

Setting level :

When a pan compatible with induction technology is placed on the cooking zone, the display shows the setting level. The appliance has 12 setting levels :

Induc-Elegance
Settings
0
1
2
3
4
5
6
7
8
9
10
11
12

As soon as the accessory is removed from the cooking zone, the display shows the absence of a dish by a flashing light. If the display flashes when the product covers the fireplace, this means that the material of the dish is incompatible with the induction technology.

How to preserve and maintain your appliance

Avoid hitting it with pans.

The glass top is very tough, but it is not unbreakable.

Avoid rubbing containers on the top of the appliance. They can in the long run degrade the printing on the ceramic glass.

Avoid using containers with rough or dented bottoms.

They can retain and transport materials which may cause stains or scratches on the ceramic glass.

Centre your container on the cooking area.

Do not leave an empty container on the cooking hob.

Do not heat a closed tin can. It may explode.

Do not preheat food on the maximum set power level when you use a container with a non-stick inside coating (type Teflon) without liquid or with very little fat.

The maximum power level (position 15) is reserved for boiling and frying.

All these faults which do not lead to non-functioning or inability to be used, do not fall within the framework of the warranty.

Your device is cleaned easily, to help you, here is some advice:

Type of spots How to proceed Use
Slight	Dilute well the zone to clean with hot water then wipe.	Sanitary sponges
Accumulation of recooked spots	Dilute well the zone to clean with hot water, use a special scraper for glass to rough-hew, finish with the scraper side of a sanitary sponge, then wipe.	Sanitary sponges special scraper for glass
Haloes and tracks of limes-tone	Apply some hot spirit vinegar to the spot, let act, wipe with a soft cloth. Use a domestic product.	Special vitroceramic glass dough
Inlays following the over-flowing of sugar, aluminium or molten plastic	Apply to the surface a special product for vitroceramic glass, rather containing some solicone (protective effect).	Special vitroceramic glass product

Powder

Abrasive sponge

Cream

Sanitary sponge

special delicate dishes

Cookware

Your induction buffet is able to recognize most pans.

Cookware test : place your cookware on the warming hob with the setting level set on position 4. If the indicator 4 remains fixed, your cookware is compatible. If it flashes, your cookware is not recognized and cannot be used.

You can also use a magnet: if it sticks to the bottom of the cookingware, it is compatible with induction technology.

The induction-compatible containers are:

• Containers in enamelled steel with or without non-stick coating.
• Containers in cast iron with or without enamelled bottom. An enamelled bottom prevents the glass top of your appliance from being scratched.
• Stainless steel containers suitable for induction. Most stainless steel containers are suitable if they meet the container test. (saucepan, stockpan, frying pan, chip fryer, etc.)

- Aluminium containers with a special bottom.

Containers with a bottom that is not perfectly flat can work if the bottom is not too distorted.

NOTE

Glass, ceramic or clay, aluminium (without special bottom), copper and some non-magnetic stainless steel containers are incompatible with induction cooking.

The level indicator of the selected power will flash to inform you.

You should choose pans with thick and flat bottoms, which guarantee more even cooking (the heat is better distributed).

Plastic containers must not be placed on hot surfaces.

You doubt that your appliance is working properly. This does not necessarily mean that there is a problem. In all cases, check the following points:

ERROR CODE What's happening To do
Hi. U Faulty electrical connection voltage>275 V		Make the connection of the device compliant(Voltage greater than or equal to 230V +/- 10%)
ER 03 Overheating from below the glass ceramic		Cool the top of the unit to clear the error, otherwise contact customer service
ER 15ER 21	Device safety linked to a poor quality of cookware	Turn off the product and change the cookeware to clear the defect
ER 09	Incorrect electrical connection or drop in supply voltage <207 V	Conform to the connection of the device (Higher tension than or equal to 230V +/- 10%)
Other (ER XX) Product failure		Switch off and on the product, if persistent fault, contact customer service
Keyboard off Overheating of the product		Unplug the product and let cool for 10 minutes.Turn on the product and check the condition of the filter.
Does not work	The appliance is not powered.The power supply or the connection is defective.The safety fuse is out of order.	Inspect the fuse on the unit.Inspect the fuse and breaker of the electrical installation

Electrical interconnection

Thanks to the built-in socket on the side of the device, you can connect up to 4 appliances to each other with 300 watts version and up to 2 appliances with 1000 watts version.

• The total power of connected products must not exceed 1200W (300w version) and 2000W (1000w version).
  • Only connect Induc-Elegance appliance to each other.
• Any other connection will not be taken into account by the guarantee in case of proven damage.

NOTE!

Once the induc-elegance products are connected electrically, the control of the setting level is carried out independently on each product.

Warranty

To benefit from the warranty on your hob, do not forget to keep a proof of the date of purchase.

Any modification or intervention such as drilling, welding, crimping, clinching, etc., is not permitted and will result in the loss of the manufacturer's warranty.

Any intervention resulting from installation or use not in accordance with the requirements of these instructions will not be accepted under the manufacturer's warranty and the latter will be cancelled.

The manufacturer warranty is subject to the non-modification of the product and its mechanical and electrical characteristics.

Problems of appearance caused by the use of abrasive products or the friction of the containers on the glass ceramic hob which does not cause failure or inability to be used do not fall within the framework of the warranty.

All repairs should be performed by a qualified technician.

Only the distributors of our brand:

- KNOW YOUR APPLIANCE AND ITS OPERATION PERFECTLY.

- FULLY APPLY OUR METHODS OF ADJUSTMENT, MAINTENANCE AND REPAIR.

When making a claim or to order spare parts from your distributor, give him the full reference of your appliance (type of the device and the serial number). This information is contained on the data plate attached under the metal housing of the appliance.

The descriptions and characteristics in this "booklet" are given only for information purposes only and not for commitment. Indeed, concerned about the quality of our products, we reserve the right to make any necessary modification or improvement without notice.

Original parts: when maintenance work needs to be done, ask your dealer to use only certified original parts.
