Professional induction Plancha

P2IM

User's guide

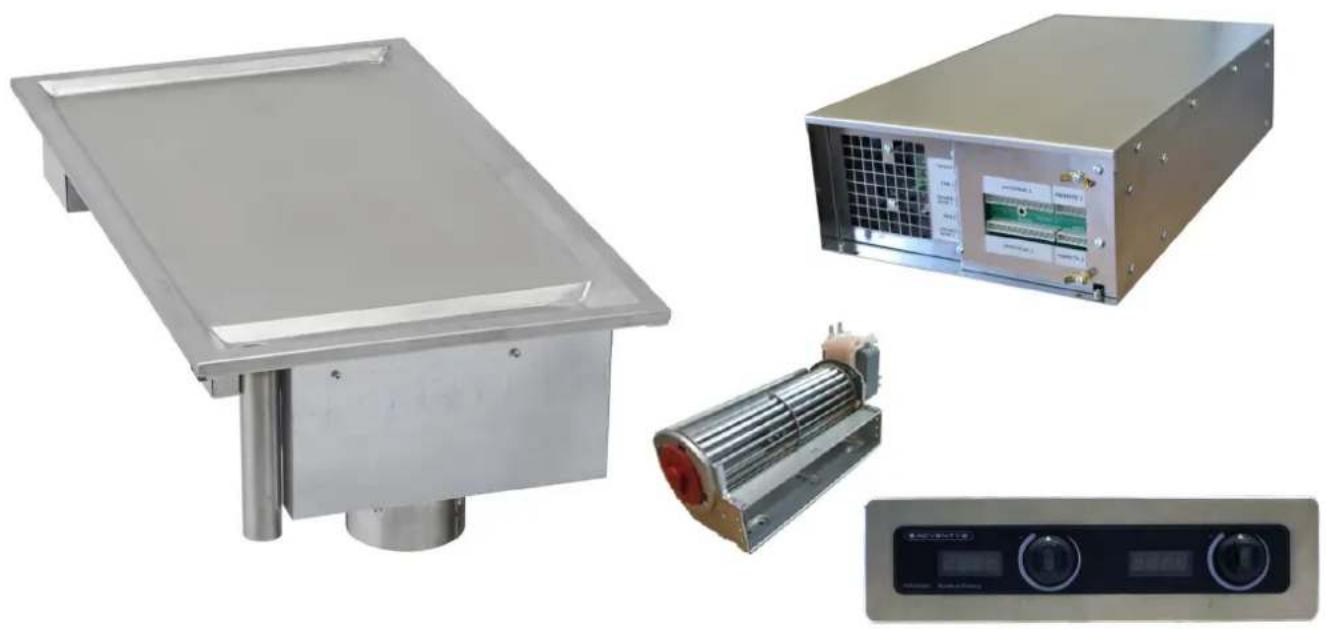

For your induction plancha

Exterior view of industrial equipment including a stainless steel enclosure, a control unit, a motor, and a digital control panel (no visible text or symbols)

Dear Customer,

We would like to congratulate you on the purchase of your ADVENTYS product.

This one has been manufactured according to the very latest developments, using modern, safe electrical and electronic components.

Please take the time to read this user's guide before using this appliance.

Contents

Technical information 12

Declaration of Compliance and disposal of appliance 12

Using your induction hob 13

Electrical connection 14

How the hob works 15

How to maintain and care for your hob 17

Small problems and their remedies 18

Garantiee 19

Throughout this guide:

Technical specifications

Model: P2IM 8000
Name:	Three-phases planche 2 zones
Matérials:	Stainless steel
Power:	2 x 4000 W
Electricity supply:	400V Three-phases (run-on between 320 and 450V / 40 and 70 Hz).
Current:	12A for phases
Controls	Independent controls for each zones, knobs controls 360° with 4 digits display for temperature setting
Dimensions of appliance:	394 x 730 mm.
Dimensions of the inductor:	300 x 270 mm (x2)
Maximum weight allowed on the appliance:	50 kg

Compliance and waste statement

This product complies with current EU directives. We certify this in the EU compliance statement. We can send you a copy of the compliance statement in question if required.

The packing materials in which this appliance is packed are recyclable. Please recycle them by disposing of them in the appropriate containers at your local facility. In so doing, you will be making a contribu-

tion to the protection of the environment.

At the end of its useful life, the appliance to be scrapped must be destroyed in accordance with the applicable national regulations that govern the elimination and recycling of waste.

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

We recommend you contact a company that specialises in waste disposal.

WARNING :

To avoid all risks associated with the destruction of the appliance, ensure that it is disconnected from themains and that the mains cable is removed.

PLEASE NOTE

When destroying the appliance, local rules and the applicable regulations in your country or geographical zone must be adhered to.

Using your hob safety

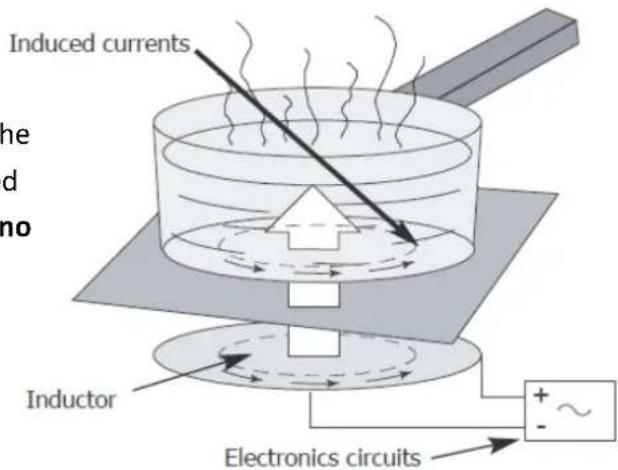

The induction principle

After the appliance is switched on and a power level is selected, electronic circuits produce induced currents in the base of the pan which instantly transmits the heat produced to the foodstuffs. Cooking takes place with practically no energy loss with a very high energy output.

If you have a heart pacemakerOr other active implant fitted :

Induced currents the d no Inductor Electronics circuits

The functioning of the hob complies with the currently applicable norms concerning electromagnetic disturbance. Your induction cooking hob therefore fully meets the legal requirements (89/336/CEE directives). It has been designed not to cause disturbance to other electric appliances insofar as they also meet the requirements of the same regulations. Your induction hob emits magnetic fields in its immediate surroundings.

To avoid the possibility of interference between your cooking hob and a heart pacemaker, the latter must be designed to comply with the regulations that apply to it.

In this respect, we can therefore only guarantee the compliance of our own appliance. With regard to the compliance of a heart pacemaker or any eventual incompatibility, we recommend that you consult its manufacturer or your doctor.

Only appropriate cookware should be placed on the hob. Do not put any other object on it, no matter what it is. Ensure that the mains cable of any electric appliance that is plugged into a socket located in the immediate vicinity of the hob does not come into contact with the cooking zones.

When cooking, never use aluminium foil and never place products that are wrapped in aluminium or frozen products in aluminium trays, on the hob. The aluminium will melt and will permanently damage your appliance. Do not clean your hob with huge amounts of water. Use a little bit of household alcohol.

Do not use a steam cleaner.

If the mains cable is damaged, it must be replaced by the manufacturer, their After Sales Service or a person with similar qualifications to avoid risk.

This appliance is not intended for use by anyone (including children) whose physical, sensory or mental capacities are reduced, or lacking experience or knowledge, unless they have been able to benefit from prior instructions as to the use of the appliance or supervision by a person who is responsible for their safety.

Supervise children to ensure that they do not play with the appliance.

Users should exercise caution if wearing items such as rings, watches or similar objects when using the appliance since these may heat up when positioned very close to the cooking surface.

Only use pans of the type and size recommended.

Repairs must only be carried out by a technician who has been trained or recommended by the manufacturer.

Take care that the coating and the surrounding areas do not contain metal surfaces.

Your induction cooking appliance is not intended to be operated by means of an external timer or a separate remote control.

Top plancha integration

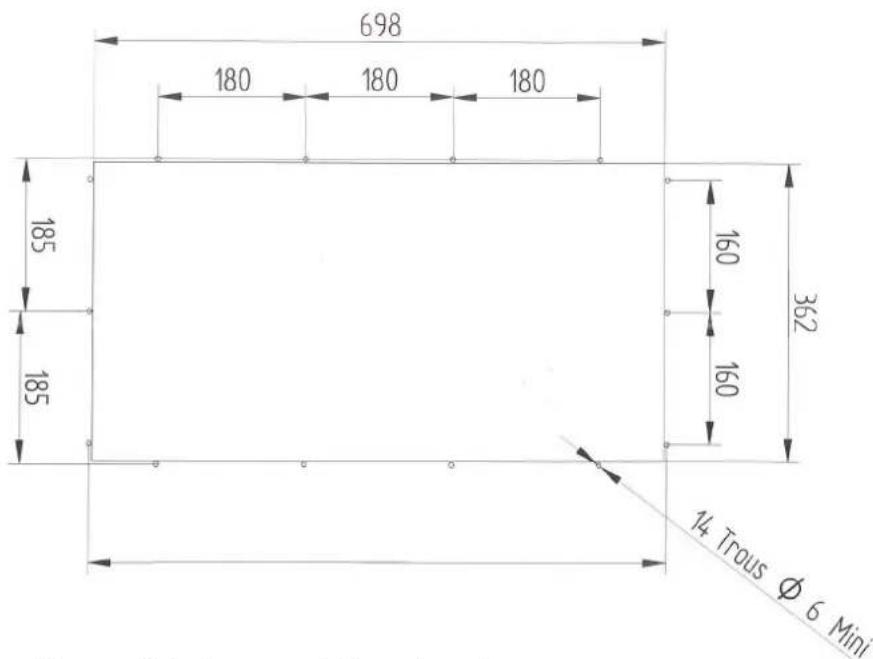

1) Realize a cut out following this plan 698x362mm

698 180 180 180 185 185 160 160 362 14 Trous Ø 6 Mini

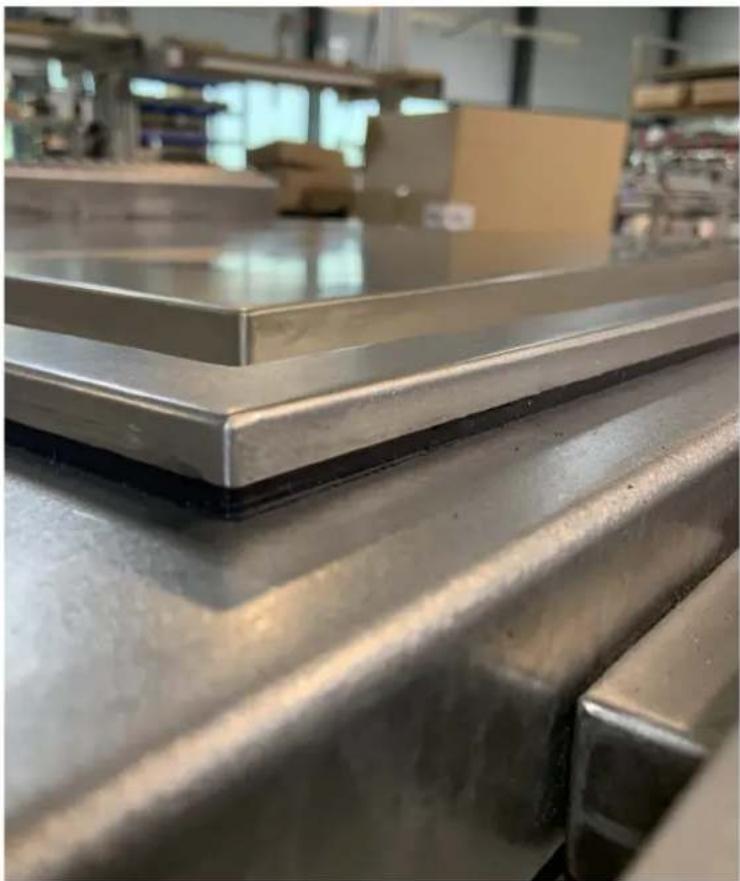

Realization of the silicone joint around the plancha

(!) Warning: it is very important to follow this procedural step in order so as to ensure a perfect seal between the worktop and the plancha.

Close-up of metallic metal plates in a factory setting, no visible text or symbols

The frame of the plancha, by construction, is raised by 3 to 5mm

You need to make a joint about 0.5cm thick and fill inside the stainless steel frame.

Use the NOVASIL silicone cartridge

S-805 supplied with your product, the entire product must be applied.

1. Fill the space between the plancha frame and the worktop.

2. Create a tight joint on the work surface to prevent infiltration.

3. Leave the joint to dry for 24 hours without heating the plancha.

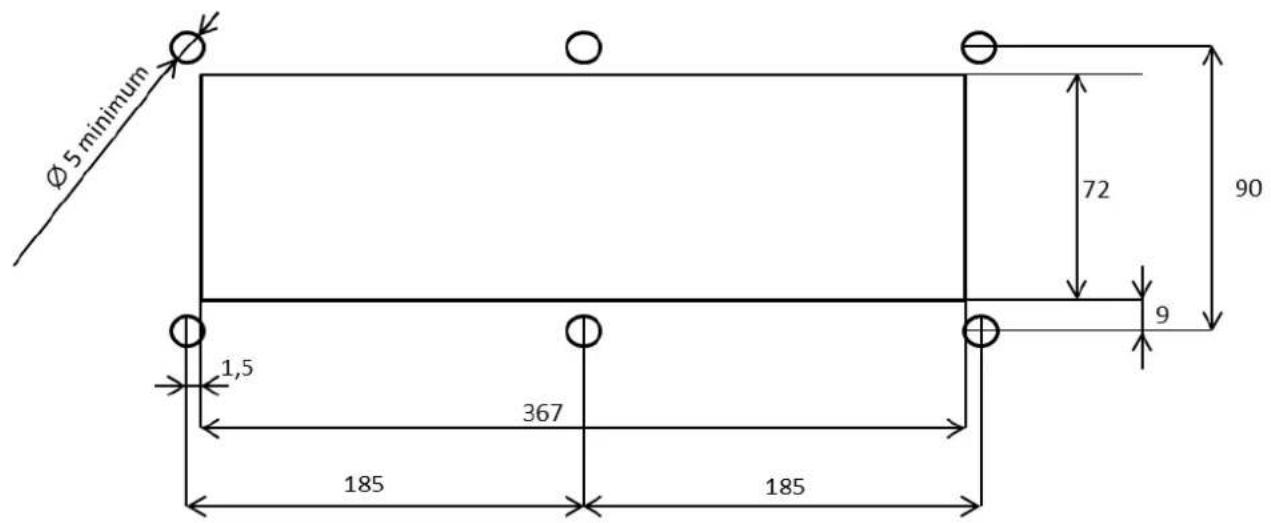

Controls integration

1) Realize a cut out following this plan :

Ø5 minimum 1,5 367 185 185 72 90 9

2) Add a silicone joint under the control panel.
3) Insert the control panel into the cut out.
4) Fix the control panel by tightening the bolts.

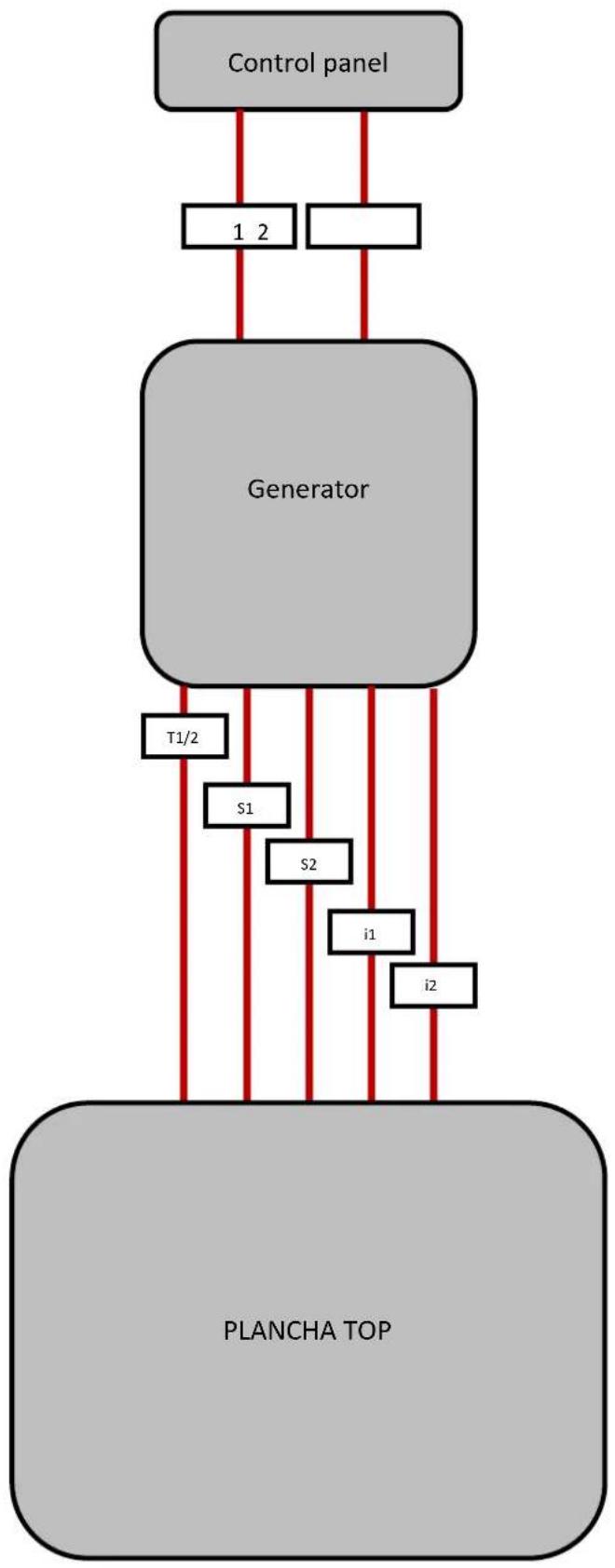

Electrical connection
        D["T1/2"]
        E["S1"]
        F["S2"]
        G["i1"]
        H["i2"]
    end
    D --> E
    E --> F
    F --> G
    G --> H
    style Generator fill:#ccc,stroke:#333
    style PLANCHA TOP fill:#ccc,stroke:#333

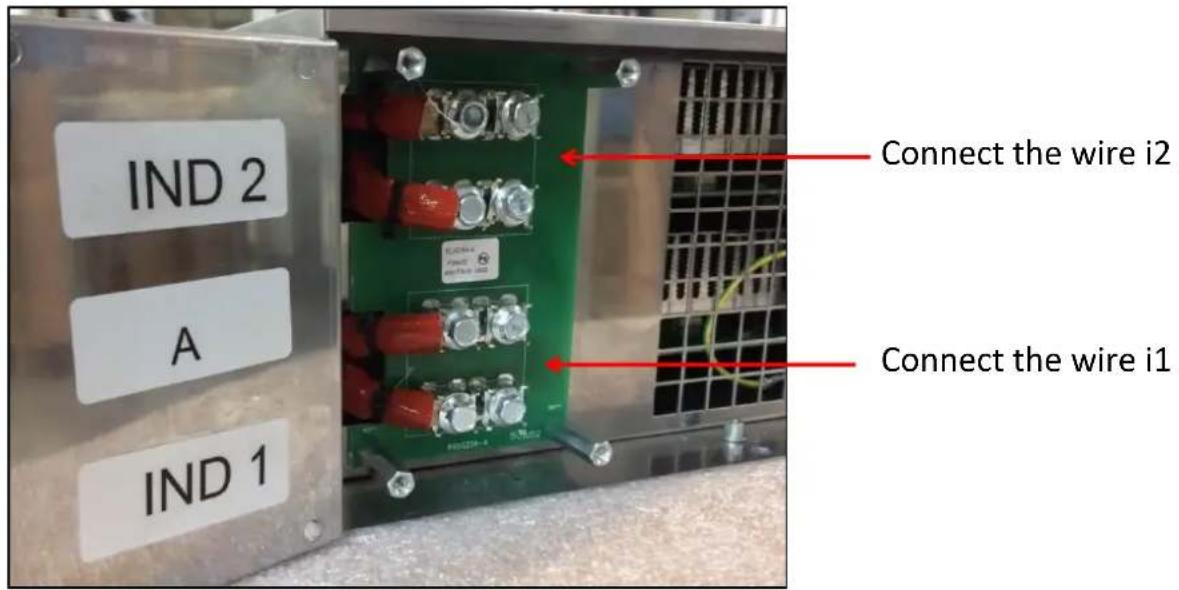

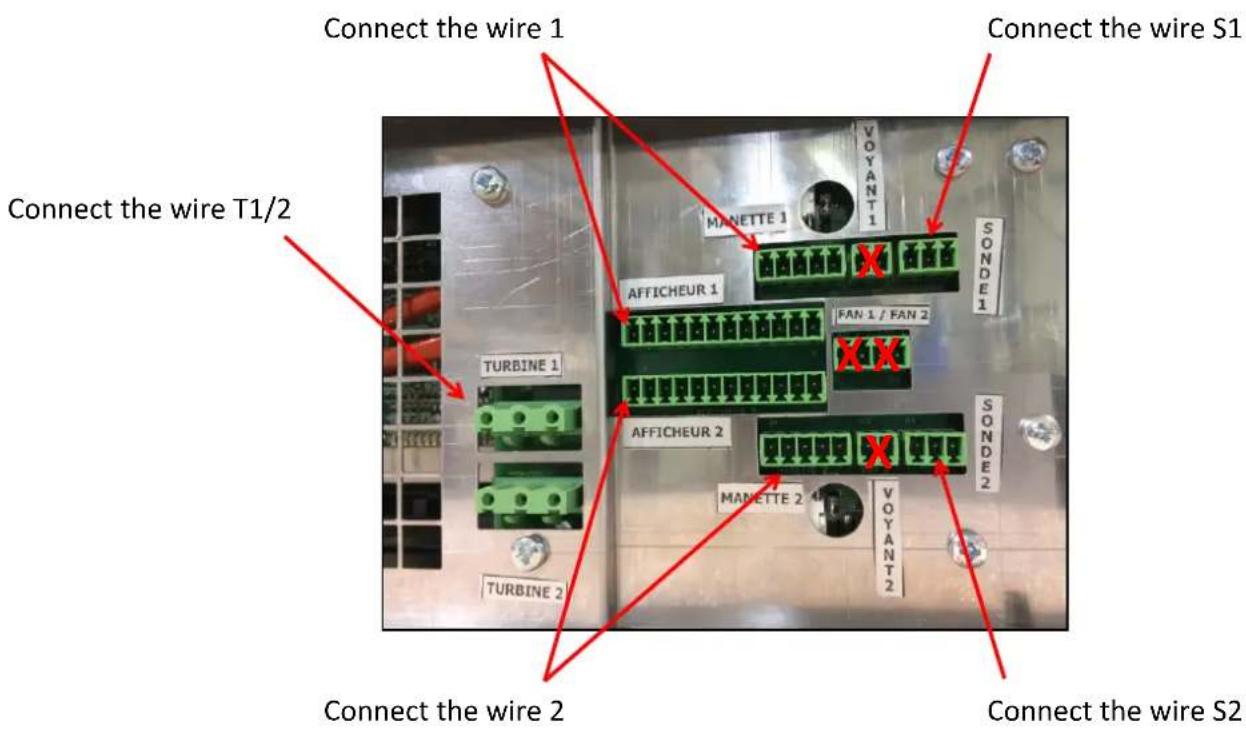

Electrical connection (Generator A)

IND 2 A IND 1 Connect the wire i2 Connect the wire i1

Connect the wire 1 Connect the wire T1/2 MANETTE 1 Voyant 1 Connect the wire S1 TURBINE 1 AFFICHEUR 1 FAN 1 / FAN 2 TURBINE 2 MANETTE 2 Voyant 2 Connect the wire 2 Connect the wire S2

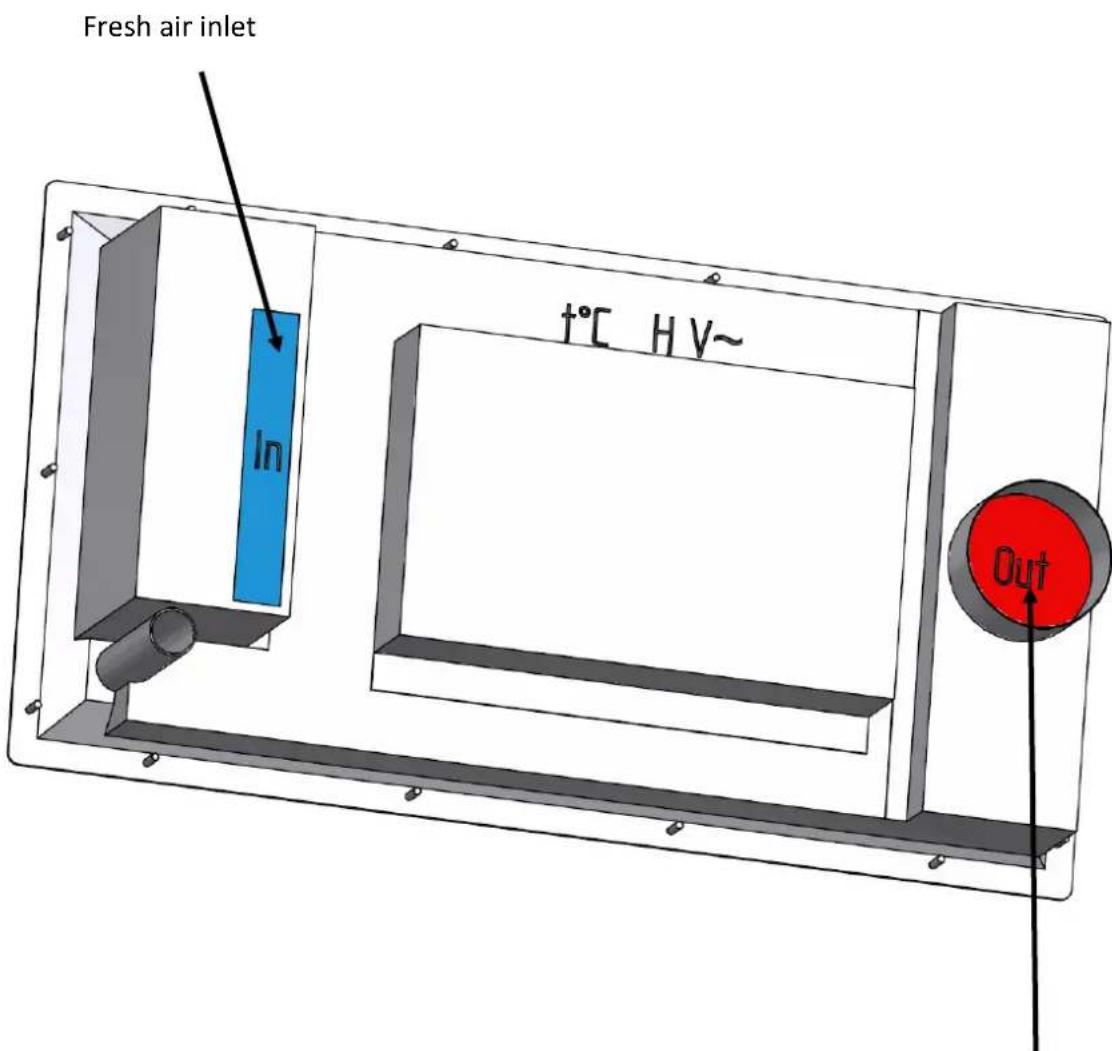

Ventilating

For an optimal functioning of your device and for reasons of reliability of this one please make sure that your kitchen furniture is well ventilated.

Connect a girdle of air outlet warmly on the back of the product which you will evacuate outside of your kitchen furniture.

Fresh air inlet In t°C HV~ Out

Hot air outlet

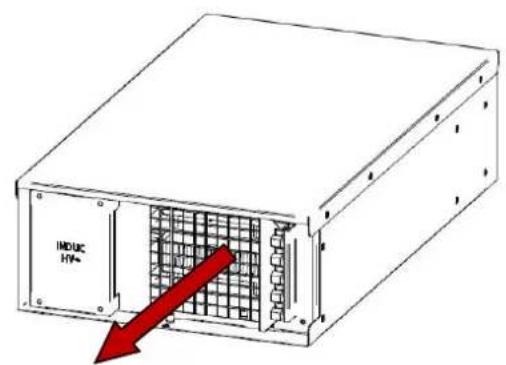

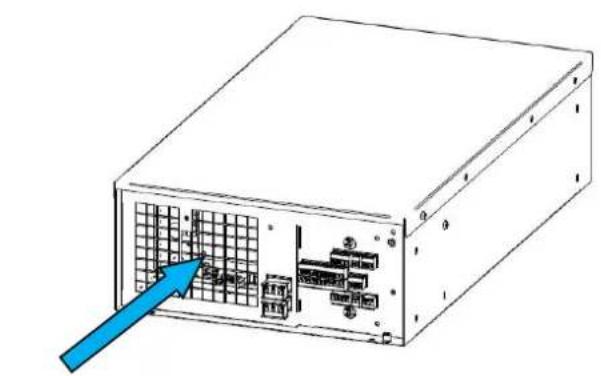

Generator DUO COMPACT

Diagram of a computer rack with internal components and a blue arrow pointing to a grid-patterned panel (no text or symbols)

Fresh air Inlet

INDUC HY+

Hot Air Outlet

DUO COMPACT generator is equipped with its own system of internal ventilation.

(!) WARNING

The cooking furniture must be equipped with an air inlet filtered about 100 x 200mm and with an extraction of hot air to allow a good aeraulics of the set up.

Installation tips :

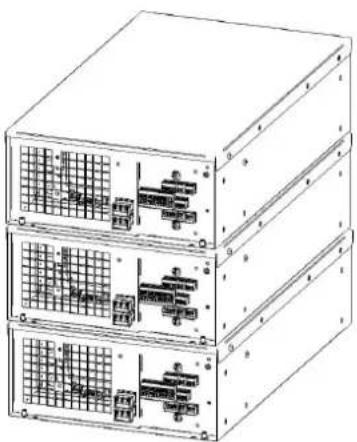

DUO COMPACT generator is empilables for an important space saving.

Line drawing of three stacked electronic equipment units with internal circuitry (no text or symbols)

Operating instruction

Temperature setting between 60^ and 250^

Display of specific message

The device is extremely safe. It makes a permanent control of the values of temperature and other electric parameters to guarantee to the user the best level of performance and safety at every moment.

DESIGNATION ERREUR	ERROR CODE ON DISPLAY
Sensor vitro T°, short circuit or open circuit	F1
Sensor electronic T°, short circuit or open circuit	F2
3 phases line voltages out of range	F3
Power supplies out of ranges	F4
Sensor ambient T°, (inside the product), short circuit or open circuit	F5
Error with the control of the electronics components	F6
CONTROL board SOFTWARE unconformity	F7
Fans connection problem (fans absence or polarity inversion + with -)	F8
Overheating under the Vitro	H1 ou H3
Overheating of the power electronics components	H2 ou H4
Problem with the vitro T° sensor under the Vitro	H5
Overheating of the ambient temperature	H6

Cookware Recommended

Testing a pan: place the pan on the cooking zone with a power level set: if indicator 4stays on, your pan is compatible, if it flashes, your pan has not been recognised and cannot be used.

You can also test with the aid of a magnet: if it "sticks" to the base of the pan, then the pan is compatible with induction technology.

Induction-compatible pans are:

• enamelled steel pans with or without a nonstick coating.
• stainless-steel pans designed for induction.

Most stainless steel pans are suitable if they pass the pan test.

• cast-iron pans with or without an enamelled base.
• aluminium pans with special bases.

Pans must rested on the stainless steel collar hich border the WOK glass to avoid any shock between the pan and the glass

- NOTE

Pans made from glass, ceramic material, clay, aluminium (without special pan base), and copper, as well as certain non-magnetic stainless steels are not compatible with induction cooking. The indicator for the power level selected will flash to inform you of this.

Do not use flat-bottomed recipients on your WOK induction cooktop.

Containers made of plastic must not be placed on hot surfaces

Respect a maximum working diameter of 380 mm. Only WOK type recipients are suited : they must have a curvature adapted to the curvature of the ceramic bowl.

How to maintain and care for your hob

Avoid shocks when handling the pans.

The glass surface is very strong, however it is not unbreakable.

Avoid rubbing the pans over the surface of the appliance.

Centre your pan on the induction cooking zone.

Do not leave an empty pan on the induction zone.

Do not pre-heat foodstuffs on the highest power setting if you are using a pan with an anti-stick coating (of the teflon type) without or with a tiny a mount of cooking fat or oil.

Do not heat an unopened tin can, as it might burst.

Use maximum power (7000W) only for boiling or deep-frying.

Do not leave metal cooking utensils, lids, knives or any other metal objects on the induction cooking zone. These objects are liable to heat up if they remain too close to the magnetic field generated by the induction cooking zone.

How to maintain and care for your hob

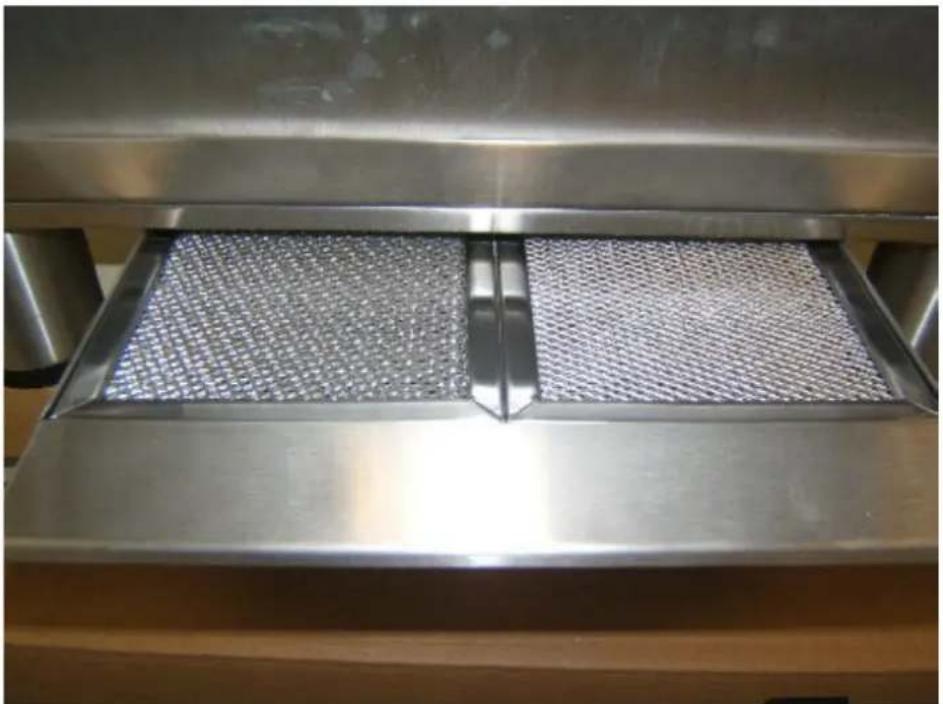

Clean approximately every week with soapy water the filter placed under your device (or put it in the dishwasher). Put it back very dry before any use. This filter protects your device from dust and fats.

Close-up of a stainless steel industrial machine with mesh grating and central vertical slot (no text or symbols visible)

Your device is cleaned easily, to help you, here is some advice:

Type of spots How to proceed Use
Slight	Dilute well the zone to clean with hot water then wipe.	Sanitary sponges
Accumulation of recooked spots	Dilute well the zone to clean with hot water, use a special scraper for glass to rough-hew, finish with the scraper side of a sanitary sponge, then wipe.	Sanitary sponges special scraper for glass
Haloes and tracks of limestone	Apply some hot spirit vinegar to the spot, let act, wipe with a soft cloth. Use a domestic product.	Special vitroceramic glass dough
Inlays following the over-flowing of sugar, aluminium or molten plastic	Apply to the surface a special product for vitroceramic glass, rather containing some solicone (protective effect).	Special vitroceramic glass product

éponge abrasive

Small problems and their remedies

If you think that your hob is not functioning correctly ..... this does not necessarily mean that a fault has occurred. Please verify the following in all cases :

PROBLEM....	POSSIBLE CAUSES	WHAT SHOULD I DO
A fuse blows when switching on	The appliance's connections are defective	Check the connections or the conformity of the connections
Continuous ventilation for a few minutes after the appliance is switched off	The electronics are cooling down	This is normal
The appliance is not working. The lights on the control panel are off	The appliance is not powered. A power or connection problem	Check the fuses and circuit breaker in the electrical system
The screen displays an error code "FX" or "HX".	Electronic circuits are malfunctioning	Unplug and plug back the unit. If the code does not disappear, note the type of error an call your after sales service
Having switched on the heating zone, the selected indicator light keeps blinking	The temperature of the heating zone has not yet reaches the requested temperature	This is normal
There is a smell during the first cooking	Appliance is new	Switch the hob on for half an hour with a saucepan of water before using for the first time

Guarantee

Keep the proof of purchase to use the guarantee service of your product.

Any modification such as drilling, welding, criimping, clinching, etc., is not permitted and is not covered by the manufacturer's warranty.

Any wrong modification or installation, which does not respect ADVENTYS' standards, is not covered by the manufacturer's warranty and will be permanently suspended.

The guarantee is subject to the non-modification of the product and its mechanical and electrical specifications. Opening the product cancels any form of warranty.

Any defects in appearance caused by the use of abrasive products or friction of cookware on the ceramic glass hob that does not result in a non-functioning or inability to use the appliance is not covered in the guarantee. The vitroceramic glass and the casing are not subject to warranty.

ANY REPAIRS MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN APPROVED BY ADVENTYS.

Only the distributors of our brand:

• KNOW YOUR APPLIANCE PERFECTLY AND HOW IT WORKS.
• FULLY APPLY OUR METHODS OF ADJUSTEMENT, MAINTENANCE AND REPAIRS.
• USE ONLY ORIGINAL SPARE PARTS.

In case of a claim or if you wish to order spare parts from your distributor, please specify the full reference numbers of your appliance (appliance type and serial number). This information appears on the plate fixed under the metal casing of the appliance.

The descriptions and characteristics given in this booklet are for information purposes only and do not imply commitment from the manufacturer. Concerned about the quality of our products, we reserve the right to carry out necessary changes or improvements without prior notice.

Original spare parts: ask your retailer for certified original spare parts during a maintenance operation.

ADVENTYS

Made In France
