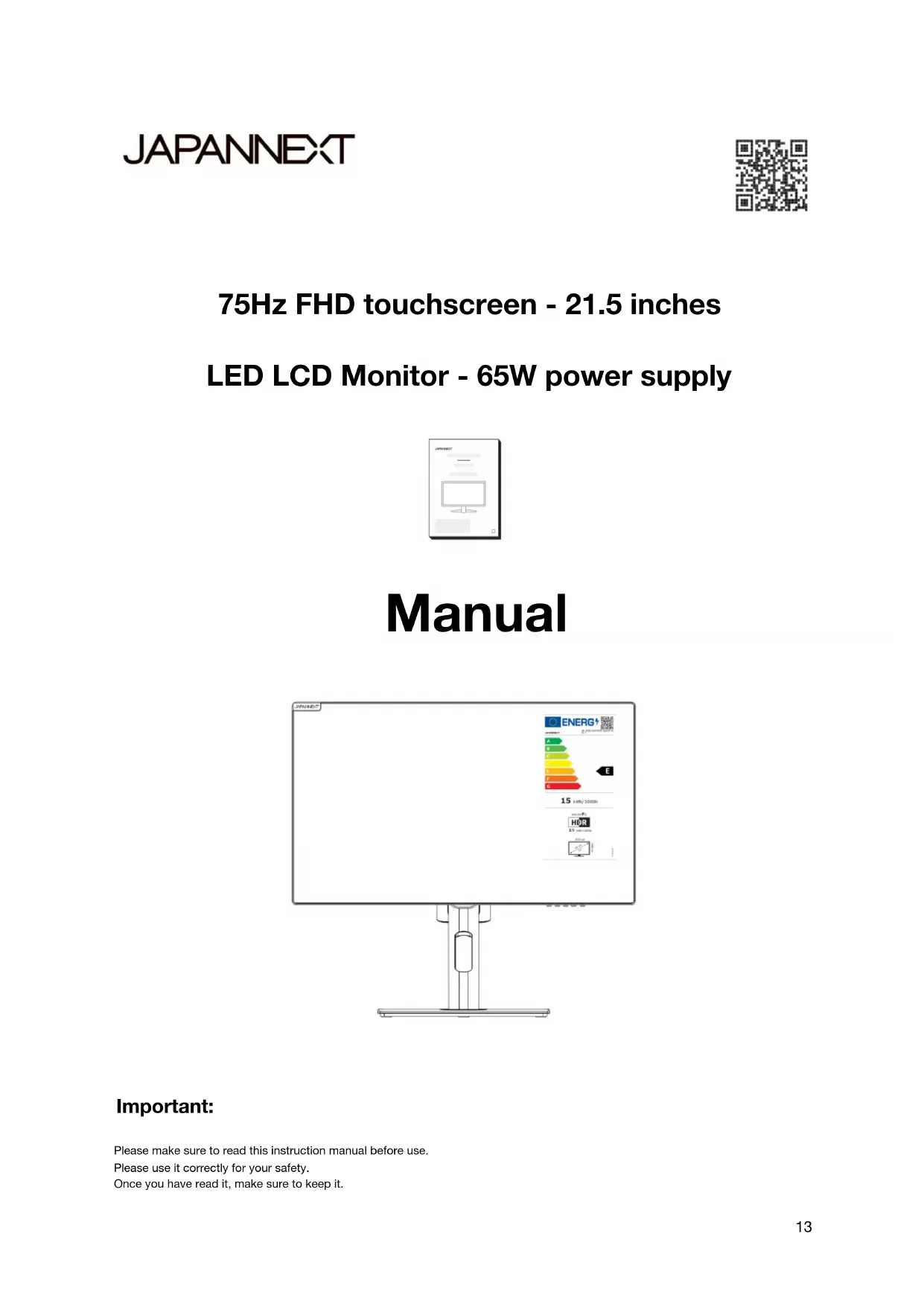

USER MANUAL JNIPS2152FHDRC65WFLDT Japannext

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust. Do not use the monitor where it may become wet or exposed to water.

• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.

• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.

• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.

• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.

• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.

• Always operate the monitor using the type of power source indicated on the product label. If you are unsure of the type of power supply you have, please contact your local power company.

• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.

• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.

• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller. 14• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.

• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.

• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.

• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord. Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.

• Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room. 15Cleaning and maintaining the monitor Before cleaning the monitor, turn off the power and unplug all cables and cords. How to maintain the monitor:

• LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.

• Monitor frame: Wipe with a soft cloth dampened with a mild cleaner. The symptoms listed below are normal conditions for the monitor

• When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.

• Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.

• Several pixels may or may not always be lit.

• If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image. In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed. Instead of trying to repair the monitor yourself, contact customer service or the dealer. 16Welcome Thank you for purchasing the 21.5 inch LCD monitor JAPANNEXT . The installed panel supports FHD (1920 x 1080) resolution. We recommend using FHD resolution for best performance. If the resolution is lower than FHD, the original performance cannot be achieved. 17Quick start guide Assembling the Monitor Base

1. Spread a soft cloth on a flat, stable surface and place the device screen side down on it.

2. Insert the hook at the top of the stand into the mounting piece on the back of the monitor.

3. Fix its stand and the base using the screw provided.

4. Make sure the monitor and stand are securely attached, then slowly raise the monitor.

*Supports tilt adjustment. When using the monitor with the screen tilted toward you, be careful not to tip it over. 18Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.

2. Connect the power cable and compatible cables (HDMI, Type-C) to the monitor.

Also connect the cable (HDMI, Type-C) to the computer.

3. Turn on the monitor and computer.

Notice : Since problems may occur, do not connect HDMI and Type-C cables at the same time. Please connect only one to a computer. Accessories Manual ｜ Power cable

Power adapter ｜ HDMI cable ｜ Type-C cable ｜ USB-A - Type-C cable ｜ VESA spacer *1 *1 Used when installing the monitor arm plate. Attach the 4 spacers to the back of the monitor before installing the monitor arm plate. *The included power adapter and cable are intended to use with this product only. Do not use it for other equipment. 19Interface / Connectivity 1: Port USB: Connect and use a mouse and keyboard when using a Type-C device. 2: Port USB: Connect and use a mouse and keyboard when using a Type-C device. 3: Type-C port: Port compatible USB Type-C. Can be used to power (65W) external devices. 4: Port HDMI: Port compatible HDMI. 5: Audio output port: You can connect headphones or speakers. 6: Power jack: Connect the AC adapter before use. 20Description of the display button ● When the On-Screen Menu (OSD) is not open

Show brightness settings

Turn on/off ● When the on-screen menu (OSD) is displayed

Turn on/off 21How to use touchscreen features You can use the touchscreen feature by connecting to a computer with a Type-C cable. When used with an HDMI connection, you can use the touchscreen feature by connecting the Type-C port to a PC with a USB-A to Type-C conversion cable. *The touchscreen feature can only be used on the connected PC. *Mac is not supported for the touchscreen feature. On-Screen Menu (OSD) Menu Features Setting value Comment Adjusting image quality Luminosity 0-100 Adjust the brightness Contrast 0-100 Adjust contrast Image mode Standard/Text/Game/Film Select picture mode *1 RCD on/off DCR Settings *1 Overdrive on/off Adjust overdrive Mode HDR Off/Auto HDR Settings *1 Image Adjustment height/width contribution Large/4:3 Select the image ratio Energy saving on/off Power saving settings Color settings Color temperature User Settings/Warm Color/Standard/Cold Color Select color temperature Red 0-100 Adjustable when using user settings Green 0-100 Low blue light Off/Low/Medium/High Blue light reduction settings OSD Settings Language French/English Select OSD language Position horizontale OSD 0-100 Adjust the horizontal position of the OSD Position verticale OSD 0-100 Adjust the vertical position of the OSD OSD time setting 5-60 Adjust OSD display time OSD transparency 0/25/50/75/100 Adjust OSD transparency Reset Reset Factory Reset Settings Other Input source Auto/Type-C/HDMI Select the input source Volume 0-100 Volume adjustment Mute on/off Mute Settings FreeSync on/off FreeSync Settings *1. When a function is enabled or set to Auto (when set to anything other than Standard in the case of picture mode), some functions such as brightness may not be able to be changed. 22Dysfunction Symptoms Checkpoint Power LED does not light up

• Is the device turned on by pressing the power button?

• Make sure the power cord is securely connected to the monitor and the outlet. No image appears even though the power indicator is on

• Is the blank screensaver running? Please move your mouse or keyboard

• Make sure the brightness and contrast are not set to minimum.

• Please make sure the signal cable is properly connected to your monitor and computer.

• Check if the signal cable pins are bent or the cable is damaged.

• Is your computer turned on? If you have another monitor, try connecting it to see if the computer works properly.

• Does the computer signal timing match the monitor specifications? The image is distorted or ripples appear in the image.

• Please make sure the signal cable is well connected to your monitor and computer.

• Keep electrical devices that may cause electrical interference away from the monitor.

• Does the computer signal timing match the monitor specifications? The image position is off-center. Image size is incorrect

• Is your computer resolution correct?

• Does the computer signal timing match the monitor specifications? The screen is too bright/too dark

• Screen (OSD): Adjust brightness and contrast settings from the menu. The image is blurry or unclear

• Set the display resolution on your PC to the same as the recommended native screen resolution for the monitor.

• Does the computer signal timing match the monitor specifications?

• Check if the signal cable pins are bent or the cable is damaged. The color of the image is incorrect

• Check if the signal cable pins are bent or the cable is damaged.

• Screen (OSD): Please adjust the red/blue/green color settings in the menu (color temperature).

• Screen (OSD): Please reset the settings from the menu.

• Does the computer signal timing match the monitor specifications? Unable to display FHD

• This product supports resolutions up to 1920 x 1080 (FHD), including HDMI and Type-C. However, some graphics cards may not support 1920 x 1080 resolution. Please check with your local distributor or manufacturer for the hardware limitations of your computer. Abnormal image noise

• Are the cables correctly connected? 23Customer support TEL: [phone] Hours: 9:00 a.m. to 5:00 p.m. (Closed Saturdays, Sundays and public holidays) Contact form https://japannext.fr/en/pages/contact You can easily access the application form by scanning the QR code. JAPANNEXT Co., Ltd. CS Department Chiba-Ken Isumi-Shi Namegawa 506-5
