Please make sure to read this instruction manual before use.

Please use it correctly for your safety.

Once you have read it, make sure to keep it.

Safety

Please read all included instruction manuals carefully before use.

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust.
  Do not use the monitor where it may become wet or exposed to water.
• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.
• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.
• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.
• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.
• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.
• Always operate the monitor using the type of power source indicated on the product label.

If you are unsure of the type of power supply you have, please contact your local power company.

• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.
• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.
• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller.

• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.
• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.
• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.
• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord.

Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.
• Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room.

Cleaning and maintaining the monitor

Before cleaning the monitor, turn off the power and unplug all cables and cords.

How to maintain the monitor:

• LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.
• Monitor frame: Wipe with a soft cloth dampened with a mild cleaner.

The symptoms listed below are normal conditions for the monitor

• When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.
• Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.
• Several pixels may or may not always be lit.
• If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image.
  In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed.

Instead of trying to repair the monitor yourself, contact customer service or the dealer.

Thank you for purchasing the JAPANNEXT 15.6 inch FHD Touch Monitor. The installed panel supports FHD (1920 x 1080) resolution. We recommend using FHD resolution for maximum performance. If the resolution is lower than FHD, the original performance cannot be achieved.

Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.
2. Connect the supplied adapter or an external power supply of 5V/2A or higher and a compatible signal cable (mini-HDMI to HDMI or Type-C). Also connect the cable (HDMI, Type-C) to the computer.

*For Type-C, please use a cable that supports USB3.1 protocol.

1. Turn on the monitor and computer.

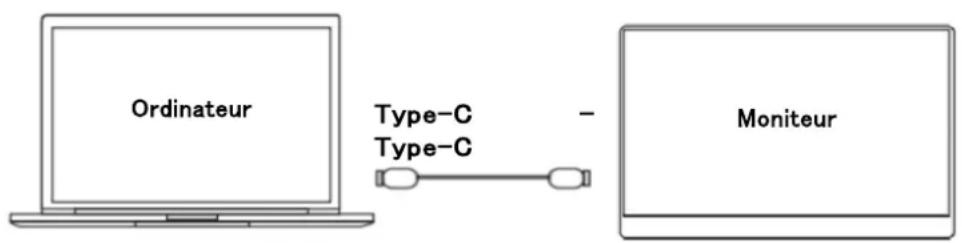

- Type C connection

This product supports Type-C cable connection. Screens can be enlarged or duplicated.

*When adjusting the brightness to 80% or more, we recommend connecting to an external power supply of 5V/2A or more.

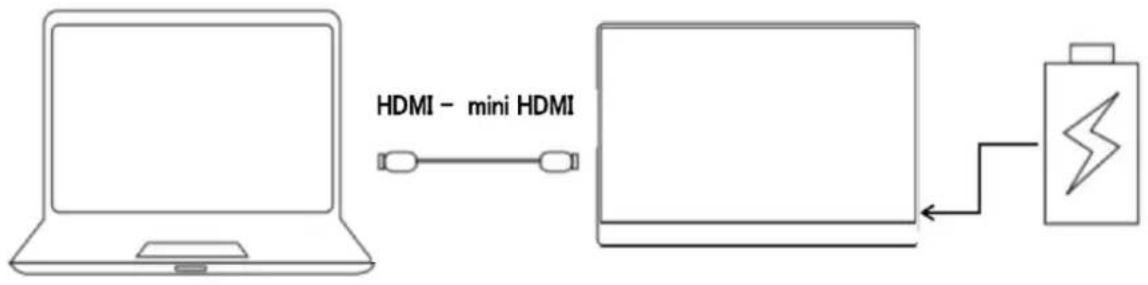

• Connection with a computer via mini-HDMI to HDMI

This monitor is equipped with an HDMI port. Connect the HDMI port of this unit and the HDMI port of your computer. Also connect with a Type-C cable or the AC adapter for power.

Computers without a USB port must be connected to an external power source of 5V/2A or higher. (Please use an external power supply that can provide suitable power for your model.)

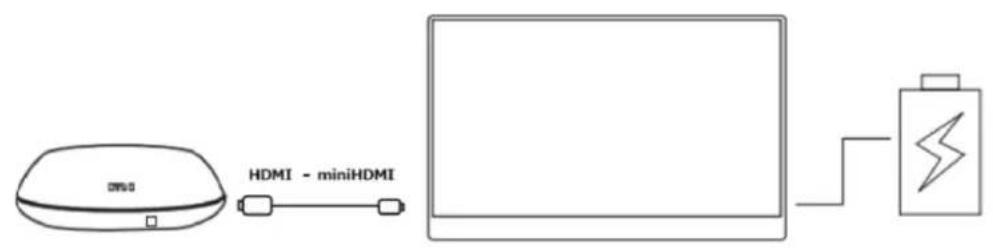

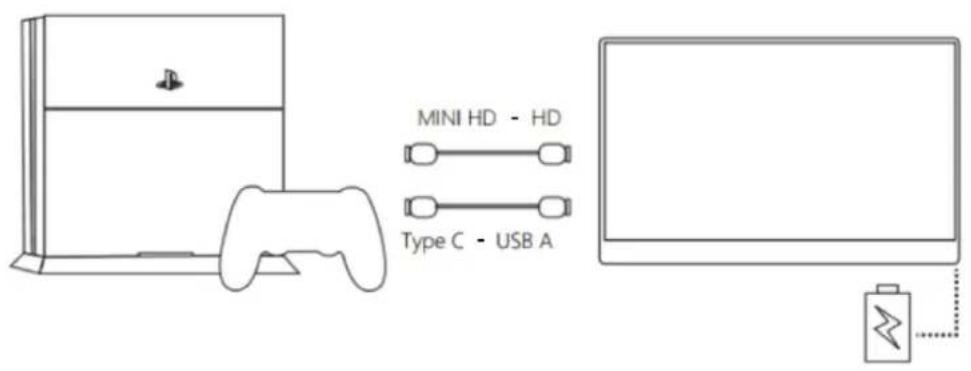

- Connection with other devices

Note: When connecting the HDMI cable, be sure to connect the power cable before connecting the HDMI cable to ensure that the signal is transmitted reliably.

Accessories

Manual

Type-C to A Cable

Type-C Cable

HDMI to HDMI

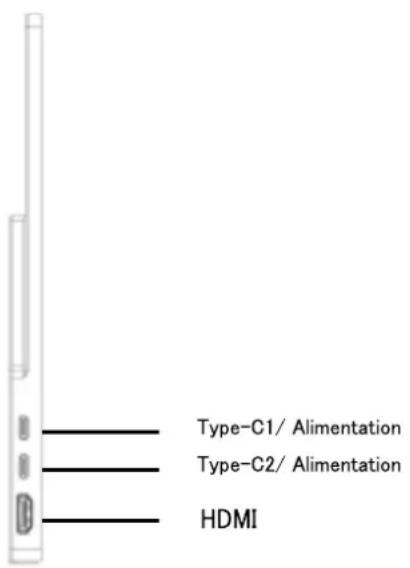

Port mini-HDMI : This is an HDMI compatible port.

Type-C port: For Type C replacement devices only. Used for power supply when connecting type C (simultaneous power supply).

How to use touchscreen features

The touch functionality can be used by connecting to a PC using a Type-C cable. When used with an HDMI connection, you can use the touch function by connecting USB-C port to a PC with a USB-C to USB-A conversion cable.

The touch function can only be used on the connected PC.
Mac is not supported.

VOL+/-selection key	Press the + button to open the brightness settings. Press the - button to open the volume settings. In the OSD menu, press + to move the cursor to the right and - to move the cursor to the left. Press the power button to confirm. Long press "-" to return to the previous level.
Power button	Press and hold for 10 seconds to turn the screen on/off. Short press to display the source. While using the OSD menu, short press to select the item.
Audio output	Please use it by connecting headphones or speakers.

Description of the adjustment stand

The angle of the bracket on the back of the monitor can be adjusted freely. You can either support the monitor in the open position or hang it.

Dysfunction

Symptômes	Checkpoint
Power LED does not light up	·Is the monitor's power button turned on? ·Make sure the power cord is securely connected to the monitor and the outlet.
No image appears after displaying boot logo	·If you are using a smartphone, try updating the operating system. ·For computers, try updating the driver.
No image appears even though the power indicator is on.	·Is the blank screensaver running? Move your mouse and keyboard. ·Make sure the brightness and contrast are not be not set to minimum. ·Make sure the signal cable is properly connected to the monitor and the computer. ·Check the signal cable pins for bent or damaged cable. ·Is your computer turned on? If you have another monitor, try connecting it to see if the computer works properly. ·Does the computer signal timing match the monitor specifications?
The image is distorted or ripples	·Make sure the signal cable is properly connected to the monitor and the computer. ·Keep electrical equipment that may cause electrical interference away from the monitor. ·Does the computer signal timing match the monitor specifications?
Image position is off-center	·Is your computer resolution correct? ·Does the computer signal timing match the monitor specifications?
Image size does not match
The screen is too bright/too dark	·Adjust brightness and contrast settings from the on-screen menu (OSD).
The image is blurry or unclear	·Set the display resolution on your PC to the same as the recommended native screen resolution of the monitor. ·Does the computer signal timing match the monitor specifications? ·Check the signal cable pins for bent or damaged cable.
The color of the image is incorrect	·Check the signal cable pins for bent or damaged cable. ·Adjust the red/blue/green color settings in the on-screen menu (OSD) (color temperature). ·Please reset the settings from the On-Screen Menu (OSD). ·Does the computer signal timing match the monitor specifications?
Unable to display FHD (1920 x 1080)	·This product supports resolutions up to 1920 x 1080 (FHD), including HDMI and However, some graphics cards may not support 1920 x 1080 resolution. Check with your distributor or manufacturer for information on your computer's hardware limitations.

Other dysfunctions

Symptoms	Checkpoint
FHD (1920x1080) is displayed, but only up to 30 Hz.	·When using HDMI, is it correct that the HDMI to HDMI cable is 2.0? · When using Type-C, please check whether it supports USB3.1 protocol. · Does your graphics card support FHD@60hz on your ports? (Even though it supports FHD, it can only support up to 24Hz or 30Hz).
No sound	·Are the computer and audio equipment turned on? ·Check the audio cable connection. ·Is the volume set too low? ·Is the sound set to Mute?
There is a strange noise	·Are the cables correctly connected?
The screen turns off (or flashes)	Depending on the power capacity of the computer, the power supply may become unstable, for example during a power outage (or flickering). To avoid symptoms, we recommend connecting to an external power supply of 5V/2A or higher.
Brightness setting is not saved	Please use an external power supply that can provide suitable power for your model. The brightness setting can be retained even after power off, only when power is supplied to the main unit.

(Note) Regarding Type-C connection:
For Mac and some models, the input source may not change when replacing the Type-C port. In this case, restart the monitor and disconnect/connect the cable.
Switching input source from HDMI to Type-C may not work on Mac and some other models. In this case, unplug the HDMI cable and change the input source.

If symptoms such as screen failure (no display) or flickering occur when using only a Type-C connection, first connect to an external power source of 5 V/2 A or more, reduce the brightness value, then try again. Please use the Type-C connection again. · Even with only a Type-C connection, the brightness level at which the screen is displayed varies depending on the power capacity of the connected device (computer, etc.). If you only use the Type-C connection without connecting an external power source, the connected device can only have a Type-C connection.

We also recommend that you first check the maximum brightness that the screen can display.

To check in advance the maximum brightness the screen can display with only a Type-C connection, set the brightness to 0 when connected to an external power source of 5V/2A or higher.

Then connect only Type-C (*1) and gradually increase the brightness value until the screen is no longer displayed, until the brightness that the screen can display is reached.

(*)1) Please make sure to test in an environment where you can change the connection to the power supply from an external power supply of 5V/2A or more.)
