JAPANNEXT Co., Ltd. Département CS

Chiba-Ken Isumi-Shi Namegawa 506-5

31.5-inch 6K 60Hz display

LED LCD monitor with 90W power supply

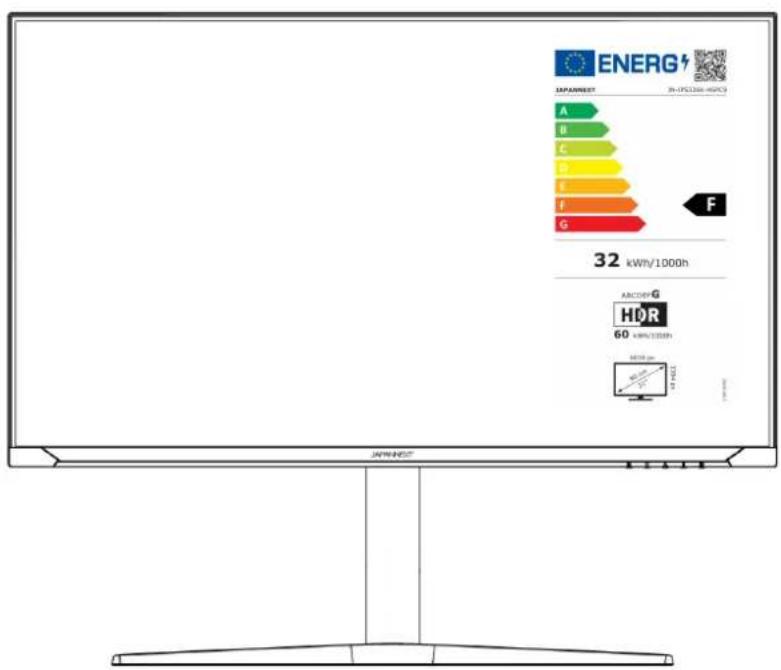

Manual

ENERG JAPANWEST JAPANEST 32 kWh/1000h ARICOM 6 HDR 60 kWh/1000h MSPD 2.5V 32 kWh/1000h

Important:

Please make sure to read this instruction manual before use.

Please use it correctly for your safety.

Once you have read it, make sure to keep it.

Safety

Please read all included instruction manuals carefully before use.

- Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust.

Do not use the monitor where it may become wet or exposed to water.

• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.
• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.
• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.
• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.
• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.
• Always operate the monitor using the type of power source indicated on the product label.

If you are unsure of the type of power supply you have, please contact your local power company.

• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.
• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.
• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller.

• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.
• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.
• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.
• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord.

Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.
  • Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room.

Cleaning and maintaining the monitor

Before cleaning the monitor, turn off the power and unplug all cables and cords.

How to maintain the monitor:

• LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.
• Monitor frame: Wipe with a soft cloth dampened with a mild cleaner.

The symptoms listed below are normal conditions for the monitor

• When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.
• Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.
• Several pixels may or may not always be lit.
• If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image.
  In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed.

Welcome

Thank you for choosing the 31.5 inch LCD monitor JAPANNEXT.

The panel supports 6K resolution (6016 x 3384). We recommend using 6K for optimal performance.

Resolutions lower than 6K do not guarantee optimal performance.

Assembling the monitor base

1. Spread a soft cloth on a flat, stable surface and place the device screen side down on it.
2. Insert the hook at the top of the stand into the mounting piece on the back of the monitor.
3. Fix its stand and the base using the screw provided.

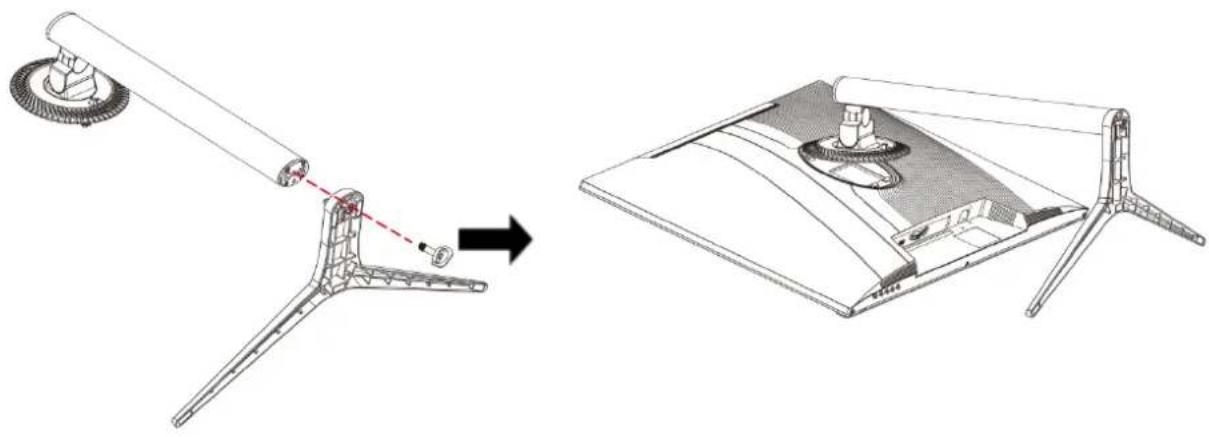

Technical illustration showing a mechanical assembly before and after assembly, with no visible text or symbols.

1. Make sure the monitor and stand are securely attached, then slowly raise the monitor.

*Supports tilt adjustment. When using the monitor with the screen tilted toward you, be careful not to tip it over.

Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.
2. Connect the power cable and compatible cables (HDMI, DP, Type-C) to the monitor.
   Also connect the cable (HDMI, DP, Type-C) to the computer.
3. Turn on the monitor and computer.

Notice : Since problems may occur, do not connect HDMI and DP cables at the same time.

Please connect only one to a computer.

Accessories

Manual

Power Cable

DP Cable

HDMI Cable

Type-C Cable

Câble USB-A vers B

VESA x4 * 1

*The included power adapter and cable are intended to use with this product only. Do not use it for other equipment.

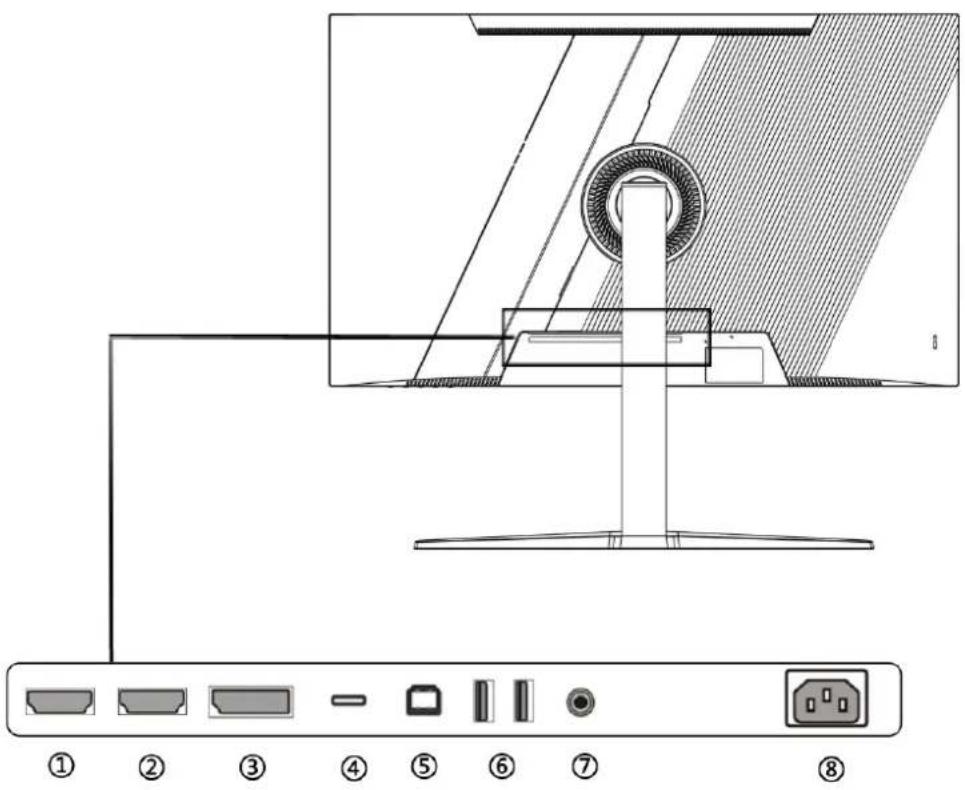

Technical diagram of a computer monitor with labeled ports and cable, showing internal components and connection details.

1: Port HDMI: Port compatible HDMI.

2: Port HDMI: Port compatible HDMI.

3: Port DP: Port compatible DP.

4: Type C port: Compatible USB Type-C. Can be used to power (90W) external devices.

5: Port USB-B: By connecting to a PC with a USB A-B cable, you can also use HDMI and DP connections. You can connect a mouse and keyboard to the USB ports.

6: 2x ports USB: You can connect a mouse or keyboard using the Type-C or USB-B port.

7: Audio output port: Possibility to connect headphones or speakers.

8: Power port: Connect the power adapter when using.

Description of the display button

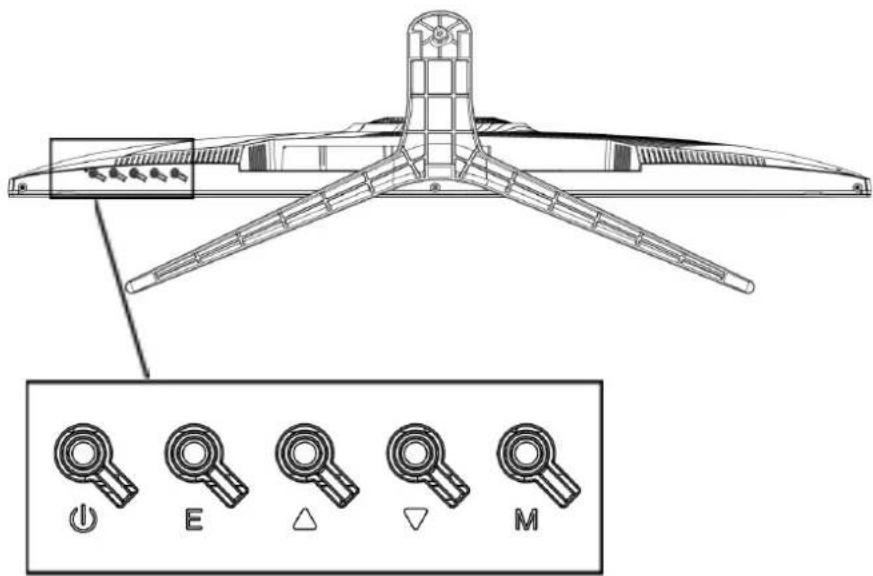

Technical diagram of a mechanical component with labeled parts and a legend showing five key symbols: ⏻, E, △, ▽, M.

- When the On Screen Display (OSD) menu is not open

M	OSD Menu Display
▼	Show crosshair *1
▲	Show volume settings
E	Input Source Display
⏻	On/Off

- When the on-screen display (OSD) menu is displayed

M	Select and confirm a menu item
▼	Move down in the menu or decrease the value of a selected item
▲	Move up in the menu or increase the value of a selected item
E	Go back or close the menu
⏻	On/Off

On Screen Display (OSD) Menu

Menu	Features	Adjustment value		Comment
Entry	Auto			Select an input source *Auto cannot be selected when using PIP/PBP.
	Type C
	DP
	HDMI1
	HDMI2
Brightness/Contrast	Brightness	0-100		Adjust brightness
	contrast	0-100		Adjust contrast
	Black level	0-100		Adjust the black level
	DCR	On/Off		DCR Settings *1
	Power saving mode	On/Off		Power saving mode setting *1
Color settings	gamma	1,8/2,0/2,2/2,4/2,6		Adjust the gamma value
	Image mode	Standard		Select a picture mode *1
		movie
		game
		FPS
		RTS
		sRVB
		DCI-P3
	Color temperature	normal		Select a color temperature
		Warm color
		Cold color
		User	Rouge 0-100	Adjust the red/green/blue in the range of 0 to 100 when using user settings
			Green 0-100
			Green 0-100
	Blue light reduction	0/25/50/75/100		Set low blue light
	Tint	0-100		Adjust the tint
	Saturation	0-100		Adjust saturation
Image quality settings	Sharpness	0-100		Adjust sharpness
	Response time	Off/High/Medium/Low		Set the response time
	Noise reduction	Off/High/Medium/Low		Adjust sharpness
Display settings	Aspect ratio	Full screen/4:3/1:1/Auto		Aspect ratio selection
Audio settings	MEUT	On/Off		Mute
	Volume	0-100		Adjust the volume
	Voice input	Automatic/Type-C/DP/HDMI1/HDMI2		Select audio source
Multi-window	Multi-window	Dual screen mode off/PIP/PBP		Multi-window settings *1
	Sub-window switching	Type-C/DP/HDMI1/HDMI2		Set the subwindow source
	Position PIP	Top right/Top left/Bottom right/Bottom left		Set the position of the sub-window
OSD	language	French/English		Select language
	OSD horizontal position	0-100		Adjust the horizontal position of the OSD
	OSD Vertical Position	0-100		Adjust the vertical position of the OSD
	OSD Transparency	0/20/40/60/80/100		Adjust OSD transparency
	The OSD shows the time	5-60		Adjust the OSD display time
	Rotation OSD	0°/90°/180°/270°		Rotate the OSD
Other settings	AdaptiveSync	On/Off		AdaptiveSync Settings *1
	HDR	STOP/AUTO		Set HDR *1
	KVM	PC/Type-C/AUTO		Configuration de KVM
	Reset			Factory Reset Settings

*1. When a function is enabled in the OSD (when the picture mode is set to a value other than standard), some OSD functions, such as brightness, may not be changeable (this varies by model).

*Please note that product design, specifications and appearance are subject to change without notice for product improvement purposes.

KVM function

KVM functionality allows you to control two PCs with a single keyboard, monitor, and mouse. This allows you to easily switch between multiple PCs, save space, and create a more efficient work environment.

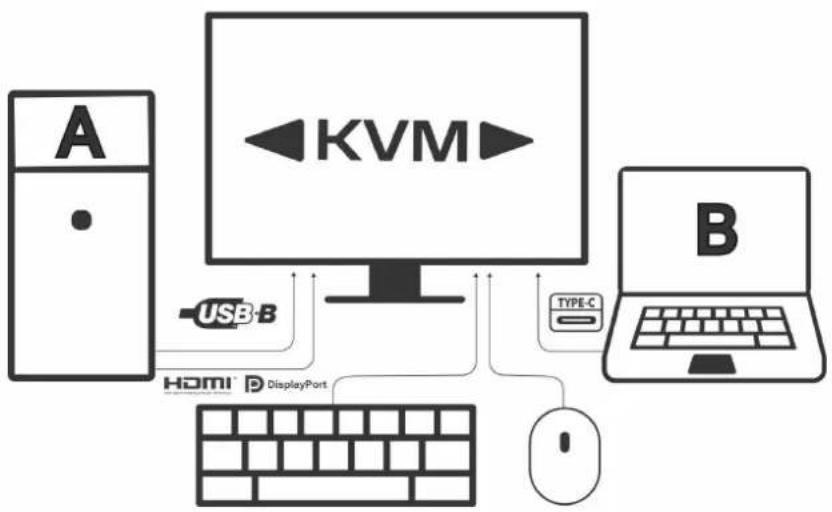

Desktop setup with desktop tower, keyboard, mouse, laptop, and multiple monitors displaying landscape maps (no visible text or symbols)

To enable the KVM function:

• Connect the video output (HDMI, DP) of the PC (A) and the USB Type-B cable to the monitor.(USB-A-B cable must be purchased separately.)
• The PC (B) must be connected to the monitor via USB Type-C.
• Connect the keyboard and mouse to the display via USB Type-A.

*Depending on the monitor model used, the KVM option may not be present in the OSD menu or in the keyboard shortcut (physical button). In this case, use the video input switch.

*When switching KVM functions between PCs, you still need to perform operations such as source switching.

*When using a device, you can also use USB Type-C to connect to a dedicated data communication port for video output (HDMI, DP).

Dysfunction

Symptoms	Checkpoint
Power LED does not light up	• Is the device turned on by pressing the power button?• Make sure the power cord is securely connected to the monitor and the outlet.
No image appears even though the power indicator is on	• Is the blank screensaver running? Please move your mouse or keyboard• Make sure the brightness and contrast are not set to minimum.• Please make sure the signal cable is properly connected to your monitor and computer.• Check if the signal cable pins are bent or the cable is damaged.• Is your computer turned on? If you have another monitor, try connecting it to see if the computer works properly.• Does the computer signal timing match the monitor specifications?
The image is distorted or ripples appear in the image.	• Please make sure the signal cable is well connected to your monitor and computer.• Keep electrical devices that may cause electrical interference away from the monitor.• Does the computer signal timing match the monitor specifications?
The image position is off-center.Image size is incorrect	• Is your computer resolution correct?• Does the computer signal timing match the monitor specifications?
The screen is too bright/too dark	• Screen (OSD): Adjust brightness and contrast settings from the menu.
The image is blurry or unclear	• Set the display resolution on your PC to the same as the recommended native screen resolution for the monitor.• Does the computer signal timing match the monitor specifications?• Check if the signal cable pins are bent or the cable is damaged.
The color of the image is incorrect	• Check if the signal cable pins are bent or the cable is damaged.• Screen (OSD): Please adjust the red/blue/green color settings in the menu (color temperature).• Screen (OSD): Please reset the settings from the menu.• Does the computer signal timing match the monitor specifications?
Unable to display 6K at 60Hz	• This product supports HDMI, DP and Type-C resolutions up to 6016x3384 (6K) at 60 Hz.However, some graphics cards may not support the above outputs.When using 6016x3384 (6K)@60Hz with an HDMI connection, make sure the port version of the connected device supports HDMI2.1.Please check with your local distributor or manufacturer for your computer's hardware limitations.
Abnormal image noise	• Are the cables correctly connected?

Customer Support

JAPANNEXT

TEL: [phone]

Hours 9:00 a.m. to 5:00 p.m. (Closed Saturdays, Sundays and public holidays)

Contact form

You can easily access the application form by scanning the QR code.

QR code image containing encoded data, no visible human-readable text

JAPANNEXT Co., Ltd. CS Department

Chiba-Ken Isumi-Shi Namegawa 506-5
