JN-282i4KP-HSP - Monitor Japannext - Free user manual and instructions

Product Type	LCD LED Monitor
Screen Size	28.2 inches
Native Resolution	3840 x 2560 (4K+)
Refresh Rate	60 Hz
Panel Type	LCD LED
Video Connectivity	2 HDMI 2.0 ports, 2 DisplayPort 1.4 ports
Audio Connectivity	1 3.5 mm audio jack output
Power Supply	AC 100-240V
Power Consumption	27 kWh/1000h (27W average)
Advanced Functions	FreeSync, HDR (Auto/On/Off), PIP/PBP, Adjustable OSD
VESA Mount	Yes (spacers included)
Included Accessories	Power cable, HDMI cable, manual
OSD Adjustments	Brightness, contrast, color temperature, gamma, sharpness, etc.
Compatibility	PC with AC 100-240V power supply

Frequently Asked Questions - JN-282i4KP-HSP Japannext

What should I do if the power indicator does not light up?

Please check that the power button is pressed and the power cord is properly connected to the monitor and the wall outlet.

Why is the screen still black while the indicator is on?

Ensure that the screen saver is not active, the brightness and contrast are not at minimum, and the signal cable is properly connected. Also verify that the computer is turned on.

How do I clean the monitor screen?

Turn off the monitor and unplug the cables. Use a soft, clean cloth specifically designed for LCD panels. Do not use products containing alcohol or acetone, and never spray liquid directly onto the screen.

What should I do if the image is distorted or wavy?

Check that the signal cable is properly connected, move electrical devices that may cause interference away, and ensure the mains voltage is normal. The signal timing must match the monitor specifications.

How do I adjust the image position or size?

Check that your computer's resolution is set to the monitor's native resolution (3840x2560). Use the OSD menu to adjust if necessary.

Why is the screen too bright or too dark?

Use the OSD menu to adjust the brightness and contrast settings.

How do I activate Picture-in-Picture (PIP) mode?

Go to the OSD menu, navigate to the Multi-Window section, select PIP or PBP, then choose the source for the sub-window and its size/position.

What should I do if the colors are incorrect?

Check that the signal cable is not damaged. In the OSD menu, adjust the color temperature or reset to factory defaults.

How do I mount the monitor on a VESA arm?

First screw the 4 included spacers onto the back of the monitor to compensate for irregularities, then install the VESA arm plate onto the spacers.

What should I do if the image freezes or has burn-in?

Residual images after prolonged display are normal. Turn off the power for a few hours or display a changing image to recover. Avoid displaying a static image for too long.

USER MANUAL JN-282i4KP-HSP Japannext

Cleaning and maintaining the monitor 18

How to maintain the monitor 18

The symptoms listed 18

Welcome 19

Quick Start Guide 20

Assembling the Monitor Base 20

Connection with a computer 21

Accessories 21

Interface / Connectivity 22

Description of the display button 23

On-Screen Menu (OSD) 24

PBP (Picture By Picture) settings specifications 25

MPBP vertical screen configuration method 25

Dysfunction 26

Customer Support 27

Technical line drawing showing a device assembly process: before and after disassembly, with no visible text or symbols.

90° Your design can be set to 14000000000 Your Home

60Hz LED LCD Monitor

Manual

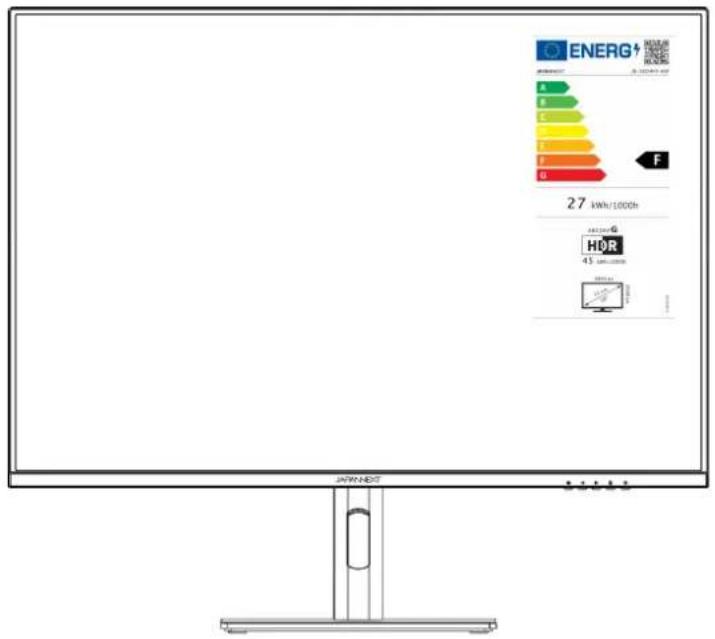

ENERG 27 kWh/1,000Wh HDR 45 kWh/1,000Wh

Important:

Please make sure to read this instruction manual before use.

Please use it correctly for your safety.

Once you have read it, make sure to keep it.

Please read all included instruction manuals carefully before use.

• Place the monitor on a flat, stable surface. To avoid the risk of fire or electric shock, avoid high temperatures, low temperatures, high humidity and accumulation of dust.
  Do not use the monitor where it may become wet or exposed to water.
• Do not open and never cover the monitor case because it contains high voltage parts inside which could cause serious injury or fire if you come into contact with them.
• If the power supply is damaged, please contact our customer service or your dealer. Never attempt to inspect or repair the product yourself.
• Before use, please ensure that all cables are properly connected and the power cord is not damaged. If you discover any damage or blurred areas, please contact your dealer immediately.
• The slots and openings on the top or back of the monitor are required ventilation holes for this product. Do not cover these holes. Do not place this product near or above a heat source such as a radiator without adequate ventilation.
• Do not insert foreign objects or spill liquids into any openings in the monitor case. This could cause damage or malfunction.
• Always operate the monitor using the type of power source indicated on the product label.
  If you are unsure of the type of power supply you have, please contact your local power company.
• Do not apply excessive current to sockets or extension cords. Use caution as excessive current can cause electric shock and is very dangerous.
• To protect your monitor from damage caused by power surges, turn off power to the device during long periods of inactivity or during lightning storms.
• To ensure satisfactory operation of the monitor, the computer must be equipped with a properly configured outlet marked in the AC100-240V range.

• If you experience technical problems or concerns with your monitor, please contact our customer service or authorized reseller.

• To work safely, make sure to establish the ground connection before connecting the power plug to the power source. Also, when disconnecting the ground connection, make sure to unplug the power plug first.

• This product is not intended for continuous use for 24 hours. Please unplug the power plug when you do not use the product for a long time.
• The included AC adapter and cord are intended for this product only. Do not use it for other equipment.
• Do not use cleaners or detergents containing alcohol or acetone to clean your monitor. Make sure to use a cleaner specifically designed for LCD monitors. Do not spray liquid cleaner directly on the screen. Please note that if the cleaning fluid drips and gets inside the monitor, it is very dangerous as it may cause electric shock or fire. LCD panels are easily damaged, so do not rub it with hard objects.
• Before lifting or moving the monitor, turn off the power switch and unplug all cables and power cords. When installing the monitor, lift it using the appropriate method. When lifting or carrying the monitor, make sure to grip it by the edges. Never lift the monitor by its stand or cord.

Precaution

• Using the monitor in a dark room, or using it continuously for long periods of time, may cause eye fatigue.
  • Take a break of 5 to 10 minutes every hour and use the monitor in a reasonably bright room.

Before cleaning the monitor, turn off the power and unplug all cables and cords.

How to maintain the monitor:

• LCD panel area: Do not use tissue paper, etc., instead use a clean, soft cloth specially designed for LCD panels. Please wipe the monitor gently. For difficult-to-remove stains, use a neutral cleaner specifically designed for LCD panels.
• Monitor frame: Wipe with a soft cloth dampened with a mild cleaner.

The symptoms listed below are normal conditions for the monitor

• When first used, the screen may flicker due to the nature of the backlight. If this symptom appears, please turn off the monitor and then turn it on again.
• Depending on your desktop setup, displayed colors, and brightness, brightness may appear uneven.
• Several pixels may or may not always be lit.
• If you display the same image for a long time, an afterimage from the previous image may persist even after switching to a different image.

In this case, the screen will recover slowly. Otherwise, turn off the power for a few hours and the problem will be fixed.

Instead of trying to repair the monitor yourself, contact customer service or the dealer.

Thank you for purchasing the 28.2 inch LCD monitor JAPANNEXT.

The panel installed supports 4K+ resolution (3840 x 2560). We recommend using it in 4K+ resolution for best performance. Original performance cannot be achieved at resolutions lower than 4K+ (3840 x 2560).

Assembling the Monitor Base

On a clean, flat, stable surface, place the monitor face down.

1. Use the provided screw to attach the stand to the monitor stand.
2. Insert the screws at the top of the bracket into the bracket mounting part on the back of the monitor.
3. Make sure the monitor and stand are securely attached before slowly raising it.

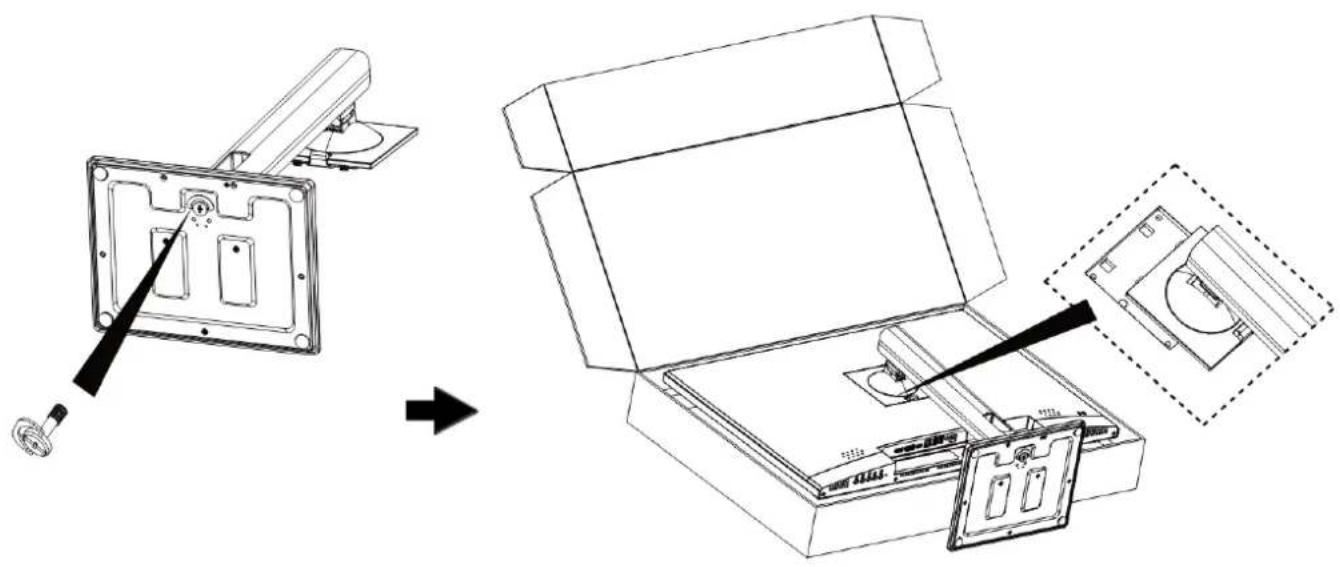

Technical line drawing showing a device assembly process: before-and-after view of internal components (no text or symbols)

1. Make sure the monitor and stand are securely attached, then slowly raise the monitor.

Connection with a computer

1. Make sure the monitor and computer are turned off before connecting the cable.
2. Connect the power cable and compatible cables (HDMI, DP) to the monitor.
   Also connect the cable (HDMI, DP) to the computer.
3. Turn on the monitor and computer.

Notice : Since problems may occur, do not connect HDMI and DP cables at the same time.

Please connect only one to a computer.

Accessories

Manual

Power cable*

HDMI cable

VESA spacer*1

⑤ ④ ③ ② ① 0a ⑥

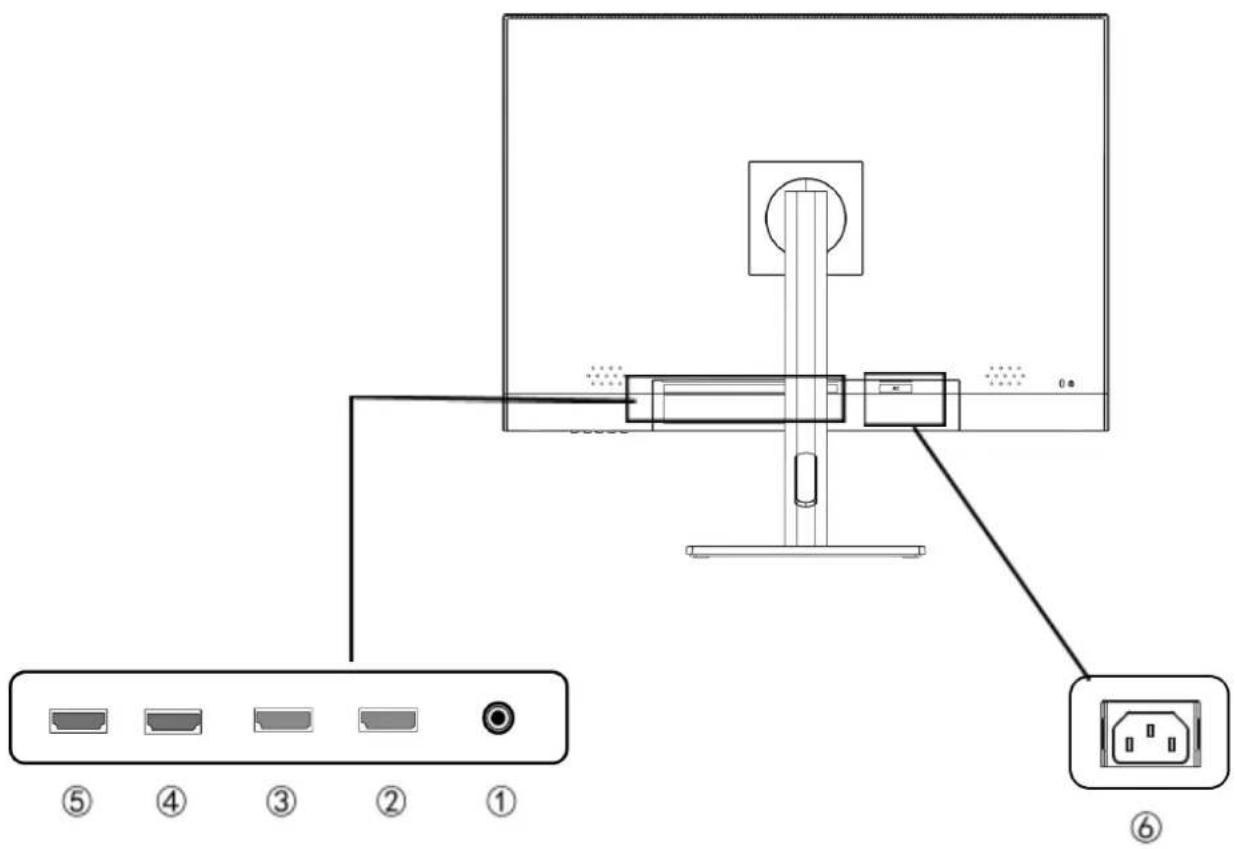

1: Audio output port: Possibility to connect headphones or speakers.
2: Port DP: Port compatible DP 1.4.
3: Port DP: Port compatible DP 1.4.
4: Port HDMI: Port compatible HDMI 2.0.
5: Port HDMI: Port compatible HDMI 2.0.
6: Power supply: Used when connecting the power cable.

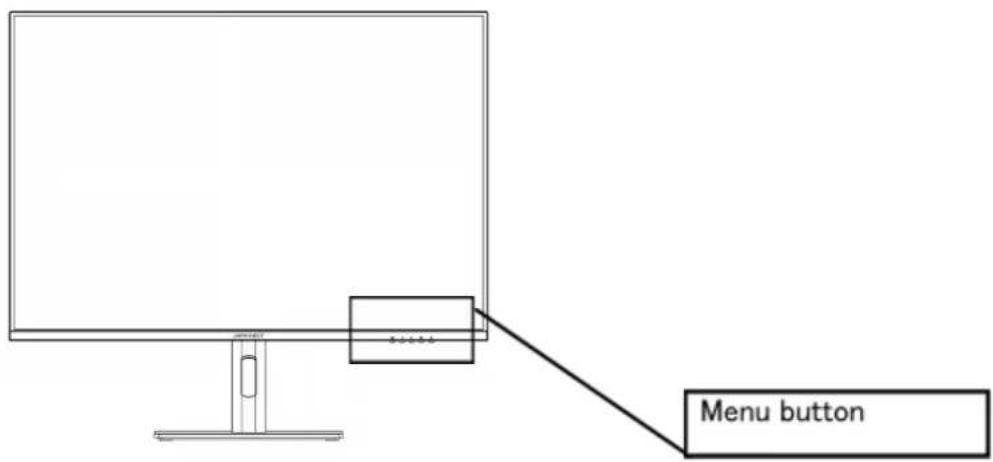

Menu button

- When the On-Screen Menu (OSD) is not open

M	Show OSD menu
▼	Show volume settings
▲	Cross display (view)Press M or E to clear the display
E	Show input source
⏻	Turn on/off

- When the on-screen menu (OSD) is displayed

M	Select and confirm the menu item
▼	Go down a menu or decrease the value of a selection
▲	Move up a menu or increase the value of a selected item
E	Go back or close the menu
⏻	Turn on/off

On-Screen Menu (OSD)

Menu	Features	Setting value	Comment
Entry	Automatic		Select the input source
	DP1
	DP2
	HDMI1
	HDMI2
Brightness/contrast	Luminosity	0-100	Adjust the brightness
	RCD	on/off	DCR enabled/disabled*1
	Power saving mode	on/off	Enable/disable power saving
Color parameters	Gamma	1,8/2,0/2,2/2,4/2,6	Adjust gamma value
	Mode image	standard	Select picture mode*1
		movie
		game
		FPS
		RTS
	Color temperature	normal	Select color temperature
		warm color
		cold color
		USER	Adjust red/green/blue in the range 0-100 when using USER settings.
	Tint	0-100	Adjust the color
	Saturation	0-100	Adjust saturation
	Low blue light	0-100	Adjust blue light reduction
Image quality settings	Sharpness	0-100	Adjust sharpness
	Response time	Off/High/Medium/Low	Define response time
	Noise reduction	Off/High/Medium/Low	Set noise reduction
	Dynamic light control	on/off	Set dynamic light control
Display setting	aspect ratio	Square/4:3/1:1/Auto	Select the image ratio
Audio settings	mute	on/off	Mute
	volume	0-100	Adjust the volume
	source audio	DP1/DP2/HDMI/HDMI2	Select audio source
Multi-window	multi-window	Off/PIP/PBP Mode Screen 2	Multi-window settings
	2-input subscreen	DP1/DP2/HDMI/HDMI2	Set window 2 source
	PIP size	small/medium/large	Set panel size
	Localisation PIP	Top left/bottom left/top right/bottom right	Set the panel position
OSD	Langage	French/English, etc.	OSD language definition
	Position horizontale OSD	0-100	Adjust the horizontal position of the OSD
	Position verticale OSD	0-100	Adjust the vertical position of the OSD
	OSD transparency	0-100	Adjust OSD transparency
	OSD time setting	5-60	Set OSD display time
	Rotation OSD	Normal/90/180/270	Rotate OSD
Other	FreeSync (synchronisation adaptive)	on/off	Set FreeSync
	HDR	Off/Auto/On	Set HDR
	reset		Factory Reset Settings

PBP (Picture By Picture) settings specifications

- When using PBP settings, depending on the window, Ports of Entry can be used differently. Window 1 (left side): HDMI port only Window 2 (right side): all ports

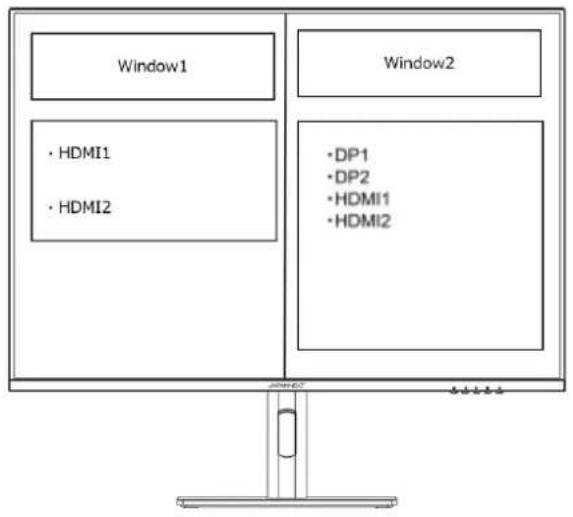

Window1 • HDMI1 • HDMI2 Window2 • DP1 • DP2 • HDMI1 • HDMI2

MPBP vertical screen configuration method

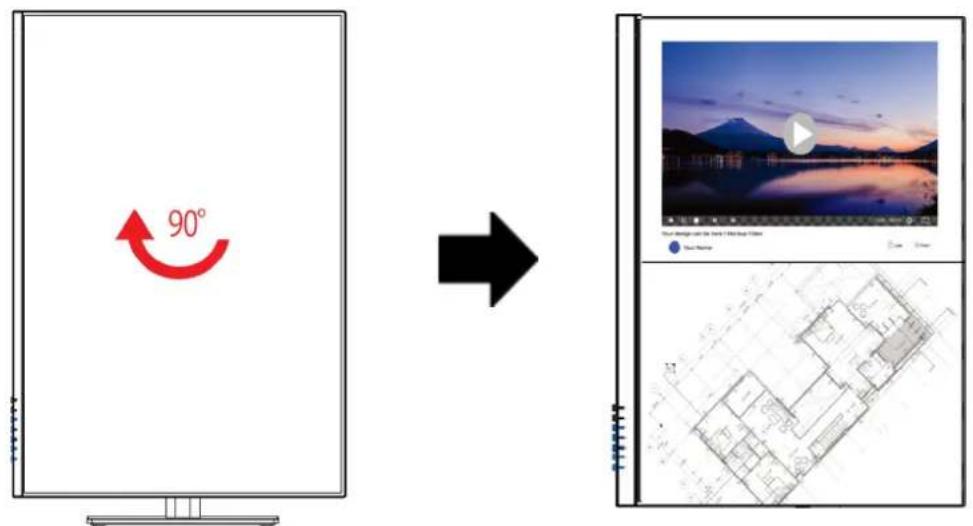

When using PBP settings, putting the monitor to portrait and configuring Windows settings, you can increase the amount of information that can be displayed.

Step 1: Select PBP2 Multi-Window Screen from the monitor OSD.

Step 2: On Monitor OSD, set OSD rotation to 270 and rotate the OSD menu.

Step 3: Grasp both ends of the monitor and rotate it 90 degrees.

Step 4: Settings → "System" → "Display" → Set "Screen orientation" to landscape

90° Your design can be set to 14000000000 Your Home

Symptoms	Checkpoint
Power LED does not light up	• Is the device turned on by pressing the power button?• Make sure the power cord is securely connected to the monitor and the outlet.
No image appears even though the power indicator is on	• Is the blank screensaver running? Please move your mouse or keyboard• Make sure the brightness and contrast are not set to minimum.• Please make sure the signal cable is properly connected to your monitor and computer.• Check if the signal cable pins are bent or the cable is damaged.• Is your computer turned on? If you have another monitor, try connecting it to see if the computer works properly.• Does the computer signal timing match the monitor specifications?
The image is distorted or ripples appear in the image.	• Please make sure the signal cable is well connected to your monitor and computer.• Keep electrical devices that may cause electrical interference away from the monitor.• Does the computer signal timing match the monitor specifications?
The image position is off-center. Image size is incorrect	• Is your computer resolution correct?• Does the computer signal timing match the monitor specifications?
The screen is too bright/too dark	• Screen (OSD): Adjust brightness and contrast settings from the menu.
The image is blurry or unclear	• Set the display resolution on your PC to the same as the recommended native screen resolution of the monitor.• Does the computer signal timing match the monitor specifications?• Check if the signal cable pins are bent or the cable is damaged.
The color of the image is incorrect	• Check if the signal cable pins are bent or the cable is damaged.• Screen (OSD): Please adjust the red/blue/green color settings in the menu (color temperature).• Screen (OSD): Please reset the settings from the menu.• Does the computer signal timing match the monitor specifications?
Unable to display FHD	• This product supports resolutions up to 1920 x 1080 (FHD), including HDMI and DP. However, some graphics cards may not support 1920 x 1080 resolution. Please check with your local distributor or manufacturer for the hardware limitations of your computer.
Abnormal image noise	• Are the cables correctly connected?

Customer Support

JAPANNEXT

TEL: [phone]

Hours 9:00 a.m. to 5:00 p.m. (Closed Saturdays, Sundays and public holidays)

Contact form

You can easily access the application form by scanning the QR code.

JAPANNEXT Co., Ltd. CS Department

Chiba-Ken Isumi-Shi Namegawa 506-5
