5DB96460 - Basket BLAUPUNKT - Free user manual and instructions

Product type	Extractor or recirculation hood
Model	5DB96460
Brand	Blaupunkt
Power supply	220-240 V, 30 mA differential switch
Power cable length	1250 mm
Number of motor speeds	4
Timer	Yes: 5, 10 or 20 minutes
Lighting	LED (replacement by after-sales service)
Control type	Touch, with automatic standby after 30 s
Grease filter	Metal, dishwasher-safe (once a month)
Charcoal filter	Active, non-washable, replace every 6 months (recirculation version)
Filter saturation indicator	Yes: flashing after 40 h (grease) or steady on after 120 h (charcoal)
Automatic shut-off	4 hours after last command
Auto mode	Coupling with induction hob (multi-control)
Minimum installation distance	50 cm (electric) / 65 cm (gas or mixed)
Extraction	Top air outlet for external extraction or recirculation (charcoal filter)
Movable panels	Open for maximum performance
Temperature of accessible parts	May become hot during operation
Maximum flow rate	> 650 m³/h (last speed timed at 7 min)
Number of manual pages	72 pages

Frequently Asked Questions - 5DB96460 BLAUPUNKT

What is the minimum installation distance between the hood and the hob?

For an electric hob, the minimum distance is 50 cm. For a mixed or gas hob, it is 65 cm. Always follow the instructions of the hob manufacturer if they require a greater distance.

How to clean the grease filter?

The metal grease filter should be cleaned once a month with a non-aggressive detergent, by hand or in the dishwasher at a low temperature and short cycle. Dishwashing may discolor the filter without affecting its performance.

When should the charcoal filter be replaced?

The active charcoal filter is neither washable nor recyclable. It must be replaced every 6 months under normal use, or when the F light stays on continuously (after 120 hours of operation).

How to use the hood timer?

Press the E button to activate the timer. The first press sets 5 minutes, the second 10 minutes, the third 20 minutes. The E button flashes during the countdown. To cancel, press the motor button C.

What to do if the F light flashes?

If the F light flashes, it means the grease filters need to be cleaned (after 40 hours of operation). Clean the filters and then press the F button to reset the alert.

How to couple the hood with an induction hob?

For coupling, start the procedure from the hob. On the hood, press simultaneously the B and D buttons (A and F flash). Press A to memorize. Confirmation by three flashes of the lights. To uncouple, press F instead of A.

How to replace the LED lighting?

The lighting consists of LEDs not replaceable by the user. In case of malfunction, contact the technical support service for complete replacement of the unit.

Is it possible to install the hood on a drywall wall?

No, fixing on a wall that cannot support the weight (e.g., drywall) is not recommended. The hood must be fixed on a solid wall.

Why does the hood turn off by itself?

The hood has an automatic shut-off: 4 hours after the last button press, it turns off. Additionally, the last speed (> 650 m³/h) is timed at 7 minutes before returning to the previous speed.

What safety precautions should be taken when using the hood?

Never flambé under the hood, monitor frying to avoid oil ignition, always ventilate the room if the hood is used with combustion appliances, and do not use the hood without the grid installed. Accessible parts may become hot.

USER MANUAL 5DB96460 BLAUPUNKT

Illustration of two gloves with textured soles (no text or symbols)

EN Always wear work gloves for all installation and maintenance operations

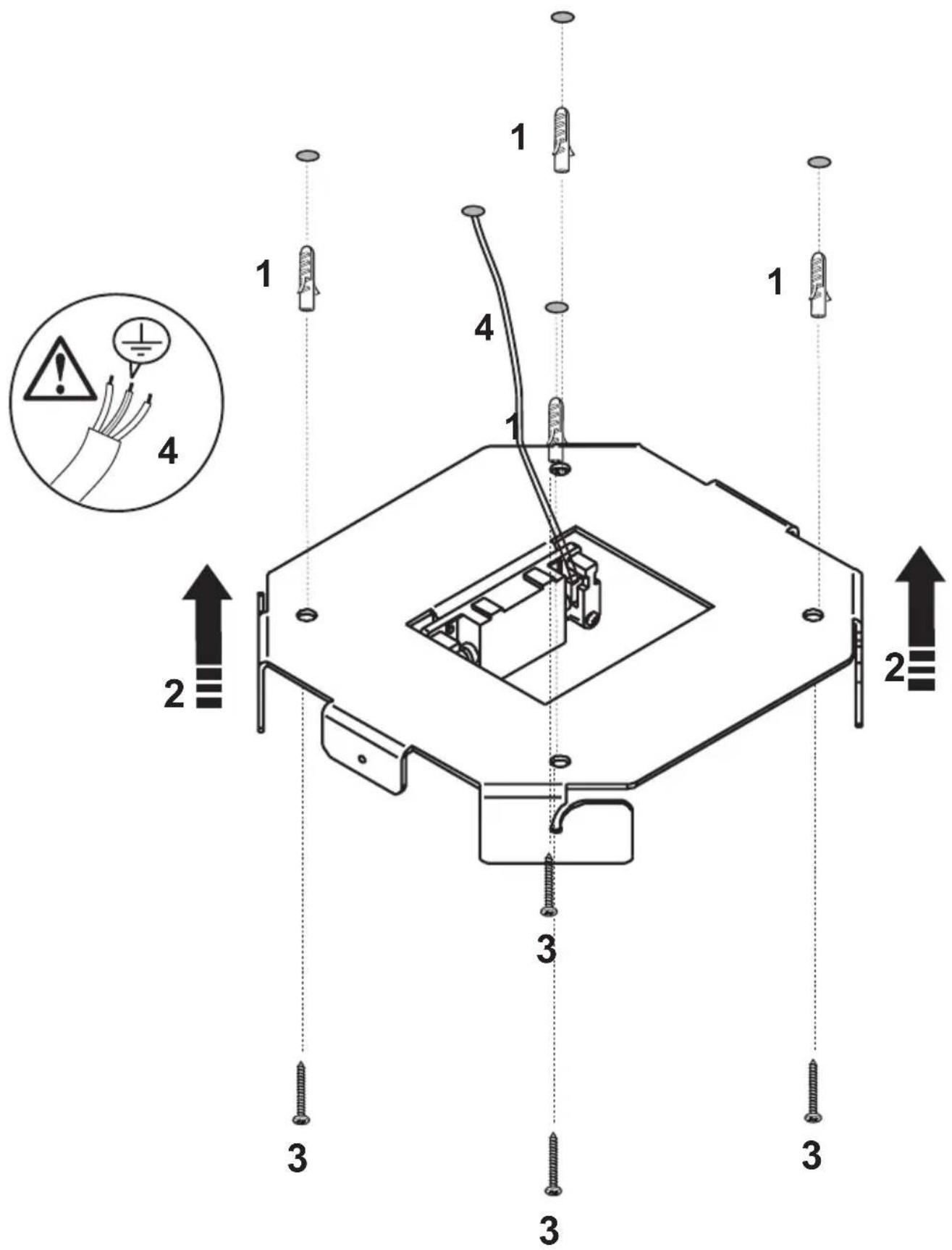

L= X-H-265


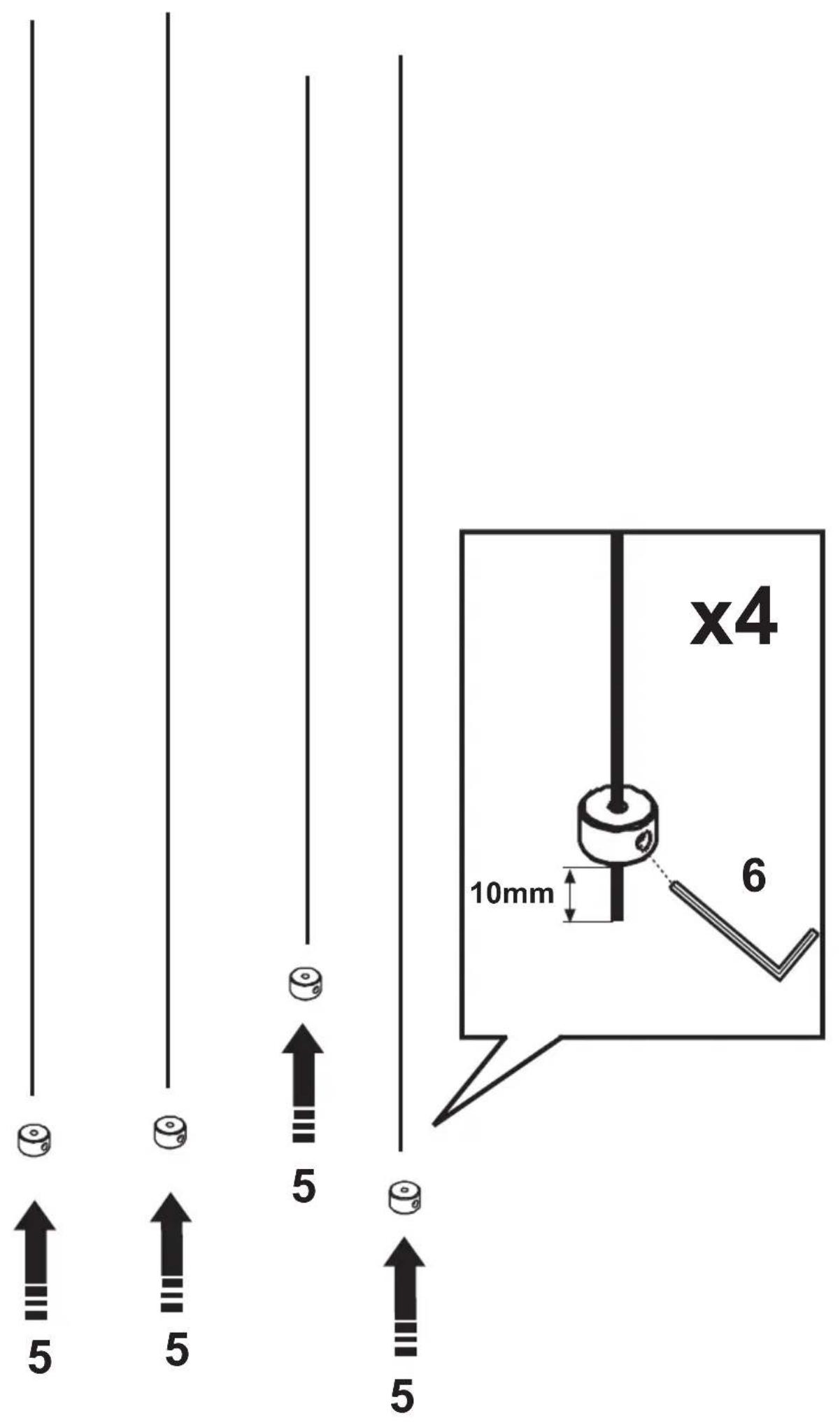

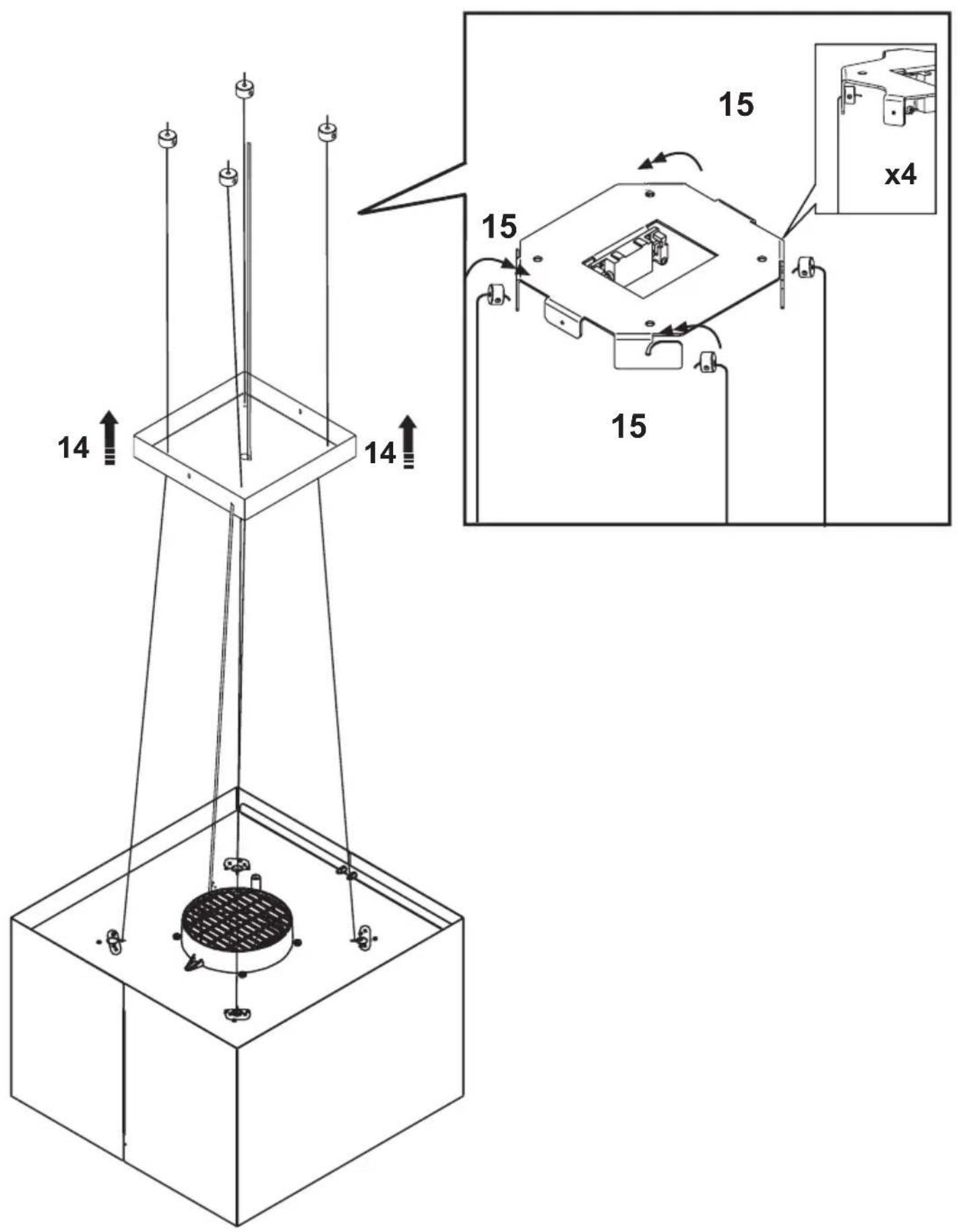

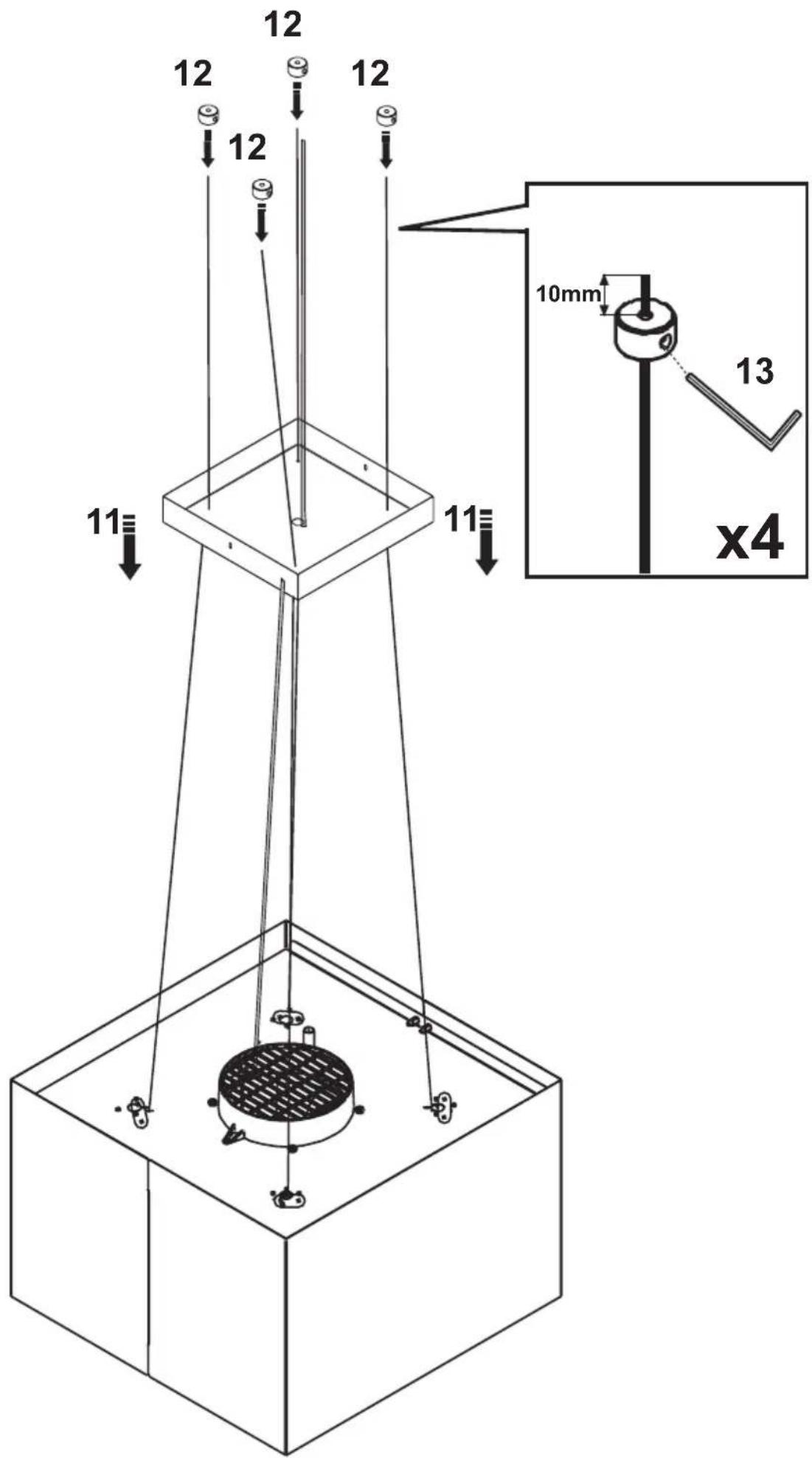

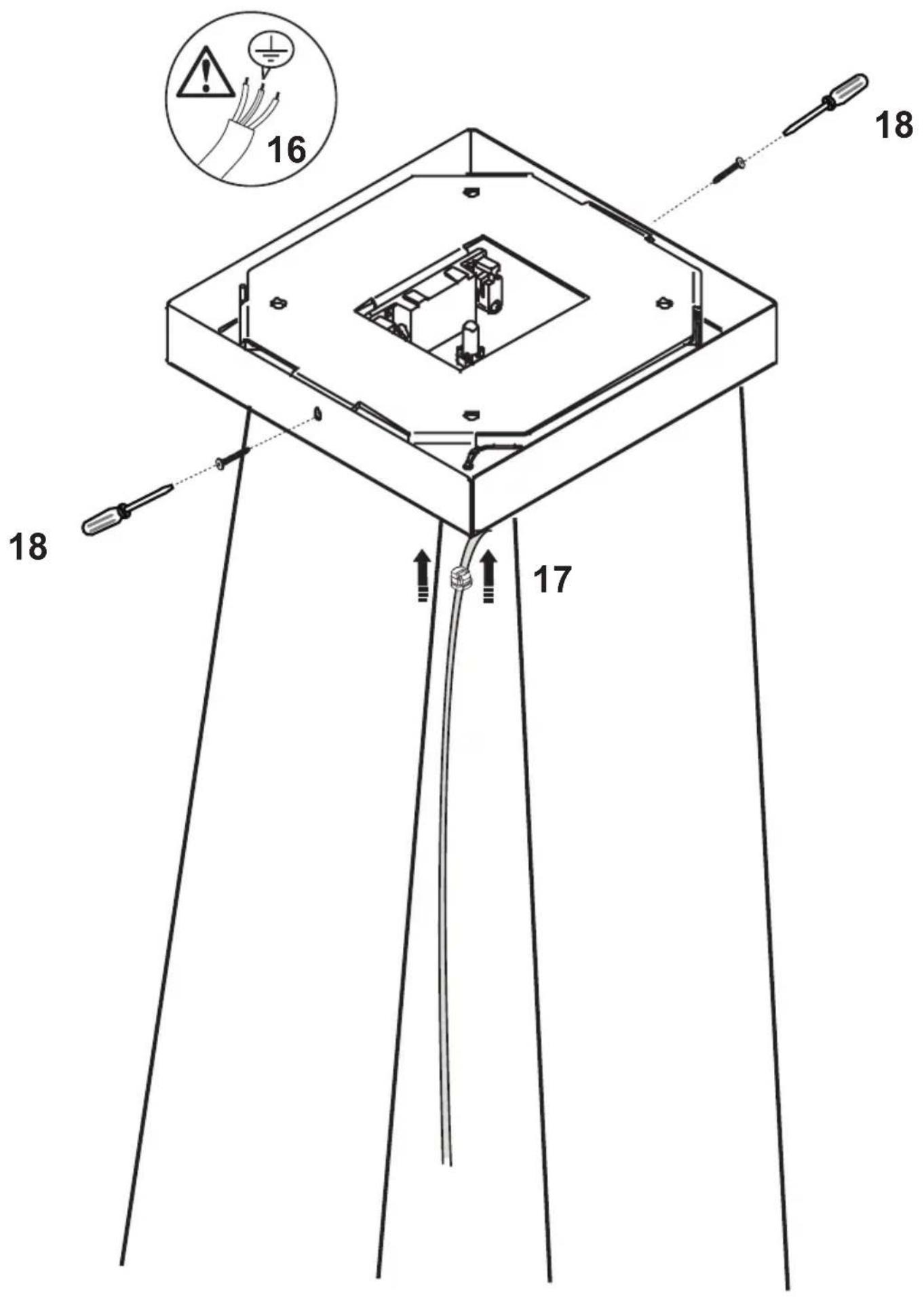

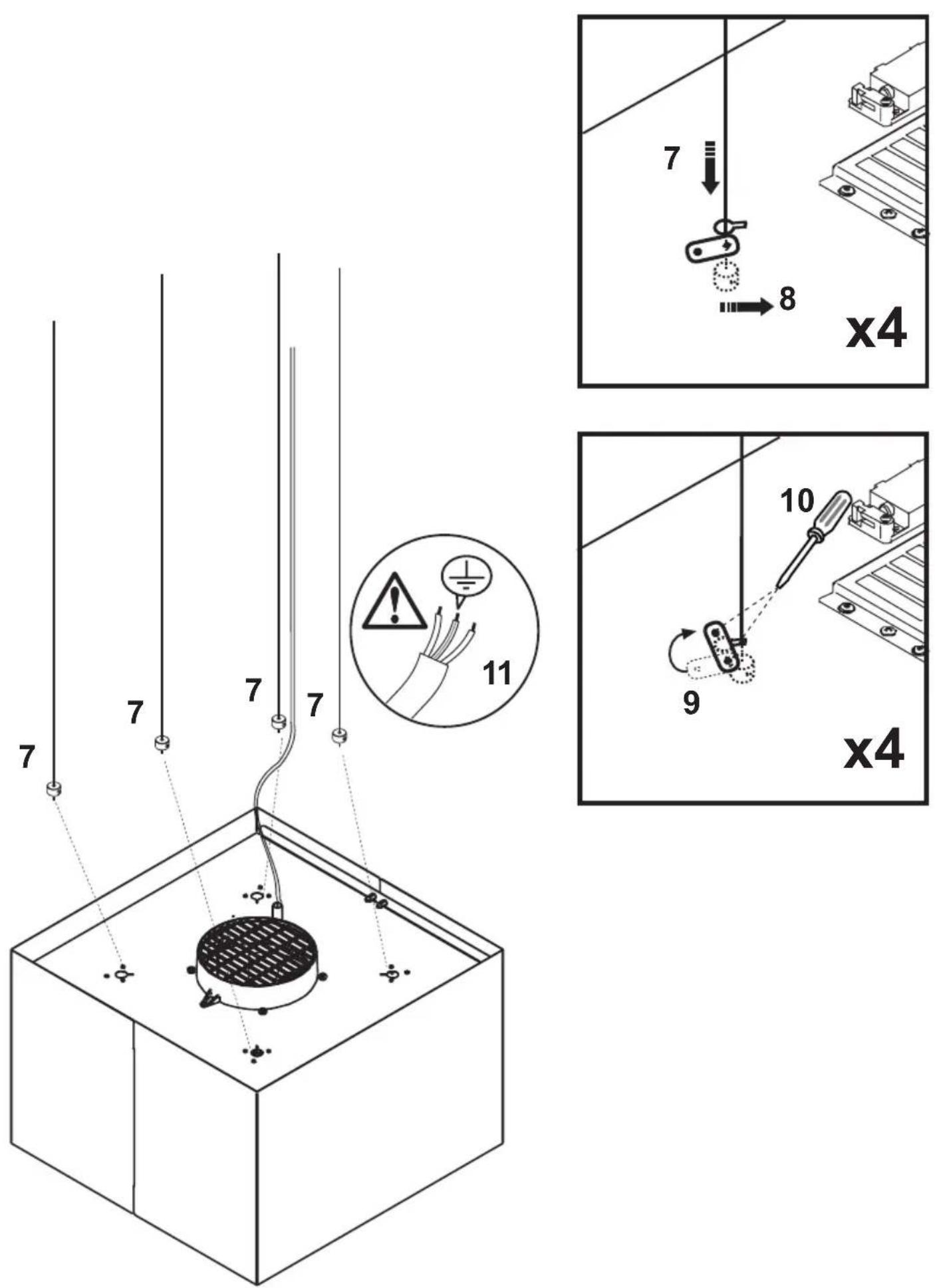

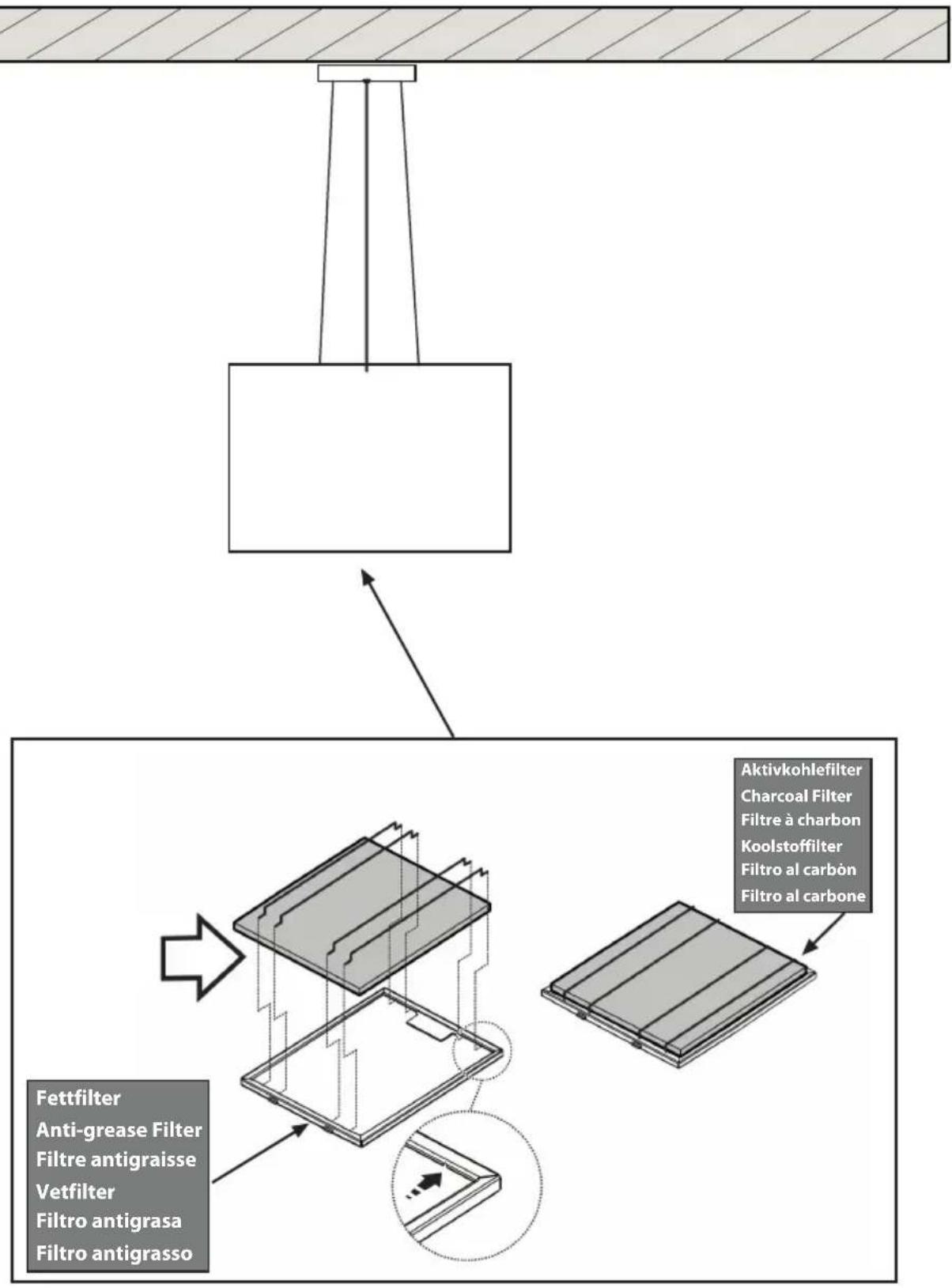

    B --> C["Fettfilter Anti-grease Filter"]
    B --> D["Feltre antigraisse"]
    B --> E["Vetfilter"]
    B --> F["Filtro antigrasa"]
    B --> G["Filtro antigrasso"]
    B --> H["Antivkohlefilter Charcoal Filter"]
    B --> I["Filtre à charbon Koolstofffilter"]
    B --> J["Filtro al carbón"]
    B --> K["Filtro al carbone"]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#cfc,stroke:#333
    style E fill:#cfc,stroke:#333
    style F fill:#cfc,stroke:#333
    style G fill:#cfc,stroke:#333
    style H fill:#fcc,stroke:#333
    style I fill:#fcc,stroke:#333
    style J fill:#fcc,stroke:#333
    style K fill:#fcc,stroke:#333

Warnung

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📄 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 50 cm from the cooking plane for electric cookers and 65cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

If the cooking top is in use, the cooker hood must always operate.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

TSL

With the hood switched off, pressing any key will activate the control panel in stand-by mode. The symbols are backlit by a white light, allowing you view and select the desired function.

Pressing one of the keys again will start the corresponding function, and its symbol will light up. After all functions have been switched off, the control panel will remain in stand-by mode for around 30 seconds and then switch off automatically.

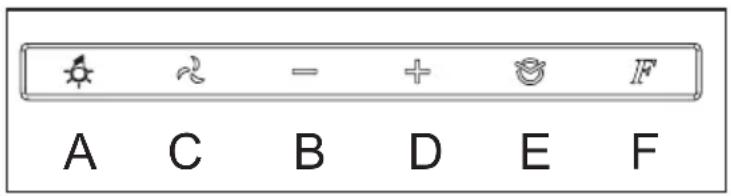

A: Light ON/OFF key: press this touch sensor to switch on or off the lights of the hood.

C: Motor ON/OFF key (4 speed): press this touch sensor to switch on the hood extractor fan at the same speed as it was when last switched off. Use the „D“ and „B“ keys to vary the speed (power) of extraction.

B: Decrease extraction speed (power) key: press this touch sensor to reduce the extraction speed of the hood.

D: Increase extraction speed (power) key: press this touch sensor to increase the extraction speed of the hood.

E: Timer key: when this touch sensor is pressed, independently of the extraction speed selected, the timer function will be activated. Press once to set the timer for 5 minutes, press a second time for 10 minutes and a third time for 20 minutes. During this phase, the „E“ symbol will flash.

To reset the timer, press the motor key, "C"

F: Reset filters key: press this touch sensor to reset the signal that warns that the metal grease filter (1) is saturated and the charcoal filter (2) should be replaced. (1) After 40 hours of using the hood, the „F“ symbol will flash to indicate the necessity of cleaning the metal grease filters.

(2) After 120 hours of using the hood, the „F“ symbol will light up to indicate the necessity of replacing the activated charcoal filters.

To ensure proper operation, it is recommended to clean the control regularly to prevent the buildup of condensation.

Note: 4 hours after the last key touch, the fan will automatically turn off.

All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

Auto Mode

The AUTO mode is activated exclusively from the Paired Induction Hob.

The paired induction hob can control the suction power of the hood. The way in which this power is controlled depends on the way in which the user sets the hob (refer to the hob manual).

When the induction hob is switched on, the hood lights are switched on at maximum intensity. When the induction hob is switched off, the status of the lights is not changed.

Multicontrol pairing

Start the pairing procedure on the hob (refer to the hob manual).

Press keys B+D simultaneously (keys A and F will flash alternately).

Press key A to memorise the hob (the hood spotlights will flash three times in confirmation).

Close the pairing procedure on the hob (refer to the hob manual).

Multicontrol disconnection

The procedure is used to delete the previous hob from the hood memory.

Press keys B+D simultaneously (keys A and F will flash alternately).

Press key F to delete the memorised hob (the hood spotlights will flash three times in confirmation).

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.

Replacing lightbulbs

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.

Attention

Bortkoppling multicontroll

Multicontrol disconnection

Multicontrol disconnection
