SAFETY AND WARNING INFORMATION

Before using the appliance for the first time

Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models; thus, settings or equipment may be described herein which is not available in your appliance. We recommend saving this instruction manual for future reference and attach it to the appliance if it is sold in the future.

Check for any damage or irregularities on your appliance. If you find your appliance is damaged, notify the retailer from which you have purchased the appliance.

Before connecting the appliance to the power mains, let the appliance rest in a vertical position for a minimum of 2 hours. This will reduce the possibility of operation faults due to the effect of transport on the cooling system.

Important safety instructions

WARNING Risk of fire/flammable materials

The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations.

WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall outlet).

⚠ WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

⚠ WARNING! The LED light must not be replaced by the user! If the LED light is damaged, contact the customer helpline for assistance.

SAFETY AND WARNING INFORMATION

WARNING! Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor stability of the appliance, make sure it is installed as instructed.

Freeze burn hazard

To avoid freeze burn, never put frozen food in your mouth and do not touch frozen food.

Safety of children and vulnerable persons

The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Remove the packaging intended to protect the appliance or particular parts during transport and keep it outside the reach of children. It presents danger of injury or suffocation.

When removing a used appliance, disconnect the power cord, remove the door, and leave the shelves in the appliance. This will prevent children from locking themselves in the appliance.

For European markets only

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

SAFETY AND WARNING INFORMATION

Cleaning and user maintenance shall not be made by children without supervision.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

Warning regarding the refrigerant

The appliance contains a small amount of an environmentally friendly yet flammable gas R600a. Make sure that no parts of the cooling system are damaged. A gas leak is not hazardous to the environment, but it could cause eye injury or fire.

In case of a gas leak, ventilate the room thoroughly, disconnect the appliance from the power mains, and call a service technician.

Important information on the use of appliance

WARNING! This appliance is intended to be used in

household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

The appliance may not be used outdoors and it may not be exposed to rain. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

If the appliance will be out of use for an extended period of time, switch it off using the relevant button, and unplug it from the power mains. Empty the appliance, defrost it, clean it, and leave the door ajar.

In case of an error or power supply failure, do not open the freezer compartment unless the freezer has not operated for over 16 hours. After this period, use the frozen food or provide sufficient cooling (e.g. a replacement appliance).

Technical information on the appliance

Rating plate can be found in the appliance interior. It indicates data on voltage, gross and net volume, type and amount of refrigerant, and information on the climate classes.

SAFETY AND WARNING INFORMATION

If the language on the rating plate is not the language of your choice or the language of your country, replace it with the one supplied.

⚠ WARNING! Do not damage the refrigerant circuit.

INSTALLING YOUR NEW APPLIANCE

• Stand your appliance in a dry and well ventilated place. Keep the appliance out of direct sunlight, rain or frost.
• The diagram shows the temperature range of each climate class. The climate class of this appliance is specified on the rating plate. Use beyond this range may result in poor performance.
• Sufficient clear space should be available around the appliance to facilitate ventilation and heat dissipation.
• Suggested space is indicated in the figure.

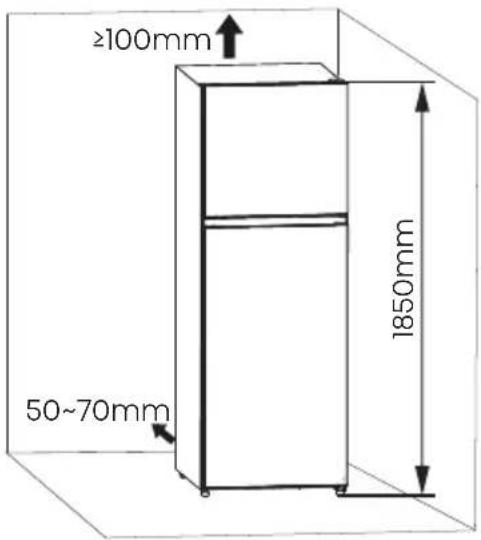

≥100mm 50~70mm 1850mm

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

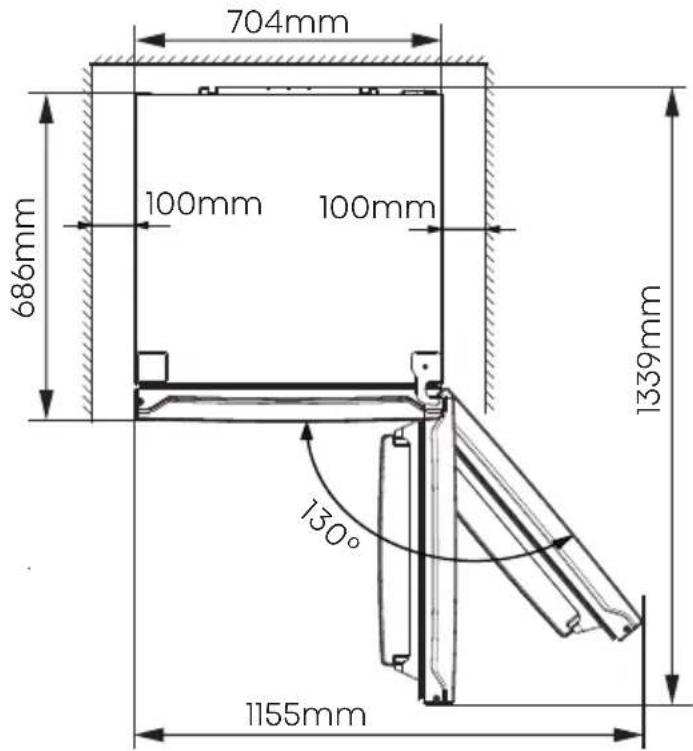

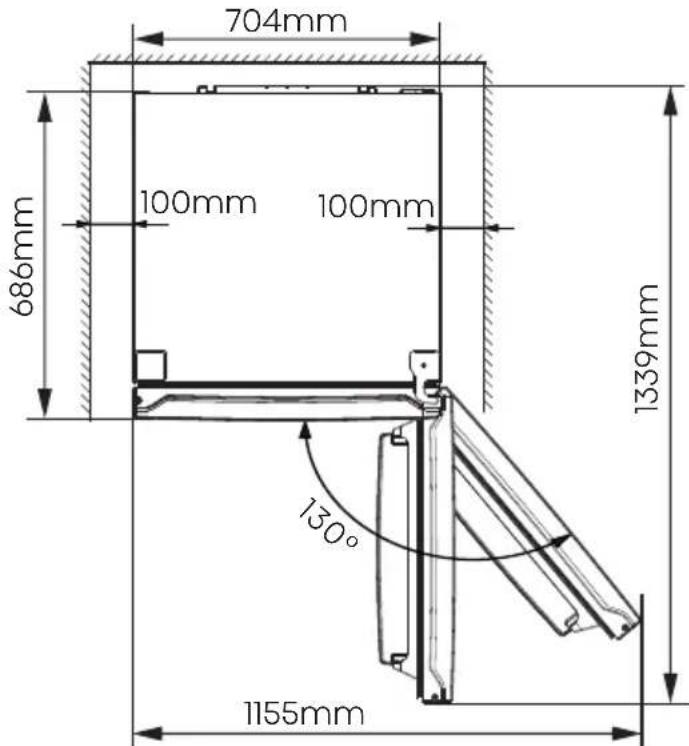

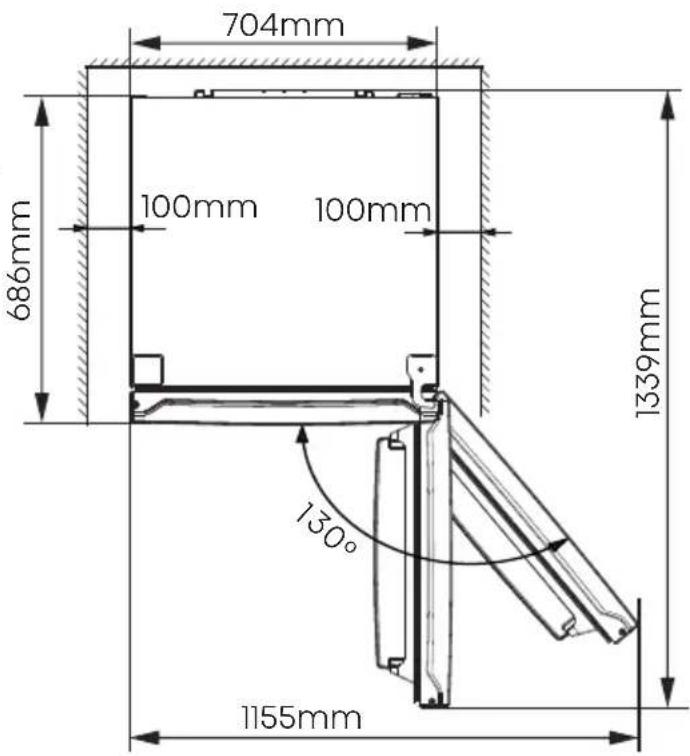

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

Leveling of appliance (if needed):

• The figure is for reference only.

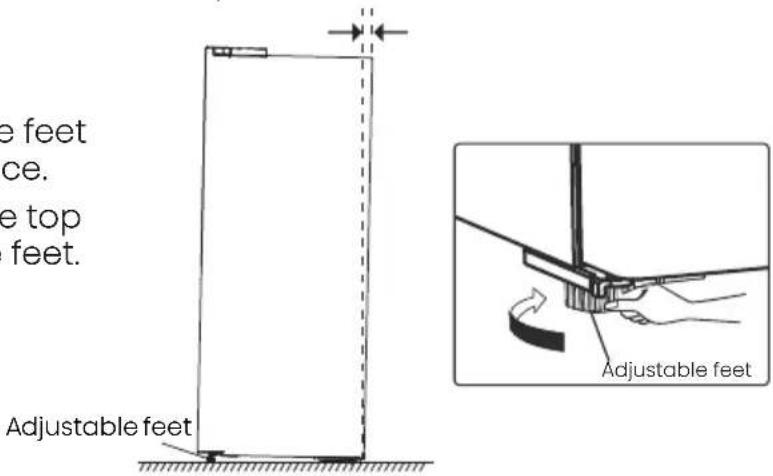

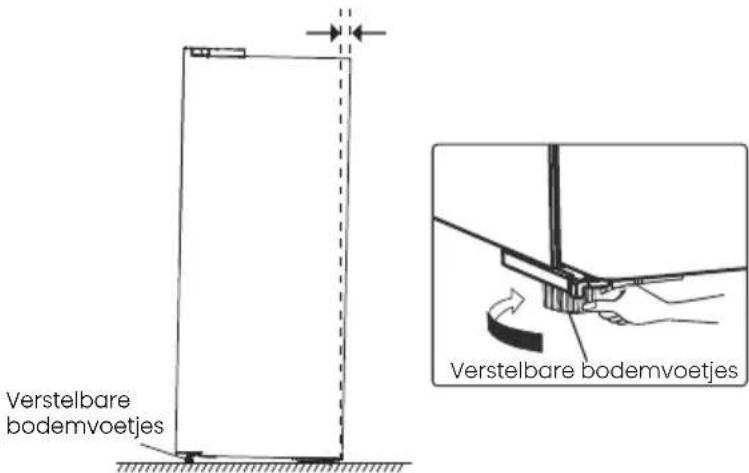

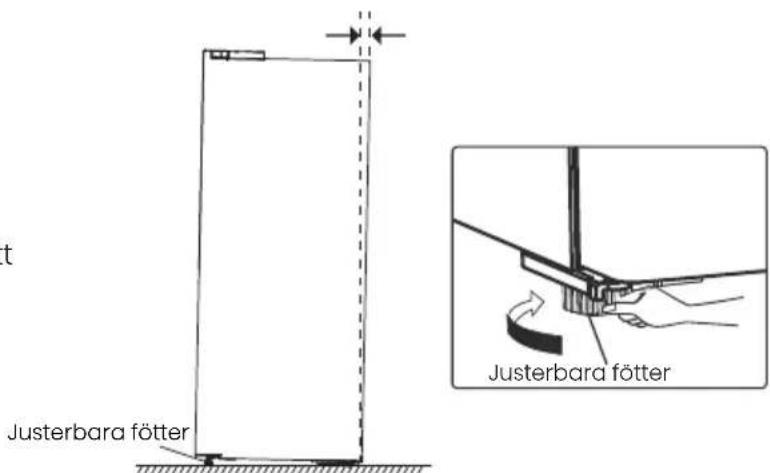

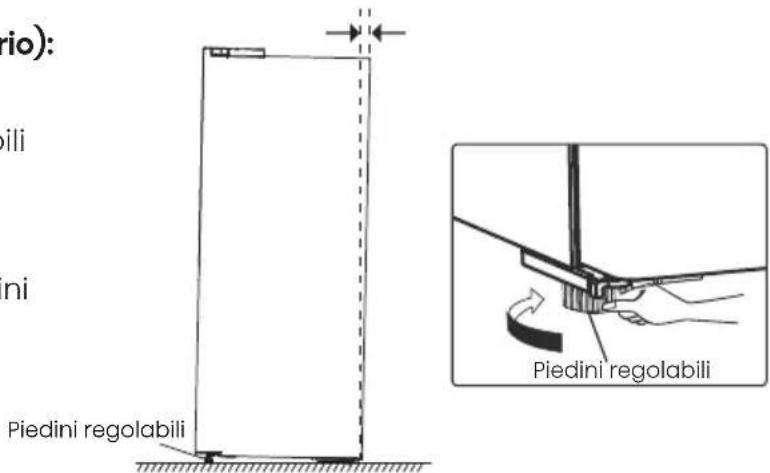

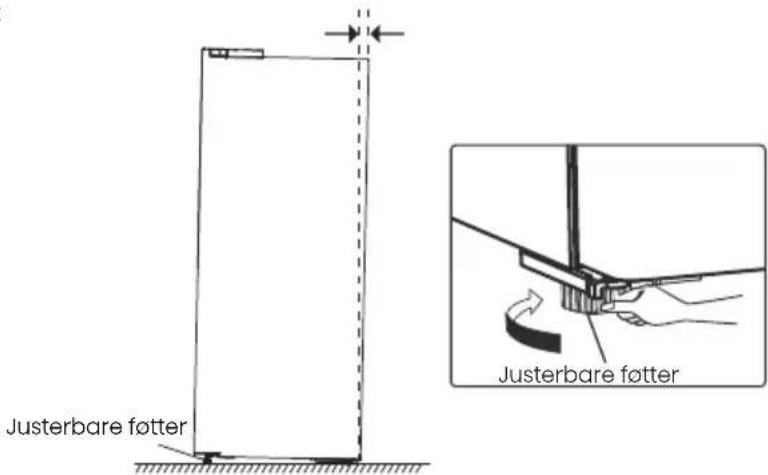

- The appliance is fitted with adjustable feet that can be used to level the appliance.
- To allow the doors to self-close, tilt the top backwards by turning the adjustable feet.

e feet ce. e top feet. Adjustable feet Adjustable feet

INSTALLING YOUR NEW APPLIANCE

WARNING

• For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator.
• The rollers should be only used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

Simple line drawing of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow, commonly used in safety or hazard prevention.

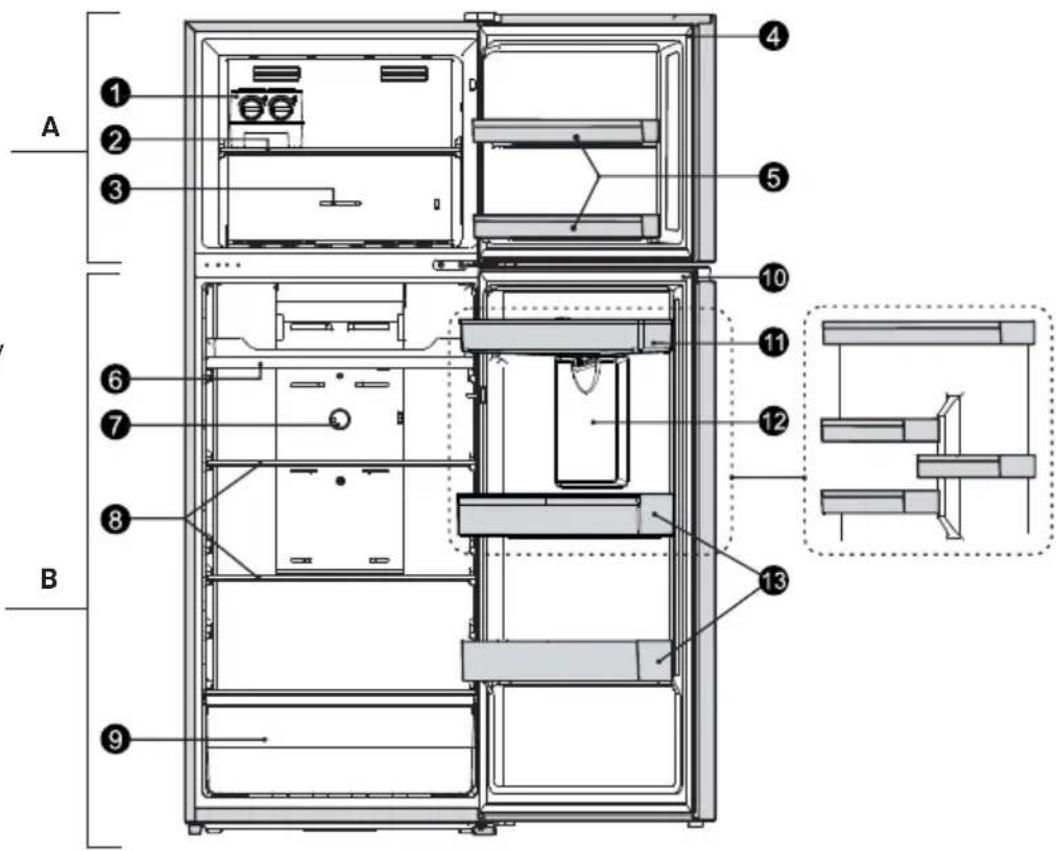

DESCRIPTION OF THE APPLIANCE

• Appliance interior equipment may change according to the appliance model.
• The diagram may slightly differ from the appliance you purchased, please get more information in the E-manual.

A: Freezer

1. Ice box *

2. Glass shelf

3. Temp. control

4. Door gasket

5. Door rack

B: Fridge

1. Multifunctional tray (Or glass shelf)

2. Temp. control

3. Glass shelves

4. Crisper

5. Door gasket

6. Water tank **

7. Water dispenser *

8. Door rack **

A B ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

* : Only in some models.
** : If the model is without a water dispenser, the water tank is replaced with a door rack, and the upper door rack is replaced with three small door racks.

CONTROL PANEL

Please read the temperature regulation method carefully before use, and the compartment temperature of the fridge can be adjusted through the control panel. Type A is for model without control panel, and Type B is for model with one. Please refer to the E-manual for more relevant information.

Temperature Setting Recommendation
Compartment	Type A		Type B
	Freezer	Refrigeration	Freezer	Refrigeration
Summer(Higher than 32°C)	Set on 2-5 (set on the middle position when you make the ice)	cold colderSet on 5-6	Adjust in the shadow area,Set on the right of the shadow area when you make the ice.	Set on 3-5°C
Normal	Set on the middle position	cold colderSet on the middle position	Set on the visual position	Set on 4°C
Winter(A: Under 12°CB: Under 16°C)	Set on 5-8	cold colderSet on 6-7	Adjust in the shadow area	Set on 2-3°C
Unrecommended settings
Compartment	Setting		Effect
Freezer			It may cause the freezer compartment temperature increases.
			It may cause the refrigeration compartment temperature increases.
Refrigeration	Type A Type B
	cold colderSet on 1-2	NO FROSTB°CT5°CT4°CT3°CT2°CSet on 6-8°C	It may cause the freezer compartment temperature increases.
	cold colderSet on 7	NO FROSTB°CT5°CT4°CT3°CT2°CSet on 2°C	It may lead to the more energy consumption.

Unrecommended settings

Compartment	Setting		Effect
Freezer			It may cause the freezer compartment temperature increases.
			It may cause the refrigeration compartment temperature increases.
Refrigeration	Type A Type B
		S C	It may cause the freezer compartment temperature increases.
			It may lead to the more energy consumption.

Type A Type B

Important!

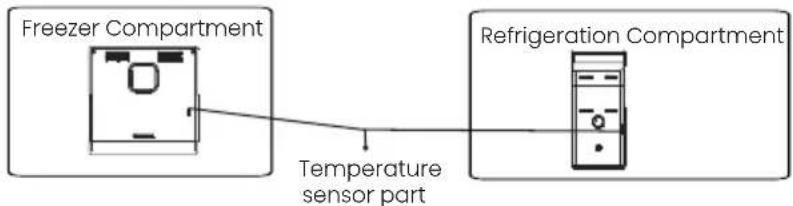

Don't place too much food directly against the air outlet of the temperature sensor part in Wind channel cover of the refrigerator compartment, as it affects that the appliance can't operate correctly.

CONTROL PANEL

NOTE: This feature is only available on models with control panel.

Controlling the temperature

• We suggest setting the fridge to 4^ for the first use.
• The set temperature is an average for the whole refrigerator, and actual temperatures can vary depending on food quantity, placement, and ambient temperature.
• Press "Temp." to cycle temperatures from 2^ to 8^ .

Super Cool

• Press "Mode" to activate, the Super Cool icon lights up and the fridge temperature indicate 2°C.
  • Super Cool mode automatically turns off after 3 hours.
• Press "Mode" or "Temp." to turn off Super Cool.

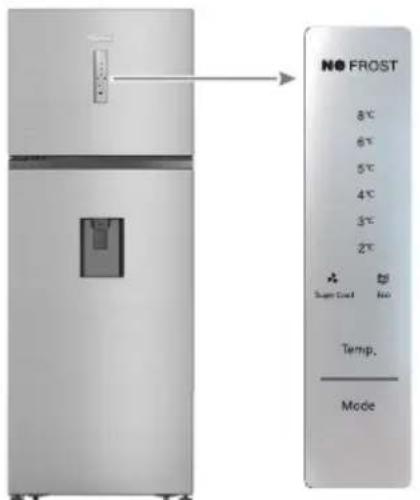

NO FROST 8°C 6°C 5°C 4°C 3°C 2°C Super Coat No Temp. Mode

Energy saving

• Press "Mode" to activate, the "Eco" icon lights up.
• When Energy Saving is on, the fridge temperature automatically sets to 6°C.
• Press "Mode" or "Temp." to turn off Energy Saving.

USING THE APPLIANCE

NOTE: This feature is only available on models with water dispenser.

1. Remove the water tank

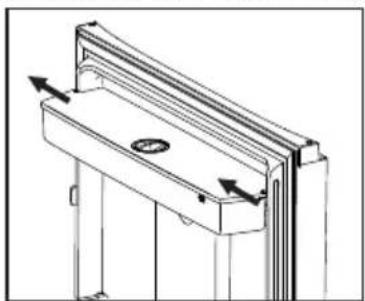

Pull out the water tank toward thirty degrees above the horizontal plane.

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

2. Install the water tank

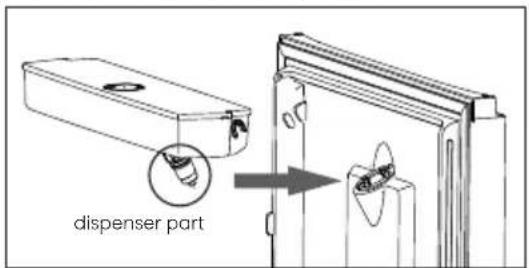

Put the dispenser part into the hole of the door. Align the door liner, then press in the water storage box toward thirty degrees below the horizontal plane.

dispenser part

3. Filling water

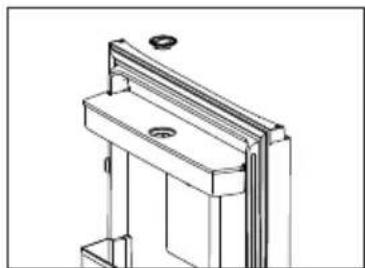

Firstly, turn the cover of storage box anticlockwise and pull out the cover. Secondly, pour water into storage box, watching out the limit line. Lastly, covering the cover.

Technical line drawing of a mechanical bracket or mounting structure (no text or symbols)

4. Obtain cooling water

Pressing the impact pole, cooling water will flow into your cup. And you can enjoy your cooling drink.

Line drawing of a refrigerator and a wall-mounted device (no text or symbols)

CLEANING AND CARE

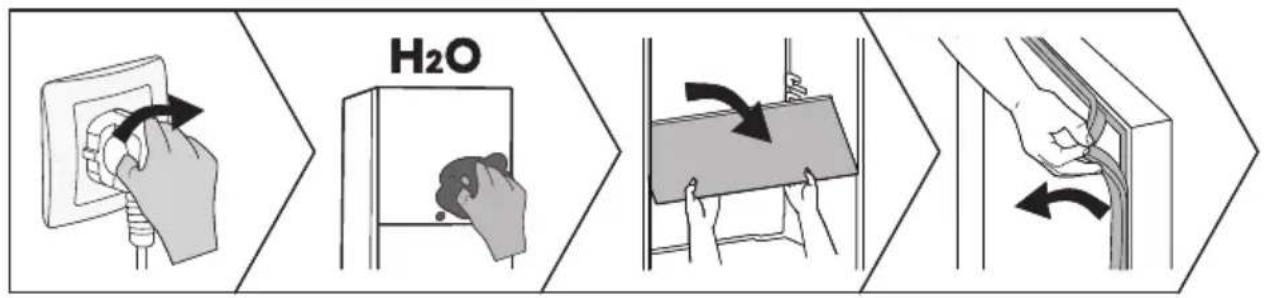

- For hygiene, clean the appliance (exterior and interior accessories) regularly at least every two months.

- Ensure the appliance is completely dry before switching back on and plugging back into the mains socket.

- Wipe the inside of the appliance with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth.

• Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet. Wash the seals with a mild detergent and warm water. Rinse and dry them thoroughly after cleaning.

- For more cleaning details, please refer to the E-manual.

HELPFUL HINTS AND TIPS

Energy saving tips

We recommend that you follow the tips to save energy.

• Try to avoid keeping the door open for long periods.
• Ensure the appliance is away from any sources of heat.
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance.

1. Remove all food.
2. Remove the power plug from the mains socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly to allow air to circulate.

- Please refer to the E-manual for more information.

TROUBLESHOOTING

• If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out the following easy checks before calling for service.
• NOTE: You can find more relevant information in the E-manual.

WARNING

Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

DANGER

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

Problem	Possible cause & Solution
Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.
A layer of frost occurs in the compartment	Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation. Ensure that the door can be fully closed.
Temperature inside is too warm	You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top.
Unable to connect appliance to Wi-Fi network	The Wi-Fi password was entered incorrectly, or the network could not be found.For specific network configuration operations, please refer to the electronic manual.

DISPOSAL OF THE APPLIANCE

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug.

WARNING

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Correct Disposal of this product

This marking indicates that this product should no be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

SUGGESTION OF USING THE APPLIANCE

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.(Special for models with water tanks)
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

SUGGESTION OF USING THE APPLIANCE

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• NOTE: The information below is for reference only, as functions may vary by models. Please get more details in the E-manual.

Order	Compartments type	Target storage temp.[°C]	Appropriate food	Storage life
1	Fridge	+2~+8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.	/
2	Four-star	≤-18	Seafood, freshwater aquatic products and meats.	≤3 months
3	Three-star	≤-18
4	Two-star	≤-12		≤2 months
5	One-star	≤-6		≤1 month
6	Zero-star	-6~0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc.. Partially packed/wrapped up encapsulated processed foods (non-freezable foods)	≤3 days
7	Chill	-3~+3	Seafood, pork, beef, chicken, freshwater aquatic products, etc..	2~7 days
8	Fresh Food	0~+4	Fresh pork, beef, fish, chicken, cooked food, etc..	≤3 days
9	Wine	+5~+20	Red wine, white wine, sparkling wine etc.	/

Hisense

life reimagined

QR code image containing encoded data, no visible human-readable text

MANUEL D'UTILISATION DE L'UTILISATEUR

Simple 3D diagram of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and two arrows indicating direction or flow.

DESCRIPTION DE L'APPAREIL

NO FROST 8% 6% 5% 4% 3% 2°C Super Cond Box Temp. Mode

Économie d'énergie

Technical line drawing of a mechanical assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket or mounting structure (no text or symbols)

Line drawing of a refrigerator and a wall-mounted cup holder (no text or symbols)

NETTOYAGE ET ENTRETIEN

CONSEILS ET ASTUCES UTILES

Warning symbol with exclamation mark and thermometer icon above a black rectangle

OK

QR code image containing encoded data, no visible human-readable text

BEDIENUNGSANLEITUNG

≥100mm 50~70mm 1850mm

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

Simple 3D diagram of a rectangular block with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow

Technical line drawing of a door frame with directional arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Line drawing of a refrigerator and a wall-mounted cup (no text or symbols)

QR code image containing encoded data, no visible human-readable text

MANUALE OPERATIVO PER L'UTENTE

≥100mm 50~70mm 1850mm

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

Isometric illustration of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and directional arrows, indicating restriction or prohibition.

DESCRIZIONE DELL'APPARECCHIO

Technical diagram of a refrigerator with numbered components and exploded view highlighting internal compartments and structural details.

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket or mounting structure (no text or symbols)

Line drawing of a refrigerator and a wall-mounted cup (no text or symbols)

QR code image containing encoded data, no visible human-readable text

≥100mm 50~70mm 1850mm

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

Simple 3D diagram of a rectangular block with a checkmark inside, and directional arrows indicating flow or movement (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow, commonly used in safety or clearance contexts.

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Line drawing of a refrigerator and a mirror with a glass container (no text or symbols)

LIMPIEZA Y CUIDADO

QR code image containing encoded data, no visible human-readable text

≥100mm 50~70mm 1850mm

Classe climática	Temperatura ambiente
SN	+10°C a +32°C
N	+16°C a +32°C
ST	+16°C a +38°C
T	+16°C a +43°C

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

Isometric illustration of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and two arrows indicating direction or flow.

Technical diagram of a refrigerator with numbered components and exploded view highlighting internal compartments and structural details.

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Line drawing of a refrigerator and a wall-mounted refrigerator with a hand gesture (no text or symbols)

LIMPEZA E CUIDADO

SUGESTÕES E DICAS ÚTEIS

QR code image containing encoded data, no visible human-readable text

GEBRUIKERHANDLEIDING

VEILIGHEIDS-EN WAARSCHUWINGSINFORMATIE

VEILIGHEIDS-EN WAARSCHUWINGSINFORMATIE

VEILIGHEIDS-EN WAARSCHUWINGSINFORMATIE

VEILIGHEIDS-EN WAARSCHUWINGSINFORMATIE

≥100mm 50~70mm 1850mm

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

Isometric illustration of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow, suggesting a restriction or prohibition.

BESCHRIJVING VAN HET APPARAAT

Technical diagram of a refrigerator with numbered components and exploded view highlighting internal compartments and structural details.

Technical line drawing of a mechanical bracket or mounting structure with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Illustration of a refrigerator and a hand holding a cup, both without any text or symbols

REINIGEN EN ONDERHOUD

QR code image containing encoded data, no visible human-readable text

BRUKSANVISNING

Brandrisk/brandfarliga material

≥100mm 50~70mm 1850mm

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

t justerbara fötter justerbara fötter

INSTALLATION AV DIN NYA APPARAT

WARNING

Isometric illustration of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and directional arrows, indicating restriction or prohibition.

BESKRIVNING AV APPARATEN

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

dispenserdel

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

4. Få kylt vatten

Line drawing of a refrigerator and a wall-mounted cup (no text or symbols)

RENGÖRING OCH SKÖTSEL

QR code image containing encoded data, no visible human-readable text

BRUGERMANUAL

INSTALLATION AF DIT NYE APPARAT

≥100mm 50~70mm 1850mm

Klimaklasse	Omgivelsestemperatur
SN	+10°C til +32°C
N	+16°C til +32°C
ST	+16°C til +38°C
T	+16°C til +43°C

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

INSTALLATION AF DIT NYE APPARAT

ADVARSEL

Simple 3D diagram of a rectangular block with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow, commonly used in safety or hazard prevention.

BESKRIVELSE AF APPARATET

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

4. Få kølevand

Line drawing of a refrigerator and a mirror with a glass container (no text or symbols)

RENG∅RING OG PLEJE

NYTTIGE RÅD OG TIPS

Energibesparende tips

QR code image containing encoded data, no visible human-readable text

BRUKERVEILEDNING

≥100mm 50~70mm 1850mm

Nivellering av apparatet (om nødvendig):

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

Isometric illustration of a rectangular box with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a prohibition symbol inside a rectangular box with arrows indicating direction or flow, commonly used in safety or clearance contexts.

BESKRIVELSE AV APPARATET

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

dispenserdel

3. Fylle vann

Technical line drawing of a mechanical bracket or mounting structure (no text or symbols)

4. Få kjølevann

Line drawing of a refrigerator and a wall-mounted cup (no text or symbols)

RENGJ∅RING OG STELL

NYTTIGE TIPS OG RÅD

Energisparetips

QR code image containing encoded data, no visible human-readable text

KÄYTTÖOHJEET

≥100mm 50~70mm 1850mm

704mm 100mm 100mm 686mm 1339mm 130° 1155mm

Simple 3D diagram of a rectangular block with a checkmark inside, surrounded by directional arrows (no text or symbols)

Diagram showing a 3D rectangular block with a prohibition symbol and directional arrows, likely indicating restriction or prohibition.

LAITTEEN KUVAUS

Technical line drawing of a mechanical assembly with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

4. Kylmä vesi

Line drawing of a refrigerator and a wall-mounted cup (no text or symbols)

PUHDISTUS JA HOITO

