01933 - Pressure washer N8WERK - Free user manual and instructions

Product type	Cordless high-pressure cleaner
Brand	N8WERK
Model	01933
Model number	G-101
Color	Black
Rated voltage	11.1 V
Max. power	35 W
Battery type	Built-in lithium-ion, 2000 mAh (3 cells)
Charging time	Approx. 3 hours
Runtime	Approx. 90 minutes (full battery)
Water tank capacity	280 ml max.
Handle battery	1 x CR2032 (3 V)
Power supply	Model YNY12WB-140050DE, input 100-240 V~50/60 Hz, output 14 VDC 0.5 A
Protection class	II
Use	Domestic, indoor and outdoor
Compatible floor types	Smooth floors: parquet, laminate, tile, etc.
Spray function	Yes, with trigger
LED lighting	Yes (LED)
Pad cleaning	Removable machine-washable pads (without fabric softener)
Included accessories	Unit body, power supply, handle, 3-part pole, measuring cup, 2 wash pads, user manual

Frequently Asked Questions - 01933 N8WERK

How to recharge the batteries of the N8WERK 01933 cordless high-pressure cleaner?

Fold the handle receiver upright to deactivate the device. Open the protective cover on the body and plug the included power supply (YNY12WB-140050DE) into the charging socket. Plug the power supply into a wall outlet. The charge level indicator flashes during charging and stays permanently lit when the batteries are fully charged (approx. 3 hours).

How to assemble the device?

Fit the handle tubes together (tube → connector → tube) until they click. Insert the handle onto the upper tube (click). Finally, insert the assembled handle into the receiver on the device body (click). To disassemble, press the release buttons.

What to do if the device does not turn on?

First check that the batteries are charged (the charge level indicator should light up). Make sure the handle receiver is tilted back to activate the device. If this does not work, replace the CR2032 battery in the handle (used battery).

How to clean the wash pads?

Remove the pads from the cleaning feet. Machine wash them at 60 °C (normal cycle) without fabric softener, preferably with similar colored textiles. Do not use bleach or a tumble dryer.

What is the water tank capacity?

The water tank can hold a maximum of 280 ml. Use the included measuring cup to fill it. Do not exceed this capacity.

What is the battery runtime?

With fully charged batteries, runtime is approximately 90 minutes of continuous use. To extend the duration, turn off the device between each cleaned surface.

What type of battery does the handle use?

The handle uses a CR2032 3V button cell battery, already installed at delivery. If needed, open the handle by removing the screws, replace the battery while observing polarity (+ facing up).

Can I use the device without water?

Yes, the device works dry (without spraying) for dry cleaning. The wash pads vibrate and capture dust. Use the trigger only if you want to dampen the floor.

What to do in case of battery leakage?

Avoid any contact with the electrolyte. Wear protective gloves. In case of skin contact, rinse immediately and thoroughly with clean water and consult a doctor. Do not disassemble the battery.

How to store the device?

Empty the remaining water tank. Clean the device with a soft, damp cloth. Recharge the batteries after each use. Store the device and accessories in a dry place, out of the sun, out of reach of children and animals.

USER MANUAL 01933 N8WERK

GEFAHR-STROMSCHLAG- GEFAHR

WARNING - GEFAHR DURCH AKKUS!

WISCHPADS ANBRINGEN/ABNEHMEN

Beachten!

AT	✓	DK	✓	GR	✓	LU	✓	RO	✓
BE	✓	EE	✓	HU	✓	LV	✓	SE	✓
BG	✓	ES	✓	HR	✓	MT	✓	SI	✓
CY	✓	FI	✓	IE	✓	NL	✓	SK	✓
CZ	✓	FR	✓	IT	✓	PL	✓
DE	✓	GB	✓	LT	✓	PT	✓

Assembling the Device 14

Charging Up the Battery 14

Replacing the Battery in the Handle 15

Filling the Water Tank 15

Use 16

Cleaning and Storage 16

Troubleshooting 16

Warranty and Limitations of Liability 17

Disposal 17

Technical Data 18

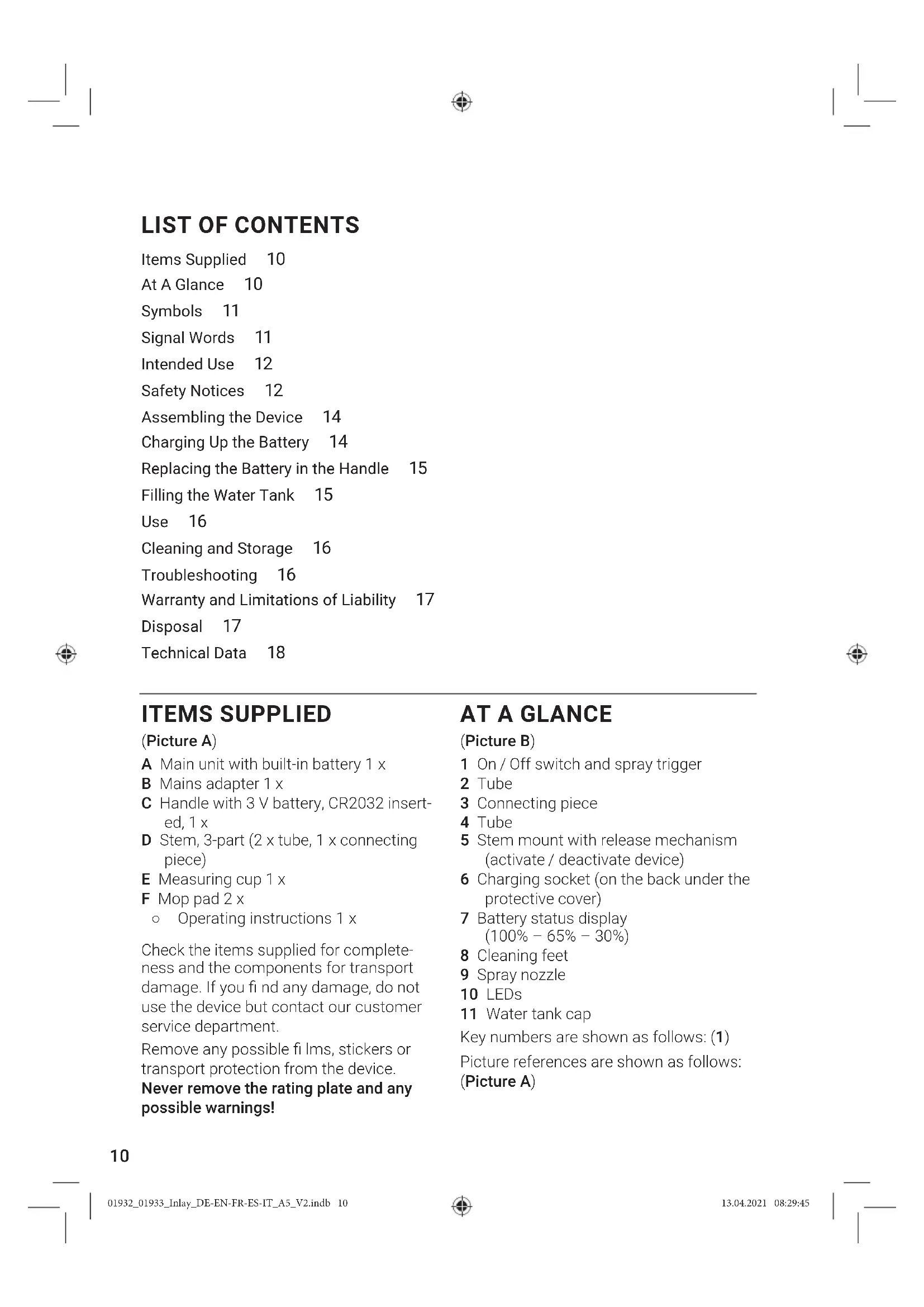

ITEMS SUPPLIED

(Picture A)

A Main unit with built-in battery 1 x
B Mains adapter 1 x
C Handle with 3V battery, CR2032 inserted, 1 x
D Stem, 3-part (2 x tube, 1 x connecting piece)
E Measuring cup 1 x
F Mop pad 2 x - Operating instructions 1 x

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove any possible fims, stickers or transport protection from the device.

Never remove the rating plate and any possible warnings!

AT A GLANCE

(Picture B)

1 On/Off switch and spray trigger
2 Tube
3 Connecting piece
4 Tube
5 Stem mount with release mechanism (activate/deactivate device)
6 Charging socket (on the back under the protective cover)
7 Battery status display (100% -65% -30%)
8 Cleaning feet
9 Spray nozzle
10 LEDs
11 Water tank cap Key numbers are shown as follows: (1)
Picture references are shown as follows: (Picture A)

Dear Customer,

We are delighted that you have chosen the N8WERK vibrating mop and hope you have a lot of fun with it.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: n8werk.com

Information About the Operating Instructions

Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

SYMBOLS

Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them.

Supplementary information

Read the operating instructions before use!

Protection class II

Only use indoors!

Polarity of the barrel connector (mains adapter) Direct current

Energy efficiency class VI

Alternating current

60^ normal wash cycle

Do not dry in a tumble dryer

Do not dry-clean

Do not bleach

Do not iron

SIGNAL WORDS

Signal words indicate hazards if the associated notices are not followed.

DANGER - high risk, results in serious injury or death

WARNING - medium risk, may result in serious injury or death

CAUTION - low risk, may result in minor or moderate injury

NOTICE - may result in risk of damage to material

INTENDED USE

This device is suitable for dry and damp cleaning of different types of surfaces (floors, stairs etc.).
It can be used both indoors and outdoors.
This device is not suitable for mopping up:

highly flammable or combustible liquids,

glowing or burning ash.

The device is suitable for personal use only and not for commercial applications.
Use the device only for the specified purpose and as described in the operating instructions. Any other use is deemed to be improper.

SAFETYNOTICES

WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and/or injuries.

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
Children must not play with the device.
- Cleaning and user maintenance must not be carried out by children without supervision.
- Never exceed the maximum fill level of the water tank (max. 280 ml). It is essential to follow the instructions in the "Filling the Water Tank" chapter.

The device must always be switched off and disconnected from the mains power before it is cleaned.
- Only ever charge up the battery using the mains adapter that is supplied (YNY12WB-140050DE). Do not charge any other devices with the mains adapter.

• Do not make any modifications to the device! If the device, the connecting cable of the mains adapter or the battery are damaged, they must be replaced or repaired by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

DANGER - DANGER OF ELECTRIC SHOCK

• Charge and store the device only in closed rooms.
• Never immerse the device or the connecting cable in water or other liquids. Make sure that the device and the connecting cable cannot fall into water or become wet.
  If the device falls into water while it is connected to the mains power, switch off the power supply immediately. Only after this should you pull the device out of the water!
• Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.
  If the device is used outdoors, make sure that it is not exposed to any rain or moisture.

WARNING - DANGER OF INJURY

• Keep children and animals away from the packaging material. There is a danger of suffocation.
  If the battery leaks, avoid physical contact with the battery acid. Wear protective gloves if necessary. If you touch battery acid, rinse the affected areas with abundant clear water straight away and seek medical assistance immediately. There is a danger of burns from battery acid!
  Make sure that the connecting cable is always kept out of the reach of young

children and animals. There is a danger of strangulation.

Make sure that the connecting cable does not present a trip hazard.
Do not use the device if it is damaged.

WARNING - DANGER FROM RECHARGEABLE BATTERIES!

The main unit with a built-in battery must not be taken apart, thrown into a fire or exposed to high temperatures of over +40^ . The battery could ignite or explode.
Make sure that the handle and the main unit (apart from the water tank) cannot get wet. Do not use the device if liquid has got inside it. The battery in the main unit could ignite or explode.
- Do not cover the device and the connecting cable during charging to prevent overheating.

NOTICE - RISK OF DAMAGE TO MATERIAL AND PROPERTY

Make sure that the connecting cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.
- Do not wind the connecting cable around the device or mains adapter (this may cause the cable to break).
The device should only be used if it has been fully and correctly assembled!
Pull the mains adapter out of the plug socket if an error occurs during charging or before a thunderstorm.

The device must be switched off when the mains adapter is pulled out or inserted into the plug socket. Always pull the mains adapter and never the mains cable to disconnect the device from the mains power.
- Do not use the device when it is still connected to the mains adapter.
- Protect the device from: heat, naked flames, sub-zero temperatures, direct sunlight and impacts.
- Never place objects on the device or the connecting cable.
Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.

NOTICE - RISK OF DAMAGE TO MATERIAL AND PROPERTY FROM BATTERIES

• Remove the battery from the handle when it is used up. This will prevent any damage caused by leaks.
  Use only the battery type specified in the technical data. Pay attention to the correct polarity (+ / -) when replacing batteries.
  Non-rechargeable batteries must not be recharged or reactivated by other means, dismantled, thrown into a fire, immersed in fluids, or short-circuited.

ASSEMBLING THE DEVICE

PLEASE NOTE: Fold the stem mount (5) on the main unit (A) upwards. It must be upright so that the device is deactivated and cannot be switched on accidentally.

1. Plug the tube parts (2 - 4) into each other as follows: tube > connecting piece > tube. Each part must be heard to engage in the other.

2. Plug the handle (C) onto an aluminium tube at the top. It must engage audibly.

3. Plug the stem with the handle into the stem mount on the main unit. It must engage audibly.

To detach the stem, the handle or the individual tube parts, in each case press the corresponding release buttons and pull out the respective part.

ATTACHING / DETACHING MOP PADS

Please Note!

The mop pads must not be attached to the cleaning feet when they are wet.

Attaching: Attach one mop pad (F) in each case to a cleaning foot (8) using the hook and loop fastener.
Detaching: Pull the mop pads off the cleaning feet (Picture C).

CHARGING UP THE BATTERY

Please Note!

Risk of a short circuit! Do not stick any conducting objects (e.g. a screwdriver or similar implement) into the charging socket.
Only connect the mains adapter to a plug socket that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
Pull the mains adapter out of the plug socket if it is not going to be used for a lengthy period of time.
It is essential that you charge up the battery fully before you first use the

device in order to achieve the maximum charging capacity.

1. Fold the stem mount (5) on the main unit (A) upwards. It must be upright so that the device is deactivated and cannot be switched on accidentally.
2. Open the protective cover for the charging socket (6) on the main unit and connect the barrel connector of the mains adapter (B) to the charging socket.
3. Connect the mains adapter to a plug socket. The battery status display (7) flashes (30%, 65%, 100%) charge). The battery is fully charged up when the battery status display is constantly lit.
4. Disconnect the mains adapter from the mains power and then from the main unit.
5. Close the protective cover for the charging socket again.

The battery status display lights up red when the battery is empty.

REPLACING THE BATTERY IN THE HANDLE

The handle (C) is equipped with a 3 V battery, CR2032 (already inserted on delivery) and communicates with the main unit wirelessly. The battery compartment is located in the handle. If the device cannot be switched on even though the battery of the main unit (A) is fully charged, the battery in the handle may need to be replaced. To do this, proceed as follows:

1. Remove the white covers using a pointed object.
2. Remove the screws in the handle with a screwdriver.

3. Carefully take apart the handle.

4. Remove the used battery and insert a new 3 V battery of the CR2032 type. The positive pole must be facing upwards.

Before inserting the battery, check whether the contacts in the handle and on the battery are clean, and clean them if necessary.

1. Place both parts of the handle together again. If necessary, make sure that the spring rests on the bottom black button.
2. Insert the screws and screw them so they are handtight.
3. Place the covers into the holes.

FILLING THE WATER TANK

Please Note!

• When the water tank is filled, the main unit must not be tilted, turned upside down or laid or placed on its side. Water could leak out!

• Fold the stem mount (5) on the main unit (A) upwards. It must be upright so that the device is deactivated and cannot be switched on accidentally.

• Open the water tank cap (11) on the main unit.
• Fill the water tank with water (max. 280ml ) using the measuring cup (E) (Picture D).
• Close the water tank cap.

USE

Switch off the device after you fi nish cleaning each surface to signifi cantly increase the operating time on each battery charge.

1. Tilt the stem mount (5) on the main unit (A) back a little using the handle (C) in order to trigger the release mechanism and activate the device. The LEDs (10) switch on and the battery status display (7) lights up.
2. Press the On / Off switch (1) on the handle to switch on the device. The two cleaning feet (8) start to vibrate.
3. Guide the device over the surface to be cleaned or polished.
4. If necessary, press the spray trigger (1) on the handle to wet the floor with the aid of the spray nozzle (9).
5. To switch off the device, press the On/Off switch on the handle again. The cleaning feet stop vibrating.
6. Tilt the stem mount on the main unit upwards using the handle in order to trigger the release mechanism and deactivate the device. You must feel the stem engage. The LEDs switch off and the battery status display goes out.

CLEANING AND STORAGE

Please Note!

During cleaning make sure that no liquid gets into the main unit (apart from the water tank) or the handle.
- Do not use any sharp or abrasive cleaning agents to clean the housing. They may damage the surfaces.

The mop pads may lose some of their colour over time. This is normal and does not have any ad

verse effect on function. However, if one of the mop pads is damaged or worn, it must be replaced.

If there is still water in the water tank, empty it.
Clean the device with a damp, soft cloth if necessary. Then dry with a soft cloth.
Pull the mop pads (F) off the cleaning feet (8) and clean them. Note the washing label when you do this! Please Note: Wash separately or with similar colours. Do not use fabric softener.
Charge up the battery after every use (see the "Charging Up the Battery" chapter).
Store the device and the accessories in a dry place which is protected from sunlight and is out of the reach of children and animals.

TROUBLESHOOTING

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps listed, contact the customer service department.

Do not attempt to repair an electrical device yourself!

The battery is not charging. The battery status display (7) does not light up when the device is connected to the mains power.

The mains adapter is not inserted in the plug socket correctly.

• Correct the fit of the mains adapter. The barrel connector is not plugged correctly in the charging socket (6) of the main unit (A).
• Correct the connection between the charging socket and barrel connector. The plug socket is defective.

Try another plug socket.
There is no mains voltage.
Check the fuse of the electrical distributor (fuse box).

The device cannot be started.

The battery of the device is too weak.

Charge up the battery.
The release mechanism in the stem mount (5) has been triggered.
Activate the device by tilting the stem or the stem mount backwards.

The battery in the handle (C) is too weak.
Replace the battery.

The device is not working correctly.

The floor is unsuitable for the device.
The device only works on smooth floors such as parquet, laminate, tiles etc.

WARRANTY AND LIMITATIONS OF LIABILITY

The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

We do not accept any liability for damage or consequential damage resulting from:

• failure to follow the operating instructions
  improper or unsuitable handling
  ○ repairs which are not carried out properly
  unauthorised modifications
  use of outside parts or spare parts
• use of unsuitable additional parts or accessories

DISPOSAL

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

The battery in the handle should be removed before disposing of the device and disposed of separately from the device at suitable collection points.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device with a built-in battery as normal domestic waste, but rather in an environmentally friendly manner via an offi cially approved waste disposal company.

TECHNICAL DATA

ID of operating instructions: Z 01932_01933 M N8W V1.1 0421 uh

Device

Article number: 01932 (white); 01933 (black)

Model number: G-101

Voltage supply: 11.1 V (3x Li-ion battery, 2000mAh)

Power: 35 W (max.)

Handle

Model number: CMT2150A

Voltage supply: 3 V DC (1 x 3 V battery, CR2032)

Battery

Charge time: approx. 3 hours

Operating time: approx. 90 minutes (with fully charged battery)

Mains adapter

Model number: YNY12WB-140050DE

Input: 100 - 240V 50 / 60Hz;0.5A

Output: 14 V DC; 0.5 A

Protection class: II

DS Produkte GmbH hereby declares that the radio equipment type [CMT2150A] complies with Directive 2014/53/EU.

The complete text of the EU declaration of conformity is available at the following internet address: www.dspro.de

Designated for sale in the following member states of the European Union:

AT	✓	DK	✓	GR	✓	LU	✓	RO	✓
BE	✓	EE	✓	HU	✓	LV	✓	SE	✓
BG	✓	ES	✓	HR	✓	MT	✓	SI	✓
CY	✓	FI	✓	IE	✓	NL	✓	SK	✓
CZ	✓	FR	✓	IT	✓	PL	✓
EN	✓	GB	✓	LT	✓	PT	✓

All rights reserved.

SOMMAIRE

Composition 19

Apergu general 19

Symboles 20

Chere cliente, cher client,

REEMPLACEMENT DELA PILE AU SEIN DE LA POIGNEE

AT	✓	DK	✓	GR	✓	LU	✓	RO	✓
BE	✓	EE	✓	HU	✓	LV	✓	SE	✓
BG	✓	ES	✓	HR	✓	MT	✓	SI	✓
CY	✓	FI	✓	IE	✓	NL	✓	SK	✓
CZ	✓	FR	✓	IT	✓	PL	✓
DE	✓	FR	✓	LT	✓	PT	✓

AT	✓	DK	✓	GR	✓	LU	✓	RO	✓
BE	✓	EE	✓	HU	✓	LV	✓	SE	✓
BG	✓	ES	✓	HR	✓	MT	✓	SI	✓
CY	✓	FI	✓	IE	✓	NL	✓	SK	✓
CZ	✓	FR	✓	IT	✓	PL	✓
DE	✓	GB	✓	LT	✓	PT	✓

SOMMARIO

AT	✓	DK	✓	GR	✓	LU	✓	RO	✓
BE	✓	EE	✓	HU	✓	LV	✓	SE	✓
BG	✓	ES	✓	HR	✓	MT	✓	SI	✓
CY	✓	FI	✓	IE	✓	NL	✓	SK	✓
CZ	✓	FR	✓	IT	✓	PL	✓
IT	✓	GB	✓	LT	✓	PT	✓
