Product type	Oven
Brand	Orbegozo
Model	HO 393
Power supply	220-240 V ~ 50/60 Hz
Power	1400 W (typical estimate)
Capacity	Approximately 30 liters (not specified, estimated)
Dimensions (W x D x H)	Approximately 50 x 35 x 30 cm (estimated)
Weight	Approximately 8 kg (estimated)
Door material	Transparent tempered glass
Handle	Cool touch
Thermostat	Adjustable (max 230 °C)
Timer	Up to 120 minutes (estimated)
Heating functions	Top heat, bottom heat, dual heat
Included accessories	Grill rack, baking tray, crumb tray, accessory hook
Indicator light	Indicates the oven is heating
Child safety	Supervision recommended for children under 8 years
Safety distance	50 cm above, 20 cm on sides
Cleaning	Hand wash accessories; damp sponge for exterior; do not immerse
Removable crumb tray	Yes, to collect grease
Use	Household only
Warranty	Legal warranty according to applicable legislation
Compliance	Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU
Recycling	Do not dispose with household waste; follow WEEE Directive 2012/19/EU

Frequently Asked Questions - HO 393 Orbegozo

How to preheat the Orbegozo HO 393 oven?

Set the function selector to the desired position (e.g., dual heat), turn the thermostat to the desired temperature (e.g., 230 °C), then set the timer to 15 minutes. Let the oven heat empty without food or accessories.

What is the power of the HO 393 oven?

The power is not specified in the manual, but for an oven of this size, it is generally around 1400 W.

Can I use aluminum foil in the oven?

Yes, if the food is greasy, you can place two sheets of aluminum foil: one on the crumb tray and another to cover the food to avoid splashes.

How to clean the Orbegozo HO 393 oven?

Let it cool completely and unplug. Clean the exterior with a damp sponge. Accessories (rack, tray, pan) can be hand washed or in the dishwasher. Never immerse the oven in water.

What to do if the oven emits smoke during first use?

This is normal: it is the burning off of manufacturing residues. Ensure the room is well ventilated and run the oven at 230 °C for 15 minutes empty. The smoke will disappear quickly.

What heating functions are available?

The oven offers three modes: top heat (grill), bottom heat (baking from below), and dual heat (both heating elements). Use the function selector to choose.

Is the oven suitable for children?

The appliance can be used by children aged 8 years and above under supervision. Children should not play with it. Keep the oven and cord out of reach of children under 8 years.

What safety distance should be maintained around the oven?

Leave a space of at least 50 cm above the oven and 20 cm on the sides. Place it on a heat-resistant surface away from flammable materials like curtains.

How to use the accessory hook?

The hook allows lifting the rack or hot tray without burning yourself. Hook it onto the rack or tray to remove them from the oven.

Where to find after-sales service for the Orbegozo HO 393 oven?

Visit https://orbegozo.com/asistencia-tecnica/ to find the nearest service center. For any questions, contact via https://orbegozo.com/contacto/.

USER MANUAL HO 393 Orbegozo

Exterior view of a black Bohegozo microwave oven with control knobs and a temperature scale (no text-heavy elements)

H0 393

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Technical diagram of a microwave oven with numbered parts for identification

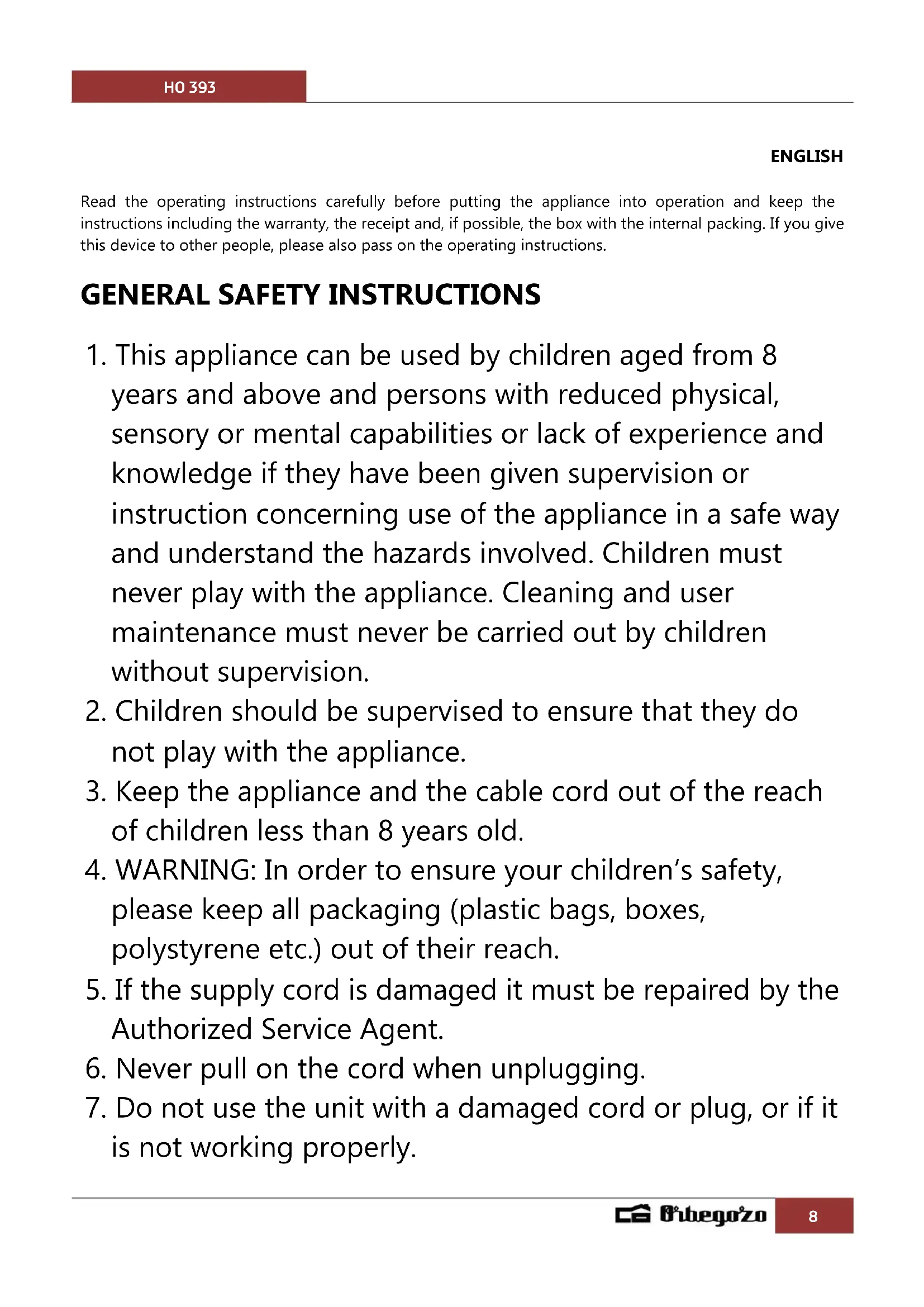

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
14. WARNING: In case of misuse, there is a risk of possible injury.

- CAUTION: Surface may remain hot during or after use.

• The appliance is not intended to be operated by means of an external timer or separate remote control system.
• The back of the appliance should be placed against the wall.
• The oven radiates heat. Therefore, do not place it near flammable materials such as curtains or wood.
• Keep a distance of 50cm upwards and a distance of 20cm to the sides.

• Place the appliance on a surface that is resistant to high temperatures.

• Make sure the timer is in the OFF position when the appliance is not in use.

• Make sure that the power cable does not come into contact with hot parts of the appliance.
• Do not touch hot parts of the appliance. Use a potholder.

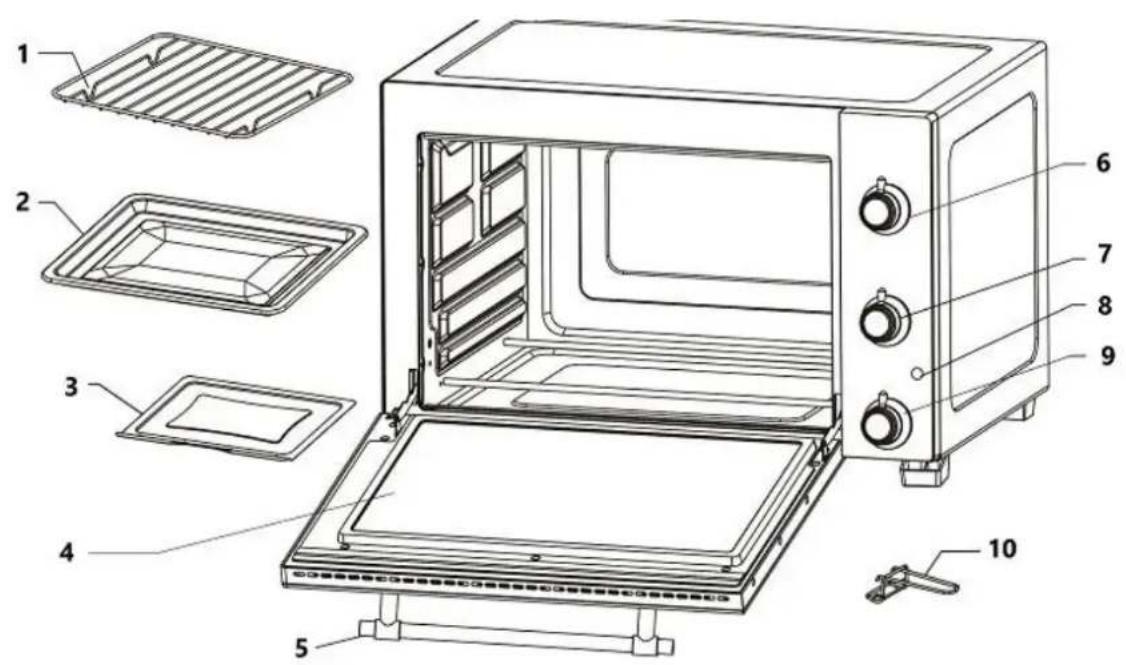

PRODUCT DESCRIPTION

Technical diagram of a microwave oven with numbered parts for identification

1. Grill grid
2. Baking tray
3. Crumb tray
4. Glass door
5. Handle
6. Thermostat
7. Function
8. Indicator light
9. Timer
10. Accessory hook

CHARACTERISTICS

Controls: To control the temperature, functions and timer

Grill Rack: For toasting, baking and general cooking in casseroles and loading the food tray.

Food Tray: For roasting and baking various foods that contain water or release water or oil during cooking.

Accessory Hook: Allows you to lift the food tray and grill to prevent burns.

Door Handle: Cool touch handle to prevent burns.

Glass Door: Clear tempered glass allows you to view the cooking process comfortably.

BEFORE FIRST USE

-Remove all packaging materials from the appliance.

- Remove all accessories (grill, tray, rotisserie set, food tray handle) from the appliance.

- Clean the oven and accessories with a damp cloth and then dry.

- Unroll the power cord completely. Then plug it into a power outlet.

- Set the function selector to

- Set the thermostat knob to 230°C.

- Set the timer to 15 minutes so that the oven runs empty (without food or accessories) during this period.

CAUTION: The oven may emit a slight odor and some smoke when used for the first time. This is normal and will disappear very quickly. Make sure the appliance is operated in a well-ventilated area.

USE OF THE OVEN

- Tips

For baking and roasting, it is advisable to always preheat the oven to the desired cooking temperature to achieve perfect cooking.

- Place the crumb tray under the baking rack to prevent fat from dripping onto the heating elements and the bottom of the oven.

- If the food being cooked is oily or greasy, two sheets of aluminium foil can be used. Place one on the crumb tray and cover the food with the other. This helps prevent oil and grease from splashing onto the oven walls during cooking.

FUNCTIONS

	: Stop cooking in the oven
	: Upper heat
	: Lower heat
	: Dual heat

MAINTENANCE AND CLEANING

- Allow the oven to cool completely before cleaning. Unplug it from the power outlet.

- The griddle, the grease tray and the drip tray can be cleaned in the usual way, either by hand or in the dishwasher.

- Always use a damp sponge to clean the external surfaces. Do not use abrasive substances, as they may damage the coating. Be careful not to allow water or detergent to enter the oven through the ventilation holes on its surface.

- Never immerse the oven in water or any other liquid.

- To clean the interior, never use corrosive substances (spray detergents) or scratch the surfaces with sharp or pointed objects.

- If the appliance is not kept clean, its surface may be damaged, which would negatively affect its lifespan and lead to a dangerous situation. The oven must be cleaned periodically and any food residue removed.

Removing and cleaning the grease collection tray

• Remove and clean the grease collection tray by pulling its handle.
• Wash it with soapy water and let it dry.
• Never use abrasive substances.
• Replace the grease collection tray.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be

separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
