HOT 398 - Oven Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	HOT 398
Category	Oven
Oven type	Tabletop oven
Cooking functions	Top heat, bottom heat, double heat, top heat with convection, double heat with convection
Included accessories	Grill rack, baking tray, crumb tray, accessory hook
Controls	Thermostat (temperature setting), function selector, timer, indicator light
Door	Tempered glass door with cool handle
Capacity	Approximately 20 liters (estimated)
Power	1500 W (estimated)
Power supply	220-240 V ~ 50/60 Hz
Maximum temperature	230 °C
Safety	Hot surface after use, do not immerse, keep out of reach of children, do not use with an external timer
Maintenance and cleaning	Clean with a damp sponge, do not use abrasive products, removable crumb tray dishwasher safe
Compliance	Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
Warranty	Legal warranty in accordance with current legislation
After-sales service	Contact via https://orbegozo.com/asistencia-tecnica/

Frequently Asked Questions - HOT 398 Orbegozo

Why does my oven emit an odor or smoke during first use?

This is normal. The oven may emit a slight odor and some smoke during first use due to the burning off of manufacturing residues. Run the oven empty at 230°C for 15 minutes in a well-ventilated area. The smell will disappear quickly.

How to clean the interior of the Orbegozo HOT 398 oven?

Let the oven cool completely and unplug it. Clean the interior with a damp sponge without corrosive detergents. Never use sharp objects or abrasive substances. The crumb tray can be removed and washed with soapy water or in the dishwasher.

Can I use aluminum foil in the oven?

Yes, for greasy foods, place a sheet of aluminum foil on the crumb tray and another on the food to prevent oil splatters on the oven walls.

How to preheat the oven correctly?

Set the thermostat to the desired cooking temperature and wait for the indicator light to turn off, indicating the oven has reached temperature. It is advisable to preheat before cooking for perfect results.

What to do if the timer does not work?

Make sure the timer is in the OFF position when not using the appliance. If the problem persists, check the plug and cord. Contact authorized technical service if necessary.

Can I leave the oven unattended during cooking?

It is not recommended to leave the oven unattended. Always monitor cooking, especially for greasy foods, to avoid any risk of fire.

How to use the convection function?

Turn the function selector to the 'Double heat and convection' position (symbol with fan). This function allows more even cooking by circulating hot air. Optionally reduce the temperature by 10-20°C compared to cooking without convection.

My oven is not heating up anymore, what should I do?

Check that the cord is properly plugged in and the outlet works. Make sure the thermostat and function selector are set correctly. If the problem persists, contact authorized technical service via the Orbegozo website.

Can I clean the oven with chemical products?

No, never use spray detergents, corrosive substances, or abrasive sponges. Use only a damp, soft sponge to avoid damaging the coating.

How to install the oven safely?

Place the oven on a heat-resistant surface, away from flammable materials. Maintain a distance of 50 cm above and 20 cm on the sides. The back of the appliance should be against the wall. Do not use with an external timer.

USER MANUAL HOT 398 Orbegozo

MINI HORNO - MANUAL DE INSTRUCCIONES MINI OVEN - INSTRUCTION MANUAL MINI FOUR - MANUEL D'INSTRUCTIONS MINI FORNO - MANUAL DE INSTRUÇÕES MINI FORN - MANUAL D'INSTRUCCIONS

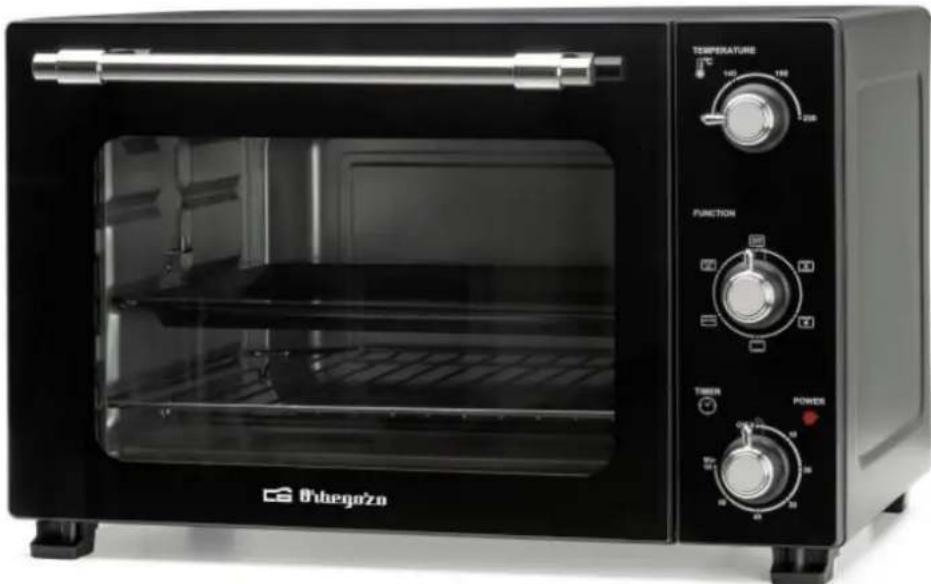

Exterior view of a black Dhegoto 10-wheat cooktop oven with control knobs and a temperature scale (no text-heavy elements)

HOT 398

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

- CAUTION: The surface can remain hot during or after use.

- Do not operate the device connected to an external timer or a separate remote control system.

- The rear of the appliance should be against the wall.

- The oven gives off heat. You should therefore not place it close to combustible materials such as curtains or wood.

- The clearance above the oven should be at least 50 cm and at least 20 cm at the sides.

- Put the unit down onto a heat-resistant mat.

- Ensure that the timer is in the “off” position when you are not using the unit.

- Please ensure that the mains lead does not come into contact with the hot sections of the device.

- Do not touch the hot parts of the device. Use an oven cloth if necessary.

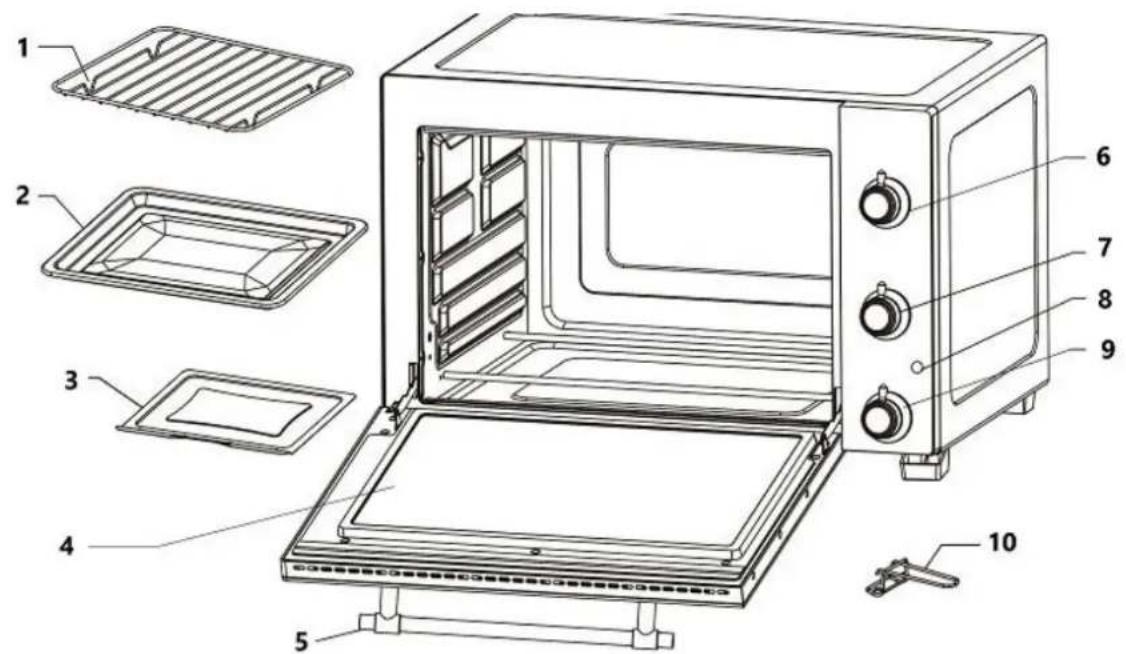

PRODUCT DESCRIPTION

1. Grill grid
2. Baking tray
3. Crumb tray
4. Glass door
5. Handle
6. Thermostat
7. Function
8. Indicator light
9. Timer
10. Accessory hook

CHARACTERISTICS

Controls: To control the temperature, functions and timer

Grill Rack: For toasting, baking and general cooking in casseroles and loading the food tray.

Food Tray: For roasting and baking various foods that contain water or release water or oil during cooking.

Accessory Hook: Allows you to lift the food tray and grill to prevent burns.

Door Handle: Cool touch handle to prevent burns.

Glass Door: Clear tempered glass allows you to view the cooking process comfortably.

BEFORE FIRST USE

-Remove all packaging materials from the appliance.

- Remove all accessories (grill, tray, rotisserie set, food tray handle) from the appliance.

- Clean the oven and accessories with a damp cloth and then dry.

- Unroll the power cord completely. Then plug it into a power outlet.

- Set the function selector to

- Set the thermostat knob to 230°C.

- Set the timer to 15 minutes so that the oven runs empty (without food or accessories) during this period.

CAUTION: The oven may emit a slight odor and some smoke when used for the first time. This is normal and will disappear very quickly. Make sure the appliance is operated in a well-ventilated area.

USE OF THE OVEN

- Tips

For baking and roasting, it is advisable to always preheat the oven to the desired cooking temperature to achieve perfect cooking.

- Place the crumb tray under the baking rack to prevent fat from dripping onto the heating elements and the bottom of the oven.

- If the food being cooked is oily or greasy, two sheets of aluminium foil can be used. Place one on the crumb tray and cover the food with the other. This helps prevent oil and grease from splashing onto the oven walls during cooking.

FUNCTIONS

OFF	: Stop cooking in the oven
	: Upper heat
	: Lower heat
	: Dual heat
	: Top heat and convection
	: Dual heat and convection

MAINTENANCE AND CLEANING

- Allow the oven to cool completely before cleaning. Unplug it from the power outlet.

- The griddle, the grease tray and the drip tray can be cleaned in the usual way, either by hand or in the dishwasher.

- Always use a damp sponge to clean the external surfaces. Do not use abrasive substances, as they may damage the coating. Be careful not to allow water or detergent to enter the oven through the ventilation holes on its surface.

- Never immerse the oven in water or any other liquid.

- To clean the interior, never use corrosive substances (spray detergents) or scratch the surfaces with sharp or pointed objects.

- If the appliance is not kept clean, its surface may be damaged, which would negatively affect its lifespan and lead to a dangerous situation. The oven must be cleaned periodically and any food residue removed.

Removing and cleaning the grease collection tray

- Remove and clean the grease collection tray by pulling its handle.

- Wash it with soapy water and let it dry.

- Never use abrasive substances.

- Replace the grease collection tray.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
