Product type	Discrete analog FET audio compressor
Model	WA76-D2
Brand	Warm Audio
Category	Stereo studio compressor
Channels	2 (stereo / dual mono)
Technology	FET (Field Effect Transistor), Rev-D circuit
Transformers	Input CineMag O-12, output CineMag 5002
Input impedance	Selectable: 600 Ω or 10 kΩ
Controls	Input gain (threshold), output, attack, release, ratio, dry/wet mix, side‑chain filter, stereo mode selector
Attack	20 µs to 800 µs
Release	50 ms to 1.1 s
Ratios	4:1, 8:1, 12:1, 20:1 + "All Buttons In" mode
Side‑chain filter	Variable high‑pass 30‑300 Hz, 12 dB/octave
Additional features	True bypass and active bypass, stereo link, external side‑chain, mode selector (stereo / master‑slave / dual mono), VU‑meter adjustment
Power supply	100‑230 V AC, universal (IEC connector)
Dimensions	2U rack chassis, 19 inches (48.3 cm)
Frequency response	±1 dB from 20 Hz to 20 kHz
Total gain	53 dB
Signal-to-noise ratio	86 dB
Distortion (THD+N)	-64 dB (at -8 dBu)
Inputs / Outputs	Balanced XLR and TRS (per channel)
Maintenance	Clean with a dry cloth. Do not use water or liquid products.
Warranty	1 year (extendable upon registration). Out-of-warranty repair possible.
Country of manufacture	Austin, Texas, USA

Frequently Asked Questions - WA76D2 Warm Audio

What is the difference between the WA76-D and the WA76-D2?

The WA76-D is a single-channel mono compressor. The WA76-D2 is the two-channel stereo version with additional features such as the mode selector (stereo, master‑slave, dual mono) and a dedicated rear panel.

How do I set up the stereo link on the WA76-D2?

Use the mode selector (12) in the Stereo Link position. The two channels operate independently but their side‑chains are linked: the louder channel determines the behavior of both.

What is the "All Buttons In" mode?

By pressing all ratio buttons simultaneously, the compressor adopts an extreme behavior with a very high ratio (approximately 30:1), ideal for creative effects or an aggressive limiter.

How do I use the external side‑chain?

Activate the External Side‑chain button (13) and connect an equalizer or another audio signal to the side‑chain insert inputs on the rear panel. This signal will trigger the compression.

What is the purpose of the input impedance selector?

The 600 Ω position is suitable for traditional analog equipment (preamps, equalizers). The 10 kΩ position allows better matching with modern audio interface outputs.

How do I calibrate the VU‑meter?

Set the meter to GR (gain reduction) mode. Adjust the calibration potentiometer (14) so that the needle rests at 0 dB with no signal.

What does the Dry/Wet (Mix) control do?

It blends the compressed (wet) signal and the original (dry) signal. Fully counterclockwise, the signal is 100% wet; fully clockwise, it is 100% dry (active bypass). You can also disable it for a vintage behavior.

How do I use the true bypass?

Press the True Bypass switch (2) to bypass all electronics, including the amplifier, and easily compare the processed sound to the original.

What settings do you recommend for vocals?

Start with a ratio of 4:1, a medium attack (500 µs), a medium release (300 ms), and adjust the threshold for 3 to 6 dB of gain reduction. Fine‑tune according to the style.

Can I use the WA76-D2 on the mix bus?

Yes, its Stereo Link mode is ideal for the mix bus. Set a gentle ratio (4:1), a slow attack, and an automatic or slow release for transparent mix compression.

USER MANUAL WA76D2 Warm Audio

SINGLE & DUAL-CHANNEL CLEAN GAIN DISCRETE FET COMPRESSOR

FAITHFUL RECREATION OF THE FASTEST AND MOST POWERFUL "REV D" STUDIO COMPRESSOR WITH ADDED RECORDING FEATURES

- ENGLISH (PG 1) • FRANÇAIS (PG 13) • ESPAÑOL (PG 25) • DEUTSCH (PG 37)

WA76-D [SINGLE-CHANNEL]

24V 20V 8.2 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 OUTPUT INPUT OUTPUT RELEASE MOS WAT6-D LIMITING AMPLIFIER METER -20 -15 -10 -5 0 VCC OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω OUT 0.000Ω

WA76-D2 [DUAL-CHANNEL]

WARM AUDIO NAT6-02 SUAL-limiting Amplifier CAMERA CHANNEL 4 CHANNEL 5 CHANNEL 6 CHANNEL 7 CHANNEL 8 CHANNEL 9 CHANNEL 10 CHANNEL 11 CHANNEL 12 CHANNEL 13 CHANNEL 14 CHANNEL 15 CHANNEL 16 CHANNEL 17 CHANNEL 18 CHANNEL 19 CHANNEL 20 CHANNEL 21 CHANNEL 22 CHANNEL 23 CHANNEL 24 CHANNEL 25 CHANNEL 26 CHANNEL 27 CHANNEL 28 CHANNEL 29 CHANNEL 30 CHANNEL 31 CHANNEL 32 CHANNEL 33 CHANNEL 34 CHANNEL 35 CHANNEL 36 CHANNEL 37 CHANNEL 38 CHANNEL 39 CHANNEL 40 CHANNEL 41 CHANNEL 42 CHANNEL 43 CHANNEL 44 CHANNEL 45 CHANNEL 46 CHANNEL 47 CHANNEL 48 CHANNEL 49 CHANNEL 50 CHANNEL 51 CHANNEL 52 CHANNEL 53 CHANNEL 54 CHANNEL 55 CHANNEL 56 CHANNEL 57 CHANNEL 58 CHANNEL 59 CHANNEL 60 CHANNEL 61 CHANNEL 62 CHANNEL 63 CHANNEL 64 CHANNEL 65 CHANNEL 66 CHANNEL 67 CHANNEL 68 CHANNEL 69 CHANNEL 70 CHANNEL 71 CHANNEL 72 CHANNEL 73 CHANNEL 74 CHANNEL 75 CHANNEL 76 CHANNEL 77 CHANNEL 78 CHANNEL 79 CHANNEL 80

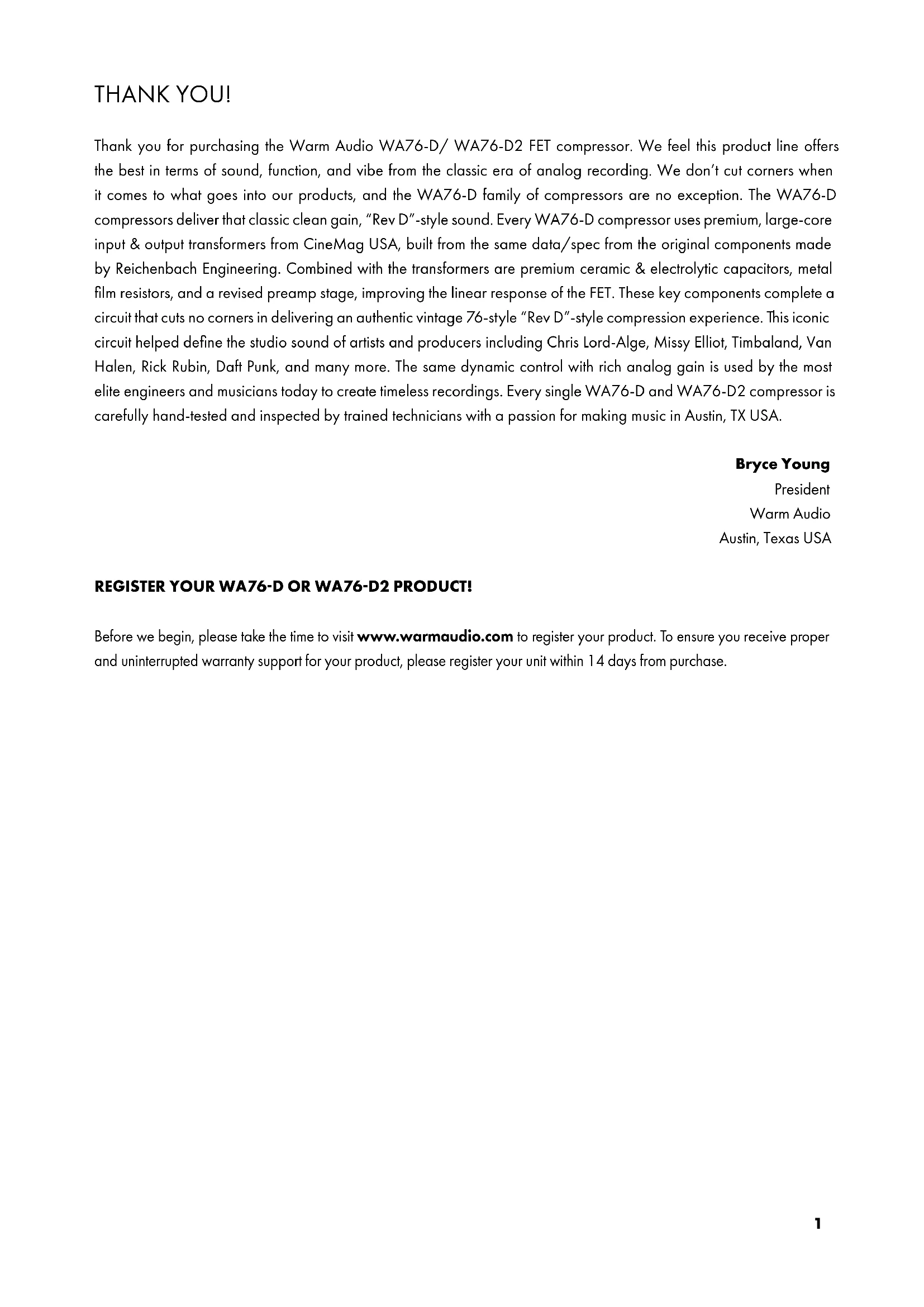

THANK YOU!

Thank you for purchasing the Warm Audio WA76-D/ WA76-D2 FET compressor. We feel this product line offers the best in terms of sound, function, and vibe from the classic era of analog recording. We don't cut corners when it comes to what goes into our products, and the WA76-D family of compressors are no exception. The WA76-D compressors deliver that classic clean gain, "Rev D"-style sound. Every WA76-D compressor uses premium, large-core input & output transformers from CineMag USA, built from the same data/spec from the original components made by Reichenbach Engineering. Combined with the transformers are premium ceramic & electrolytic capacitors, metal film resistors, and a revised preamp stage, improving the linear response of the FET. These key components complete a circuit that cuts no corners in delivering an authentic vintage 76-style "Rev D"-style compression experience. This iconic circuit helped define the studio sound of artists and producers including Chris Lord-Alge, Missy Elliot, Timbaland, Van Halen, Rick Rubin, Daft Punk, and many more. The same dynamic control with rich analog gain is used by the most elite engineers and musicians today to create timeless recordings. Every single WA76-D and WA76-D2 compressor is carefully hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.

Bryce Young

President

Warm Audio

Austin, Texas USA

REGISTER YOUR WA76-D OR WA76-D2 PRODUCT!

Before we begin, please take the time to visit www.warmaudio.com to register your product. To ensure you receive proper and uninterrupted warranty support for your product, please register your unit within 14 days from purchase.

WARRANTY STATEMENT

Warm Audio warranties this product to be free from defect in materials and workmanship for one year from the date of purchase, for the original purchaser to whom this equipment is registered. This warranty is non-transferrable.

This warranty is void in the event of damage incurred from unauthorized service to this unit, or from electrical or mechanical modification to this unit. This warranty does not cover damage resulting from abuse, accidental damage, misuse, improper electrical conditions such as mis-wiring, incorrect voltage or frequency, unstable power, disconnection from earth ground (for products requiring a 3 pin, grounded power cable), or from exposure to hostile environmental conditions such as moisture, humidity, smoke, fire, sand or other debris, and extreme temperatures.

Warm Audio will, at its sole discretion, repair or replace this product in a timely manner. This limited warranty extends only to products determined to be defective and does not cover incidental costs such as equipment rental, loss of revenue, etc. Please visit us at www.warmaudio.com for more information on your warranty, or to request warranty service.

This warranty applies to products sold in the United States of America. For warranty information in any other country, please refer to your local Warm Audio distributor. This warranty provides specific legal rights, which may vary from state to state. Depending on the state in which you live, you may have rights in addition to those covered in this statement. Please refer to your state laws or see your local Warm Audio retailer for more information.

NON-WARRANTY SERVICE

If you have a defective unit that is outside of our warranty period or conditions; we are still here for you and can get your unit working again for a modest service fee. Please visit us at www.warmaudio.com to contact us about setting up a repair or for more information.

With proper care, your Warm Audio gear should last a lifetime and provide a lifetime of enjoyment. We believe the best advertisement we can have is a properly working unit being put to great use. Let's work together to make it happen.

NOW LETS GET STARTED!

The WA76-D/ WA76-D2 accurately reproduces one of the fastest and most powerful studio compressors of all time (with one or two channels) known for clean gain, ultra-fast dynamic control, and rich analog tone. Using premium and custom components like O-12 (input) and 5002 (output) transformers from CineMag, WA76-D achieves authentic 76 rev-D style compression, known for having a "low noise" preamp stage with unmistakably analog character. Added modern controls to achieve parallel compression, active & true bypass, selectable input impedance, and sidechain flexibility make WA76-D an ideal choice for modern recording workflows that require vintage tone shaping. WA76-D recreates the legendary tone & control of the vintage 76-style compression used in studios by artists like Chris Lord-Alge, Missy Elliot, Timbaland, Van Halen, Rick Rubin, Daft Punk, and many more.

The information contained in this manual is written to help you quickly get started using your WA76-D/ WA76-D2 compressor.

FEATURES, CONTROLS, & TECHNICAL SPECIFICATIONS

Classic Studio Compression With Rich Analog Tone

The WA76-D is a faithful recreation of the vintage 76 "Revision-D-style" FET studio compressor with added features to meet modern recording workflows.

Critical Classic Controls + Bonus Modern Add-Ons

WA76-D delivers an uncompromised vintage circuit design with all of the traditional 76-style compression controls. Added features deliver unprecedented value for engineers and musicians seeking adaptable gear that fits into modern recording workflows. A Note on WA76-D2: WA76-D2 is a stereo unit and has different additional features designed to provide optimal value in a stereo unit.

Premium Components & Accurate Rev D-Style Circuitry

Just like in the vintage 76-style compressors from revision "A" to D", the WA76-D uses custom large-core, CineMag input & output transformers. WA76-D uses premium ceramic & electrolytic capacitors, metal film resistors, and a revised preamp stage, improving the linear response of the FET. These key components complete a circuit that cuts no corners in delivering an authentic "cleaner, low noise" 76-style compression experience.

Hand-Tested In Austin, TX Hand-Tested In Austin, TX

Like all Warm Audio gear, WA76-D is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.

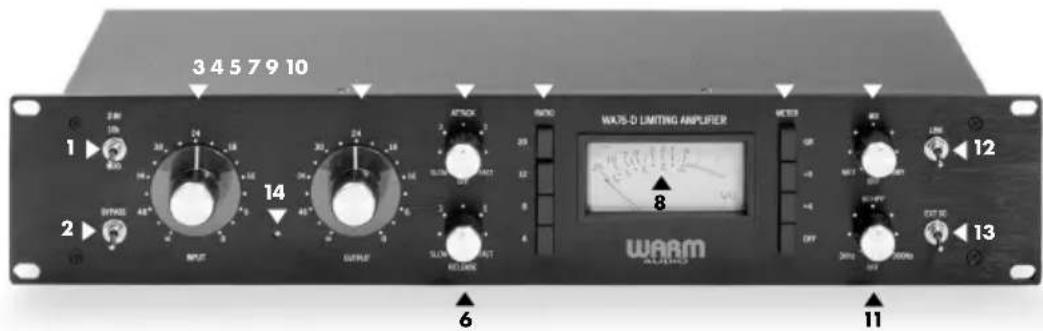

3 4 5 7 9 10 WARS-D LIMITING AMPLIFIER 1 2 3 4 5 6 7 8 9 10 11 12 13 WARM WARS-D LIMITING AMPLIFIER OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT

1. Input Impedance Selector

Use the standard 600Ω input impedance to connect analog mic pres, equalizers, and other traditional analog hardware. Select 10kΩ input impedance to better match modern audio interface specifications, like running tracks out of the interface for external analog signal processing.

2. True Bypass Switch

Bypass the entire unit including compression and amplification while allowing signal to pass through to other gear.

3. Input Gain/Threshold

The Input control sets the signal level entering the WA76-D/ WA76-D2 and determines the threshold (the level at which compression begins). Increasing the input level results in stronger limiting or compression.

4. Output

The Output control adjusts the final signal level coming out of the WA76-D/ WA76-D2. Once you have dialed in the amount of limiting or compression using the Input, the Output knob compensates for any gain lost in the compression process and acts as makeup gain. To properly set and monitor output level, press the +4 or +8 Meter button and adjust the Output knob as needed.

5. Attack

The attack adjusts how quickly the compressor responds to (attenuates) audio input signal level that exceeds the threshold. When set to "off", the WA76-D/ WA76-D2 is effectively in active bypass mode, with the signal passing through both the input and output sections of the compressor without compression applied.

6. Release

The release controls the time it takes for the compressor to return to its normal state after the input audio signal level falls below the threshold.

7. Ratio

Determines the degree of compression applied to the signal once it exceeds the threshold.

8. VU Meter

Displays the level of the input or output signal, or gain reduction for monitoring and visual reference.

9. Meter Setting

The function of the four buttons (from top to bottom) are as follows: GR - displays gain reduction amount on the meter. +8 - 0VU corresponds to +8dBu of output level. +4 - 0VU corresponds to +4dBu of output level. Engaging the OFF button powers off the entire unit, preventing audio signal from passing through the WA76-D/ WA76-D2.

10. Dry/Wet Mix

This control determines what percentage of the signal exiting the compressor is compressed/effected and what percentage is dry/unaffected. When set to 100% counterclockwise, the signal is 100% "wet" and is completely compressed. At 100% clockwise, the compressor is 100% "dry" and acts as an active bypass without the signal going through the compressor's preamp stage. The setting can also be turned off to match the exact behavior of a vintage 76-style compressor.

11. Sidechain High Pass Filter

A selectable sidechain high pass filter from 30Hz - 300Hz allows the user to prevent frequencies below the set filter threshold from activating the compressor. While the entire frequency range remains audible and influenced by the compressor, this technique helps avoid uneven dynamics and excessive low-end compression if that's not the desired effect.

12. Stereo Link

Engages both stereo linking inputs on the back panel.

13. External Sidechain

Engages sidechain send and return connections on the back panel.

14. VU-Meter Trim

When the meter is in gain reduction mode (GR), adjust this knob to set the needle's resting position at 0dB to calibrate for accurate gain reduction measurement.

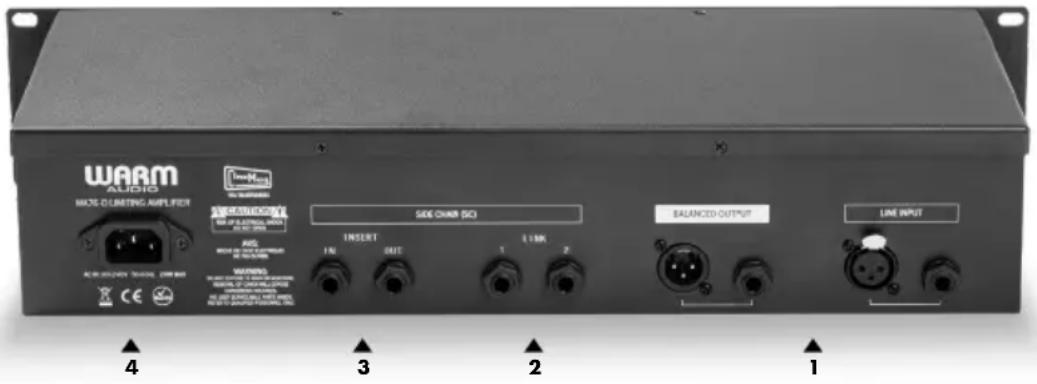

WARM AUDIO MODE LIMITING AMPLIFIER TIME/Wear No. 01/2023 SIDE CHAIR (SC) INSERT FIN OUT 1 2 LINK BALANCED OUTPUT LINE INPUT WARNING 4 3 2 1

1. Balanced XLR & TRS Inputs & Outputs

Balanced inputs and outputs are provided on an XLR and 14 " TRS connection for convenience.

2. Stereo Link Inputs - 1 & 2

Daisy-chain additional WA76-D compressors. When in use, both channels work independently, but their sidechains are linked. In this case, the loudest channel will dictate both channel's behavior.

3. Sidechain Inserts - In & 2

Insert EQ or audio from another device to control the sidechain on the WA76-D. The audio coming in on the insert will dictate when the compressor applies compression.

4. IEC Cable Power Connector

100-230v IEC Inlet universal power supply connection. Works worldwide, automatically adjusting to local voltage.

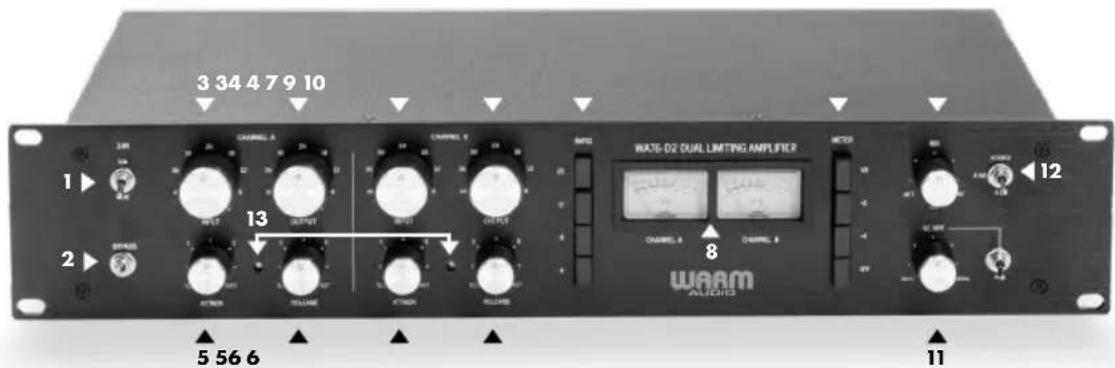

CONTROLS - FRONT PANEL [WA76-D2: DUAL-CHANNEL]

Any shared specifications or controls from the single channel model will simply be labeled below the WA76-D2 product images. For detailed descriptions of any shared feature or functionality, please refer to the descriptions found in the WA76-D (single-channel) technical specs section above. Any distinct 2-channel features will be explained in detail below.

3 34 4 7 9 10 WAT6-D2 DUAL LIMITING AMPLIFIER METER 12 13 8 5 56 6 11 WARM ALIGHT

1. Input Impedance Selector

2. True Bypass Switch

3. Input Gain/Threshold

4. Output

5. Attack

6. Release

7. Ratio

8. VU Meter

9. Meter Setting

10. Dry/Wet Mix

11. Sidechain High Pass Filter

12. Operational Mode Selector:

Select between three 2-channel operating modes. Stereo linked: Both channels work independently, but their sidechains are linked. In that case the loudest channel will dictate both channel's behavior. Primary-to-secondary: The left channel's sidechain only will dictate how both channels operate. Dual-Mono: Each channel operates independently, with all controls operating on program material being sent to its own channel.

13. VU-Meter Trim

CONNECTIONS - REAR PANEL [WA76-D2: DUAL-CHANNEL]

WARM WARS-OU DUAL LIMITING AMPLIFET SALIANCE OUTPUTS CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNELA CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL B CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL A CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNELC CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL C CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNEL B CHANNEL S CHANNELB CHANNEL S CHANNELB CHANNEL S CHANNELB CHANNEL S CHANNELB CHANNEL S CHANNELB CHANNEL S CHANNELB CHANNEL S CHANNELB CHANNEL S CHANNELB CHANNEL S CHANNELB CHANNEL S

1. Balanced XLR & TRS Inputs

Balanced inputs for channels 1 and 2 are provided on an XLR and 14'' TRS connection for convenience.

2. Balanced XLR & TRS Outputs

Balanced outputs for channels 1 and 2 are provided on an XLR and 14'' TRS connection for convenience.

3. IEC Cable Power Connector

100-230v IEC Inlet universal power supply connection. Works worldwide, automatically adjusting to local voltage.

WA76-D SAMPLE HOOKUP DIAGRAM [SINGLE-CHANNEL]

WA73-EQ WA76-D

RECORDING INTERFACE

Basic Audio Signal Chain

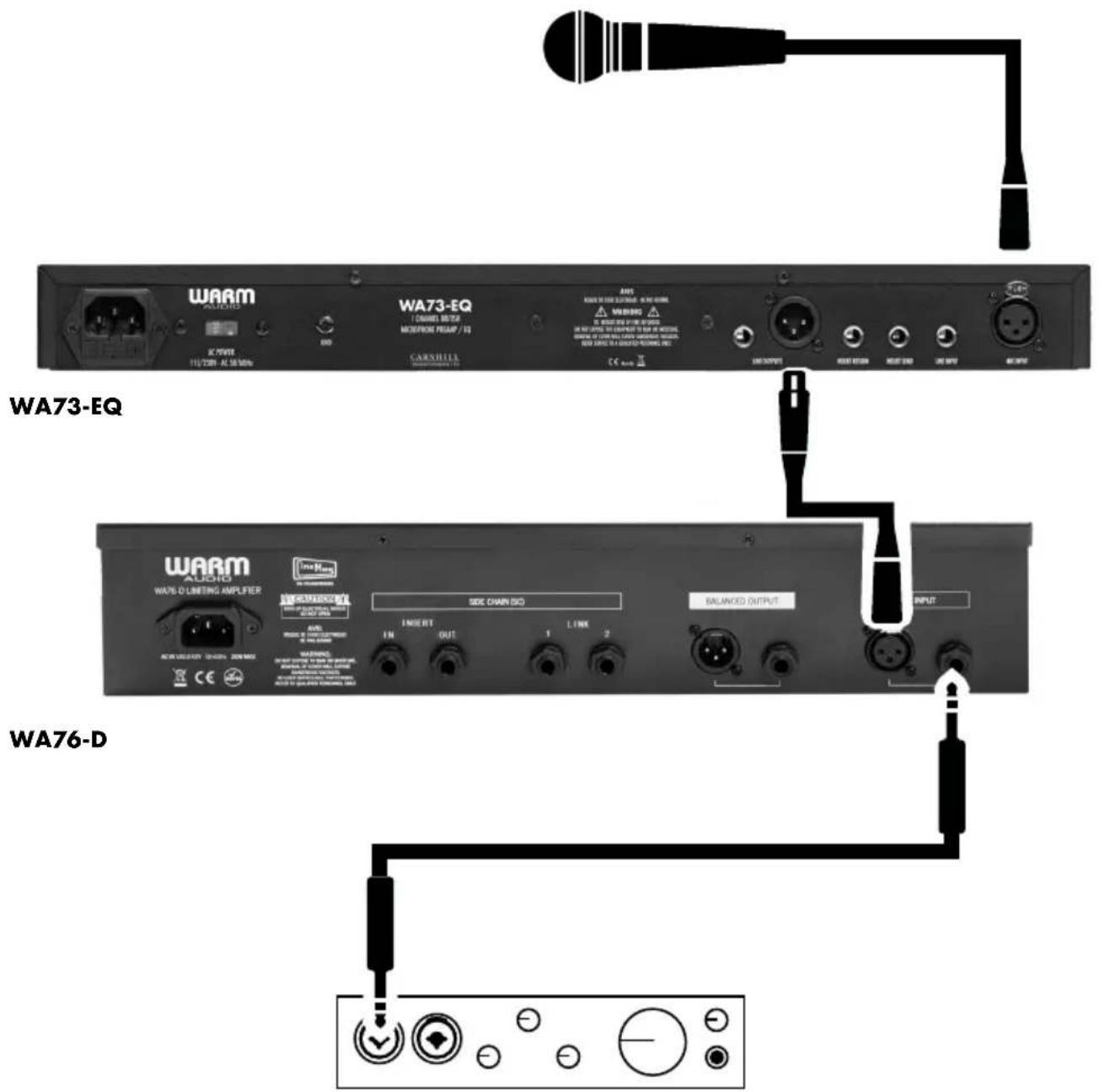

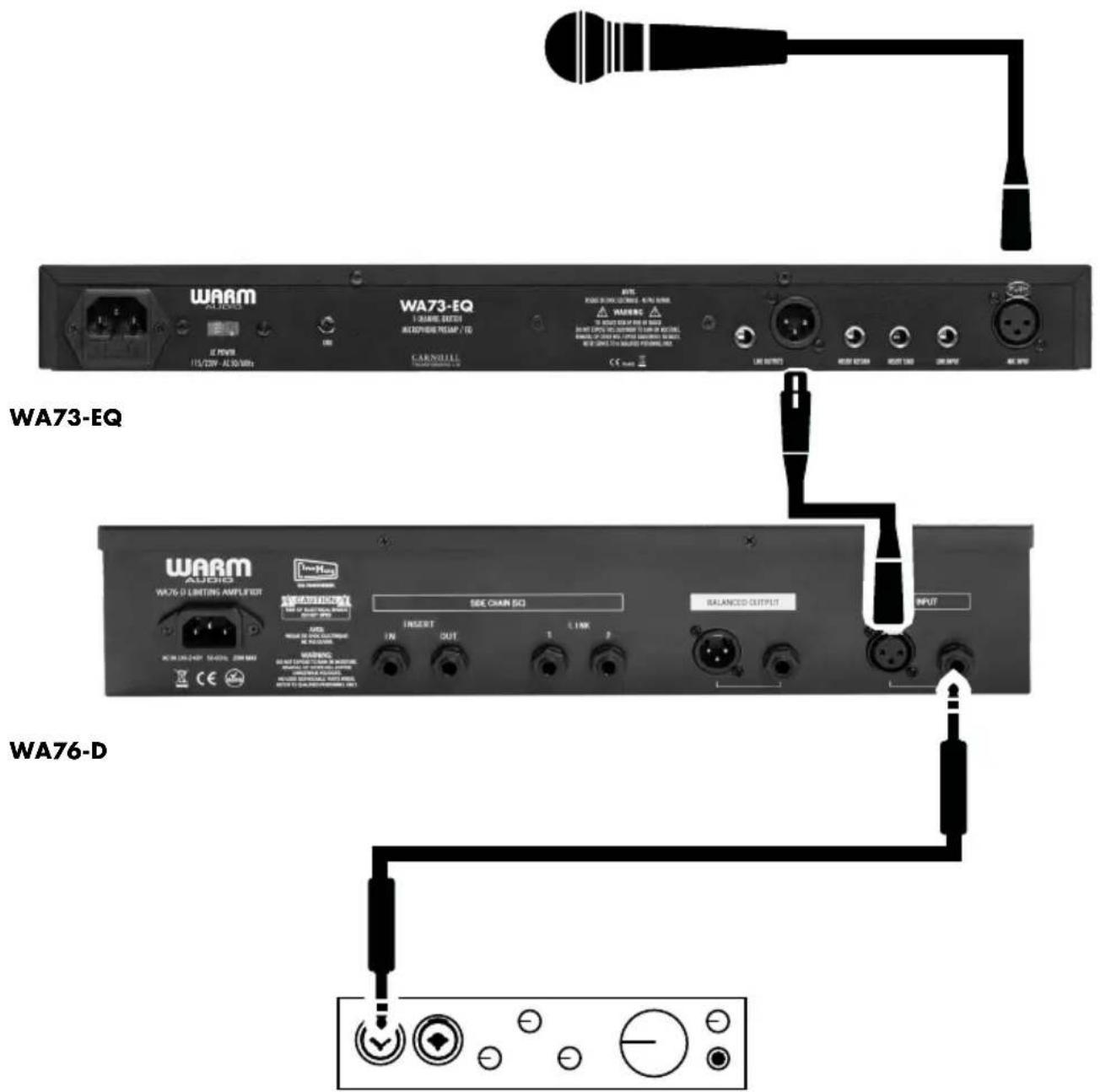

In this example, a microphone is connected to a WA73-EQ input, which sends signal into the WA76-D compressor via a balanced XLR patch cable, which feeds in the LINE LEVEL input of your recording interface/recorder.

Note: it is important to use a line level input on your recording device as opposed to a microphone or instrument level input.

Routing Audio For Analog Processing

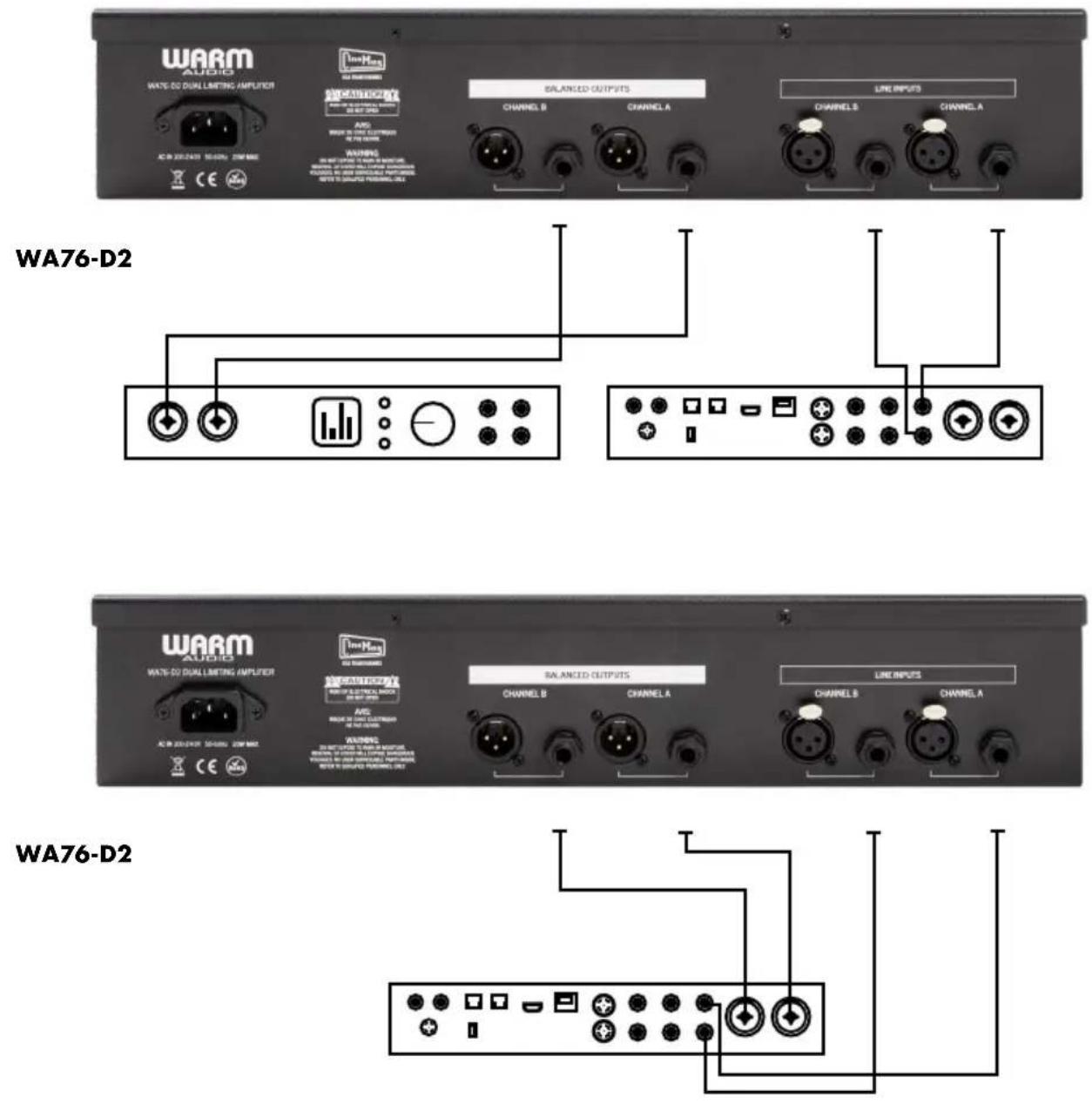

In this example, two balanced TRS cables are connected to the outputs of an audio interface, which sends signal into the WA76-D2 compressor via balanced TRS patch cables. The WA76-D2 then feeds audio at LINE level to balanced TRS inputs of your recording interface/recorder.

Note: it is important to use a line level input on your recording device as opposed to a microphone or instrument level input.

SPECIFICATIONS

Note: Most specifications and component counts listed are "per-channel"

• 100% Analog Discrete FET Compressor
- Faithful Recreation Of The Vintage "Rev-D" FET Compressor With Added Recording Features
- VU Meter Options: Gain Reduction | +8dB Output | +4dB Output | "Off" Powers off unit
• 100-230v IEC Inlet Universal Power Supply
• Class-A Line-Level Output Amplifier
• 100% Discrete Audio Signal Path Using 600Ω Input Impedance Attenuator
- Selectable 10kΩ Input Impedance To Better Match Modern Audio Interface Specifications
• 100% Dry-Wet Mix Control
• Variable Sidechain High Pass Filter: 30 - 300Hz, 12dB/Octave
- 14 " Stereo Link & External Sidechain Access
• Active Bypass For Running Unit As Line Amplifier & True Bypass Option For A/B Comparisons
• 2U 19" Rackmount Chassis
- Utilizes Premium O-12 Input & 5002 Output Transformers From CineMag USA
- Vintage-Spec Attack & Release: Attack = 20 S - 800 | Release: 50 mS - 1.1 Second
- "All-Buttons-In" Setting For Experimental & Hard-Limiter Tones
• Frequency Response: ± 1 dB 20 Hz - 20 kHz
• Balanced XLR & TRS Inputs & Outputs
• Total Amplifier Gain: 53dB
• Signal-To-Noise Ratio (SNR): 86dB |
• Total Harmonic Distortion (THD+N): -64dB (at -8dBu)

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions – All of the safety and operating instructions should be read before this product is operated.
2. Keep these instructions – The safety and operating instructions should be retained for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
