USER MANUAL CD837AA Vonroc

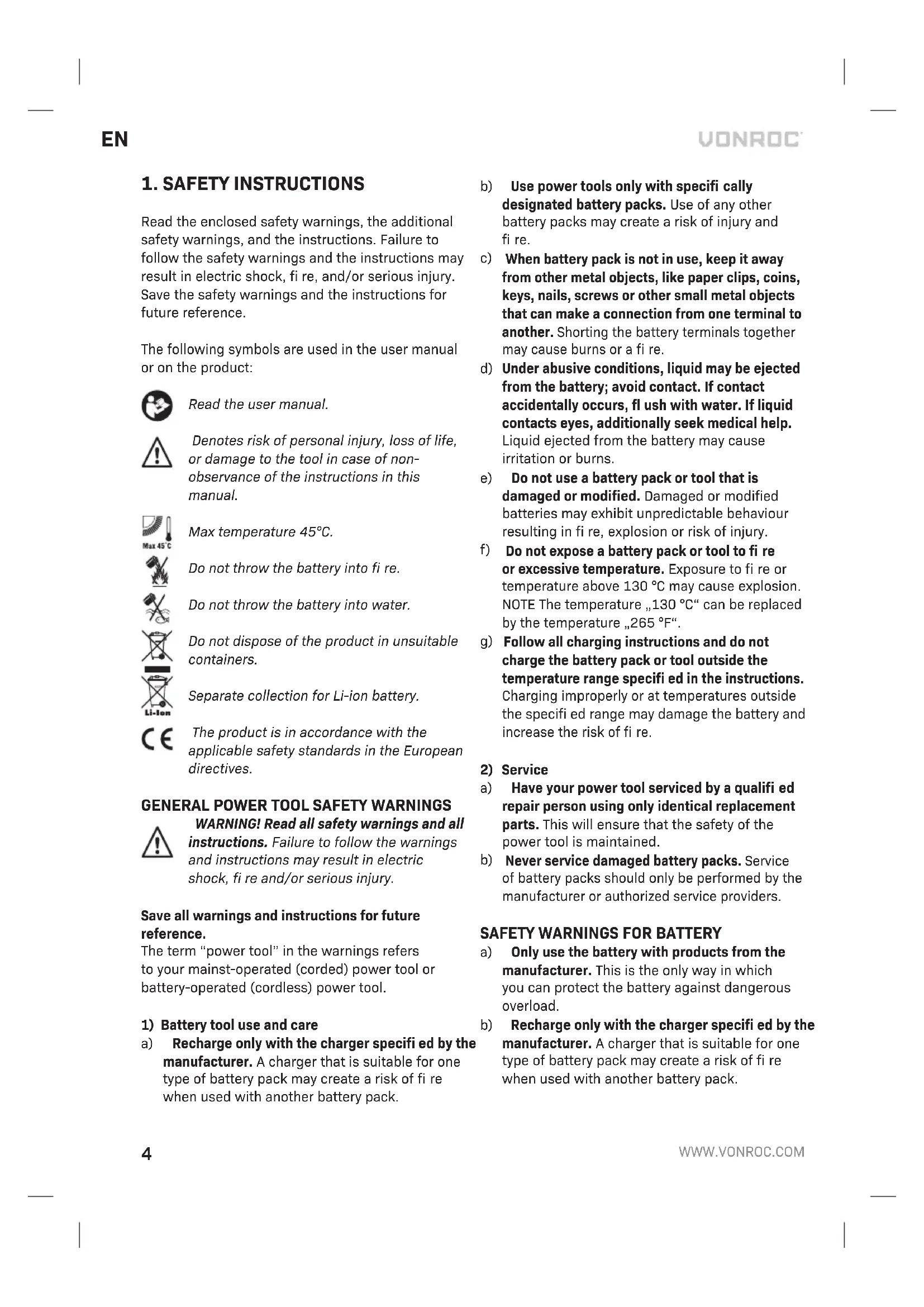

Read the enclosed safety warnings, the additional safety warnings, and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fi re, and/or serious injury. Save the safety warnings and the instructions for future reference. The following symbols are used in the user manual or on the product: Read the user manual. Denotes risk of personal injury, loss of life, or damage to the tool in case of non- observance of the instructions in this manual. Max temperature 45°C. Do not throw the battery into fi re. Do not throw the battery into water. Do not dispose of the product in unsuitable containers. Separate collection for Li-ion battery. The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mainst-operated (corded) power tool or battery-operated (cordless) power tool.

1) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modifi ed. Damaged or modifi ed batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury.

Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.

Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specifi ed in the instructions. Charging improperly or at temperatures outside the specifi ed range may damage the battery and increase the risk of fi re.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY WARNINGS FOR BATTERY

a) Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload. b) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack.EN

c) The battery is supplied partially charged. To ensure full battery capacity, fully charge the battery in the charger before using your power tool for the fi rst time. d) Keep battery packs out of the reach of children. e) Do not open the battery. There is a risk of short- circuiting. f) In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. g) If used incorrectly or if the battery is damaged, fl ammable liquid may be ejected from the battery. Contact with this liquid should be avoided. If contact accidentally occurs, rinse off with water. If the liquid comes into contact with your eyes, seek additional medical attention. Liquid ejected from the battery may cause irritation or burns.

If the battery is damaged, liquid can be ejected and cover nearby surfaces. Check affected parts. Clean these parts or change them if necessary.

i) Do not short-circuit the battery pack. When

the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. j) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. k) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. l) Protect the battery against heat, e.g., against continuous intense sunlight, fi re, dirt, water, and moisture. There is a risk of explosion and short-circuiting. m) Only operate and store the battery at an ambient temperature between 0 °C and +40°C. Do not leave the battery in your car in the summer, for example. At temperatures of <0°C, some devices may experience a loss of power. n) Only charge the battery at an ambient temperature which is between 0 °C and +35°C. Only charge the rechargeable battery with a USB cable at an ambient temperature which is between +10 °C and +35 °C. Charging outside of this temperature range can increase the risk of damage to the battery and pose a fi re hazard.

2. PRODUCT INFORMATION

Intended use This 20V battery is intended for use with cordless power tools operating on the VPOWER20V platform. It is designed to provide electrical power to compatible handheld devices such as drills, saws, and other power tools used in construction, remodeling, woodworking, metalworking, and do-it-yourself projects. The battery is suitable for applications requiring portable power without the need for direct electrical connections, allowing for fl exibility and mobility in various working environments. It is not intended for use with devices outside of the specifi ed 20V range or for other than the prescribed applications. Misuse, such as attempting to power incompatible devices or modifying the battery for other uses, may result in damage to the device or personal injury. Users should ensure the battery is correctly inserted into compatible tools and adhere to all safety instructions provided with their power tools and the battery itself. This battery should not be exposed to water or extreme temperatures to avoid damage and ensure longevity. Only use chargers from the VPOWER20V battery platform. Using any other chargers could cause serious injury or damage the batteries. CD802AA Quick charger 20V CD820AA Dual quick charger 20V CD830AA Quick charger 20V CD831AA Dual quick charger 20V The batteries of the VPOWER 20V battery platform are interchangeable with all the VPOWER20V battery platform tools. NOTICE: Use of chargers or battery packs not manufactured by VONROC will void the warranty. Model No. CD828AA Battery type Lithium-Ion Voltage 20V6

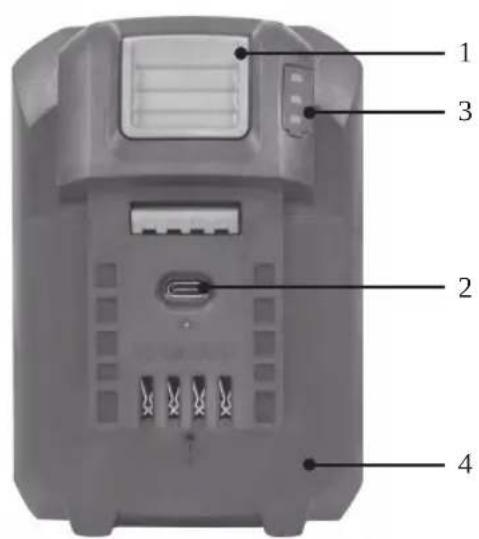

are registered trademarks of USB Implementers Forum DESCRIPTION The numbers in the text refer to the diagrams on pages 2.

1. Battery unlock button (and battery charge

3. Battery LED indicators

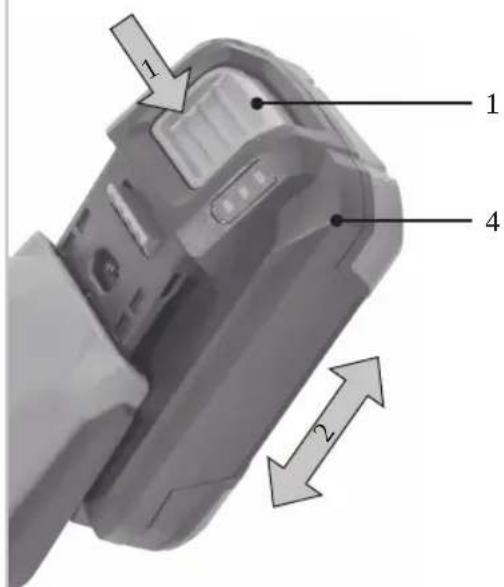

Before any work on the power tool, remove the battery. The battery must be charged before fi rst use. Inserting the battery into the machine (Fig. C) Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

1. Insert the battery (4) into the base of the

machine as shown in Fig. C.

2. Push the battery further forward until it clicks

into place. Removing the battery from the machine (Fig. C)

1. Push the battery unlock button (1)

2. Pull the battery out of the machine like shown

in Fig. C. Checking the battery charging status (Fig. A)

• To check the battery charge status, fully press the Battery unlock button (1) shortly, without removing the actual battery.

• The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.

• When the lights are not burning it means the battery is empty and must be charged immediately. When the machine is not being used over a longer period of time it is best to store the battery in charged condition. Charging the battery (Fig. B, C, D) It is not required to deplete the battery pack completely before recharging. Lithium-Ion batteries can be recharged at any state of discharge without the risk of developing a "memory" effect. The battery can be charged via a charger or the USB-C

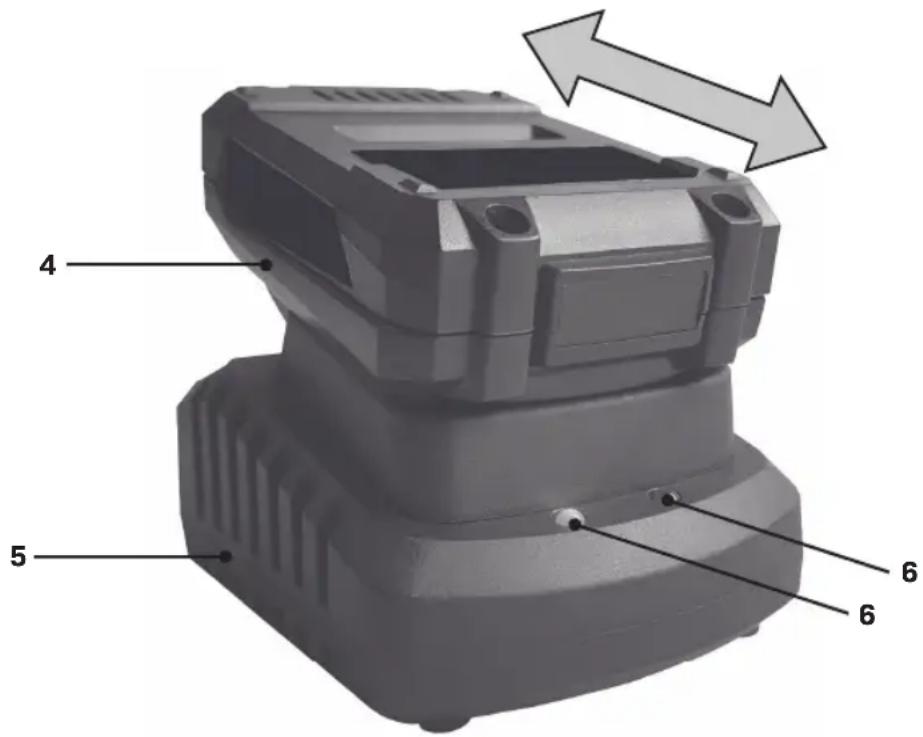

1. Take the battery (4) from the machine.

2. Turn the battery (4) to upside down position and

slide it onto the charger (5) as shown in Fig. D.

3. Push the battery until it is fully pushed into the slot.

4. Plug the charger plug into an electrical outlet

and wait for a while. The LED indicators on the charger (6) will lighten up and show the charging status. Charging using USB-C

port (Fig. A, B) Always charge the battery with certifi ed USB-C® chargers. Failure to obey this warning could cause battery damage and serious personal injury.

1. Take the battery (4) from the machine.

2. Plug one end of the USB-C

3. Plug the other of the USB-C® cable to a USB

power adapter (not included) or other device with USB-C® output e.g. a powerbank or laptop.

4. Now wait for a while. The LED indicators

on battery (3) will lighten up and show the charging status. Using the USB-C® port (fi g. B) The battery pack features a USB-C

port, which can provide 45W output to power compatible USB devices. Ensure your device supports the charging protocol of this battery before use. Devices with USB ports that lack protocol support cannot be charged. Verify compatibility to prevent charging failures. For compatibility details, consult your device's manual or contact support.

1. Plug one end of the USB-C

port on the battery (2).

2. Plug the other of the USB-C

cable to an appropriate USB device (cell phone, etc.)

3. To engage the charging process, press the

Battery unlock button (1) shortly.

4. When fi nished powering an external device,

disconnect the USB cable.

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine. Clean the battery casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components. ENVIRONMENT The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility. Only for EC countries Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/ EC for Waste Electrical and Electronic Equipment and its implementation into inational right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way. WARRANTY VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly. The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;

• Normal wear and tear;

• The tool has been abused, misused or improperly maintained;

• Non-original spare parts have been used. This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fi tness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts. The product and the user manual are subject to change. Specifi cations can be changed without further notice.8
