Bolero DressCode Dry 9330 - Dryer CECOTEC - Free user manual and instructions

USER MANUAL Bolero DressCode Dry 9330 CECOTEC

1. Parts and components 143

6. Cleaning and maintenance 150

9. Disposal of old electrical and

electronic appliances 156

10. Technical support and warranty 156

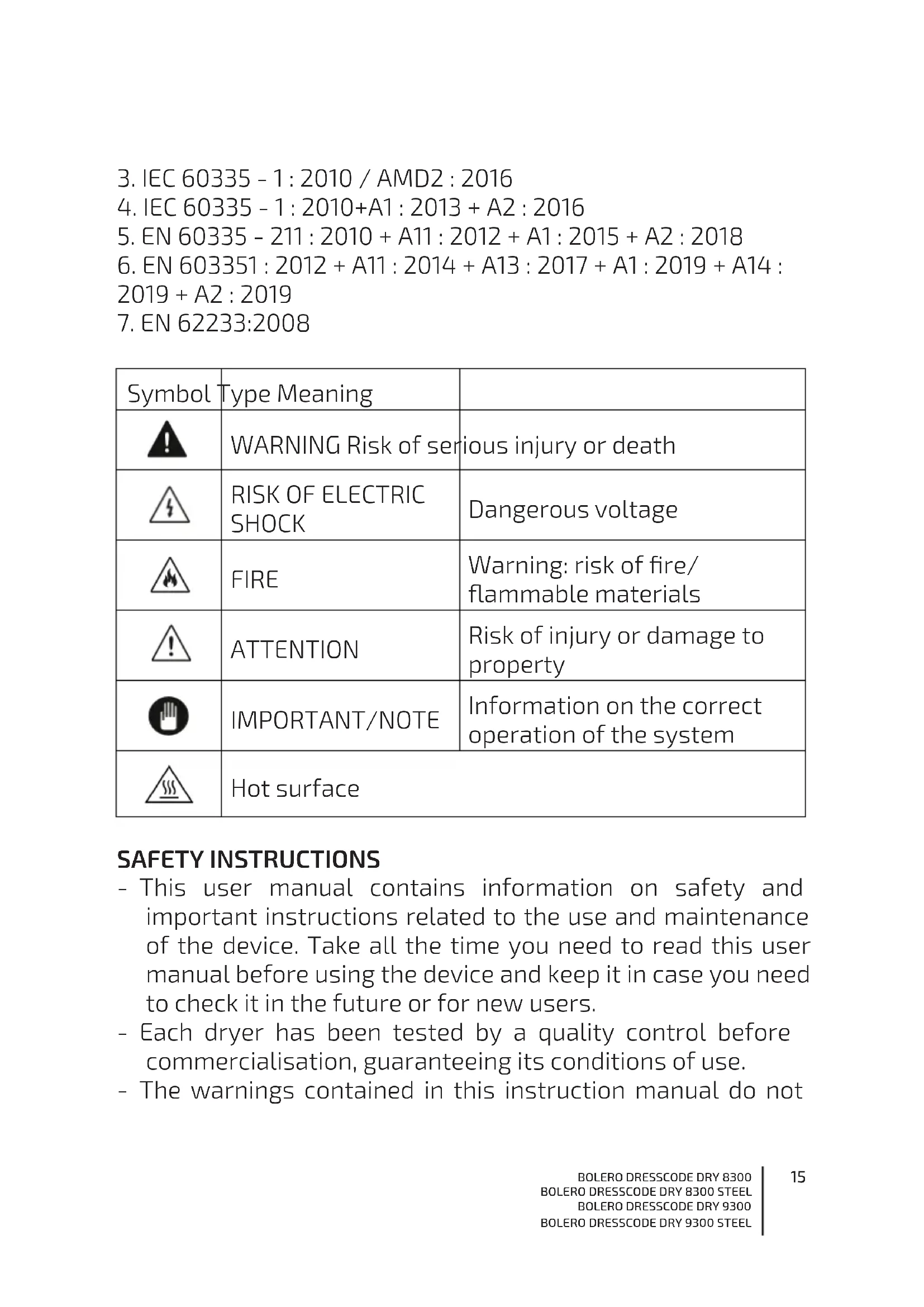

Symbol Type Meaning WARNING Risk of serious injury or death

Warning: risk of re/

ammable materials ATTENTION Risk of injury or damage to property IMPORTANT/NOTE Information on the correct operation of the system Hot surface SAFETY INSTRUCTIONS - This user manual contains information on safety and important instructions related to the use and maintenance of the device. Take all the time you need to read this user manual before using the device and keep it in case you need to check it in the future or for new users. - Each dryer has been tested by a quality control before commercialisation, guaranteeing its conditions of use. - The warnings contained in this instruction manual do not16

cover all possible risks that may occur. Caution and care must be exercised during installation, maintenance and operation of the dryer. - This symbol means: WARNING! Read the instruction manual before using the appliance. - This symbol means: WARNING! Risk of re. - Always comply with the advice and warnings contained in this manual. - Children under 3 years old must stay away, unless they are supervised. - This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and oces. - Do not install nor store the dryer outdoors. - Use this appliance only for clothes whose care label species they are suitable for dryer. - Cecotec is not responsible for damage caused by incorrect transport or use. - Installation and repair of the appliance must only be carried out by the ocial Cecotec Technical Support Service or an authorised repair agent. Cecotec is not liable for damage caused by repairs by unauthorised personnel. - WARNING: never spray or pour water inside the dryer to clean it. There is a risk of electric shock. - Leave at least 3 cm of space between the side and rear panels of the product and above the product if the appliance is placed under a worktop. - If assembly/disassembly of the installation under a worktop is necessary, this must be carried out by an authorised service technician. - Before installation, check the product for visible damage. Never install nor operate a damaged product.17

- Do not let any animal near the dryer. - Fabric softeners or similar products should be used according to the manufacturer instructions. - Remove all the objects from the pockets: lighters, matches, etc. - The appliance should not be installed behind a lockable door, a sliding door or a hinged door on the opposite side of the dryer door in such a way as to prevent the dryer door from being fully opened. - WARNING: keep the ventilation openings in the housing of the appliance or in the built-in structure free of obstructions. - Before installing the dryer, check the information in the instruction manual to make sure that the electrical installation and water connection are available. If they are not, you can call a qualied electrician and plumber to make the necessary adjustments. - The preparation of the dryer location is the responsibility of the customer, as well as the electrical and sewage installation. Before installation, check the dryer for any damage. If it is damaged, do not install it. Damaged appliances may be a risk for your health. - Install the dryer on a at and stable surface. - Run the dryer in an environment free from dust with good air ventilation. - You should not reduce the space between the dryer and the oor with objects like carpets, wood or cloths. - Do not block the ventilation grids on the base of the dryer. - Once the dryer is installed, the connections must remain intact. When installing the dryer, make sure that the rear surface is not resting on something (a tap, a socket, etc.). - The operating temperature of the dryer ranges from 5 °C to18

35 °C. When operating at temperatures outside this range, operation may be adversely aected, and the appliance may be damaged. - If the room temperature is below 0 °C, the dryer may be damaged by freezing. - Be careful when transporting the appliance, as it is heavy. Always wear safety gloves. - Always install the appliance against a wall. - The rear part of the appliance must be installed against a wall. - Install the appliance on a stable surface. If it is not stable enough, adjust the feet until it is rm. Repeat the same process every time you relocate the appliance. - Do not place the dryer on the power cable. - Do not place hot and heavy objects on top of the dryer. - Use the provided hoses, do not reuse old hoses. - Do not misuse it, do not stand, sit or place any heavy object on the door of the dryer. - Do not attempt to open the door while the dryer is in operation as there is a risk of burns. Do not leave the door open, as it could cause accidents. - The tumble dryer door can only be opened after the drying programme has been completed. Do not force the controls. - The dryer must only be used for its intended purpose as described in this manual. - Do not use the tumble dryer if any parts are missing or broken or if any protections or panel have been removed. - This section contains safety instructions to help protect you against the risk of personal injury or property damage. Failure to follow these instructions will invalidate the guarantee. - It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.19

- The appliance should not be powered by an external switching device, such as a timer. It should not be connected to a circuit that is regularly switched on and o by some kind of drive. - Always use an approved socket outlet that can carry a current greater than 10A. - Do not touch the plug with your hands wet. Always pull the plug to disconnect the appliance, otherwise you may suer an electric shock. - Do not use the dryer with wet hands or wet bare feet. - Connect the dryer to a grounded, fuse-protected outlet. The installation of an earthed socket must be carried out by a qualied electrician. Cecotec is not responsible for any damage or loss resulting from the use of the dryer without grounding as required by local regulations. - The voltage and admitted fuse protection are indicated on the type label. The voltage and frequency values indicated on the type label must be the same as those in your house. - Unplug the dryer if it will not be used for a considerable period of time and during installation, maintenance, cleaning and repair work. Otherwise, it could damage the dryer. - The socket must always be accessible after the installation. - Check the power cord regularly for visible damage. - A damaged cord/plug may cause a re or electric shock. When damaged, it must be replaced. This should only be carried out by qualied personnel, Cecotec or the after-sales service, in order to avoid danger. - To prevent any risk of re or electric shock, do not use extension leads, multi-socket adapters or adapters to connect the dryer to the mains. - When the dryer is in operation, do not unplug the power cable. When not in use, it is advisable to disconnect the plug,20

do not pull the power cable. Do not touch the power cable or plug with wet hands. Children safety - This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance of this appliance should not be carried out by children without supervision. - Do not let unattended children come near the machine. - Children could get trapped inside the appliance, which could lead to death. - Keep children away from the machine while in use. The surface becomes extremely hot and could cause damage in the skin. - Keep the packaging material out of the reach of children. - If detergent or cleaning materials are swallowed or come into contact with your skin or eyes, poisoning and irritation may occur. - Keep the cleaning material out of the reach of children. - To prevent children from interrupting the drying cycle, you can activate the child lock to prevent any changes to the programme in progress. - Do not allow children to seat or climb on or inside the product. Product safety - Due to the risk of re, NEVER introduce in the dryer the following garments: - Do not introduce unwashed clothes in the dryer.21

- Garments that have been stained with substances such as cooking oil, acetone, alcohol, petrol, paran, stain removers, turpentine, waxes or wax removers should be washed with hot water and an extra amount of detergent before drying in the dryer. - Cleaning cloths and mats containing residues of ammable cleaning agents, acetone, gases, petrol, gasoline, stain removers, turpentine, waxes, wax removers, dry cleaning solvents or chemicals. - Garments with traces of hairspray, nail polish remover and similar substances. - Garments that have been used for cleaning with industrial chemicals (as in chemical cleaning). - Garments containing parts or accessories with any type of foam, sponge, rubber or rubber-like material, such as latex foam sponges, shower caps, waterproof fabrics, custom- made clothing and foam pillows. - Garments with padding or damaged parts (pillows or jackets). Foam released from these garments could cause a re during the drying process. - Using the dryer in environments containing our or coal dust may cause an explosion. - Wet laundry may be dried in the tumble dryer only after dehydration, i.e. no water should drip onto the electrical parts and damage the tumble dryer causing a potential hazard. - When the tumble dryer is in operation, do not use ammable sprays nearby. If a gas leak occurs, do not connect or disconnect the plug or switch on the appliance. - Do not store cigarettes, lighters, dry ice or other ammable and/or explosive materials inside the tumble dryer. - ATTENTION: underwear with metal reinforcements22

should not be put in the dryer. Damage to the dryer may occur if the metal reinforcements become detached or lost during drying. - FIRE: R290 - Risk of re and damage! This appliance contains environmentally friendly but ammable R290 refrigerant gas. Keep open ames and sources of re away from the appliance. - Refrigerant must be disposed of professionally, as it may cause eye injury or ignition. Make sure the refrigeration- circuit pipes are not damaged before disposing of them correctly. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose to ame. Correct use - ATTENTION: never stop the dryer before the end of the drying cycle unless all items are quickly removed and spread out to dissipate the heat. - ATTENTION: make sure that no animals enter the dryer. Check the interior of the dryer before use. - ATTENTION: overheating of the laundry inside the dryer may occur if you cancel the programme or in case of an electrical failure during the operation of the dryer. This concentration of heat can cause combustion, so be sure to activate the ventilation programme to cool it down or quickly remove the laundry from the dryer to hang it out to dissipate the heat. - Use the dryer only for domestic use and for drying fabrics labelled as suitable for drying. Any use other than that for which it is intended is prohibited. - In case of commercial use, the warranty will be void.23

- This appliance is intended for indoor use only and should be placed on a at and stable surface. - Do not lean or sit on the dryer door. The dryer could tip over. - To maintain a temperature that does not damage the laundry (e.g. to prevent the laundry from burning), a cooling process is started after the drying process. The programme ends after it. Always remove the laundry immediately at the end of the programme. - ATTENTION: never use the dryer without the lint lter or with damaged lint lter. - You must clean the lint lters after every use as indicated in the “Lint lter cleaning “ section. - The lint lters must be dried every time you clean them with water. Wet lters can cause a malfunction during the drying process. - You should not allow lint to accumulate around the dryer (not applicable to those appliances for outdoor ventilation of the building). - IMPORTANT: the space between the dryer and the oor must not be reduced by objects such as carpets, wood or panelling, otherwise it will not be possible to ensure sucient air intake to the appliance. - Do not install the dryer in rooms with a risk of freezing. Freezing temperatures adversely aect the performance of the dryer. Condensed water freezing in the pump and hose can cause damage. - ATTENTION: you cannot install a washing machine on the dryer. Pay attention to the following warnings to place the dryer on the washing machine. - ATTENTION: the dryer can only be placed on washing machines with the same or higher capacity. - To use the dryer on top of a washing machine, you must24

place a xing element between the two appliances (NOT INCLUDED). The xing element must be placed by an authorised service provider. - Place the products on a stable oor with this load capacity. EC Declaration of Conformity We declare that our appliances comply with the relevant European directives, decisions and regulations and with the requirements listed in the standards mentioned above:

2. Condensation water tank

11. Condenser lter cover

NOTE: The graphics in this manual are schematic representations and may not exactly match the device.

- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly. - Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the ocial Cecotec Technical Support Service immediately. Box content - Dryer - Instruction manual - Do not remove the serial number of the appliance to keep a correct traceability of it in case of assistance.BOLERO DRESSCODE DRY 8300

- Before installation, check that the dryer has not been visibly damaged during transportation. Do not operate the dryer if it is damaged. If you detect any problem, contact the ocial Cecotec Technical Support Service. - During transport, the maximum angle of inclination of the dryer must not exceed 45º. In case it tips over, place it in an upright position for 2 hours before putting it into operation. - The dryer must be installed in a dry and ventilated place. Avoid installing it in places with high humidity, where it can get wet or be aected by steam build-up, such as the bathroom or an uncovered balcony. Do not install it where it will be exposed to direct sunlight. - Do not install the dryer next to other heat-generating appliances such as cookers, gas appliances, etc. to avoid accidents. - It is recommended to install the tumble dryer next to or near the washing machine to facilitate drying of the laundry after washing. - Avoid installing the dryer in a place where dust tends to accumulate, as excess dirt may block the ventilation grilles of the appliance. - Remove all packaging from the dryer and then place it on a at, stable surface. Do not place it on carpets, rugs, supports, etc. - During installation, adjust the feet of the tumble dryer until it is rmly placed on the oor. Do not place objects that may reduce the space between the dryer and the oor, such as carpets or wood, as this may aect the operation of the appliance. - Leave a minimum space of 5 cm between the dryer and the wall or other furniture. Adjusting the feet Adjust the angle of the base and feet to ensure that the tumble dryer is always level and stable. Mains connection Before connecting the appliance, check the following: - The mains voltage complies with the required parameters. - The plug of the tumble dryer is compatible with the socket. - The socket can withstand the maximum power of the dryer and is safely earthed. Drain hose connection Fig. 2 If the installation location of the dryer allows the accumulated waste water to be discharged directly through the drain, the tank can be emptied by connecting the drain hose to the water outlet. In this way, it will not be necessary to empty the condensation water tank manually or to remove the outlet pipe from the tank.

1. Remove the drain hose and connector located at the rear of the dryer.

2. Connect one end of the drain hose to the tumble dryer, attach the connector and t the

1. Condensation water tank pipe

2. Remove this connector

WARNING - Make sure that the hose seal is securely tted to prevent it from disconnecting. - Once the connection has been made, the distance between the water outlet and the oor must not exceed 1 metre. If the hose is too long, you can cut it. - When disconnecting the hose from the tumble dryer, be sure to do so by pulling on the connector. If it is necessary to restore the original drainage system, reinsert the connector back into place.

4. LAUNDRY PREPARATION

Check - Empty the condensation water tank and reinstall it in its place. - Clean the lint lter and reinstall it in place. - Check if the laundry requires a special drying programme. Before drying - Remove all objects such as coins, sand, keys, etc. from pockets. - Knot belts, ties, laces, etc. on garments. Fasten the buttons. - Do not overll the dryer. Unfold and separate rolled garments before putting them in the tumble dryer. - To prevent the buttons on the clothes from rattling when they hit the drum, turn the clothes inside out or place them inside out in the tumble dryer. - In the case of delicate garments, it is recommended to use a laundry bag or mesh to protect the fabric during drying. Practical tips on drying clothes - Spin the laundry well in the washing machine before putting it in the tumble dryer. A higher drying speed shortens the drying cycle time and reduces energy consumption. - To speed up the drying process, shake the laundry before putting it in the dryer. - Avoid overloading the dryer. - Clean the drum and lint lter periodically with a slightly damp cloth. - Clean the heat exchanger lter grille regularly. - The lint lter must be completely dry before putting it back into the dryer. - For uniform drying, sort the laundry according to the type of fabric and select a suitable drying programme. To avoid damage to garments, follow the drying instructions on the garment labels to nd out which programmes are suitable for which fabrics.BOLERO DRESSCODE DRY 8300

ENGLISH - Do not tumble dry fabrics that have undergone a sizing process. The sting layer that helps to harden the fabric will reduce the drying result. - Make sure that the ventilation grille is not obstructed or blocked. - In the heat of the tumble dryer, the garments may appear wetter than at room temperature. It is recommended not to over-dry clothes. Warning - This appliance is intended for domestic use. Use the dryer according to the recommended drying programmes and maximum load capacity. - Do not tumble dry garments made of ne fabrics such as silk, embroidery or synthetic materials, as they are easily damaged and creased. Maximum recommended load capacity Laundry Dry load weight (g) Mixed fabric coats 800 Jackets 800 (cotton) Work clothes 1120 (cotton) Shirts 300 (cotton) Jumper 180 (cotton) Pyjamas 200 Jeans 500 Underwear 70 (cotton) Socks 30 (mixed fabrics) Towels and duvets 900 (cotton) Bed sheets 600 (cotton)

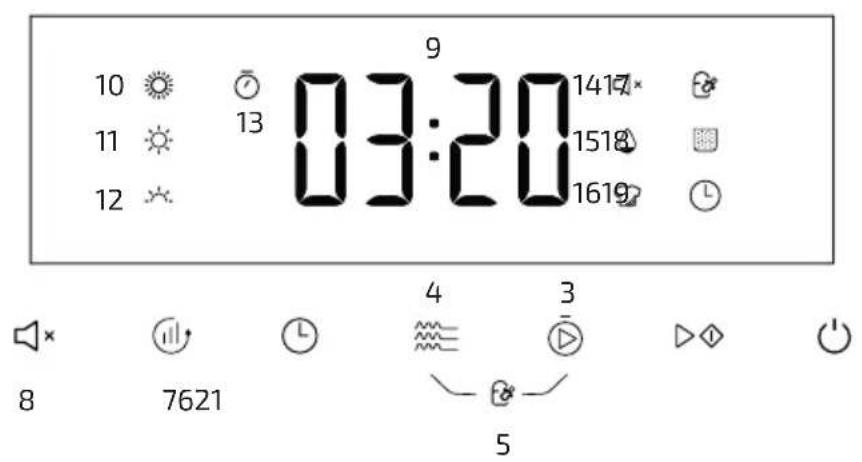

1. Power icon: use this icon to switch on/o the appliance.

2. Start/pause icon: use this icon to start the selected drying programme. While the dryer is

9. Display: it shows the operating status of the appliance

10. High drying level indicator light

15. Condensation water tank full warning indicator light

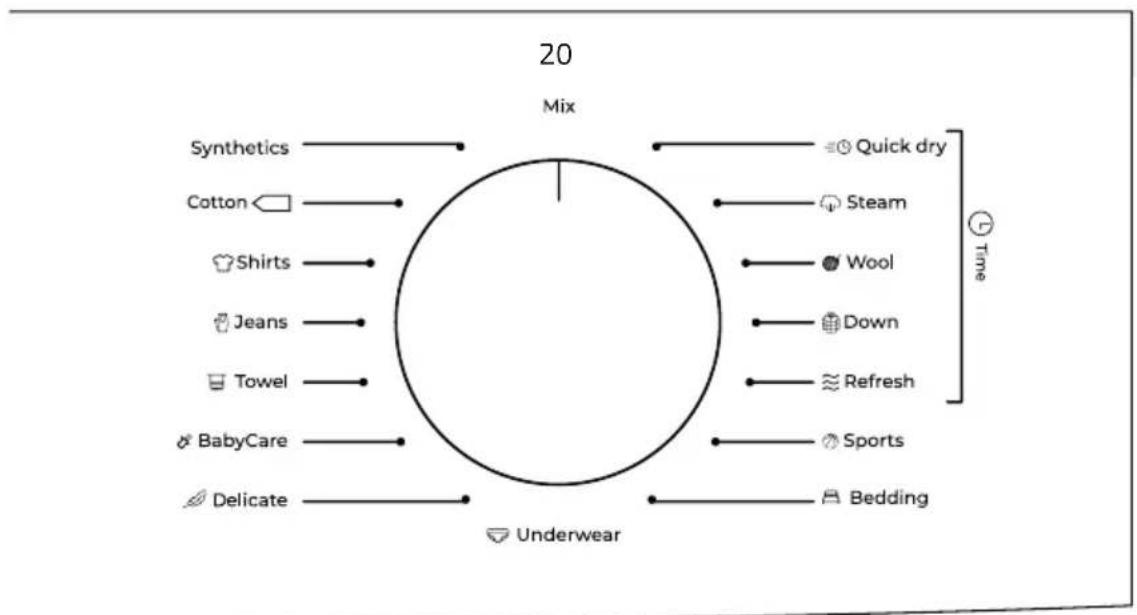

5. 1 Drying programmes

Programme EU01_100472 / 100473 EU01_100474 / EU01_100475 Description Mix 4 4 For drying cotton and synthetic fabrics Synthetics 4 4 For drying synthetic bre fabrics Cotton 8 9 For drying cotton garments Shirts 2 2 For drying shirts Jeans 3 3 For drying denim clothes Towels 3 3 For drying towels BabyCare 1 1 For drying baby clothes Delicate 4 4 For drying delicate and light fabrics Underwear 1 1 For drying underwear Quick dry 1 1 For drying small loads of laundry Steam 1 1 Wool 1 1 For drying woollen garmentsBOLERO DRESSCODE DRY 8300

ENGLISH Down 3 3 For drying down coats or feather-lled duvets Refresh 3 3 For drying laundry without using hot air and eliminating unpleasant odours Sports 2 2 For drying sportswear Bedding - - For drying bed linen

- The programmes above are only recommendations for use. Users can select the drying programmes that best suit their needs. - The actual drying time of the programme may vary depending on the room temperature and humidity, the type of fabric, the weight of the load and the degree of residual moisture of the laundry after the spinning phase. - Before putting the laundry in the dryer, check if the laundry is suitable for tumble drying as indicated on the laundry label. - If you need to dry small loads of laundry, it is recommended to select a timed programme which allows you to adjust the drying time. - If the laundry has not been dried completely, you can select a timed programme to continue drying the laundry. Please note that when selecting a timed programme, the moisture sensors will not detect the remaining humidity of the load automatically. - When drying large fabrics, such as sheets and curtains, it is possible that they may pile up during the drying process. Pause the programme, shake the laundry and put it back into the dryer to nish drying. Some thicker and heavier garments (jeans, large towels, etc.) are more dicult to dry due to the characteristics of the fabric. - Before putting down-lled jackets or coats in the tumble dryer, be sure to turn them inside out.

5.2 Drying functions

Drying level - This function is used to adjust the drying level of the laundry. There are three drying levels, press the drying level icon to switch between the levels: o H1: this function leaves the laundry slightly damp after drying to prevent over- drying and creasing. o H2: this function dries the laundry so that you can wear it immediately after drying. o H3: this function dries the laundry so that it can be stored in the wardrobe after drying. - The drying level can only be set or changed before starting the drying programme.BOLERO DRESSCODE DRY 8300

ENGLISH Drying time - This function allows you to set the duration of the following drying programmes: Quick dry, Steam, Wool, Down, Refresh, Sports and Bedding. - Each press corresponds to a 10-minute increment. KidLock - This function allows you to lock the control panel to prevent children from interrupting the drying cycle or tampering with the appliance accidentally.To activate the child lock, follow the steps below:

1. Press the power icon to switch on the appliance.

2. Select a drying programme.

3. Press the start/pause icon to start the drying cycle.

4. To activate the KidLock, press and hold the Delay Start and Anti-crease function icons at

the same time for 3 seconds.

Warning: when the KidLock function is activated, all icons on the panel are disabled (except the

power icon). To be able to use the dryer, rst deactivate the KidLock. Silence function This icon allows you to switch on or o the beeping emitted by the tumble dryer at the end of the drying programme. Easy ironing function (anti-crease) If you do not remove the laundry at the end of the drying programme, the Easy ironing function will be activated automatically to prevent the laundry from creasing. This function rotates the drum at regular intervals for 120 minutes. Delay Start function This function allows you to delay the start time of the programme. Once the programme has been selected, press the Delay Start icon to set the time you want the drying cycle to start. The start time will be shown on the display. When this time ends, the selected programme will start automatically and then the remaining drying time will be shown on the display. Dryer operation

Warning: before use, make sure that the dryer has been installed correctly according to the

installation instructions.

1. Preparing the dryer

1. Plug in the dryer.

2. Load the laundry into the drum.

Warning: before putting the laundry in the dryer, make sure to spin it well in the washing

2. Starting a drying cycle

1. Press the power icon to switch on the appliance.

4. Press the start/pause icon to start the drying cycle.

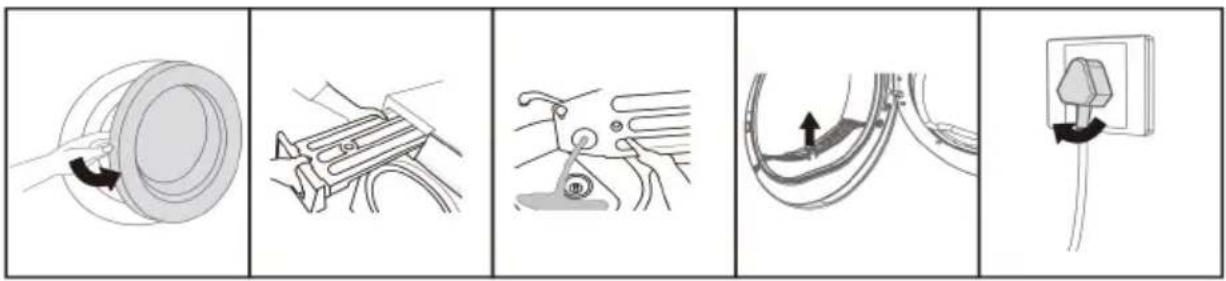

Fig. 4 When the drying programme is nished, the dryer will beep, and “END” will appear on the display.

1. Open the door and take the laundry out.

2. Remove the condensation water tank.

3. Empty the waste water from the tank.

4. Clean the lint lter.

5. Unplug the dryer.

WARNING If you use a plug with a switch, press it directly to switch o the appliance. If you have activated the Silence function, the dryer will not beep at the end of the programme.

6. CLEANING AND MAINTENANCE

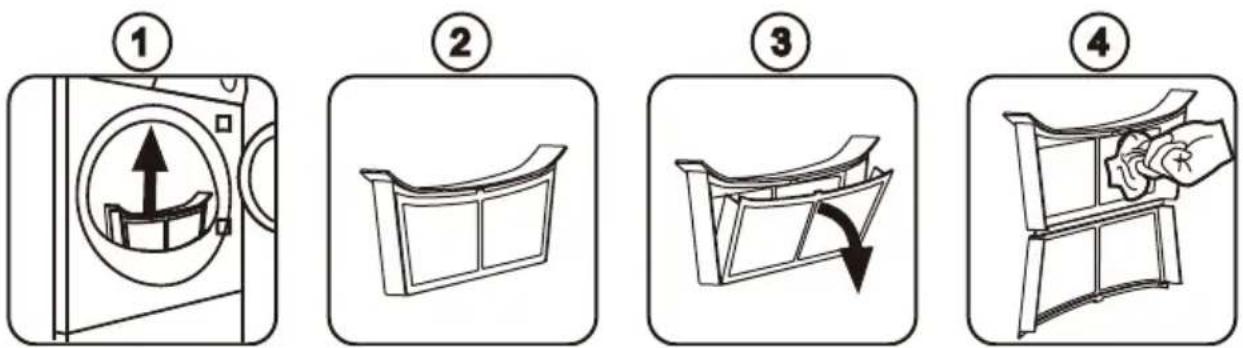

1. Lint lter cleaning

Fig. 5. To ensure ventilation during the drying process, the lint lter must be cleaned before and after each cycle.

2. Remove the lter from the compartment.

3. Open the lter housing.

4. Wipe o the lint with a damp cloth.

Warning: after cleaning, return the lter to its original position.

2. Cleaning the dryer surface

Wipe the surface of the dryer with a soft, clean cloth. Do not spray water directly on the dryer, do not use solvents, detergents, paran, volatile oils, alcohol, etc. to clean it. Particularly dirty parts can be cleaned with a soft cloth dampened with soapy water.BOLERO DRESSCODE DRY 8300

3. Cleaning the drum

When operating over a long period of time, the inside of the drum may be covered with scale deposits that are not visible at rst glance. This limescale formation is due to the hardness of the water and detergent residues. For this reason, the inside wall of the drum should be cleaned regularly with a damp cloth.

4. Emptying the condensation water tank

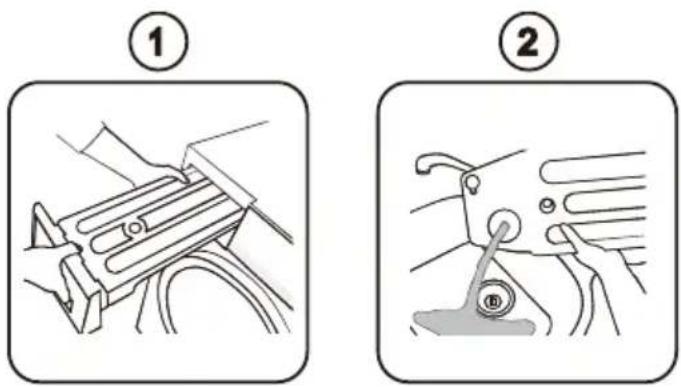

Fig. 6. While the dryer is in operation, steam condenses, and water accumulates in the tank. To empty the condensation water tank, follow the procedure below:

1. Remove the condensation water tank. Once the tank has been removed, be sure to keep it

in a horizontal position to prevent water spillage.

2. Empty the condensed water and put the tank back in place.

Warning: condensed water should not be drunk or used for food preparation. After each drying

cycle, it is recommended to empty the condensation water tank.

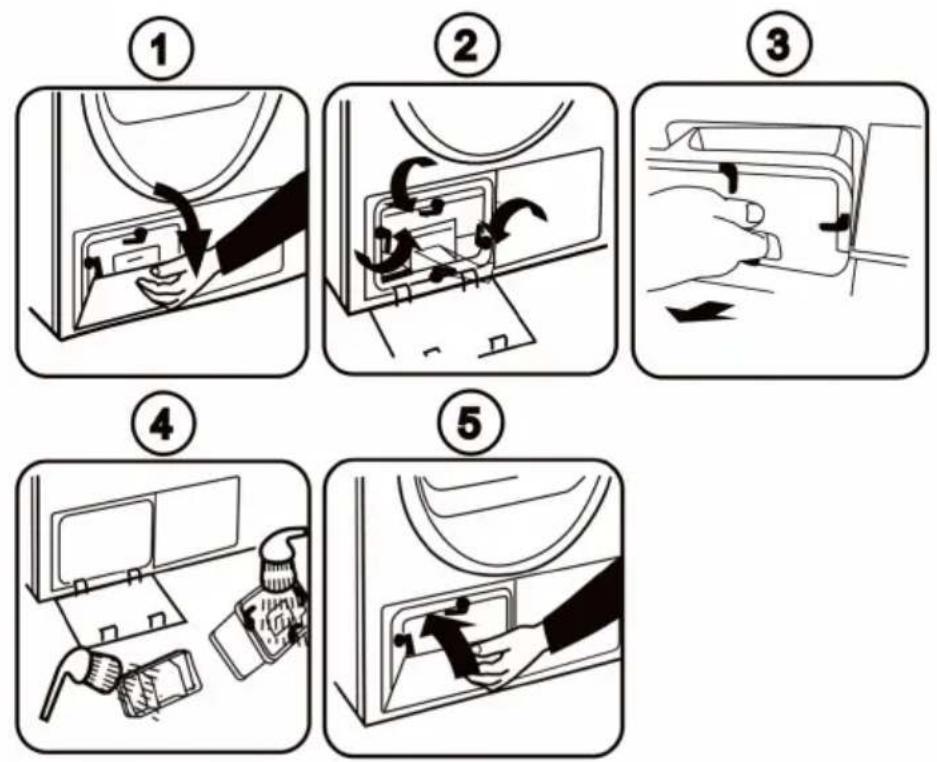

5. Cleaning the heat exchanger lter

Fig. 7 For best drying results, clean the heat exchanger lter regularly. Be sure to unplug the dryer before cleaning. To clean the heat exchanger lter, follow the procedure below:

1. Open the cover to gain access to the lter of the heat exchanger.

2. Turn the latches to unlock and remove the heat exchanger.

3. Remove the heat exchanger lter.

4. Clean lint accumulated in the lter.

5. Put the lter back in place.

Warning: do not use sharp objects to clean the surface of the heat exchanger lter, as this may

Warning indicator light Error code Problem Solution The condensation water tank is full. Empty the condensation water tank.

Drain pump failure or water level sensor failure. Contact the ocial Cecotec Technical Support Service.

Temperature sensor failure warning Contact the ocial Cecotec Technical Support Service.

Temperature sensor failure warning Contact the ocial Cecotec Technical Support Service. DOP The door is not properly closed. Door latch damaged. Close the door properly. Contact the ocial Cecotec Technical Support Service. The control panel does not light up. Check that there has not been a power failure and that the power cable is not damaged. Make sure you have pressed the power icon. The dryer does not start. Make sure the door is properly closed. Make sure that you have pressed the programme selection and the start/pause icons. The door opens by itself. Be sure to press the door closed. Check that the laundry load does not exceed the maximum recommended capacity. The laundry comes out wet or the drying cycle takes a long time. Clean the lint lter. Select a suitable drying programme. Make sure that the ventilation grille is not obstructed.BOLERO DRESSCODE DRY 8300

Any repair work must be carried out by an authorised professional technician. Before contacting the ocial Cecotec Technical Support Service, please check whether you can solve the problem yourself or whether it is due to a dierent usage problem.

8. TECHNICAL SPECIFICATIONS

You can nd more information on this model by scanning the QR code (and the energy label as well). Reference EU01_100472 EU01_100473 Model Bolero DressCode Dry

ENGLISH Energy consumption in o mode

Energy consumption in standby mode (P

70 70 dB Duration of standby mode (tL) 2 2 min Cumulative power consumption in o-mode (Wo) 50 80 mWh Cumulative power consumption in standby mode (WLo) 50 80 mWh The “normal cotton programme” used at full load and at partial load is the normal drying programme referred to in the information on the label and in the technical sheet, thisBOLERO DRESSCODE DRY 8300

ENGLISH programme is suitable for drying cotton fabrics with normal moisture and is the most energy ecient programme for cotton. Condensation eciency class B on a scale from G (least ecient) to A (most ecient). This is an automatic condensing tumble dryer. For references EU01_100472 / EU01_100473: Energy consumption: 236 kWh per year, based on 160 drying cycles of the normal cotton programme at full load and partial load, and consumption of the low energy modes. The actual energy consumption per cycle will depend on how the appliance is used. For references EU01_100474 / EU01_100475: Energy consumption: 242.4 kWh per year, based on 160 drying cycles of the normal cotton programme at full load and partial load, and consumption of the low energy modes. The actual energy consumption per cycle will depend on how the appliance is used. Technical specications may change without prior notication to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations. Repairs should be carried out by qualied personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the ocial Cecotec Technical Support Service at +34 963 210 728.BOLERO DRESSCODE DRY 8300

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC
