USER MANUAL UM 6083 CB BOMANN

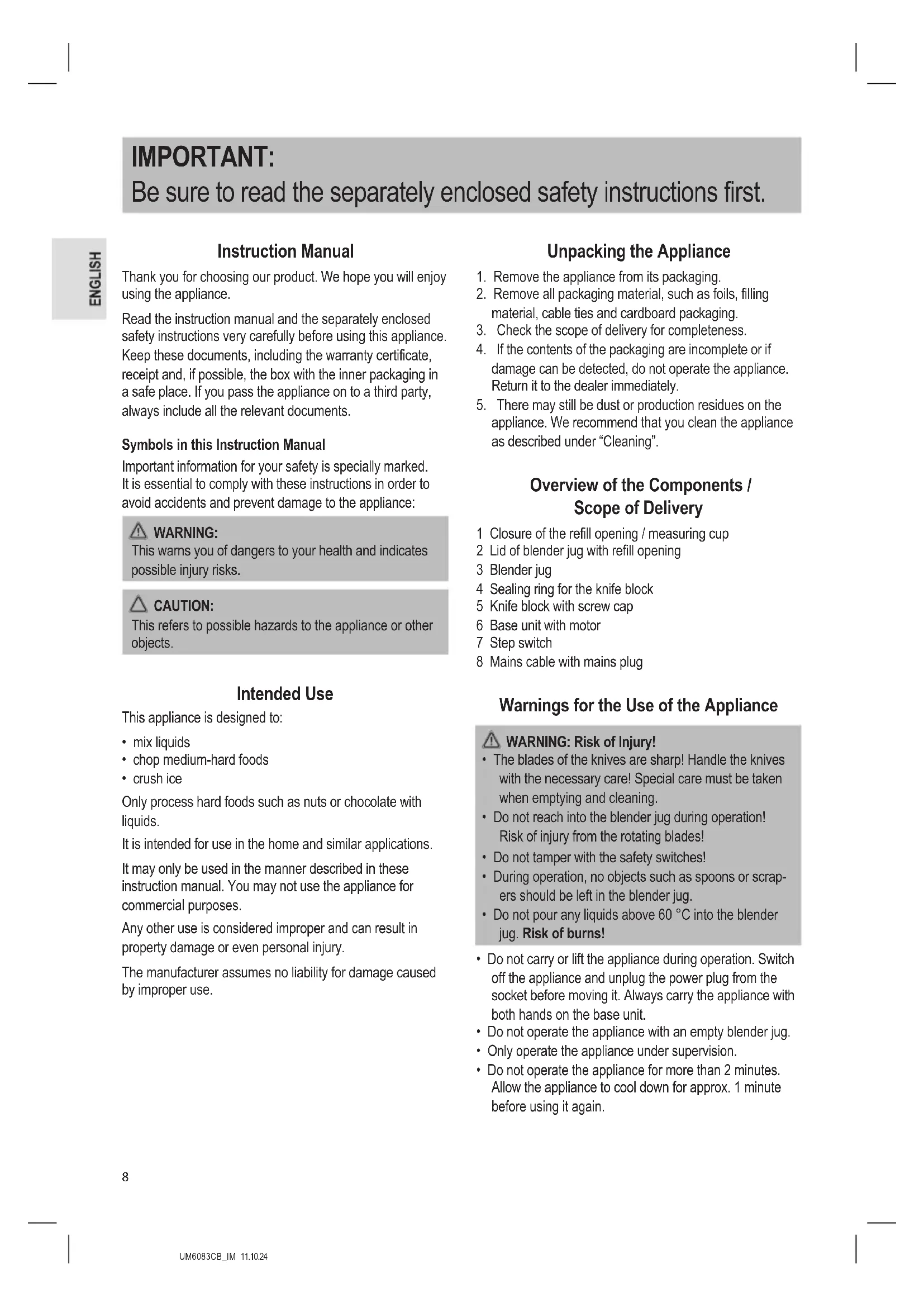

IMPORTANT: Be sure to read the separately enclosed safety instructions first. Instruction Manual Thank you for choosing our product. We hope you will enjoy using the appliance. Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certificate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents. Symbols in this Instruction Manual Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the appliance or other objects. Intended Use This appliance is designed to:

• chop medium-hard foods

• crush ice Only process hard foods such as nuts or chocolate with liquids. It is intended for use in the home and similar applications. It may only be used in the manner described in these instruction manual. You may not use the appliance for commercial purposes. Any other use is considered improper and can result in property damage or even personal injury. The manufacturer assumes no liability for damage caused by improper use. Unpacking the Appliance

1. Remove the appliance from its packaging.

2. Remove all packaging material, such as foils, filling

material, cable ties and cardboard packaging.

3. Check the scope of delivery for completeness.

4. If the contents of the packaging are incomplete or if

damage can be detected, do not operate the appliance. Return it to the dealer immediately.

5. There may still be dust or production residues on the

appliance. We recommend that you clean the appliance as described under “Cleaning”. Overview of the Components / Scope of Delivery 1 Closure of the refill opening / measuring cup 2 Lid of blender jug with refill opening 3 Blender jug 4 Sealing ring for the knife block 5 Knife block with screw cap 6 Base unit with motor 7 Step switch 8 Mains cable with mains plug Warnings for the Use of the Appliance

WARNING: Risk of Injury!

• The blades of the knives are sharp! Handle the knives with the necessary care! Special care must be taken when emptying and cleaning.

• Do not reach into the blender jug during operation! Risk of injury from the rotating blades!

• Do not tamper with the safety switches!

• During operation, no objects such as spoons or scrap- ers should be left in the blender jug.

• Do not pour any liquids above 60 °C into the blender jug. Risk of burns!

• Do not carry or lift the appliance during operation. Switch off the appliance and unplug the power plug from the socket before moving it. Always carry the appliance with both hands on the base unit.

• Do not operate the appliance with an empty blender jug.

• Only operate the appliance under supervision.

• Do not operate the appliance for more than 2 minutes. Allow the appliance to cool down for approx. 1 minute before using it again.UM6083CB_IM 11.10.24

housing so that the handle is on the right-hand side. Note the recesses on the motor housing.

2. Turn the blender jug clockwise onto

the motor housing with a short twist. Lid

1. Place the lid slightly offset on the

blender jug. Note the latches on the blender jug.

2. Turn the lid clockwise until it clicks into

place on the blender jug. - The lid must engage audibly to activate the safety switch.

3. Insert the closure into the refill opening of the lid.

- The closure can also be used as a measuring jug. Notes for Use

• The appliance is equipped with a safety switch. It pre- vents the appliance from being put into operation without the blender jug in place and the lid closed.

• Place the appliance on a firm and level surface. Position it so that it cannot tip over.

• Only switch the appliance on when the blender jug is closed with the lid. The refill opening in the lid must also be closed.

• Do not overfill the blender jug! A maximum of 1.5 litres can be filled. Observe the scale on the blender jug.

• Foam requires a lot of volume. Reduce the filling quantity for highly foaming liquids.

• Hold one hand on the lid when crushing ice or when filling large quantities.

• Cut the mixture into small pieces beforehand Short-term Operation The appliance is suitable for short-term operation for a maximum of 2 minutes. Allow it to cool down for at least 1 minute before using it again! Pulse Mode Pulse mode is achieved by turning the step switch to the P position and releasing it again. Use the appliance in this mode for a maximum of 2 minutes. Allow it to cool down for at least 1 minute before using it again! Chopping Ice Cubes The blades in the blender jug are also suitable for crushing ice cubes.

• Fill a maximum of 10 pieces (size approx. 25 × 25 × 25 mm) into the blender jug.

• Use pulse mode P for 1 – 3 seconds. Repeat the process 8 to 12 times.

• When adding liquid, you can use level 2 for 1 – 2 minutes. Electrical Connection

1. Before you insert the plug into the socket, check whether

the mains voltage you want to use matches that of the appliance. You will find the relevant information on the rating plate.

2. Only connect the appliance to a properly installed

earthed socket. Operation Preparation

1. Ensure that the level switch is set to 0.

5. Close the refill opening with the closure.

Mixing Operate with the level switch: Level 0 = Off Level 1 = Low speed Level 2 = High speed P = High speed in pulse mode Refilling the Blender Jug You can refill the blender jug with food or spices through the refill opening.

1. Switch the appliance off previously.

2. Before switching the appliance back on, close the refill

opening again. Ending Operation

1. Turn the level switch to the 0 position.

2. Wait until the blade has come to a standstill.

3. Disconnect the mains plug from the socket.

• Always unplug the appliance from the power outlet before cleaning.

• Never immerse the appliance in water to clean it. This could cause an electric shock or fire.

• The knives on the knife block are very sharp. There is a risk of injury! CAUTION:

• Do not use a wire brush or other abrasive objects.

• Do not use harsh or abrasive cleaning agents.

• The individual parts are not suitable for cleaning in the dishwasher.

• Pre-cleaning: Fill the blender jug halfway with water and turn the switch to “ P ” for approx. 10 seconds. Then pour out the liquid.

• Remove the blender jug for thorough cleaning. Removing and Installing the Knife Block

1. Turn the blender jug upside down.

2. With a little force, turn the closure anti-clockwise and

loosen the knife block.

3. Carefully remove the knife block from the blender jug.

4. Remove the sealing ring for cleaning.

5. After drying, place the sealing ring back on the knife

6. Insert the knife block into the thread at the bottom of the

7. Tighten the closure of the knife block by turning it

8. Make sure that the knife block is firmly in place.

CAUTION: Only operate the appliance if you have properly fitted the knife block with sealing ring! Otherwise the blender jug will leak. Blender Jug, Lid, Knife Block, Sealing Ring and Measuring Cup Clean these parts in warm washing-up water with a little washing-up liquid added. Allow all parts to dry thoroughly before reassembling them. Housing

• Only use a moderately damp cloth to clean the outside of the appliance.

• Slight discolouration caused by carrot juice can be removed with oil. Storage

• Clean the appliance as described. Allow the accessories to dry completely.

• We recommend storing the appliance in its original packaging if you do not intend to use it for a longer period of time.

• Always store the appliance out of the reach of children in a well-ventilated and dry place.UM6083CB_IM 11.10.24

Troubleshooting Problem Possible Cause Remedy The appliance has no function. The appliance has no power supply. Check the power socket with another appliance. Insert the mains plug correctly. Check the house fuse. Wrong switch position. Check the position of the step switch. Your appliance is provided with a safety switch. It prevents the motor from starting up uninten- tionally. Check that the blender jug and the blender jug lid are correctly in place. The appliance is defective. Contact our service or a specialist. Technical Data Model:.................................................................UM 6083 CB Power supply:.....................................220 – 240 V~, 50 – 60 Hz Power consumption: .....................................................500 W Power consumption in off-mode: ...................................0.1 W Protection class: ................................................................... Filling quantity: ................................................. max. 1.5 litres Net weight: ....................................................... approx. 1.4 kg The right to make technical and design modications in the course of continuous product development remains reserved. This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of elec- trical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.UM6083CB_IM 11.10.24
