USER MANUAL AC1333 IFM

integrates one or two AS-i masters (AC1333/AC1334, both in accordance with the AS-i version 3.0) and a mini controller.

• It controls the exchange of data to the sensor/actuator level

• processes the peripheral data in the integrated processor (signal pre- processing)

• works as stand-alone controller with exchange of data to the PC (visualisation) Programming interface RS232C

• Baud rate 4800 to 115,200 baud

• Max. distance between controller

• Potential separation from the controller

• Programming cable E70320 for connection to PC required Installation Fix the controller e onto a 35 mm DIN rail which has an electrically safe ground connection. The protection rating of the unit is IP20, therefore it should be mounted in a protected location (e.g. control cabinet). Ensure a condensation-free environment. Avoid excessive dust, vibrati- on and shock. The air circulation through the vents must not be impe- ded. Avoid installation in direct vicinity of frequency inverters. Electrical connection Disconnect the installation from power. Connect the unit as indi- cated on the terminals. Never connect the minus potentials to each other or the minus potentials to the FE connection. Ensure an electrically safe ground connection between AS-i con- troller

(terminal FE) and ground connection of the unit. Supply the controller

with a 24 V DC voltage (20...30 V PELV), e.g. from the 24 V power supply DN2011 of ifm electronic. The connection is made to the terminals +24 V and 0 V. 10Operating and indicating elements Information concerning the state of the master (AC1333)/masters /AC1334) and the connected system is given via three diagnostic LEDs on the controller

• LED PWR/COM lights: AS-i voltage present, at least one slave was detected

• LED PWR/COM flashes: AS-i voltage present, but no slave was detected correctly

• LED PROJ lights: Projection mode active, the configuration monitoring is deactivated

• LED PROJ flashes: Projection mode active, changeover to protected mode not possible as a slave with the address 0 is connected

• LED CONF/PF lights: Projected and current configuration do not match

• LED CONF/PF flashes: Periphery fault on at least one connected slave

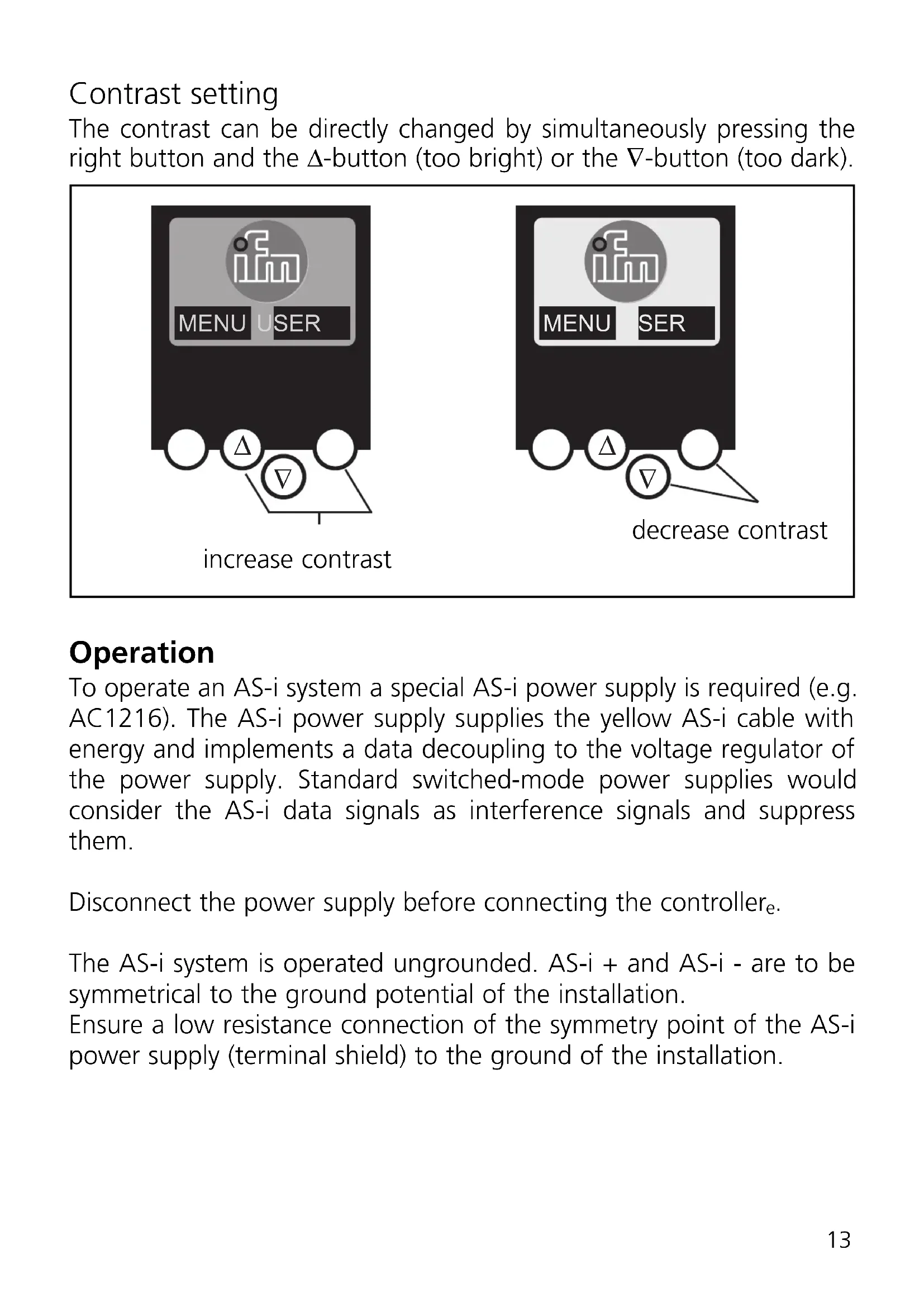

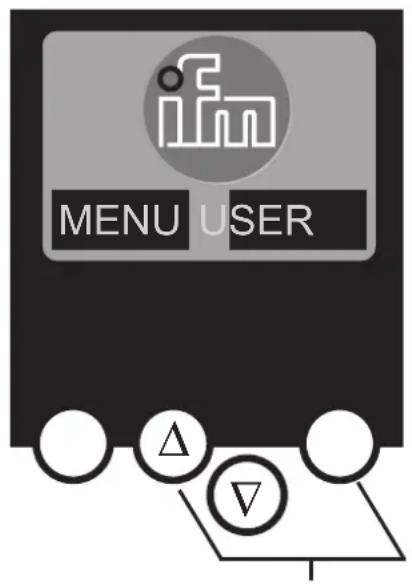

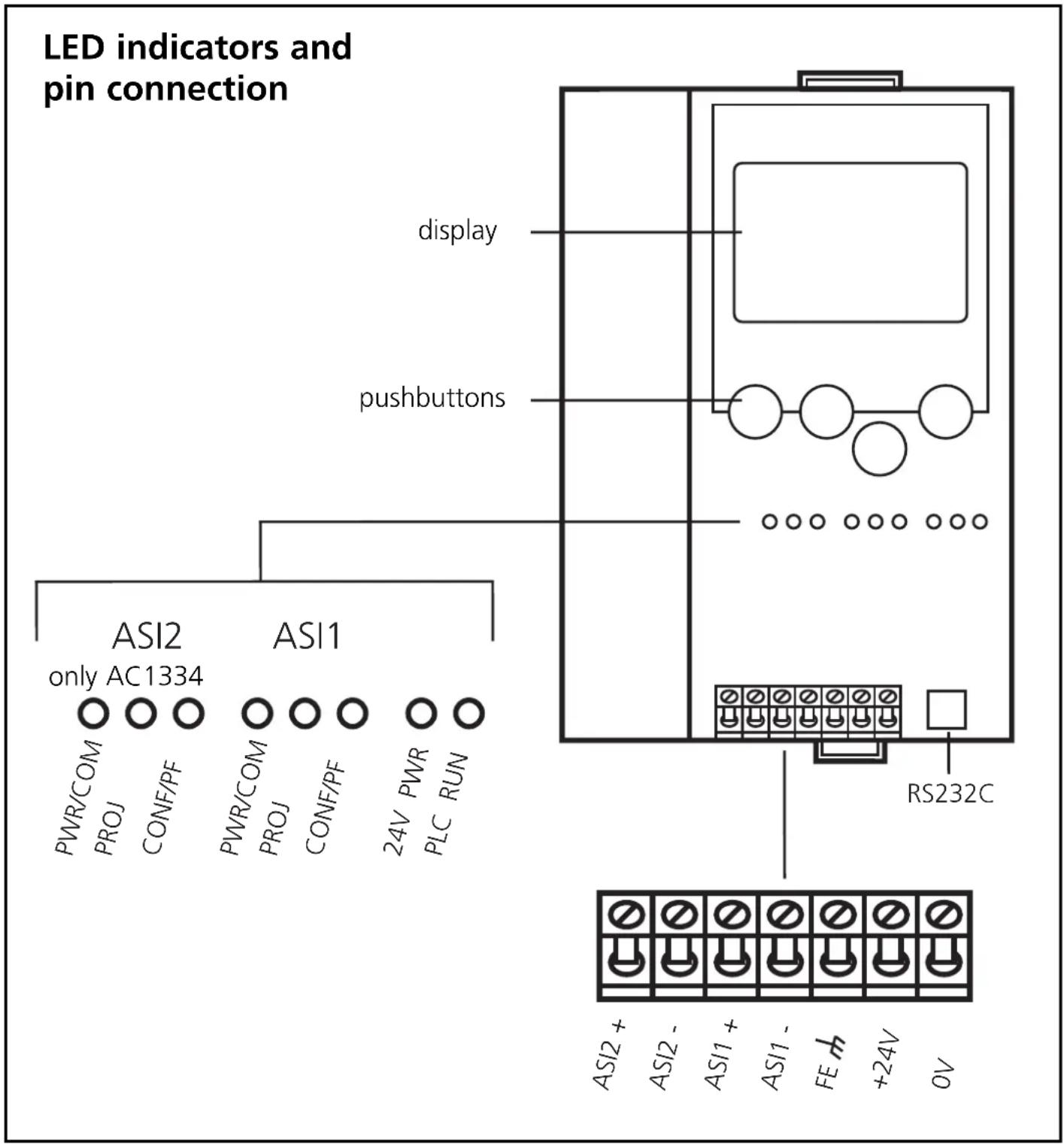

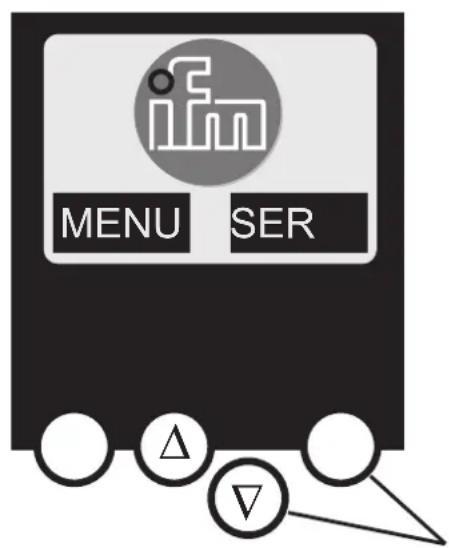

RS232C only AC1334 display pushbuttons LED indicators and pin connectionContrast setting The contrast can be directly changed by simultaneously pressing the right button and the Δ-button (too bright) or the ∇-button (too dark). Operation To operate an AS-i system a special AS-i power supply is required (e.g. AC1216). The AS-i power supply supplies the yellow AS-i cable with energy and implements a data decoupling to the voltage regulator of the power supply. Standard switched-mode power supplies would consider the AS-i data signals as interference signals and suppress them. Disconnect the power supply before connecting the controller

The AS-i system is operated ungrounded. AS-i + and AS-i - are to be symmetrical to the ground potential of the installation. Ensure a low resistance connection of the symmetry point of the AS-i power supply (terminal shield) to the ground of the installation.

MENU USER increase contrast decrease contrastMenu overview Password Important: When selecting 'Password' in the 'System Setup' menu, operation can be restricted or released. When delivered, the device is in the user mode. By entering an invalid password (e.g. 1000) all menu items that allow settings to be changed will be blocked. By entering the password 'CE01' the user mode is enabled again. The password is stored non-volatilely by the System Setup / Store System menu item.

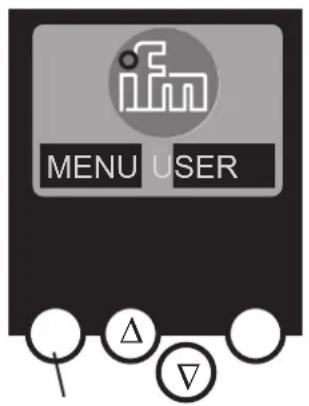

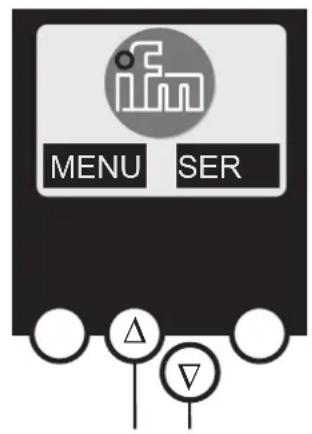

MENU USER MENU button navigation buttons Open the main menu by pressing the left button "MENU" in the start display. To navigate within a menu point press the button Δ or ∇. Press the buttons simultaneously to switch between the German and English menu.Menu navigation By pressing the left button in the start display (AS-i error diagnostics) the main menu is opened. The two buttons in the middle allow scrol- ling through the menu. O Quick Setup (summary of the menu items for a basic configura- tion) ∇ 'Teach in' of the current AS-i configuration (Project all) ∇ Settings of the fieldbus interface (option) O PLC Setup (settings of the optional PLC) ∇ Switch the gateway mode on or off (operation without PLC) ∇ Start and stop the PLC in the controller

(if used) ∇ plc project name, version, date and author O Slave Lists (Checking of the addresses of the connected AS-i slaves) ∇ Indication of the list of detected slaves (LDS) ∇ Indication of the list of projected slaves (LPS) ∇ Indication of the list of activated slaves (LAS) ∇ Indication of the list of periphery faults in AS-i slaves (LPF) O Address Slave (Programming of the addresses of the connected AS-i slaves) ∇ Readdressing of an AS-i slave connected to the controller

∇ Automatic addressing of new AS-i slaves to the next free address (easy start-up) 15O Diagnostics (diagnostics of the connected AS-i networks) ∇ Counting the AS-i voltage dips since power on of the controller

∇ Counting the AS-i configuration errors since power on of the controller

∇ Verify the fault rate of the AS-i messages of the connected AS-i system ∇ Indication of the number of connected AS-i slaves and the cycles per second ∇ List of the AS-i slaves with faulty messages since power on of the controller

∇ Reset of the error counter ∇ Indication of the maximum system cycle time ∇ Reading the diagnostic information of Safety-at- Work monitors O Master Setup (information on the AS-i master system) ∇ 'Teach in' of the current AS-i configuration (project all) ∇ Changeover to the projection mode: configuration of the AS-i system ∇ Changeover to the protected mode: normal operation (master monitors configuration) ∇ Enable the automatic AS-i slave addressing in the protected mode ∇ Deactivation of the AS-i reset during the change to the protected mode O Fieldbus Setup(Setting of the optional fieldbus interface) ∇ Setting of the device address of the controller

the higher-level fieldbus ∇ If necessary further settings of the higher-level fieldbus 16O Slave Info (Details about the connected AS-i slaves) ∇ Indication of the digital or analogue inputs / out- puts of the connected AS-i slaves ∇ Indication of the parameters of the connected AS-i slaves ∇ Indication of the ID and IO codes of the connec- ted AS-i slaves ∇ Indication of the transmission errors to the con- nected AS-i slaves O Slave Setup (settings of the connected AS-i slaves) ∇ Forcing the parameters of the connected AS-i slaves ∇ Forcing the digital or analogue inputs / outputs of a connected AS-i slave O System Setup (Device settings of the controller

∇ Store the current system settings ∇ Setting of the baud rate of the serial program- ming interface ∇ Setting of the parameters of the Ethernet pro- gramming interface (option) ∇ Enter the new password to disable or enable the menu functions ∇ Update the controller

operating system (special software required!) ∇ Reset to the factory settings of the controller

O System info (Device information) ∇ hardware and operating system version numbers of this controller
