USER MANUAL SMMA160 MINI Stamos

CERMANY 2 3 140 4 min nax S-MMA-140 MINI 5 6

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

1. Symbols

		Read the operating instructions.
		Recyclable product.
		The product meets the requirements of relevant safety standards.
		Wear protective clothing that protects the entire body
		Caution! Wear protective gloves.
		Wear protective glasses.
		Wear protective footwear.
		Caution! Hot surface can cause burns!
		Caution! Risk of fire or explosion.
		Caution! Harmful vapors, danger of poisoning. Gases and fumes can be hazardous to your health. Welding process gives off welding gases and fumes. Inhalation of these substances can be hazardous to health.
		Use a welding mask with an appropriate filter shade.
		CAUTION! Harmful radiation from the welding arc
		Do not touch live parts.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

1. Technical data

Product name	MMA welding machine
Product model	S-MMA-100 MINI	S-MMA-140 MINI	S-MMA-160 MINI	S-MMA-180 MINI	S-MMA-200 MINI
Nominal input voltage [V] / Frequency [Hz]	230V~/50Hz
Welding current range [A]	25-100	30-140	30-160	30-180	30-200
Idle voltage [V].	62	62	62	62	62
Rated duty cycle [%]	30	30	30	30	30
Welding current in 100% duty cycle [A]	55	76	88	99	110
Welding current in 60% duty cycle [A]	71	98	114	128	142
Welding current in 30% duty cycle [A]	100	140	160	180	200
Insulation class	F	F	F	F	F
Degree of protection of the housing	IP21S	IP21S	IP21S	IP21S	IP21S

S-MMA-100 MINI
Work cycle	30%	60%	100%
Measured input power	2 864	1 890	1 460
Measured output power	2 418	1 611	1 248
Calculated efficiency %	84	85	85
Minimum calculated performance	84
Power measurement at rest
Ambient temperature	20^ C
Input voltage	230V
Frequency	50Hz
Test time	10 min
Measured input data at the beginning	33.19 W
Measured input data at the end	33.62W

S-MMA-140 MINI
Work cycle	30%	60%	100%
Measured input power	4 364 2 757 2 075
Measured output power	3 641	2 344	1 776
Calculated efficiency %	83	85	85
Minimum calculated performance	83
Power measurement at rest
Ambient temperature	20^ C
Input voltage	230V
Frequency	50Hz
Test time	10 min
Measured input data at the beginning	35.26W
Measured input data at the end	34.18W
S-MMA-160 MINI
Work cycle	30%	60%	100%
Measured input power	4 943	3 252	2 379
Measured output power	4 231	2 842	2 077
Calculated efficiency %	84	86	87
Minimum calculated performance	84
Power measurement at rest
Ambient temperature	20^ C
Input voltage	230V
Frequency	50Hz
Test time	10 min
Measured input data at the beginning	34.29W
Measured input data at the end	33.47W

S-MMA-180 MINI
Work cycle	30%	60%	100%
Measured input power	5 820	3 710	2 720
Measured output power	4 976	3 232	2 390
Calculated efficiency %	84	86	87
Minimum calculated performance	84
Power measurement at rest
Ambient temperature	20^
Input voltage	230V
Frequency	50Hz
Test time	10 min
Measured input data at the beginning	33.69W
Measured input data at the end	33.15W

S-MMA-200 MINI
Work cycle	30%	60%	100%
Measured input power	6 750	4 257	3 165
Measured output power	5 671	3 653	2 747
Calculated efficiency %	84	85	86
Minimum calculated performance	84
Power measurement at rest
Ambient temperature	20^ C
Input voltage	230V
Frequency	50Hz
Test time	10 min
Measured input data at the beginning	35.88W
Measured input data at the end	34.27W

3. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

4. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and in the description of the instructions refers to MMA welding machine

4.1. General

• Take care of your own safety and the safety of bystanders by carefully reading and following the instructions in the unit manual.
• Only qualified personnel should be allowed to start up, use, service and repair the unit.
• Do not misuse the unit.

4.2. Guidelines for securing fire hazardous work

Preparing the building and rooms for fire hazardous works consists in:

• cleaning the rooms or places where the work will be carried out of any flammable materials and contamination;
• moving all flammable and non-flammable objects in flammable packaging away to a safe distance;
• securing materials that cannot be removed, e.g. welding spatter, by covering them with e.g. sheet metal, gypsum boards, etc;
• checking whether materials or objects susceptible to ignition in adjacent rooms do not require local protection;
• sealing with non-combustible materials all installation and ventilation openings, etc., in the vicinity of the work site;
• protecting electrical and gas cables with flammable insulation against welding splashes or mechanical damage, if they are located within the risk range of fire hazardous work;
• make sure that painting or other work with flammable substances is not being carried out at the location where the work is to be done.

Sparks may cause fires

Welding sparks can cause fires, explosions and burns to unprotected skin. Wear welding gloves and protective clothing when welding. Remove or secure all flammable materials and substances from the work area. Do not weld closed containers or tanks that have contained flammable liquids. Such containers or tanks should be flushed before welding to remove flammable liquids. Do not weld near flammable gases, vapors or liquids. Fire fighting equipment (fire blankets and powder or snow extinguishers) should be located near the work area in a visible and easily accessible location.

Cylinders can explode

Use only approved gas cylinders and a properly functioning regulator. Cylinders should be transported, stored and positioned upright. Protect cylinders from heat, tipping and mechanical damage. Keep all parts of gas installation in good condition: cylinder, hose, fittings, regulator.

Welded materials can cause burns

Never touch welded parts with unprotected body parts. Always wear welding gloves and pliers when touching or moving welded material.

4.3. Preparation of the workplace for welding

Caution! Welding can cause a fire or explosion.

• Observe the health and safety regulations for welding work and equip the workplace with an appropriate fire extinguisher
• Welding in places where flammable materials can ignite is forbidden.
• Welding in an atmosphere containing an explosive mixture of flammable gases, vapors, mists or dusts with air is forbidden.
• Remove all flammable materials within a radius of 12m from the welding site and, if this is impossible, cover the flammable materials with a non-flammable cover.
  • Take precautionary measures against sparks and glowing metal particles.
• Note that sparks or hot metal splinters can penetrate through slots or openings in protective caps, covers or screens.
• Do not weld tanks or barrels that contain or have contained flammable substances. Do not weld in their vicinity either.
• Do not weld pressurized tanks, pressure lines or pressure tanks.
  • Always provide sufficient ventilation.
• Make sure you are in a stable position before starting to weld.

4.4. Personal protective equipment

Caution! Arc radiation can damage the eyes or skin of the body.

• When welding, wear clean, oil-free protective clothing made of non-flammable and non-conductive material (leather, thick cotton), leather gloves, high boots and a protective hood.
• Before welding, get rid of any flammable or explosive items such as propane-butane lighters and matches.
• Use face protection (helmet or shield) and cover the eyes with a shade matching the welder's eyesight and welding current. The safety standards suggest a No. 9 (minimum No. 8) tint for any amperage below 300 A. Lower shield tints may be used if the arc is covered by the workpiece.
  • Always use approved safety glasses with a side shield under the helmet or other shield.
• Use workplace shields to protect others from glare or spatter.
• Always wear earplugs or other hearing protection against excessive noise and to prevent spatter from entering your ears.
• Warn bystanders against looking at the electric arc.

4.5. Protection against shock

Caution! Electric shock can be fatal.

• Plug the power cord into the nearest outlet and route it in a practical and safe way. Avoid spreading the cable carelessly around the room on an unstudied surface, which may result in electric shock or fire.
• Contact with electrically charged parts can cause an electric shock or severe burns.
• The electric arc and the working area are electrically charged when the current flows.

• The input circuit and the internal circuitry of the unit are also live when the power is on.

• Do not touch the live components.

• Wear dry, lint-free, insulated gloves and protective clothing.
• Use insulating mats or other insulating coatings on the floor that are large enough to prevent contact between the body and the object or the floor.
• Do not touch the electric arc.
• Turn off the power supply before handling, cleaning or replacing the electrode.
• Make sure the grounding cable is properly connected and that the plug is properly inserted into the grounded outlet. Improper grounding of the unit may result in a risk to life or health.
• Regularly check the power cables for damage or lack of insulation. A damaged cable should be replaced. Careless repair of insulation may result in death or personal injury.
• Turn off the device when not in use.
• The cable must not be wrapped around the body.
• The workpiece must be properly grounded.
• Only accessories that are in good condition may be used.
• Damaged parts of the device must be repaired or replaced. Use safety belts when working at heights.
• All equipment and safety items should be stored in one place.
• Keep the tip of the handle away from the body when the trigger is activated.
• Attach the ground cable to the workpiece or as close to it as possible (e.g. to the workbench).

Caution! The machine may still be live when the power cord is disconnected.

- After turning off the unit and disconnecting the voltage cable, check the voltage on the input capacitor and make sure that the voltage value is zero, otherwise do not touch the unit components.

4.6. Gases and fumes

Caution! Gas can be hazardous to health or lead to death!

• Always keep a distance from the gas outlet.
- When welding, pay attention to the exchange of air, avoiding gas inhalation.
- Remove chemical substances (greases, solvents) from the surface of the workpieces as they burn under high temperature, giving off poisonous fumes.
- Welding galvanized parts is allowed only with efficient extraction with filtration and a supply of clean air. Zinc vapors are very toxic, and the symptom of poisoning is the so-called zinc fever.

5. Instructions for use

5.1. General

• Use the equipment for its intended purpose, observing the safety regulations and restrictions resulting from the data on the rating plate (IP degree, duty cycle, supply voltage, etc.).
• The unit must not be opened, as this will void the warranty. In addition, exploding naked parts may cause personal injury.
• The manufacturer is not responsible for technical changes to the unit or material damage resulting from such changes.
  • In case of malfunction contact the service department.
• Do not block the ventilation slots of the unit - position the welding machine at a distance of 30 cm from surrounding objects.
• Do not hold the welding machine under your arm or close to your body.
• The unit must not be installed in rooms with aggressive environment, high dust and near units with high electromagnetic field emission.

5.2. Storage of the device

- Protect the unit from water and moisture.

• The welder must not be placed on a heated surface.

• Store the machine in a dry and clean room.

5.3. Connecting the unit

5.3.1. Electrical connection

- The unit should be connected by a qualified person. In addition, a person with the necessary qualifications should check that the earthing and electrical installation including protection system complies with safety regulations and is functioning properly.

- Place the unit near the work area.

- Avoid excessively long wires to connect the unit.

- Single-phase welding machines should be connected to an outlet equipped with a grounding pin.

- Welders supplied from 3-phase mains are delivered without a plug, you should obtain one yourself and have it installed by a qualified person.

CAUTION! The device may only be operated if connected to installation with a functional fuse.

6. Product overview

The following is an image of the S-MMA-140 MINI welding machine, the other models described in this manual, apart from the technical parameters, look the same.

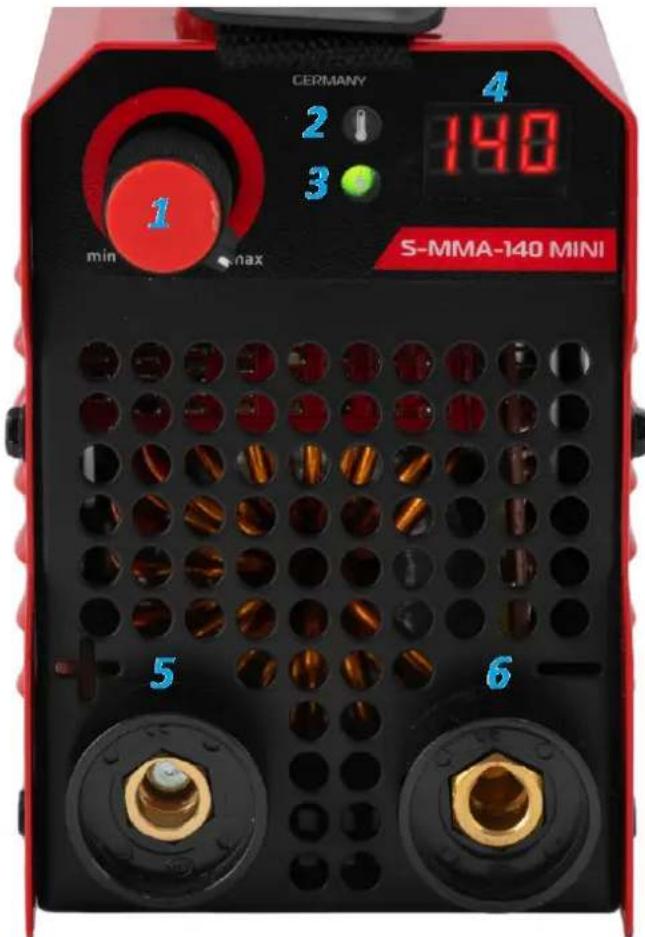

Front view

CERMANY 2 3 140 4 min max S-MMA-140 MINI 5 6

1.	Welding current adjustment knob
2.	Power light
3.	Thermal overload indicator light - When the device overheats, this light will turn on and the device will turn off. Do not try to restart welding by leaving the machine with the fans running. The indicator will automatically turn off when the device cools down. Pay attention to the rated duty cycle.
4.	Welding current display.
5.	Welding cable socket (positive pole)
6.	Workpiece lead socket (negative pole)

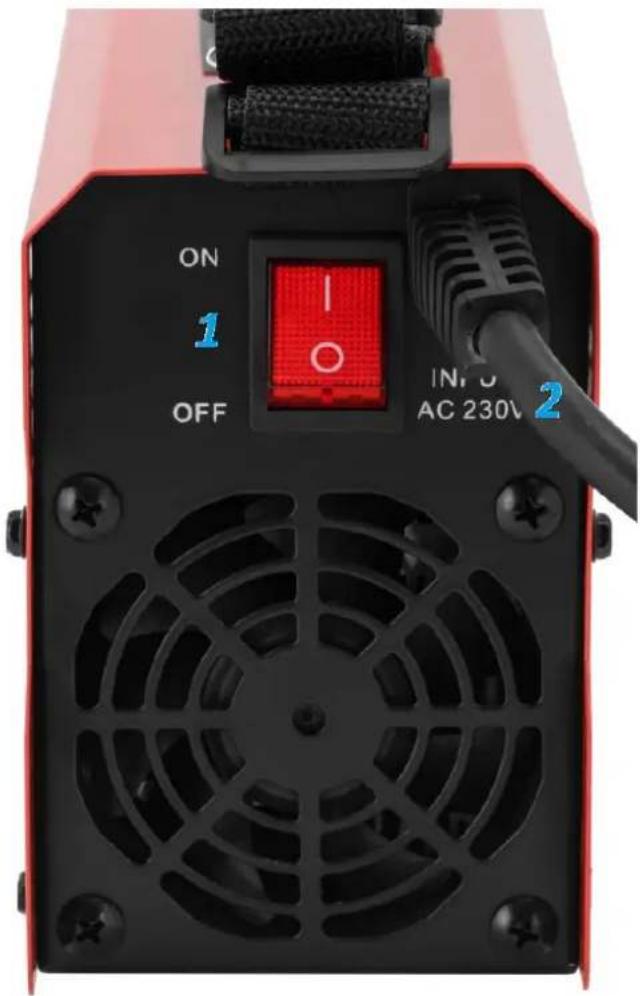

Rear view:

ON 1 OFF I O IN: 5 AC 230V 2

1.	Main ON / OFF switch
2.	Power cord

7. Connecting the wires

CAUTION! The electrical installation to which the machine would be connected should be equipped with an overcurrent fuse.

If an extension cord is used, its cross-section should be at least the same as that of the power cord. CAUTION! Connecting the cables to the device must be done with the power supply disconnected and the device turned off.

1) Connect the welding gun cable to the connector marked with a "-" sign and twist the cable plug to secure the connection.
2) Connect the ground cable to the connector marked "-" and twist the cable plug to secure the connection.

Caution! Cable polarity may vary! All polarity information should be described on the packaging provided by the electrode manufacturer!

3) Plug the power cord into an electrical outlet and start the machine. After connecting the mass cable to the workpiece, work can begin.

8. Disposal of the packaging

Please keep all packaging material (cardboard, plastic strips and polystyrene foam) to ensure that the unit is protected during shipment, should it become necessary to send it to a service center!

9. Transport and storage

When transporting the unit, protect it from shocks and tipping over, and do not place it "upside down". Store the unit in a well-ventilated room where dry air is present and corrosive gases are not present.

10. Cleaning and maintenance

• Before each cleaning, and also when the device is not in use, disconnect the power plug and let the device cool down completely.
• Remove the spatter from the tip of the welding gun and check the condition of the parts. Damaged parts must be replaced immediately.
• Use only non-corrosive cleaning agents for cleaning surfaces.
• Do not spray the unit with a stream of water or immerse it in water.
  • Make sure that no water enters through the ventilation openings in the casing.
• Clean the ventilation openings with a brush and compressed air.
  • After each cleaning, all the parts should be dried well before the unit is used again.
• Store the unit in a dry and cool place protected from moisture and direct sunlight.
• Remove dust regularly with dry and clean compressed air.

11. Regular inspection of the device

Check the unit regularly for damage. If this is the case, stop using the unit. Please contact your dealer immediately for repair.

NOTE: Never open the device without consulting customer service. This can lead to loss of warranty.

CERMANY 2 3 140 4 min nax S-MMA-140 MINI 5 6

CERMANY 2 3 140 4 min nax S-MMA-140 MINI 5 6

CERMANY 2 3 140 4 min nax S-MMA-140 MINI 5 6

CERMANY 2 3 140 4 min nax S-MMA-140 MINI 5 6

CERMANY 2 3 140 4 min nax S-MMA-140 MINI 5 6

CERMANY 2 3 140 4 min nax S-MMA-140 MINI 5 6

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
