SS10060 - Toaster Sogo - Free user manual and instructions

Product Type	Toaster / Multi-purpose electric skillet
Brand	Sogo
Model	SS10060
Power Supply	220-240 V ~ 50/60 Hz
Power	1500 W
Pan Material	Metal with non-stick coating
Lid	Glass with handle
Temperature Control	Integrated with rotary knob (positions 1-4) and indicator light
Temperature Range	80 °C to 240 °C (depending on setting)
Capacity	Not specified (household use)
Usage	Indoors only, on heat-resistant surface
Functions	Grill, roast, bake, reheat, keep warm
Suitable Foods	Meat, fish, vegetables, eggs, pancakes, pizza, rice, etc.
Cleaning	Damp cloth and mild detergent; do not immerse or use abrasive products
Safety	Do not touch hot parts; unplug before cleaning; do not use outdoors
Spare Parts	Temperature control, power cord, glass lid
Repairability	Repairs by qualified personnel only (manufacturer after-sales service or approved technician)
Accessories Included	Temperature control with cable, glass lid, handle
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - SS10060 Sogo

What types of food can I cook with the Sogo SS10060 toaster?

You can cook a wide variety of foods: meats (chops, fillet, chicken), fish (tuna, salmon), seafood, vegetables (eggplants, potatoes), eggs, pancakes, pizzas, fried rice and even croissants. Consult the time and temperature table in the manual.

How do I adjust the temperature on the SS10060?

Turn the rotary knob of the temperature control to the desired position (1 to 4). The indicator light turns on and off to indicate that the temperature has been reached. The positions correspond to temperature ranges from 80 °C (position 1) to 240 °C (position 4).

Can I immerse the appliance in water for cleaning?

No, never immerse the appliance in water or any other liquid. To clean it, unplug it, remove the temperature control, and clean the interior with a damp cloth and mild detergent. The glass lid can be cleaned with a soft sponge.

Why does the indicator light turn on and off during cooking?

This is completely normal. The light turns on when the heating element is heating and turns off when the set temperature is reached. This means the temperature control is working properly to maintain the heat.

What should I do if the appliance emits smoke or odor during first use?

This is normal during first use. The manufacturing residues are burning off. Let the appliance heat empty for 5 to 10 minutes in a well-ventilated area, then clean it as indicated in the manual.

Can I use the appliance without the lid?

Yes, you can use the appliance with or without the lid. The lid is recommended for cooking foods like pizza, meats, or to speed up cooking. Remove it carefully as it becomes hot.

How do I know if the appliance is compatible with my electrical voltage?

Check that your home voltage matches 220-240 V~50/60 Hz, as indicated on the appliance's rating label. Incorrect voltage can damage the appliance.

What are the essential safety precautions?

Never touch hot surfaces; use oven mitts. Place the appliance on a heat-resistant surface. Do not cover the appliance while operating. Unplug after use and before cleaning. Keep out of reach of children under 8 years old.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, use an extension cord with sufficient cross-section (at least 1.5 mm²) and fully unwound. Ensure it does not present a tripping hazard.

How do I maintain the temperature control?

Clean the temperature control with a soft, dry cloth. Never immerse it in water. Before removing it, ensure the appliance has cooled down and the control is set to position '0'.

USER MANUAL SS10060 Sogo

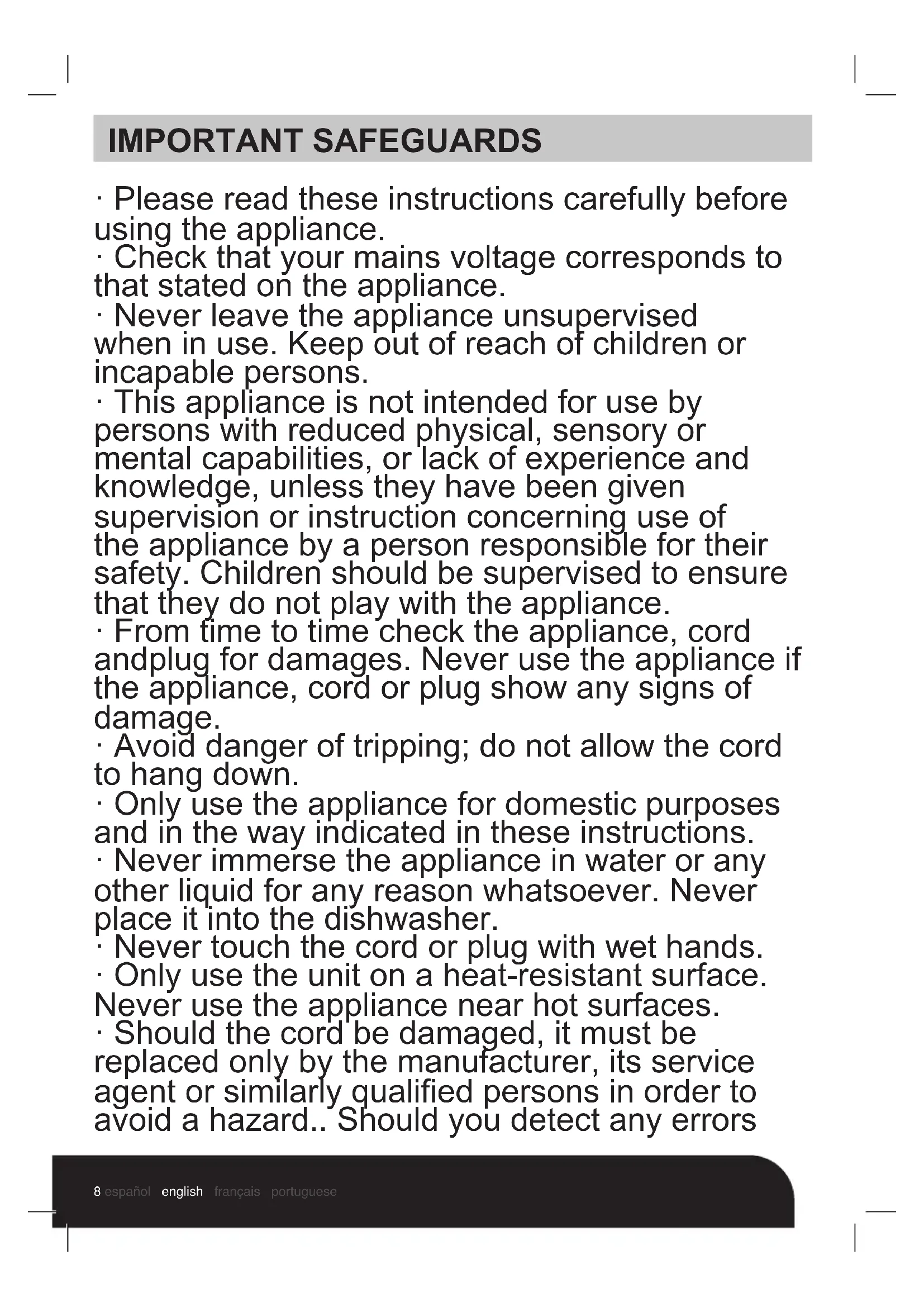

• Please read these instructions carefully before using the appliance.
• Check that your mains voltage corresponds to that stated on the appliance.
• Never leave the appliance unsupervised when in use. Keep out of reach of children or incapable persons.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• From time to time check the appliance, cord and plug for damages. Never use the appliance if the appliance, cord or plug show any signs of damage.
• Avoid danger of tripping; do not allow the cord to hang down.
• Only use the appliance for domestic purposes and in the way indicated in these instructions.
• Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
  : Never touch the cord or plug with wet hands.
• Only use the unit on a heat-resistant surface. Never use the appliance near hot surfaces.
• Should the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.. Should you detect any errors

regarding the unit operation or the temperature regulator, please return the appliance to the electrician.

• Before cleaning, always unplug the appliance from the power supply. Ensure the appliance is fully dry before using again.

• All repairs should be made by a competent qualified electrician.

• Never use the appliance outside and always place it in a dry environment.

• Never use accessories that are not recommended by the manufacturer. They could constitute a danger to the user and risk to damage the appliance.

• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

• Do not overcharge the socket used with this unit with other electric appliances.

• Always use the temperature regulation unit supplied. Never use another one.

• Please take all safety measures to avoid the regulator from falling.

• Before plugging the unit to the power supply, ensure the regulator is in "0" position.

• Stand the appliance on a table or flat surface.

• Make sure the appliance has cooled down before cleaning and storing it.

• Only cook consumable food. Never place the following materials on the hot plate: paper, cardboard or plastic...

• It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food.

• Make sure the cord never comes into contact with the hot parts of the appliance. Never touch the hot parts of the appliance in order not to get burnt.

• During use, the hot plate can reach very high a temperature. Never touch these hot parts of the appliance. Always use gauntlets when handling the appliance and take it by the handles.

• Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc., when it is in use, as a fire might occur. Also, make sure not to cover the appliance and do not put anything on top of it.

• It is advised to place a heat resistant coating between your table and the appliance in order to avoid any burns.

• Be extremely cautious as oil and fat preparations might catch fire if overheated.

• Be careful not to scratch the special coating of the cooking plate, as you might get little pieces of this coating into the food and damage the surface. Use a classical wooden spatula or a heat resistant plastic one.

• This appliance cannot be used for grilling or roasting.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

• This appliance shall not be used by children.
  Keep the appliance and its cord out of reach of

children aged less than 8 years.

• Do not use this appliance with a programmer, counter or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire.

ATTENTION: DO NOT PLACE THE

TEMPERATURE REGULATOR ON OR IN THE ELECTRIC PAN.

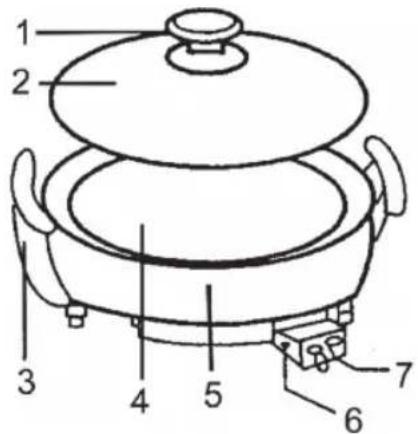

UNIT DESCRIPTION

1. Handle of lid
2. Glass lid
3. Hot Plate Handle (with heat shield)
4. Hot Plate
5. Pan exterior
6. Socket
7. Power socket

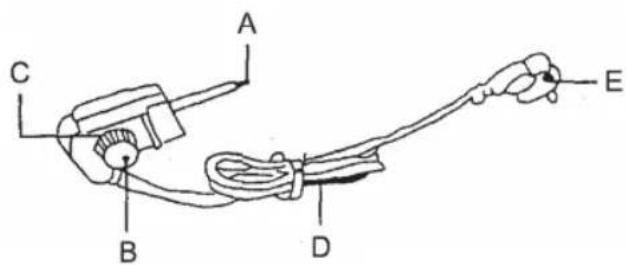

A. Temperature sensor
B. Temperature regulator knob
C. Pilot light
D. Power cord
E. Plug

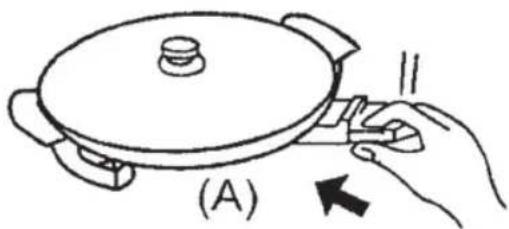

OPERATING INSTRUCTIONS

Before using the appliance for the first time, clean the parts thoroughly (see cleaning section).

• Put the thermostat control in off position and insert the temperature regulation unit in the socket of the appliance.

• Plug the unit into the power supply socket. Please ensure the voltage in your home corresponds to the unit voltage.
• It is normal if some smoke or smell emanates from the appliance when using it for the first time.

• Turn the thermostat to the desired position according to what you want to bake (see table below). The pilot light will come on, indicating that the appliance is heating. (its pilot light will go on and off, according to the operation of the thermostat)

• Wait for about 5 to 10 minutes for the appliance to preheat. After that, you can start cooking.
• If necessary, use the lid of the appliance. It is advisable to use it if you bake pizza, beefsteak, hamburgers etc.

If the pilot light goes on and off, it is not a malfunction. It indicates that the thermostat is working properly.

If you hear some noise during cooking, it does not indicate malfunction, it simply comes from the fact that the hot plate is heating.

Do not touch the exterior of the unit; do not put any easily inflammable material on the pan.

After use, put the thermostat in 0 position.
- First remove the plug from the power outlet. Then remove the temperature regulation unit from the socket of the appliance. Caution: because the temperature leader of the temperature regulator is very hot after use, let the hot plate cool down completely before removing the temperature regulation unit.

TABLE OF COOKING TIME AND TEMPERATURE

FOOD	COOKING TIME (Approx.)	SELECTOR	TEMPERATURE (Approx.)
TURNOVER, CROISSANT	1 min. each side	1,2	80°C
FRIED EGGS	2 min.	1,2,3	150°C
PANCAKES	1-2 min. each side	1,2,3,4	160°C
OMELETTE	2 min. each side	1,2,3,4	160°C
COTTAGE CHEESE	1 min. each side	1,2,3	150°C
TOASTS	1 min. each side	1,2,3	150°C
SANDWICHES	2 min. each side	1,2,3,4	170°C
EGGPLANTS, TOMATOES, PEPPERS, ONIONS	2 min. each side	1,2,3	150°C
POTATOES, PUMPKIN	3 min. each side	1,2,3	150°C
SAUSAGES	2-3 min. each side	1,2,3	150°C
PRIME RIBS OF VEAL	2-3 min. each side	1,2,3,4	180°C
VEAL FILET	3 min. each side	1,2,3,4	180°C
PORK CHOPS	3 min. each side	1,2,3,4	170°C
LAMB CHOPS	3 min. each side	1,2,3,4	170°C
RABBIT (IN PIECES)	3-4 min. each side	1,2,3,4	160°C
MEAT SKEWER	2-3 min. each side	1,2,3	150°C
CHICKEN BREASTS	4-5 min. each side	1,2,3	150°C
FISH SKEWERS	2 min. each side	1,2,3	160°C
TUNA, SALMON, MACKEREL	2-3 min. each side	1,2,3,4	160°C
SHELLFISH	2-3 min. each side	1,2,3,4	180°C
CUTTLEFISH, SQUID	2-3 min. each side	1,2,3,4	160°C
PIZZA	7-10 min.	1,2,3,4	240°C
FRIED RICE	15-20 min.	1,2,3,4	160°C - 240°C
PAELLA	35-45 min.	1,2,3,4	160°C - 240°C

CLEANING

• Make sure the appliance is unplugged and allow it to cool down before starting to clean it.
• Always make sure the temperature regulation unit is disconnected from the appliance before cleaning.
• Clean the plate with a soft damp cloth. If necessary, use some mild detergent.
• Do not use sharp utensils or scouring pads on the hotplate as this might damage the surface.
• Never use abrasive products as these might damage the surface.
• Never immerse the appliance in water or any other liquid.
• Clean the cover with a soft sponge and some mild detergent.
• To clean the temperature regulation unit, use a soft dry cloth.

TECHNICAL SPECIFICATION

Voltage / Frequency:

AC-220-240V 50 / 60Hz

Power: 1500W

PRECAUTIONS DE SECURITÉ

"The Disposal of Electrical and Electronic Equipment Waste Products on the part of Final users in The European Union"

This symbol on the product or on the container indicates that this product cannot be eliminated with the general waste. The user is responsible for eliminating this kind of waste by throwing them away at a "recycling point" specifically for electrical and electronic waste. Selective collection and electrical equipment recycling contribute to preserve natural resources and warrant waste recycling to protect environment and health. In order to receive further information about electrical and electronic waste collecting and recycling, contact your Local Council, the service of household waste or the establishment where the product was acquired."
