Product type	Built-in microwave
Brand	Candy
Model	CA38FL7NWX
Dimensions (WxHxD)	595 x 385 x 367.5 mm
Built-in dimensions (WxHxD)	560 x 360 x 550 mm
Weight	Approximately 25 kg
Power supply	230 V / 50 Hz, accessible socket after installation
Microwave power	800 W (estimate, 5 levels: 100%, 80%, 50%, 30%, 10%)
Grill power	Not specified, grill only and combined modes (C-1, C-2)
Capacity	25 L (estimate)
Control type	Rotary knobs and buttons (START/+30s, STOP/LOCK)
Main functions	Microwave cooking, grill, combined, defrost by weight, 8 automatic menus, 24h clock, child lock
Standby power	< 0.8 W (automatic switch after 20 min)
Internal lighting	LED < 60 lm
Accessories included	Glass turntable, rotation ring, grill grid
Cleaning	Soft damp cloth; do not use abrasive cleaners or steam cleaner
Maintenance	Clean door seals, cavity and waveguide regularly; descale with lemon or tea
Safety	Child lock, automatic stop in case of smoke, hot surfaces indicated
Reparability	Parts accessible by professional (magnetron, transformer, capacitor, diode, HT fuse)
General information	Class B, group 2 ISM, compliant with EU 2012/19/EU (WEEE), standby power < 0.8 W

Frequently Asked Questions - CA38FL7NWX CANDY

What utensils can I use in this microwave?

Use ceramic, glass, or heat-resistant plastic containers. Avoid metal, wood, bamboo, and paper. In grill or combined mode, use only the supplied grid or suitable dishes.

How do I set the clock on the Candy CA38FL7NWX microwave?

Turn the upper knob to select the Clock function, then press START/+30s for more than 3 seconds. The hours flash, adjust them with the lower knob, press START/+30s briefly, then adjust the minutes. Press START/+30s again to confirm.

How do I activate the child lock?

In standby mode, press and hold the STOP button for more than 3 seconds. The control panel locks. To deactivate, repeat the same operation.

What should I do if the microwave no longer heats?

First check the plug and fuse. Place a cup of water (150 ml) in the oven and run for 1 minute. If the light does not come on, the fan does not turn, or the water does not heat, contact an authorized after-sales service.

How do I clean the microwave without damaging it?

Unplug the appliance and let it cool. Use a soft damp cloth for the exterior, door, and interior. For odors, heat lemon slices or tea at high power for 2-3 minutes. Never remove the waveguide cover.

What is the defrost function and how do I use it?

The dEF function defrosts by weight (100 to 1500 g). Select dEF with the upper knob, set the weight with the lower knob, then press START/+30s. A beep will prompt you to turn the food during defrosting.

Can I use the microwave empty?

No, never operate the oven empty. This could damage it. Always place a container with food or water inside.

What are the eight automatic menus?

The automatic menus (A.1 to A.8) are: potatoes (500 g), pasta (100 g), pizza (400 g), popcorn (100 g), vegetables (400 g), drinks (250 ml), meat (400 g) and fish (400 g). Select the menu with the lower knob and press START/+30s.

How do I use the grill and combined modes?

Turn the upper knob to choose G. (grill only), C-1 (30% microwave + 70% grill) or C-2 (55% microwave + 45% grill). Set the time with the lower knob (max 60 min). Use the supplied grid and protective gloves.

What should I do if the door or seals are damaged?

Do not use the oven. Contact a qualified repairer immediately. Using an oven with damaged door or seals may expose you to dangerous microwave leaks.

USER MANUAL CA38FL7NWX CANDY

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Household use only SAVE THESE INSTRUCTIONS

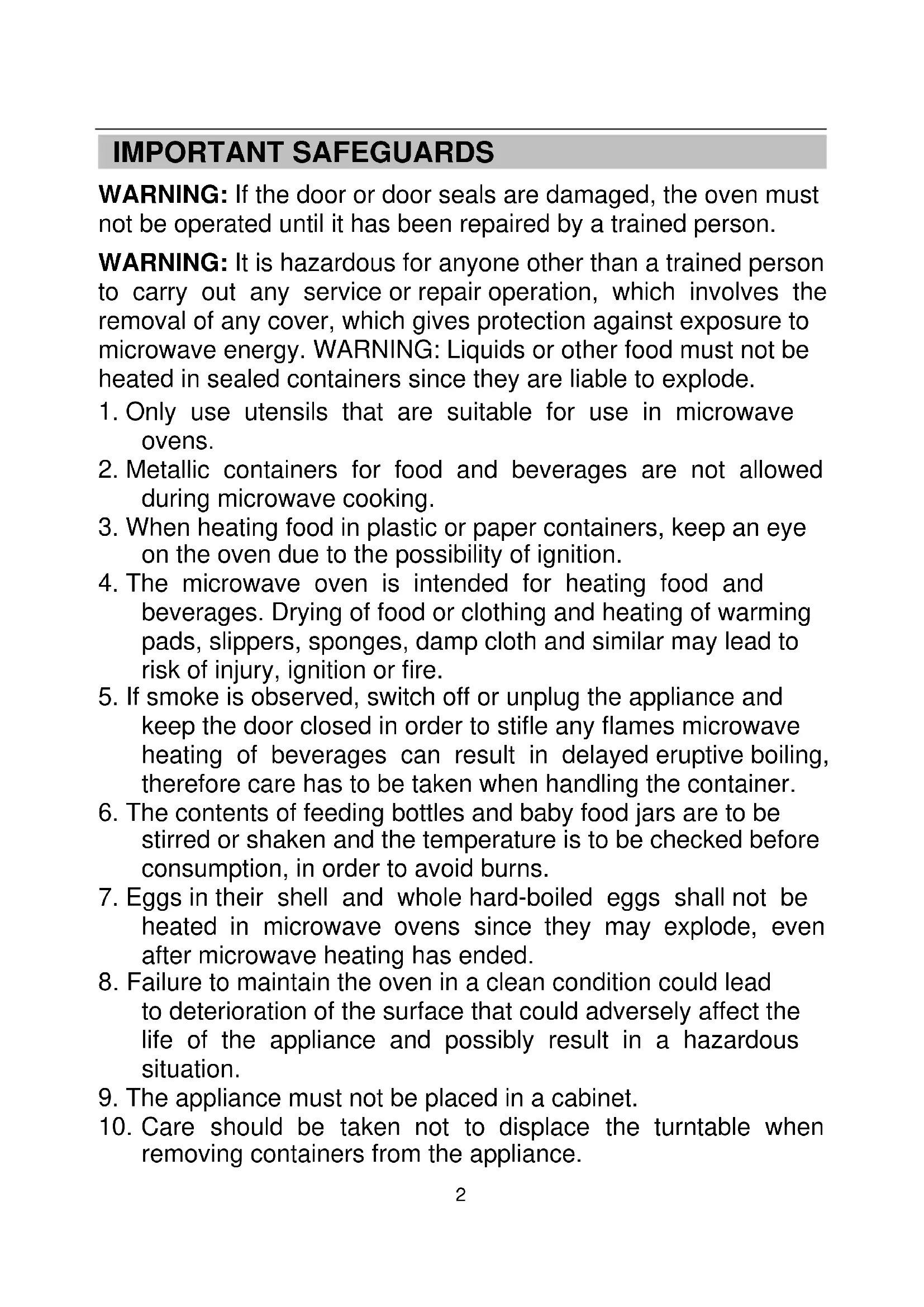

IMPORTANT SAFEGUARDS

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.

WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy. WARNING: Liquids or other food must not be heated in sealed containers since they are liable to explode.

1. Only use utensils that are suitable for use in microwave ovens.
2. Metallic containers for food and beverages are not allowed during microwave cooking.
3. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
4. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
5. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
6. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
7. Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode, even after microwave heating has ended.
8. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
9. The appliance must not be placed in a cabinet.
10. Care should be taken not to displace the turntable when removing containers from the appliance.
11. The appliance shall not be cleaned with a steam cleaner.
12. The appliance must not be installed at a height equal to or greater than 900 mm above the floor. The minimum free space required above the top surface of the oven is shown in the installation drawing.

Warning: When the appliance is operated in combination mode, children should only use the oven under adult supervision due to the temperatures generated.

CAUTION: HOT SURFACE

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard.
2. This appliance can be used by children aged 8 years and above, and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be performed by children without supervision.
5. Do not directly put the glass plate into cold water after use. It needs to be placed for at least 20 minutes before putting it into water to avoid cracking.
6. Group 2 Class B appliance. Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
7. The plug must remain easily accessible after installation of the appliance.
8. This appliance must not be placed in a cabinet with a door.
9. This product's internal light source is an LED light with a brightness of less than 60 lumens.
10. After plugging in or when the appliance finishes its work, the product automatically enters standby mode, and the product indicates the standby power consumption, which is less than 0.8 W.
11. During use, the appliance becomes hot. Care should be taken to avoid touching the heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

WARNING: The appliance and its accessible parts become hot during use.

1. Care should be taken to avoid touching heating elements.
2. Children less than 8 years of age shall be kept away unless continuously supervised.
3. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass, as they can scratch the surface, which may result in the glass shattering.
4. The appliance must not be installed behind a decorative door to avoid overheating. This appliance can be used by children aged 8 years and above and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision. The installation instructions must include details indicating the correct installation of the shelves.

INSTALLATION

1) The oven should be positioned away from the TV, radio, or antenna to avoid picture disturbance or noise. 2) The appliance must be positioned so that the plug is accessible. 3) This is a built-in microwave oven, which is subject to the PRECAUTIONS and INSTALLATION instructions below.

(1) PRECAUTIONS:

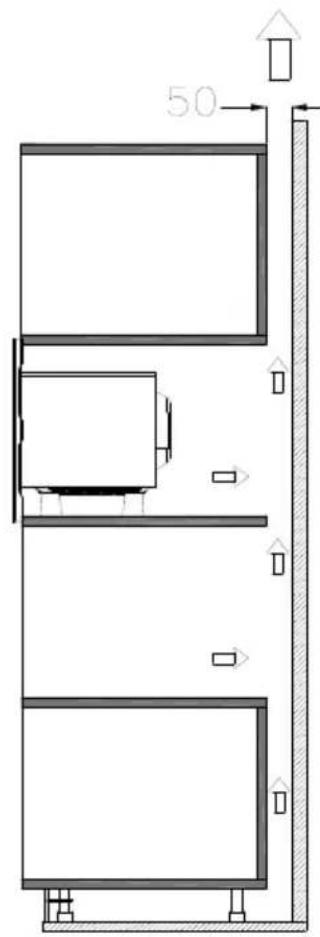

Given the limited space in the cabinet, the microwave oven must be installed according to the following instructions to avoid danger.

Do not cover ventilation slots or air intake points.

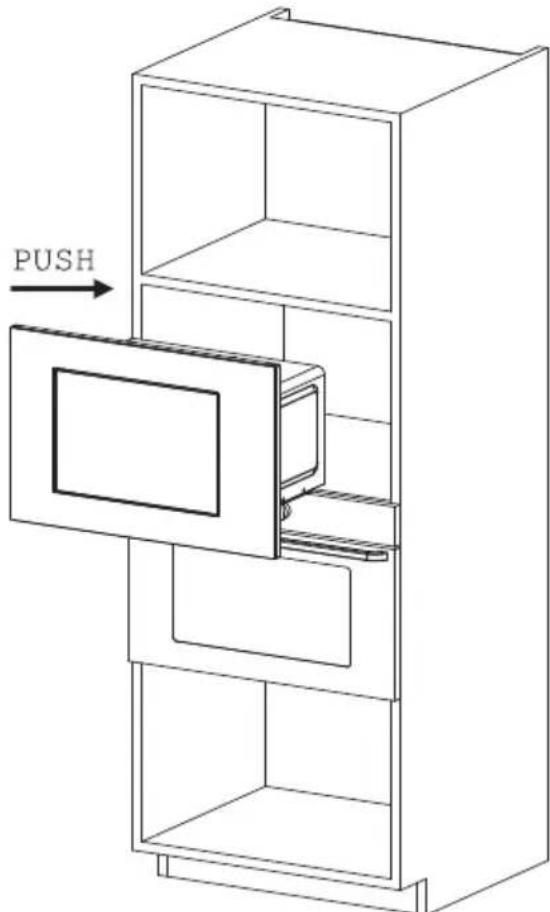

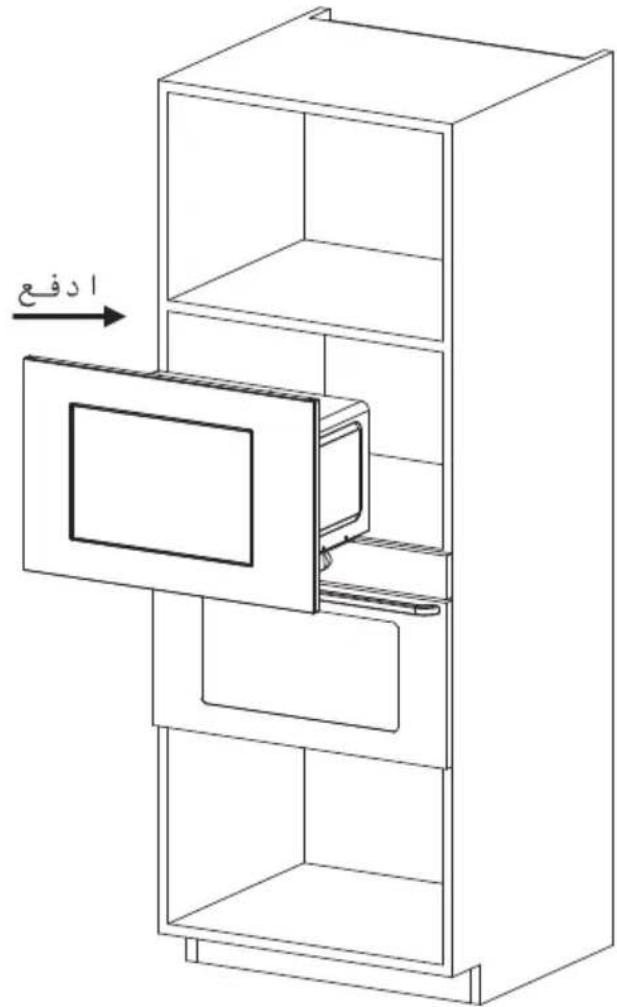

a) Place the microwave oven into the built-in cabinet and push it forward until it reaches the end. (Fig. 1)

Fig. 1

b) Push the microwave oven until it reaches the end. (Fig. 2)

Fig. 2

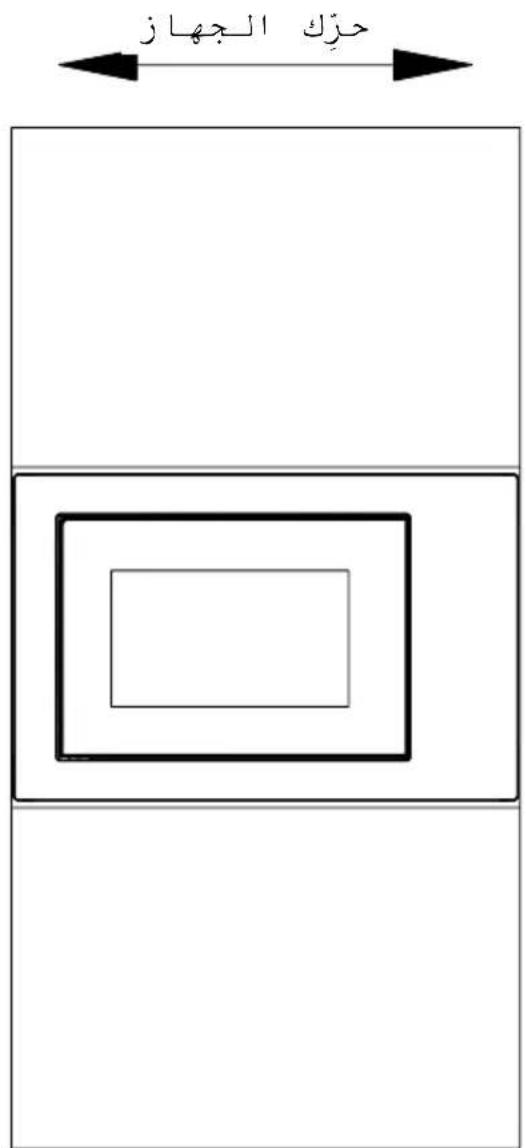

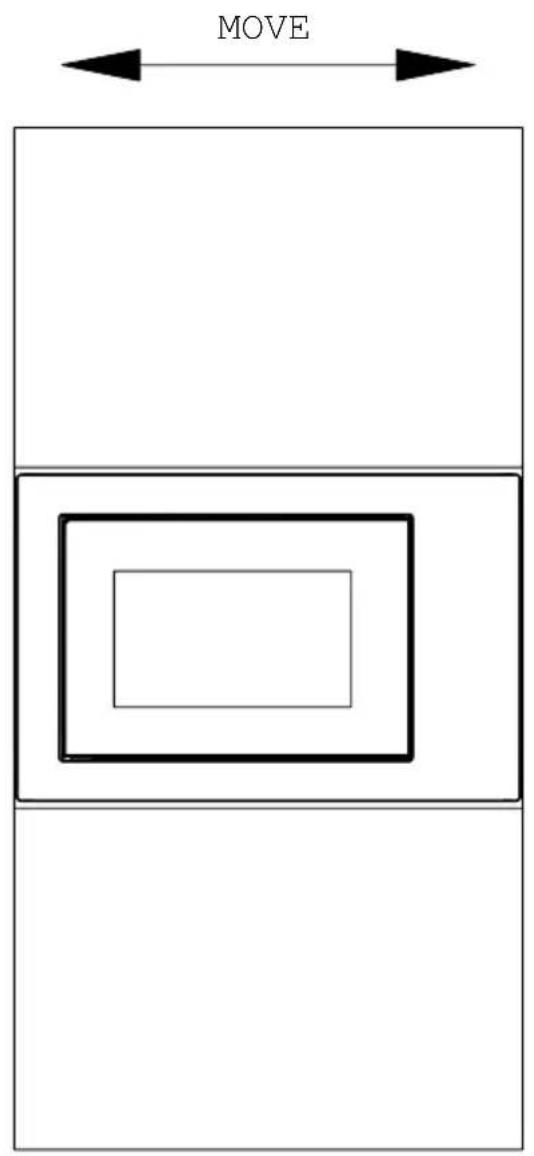

c) Move the product in parallel within the kitchen cabinet according to the direction of the arrow in the figure, and keep it centered. (Fig. 3)

Fig. 3

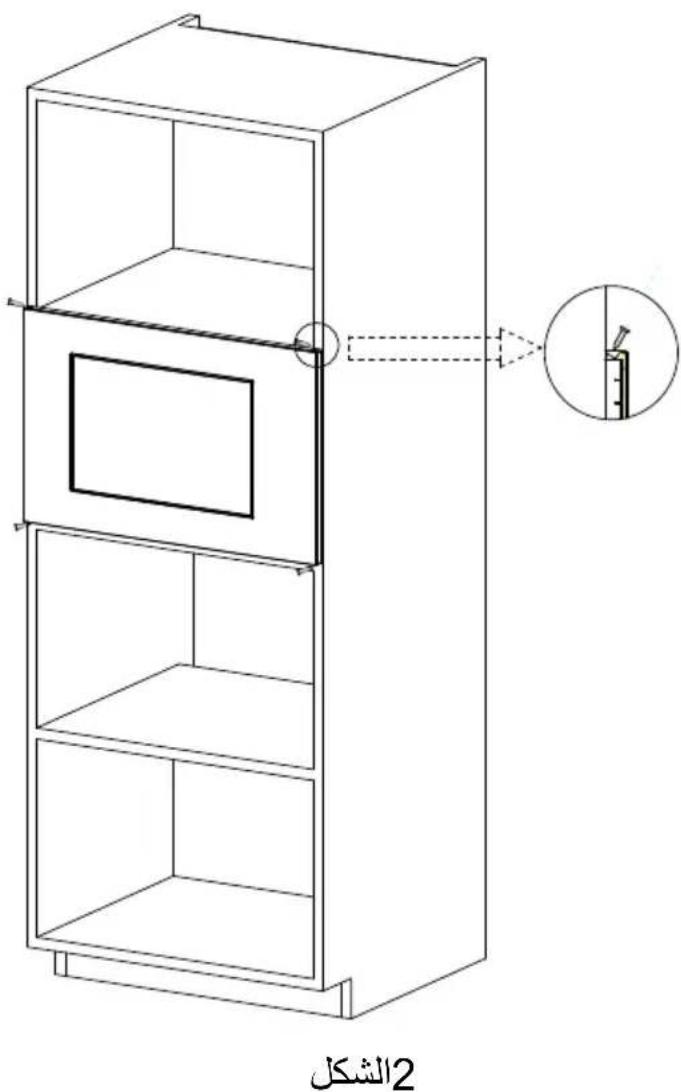

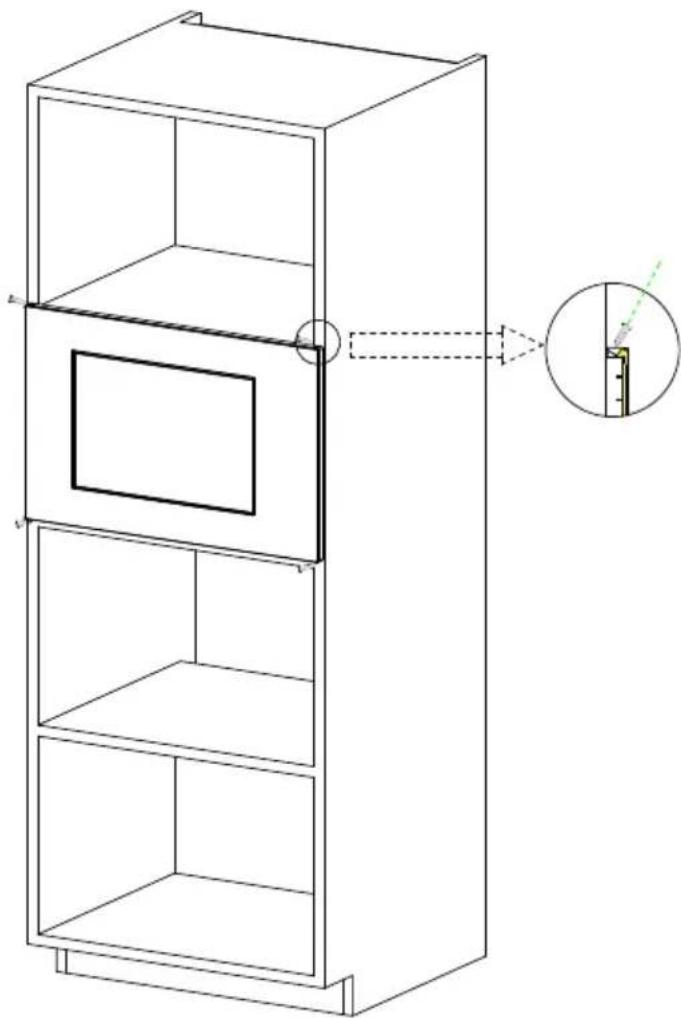

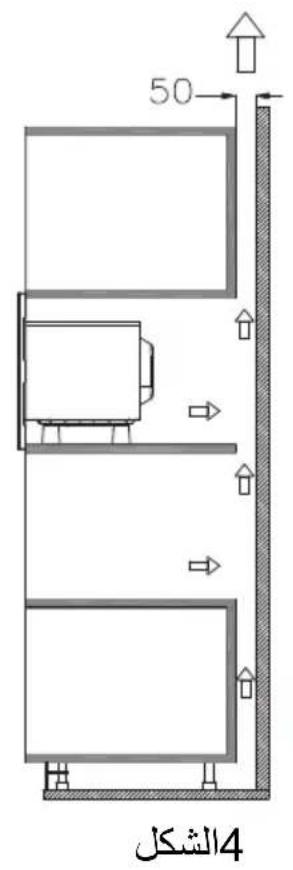

d) Use the screws from the parts packing to secure the microwave oven in the cabinet. (Fig. 4)

Fig. 4

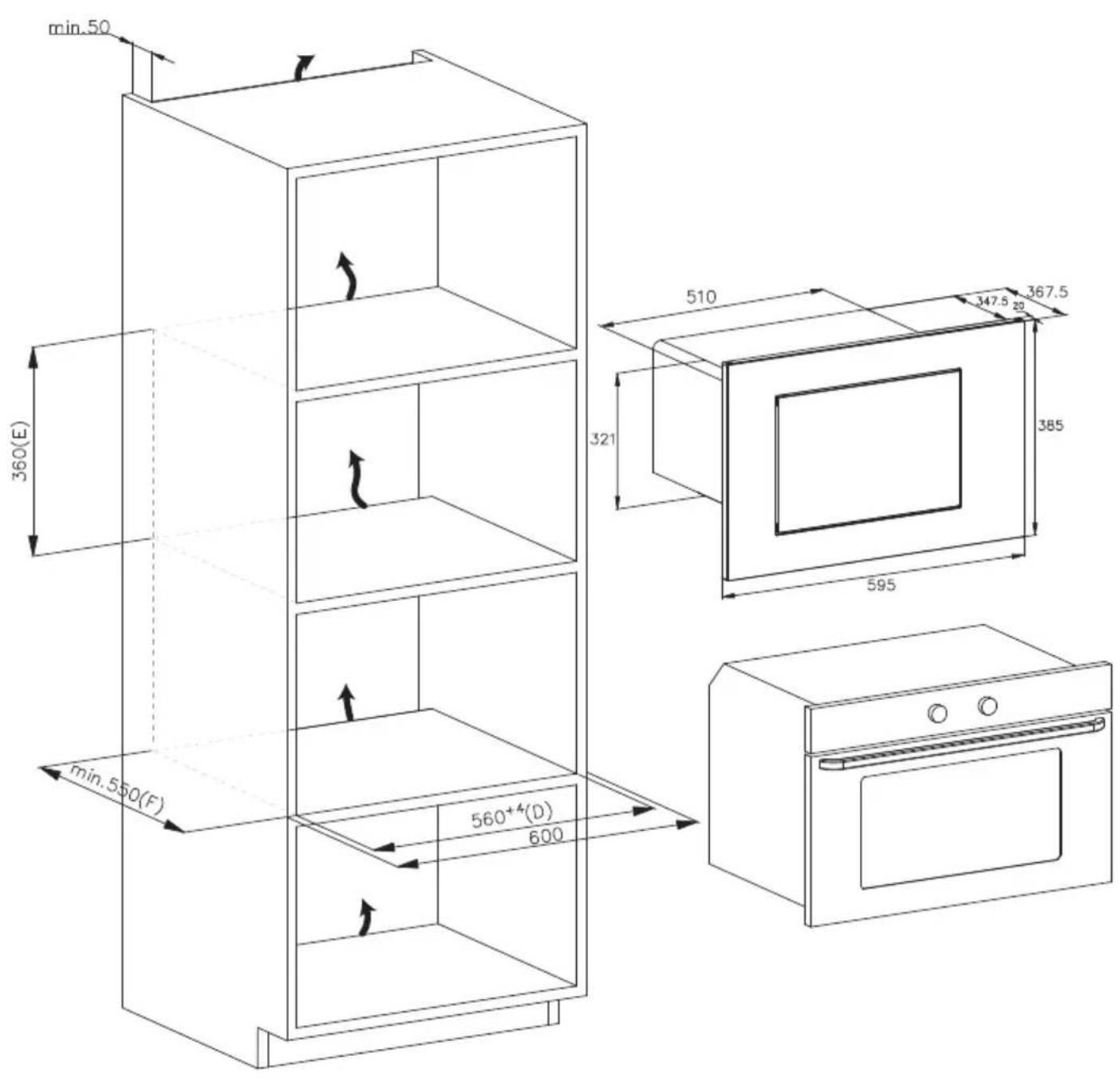

Cabinet details:

Product size: (W)595 x (H)385 x (D)367.5 (mm)

Opening size: (D) 560 + 4 x (E) 360 x (F) 550 (mm) as shown in Fig. 5, “D”, “E”, “F”.

Fig. 5

CLEANING

MICROWAVE OVEN CARE

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

a. Remove the power cord from the wall outlet before cleaning. After cooling products. Don't immerse the appliance in water or other fluids when cleaning. b. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. c. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance. d. Do not remove the waveguide cover. e. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, following 3 methods can get rid of them:

1) Place several lemon slices in a cup, then heat with high micro power for 2-3 min. 2) Place a cup of red tea in oven, then heat with high micropower. 3) Put some orange peel into oven, and then heat them with high micro power for 1 minute.

f. When the product is not used, it should be placed in dry and ventilated areas as well as possible.

WARNING

Details how to clean surfaces in contact with food:

After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire.

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior:

Wipe the enclosure with a dampened soft cloth

Door:

Using a dampened soft cloth, wipe clean the door and window. Wipe the door seals and adjacent parts to remove any spill or spatter

Wipe the control panel with a slightly dampened soft cloth Interior walls:

Wipe clean the interior surfaces with a dampened soft cloth Wipe clean the waveguide cover to remove any food splashed

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water

Rinse with clean water and allow drying thoroughly

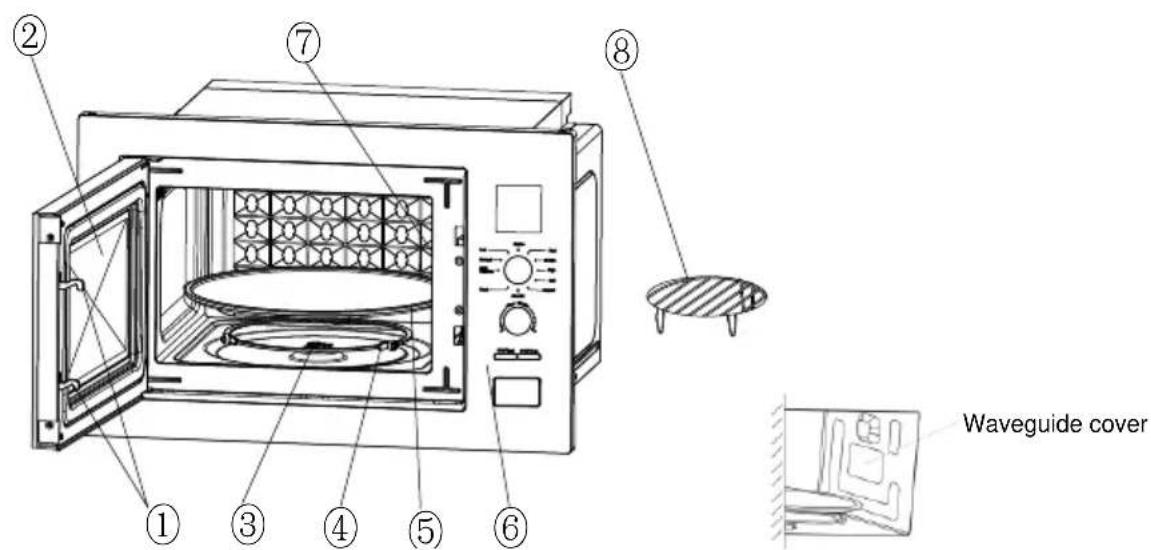

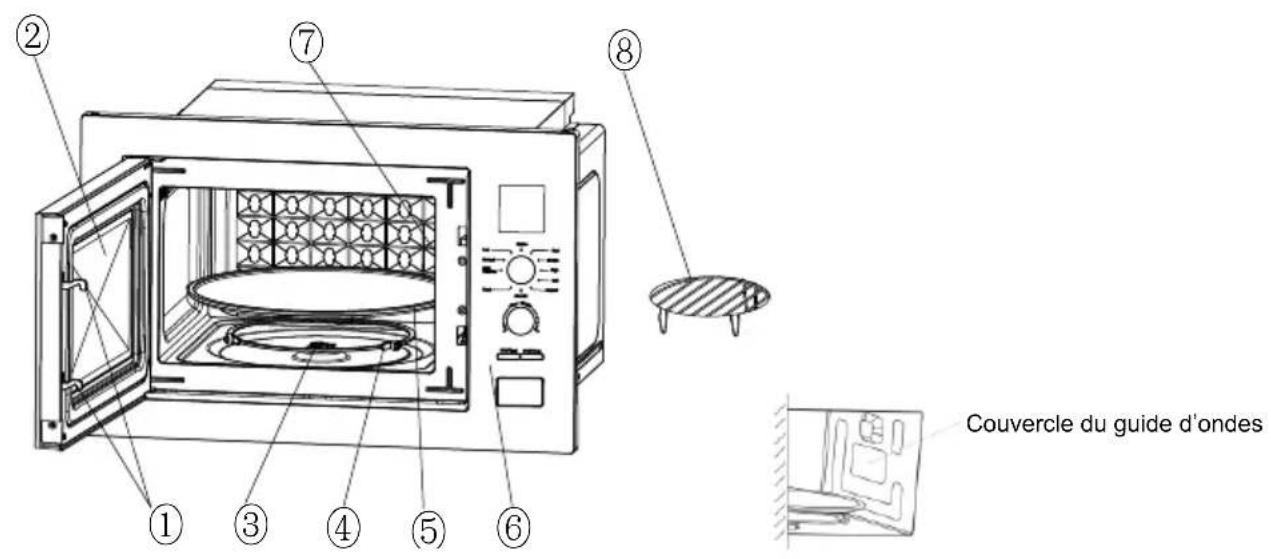

PRODUCT INSTRUCTION

1) Door lock

Microwave oven door must be properly closed in order for it to operate.

2) Viewing window

Allow user to see the cooking status

3) Rotating axis

The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate

4) Rotating ring

The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating

5) Turntable

The food sits on the turntable, its rotation during operation helps to cook food evenly

CAUTION

• Place the rotating ring first
• Fit the turntable onto the rotating axis and make sure that it is geared in properly

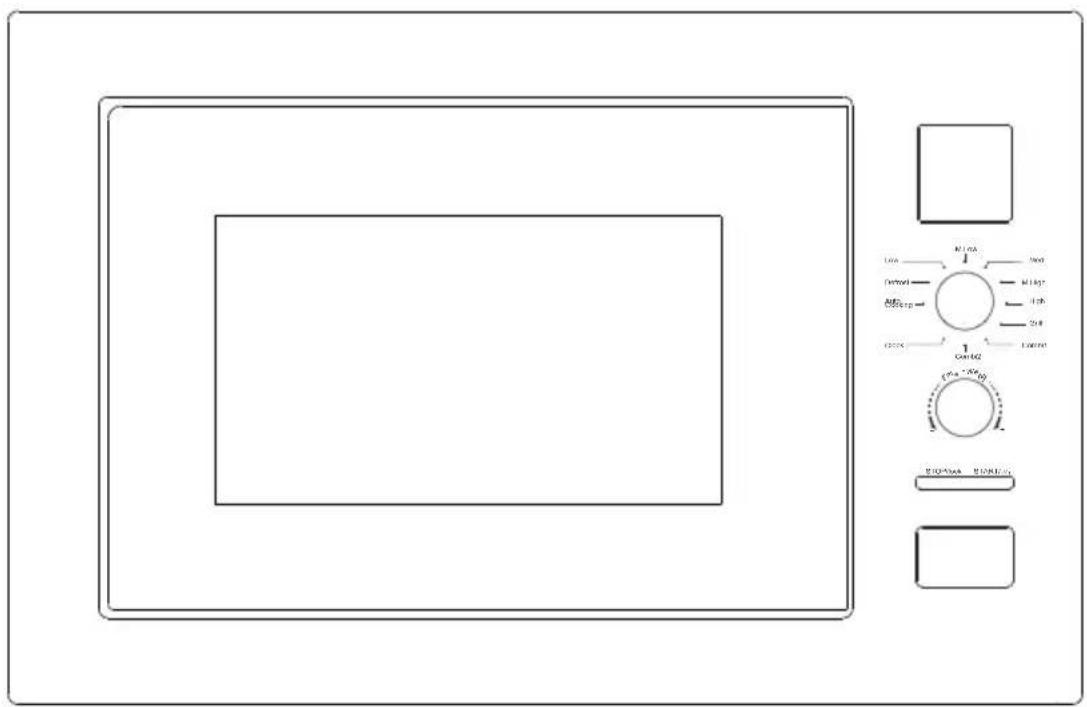

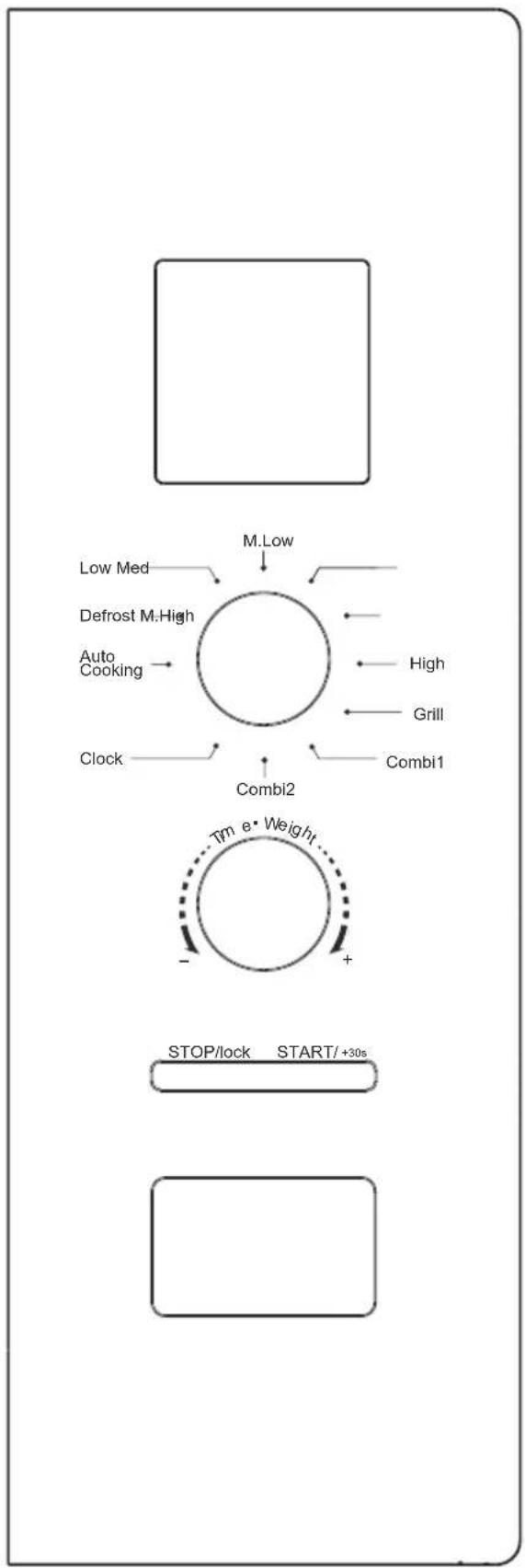

6) Control panel

See below in details (the control panel is subject to change without prior notice)

7) Waveguide cover

It is inside the air fryer oven, next to the wall of control panel.

WARNING

Never remove the waveguide cover.

8) Grill rack

Use to place the roasting food.

The display lit up when plugged in power supply, then enter the standby state and display shows 1:00.

2. MICROWAVE FUNCTION

There are five microwave power levels, 100P, 80P, 50P, 30P and 10P, respectively. Turn the knob above to select the desired microwave power. Turn the knob below to select the cooking time, the time range that can be regulated is from 0:10 to 60:00. After select the time, press "START/+30s." button to start work. An buzzing sound to notify completion of the operation.

HIGH	100% power output	(Applicable for quick and thorough cooking)
M. High	80% power output	(Applicable for medium express cooking)
Med	50% power output	(Applicable for steaming food)
M. Low	30% power output	(Applicable for defrosting food)
LOW	10% power output	(Applicable for keeping warm)

CAUTION

a. The maximum time that can be set is 60 minutes. b. Never operate the oven empty. c. At maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen its service life. d. If you turn the food during operation, press the START/+30s button once and the preset cooking procedure will continue.

e. If you intend to remove the food before the preset time, you must press the STOP/LOCK button once to clear the preset procedure to avoid unintended operation next time.

3. DEFROST

The defrost function defrosts by weight and corresponds to the "dEF" display. Turn the upper knob to select the defrost function, and "dEF" is displayed on the screen. Turn the lower knob to select the food weight; the weight range for dEF is from 100 to 1500g. After selecting the defrost weight, press the "START/+30s" button to start. A buzzing sound notifies completion of the operation. The dEF defrost mode by weight will have a beeping sound to prompt you to turn the food over during defrosting.

Below is some food defrosting time advice:

dEF

For defrosting, the weight range is from 100 to 1500g.

CAUTION

a. It is necessary to turn the food over during operation to obtain a uniform effect. b. Usually defrosting will take longer than cooking the food. c. If the food can be cut with a knife, the defrosting process can be considered complete. d. Microwaves penetrate about 4cm into most food. e. Defrosted food should be consumed as soon as possible; it is not advised to put it back in the fridge and freeze again.

4. CLOCK (24-hour clock)

Turn the upper knob to select the clock function, then press and hold the "START/+30s" button for more than 3 seconds to enter the clock setting interface. At the same time, the display screen blinks in hours. The hour can be set by turning the lower knob. After setting the hour, press the "START/+30s" button briefly to confirm and switch to minute setting mode. The minutes can be set by turning the lower knob. After setting minutes, press the "START/+30s" button again to confirm and exit the setting mode.

5. AUTO COOKING

There are eight automatic menus A.1~A.8: potato, pasta, pizza, popcorn, vegetable, beverage, meat, and fish respectively. Press the upper knob to select the menu function, then turn the lower knob to select the desired menu; the display screen shows the corresponding A.1~A.8. After selecting the menu, press the "START/+30s" button to start. A buzzing sound notifies completion of the operation.

Display	Kind	Method
A.1	Potato	The optional weight is 500g.
A.2	Pasta	The optional weight is 100g.
A.3	Pizza	The optional weight is 400g.
A.4	Popcorn	The optional weight is100g.
A.5	Vegetable	The optional weight is 400g.
A.6	Beverage	The optional weight is 1 cup, about 250ml.
A.7	Meat	The optional weight is 400g.
A.8	Fish	The optional weight is 400g.

CAUTION

a. The temperature of food before cooking would be 20 - 25°C. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time. b. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

6. GRILL FUNCTION

There are three modes of Grill: G., C-1 and C-2. They are grill, combination 1 of grill and microwave cooking and combination 2 of grill and microwave cooking. Press the knob above to select the desired mode and the display screen shows the corresponding G., C-1 and C-2.

Turn the knob below to select the cooking time, the time range that can be regulated is from 0:10 to 60:00. After selecting the cooking time, press the "START/+30s" button to start the work. A buzzing sound notifies completion of the operation.

G.	Grill, the heat element will be energized during operation time. Which is applicable for rolling thin meats or pork sausage, chicken wing as good brown color can be obtained
C-1	Combination of grill and microwave cooking. 30% microwave and 70% grill.
C-2	Combination of grill and microwave cooking. 55% microwave and 45% grill.

CAUTION

In the mode of grill, all of the oven parts, as well as the rack and cooking containers, may become very hot. Use caution when removing any item from the oven. Use heavy potholders or oven mitts to PREVENT BURNS.

7. STOP

In the process of cooking settings, can press "STOP" button to cancel the settings and return to standby state. In the process of microwave oven working, can press "STOP" button to pause. In the standby state, can press "STOP" button again to cancel the function and return to standby state.

8. START/+30s

After setting the cooking time or food weight, press the "START/+30s" button to start the microwave oven immediately. In working state, can press "START/+30s" button to increase time, press one time to increase 30 seconds, but the menu mode and weight defrosting mode cannot adjust time. In pause state, can press "START/+30s" button to continue the microwave oven before cooking mode.

9. CHILD LOCK FUNCTION

Use this feature to lock the control panel when you are cleaning or so that children cannot use the oven unsupervised. All the buttons are rendered inoperable in this mode.

1) Set lock: In standby mode, press and hold down the "STOP" button for more than 3 seconds, the child lock function is locked, and all buttons of the microwave oven cannot be operated. 2) Cancel lock: In the child lock state, press and hold down the "STOP" button for more than 3 seconds to cancel the child lock function.

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Microwave	Grill	Combi	Notes
Heat-resistant ceramic	Yes	Yes	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes	No	No	Can not be used for long time microwave cooking
Heat-resistant glass	Yes	Yes	Yes
Plastic film	Yes	No	No	It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack	No	Yes	Yes	The grill rack can only be used in grill and combination mode.
Metal container	No	No	No	It should not be used in microwave oven. Microwave can not penetrate through metal.
Iacquer	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking
Bamboo wood and paper	No	No	No	Poor heat-resistant. Can not be used for High-temperature cooking

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards the outside of the dish, the thinner part towards the centre, and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out, and extend it according to actual need. Overcooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger, or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking.

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time. This allows it to complete its cooking cycle and cool down in a gradual manner.

Whether the food is done

Color and hardness of food help to determine if it is done. These include:

• Steam coming out from all parts of food, not just the edge
• Joints of poultry can be moved easily
• Pork or poultry shows no signs of blood.
• Fish is opaque and can be sliced easily with a fork.

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap to come into contact with food as it may melt.

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx. 150 ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work?

(Put your hand over the rear ventilation openings.)

1. Does the turntable rotate?

(The turntable can rotate clockwise or counterclockwise. This is quite normal.)

1. Is the water inside the oven hot?

If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charged after disconnection; short the negative terminal of H.V. capacitor to the oven chassis (use a screwdriver) to discharge before touching.
2. During servicing, the following parts are liable to be removed and give access to potentials above 250V to earth.
3. Magnetron, High voltage transformer, High voltage capacitor, High voltage diode, High voltage fuse
4. The following conditions may cause undue microwave exposure during servicing.
5. Improper fitting of magnetron;
6. Improper matching of door interlock, door hinge and door;
7. Improper fitting of switch support;
8. Door, door seal or enclosure has been damaged.

Correct disposal of this product

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• The WEEE should not be treated as domestic waste;
• The WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

Low power consumption data according to Commission Regulation (EU) 2023/826.

Condition		Power consumption	Period after which the equipment reaches automatically the condition
Standby mode with information display		0.8W	20 Min

CANDY

J

CA38FL7NWXW

CA38FL7NWX

j.15

16

17

20 20

a 2 18

IISM 2 a g oall ISM 2 a g all

E EDM

aaiiiaai iaaaiiaaiiaaiiaaiiaaiiaaiiaaiiaai

J 1

jLJI JIJ 19

.20

60>LED 21

22

0.8> 1

J 23

1

②

（11

1

2（）. J (3)

3

（24）

：

J 1

4

J 1

5J

J 1

()

gai jui liu (7

12y

8

1

aaii i 1

1:00 .

2

P10,P30,P50,P80,P100

a a a a a a a a a a a a a a a a a a a a

60:00 0:10 m n 0gll gbi jn k y gbl d yd jydy

J 30+1d) "START/+30s" jz b

aalpaiy 1000

(mniyyi lssy i jk)	mniyyi %100	HIGH
(lbniyyi lssy i jk)	mniyyi %80	M. High
(ljliyyi lssy i jk)	mniyyi %50	Med
(pliyyi lssy i jk)	mniyyi %30	M. Low
(jliyyi lssy i jk)	mniyyi %10	LOW

4.1.1.1

60 60

1. 1

a 1

aaiy 1

START/+30s 1e biaol Jieil pbl y

30+1

jie biaiall sllc jy jnssdall gll jg pbl all j! gii i 1

jll l aal 1 jy jy (Jai/la) STOP/LOCK

jlll pddii jll lll 100

"DEF" aLg j 100 dEF 100 dEF 100 dEF 100 dEF 100 dEF 100 dEF 100 dEF 100 dEF 100 dEF 100 dEF

pabll 1

1500

100

dEF

4.11:2

.

4

Jz j 3 30+ /d) "START/+30s" Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz Jz

5

0:10 30+1/2) "START/+30s" jzj 60:00

30+1/2) "START/+30s" 30+1/2) "START/+30s" 30+1/2) "START/+30s" 30+1/2) "START/+30s"

p 1

a

PRODUCT INSTRUCTIONS
