RCSM650450 - Blender Royal Catering - Free user manual and instructions

USER MANUAL RCSM650450 Royal Catering

Manufacturer Address

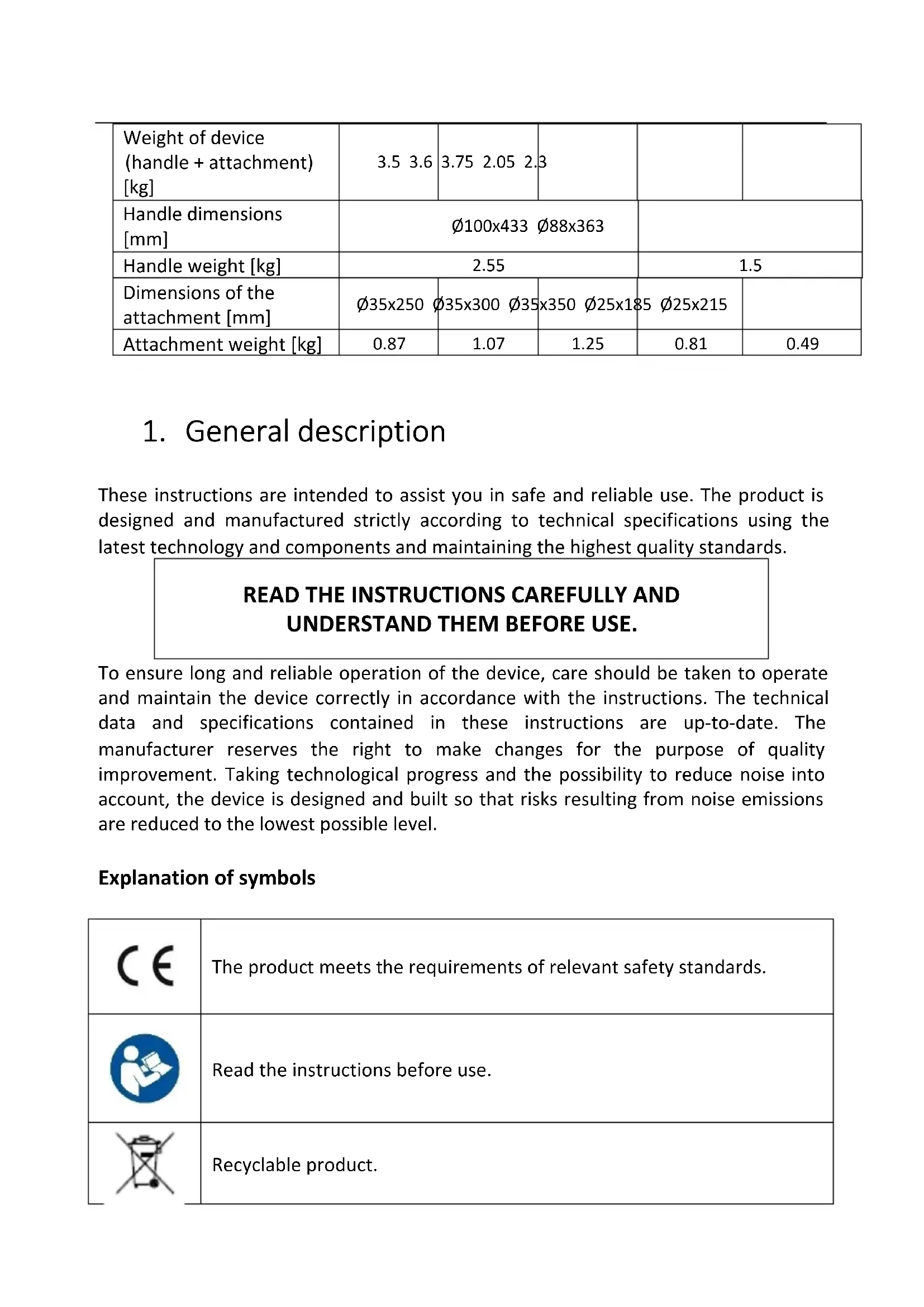

Dimensions of the attachment (handle + attachment) [mm] Ø35x550 Ø35x500 Ø35x450 Ø35x400 Weight of the attachment (handle + attachment) [kg]

Speed of the blade [rpm] 4000–16000 6000–20000 Device dimensions (handle + attachment) [mm] Ø135x683 Ø135x733 Ø135x783 Ø113x548 Ø113x578Weight of device (handle + attachment) [kg]

Dimensions of the attachment [mm] Ø35x250 Ø35x300 Ø35x350 Ø25x185 Ø25x215 Attachment weight [kg]

These instructions are intended to assist you in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

READ THE INSTRUCTIONS CAREFULLY AND

UNDERSTAND THEM BEFORE USE. To ensure long and reliable operation of the device, care should be taken to operate and maintain the device correctly in accordance with the instructions. The technical data and specifications contained in these instructions are up-to-date. The manufacturer reserves the right to make changes for the purpose of quality improvement. Taking technological progress and the possibility to reduce noise into account, the device is designed and built so that risks resulting from noise emissions are reduced to the lowest possible level. Explanation of symbols

The product meets the requirements of relevant safety standards. Read the instructions before use.

CAUTION! Risk of electric shock!

Beware of rotating cutting elements! Potential for injury

A III protection class device with double insulation.

For indoor use only. CAUTION! The illustrations in this manual are for illustrative purposes only and may differ in some details from the actual product appearance. The original version of the instructions is the German version. Other language versions are translations from German

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death. The term "device" or "product” in the warnings and instructions refers to the HAND MIXER. 2.1. Electrical safety a) The device plug must fit into the socket. Do not modify the plug in any way. Original plugs and matching sockets reduce the risk of electric shock. b) Avoid touching earthed items such as tubes, radiators, heaters and refrigerators. There is an increased risk of electric shock if your body is earthed and touches the device exposed to direct rain, wet floor and humidenvironment. If water penetrates into the device, there is an increased risk of damage to the device and electric shock. c) Do not touch the device with wet or damp hands. d) Do not use the cable in a wrong way. Never use it to carry the device or to pull the plug out of the socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock. e) If you cannot avoid using the device in a wet environment, use a residual current device (RCD). Using an RCD reduces the risk of electric shock. f) Do not use the device if the power cable is damaged or shows clear signs of wear. A damaged power cable should be replaced by a qualified electrician or the manufacturer's service. g) To avoid electric shock, do not immerse the cable, plug or device itself in water or other liquid. Do not use the device on wet surfaces. h) CAUTION – DANGER TO LIFE! When cleaning or using the device, never immerse it in water or other liquids.

i) The device must not get wet. Risk of electric shock!

2.2. Safety in the work area a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be careful, watch what you are doing and use common sense when working with the device. b) If in doubt as to whether the product is working properly or if you detect damage, contact the manufacturer's service. c) Repairs of the product may only be carried out by the manufacturer's service. Do not carry out repairs yourself! d) In the event of fire or fire, use only powder or snow (CO2) extinguishers to extinguish fire in the device where there is voltage. e) Keep these instructions for future reference. If the device is to be passed on to third parties, the instructions for use must be handed over together with the device. f) Keep packaging parts and small assembly parts out of the reach of children.

Remember! Keep children and other bystanders safe while operating the device.

2.3. Personal safetya) Do not operate the device if you are tired, ill or under the influence of alcohol, drugs or medication which might impair your ability to operate the device. b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or have been given instructions by them on how to operate the device. c) Be careful and use common sense when operating the device. A short moment of distraction during operation may lead to serious personal injury. d) To prevent accidental start-up, make sure the switch is in the OFF position before connecting the device to the power source. e) Do not overestimate your capabilities. Maintain body balance at all times during operation. This allows for better control of the device in unexpected situations. f) The device is not a toy. Children should be supervised to ensure that they do not play with the device. 2.4. Safe use of the device a) Do not overload the device. Use tools that are suitable for the given application. A correctly selected device ensures better and safer performance of work. b) Do not use the device if the ON/OFF switch does not function properly (does not switch on and off). Devices that cannot be controlled by the switch are dangerous, must not be operated and must be repaired. c) Pull the plug out of the socket before making adjustments, changing accessories or storing the device. This preventive measure reduces the risk of accidental activation. d) Keep unused devices out of the reach of children and anyone not familiar with the device or these instructions. Devices are dangerous in the hands of inexperienced users. e) Keep the device in good working order. Before each use, check for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, have the device repaired before use. f) Keep the device out of the reach of children. g) Repair and maintenance of the device should be carried out by qualified persons using only original spare parts. This will ensure a safe use of the device. h) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen any screws.

i) Avoid situations where the device stops under heavy load during operation.

This can cause overheating of the drive elements and subsequent damage to the device.j) Do not touch moving parts or accessories unless the device has been disconnected from the power supply. k) Do not leave the switched on device unattended. l) Clean the device regularly to prevent the permanent accumulation of dirt. m) The device is not a toy. Cleaning and maintenance must not be performed by children without adult supervision. n) It is forbidden to tamper with the device in order to change its parameters or construction. o) Keep the device away from sources of fire and heat. p) Do not cover the vents of the device! q) Under no circumstances should the housing be opened. r) Do not touch rotating parts of the appliance during operation.

CAUTION! Although the device has been designed to be safe and has been equipped with adequate safeguards, and despite the use of additional safety measures, there is still a small risk of accident or injury when operating the device. Caution and common sense are advised when using the device.

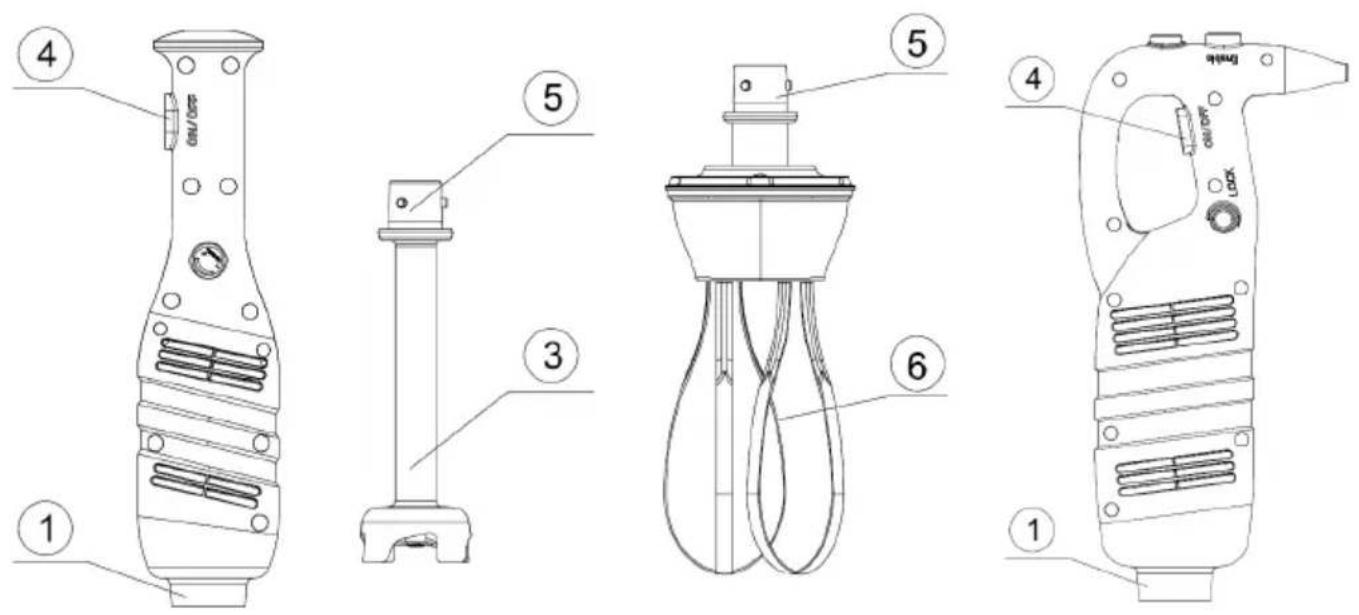

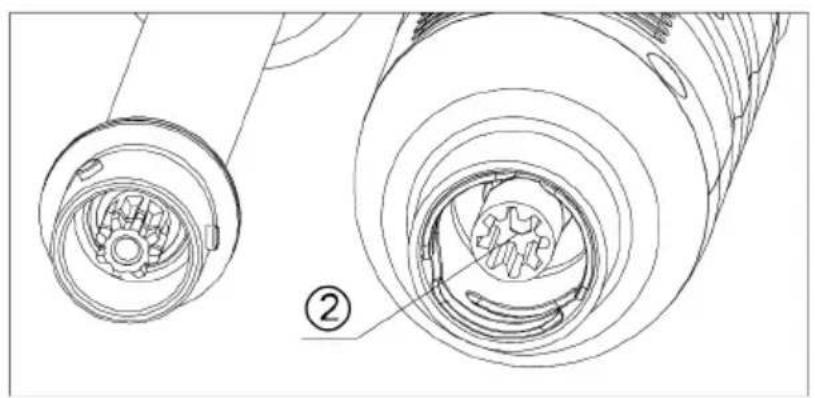

The appliance with fitted blender attachment is intended for blending food and cocktails, chopping and grinding vegetables, soups, purees, creams, cream cheese, almond butter, etc. The appliance with fitted whisk allows light ingredients to be mixed, for example mixing eggs, whipping egg whites or cream. This product is intended for professional use only! The user is responsible for any damage caused by improper use. 3.1. Description of the device1. Appliance body

The ambient temperature should not exceed 40°C and the relative humidity should not exceed 85%. Keep the device away from any hot surfaces. Always operate the device on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons with reduced mental, sensory and intellectual abilities. Position the device in such a way that the power supply plug can be reached at any time. Make sure that the device's power supply corresponds to the data on the rating plate! Prior to first use disassemble all elements and wash them.

ASSEMBLY OF THE DEVICE

1. Disconnect the mains plug before installing/removing the appliance.

2. Place the blender/whisk attachment onto the body of the appliance (blender)

and twist counter-clockwise until it stops.

3. To remove the blender/whisk attachment, turn it clockwise.USING THE APPLIANCE WITH THE BLENDER ATTACHMENT

To hold the mixer firmly and steadily, grasp it with one hand by the handle and the other by the lower part of its body. It is recommended to tilt the mixer at a slight angle to prevent the blender attachment from being sucked into the bottom of the container. Before starting the mixer, make sure that the blender attachment is sufficiently submerged to avoid splashing food. It is recommended to immerse 2/3 of the blender attachment in the vessel. USING THE APPLIANCE WITH THE WHISK ATTACHMENT When whisking, it is recommended to move the mixer so that the whisk moves around in the bowl. This will make it possible to produce a homogeneous mixture from the mixed ingredients. Do not touch the sides of the bowl with the whisk. It is recommended to dip at least 1/5 of the whisk into the bowl. 3.3. Working with the device

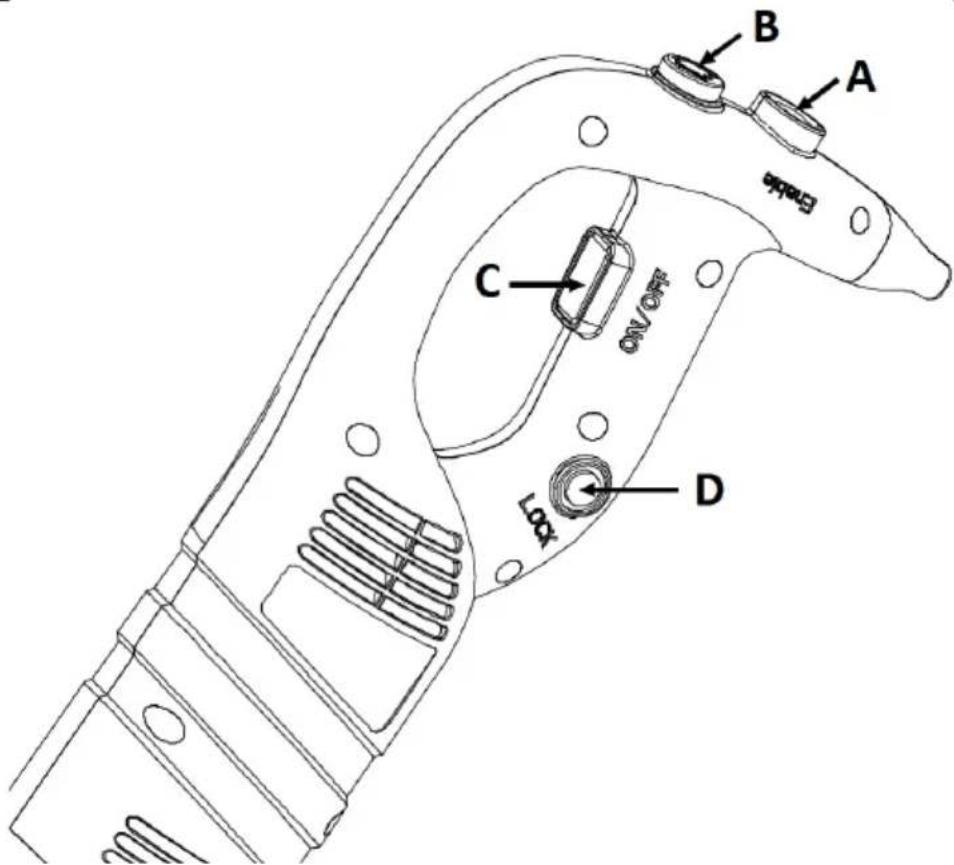

1. Check that the ON/OFF button (C) is released, i.e. that it is in the OFF

2. Connect the device to the power supply.

3. Fit the whisk or blender attachment into the body of the appliance.

4. Press the safety button (A) (not applicable to models: RCSM-280AV, RCSM-

5. Press the ON/OFF button (C), and hold it down while the mixer is running.

The mixer will run until the ON/OFF button is released. CAUTION! Before starting, make sure that the speed control knob is set to the lowest speed (turned to the left as far as possible).

6. To change the mixer speed, turn the speed control knob (B) in the desired

direction. Turning the knob clockwise (+) will increase the speed and counter-clockwise (-) will decrease it. CAUTION! Use the mixer with the whisk attached at the lowest speed!

7. Continuous operation mode (not applicable to models: RCSM-280AV,

RCSM-280AV-1): for the device to operate without holding down the button, the lock button (D) must be pressed after starting (pressing the ON/OFF button). The ON/OFF button (C) can then be released. The device will operate continuously. To stop the mixer (and exit continuous operation mode) press and release the ON/OFF button - this will switch off the lock and the mixer.

8. When finished, release the ON/OFF button. Wait for the rotating parts to

stop and then disconnect the mixer from the power supply.3.4. Cleaning and maintenance a) Before cleaning, adjustment or replacement of accessories, and when the device is not in use, pull the power supply plug and let the device cool down completely.

• Wait until the spinning elements stop. b) Use only non-corrosive agents for cleaning the surface. c) Only mild cleaning agents designed for cleaning surfaces which come into contact with food may be used to clean the device. d) After each cleaning, all components should be well dried before the device s used again. e) Store the device in a dry and cool place protected from moisture and direct sunlight. f) Do not spray the device with a stream of water and do not immerse it in water. g) Ensure that no water enters through the ventilation openings in the housing. h) Clean the ventilation openings with a brush and compressed air.

i) Regularly inspect the device for technical failure and damage.

j) Use a soft, damp cloth to clean the body of the device. k) After using the appliance for hot food, cool it in cold water before removing the whisk or blender attachment to prevent scalding. l) Cleaning the blending attachment: place the blending attachment in a container of water and switch on the appliance for a few seconds. Thoroughly dry the blender/whisk attachment after each use.

DISPOSAL OF USED DEVICES

At the end of its service life, this product must not be disposed of with normal household waste, but should be taken to a collection point for the recycling of electrical and electronic devices. This is shown by the symbol placed on the product, operating manual or the packaging. The materials used in the device can be reused according to their intended use. By reusing materials or conducting other forms of using used devices, you make a significant contribution to the protection of our environment. Local administration will provide you with information about the appropriate point for disposal of used devices .Dane techniczne Opis parametru Wartość parametru Nazwa produktu MIKSER RĘCZNY 550 MIKSER RĘCZNY 500 MIKSER RĘCZNY 450 MIKSER RĘCZNY 400 Model RCSM-850-
