Product type	Professional blender / Electric mixer
Model	RCSM-850-550
Brand	Royal Catering
Supply voltage	230 V~ / 50 Hz
Nominal power	850 W
Rotation speed	8000 - 18000 tr/min
Device dimensions	∅155 x 984 mm
Device weight	4,68 kg
Handle dimensions	∅120 x 434 mm
Handle weight	3 kg
Cap dimensions (handle + cap)	∅35 x 550 mm
Cap weight	1,68 kg
Included accessories	Mixing attachment, whisk
Main functions	Mixing, whisking, blending, emulsifying
Use	Professional
Protection class	II (double insulation)
Safety	Safety button, release stop, continuous mode with lock
Maintenance and cleaning	Clean the body with a damp cloth; do not immerse; clean the attachment by dipping it in water and running it for a few seconds
Repairability	Repairs by manufacturer only; original spare parts
Material	Body: resistant plastic; attachment: stainless steel

Frequently Asked Questions - RCSM-850-550 Royal Catering

How to assemble the mixing attachment onto the appliance body?

Before assembly, unplug the appliance. Place the mixing attachment or whisk onto the body and screw it fully counterclockwise. To remove, turn clockwise.

Can I use the appliance continuously without holding the button?

Yes, for models with lock (like the RCSM-850-550). After starting the appliance by pressing the ON/OFF button, press the lock button (D) to activate continuous mode. Release the ON/OFF button. To stop, press ON/OFF again.

How to clean the mixing attachment?

Place the mixing attachment in a container of water and turn on the appliance for a few seconds. Then dry it thoroughly. Never immerse the appliance body.

What is the recommended speed for the whisk?

The appliance with the whisk should be used at the lowest speed to avoid splashes and ensure even mixing.

What to do if the appliance does not start?

Check that the appliance is properly plugged in and the ON/OFF button is pressed. Make sure the safety button (A) is pressed (except for models without this button). If the problem persists, contact customer service.

Can the appliance be used to blend hot foods?

Yes, but after use with hot foods, let the attachment cool down in cold water before removing it to avoid burns. Beware of splashes.

How to adjust the rotation speed?

Turn the speed control knob (B): clockwise (+) to increase speed, counterclockwise (-) to decrease it. Always start at the lowest speed.

What accessories are included with the RCSM-850-550?

The RCSM-850-550 model comes with a mixing attachment and a whisk. Other accessories may be available separately.

Is the appliance suitable for domestic use?

No, this appliance is intended for professional use only. It is not recommended for intensive domestic use.

What to do in case of overheating?

If the appliance stops due to overload, unplug it and let it cool down. Avoid running it continuously without a break. If the problem recurs, contact the manufacturer.

USER MANUAL RCSM-850-550 Royal Catering

Abstract line drawing of stylized mythical creatures or mythical creatures (no text or symbols)

DE	Produktname:	STABMIXER	STABMIXER MIT SCHNEEBESEN
EN	Product name:	HAND MIXER	HAND MIXER WITH A WHISK
PL	Nazwa produktu:	MIKSER RĘCZNY	MIKSER RĘCZNY Z TRZEPACZKA
CZ	Název výrobku	TYČOVÝ MIXÉR	TYČOVÝ MIXÉR S METLIČKAMI
FR	Nom du produit:	BATTEUR ELECTRIQUE	BATTEUR ELECTRIQUE AVEC UN CLAPET
IT	Nome del prodotto:	FRULLATORE A IMMERSIONE	FRULLATORE A IMMERSIONE CON FRUSTA
ES	Nombre del producto:	BATIDORA DE MANO	BATIDORA DE MANO CON BATIDOR
HU	Termék neve	KÉZI MIXER	KÉZI MIXER HABVERÓVEL
DA	Produktnavn	HÅNDMIXER	HÅNDMIXER MED PISKERIS
DE	Modell:	RCSM-850-550RCSM-850-500RCSM-650-450RCSM-650-400RCSM-450-300RCSM-450-250RCSM-450-235RCSM-280AV	RCSM-280AV-1
EN	Product model:
PL	Model produktu:
CZ	Model výrobku
FR	Modèle:
IT	Modello:
ES	Modelo:
HU	Modell
DA	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

Technische Daten

Technical diagram of a spray gun with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with concentric circular features and a labeled section (②), no readable text or symbols present.

B A C LED D

Parameter value	Parameter value
Name of the product	HAND MIXER 550	HAND MIXER 500	HAND MIXER 450	HAND MIXER 400
Model	RCSM-850-550	RCSM-850-500	RCSM-650-450	RCSM-650-400
Supply voltage [V~] / Frequency [Hz]	230/50
Rated power [W]	850		650
Rotational speed of the blade [rpm]	8000–18000
Device dimensions [mm]	∅155x984	∅155x934	∅155x884	∅155x834
Device weight [kg]	4.68	4.54	4.31	4.16
Handle dimensions [mm]	∅120x434
Handle weight [kg]	3
Dimensions of the attachment (handle + attachment) [mm]	∅35x550 ∅35x500 ∅35x450 ∅35x400
Weight of the attachment (handle + attachment) [kg]	1.68 1.54	1.31 1.16

Parameter value	Parameter value
Name of the product	HAND MIXER 250	HAND MIXER 300	HAND MIXER 350	HAND MIXER 185	HAND MIXER WITH A WHISK
Model	RCSM-450-250	RCSM-450-300	RCSM-450-235	RCSM-280AV	RCSM-280AV-1
Supply voltage [V~] / Frequency [Hz]	230/50
Rated power [W]	450			280
Speed of the blade [rpm]	4000–16000 6000–20000
Device dimensions (handle + attachment) [mm]	∅135x683	∅135x733 ∅135x783 ∅113x548 ∅113x578
Weight of device (handle + attachment) [kg]	3.5 3.6	3.75 2.05 2.3
Handle dimensions [mm]	∅100x433 ∅88x363
Handle weight [kg]	2.55			1.5
Dimensions of the attachment [mm]	∅35x250 ∅35x300 ∅35		x350 ∅25x185 ∅25x215
Attachment weight [kg]	0.87	1.07	1.25	0.81	0.49

1. General description

These instructions are intended to assist you in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

READ THE INSTRUCTIONS CAREFULLY AND UNDERSTAND THEM BEFORE USE.

To ensure long and reliable operation of the device, care should be taken to operate and maintain the device correctly in accordance with the instructions. The technical data and specifications contained in these instructions are up-to-date. The manufacturer reserves the right to make changes for the purpose of quality improvement. Taking technological progress and the possibility to reduce noise into account, the device is designed and built so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product meets the requirements of relevant safety standards.
	Read the instructions before use.
	Recyclable product.

		CAUTION! or WARNING! or REMEMBER! describing a given situation (general warning sign).
		CAUTION! Risk of electric shock!
		Beware of rotating cutting elements! Potential for injury
		A III protection class device with double insulation.
		For indoor use only.

CAUTION! The illustrations in this manual are for illustrative purposes only and may differ in some details from the actual product appearance.

The original version of the instructions is the German version. Other language versions are translations from German.

2. Safe use

CAUTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or death.

The term "device" or "product" in the warnings and instructions refers to the HAND MIXER.

2.1. Electrical safety

a) The device plug must fit into the socket. Do not modify the plug in any way. Original plugs and matching sockets reduce the risk of electric shock.
b) Avoid touching earthed items such as tubes, radiators, heaters and refrigerators. There is an increased risk of electric shock if your body is earthed and touches the device exposed to direct rain, wet floor and humid

environment. If water penetrates into the device, there is an increased risk of damage to the device and electric shock.

c) Do not touch the device with wet or damp hands.
d) Do not use the cable in a wrong way. Never use it to carry the device or to pull the plug out of the socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If you cannot avoid using the device in a wet environment, use a residual current device (RCD). Using an RCD reduces the risk of electric shock.
f) Do not use the device if the power cable is damaged or shows clear signs of wear. A damaged power cable should be replaced by a qualified electrician or the manufacturer's service.
g) To avoid electric shock, do not immerse the cable, plug or device itself in water or other liquid. Do not use the device on wet surfaces.
h) CAUTION – DANGER TO LIFE! When cleaning or using the device, never immerse it in water or other liquids.
i) The device must not get wet. Risk of electric shock!

2.2. Safety in the work area

a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be careful, watch what you are doing and use common sense when working with the device.
b) If in doubt as to whether the product is working properly or if you detect damage, contact the manufacturer's service.
c) Repairs of the product may only be carried out by the manufacturer's service. Do not carry out repairs yourself!
d) In the event of fire or fire, use only powder or snow (CO2) extinguishers to extinguish fire in the device where there is voltage.
e) Keep these instructions for future reference. If the device is to be passed on to third parties, the instructions for use must be handed over together with the device.
f) Keep packaging parts and small assembly parts out of the reach of children.

Remember! Keep children and other bystanders safe while operating the device.

2.3. Personal safety

a) Do not operate the device if you are tired, ill or under the influence of alcohol, drugs or medication which might impair your ability to operate the device.
b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or have been given instructions by them on how to operate the device.
c) Be careful and use common sense when operating the device. A short moment of distraction during operation may lead to serious personal injury.
d) To prevent accidental start-up, make sure the switch is in the OFF position before connecting the device to the power source.
e) Do not overestimate your capabilities. Maintain body balance at all times during operation. This allows for better control of the device in unexpected situations.
f) The device is not a toy. Children should be supervised to ensure that they do not play with the device.

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the given application. A correctly selected device ensures better and safer performance of work.
b) Do not use the device if the ON/OFF switch does not function properly (does not switch on and off). Devices that cannot be controlled by the switch are dangerous, must not be operated and must be repaired.
c) Pull the plug out of the socket before making adjustments, changing accessories or storing the device. This preventive measure reduces the risk of accidental activation.
d) Keep unused devices out of the reach of children and anyone not familiar with the device or these instructions. Devices are dangerous in the hands of inexperienced users.
e) Keep the device in good working order. Before each use, check for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, have the device repaired before use.
f) Keep the device out of the reach of children.
g) Repair and maintenance of the device should be carried out by qualified persons using only original spare parts. This will ensure a safe use of the device.
h) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen any screws.
i) Avoid situations where the device stops under heavy load during operation. This can cause overheating of the drive elements and subsequent damage to the device.

j) Do not touch moving parts or accessories unless the device has been disconnected from the power supply.
k) Do not leave the switched on device unattended.
I) Clean the device regularly to prevent the permanent accumulation of dirt.
m) The device is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
n) It is forbidden to tamper with the device in order to change its parameters or construction.
o) Keep the device away from sources of fire and heat.
p) Do not cover the vents of the device!
q) Under no circumstances should the housing be opened.
r) Do not touch rotating parts of the appliance during operation.

CAUTION! Although the device has been designed to be safe and has been equipped with adequate safeguards, and despite the use of additional safety measures, there is still a small risk of accident or injury when operating the device. Caution and common sense are advised when using the device.

3. Rules of use

The appliance with fitted blender attachment is intended for blending food and cocktails, chopping and grinding vegetables, soups, purees, creams, cream cheese, almond butter, etc.

The appliance with fitted whisk allows light ingredients to be mixed, for example mixing eggs, whipping egg whites or cream.

This product is intended for professional use only!

The user is responsible for any damage caused by improper use.

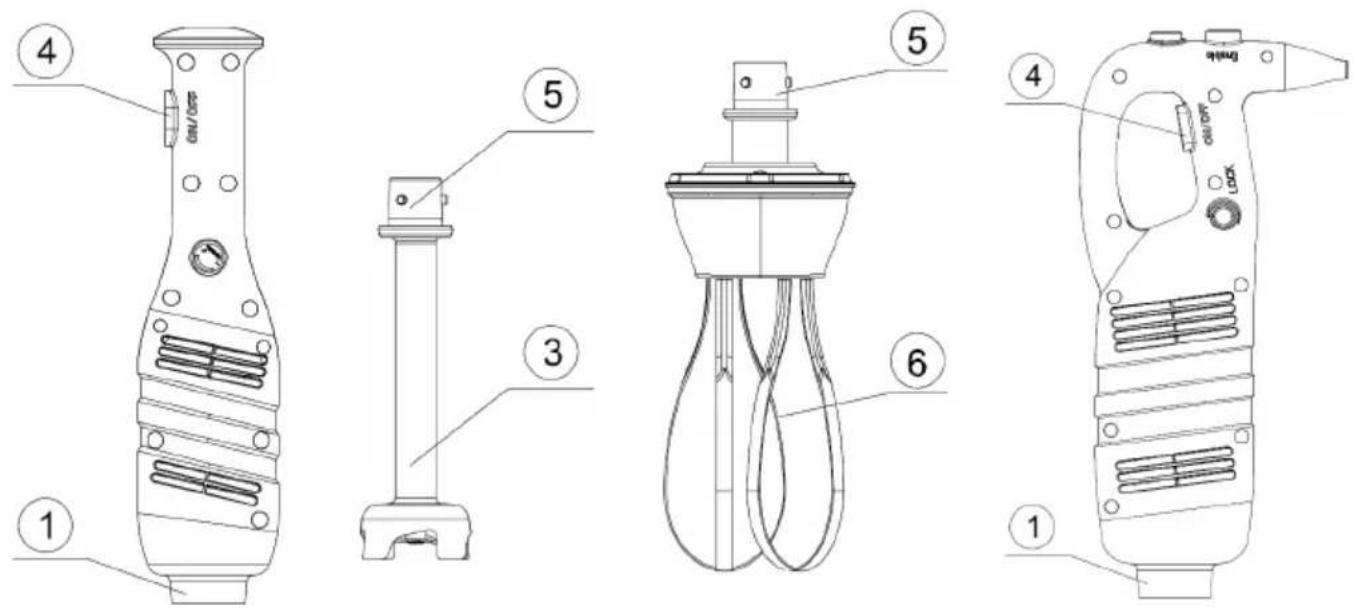

3.1. Description of the device

Technical line drawing of a mechanical component with concentric circular features and labeled part (②), no readable text or symbols present.

1. Appliance body

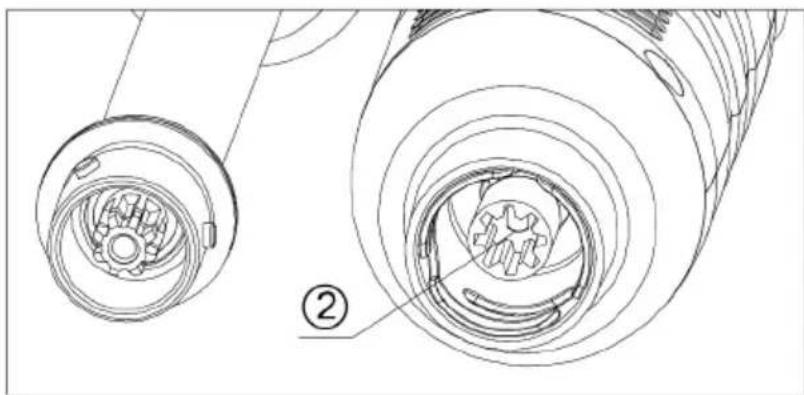

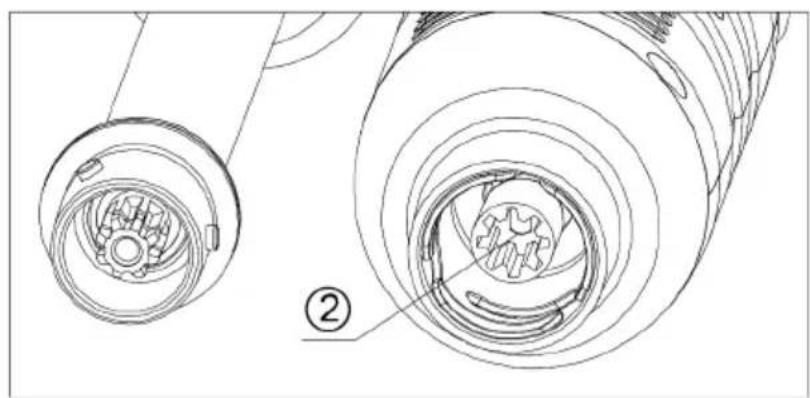

2. Clutch
3. Blender
4. ON/OFF button
5. Joint
6. Whisk

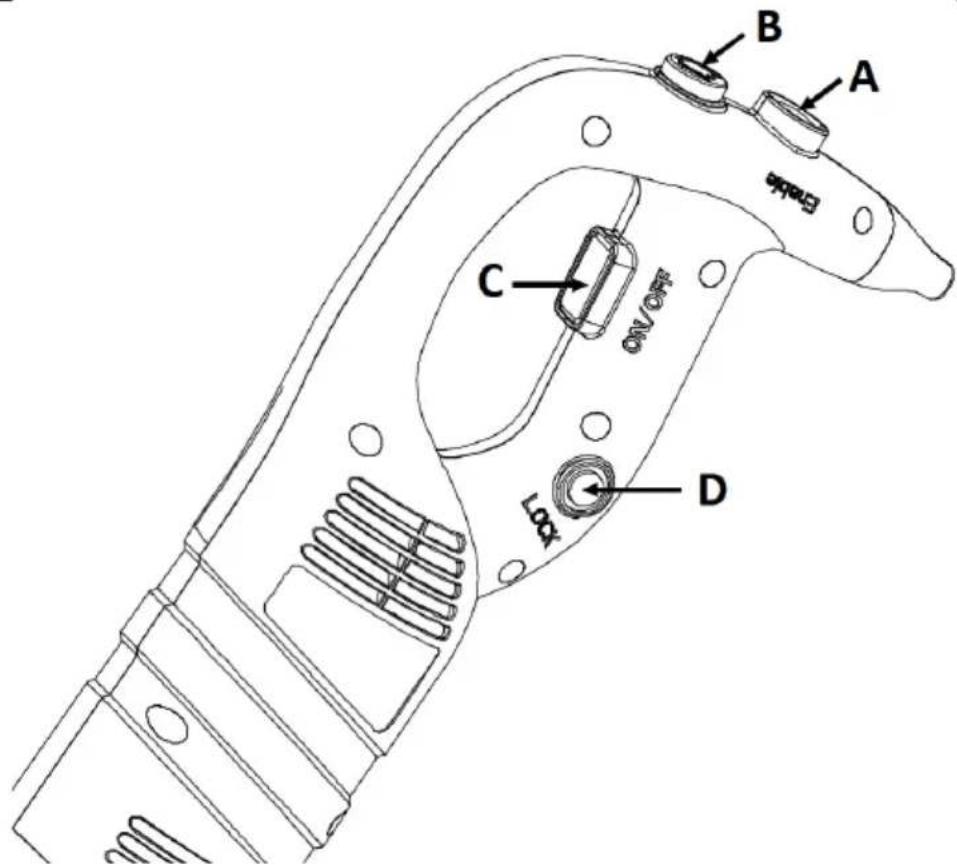

B A C Halo VNO Lock D

A. Safety button (not applicable to models: RCSM-280AV, RCSM-280AV-1)
B. Speed control knob
C. ON/OFF button
D. Lock button (not applicable to models: RCSM-280AV, RCSM-280AV-1)

3.2. Preparation for work

LOCATION OF THE DEVICE

The ambient temperature should not exceed 40^ C and the relative humidity should not exceed 85%. Keep the device away from any hot surfaces. Always operate the device on a level, stable, clean, fireproof and dry surface and out of the reach of children and persons with reduced mental, sensory and intellectual abilities. Position the device in such a way that the power supply plug can be reached at any time. Make sure that the device's power supply corresponds to the data on the rating plate!

Prior to first use disassemble all elements and wash them.

ASSEMBLY OF THE DEVICE

1. Disconnect the mains plug before installing/removing the appliance.
2. Place the blender/whisk attachment onto the body of the appliance (blender) and twist counter-clockwise until it stops.
3. To remove the blender/whisk attachment, turn it clockwise.

USING THE APPLIANCE WITH THE BLENDER ATTACHMENT

To hold the mixer firmly and steadily, grasp it with one hand by the handle and the other by the lower part of its body.

It is recommended to tilt the mixer at a slight angle to prevent the blender attachment from being sucked into the bottom of the container. Before starting the mixer, make sure that the blender attachment is sufficiently submerged to avoid splashing food. It is recommended to immerse 2/3 of the blender attachment in the vessel.

USING THE APPLIANCE WITH THE WHISK ATTACHMENT

When whisking, it is recommended to move the mixer so that the whisk moves around in the bowl. This will make it possible to produce a homogeneous mixture from the mixed ingredients. Do not touch the sides of the bowl with the whisk. It is recommended to dip at least 1/5 of the whisk into the bowl.

3.3. Working with the device

1. Check that the ON/OFF button (C) is released, i.e. that it is in the OFF position.
2. Connect the device to the power supply.
3. Fit the whisk or blender attachment into the body of the appliance.
4. Press the safety button (A) (not applicable to models: RCSM-280AV, RCSM-280AV-1).
5. Press the ON/OFF button (C), and hold it down while the mixer is running. The mixer will run until the ON/OFF button is released.
   CAUTION! Before starting, make sure that the speed control knob is set to the lowest speed (turned to the left as far as possible).
6. To change the mixer speed, turn the speed control knob (B) in the desired direction. Turning the knob clockwise (+) will increase the speed and counter-clockwise (-) will decrease it.
   CAUTION! Use the mixer with the whisk attached at the lowest speed!
7. Continuous operation mode (not applicable to models: RCSM-280AV, RCSM-280AV-1): for the device to operate without holding down the button, the lock button (D) must be pressed after starting (pressing the ON/OFF button). The ON/OFF button (C) can then be released. The device will operate continuously. To stop the mixer (and exit continuous operation mode) press and release the ON/OFF button - this will switch off the lock and the mixer.
8. When finished, release the ON/OFF button. Wait for the rotating parts to stop and then disconnect the mixer from the power supply.

3.4. Cleaning and maintenance

a) Before cleaning, adjustment or replacement of accessories, and when the device is not in use, pull the power supply plug and let the device cool down completely. - Wait until the spinning elements stop.
b) Use only non-corrosive agents for cleaning the surface.
c) Only mild cleaning agents designed for cleaning surfaces which come into contact with food may be used to clean the device.
d) After each cleaning, all components should be well dried before the device s used again.
e) Store the device in a dry and cool place protected from moisture and direct sunlight.
f) Do not spray the device with a stream of water and do not immerse it in water.
g) Ensure that no water enters through the ventilation openings in the housing.
h) Clean the ventilation openings with a brush and compressed air.
i) Regularly inspect the device for technical failure and damage.
j) Use a soft, damp cloth to clean the body of the device.
k) After using the appliance for hot food, cool it in cold water before removing the whisk or blender attachment to prevent scalding.
I) Cleaning the blending attachment: place the blending attachment in a container of water and switch on the appliance for a few seconds. Thoroughly dry the blender/whisk attachment after each use.

DISPOSAL OF USED DEVICES

At the end of its service life, this product must not be disposed of with normal household waste, but should be taken to a collection point for the recycling of electrical and electronic devices. This is shown by the symbol placed on the product, operating manual or the packaging. The materials used in the device can be reused according to their intended use. By reusing materials or conducting other forms of using used devices, you make a significant contribution to the protection of our environment.

Local administration will provide you with information about the appropriate point for disposal of used devices.

Dane techniczne

Technical line drawing of a mechanical component with concentric circular features and a labeled section (②), no readable text or symbols present.

Technical diagram of a spray gun with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with concentric circular features and labeled part (2), no readable text or symbols present.

Technical diagram of a handheld spray gun with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with concentric circular features and a labeled section (②), no readable text or symbols present.

Technical diagram of a spray gun with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with concentric circular features and a labeled section (②), no readable text or symbols present.

B A C LED D

Technical diagram of a spray gun with numbered parts for identification and assembly reference.

Technical line drawing of a mechanical component with concentric circular features and labeled part (②), no readable text or symbols present.

Technical line drawing of a mechanical component with concentric circular features and labeled part (2), no readable text or symbols present.

Technical line drawing of a mechanical component with concentric circular features and a star-shaped feature (no text or symbols)

1. Produktets kabinet
2. Kobling
3. Blendingstilbehør
4. ON/OFF-knap
5. Stik
6. Piskeris

B A C Halo VNO Lock D

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
