Product type	Wireless DMX controller (hybrid transmitter/receiver)
Brand	BeamZ
Model	WTR105
Power supply	100-240 V AC, 50/60 Hz via Powercon connector
Power consumption	Approximately 5 W (estimated)
DMX input connectors	XLR 3-pin (pin 1: ground, pin 2: data -, pin 3: data +)
DMX output connectors	XLR 3-pin (pin 1: ground, pin 2: data -, pin 3: data +)
Power input	Powercon connector
Operating modes	Transmitter, Receiver, Easylink
Wireless range	Up to 300 m in open field (estimated)
Operating frequency	2.4 GHz (estimated)
LED indicators	White, Blue, Green, Red, Yellow depending on status
Configuration button	[ID] button for pairing and mode selection
Housing material	Robust metal (estimated)
Dimensions (approx.)	146 x 114 x 48 mm (estimated)
Weight (approx.)	0.5 kg (estimated)
Operating temperature	-5 °C to +45 °C
Intended use	Indoor only
Maintenance	Clean with a dry cloth; do not use liquids
Repairability	Repairs only by a qualified technician
General information	Compliant with safety standards; do not dispose of with household waste

Frequently Asked Questions - WTR105 BeamZ

How to configure the WTR105 in transmitter mode?

Hold down the [ID] button while powering on. The LED turns white then green, blue, or yellow. Briefly press [ID] to select blue, then hold [ID] for 3 seconds to confirm. The LED changes to white then becomes blue (flashing if no DMX signal).

How to configure the WTR105 in receiver mode?

Hold down the [ID] button while powering on. The LED turns white then green, blue, or yellow. Briefly press [ID] to select green, then hold [ID] for 3 seconds to confirm. The LED changes to white then becomes red (fast flashing if no signal).

How to link a receiver to a transmitter?

Ensure the receiver has a white LED (not linked). Briefly press the [ID] on the transmitter: the transmitter (blue) and receiver (green) LEDs flash. Wait for the flashing to stop: the connection is established. Verify by pressing [ID] on the transmitter again: the linked receivers' LEDs flash.

How to disconnect all receivers from a DMX universe?

Press the [ID] button on the transmitter for about 3 seconds until the LED turns red. The receivers turn white (disconnected) then red. The transmitter returns to white after a brief interval.

How to disconnect an individual receiver?

Press the [ID] button on the receiver for about 3 seconds until the LED turns white. The receiver is disconnected from the transmitter.

What does a flashing blue LED on the transmitter mean?

A slow flashing blue LED indicates that no DMX signal is present on the transmitter input. A fast flashing means the transmitter is connecting to one or more receivers.

What does a flashing red LED on the receiver mean?

A fast flashing red LED indicates no signal. The receiver is not receiving any DMX signal from the transmitter.

How to use Easylink mode?

Hold [ID] during power-on, select yellow with brief presses, then hold [ID] for 3 seconds. The LED turns white then blinks. You can then choose a DMX universe by color (red, green, yellow, blue, magenta, cyan, white) corresponding to channel ranges.

What safety precautions should be observed?

Read the manual before use. Do not block ventilation openings. Use only with mains voltage corresponding to the indicated voltage. Disconnect before cleaning or prolonged non-use. Do not look directly into the light beam if applicable. Keep out of reach of children.

How to clean the WTR105?

Use a dry cloth to clean the device. Never use liquids or harsh cleaners. Ensure the device is unplugged before cleaning.

USER MANUAL WTR105 BeamZ

154.126_154.129 V1.1

WTR10

USER MANUAL

INDEX

ENGLISH

SAFETY INSTRUCTIONS....3

UNPACKING INSTRUCTION 4

POWERSUPPLY 4

DESCRIPTION OF FUNCTIONS 4

CONFIGURATIE VOOR DRAADLOZE WERKING....9

CONFIGURATIE VAN DE HYBRIDE TRANSCEIVER IN ZENDERMODUS: 9

CONFIGURATIE VAN DE HYBRIDE TRANSCEIVER IN ONTVANGERMODUS: 9

VERBINDEN VAN ÉEN OF MEER ONTVANGERS MET EEN ZENDER: 9

CONFIGURATIE VAN DE HYBRIDE TRANSCEIVER IN EASYLINK-MODUS: 10

ONTKOPPELEN VAN ONTVANGERS VAN EEN DMX-UNIVERSUM: 10

OM EEN INDIVIDUELE ONTVANGER LOS TE KOPPELEN VAN EEN DMX-UNIVERSUM/ZENDER: 10

DEUTSCH

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and

have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from

shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

DESCRIPTION OF FUNCTIONS

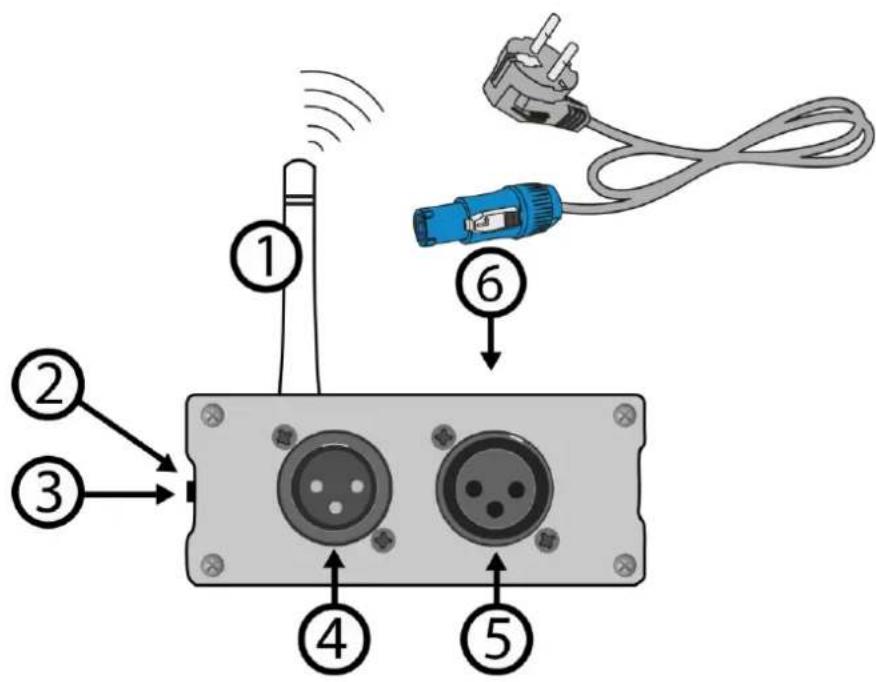

1. DIRECTIONAL RECEPTION:
   Adjustable positioning for enhanced signal acquisition.
2. IDENTIFICATION SWITCH:
   Utilized to configure the preferred protocol and either the transmission or reception mode.

3. CONNECTION INDICATOR:
   Displays the status of the wireless link.

4. DMX DATA INPUT:

Utilizes a 3-pin XLR connector (pin1 = ground/shield; pin2 = data-; pin3 = data+).

1. DMX DATA OUTPUT:

Incorporates a 3-pin XLR connector (pin1 = ground/shield; pin2 = data-; pin3 = data+).

1. POWER INLET:

Equipped with a powercon port.

Each module serves as a wireless DMX transceiver, allowing each unit to act as either a transmitter or receiver. Establishing the system requires assigning each receiver to the appropriate universe (transmitter) it intends to operate with.

ESSENTIAL NOTES BEFORE USAGE

• Refer to the [ID] button (2) for information:

Status LED (3) WHITE: Signifies setup mode or disconnection from any transmitter.

○ TRANSMITTER MODE

Status LED (3) BLUE: Indicates the unit operates in TRANSMITTER mode and is linked to one or more receivers and there is a wired DMX input

Status LED (3) BLUE: (blinking rapidly): Demonstrates the transmitter is in the process of connecting to receiver(s).

Status LED (3) BLUE: (blinking slowly): Indicates absence of DMX signal on the transmitter.

- RECEIVER MODE

Status LED (3) GREEN: Illustrates the unit functions in RECEIVER mode and is connected to a transmitter and there is a wired DMX output.

Status LED (3) GREEN: (blinking slowly): Indicates the receiver is not receiving any DMX signal from the transmitter.

Status LED (3) RED: (blinking rapidly): Indicates absence of a signal.

○ EASYLINK MODE

Status LED (3) YELLOW: Indicates the protocol Easylink in setup mode

Status LED (3) RED: (blinking Red): transmitting DMX Signal

Status LED (3) GREEN: (blinking Green): receiving DMX signal.

• A receiver can only pair with a transmitter when it is fully disconnected: status LED (3) showing WHITE.

CONFIGURING THE HYBRID TRANSCEIVER IN TRANSMITTER MODE:

- Hold down the [ID] button (2) while powering up the HYBRID TRANSCEIVER. The status LED (3) will briefly turn WHITE, then change to GREEN, BLUE or YELLOW (reflecting the last selected mode).

- Select BLUE by briefly pressing the [ID] button (2).

• Once BLUE is selected, hold the [ID] button (2) for 3 seconds to confirm the transmitter mode.

• The status LED will transition to white and then, after a few seconds, switch to BLUE (blinking if there is no DMX signal present).

• The unit is now set in transmitter mode.

CONFIGURING THE HYBRID TRANSCEIVER IN RECEIVER MODE:

- Hold the [ID] button (2) while powering up the HYBRID TRANSCEIVER. The status LED (3) will briefly turn WHITE, then change to GREEN, BLUE or YELLOW (reflecting the last selected mode).

- Select GREEN by briefly pressing the [ID] button (2).

• Once GREEN is selected, hold the [ID] button (2) for 3 seconds to confirm the receiver mode.

• The status LED will transition to white and after a few seconds switch to RED (fast blinking if there is no signal present).

• The unit is now set in receiver mode.

CONNECTING ONE OR MULTIPLE RECEIVERS TO A TRANSMITTER:

To link your receiver(s) to a specific transmitter:

A. Ensure the receivers intended for connection display a status LED (3) of WHITE, indicating they are not linked to another transmitter.
B. Briefly press the [ID] button (2) of the transmitter; both the transmitter (BLUE) and receivers (GREEN) will start blinking on their status LEDs (3). (If it has already been connected, a flash red indicates that the transmitter is not working)
C. Wait until the blinking ceases: the receivers are now successfully linked to the transmitter.
D. Verify the connection: press the [ID] button (2) on the transmitter again, and the status LEDs (3) on all linked receivers will blink. Receivers linked to another transmitter will not blink.

CONFIGURING THE HYBRID TRANSCEIVER IN EASYLINK MODE:

• Hold down the [ID] button (2) while powering up the HYBRID TRANSCEIVER. The status LED (3) will briefly turn WHITE, then change to GREEN, BLUE or YELLOW (reflecting the last selected mode).
• Select Yellow by briefly pressing the [ID] button (2).
  • Once yellow is selected, hold the [ID] button (2) for 3 seconds to confirm the easylink mode.
  • The status LED will transition to white and then blinks colors and shows universal color.
  • Now you can select your universe color by just setting it on a universe color

DMX Universe	Colour	DMX Channels
1	Red	000 ~ 512
2	Green	000 - 512
3	Yellow	000 ~ 512
4	Blue	000 ~ 512
5	Magenta	000 ~ 512
6	Cyan	000 ~ 512
7	White	000 - 512

DISCONNECTING RECEIVERS FROM A DMX UNIVERSE:

To disconnect all receivers from a DMX universe/transmitter:

• Press the [ID] button (2) of the transmitter for approximately 3 seconds until the status LED (3) turns RED. The status LED on the receiver(s) will momentarily turn WHITE (disconnected) and then switch to RED (no signal present).
  • After a brief interval, the status LED (3) on the transmitter will revert to WHITE.
• To reconnect the receiver(s), simply press briefly on the [ID] button (2) on the transmitter. The status LED (3) on the receiver(s) will turn GREEN again.

TO DISCONNECT AN INDIVIDUAL RECEIVER FROM A DMX UNIVERSE/TRANSMITTER:

Press the [ID] button (2) of the receiver for about 3 seconds until the status LED (3) turns WHITE.

This action disconnects the receiver from the transmitter (DMX universe).
