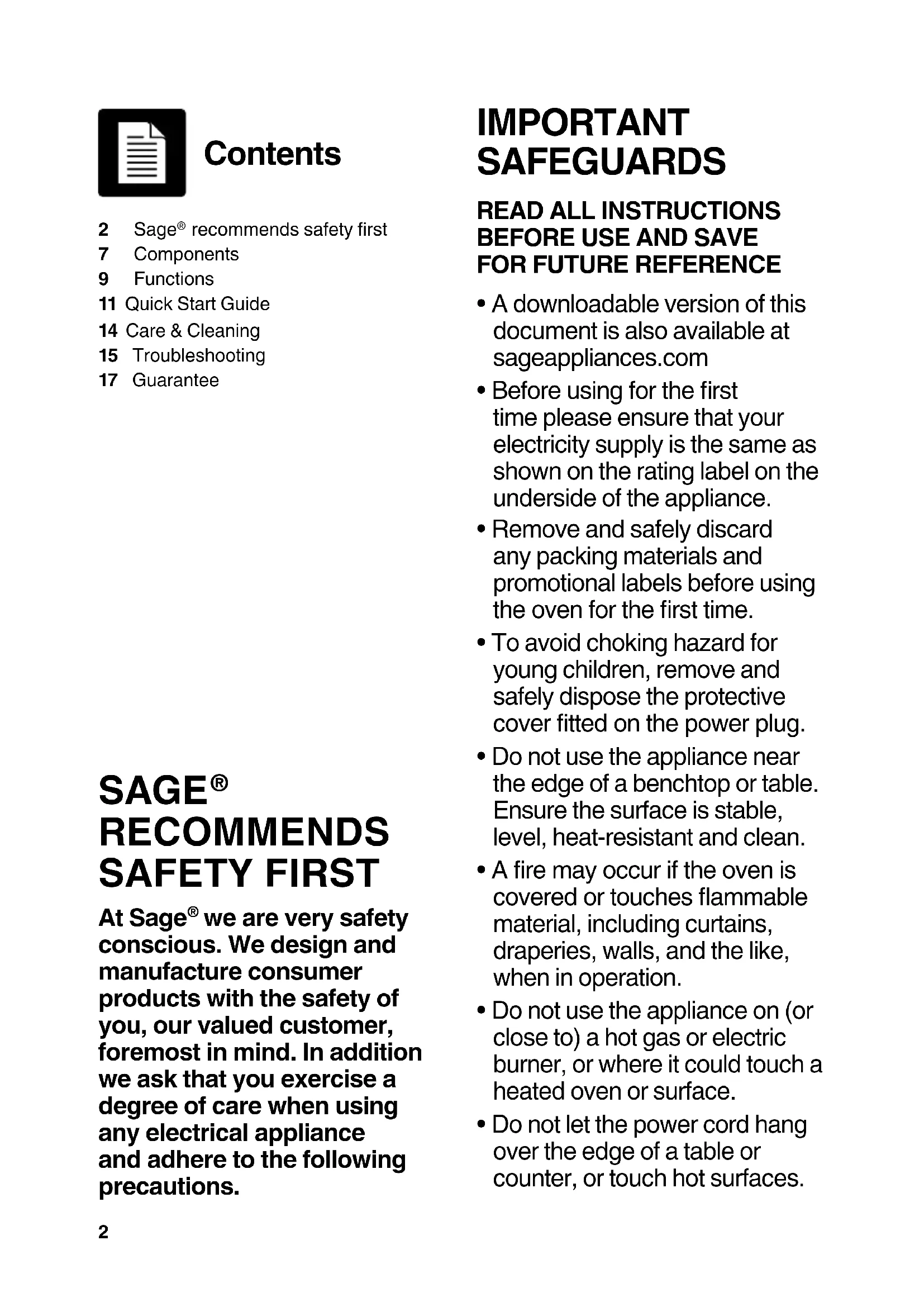

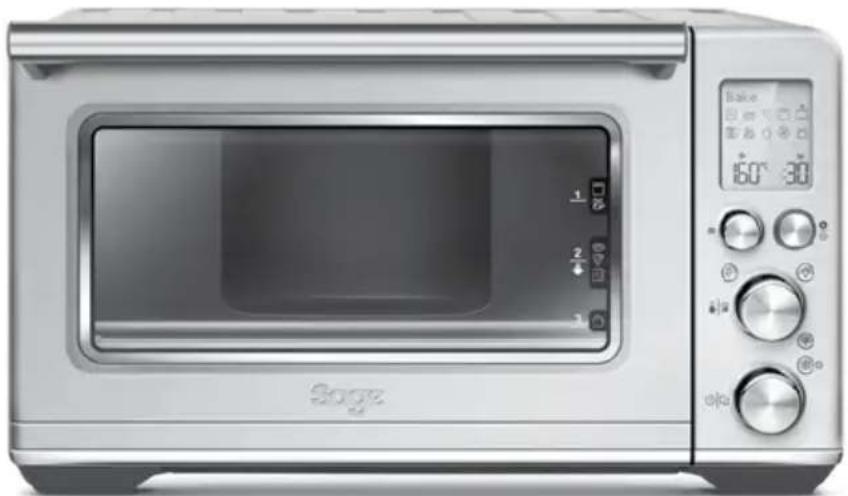

USER MANUAL the Smart Oven Air Fryer SOV860 SAGE

• A downloadable version of this document is also available at sageappliances.com

• Before using for the rst time please ensure that your electricity supply is the same as shown on the rating label on the underside of the appliance.

• Remove and safely discard any packing materials and promotional labels before using the oven for the rst time.

• To avoid choking hazard for young children, remove and safely dispose the protective cover tted on the power plug.

• Do not use the appliance near the edge of a benchtop or table. Ensure the surface is stable, level, heat-resistant and clean.

• A re may occur if the oven is covered or touches ammable material, including curtains, draperies, walls, and the like, when in operation.

• Do not use the appliance on (or close to) a hot gas or electric burner, or where it could touch a heated oven or surface.

• Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces. Contents SAGE

we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions. 2 Sage recommends safety rst7 Components9 Functions11 Quick Start Guide14 Care & Cleaning15 Troubleshooting17 Guarantee3

• The oven is not suitable to be used in a small appliance enclosure. Ensure to leave adequate space all around the oven. Minimum space of 10cm is recommended.

• The outer housing of the oven may be hot during and after cooking. Please do not touch hot surfaces. Always keep the power cord of this oven, and those of other appliances near the oven, clear from the oven housing.

• Do not touch hot surfaces. To avoid burns, use extreme caution when removing pans, dishes and accessories such as the included grilling rack and roasting pan, that contain hot oil or other hot liquids.

• Do not lay cooking utensils, roasting pans or dishes on the glass door.

• Do not leave the door standing open for extended periods of time.

• Do not store any item on top of the oven when in operation except those described on page 13 of this book.

• Do not place cardboard, plastic, paper, or other ammable materials in the oven.

• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

• Caution should be exercised when using pans and dishes constructed of materials other than metal. Ensure pans and dishes are oven safe before using in the oven.

• Caution should be exercised when using lids in the oven, as pressure build up in a covered pan or dish may cause hot ingredients to expel or the dish to crack. Do not place sealed or airtight containers in the oven.

• Oversized foods and metal utensils must not be inserted in the oven as they may create re or risk of electric shock.

• The use of accessories and attachments not recommended or supplied with this oven may cause injuries.

• This appliance is for household use only. Do not use in any type of moving vehicles. Do not use the appliance outdoors, or for anything other than its intended use. Misuse can cause injury.

• If the appliance is to be: left unattended, cleaned, moved, assembled or stored, always switch the unit o and unplug the cord from the power outlet and allow to cool completely.

• Do not clean with metal scouring pads. Pieces can break o the pad and touch electrical parts, creating a risk of electric shock.4

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• The appliance and its cord should be kept out of reach of children aged 8 years and younger.

• It is recommended to regularly inspect the appliance. Do not use the appliance if power cord, power plug or appliance becomes damaged in any way. If damaged or maintenance other than cleaning is required, please contact Sage Customer Service or go to sageappliances.com

• The appliance is not intended to be operated by means of external timer or separate remote control system.

• The appliance must be used on a properly grounded outlet. If you are unsure the power outlets are properly grounded, please consult an electrician.

• Do not, under any circumstance, modify the power plug or use an adapter.

• Consult a qualied electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

• The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice. SPECIFIC INSTRUCTIONS FOR SOV860

• We recommend the oven is operated on a dedicated circuit separated from other appliances. Consult a licensed and qualied electrician if you are unsure.

• To turn o the oven, press the Start/Cancel button on the control panel. The oven is o when the button back-lights turn o.5

• Regularly clean the crumb tray. To clean the crumb tray: −Turn OFF the oven, −Allow the oven to cool completely and then remove the power cord from the power outlet. −Remove the crumb tray and clean with warm soapy water. −Dry the tray completely before inserting it securely back in place.

REGARDING MEMORY STORAGE Please note that in order to better serve our customers, internal memory storage has been imbedded into your appliance. This memory storage consists of a small chip to collect certain information about your appliance including the frequency of use of the appliance and the manner in which your appliance is being used. In the event your appliance is returned for service, the information collected from the chip enables us to quickly and eciently service your appliance. The information collected also serves as a valuable resource in developing future appliances to better serve the needs of our consumers. The chip does not collect any information regarding the individuals who use the product or the household where the product is used. If you have any questions regarding the memory storage chip please contact us at [e-mail]. WARNING

UV RADIATION, OR INJURY

• Always unplug the oven and let all parts (including the bulb housing, glass cover and enclosure) cool completely before replacing bulb.

• Only use a 25 Watt, 220–240V, G9 type oven bulb.

• Always use a soft cloth when handling the bulb and do not directly touch the surface as oil from your skin can damage the bulb.

• Do not look directly at a glowing bulb.

• Do not remain in the light if skin feels warm.

• Keep bulb away from materials that may burn.

• The bulb gets hot quickly. Only ever use the light button to turn on the light.

• Do not operate the light if the bulb housing, glass cover, UV lter or enclosure are missing or damaged.6 The symbol shown indicates that this appliance should not be disposed of in normal household waste. It should be taken to a local authority waste collection centre designated for this purpose or to a dealer providing this service. For more information, please contact your local council oce. This symbol indicates, temperature of accessible surfaces may be high when the appliance is operating and for some time after use. To protect against electric shock, do not immerse the power cord, power plug or appliance in water or any liquid.

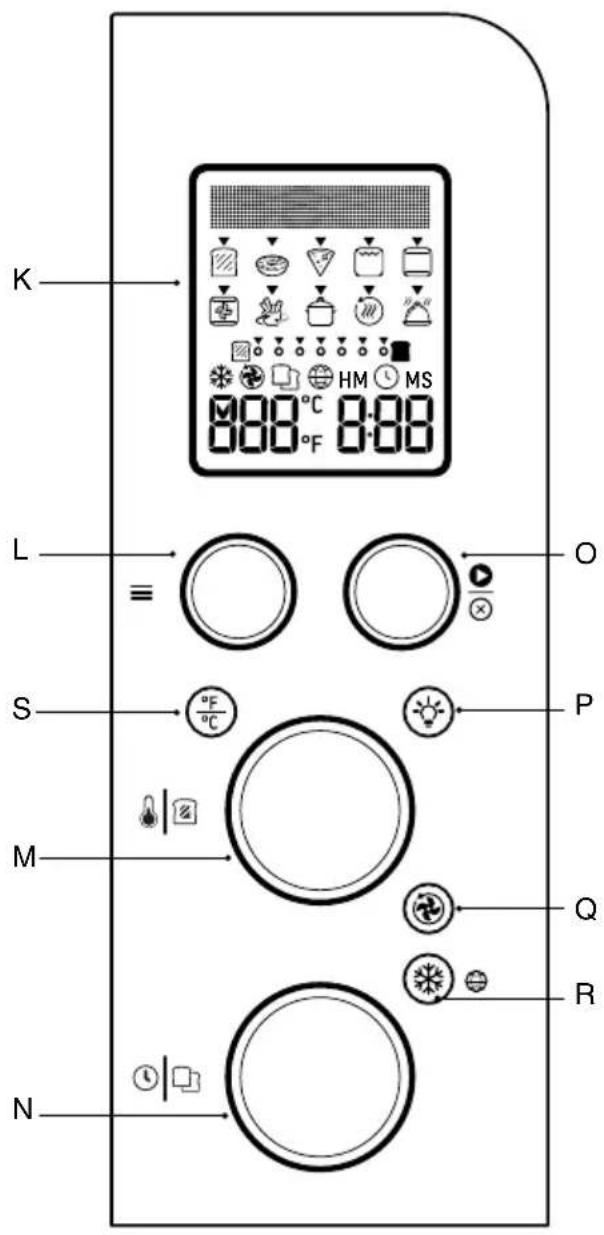

Time Dial/Toast and Bagel Selection

Temperature Conversion Button Accessories sold separately: MSHM

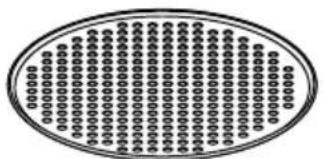

Bamboo Cutting Board Pizza Stone Pizza Crisper Pan9

Before rst use, please run the oven empty for 20 minutes to remove protective substances from the heating elements. Ensure the area is well ventilated as the oven may emit vapors. These vapors are safe and are not detrimental to the performance of the oven.

1. Remove and safely discard any packing

material, promotional labels and tape from the oven.

2. Remove the crumb tray, wire racks, grilling rack,

roasting pan, air fry basket and pizza pan from the polyfoam packaging. Wash them with a soft sponge in warm, soapy water then rinse and dry thoroughly.

3. Wipe the interior of the oven with a soft,

damp sponge. Dry thoroughly.

4. Place the oven on a at, dry surface. Ensure

there is a minimum distance of 10cm of space on both sides of the appliance and 15cm above.

5. Insert the crumb tray into the oven.

6. Unwind the power cord completely and insert

the power plug into a grounded power outlet.

7. The oven alert will sound and the LCD screen

will illuminate. Set desired language. Go to page 12 for guide on language selection.

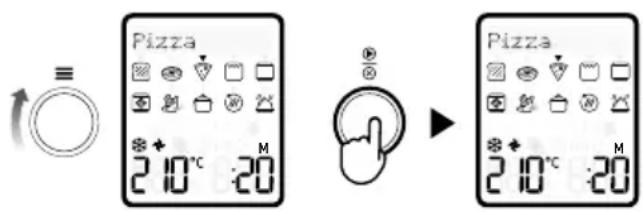

Start/Cancel dial to the right until the indicator reaches the PIZZA function.

Start/Cancel button. The button backlight will illuminate red, the LCD screen will illuminate orange and the oven alert will sound.

10. The LCD screen will indicate a blinking

‘PREHEATING’. Once the oven has completed the preheating cycle, an alert will sound.

11. The timer will be displayed and automatically

begin to count down.

12. At the end of the cooking cycle, the oven

alert will sound, the Start/Cancel button backlight will go out and the LCD screen will illuminate blue.

13. The oven is now ready to use.

Air Fryer features Element IQ

, a cooking technology that creates the ideal environment for the food you’re cooking. It steers power where and when it’s needed and creates the right kind of heat, whether even or intense. Each of the oven’s functions is preset with our recommended heating element congurations and temperatures, that are based on recipes and testing. However, we suggest experimenting with these depending on the recipe, amount of food and your personal taste.10

Toast Middle Frozen Darkness 4 Slices 4 No Darkness 1-7 Slices 1-6 Bagel Middle Frozen Darkness 4 Slices 4 No Darkness 1-7 Slices 1-6 Pizza Middle Super Convection Convection Temperature Conversion Frozen 210°C Convection Frozen 20 MINS Yes 160°C - 230°C Up to 2 HRS Grill Top HI 10 MINS No HI-MED-LO Up to 20 MINS Bake Bottom Super Convection Convection Temperature Conversion 160°C Convection 30 MINS Yes 120°C and above = 1 MIN up to 2 HRS 120°C and below = 1 MIN up to 10 HRS Roast Bottom Super Convection Convection Temperature Conversion 180°C Convection 1:00 HRS Yes 120°C and above = 1 MIN up to 2 HRS 120°C and below = 1 MIN up to 10 HRS Air Fry Top Super Convection Temperature Conversion Frozen 220°C 15 MIN Super Convection No 160°C-230°C Up to 1:00 HR Reheat Bottom Convection Temperature Conversion 160°C Convection 15 MINS Yes 70°C - 160°C Up to 2:00 HRS Keep Warm Bottom Convection Temperature Conversion 70°C KEEP WARM 1:00 HRS No 50°C–120°C Up to 2:00 HRS Slow Cook Bottom Convection

Convection 4:00 HRS No LO = 4 to 10 HRS HI = 2 to 8 HRS11

OPERATING YOUR SAGE OVEN

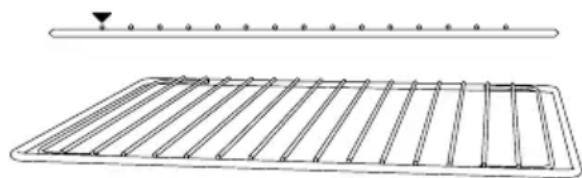

1. Position the wire rack so the spokes face upward and insert it into the desired rack position. The rack positions are conveniently printed on the oven door window.2. Turn the Function dial until the indicator on the LCD screen reaches the desired setting.3. The screen indicates the preset cooking temperature for the selected setting. Turn the Temperature dial to the left to reduce the temperature or to the right to increase the temperature.REDUCE TEMPERATURE INCREASE TEMPERATURE ROTATE TEMPERATURE DIAL

4. The screen indicates the preset cooking time for the selected setting. Turn the

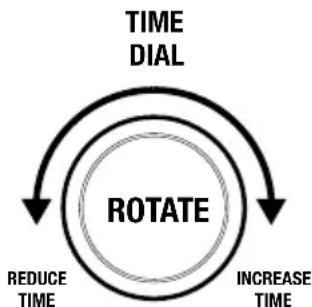

Time dial to the left to reduce the cooking time or to the right to increase the cooking time.REDUCE TIME INCREASE TIME ROTATE TIME DIAL 5. For settings without a preheat cycle (TOAST, BAGEL, GRILL, KEEP WARM, SLOW COOK), place the food directly on the wire rack or on the included air fry basket, pizza pan, grilling rack and/or roasting pan. Ensure the food is centered in the oven for the most even cooking.6. Close the oven door.7. Press the Start/Cancel button. The button backlight will illuminate red, the oven alert will sound, and the LCD screen will illuminate orange.8. The timer will be displayed and begin to count down. The cooking temperature and time can be adjusted during the cooking cycle.9. For settings that feature a preheat cycle (BAKE, ROAST, PIZZA, AIR FRY), press the Start/Cancel button before placing food in the oven. The button backlight will illuminate red, the oven alert will sound and the LCD screen will indicate a blinking ‘PREHEATING’ while the oven is heating up. a) When the oven is ready for use, the blinking ‘PREHEATING’ will go out, the oven alert will sound and the timer will start counting down. Place the food directly on the wire rack, or on the included air fry basket, pizza pan, grilling rack and/or roasting pan. Ensure the food is centered in the oven for the most even cooking.b) Close the oven door.c) The timer will continue to count down. The cooking temperature and time can be adjusted during the cooking cycle.10. At the end of the cooking cycle, the oven alert will sound, the Start/Cancel button backlight will go out and the LCD screen will illuminate blue.12 NOTE The cooking cycle can be stopped at any time by pressing the Start/Cancel button. This will cancel the cycle and the button backlight will illuminate blue. NOTE Press the Convection button to choose between no convection, convection and super convection. Convection and super convection may adjust the temperature to compensate for the faster air ow. Super convection will deliver a crispier food result.

MAGNETIC AUTO-EJECT RACK

When the wire rack is inserted into the middle rack position, it will automatically eject halfway out of the oven when the door is opened so you can easily remove your food. Always open the door slowly when the wire rack is in this position to prevent the rack from ejecting too quickly. LANGUAGE SELECTION When the oven is being operated for the rst time, it will allow you to select the desired language. Turn the Temperature or Time dials (clockwise or anticlockwise) to select the desired language, then press the Start/Cancel button to conrm your selection. If the desired language is not conrmed within 5 minutes, the oven will automatically save the default language. In the event the selected language needs to be changed, press the Frozen button for 3 seconds. The LCD screen will display the languages selection. Turn the Temperature or Time dials (clockwise or anticlockwise) to select the desired language, then press the Start/Cancel button to conrm your selection. If the desired language is not conrmed within 5 minutes, the oven will automatically go back to the previously saved language. The check mark icon indicates selected language.13

1. Remove the wire rack from the oven before

replacing the light.

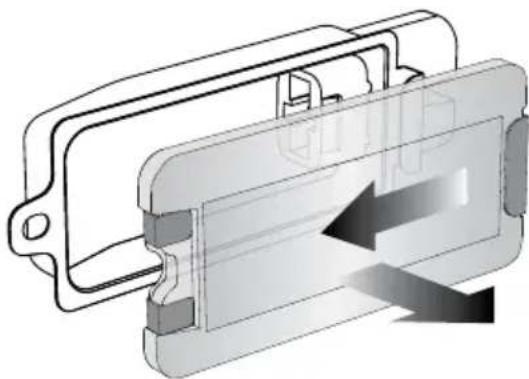

2. The light is positioned on the lefthand side of

the oven cavity. Position your ngers on the outside of the light housing and gently pull the glass cover away from the oven wall to remove it. If you are unable to pull the cover o, slide a spoon into the left side of the light housing and gently lever the glass cover o. Always hold the glass cover with the other hand to prevent the cover from falling and breaking.

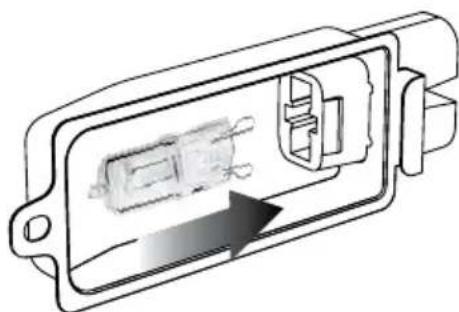

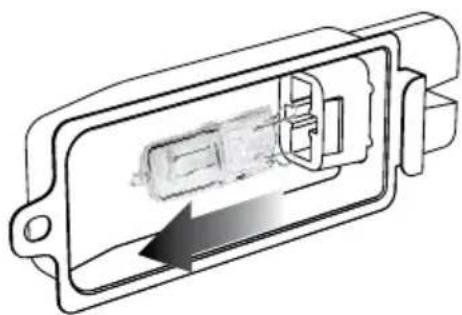

3. Remove the used bulb by pulling it directly

4. Use a soft cloth to insert the new bulb.

Do not directly touch the surface of the bulb with your ngers as oil from your skin can damage the bulb.

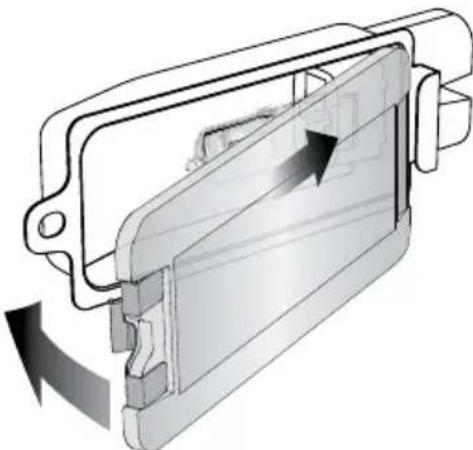

5. To reattach the glass cover, align the metal

hook with the left side of the light housing. Slide the opposite end of the glass cover into the metal bracket on the right side of the housing, then push the metal hook into the left side of the housing until it snaps securely into position. NOTE The top of the oven is very hot during and after operation. As a result, storing items on top of the oven is not recommended. The only exception is the optional Sage Bamboo Cutting Board and Serving Tray that fits in the ribbed section on top of the oven. Visit www.sageappliances.com for more information.14 Care & Cleaning Before cleaning, ensure the oven is turned o by removing the power plug from the power outlet. Allow the oven and all accessories to cool completely before disassembling and cleaning. Cleaning the outer body and door

1. Wipe the outer body with a soft, damp sponge.

A non-abrasive liquid cleanser or mild spray solution may be used to avoid build-up of stains. Apply the cleanser to the sponge, not the oven surface, before cleaning.

2. To clean the glass door, use a glass cleaner or

mild detergent and a soft, damp sponge or soft plastic scouring pad. Do not use an abrasive cleanser or metal scouring pad as these will scratch the oven surface.

3. Wipe the LCD screen with a soft damp cloth.

Apply cleanser to the cloth and not the LCD surface. Cleaning with dry cloth or abrasive cleaners may scratch the surface.

4. Let all surfaces dry thoroughly prior to inserting

the power plug into a power outlet and turning the oven on. WARNING Do not immerse the body, power cord or power plug in water or any other liquid as this may cause electrocution. Cleaning the interior The walls on the inside of the oven feature a non-stick coating for easy cleaning. To clean any splattering that may occur while cooking, wipe the walls with a soft, damp sponge. A non-abrasive liquid cleanser or mild spray solution may be used to avoid build-up of stains. Apply the cleanser to the sponge, not the oven surface, before cleaning. Avoid touching the quartz heating elements. WARNING Use extreme caution when cleaning the quartz heating elements. Allow the oven to cool completely, then gently rub a soft, damp sponge or cloth along the length of the heating element. Do not use any type of cleanser or cleaning agent. Let all surfaces dry thoroughly prior to inserting the power plug into a power outlet and turning the oven on. Cleaning the crumb tray

1. After each use, slide out the crumb tray and

discard crumbs. Wipe the tray with a soft, damp sponge. A non-abrasive liquid cleanser may be used to avoid build-up of stains. Apply the cleanser to the sponge, not the tray, before cleaning. Dry thoroughly.

2. Always reinsert the crumb tray into the oven

with the oven door closed after cleaning and prior to inserting the power plug into a power outlet and turning the oven on.

3. Always reinsert the crumb tray into the oven

with the oven door closed after cleaning and prior to inserting the power plug into a power outlet and turning the oven on. Cleaning the wire rack, grilling rack, roasting pan and pizza pan

1. Wash all accessories in warm soapy water

with a soft sponge or soft plastic scouring pad. Rinse and dry thoroughly. Do not use abrasive cleansers, metal scouring pads or metal utensils to clean any of the accessories as they may damage the surfaces.

2. To extend the life of your accessories,

we do not recommend that these be placed in the dishwasher. Storage

1. Ensure the oven is turned o by removing the

power plug from the power outlet.

2. Allow the oven and all accessories to cool

completely before disassembling and cleaning.

3. Ensure the oven and all accessories are clean

4. Ensure the crumb tray is inserted into the oven;

the broiling rack is inserted into the roasting pan and resting on the wire rack in the middle rack height position.

5. Ensure the door is closed.

6. Store the appliance in an upright position

standing level on its support legs. Do not store anything on top. The only exception is the optional Sage Bamboo Cutting Board and Serving Tray.15

Oven will not switch "ON"

• Check that the power plug is securely inserted into the outlet.

• Insert the power plug into an independent outlet.

• Insert the power plug into a dierent outlet.

• Reset the circuit breaker if necessary. The LCD display light has gone out

• The oven goes into standby mode if not used for 10 minutes. When in standby mode, the LCD screen will cease to illuminate, however all function options will still be visible.

• To re-activate the oven out of standby mode, press the

Start/Cancel button on the control panel, or turn any dial. The LCD screen will re-illuminate. The pizza does not cook evenly

• Some large pizzas may brown unevenly in compact ovens. Open the oven door half way through the cooking time and turn the pizza 180 degrees for more even darkness. The Magnetic Auto-Rack Eject comes out too far when I open the door

• Always open the door slowly and in a controlled manner when the wire rack is inserted into the middle rack height position to prevent the wire rack from ejecting too quickly. I cannot select the Frozen button

• The Frozen button is only selectable for the following functions: TOAST, BAGEL, BAKE, PIZZA, AIR FRY. When selecting the Frozen button, this will automatically adjust the cooking time for an optimised food result. Steam is coming out from the oven door

• This is normal. The door is vented to release steam created from high moisture content foods such as frozen breads. Be mindful that the steam can be hot. The heating elements appear to be pulsing

accurately controls the heat inside the oven by pulsing the power and adjusting the power level in the heating elements in short bursts to give accurate temperature control. This is normal. Water is dripping onto counter from under door

• This is normal. The condensation created from high moisture content foods such as frozen breads will run down the inside of the door and can drip onto the counter. The temperature reading on the LCD screen doesn’t match the temperature measured inside the oven

• To ensure the measurements are standardized, the oven temperatures have been calibrated in the TOAST position (center of the middle rack with no tray in place). Re-check the temperature in this position, ensuring not to open the oven door for 30 minutes as heat will escape each time the door is opened. Note that the ‘preheat’ alert sounds at 75% of the target temperature. Troubleshooting16

POSSIBLE PROBLEM EASY SOLUTION

The ‘preheat’ alert sounds at a lower temperature than what is displayed on the LCD screen

• The ‘preheat’ alert sounds at 75% of the target temperature. This provides the fastest, combined preheating and cooking time.

• This is because when the ‘preheating’ alert sounds, signaling the user to open the oven door and insert food, there is dramatic temperature loss inside the oven. If the alert sounded at 100% of the target temperature, opening the door would mean a lot of this waiting time is “wasted”. We have calculated that by sounding the alert at 75% of the target temperature, followed by the oven door being opened to place food inside the oven, that we still recover to the target temperature up to 2 minutes faster. This is why the temperature on the LCD screen does not match the target temperature at the ‘preheat’ alert. Depending on the set temperature, it can take the oven approximately 8–10 minutes from start-up, including opening the oven door when the ‘preheat’ alert sounds, to reach the target temperature. The LCD screen displays ‘E01’

• The LCD screen will display ‘E01’ when there is a non-resettable issue with the appliance. Should this occur, immediately remove the power cord from the power outlet and call Sage Consumer Support. The LCD screen displays ‘E02’

• The LCD screen will display ‘E02’ when there is a non-resettable issue with the appliance. Should this occur, immediately remove the power cord from the power outlet and call Sage Consumer Support. The LCD screen displays ‘E03’

• The LCD screen will display ‘E03’ if the oven temperature is above the set maximum limit. Remove the plug from the power outlet, allow the oven to cool for 15 minutes, then plug back in.

• Call Sage Consumer Support if the ‘E03’ message continues. The LCD screen displays ‘E05’

• The LCD screen will display ‘E05’ when there is a non-resettable issue with the appliance. Should this occur, immediately remove the power cord from the power outlet and call Sage Consumer Support. Temperature are changing when convection button is pressed

• This is normal. The temperature is calibrated to compensate for the convection fan increasing cooking rates.17

Sage Appliances guarantees this product for domestic use in specied territories for 2 years from the date of purchase against defects caused by faulty workmanship and materials. During this guarantee period Sage Appliances will repair, replace, or refund any defective product (at the sole discretion of Sage Appliances). All legal warranty rights under applicable national legislation will be respected and will not be impaired by our guarantee. For full terms and conditions on the guarantee, as well as instructions on how to make a claim, please visit www.sageappliances.com.18 Notesthe Smart Oven

• Due to continued product improvement, the products illustrated or photographed in this document may vary slightly from the actual product.
