Brand	Bearware
Model	306870
Product type	Digital timer
Power supply	3 AAA batteries 1.5V (not included)
Setting range	0 to 99 minutes 55 seconds
Alarm volume	Mute, 60-75 dB, 80-90 dB (adjustable)
Operating temperature	0 °C to 50 °C
Display	Digital, minutes and seconds
Functions	Timer, stopwatch, alarm, last time memory
Sleep mode	Automatic after 5 seconds of inactivity
Alarm stop	Manual via Start/Stop button
Alarm duration	Approximately 60 seconds
Buttons	Start/Stop, rotary button +/-
Magnets	Yes (magnetic attachment)
Weight (estimated)	Approximately 120 g
Dimensions (estimated)	80 x 80 x 30 mm
Maintenance	Clean with a soft, dry cloth
Safety	Do not expose to water, do not open, keep out of reach of children
Package contents	Timer, quick start guide
Recycling	Compliant with WEEE, batteries to be recycled
Warranty	Legal warranty of conformity (2 years)

Frequently Asked Questions - 306870 Bearware

How to set the timer?

Turn the rotary button +/- on the outside of the device until the desired duration appears on the screen (from 0 to 99 minutes 55 seconds).

How to start and stop the timer?

Press the Start/Stop button briefly to start or stop the timer. To reset, hold the button until 00:00 is displayed.

How to adjust the alarm volume?

Use the volume switch on the device to choose between positions: mute, 60-75 dB or 80-90 dB.

What to do if the alarm does not sound?

Check that the volume is not set to mute. Make sure the batteries are in good condition and inserted with the correct polarity.

How to use the stopwatch?

Hold the Start/Stop button to reset the display to 00:00. Then press briefly to start counting. The device then counts up to 99 minutes 55 seconds.

How to reset the timer?

Hold the Start/Stop button until the screen shows 00:00. This resets the countdown.

What does the flashing screen mean?

When the countdown reaches 0, the screen starts flashing to indicate the end of time. The alarm sounds for approximately 60 seconds.

How to save batteries?

The device automatically enters sleep mode after 5 seconds of inactivity and the screen turns off after 10 seconds. Use quality alkaline batteries.

Can the device be mounted on the wall?

Yes, the timer is equipped with magnets on the back for magnetic attachment to a metal surface. It is not designed for permanent wall mounting.

What to do in case of battery leakage?

Remove the batteries immediately while wearing gloves. Clean the compartment with a dry cloth and avoid skin contact. Replace with new batteries.

USER MANUAL 306870 Bearware

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

M 2345 S ① ② ③

Diagram illustrating a device setup with labeled components including a monitor, screen, and control panel.

Thank you for purchasing a BEARWARE product. Please read the following quick guide carefully so that you can enjoy your purchased appliance for a long time.

1. Scope of delivery

• Alarm clock
• Quick guide

2. Technical data

Power supply 3x 1,5 V AAA Batterie
Adjustable time range	0 - 99:55
Volume control	Mute 60-75dB 80-90dB
Ambient temperature	0°C - 50°C

3. Additional information on this device

Before using the appliance, make sure that it is not damaged. If this is the case, do not use it. The device must not be exposed to moisture or direct sunlight. The product is not suitable for medical purposes or for public information and is intended for private use only.

Attention!

Keep the batteries and the appliance out of the reach of children. Batteries contain acids that are harmful to health. Weak batteries should be replaced as soon as possible to prevent leakage! Never use new and old batteries or batteries of different types at the same time. Never throw batteries into a fire and do not short-circuit them. Never charge the batteries and do not take them apart. There is a risk of explosion!

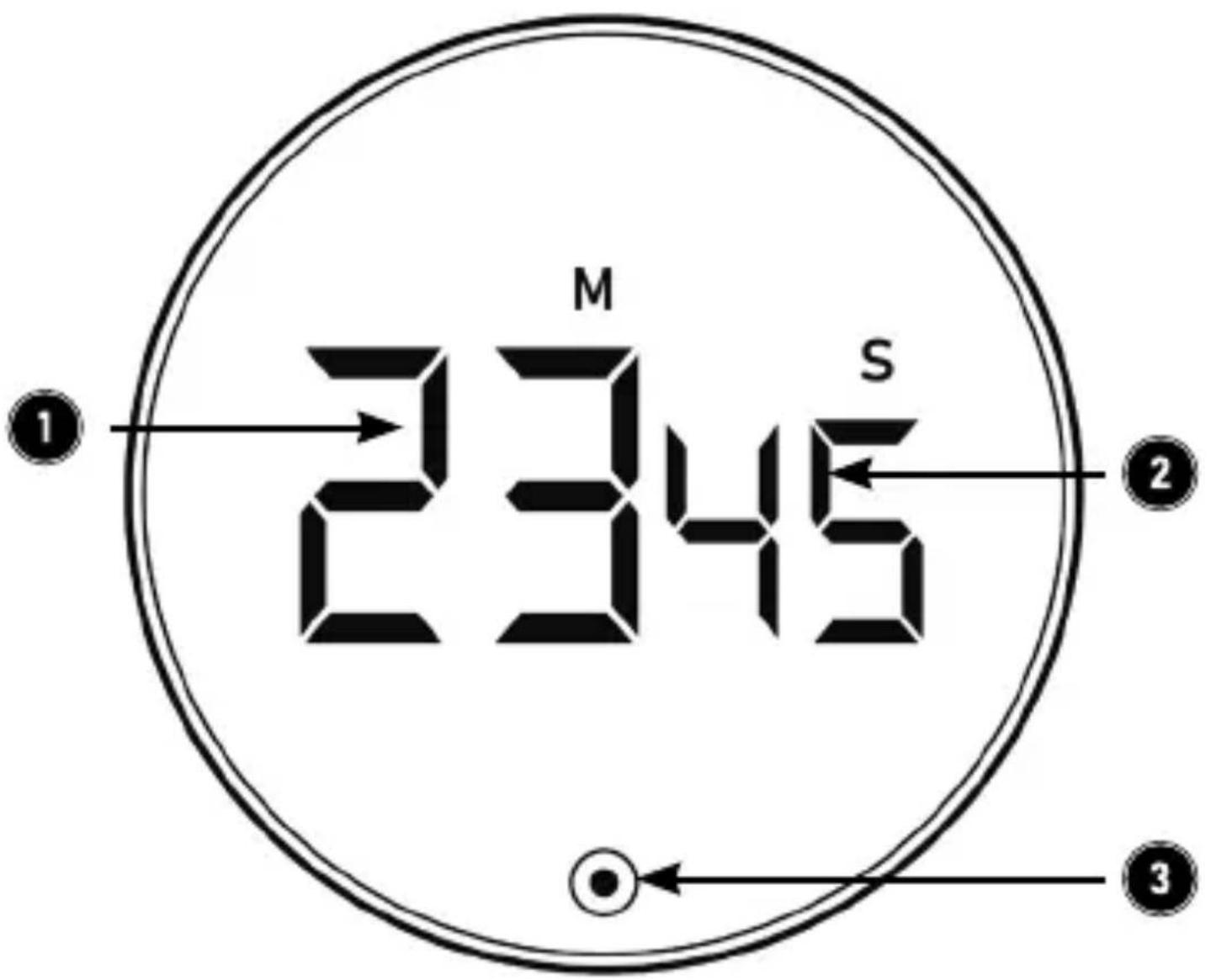

1. Product details


M 2345 S ① ② ③

Diagram illustrating a device setup with labeled components including a monitor, screen, and control panel.

16 English

1 Minute display
2 Seconds display
3 Start/stop button
4 "+/-" rotary button
5 Battery compartment
6 Magnets
7	Volume switchMute 60-75dB 80-90dB

5. Commissioning

Remove the product from the packaging and remove all packaging material. Open the battery compartment on the back of the device and insert 3x 1.5V AAA batteries. Ensure that the polarity of the contacts is correct.

6. Set timer

To set the timer, turn the „+/-“ rotary button on the outside of the appliance until the desired time is shown on the display.

7. Start/stop button

You can start or stop the timer by briefly pressing the „Start/Stop“ button. If you want to reset the timer, press and hold the „Start/Stop“ button until 00:00 appears on the display.

8. Alarm and alarm settings

When the timer has counted down to 0 minutes and 0 seconds, the appliance will emit an alarm tone and the display will start to flash. The alarm sounds for approx. 60 seconds. You can cancel the alarm tone manually using the „Start/Stop“ button.

You can set the volume of the alarm using the volume switch.

9. Call up last countdown time

After the last countdown has counted down to 00 minutes and 00 seconds, simply press the „Start/Stop“ button once to call up the last countdown time. Then press the „Start/Stop“ button again to start a new countdown. In operating mode, the device automatically switches to idle mode if it is not operated for 5 seconds. The brightness is automatically reduced.

10. Sleep mode

The device automatically switches to sleep mode if it is not operated for approx. 5 seconds. The brightness is automatically reduced. The display switches off after about 10 seconds of inactivity.

11. Using the device as a stopwatch

Press and hold the “Start/Stop” button to set the display to 0. When the display shows 00 minutes and 00 seconds, press the “Start/Stop” button briefly to start the stopwatch function. The appliance will now count up from 00:00 to a maximum of 99 minutes and 55 seconds.

12. Safety information and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, please only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic parts. Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions.

Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee. The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

13. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be

recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly. As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations.

By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment.

14. Notes on battery disposal

In connection with the sale of batteries or the delivery of devices containing batteries, the supplier is obliged to inform the customer of the following: The customer is legally obliged to return used batteries as the end user. The customer can return used batteries that the supplier carries or has carried as new batteries free of charge to the supplier's dispatch warehouse (dispatch address). The symbols shown on the batteries have the following meaning: Pb = battery contains more than 0.004 per cent lead by mass, Cd = battery contains more than 0.002 per cent cadmium by mass, Hg = battery contains more than 0.0005 per cent mercury by mass.

The crossed-out dustbin symbol means that the battery must not be disposed of with household waste.

WEEE Directive 2012/19/EU WEEE Register No.: DE 67896761

Hereby, WD Plus GmbH declares that the device 306860 / 306861 306870 is in compliance with the essential requirements and other relevant provisions. A complete declaration of conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany

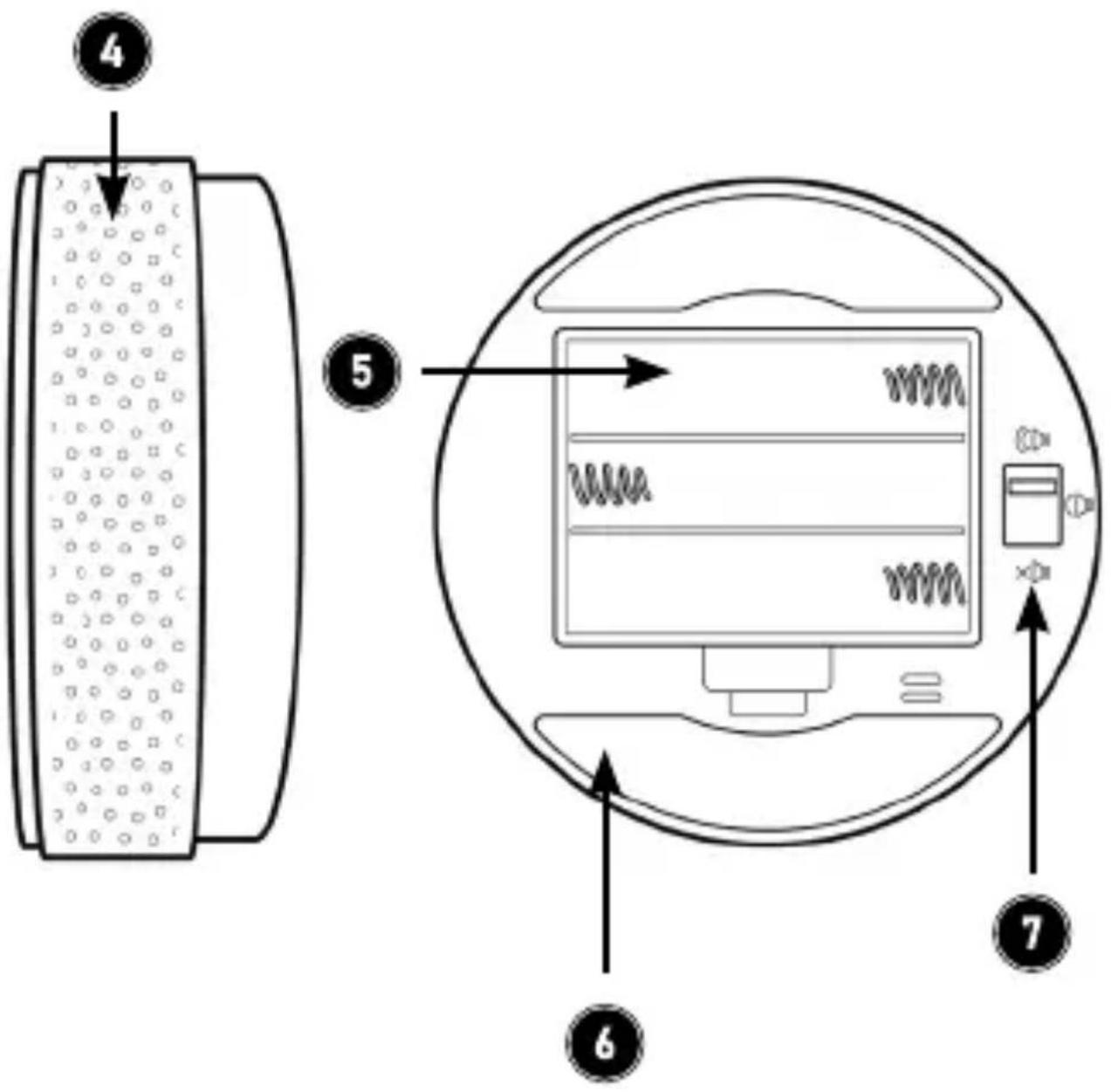

M 2345 S ① ② ③

Diagram illustrating a device setup with labeled components including a screen, a computer monitor, and numbered parts 4 through 7.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with two crossed lines (no text or symbols)

FR

M 2345 S ① ② ③

Diagram illustrating a device setup with labeled components including a screen, monitor, and control buttons.

M 2345 S ① ② ③

Diagram illustrating a device setup with labeled components including a monitor, screen, and control panel.

MO-FR 9:30am - 18pm CET

downloads.ganzeinfach.de

QR code image containing encoded data, no visible human-readable text

WD Plus GmbH
