USER MANUAL 306861 Bearware
1. Scope of delivery
- Alarm clock
- Quick guide
2. Technical data
| Power supply 3x 1,5 V AAA Batterie | |
| Adjustable time range | 0 - 99:55 |
| Volume control | Mute  60-75dB  80-90dB  |
| Ambient temperature | 0°C - 50°C |
3. Additional information on this device
Before using the appliance, make sure that it is not damaged. If this is the case, do not use it. The device must not be exposed to moisture or direct sunlight. The product is not suitable for medical purposes or for public information and is intended for private use only.
Attention!
Keep the batteries and the appliance out of the reach of children. Batteries contain acids that are harmful to health. Weak batteries should be replaced as soon as possible to prevent leakage! Never use new and old batteries or batteries of different types at the same time. Never throw batteries into a fire and do not short-circuit them. Never charge the batteries and do not take them apart. There is a risk of explosion!
- Product details


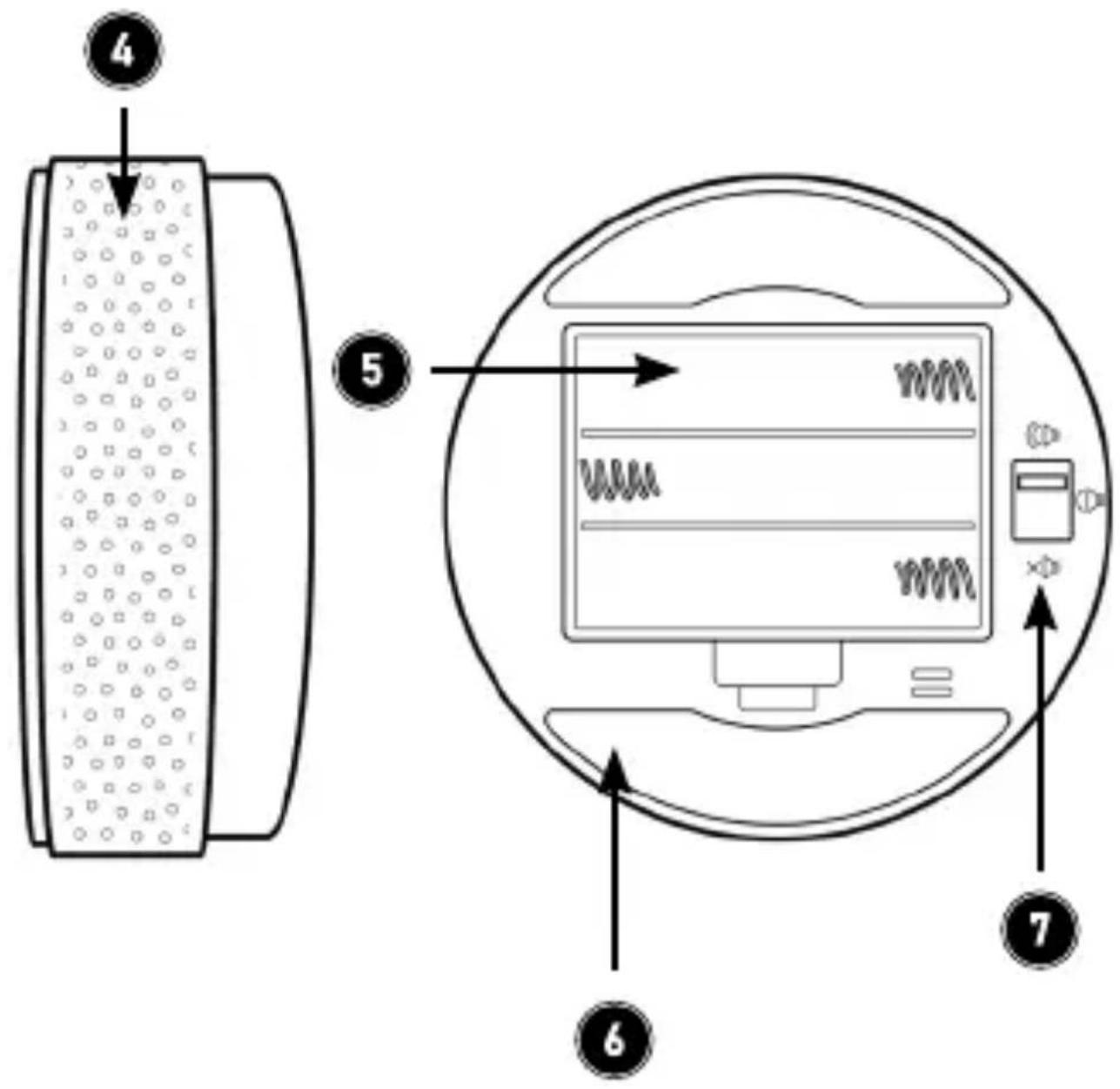

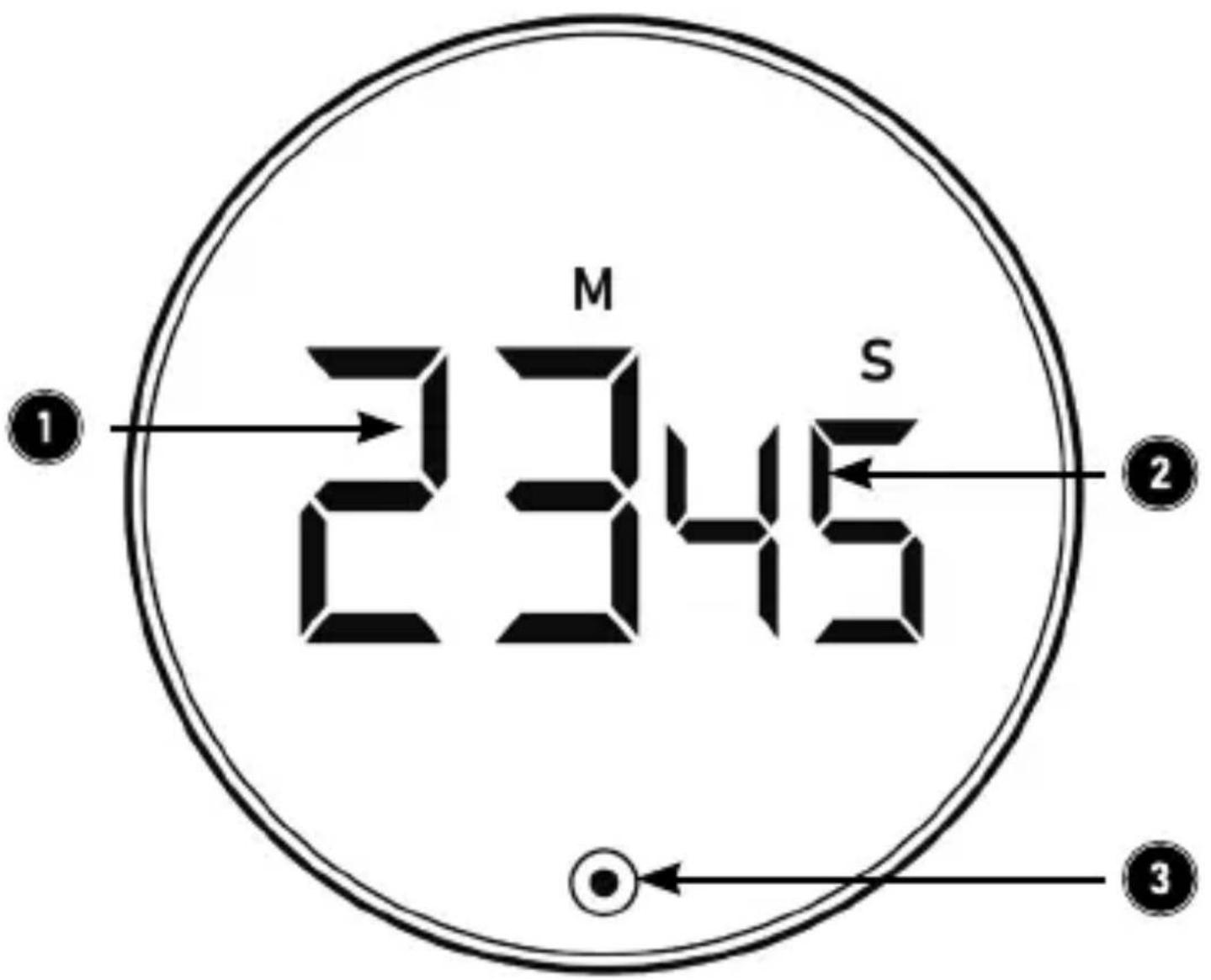

| 1 Minute display | |
| 2 Seconds display | |
| 3 Start/stop button | |
| 4 "+/-" rotary button | |
| 5 Battery compartment | |
| 6 Magnets | |
| 7 | Volume switchMute  60-75dB  80-90dB  |
5. Commissioning
Remove the product from the packaging and remove all packaging material. Open the battery compartment on the back of the device and insert 3x 1.5V AAA batteries. Ensure that the polarity of the contacts is correct.
6. Set timer
To set the timer, turn the „+/-“ rotary button on the outside of the appliance until the desired time is shown on the display.
7. Start/stop button
You can start or stop the timer by briefly pressing the „Start/Stop“ button. If you want to reset the timer, press and hold the „Start/Stop“ button until 00:00 appears on the display.
8. Alarm and alarm settings
When the timer has counted down to 0 minutes and 0 seconds, the appliance will emit an alarm tone and the display will start to flash. The alarm sounds for approx. 60 seconds. You can cancel the alarm tone manually using the „Start/Stop“ button.
You can set the volume of the alarm using the volume switch.
9. Call up last countdown time
After the last countdown has counted down to 00 minutes and 00 seconds, simply press the „Start/Stop“ button once to call up the last countdown time. Then press the „Start/Stop“ button again to start a new countdown. In operating mode, the device automatically switches to idle mode if it is not operated for 5 seconds. The brightness is automatically reduced.
10. Sleep mode
The device automatically switches to sleep mode if it is not operated for approx. 5 seconds. The brightness is automatically reduced. The display switches off after about 10 seconds of inactivity.
11. Using the device as a stopwatch
Press and hold the “Start/Stop” button to set the display to 0. When the display shows 00 minutes and 00 seconds, press the “Start/Stop” button briefly to start the stopwatch function. The appliance will now count up from 00:00 to a maximum of 99 minutes and 55 seconds.
12. Safety information and disclaimer
Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, please only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic parts. Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions.
Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee. The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.
13. Disposal instructions
According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be
recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly. As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations.
By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment.
14. Notes on battery disposal
In connection with the sale of batteries or the delivery of devices containing batteries, the supplier is obliged to inform the customer of the following: The customer is legally obliged to return used batteries as the end user. The customer can return used batteries that the supplier carries or has carried as new batteries free of charge to the supplier's dispatch warehouse (dispatch address). The symbols shown on the batteries have the following meaning: Pb = battery contains more than 0.004 per cent lead by mass, Cd = battery contains more than 0.002 per cent cadmium by mass, Hg = battery contains more than 0.0005 per cent mercury by mass.
The crossed-out dustbin symbol means that the battery must not be disposed of with household waste.
WEEE Directive 2012/19/EU WEEE Register No.: DE 67896761
Hereby, WD Plus GmbH declares that the device 306860 / 306861 306870 is in compliance with the essential requirements and other relevant provisions. A complete declaration of conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany
