303439 - Uncategorized Bearware - Free user manual and instructions

Product Type	Travel Adapter
Brand	Bearware
Model	303439
Input Voltage	100-250V AC, 50-60Hz
AC Output	10A max (1000W/100V or 2500W/250V)
USB Output	2x USB Type A, 5V/2.4A max each
Protection Class	IP20
Standby Consumption	0.12W
Connector Plugs Included	Euro, UK, USA, Australia/China
Fuse	Resettable with push button
LED Indicator	Lights during operation; flashes on overvoltage
Functions	Universal AC output, USB charging, overvoltage protection
Compatible Plug Types	A, B, E, F, G, I, C, J, L, N
Compatible Socket Types	B, D, E, F, G, H, I, K, O
Safety Features	Overload reset, not a voltage converter, temporary use only
Included Accessories	Travel adapter, user manual
Certification	CE, WEEE (DE 67896761)
Disposal	WEEE compliant, separate collection

Frequently Asked Questions - 303439 Bearware

How do I select the correct plug for my destination?

Slide the desired plug out from the adapter until it clicks. The adapter includes Euro, UK, USA, and Australia/China plugs. Ensure your device's voltage matches the local supply.

Can I charge multiple USB devices simultaneously?

Yes, the adapter has two USB Type A ports, each delivering up to 5V/2.4A. You can charge two devices at the same time.

What does it mean when the LED indicator flashes?

A flashing LED indicates an overvoltage condition. Disconnect the adapter and resolve the voltage incompatibility before reusing.

How do I reset the adapter after an overload?

Press the reset button on the side of the fuse; the adapter will resume normal operation.

Is this adapter a voltage converter?

No, it is not a voltage converter. It only adapts the plug shape. Ensure your device's input voltage matches the local mains voltage.

Can I use this adapter in all countries?

The adapter works in countries using socket types B, D, E, F, G, H, I, K, O. Check compatibility before travel. Some countries may use different systems.

What plugs are included with the adapter?

The package includes plugs for Euro, UK, USA, and Australia/China configurations.

How should I clean the travel adapter?

Wipe with a dry cloth. Do not use liquids or immerse in water. Keep away from moisture.

What is the standby power consumption?

The standby consumption is 0.12W, making it energy-efficient when not in use.

Is the adapter safe for outdoor use?

No, it is rated IP20, meaning it is not protected against water. Use only in dry indoor conditions.

USER MANUAL 303439 Bearware

Red stylized graphic of a bear and a pig (no text or symbols)

BEARWARE

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

4 Deutsch

5. Inbetriebnahme

Technical line drawing of a portable electrical switch device (no text or symbols)

Technical line drawing of a wall socket with internal components, showing assembly and mounting (no text or symbols)

Technical line drawing of a wall socket with internal components and an external housing, showing exploded view (no text or symbols)

6 Deutsch

Line drawing of a device connected to a smartphone via cable, showing battery and charging symbol (no text or labels)

Diagram showing a battery connected to a smartphone via a cable, with no text or symbols present.

Technical line drawing of a portable device with internal compartments and buttons (no text or symbols)

ACHTUNG!

Thank you for choosing a BEARWARE product. Please read the following user manual carefully to have an enjoyable experience with your purchased product. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• Word travel adapter
• User manual

2. Technical data

AC input voltage 100-250	V/AC 50-60 Hz
AC output voltage 10 A max.	(1000 W/100 V oder 2500 W/250 V)
USB output voltage 2x USB type A charging sockets (5 V / 2.4 A max.)
Protection class IP20
Standby consumption 0.12W
Connector plugs	EuroUKUSAAustralia/China

CAUTION!

Always ensure the terminal device is compatible with the standard voltage in the respective country!

To unlock the connector after use, press the release button on the side of the device. Push the slide back into the original position.

3. Functions

With the BEARWARE travel adapter you can connect your devices in different countries of the world. The device has a protective conductor for each port. It is also possible to charge your USB devices with the USB adapter.

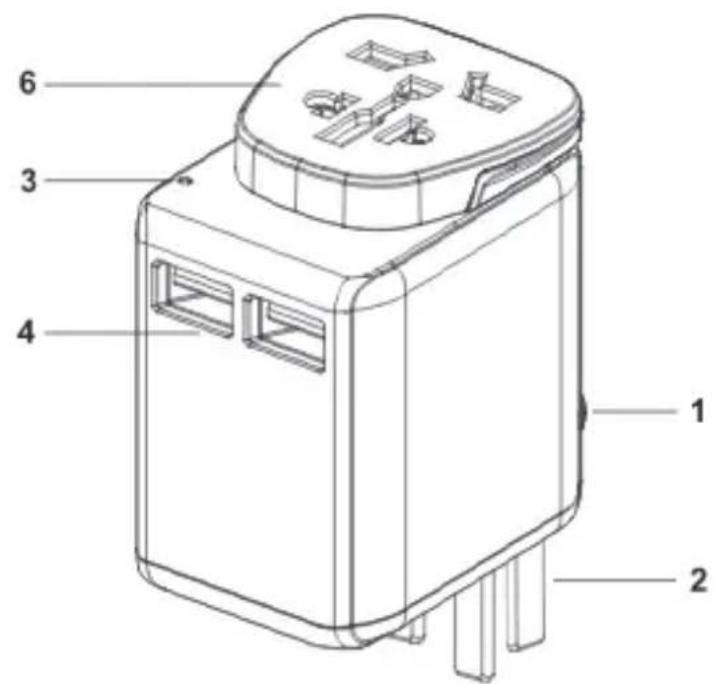

4. Product details

① Fuse resettable button
②UK/USA/Australia/China Plugs
③ LED indicator
④ USB Typa A Port
⑤ EU Plug
⑥ Universal AC output

5. Start-up

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Take the device out of the package and remove all the packaging material. Before use, push all side sliders fully back to their original position. Select the desired connector and slide out the corresponding slider until it clicks into position. Now connect the desired power plug or the desired charger to the travel adapter and then insert the travel adapter into the socket.

6. LED operation indicator

The LED indicator lights during standard operation. If the LED indicator flashes, there is a possibility of an overvoltage.

7. Selection of a suitable connector plug

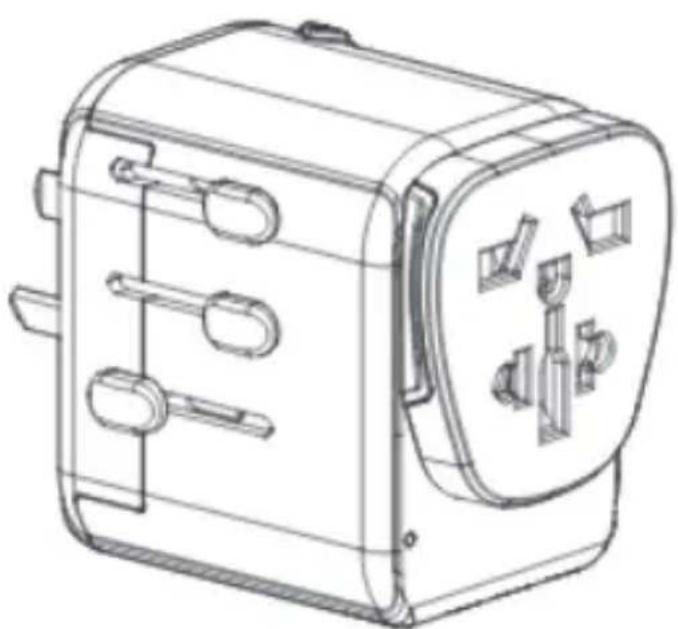

① Using UK/USA/Australia/CN connector plug type

For the desired plug, push the slider forward until it clicks into place. Then insert your desired plug into a wall outlet.

Technical line drawing of a portable electrical switch device (no text or symbols)

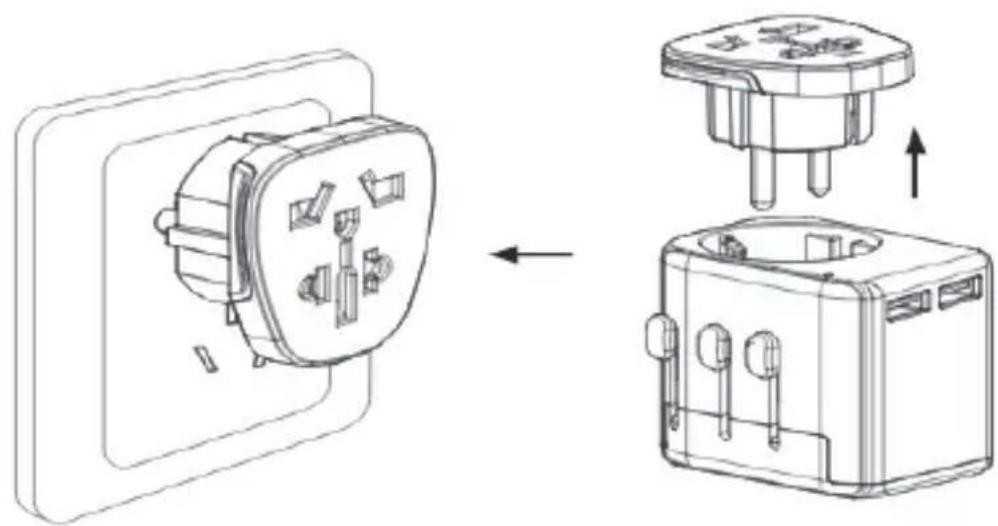

② Using EU Plug without resettable fuse

Technical line drawing of a wall socket with internal components, showing assembly and mounting (no text or symbols)

Pull out the EU plug and plug it into the socket. End devices that are connected can be operated without additional overvoltage protection.

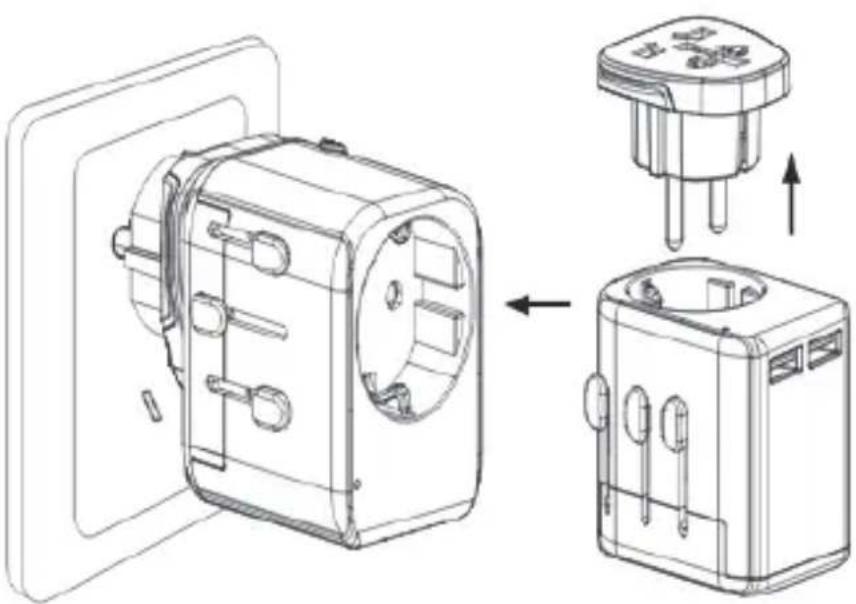

③ Using EU Plug with resettable fuse

Connect the EU plug as a combination in the USA/AUS/UK plug and connect it to a suitable socket.

Technical line drawing of a wall socket with internal components and an external housing, showing exploded view (no text or symbols)

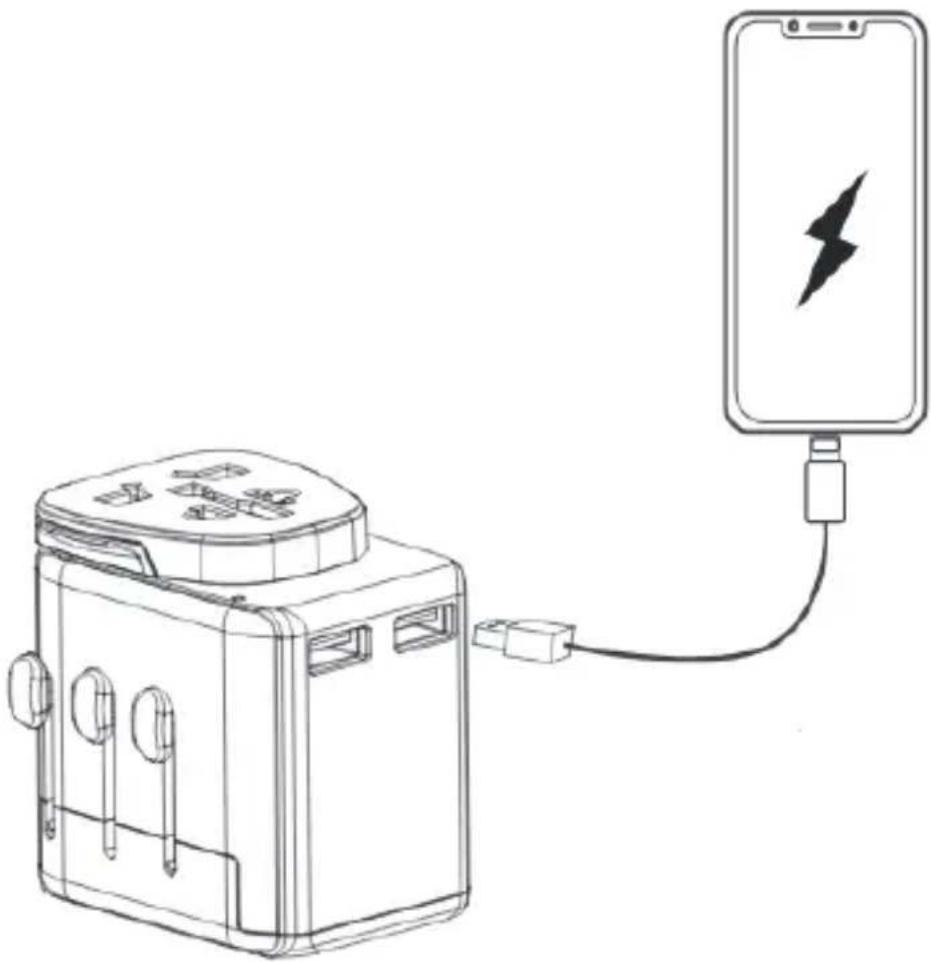

8. Using as USB charger

Line drawing of a mobile device connected to a smartphone via cable (no text or symbols)

Connect your devices by using the USB ports with a charging/sync cable. You can charge portable devices such as mp3 players, PDAs, GPS navigation systems, mobile phones, smartphones, tablet PCs and digital cameras. The two USB ports can be used to charge up to two devices simultaneously.

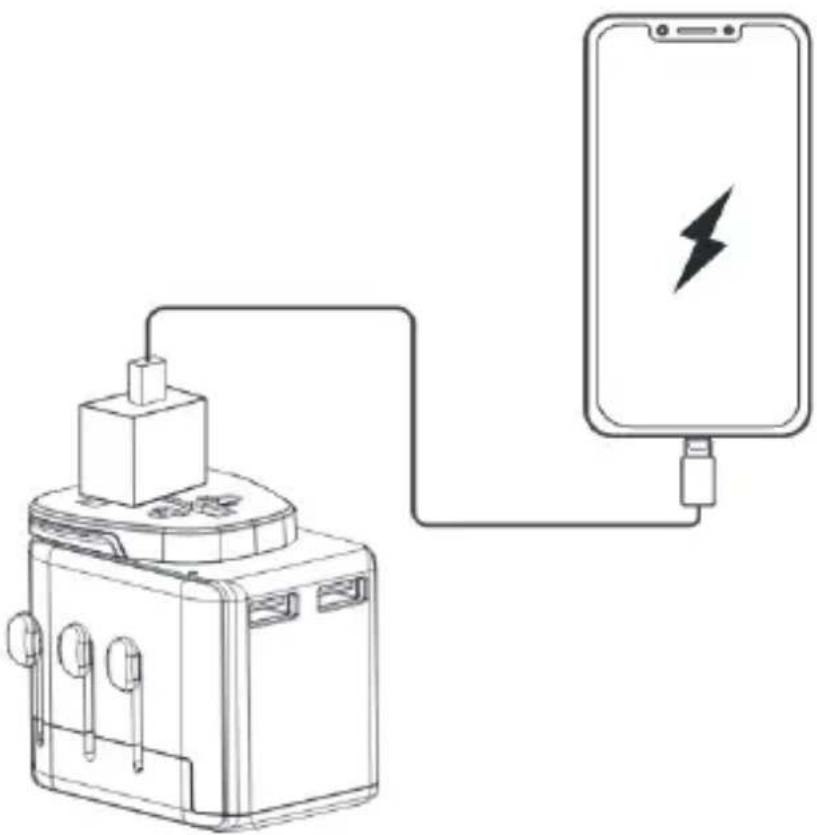

9. Usage as charger with Universal AC Output

Diagram showing a battery connected to a smartphone via a power cord (no text or symbols present)

Connect your devices via the Universal AC output and connect the UK, USA or AUS/CN plug with a suitable socket.

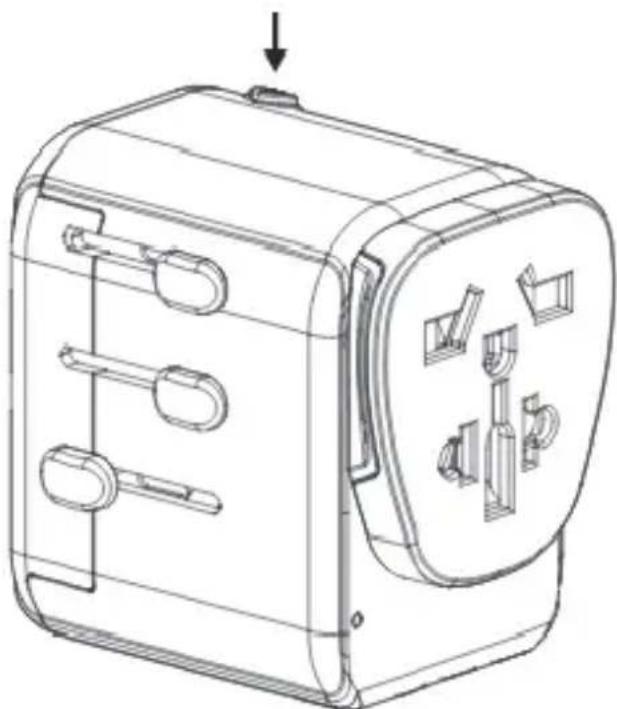

10. Resetting in case of overload

If an overload occurs, press the reset button (see illustration on next page) on the adapter fuse. Then the travel adapter can be used properly again.

Technical line drawing of a portable device with internal components and a downward arrow indicating compression (no text or symbols)

Caution!

11. Important safety and usage information

• Do not use the adapter if it has been damaged.
  • Always make sure that the mains voltage and the voltage of the end device are compatible.
• Use a voltage transformer if necessary. The travel adapter is not a voltage converter!
• The adapter is intended for temporary use and must be disconnected from the power supply after use.
• When planning your trip, please note that many countries use several connector systems, so that the region you are visiting may use a different system than expected.
• The input voltage of the device to be connected must match with the voltage of the local power supply.
• In addition, any modification or improper use of the product will void the warranty.
• Please keep this manual within easy reach of the device!

12. Compatibility of different connector types

12.1 The following connectors can be used on the adapter:

Type A

Type B

Type E

Type F

Type G

Type I

Type C

Type J

Type L

Type N

Please note that the connectors of the following types cannot be used on the adapter:

Type D

Type H

Type K

Type M

Type O

12.2 The adapter can be plugged into the following types of sockets:

Type B

Type D

Type E

Type F

Type G

Type H

Type I

Type K

Type O

Please note that the adapter is not compatible with the following socket types:

Attention!

13. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

14. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU
WEEE register number: DE 67896761

WD Plus GmbH hereby declares that the device 303439/20181024DG043 complies with the basic requirements and other relevant regulations. A complete declaration of conformity is enclosed: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany
