Product type	Cordless grass and hedge shear (lawn mower)
Brand	Toolcraft
Model	GBSL118
Operating voltage	18 V (Li-ion battery)
No-load speed	1300 rpm (hedge and grass heads)
Cutting length (hedge)	200 mm
Cutting width (hedge)	8 mm
Cutting length (grass)	100 mm
Dimensions (W x H x D)	260 x 113 x 80 mm
Weight (body only)	410 g
Weight (hedge head)	307 g
Weight (grass head)	194 g
Guaranteed sound power level	87 dB(A)
Vibration level (hedge head)	2.6 m/s²
Vibration level (grass head)	2.5 m/s²
Protection class	III
Operating temperature	5 to +40 °C
Storage temperature	-20 to +45 °C
Package contents	Shear, hedge cutting head with blade cover, grass cutting head with blade cover, instruction manual (battery and charger not included)
Maintenance	Cleaning with a damp cloth, lubrication of blades with anti-rust oil
Compatible batteries	AP-1200 (5.0 Ah), AP-1000 (2.0 Ah), AP-1100 (4.0 Ah)
Compatible chargers	ALG-1000 (2.3 A), ALG-1100 (5 A)

Frequently Asked Questions - GBSL118 Toolcraft

How to turn on the mower?

Slide the safety switch forward, then press the power trigger. Release the trigger to turn off.

How to change the cutting head?

First remove the battery. To remove the head, press both release tabs. To install, align the mounting point and push until it clicks.

Which battery to use?

Use 18 V Li-ion batteries from the Toolcraft series, models AP-1200 (5.0 Ah), AP-1000 (2.0 Ah), or AP-1100 (4.0 Ah). The battery is not included.

How to clean the blades?

Use a damp, lint-free cloth to remove dirt and residues. Do not use abrasive cleaners or alcohol. Lightly oil the blades after cleaning.

What to do if the mower does not start?

Check that the battery is charged and properly inserted (click). If the problem persists, refer to the troubleshooting section of the manual.

Can I use the mower in the rain?

No, the product is not waterproof. Avoid any contact with moisture. Use only in dry weather and store in a dry place.

How to store the device?

Clean and oil the blades, attach the blade covers, remove the battery. Store in a dry, frost-free place, out of reach of children.

What accessories are available?

Additional batteries and chargers are available (see spare parts). Visit the Conrad website with item number 2309665.

Is the mower loud?

The guaranteed sound power level is 87 dB(A). Wear appropriate hearing protection.

How to lubricate the blades?

Apply anti-rust oil or spray on both sides of the blades. Run the tool briefly to distribute the oil. Do not use grease.

USER MANUAL GBSL118 Toolcraft

Battery-powered grass/shrub shears

Item No. 2309665 Page 17 - 31

F Mode d'emploi

www.conrad.com/downloads

1. Introduction 18
2. Explanation of symbols 18
3. Intended use 19
4. Delivery content 19
5. Up-to-date operating instructions 19
6. Safety instructions 20

a) General information 21
b) Work area 21
c) Battery and Charger 21
d) Product 22
e) Residual risks 23
f) Kickback: Causes and prevention 23
g) Personal 23

1. Operating elements 24
2. Setting up 25

a) Insert/remove battery pack 25
b) Attaching/remove cutting heads 25

9.Before operation 26
10. Operation 26

a) Power on/off 26
b) Tips on use 27

1. Troubleshooting 27
2. Spare items (batteries/chargers) 28
3. Cleaning, maintenance, and storage 28

a) Cleaning 28
b) Maintenance, and storage 28

14.Declaration of Conformity (DOC) 29
15. Disposal 29

a) Product 29
b) (Rechargeable) batteries 29

1. Technical data 30

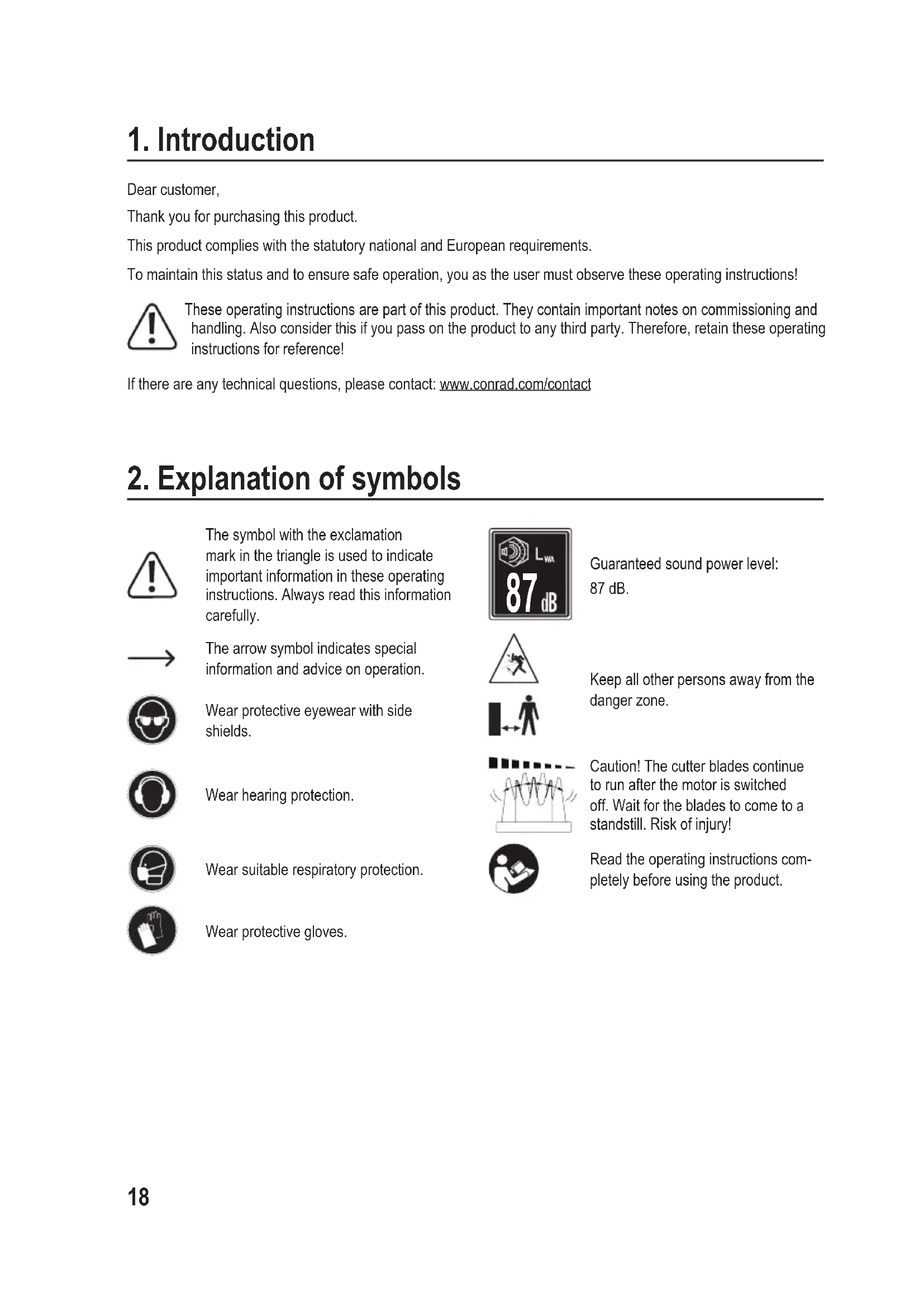

1. Introduction

Dear customer,

Thank you for purchasing this product.

This product complies with the statutory national and European requirements.

To maintain this status and to ensure safe operation, you as the user must observe these operating instructions!

These operating instructions are part of this product. They contain important notes on commissioning and handling. Also consider this if you pass on the product to any third party. Therefore, retain these operating instructions for reference!

If there are any technical questions, please contact: www.conrad.com/contact

2. Explanation of symbols

The symbol with the exclamation mark in the triangle is used to indicate important information in these operating instructions. Always read this information carefully.

The arrow symbol indicates special information and advice on operation.

Wear protective eyewear with side shields.

Wear hearing protection.

Wear suitable respiratory protection.

Wear protective gloves.

Guaranteed sound power level: 87 dB.

Keep all other persons away from the danger zone.

Caution! The cutter blades continue to run after the motor is switched off. Wait for the blades to come to a standstill. Risk of injury!

Read the operating instructions completely before using the product.

3. Intended use

The product is designed for cutting the edges of hedges and small areas of grass in private and hobby gardens. Tools for private and hobby gardens are not suitable for use in public facilities, parks, sport centers, along roadways, on farms, or in the forestry sector. This product is not designed for commercial use.

Contact with moisture must be avoided under all circumstances.

For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product for purposes other than those described above, the product may be damaged. In addition, improper use can result in short circuits, fires, electric shocks or other hazards. Read the instructions carefully and store them in a safe place. Make this product available to third parties only together with its operating instructions.

All company names and product names are trademarks of their respective owners. All rights reserved.

4. Delivery content

Shears
Hedge cutting head with blade cover
- Grass cutting head with blade cover
- Operating instructions

Rechargeable battery and charger

• This product is not supplied with battery and charger.
  See section "12. Spare items (batteries/chargers)" on page 28.

5. Up-to-date operating instructions

Download the latest operating instructions at www.conrad.com/downloads or scan the QR code shown. Follow the instructions on the website.

6. Safety instructions

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

• The appliance is not to be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision and instruction.
  Children should be supervised not to play with the appliance.
• Never operate the product when children and especially pets are nearby.
• When using the product, do not overreach, maintain good balance at all times, always be sure footed when working on slopes or uneven ground.
• Do not run with the product, in hand.

• Do not touch the cutting blades unless:

• the power is switched off,

• the battery is disconnected,

• all moving parts have come to a complete stop.

• Danger to people and property. Do not use the tool to chop material for composting.

a) General information

• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become dangerous playing material for children.
• Protect the appliance from extreme temperatures, strong jolts, high humidity, moisture, flammable gases, steam and solvents.
• Do not place the product under any mechanical stress.

• If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use. Safe operation can no longer be guaranteed if the product:

• is visibly damaged,

• is no longer working properly,
• has been stored for extended periods in poor ambient conditions or

• has been subjected to any serious transport-related stresses.

• Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage the product.

• Consult an expert when in doubt about the operation, safety or connection of the appliance.
• Maintenance, modifications and repairs must only be completed by a technician or an authorised repair centre.
• If you have questions which remain unanswered by these operating instructions, contact our technical support service or other technical personnel.

b) Work area

• Make sure that the working area is well lit. Poor lighting can cause accidents.
• Keep children and other people away from the working area! Distractions can cause accidents.
• Ensure that your working area is well ventilated.
• Never use the product next to or near flammable liquids or gases, air/gas mixtures (petrol vapours) or flammable solids/dust. Sparks can develop when the product is used, risk of fire or explosion!
• Keep other people away from the working area! If there are people nearby, they must also wear personal protective equipment. Fragments or broken parts can shoot off and cause damage and injury even outside the direct working area.

c) Battery and Charger

• Refer to the battery and battery charger operating instructions for further information.

d) Product

• Using the product for purposes it was not intended for can results in hazards and injuries.
• Use only accessories designed specifically for this tool. Accessories that fit but are not approved or recommended by the manufacturer can cause hazards.
• Do not use damaged cutting heads. Before use, inspect the product for damage such as chipping, cracks, excessive wear and loose parts. If the tool is dropped, the blades must also be checked. Allow the appliance to idle for about 30 seconds. Do not stand or allow other people to stand nearby.
• After switching the product off, wait for the blades to come to a complete stop before putting it down. The blades could have contact with a surface and move in an uncontrolled manner.
• Switch the power off when carrying. It can have contact with clothing and cause injury.
• WARNING: Keep hands far from the working area and the blades. Keep the second hand on the auxiliary hand grip, or on the motor case. If both hands are holding the tool, they cannot be cut by the blades.
• Before attaching or removing cutting heads, the battery must be removed from the appliance. Maintenance must be performed safely to prevent accidents caused by an unexpected start.
• Do not overload the tool. Only use tools for their intended purpose. A suitable tool does the job better and, more importantly, more safely.
• Check the on/off switch before each use. Using the tool with a damaged on/off switch hinders control of the tool and is therefore very dangerous.
• Prevent unintentional switching on of the tool. Do not carry the tool with your finger on the on/off switch.
• Always remove the battery before adjusting or storing the appliance or changing attachments/accessories. This prevents you from turning the appliance on by accident.
• Service the tool regularly and check for signs of damage, dirt, incorrect settings, wear and tear or other issues that may present a hazard. Have damaged appliances repaired by a specialist before use. Poorly maintained tools often lead to accidents.
• Never attempt to switch off safety mechanisms.
• Switch the product off immediately if there is a blockage.
• Keep the handles and surfaces of the tool dry, clean and free of oil or lubricants. Slipping during operation leads to a loss of control and accidents.
• It is prohibited to remove or bridge any of the switching elements installed on the tool by the manufacturer (e.g. by securing a button to the handle) as this would prevent the tool from switching off automatically and result in high risk of injury.
• Never use the product with a telescopic/long handle fitted.

e) Residual risks

• This appliance complies with technical regulations and relevant safety regulations. However, the following may still occur during use:

• Danger to the life and limbs of the user or other people.

• Damage to the appliance.
• Damage to other material assets.

f) Kickback: Causes and prevention

Kickback is an unexpected reaction which causes an uncontrolled movement of the tool. This can also cause blade teeth to break or shoot off. Kickback is a consequence of improper use of the tool. It can be prevented by taking the following precautions:

• Keep a firm hold on the tool with both hands and position arms to withstand the kickback force.
• Never bring your hands near the blades. The blades can move onto you during kickback and cause serious injury.
• If the blades seize up or you stop working, switch the power off and remove the battery. Never pull moving teeth out of a cut, otherwise kickback is very likely. Identify and resolve the cause of the seized-up teeth.
• Do not switch on the tool while the blades are in the cutting area. Wait until the blades have reached full speed and then slowly and carefully move it towards the workpiece.

g) Personal

• Do not use the tool when you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness can cause serious injuries.
• Always use the tool carefully. Avoid the familiarisation effect if you have already worked with the tool a lot. Always observe the safety instructions and always stay alert. A moment of carelessness can result in serious accidents.
• Use personal protective equipment. Always wear protective goggles, sturdy shoes, long trousers, ear defenders, breathing protection and if necessary, gloves. Never work barefoot or with sandals.
• Wear appropriate clothing. Do not wear jewelry. Hair, jewelry or clothing can be caught in moving parts, risk of injury! Therefore, use a hair net or similar if you have long hair and wear close-fitting clothes when using the product.
• Make sure you are stood firmly on the ground while working and avoid an abnormal posture. This makes it much easier to control the tool in unforeseen circumstances.

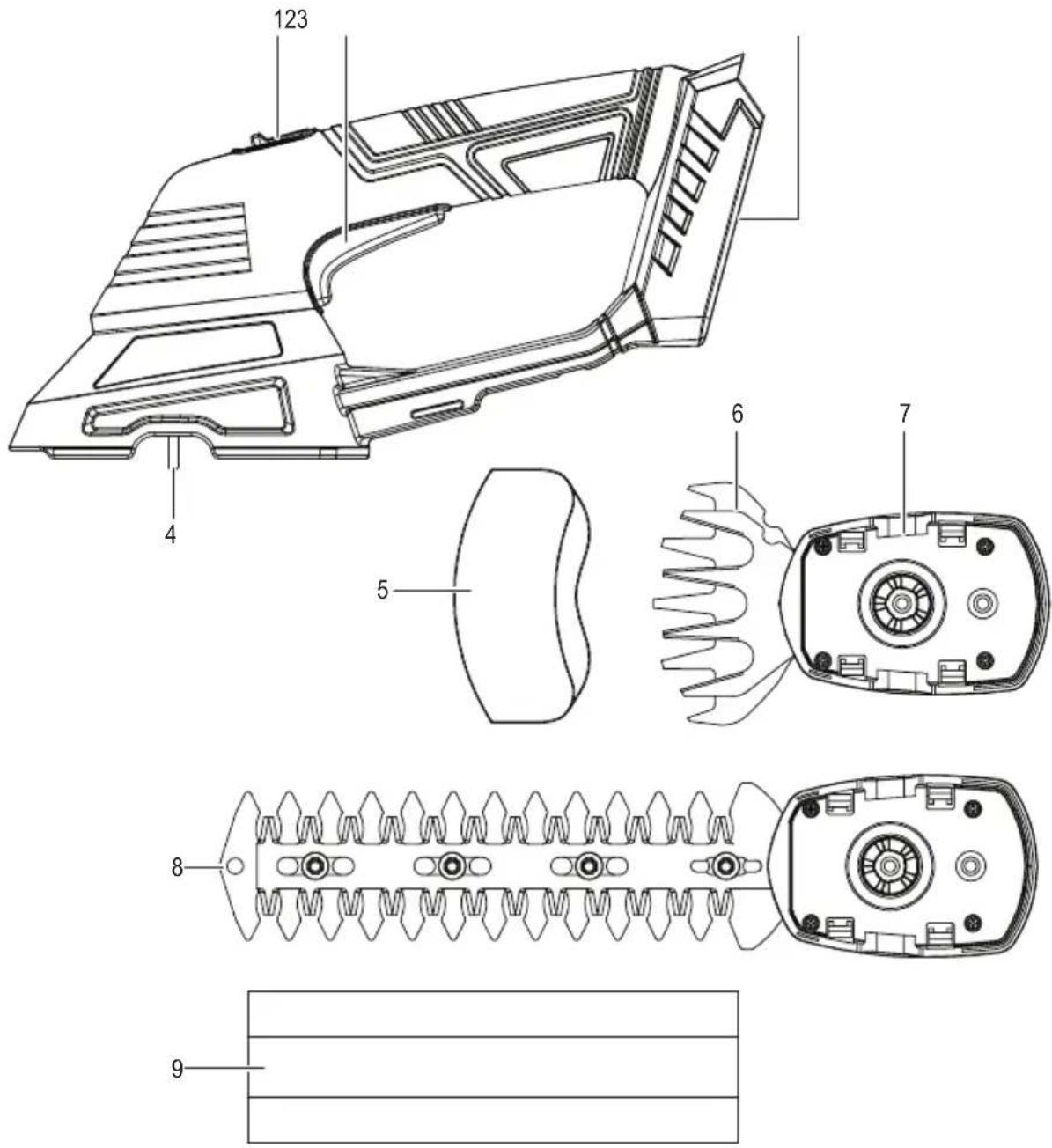

7. Operating elements

1 Safety switch
2 Power trigger
3 Battery slot
4 Attachment point
5 Grass blade cover

6 Grass cutting head
7 Release tab
8 Hedge cutting head
9 Hedge blade cover

8. Setting up

Warning

• Always leave the blade covers on until you are ready to begin cutting. This protects the user from injury and the blades from getting damaged.

a) Insert/remove battery pack

• To insert a battery pack, align the tab on the battery with the slot on the tool.
• Hold the tool and battery pack firmly without touching the power switch.
• Slide the battery all the way in until it locks into place with a "click". Make sure it is securely fixed in place before letting go.
• Press the battery release button to release the battery pack.

b) Attaching/remove cutting heads

Always remove the battery before attaching or removing cutting heads. Accidentally starting the product can cause serious injuries!

Attaching

Align the attachment point on the product with the cutting head as shown. The parts should "click" into place.

Removing

Press both release tabs before removing.

9. Before operation

1. Perform an equipment check.

2. Look for worn parts, chipped or bent teeth/blades.

3. Make sure dirt or debris is not blocking moving parts

4. Check the area to be cut.

5. Clear away any stones or solid objects.

6. Make sure there are no power cables, water hoses, pipes, gas lines etc. that can cause damage or injury if cut.

10. Operation

Important

Always switch the power off and remove the battery when finished using. Only then is it safe to check the blades for damage, replace cutting heads, put away for storage, or replace the blade covers.
- Always attach the blade covers after use.
- Wear protective gloves during use. Blades are sharp and can cause serious injuries!
- If you notice strong vibrations, sparks or unstable operation during use, immediately switch the power off then disconnect the battery. Check if anything is lodged between the teeth and if there is any damage to the blade e.g. chipped, bent or broken blade teeth.
- Read the safety instructions before use!

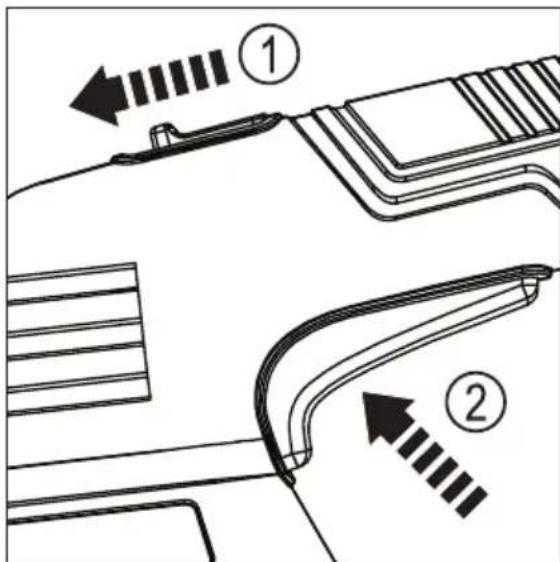

a) Power on/off

The safety lock-off prevents the tool being started unintentionally.

1. Slide the safety switch forward then pull the power trigger.
2. Release the trigger to switch the power off.

b) Tips on use

Cutting grass

• Allow the grass cutter to glide above the ground.
• For best results, the grass should be dry.

Trimming hedges

The tool can be used to trim small hedges.

• Hold the tool slightly tilted in relation to the hedge you want to cut.
• Start by cutting the sides from the bottom up, then cut across the top.
• For best results, the hedge should be dry.
• Let the cutting head do the work, do not force it.

11. Troubleshooting

Always switch the product off and remove the battery when troubleshooting. Accidentally starting the product can cause serious injuries!

Problem Possible causes	Possible solutions
The product does not switch on	The battery has depleted Recharge the battery
	The battery is not inserted correctly Check the battery is inserted properly
Slow running, noisy, or hot blades	Dry, corroded blades Lubricate blades
	There is a blockage or wet grass jammed between the teeth.	Remove the blockage
	Low battery Recharge the battery
	Blades or blade support bent Stop using the product.
	Loose blade bolts Tighten blade bolts

12. Spare items (batteries/chargers)

Item No.	Model no.	Description
2331500 AP	1200 Recharge	able battery: Li-ion 20 V, 5.0 Ah
1881809 AP	1000 Recharge	able battery: Li-ion 20 V 2.0 Ah
1881810 AP	1100 Recharge	able battery: Li-ion 20 V 4.0 Ah
1881811 ALG-1000 Charger	20 V 2.3 A
1881812 ALG-1100 Charger	20 V 5 A

Visit the Conrad website and search for Item No 2309665 for information about any optional accessories, spares, or replacement parts.

13. Cleaning, maintenance, and storage

Warning

• Always switch the product off and remove the battery before cleaning and maintenance. Accidentally starting the product can cause serious injuries!
• Blade teeth are sharp, risk of injury! Use caution when handling. Wear protective gloves to avoid injuring yourself on the sharp edges.

a) Cleaning

• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can cause damage to the housing and malfunctioning.
• Do not allow water or moisture to get inside the product. Never clean the product under running water!
• Always clean the product after each use to prevent any dirt from settling.
• Keep dust and dirt off the safety mechanism, and the housing.
• Use a damp fiber free cloth to wipe off dirt, moisture, and residue (e.g. leaves and twigs) caught between the blade teeth.

b) Maintenance, and storage

• To achieve good results, always keep blades sharp. It is recommended to level off any jags or ridges caused by hard objects such as stones.
• Apply anti-rust oil or spray to both sides of the blades and run the hedge trimmer briefly to distribute the oil along moving surfaces. Never apply grease to the blades!
• Use a solvent especially designed for cleaning blades and removing resin.
• Make sure the blades are clean and oiled before storage. Store the product in a dry and frost proof location where children are unable to enter.

14. Declaration of Conformity (DOC)

Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product conforms to the following directives.

2006/42/EC

2014/30/EU

2011/65/EU (EU)2015/863

It was manufactured in accordance with the following standards:

EN 55014-1:2017

EN 55014-2:2015

EN 60335-1:2012/A2:2019; EN 50636-2-94:2014

EN 62233:2008; EN 62841-1:2015; EN 62841-4-2:2019

AfPS GS 2019:01 PAK;EK9-BE-91(v4):2020;EK9-BE-98:2020

EN 60335-1:2012/A2:2019; 50636-2-94:2014

• Click on the following link to read the full text of the EU declaration of conformity:

www.conrad.com/downloads

Enter the product item number in the search box. You can then download the EU declaration of conformity in the available languages.

15. Disposal

a) Product

Electronic devices are recyclable waste and must not be disposed of in the household waste. At the end of its service life, dispose of the product in accordance with applicable regulatory guidelines.

ove any inserted (rechargeable) batteries and dispose of them separately from the product.

b) (Rechargeable) batteries

You as the end user are required by law (Battery Ordinance) to return all used (rechargeable) batteries. Disposing of them in the household waste is prohibited.

Contaminated (rechargeable) batteries are labeled with this symbol to indicate that disposal in the domestic waste is forbidden. The designations for the heavy metals involved are: Cd = Cadmium, Hg = Mercury, Pb = Lead (name on (rechargeable) batteries, e.g. below the trash icon on the left).

Used (rechargeable) batteries can be returned to collection points in your municipality, our stores or wherever (rechargeable) batteries are sold.

You thus fulfill your statutory obligations and contribute to the protection of the environment.

16. Technical data

Body

Operating voltage 18 V Li-ion battery

Protection class. 111

Operating conditions. 5 to +40^

Storage conditions. -20 to +45^

Dimensions (W× H× D) 260x113x80mm

Weight 410g

Hedge cutting head

Cutting length 200 mm

Cutting width. 8 mm

No load speed n_0 1300 rpm

Sound pressure level L_PA 63.2 dB (A)

Sound power level L_WA . 83.2 dB (A)

Emission sound pressure level. 73 dB (A)

Standard deviation K. 3 dB (A)

Vibration level a_hV 2.6 m/s²

Uncertainty K. 1.5 m/s²

Dimensions (L x W) 223 x 65 mm

Weight 307g

Grass cutting head

Cutting width. 100 mm

No load speed n_0 1300 rpm

Sound pressure level L_PA 64 dB (A)

Sound power level L_NA . 84 dB (A)

Emission sound pressure level. 74 dB (A)

Standard deviation K. 3 dB (A)

Vibration level a_nV .. ≤ 2.5m / s^2

Uncertainty K. .<1.5 m/s²

Dimensions (L x W) 105 x 55 mm

Weight 194g

The noise level of the appliance may exceed 87 dB(A). Wear suitable ear defenders to prevent hearing damage.

• The vibration emission value stated in this manual was obtained using a standardized EN 60335-1 test procedure. The result can be used to compare vibration levels of different electrical tools. It can also be used to obtain a preliminary estimate of your exposure to vibrations.
• The specified value indicates the vibration level when the tool is used for its intended purpose. The actual vibration level may differ from the specified value if the tool is used for other purposes, if other tools are used, or if the tool has not been serviced properly. These factors can considerably increase your exposure.
• For an accurate estimate of your exposure, you must also account for the times when the appliance is switched off or switched on but not actually in use. These factors can considerably reduce your exposure.
  Take additional safety measures to protect the user against the effects of vibration, e.g.: Maintenance of electric tool and insertion tools, keeping your hands warm, organisation of work processes.

Table des matieres

Page

Chere cliente, cher client,

France (email): [e-mail]

www.conrad.com/downloads

www.conrad.com/downloads

Copyright 2021 by Conrad Electronic SE.

This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).

All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.

This publication represents the technical status at the time of printing.

Copyright 2021 by Conrad Electronic SE.

Copyright 2021 by Conrad Electronic SE.

Copyright 2021 by Conrad Electronic SE.
