USER MANUAL BP510S Shindaiwa

For safe use of your product....3

Description 8

Before you start 9

Packing list 9

Assembly 9

Preparing the fuel 12

Engine operation....13

Starting the engine 13

Stopping the engine....14

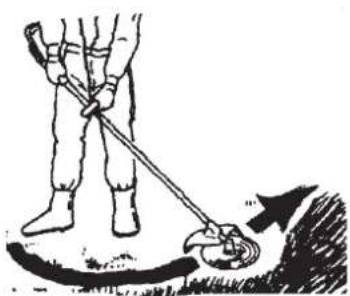

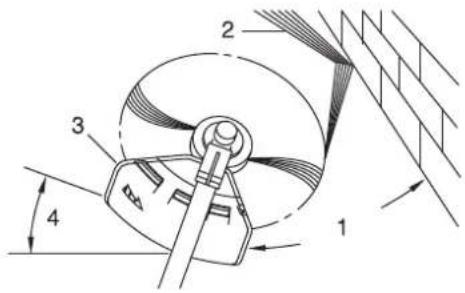

Trimming operation....15

Basic trimming operation with nylon line cutting head 16

Basic trimming operation with metal blade 18

Maintenance and care 20

Servicing guidelines....20

Maintenance and care 20

Storage 28

Specifications....29

Declaration of conformity....30

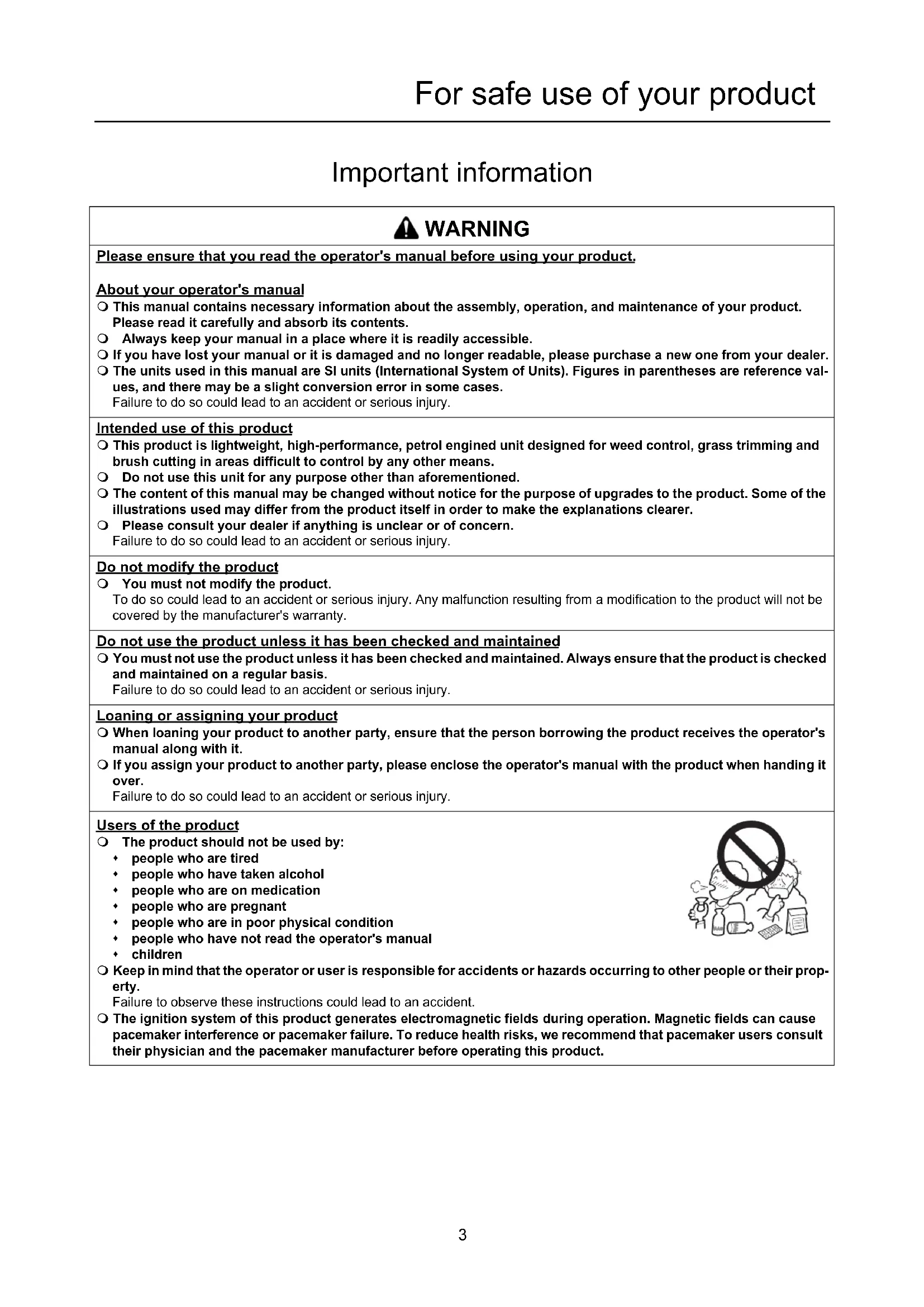

Important information

WARNING

Please ensure that you read the operator's manual before using your product.

About your operator's manual

This manual contains necessary information about the assembly, operation, and maintenance of your product. Please read it carefully and absorb its contents.
○ Always keep your manual in a place where it is readily accessible.
○ If you have lost your manual or it is damaged and no longer readable, please purchase a new one from your dealer.
The units used in this manual are SI units (International System of Units). Figures in parentheses are reference values, and there may be a slight conversion error in some cases. Failure to do so could lead to an accident or serious injury.

Intended use of this product

This product is lightweight, high-performance, petrol engined unit designed for weed control, grass trimming and brush cutting in areas difficult to control by any other means.
○ Do not use this unit for any purpose other than aforementioned.
The content of this manual may be changed without notice for the purpose of upgrades to the product. Some of the illustrations used may differ from the product itself in order to make the explanations clearer.
Please consult your dealer if anything is unclear or of concern.
Failure to do so could lead to an accident or serious injury.

Do not modify the product

○ You must not modify the product.

To do so could lead to an accident or serious injury. Any malfunction resulting from a modification to the product will not be covered by the manufacturer's warranty.

Do not use the product unless it has been checked and maintained

☐ You must not use the product unless it has been checked and maintained. Always ensure that the product is checked and maintained on a regular basis.
Failure to do so could lead to an accident or serious injury.

Loaning or assigning your product

When loaning your product to another party, ensure that the person borrowing the product receives the operator's manual along with it.
○ If you assign your product to another party, please enclose the operator's manual with the product when handing it over.
Failure to do so could lead to an accident or serious injury.

Users of the product

○ The product should not be used by:

• people who are tired
• people who have taken alcohol
• people who are on medication
• people who are pregnant
• people who are in poor physical condition
• people who have not read the operator's manual
children

Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

Failure to observe these instructions could lead to an accident.

The ignition system of this product generates electromagnetic fields during operation. Magnetic fields can cause pacemaker interference or pacemaker failure. To reduce health risks, we recommend that pacemaker users consult their physician and the pacemaker manufacturer before operating this product.

Illustration showing a prohibition symbol over food waste, with people and items like bottles, documents, and a bottle nearby.

WARNING

Vibration and cold

It is believed that a condition called Raynaud's Phenomenon which affects the fingers of certain individuals may be brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning, followed by loss of colour and numbness in the fingers. The following precautions are strongly recommended because the minimum exposure which might trigger the ailment is unknown.

• Keep your body warm, especially the head and neck, feet and ankles, and hands and wrists.
• Maintain good blood circulation by performing vigorous arm exercises during frequent work breaks, and also by not smoking.
• Limit the number of hours of operation. Try to fill each day with jobs where operating the trimmer or other handheld power equipment is not required.
  If you experience discomfort redness and swelling of the fingers, followed by whitening and loss of feeling, consult your physician before exposing yourself further to cold and vibration.

Failure to observe these instructions could result in damage to your health.

Repetitive stress injuries

It is believed that over-using the muscles and tendons of the fingers, hands, arms and shoulders may cause soreness, swelling, numbness, weakness and extreme pain to the areas just mentioned. Certain repetitive hand activities may put you at a high risk for developing a repetitive stress injury (RSI). To reduce the risk of RSI, do the following:

• Avoid using your wrist in a bent, extended or twisted position.
  Take periodic breaks to minimize repetition and rest your hands. Reduce the speed and force in which you do the repetitive movement.
  Do exercises to strengthen hand and arm muscles.
• See a doctor if you feel tingling, numbness or pain in your fingers, hands, wrists or arms. The sooner RSI is diagnosed, the more likely permanent nerve and muscle damage can be prevented.

Failure to observe these instructions could result in damage to your health.

Proper training

Do not permit operation without proper training and protective equipment.
○ Be thoroughly familiar with the controls and proper use of unit.
○ Know how to stop the unit and shut off the engine.
○ Know how to unhook a harnessed unit quickly.
- Never allow anyone to use the unit without proper instruction.
Failure to observe these instructions could result in damage to your health.

Wear proper clothing.

• Secure hair so it is above shoulder length.
  Do not wear ties, jewellery, or loose, dangling clothing which could be caught in the unit.
  ○ Do not wear open toed footwear, or go bare-foot or barelegged.

Failure to observe these precautions could result in damage to your sight or hearing, or lead to a serious injury.

Illustration of a person's clothing including a shirt, necklace, handbag, and pair of shoes (no text or symbols)

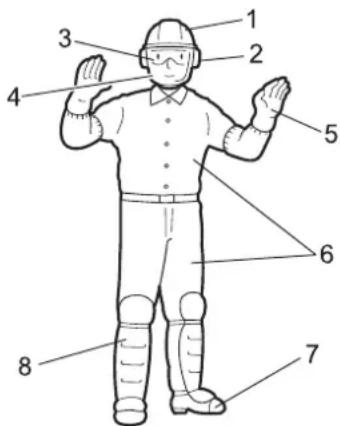

Wear protective gear

○ Always wear the following protective gear when working with the trimmer.

1. Head protection (helmet): Protects the head
2. Ear muffs or ear plugs: Protect the hearing
3. Safety goggles: Protect the eyes
4. Face shield: Protects the face
5. Safety gloves: Protect the hands from cold and vibration
6. Work clothes that fit (long sleeves, long trousers): Protect the body
7. Heavy duty, non-slip protective boots (with toecaps) or non-slip work shoes (with toecaps): Protect the feet
8. Shin guards: Protect the legs

Failure to observe these precautions could result in damage to your sight or hearing, or lead to a serious injury.

When necessary, please use the protective gear below.

♦ Dust mask: Protects the breathing apparatus

- Bee net: To deal with attacks by bees

Labeled diagram of a person wearing a hard hat and standing with numbered parts for identification.

WARNING

Environment of use and operation

○ Do not use the product:

♦ under poor weather conditions.
• on steep slopes or in places which give no secure foothold and are thus slippery.
- at night or in dark places with poor visibility.

○ When using the product on a gentle slope, work in a level, contour-like motion.

A serious injury could result if you fall or slip, or fail to operate the product correctly.

☐ For your own health and your safe and comfortable work, operate the machine within the air temperature range of -5^ to 40^ .

Failure to observe these instructions could result in damage to your health.

Being prepared in case of an injury

In the unlikely event of an accident or injury, please ensure that you are prepared.

• First aid kit
  ♦ Towels and wipes (to stop any bleeding)
  • Whistle or mobile phone (for calling outside help)
  If you are unable to perform first aid or call for outside help, the injury could worsen.

Line drawing of a medical kit with a bandage, a smartphone, and a small plug (no text or symbols)

Put safety first in the case of fire or smoke

○ If fire comes from the engine or smoke appears from any area other than the exhaust vent, first distance yourself from the product to ensure your physical safety.
Use a shovel to throw sand or other such material on the fire to prevent it from spreading, or put it out with a fire extinguisher.

A panicked reaction could result in the fire and other damage becoming more extensive.

Warning notices

DANGER WARNING AUCTION

This symbol accompanied by the word "DANGER" calls attentions to an act or a condition which will lead to serious personal injury or death of operators and bystanders.

This symbol accompanied by the word "WARNING" calls attentions to an act or a condition which can lead to serious personal injury or death of operators and bystanders.

"CAUTION" indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Other indicators

Circle and slash symbol means whatever is shown is prohibited.

NOTE IMPORTANT

This enclosed message provides tips for use, care and maintenance of the product.

Framed text featuring the word "IMPORTANT" contains important information about the use, checking, maintenance and storage of the product described in this manual.

Symbols

Symbol form/shape Symbol description/application	Symbol form/shape Symbol description/application
	Carefully read the operator's manual	The maximum speed of the cutting attachment shaft in r/min

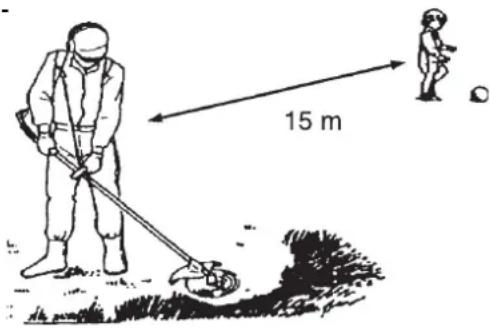

	Wear eyes, ears and head protection	Keep bystanders away 15 m

For safe use of your product

Symbol form/shape Symbol	description/application	Symbol form/shape Symbol	description/application
	Wear foot protection and gloves		Petrol and oil mixture
	Emergency stop		Choke Control "Cold Start" Position (Choke Closed)
	Warning! Thrown objects!		Choke Control "Run" Position (Choke Open)
	Warning, side thrust		Carburettor adjustment - Idle speed
	Usage without shield not permitted		Lubricate in every 18 hours
	Usage of metal blades not permitted		Loop handle
	Usage of nylon line cutting head not permitted		Beware of high-temperature areas
	Do not use the product in plac-es with poor ventilation		Guaranteed sound power lev-el
	Beware of fire Engine start
	Beware of electric shocks		Purge bulb (Primer)

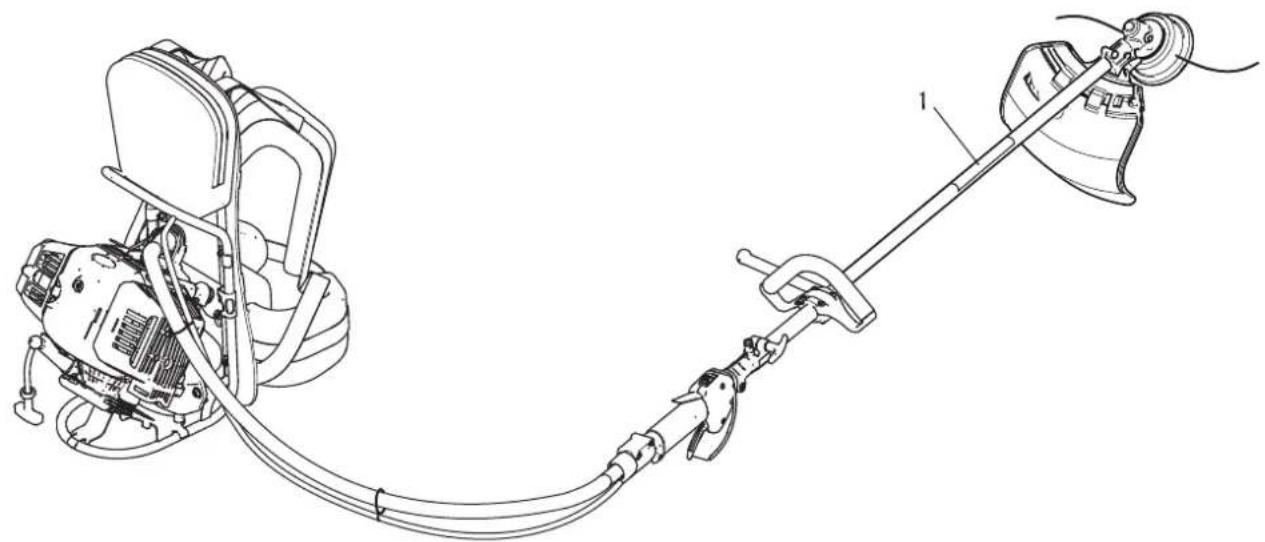

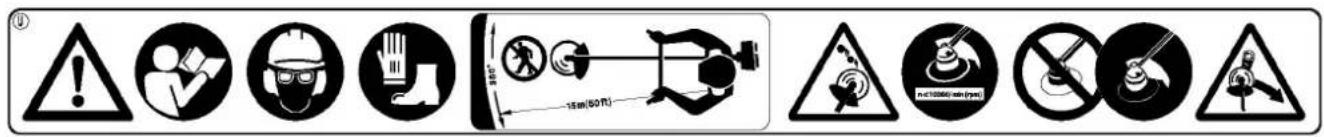

Safety decal(s)

The safety decal shown below has been attached to the products described in this manual. Ensure that you understand what the decal means before using your product.
- If the decal becomes unreadable due to wear and tear or damage, or peels off and is lost, please purchase a replacement decal from your dealer and attach it in the location shown in the illustrations below. Ensure that the decal is readable at all times.

(1. Part number 890617-43130)

Warning symbols and safety icons including warning, hazard, gear, contact, and hazard signs with technical specifications.

Technical line drawing of a mechanical clamp or tool assembly with no visible text or symbols

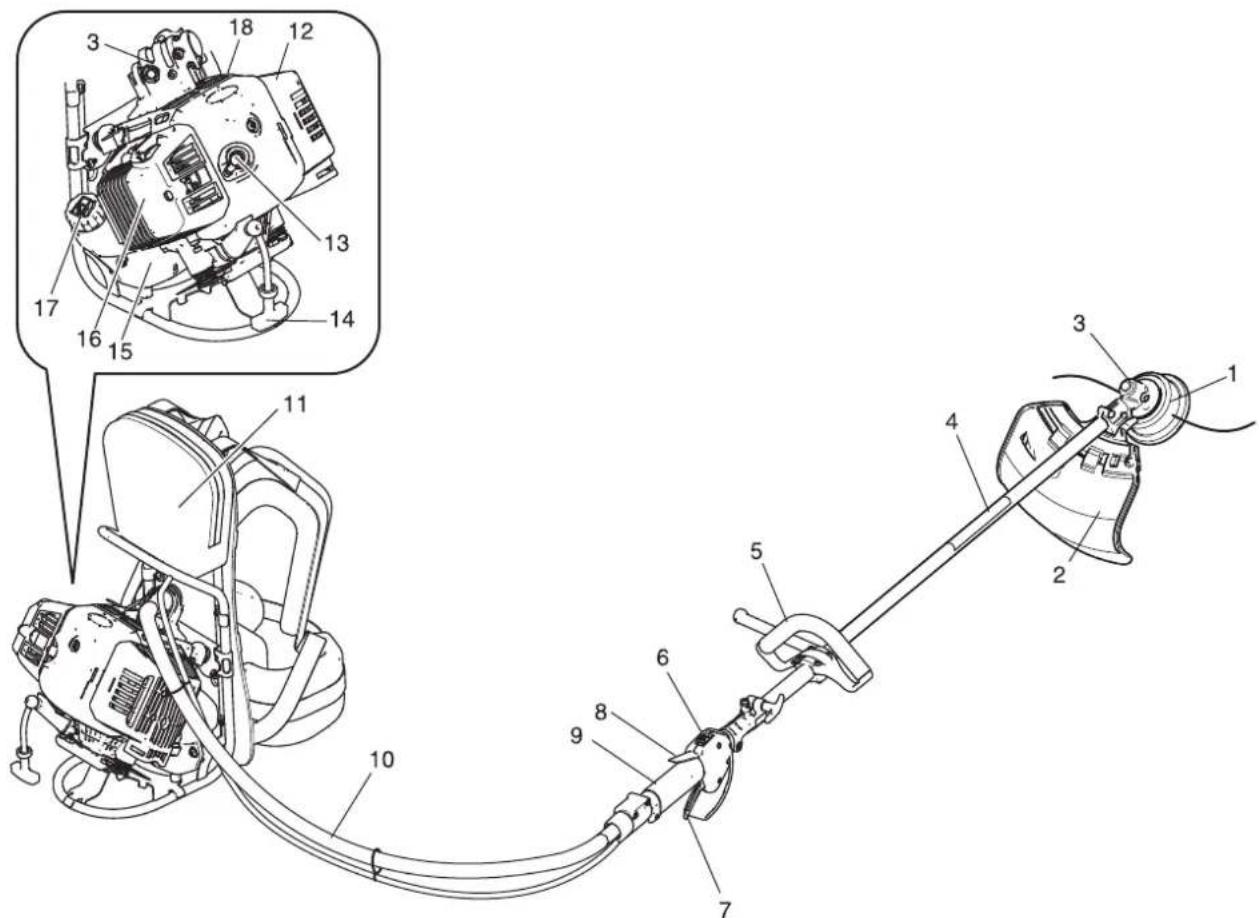

Technical diagram of a mechanical device with numbered components and an inset view of the engine assembly.

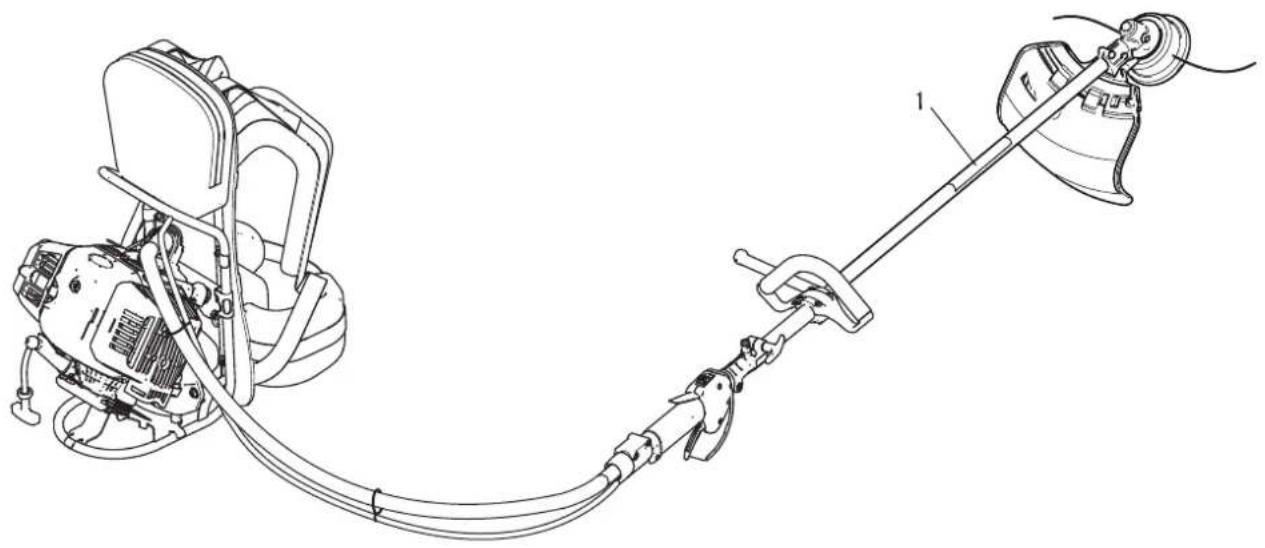

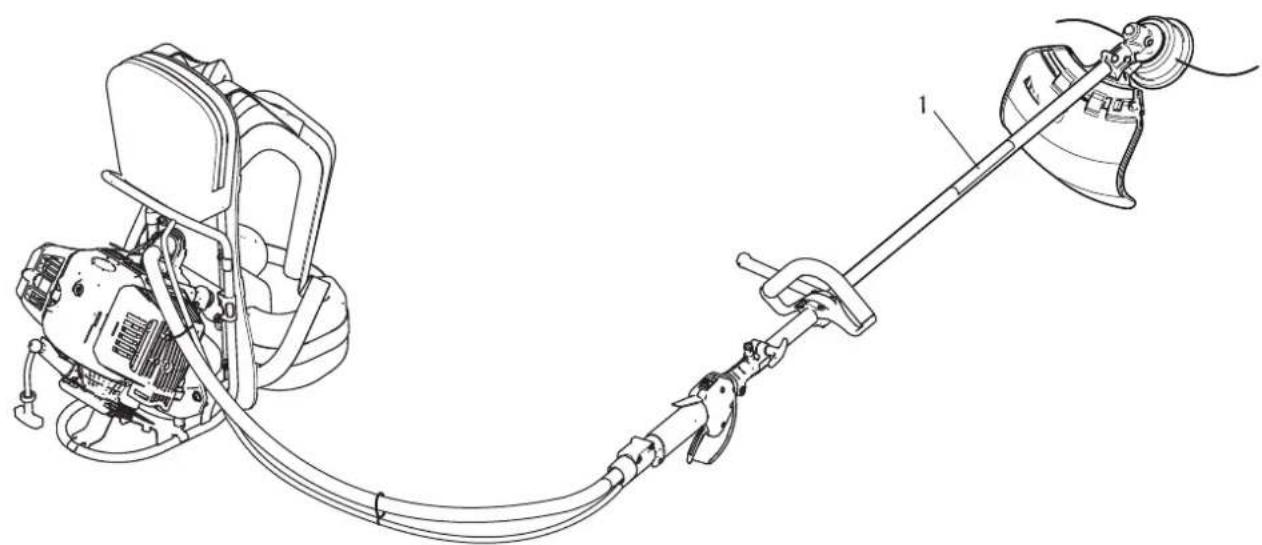

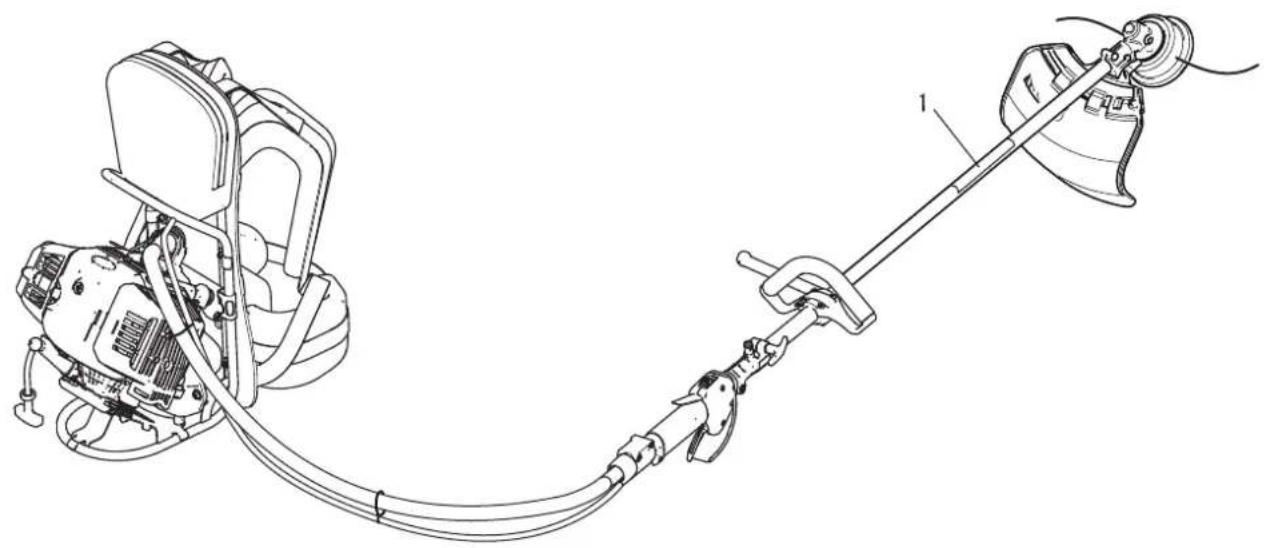

1. Cutting attachment - Nylon line cutting head for cutting grass and weed.
2. Shield - Device to protect the operator from accidental contact with the cutting head and thrown objects.
3. Angle transmission - Having two gears to change to angle of rotating axis.
4. Shaft tube - Part of the unit that provides a casing for power transmission shaft.
5. Front handle - Handle located towards the cutting device.

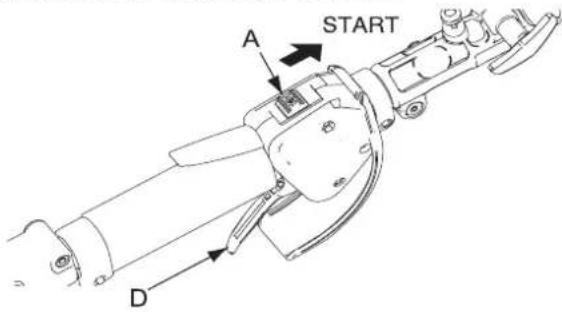

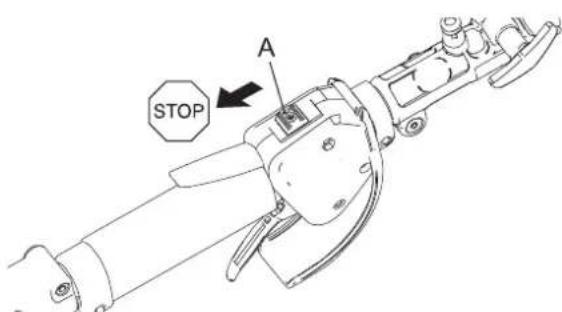

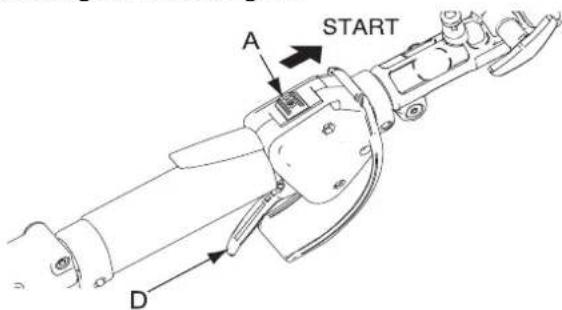

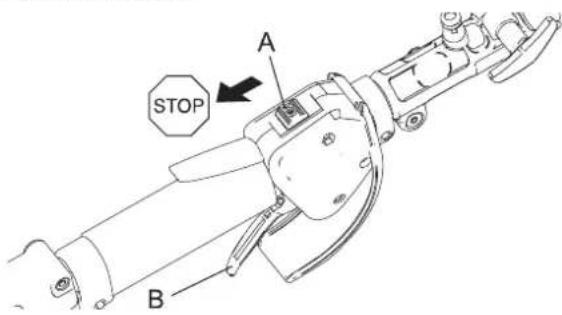

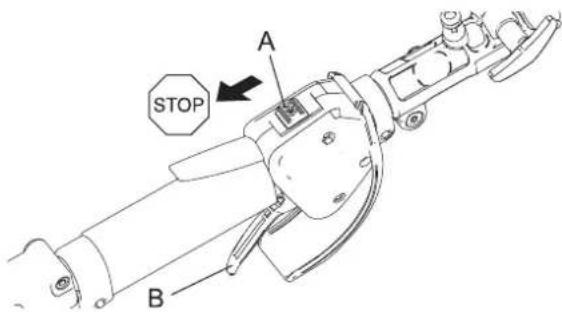

6. Ignition switch - "Slide switch" mounted on top of the throttle trigger housing, move switch upward to RUN, downward to STOP position.
7. Throttle trigger - Activated by the operator's finger for controlling the engine speed.

8. Throttle trigger lockout - Locks throttle trigger in the idling position until you have a proper grip with your right hand around the handle.

9. Rear handle - Handle located towards the knapsack power unit.

10. Flexible shaft assembly - Flexible tube for the power transmission shaft.
11. Tool bag - Removable bag for tool and accessories.
12. Silencer cover - Cover the silencer not to make operator touch to hot surface of silencer.
13. Spark plug
14. Starter handle - Pull handle to start the engine.
15. Fuel tank - Contains fuel and fuel filter.
16. Air cleaner cover - Covers air filter.
17. Fuel tank cap - For closing the fuel tank.
18. Type and serial number

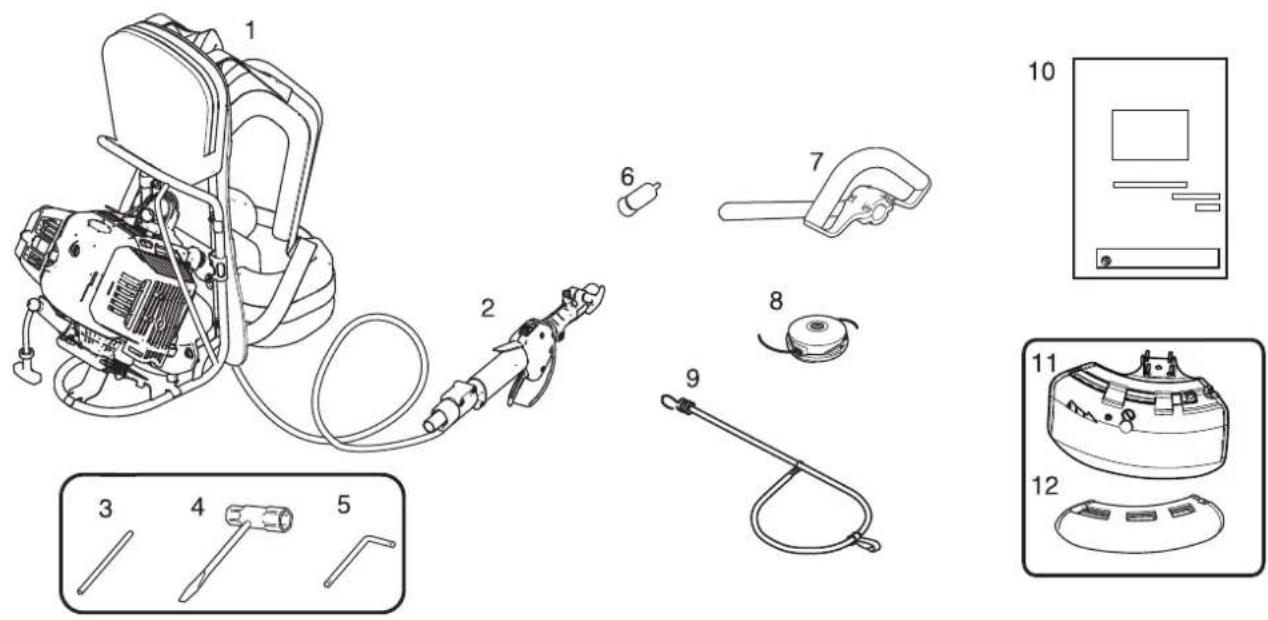

Packing list

• The following parts are packed separately in the packing box.
  When you have unpacked the box, please check the parts that it contains.
• Contact your dealer if anything is missing or broken.

Engine

Technical diagram of a mechanical device with numbered parts and exploded views for assembly or maintenance.

Operation Shaft

Technical line drawing of two mechanical components labeled 13 and 14, with no visible text or symbols beyond labels.

1. Engine
2. Throttle trigger
3. Locking tool
4. Socket wrench
5. L-wrench
6. Plastic cap

7. Front handle

8. Nylon line cutting head

9. Strap
10. Operator's manual
11. Shield (for nylon line cutting head)
12. Shield (for metal blade)
13. Flexible shaft assembly
14. Shaft tube

Assembly

WARNING

- Read the operator's manual carefully to ensure that you assemble the product correctly. Using a product that has been incorrectly assembled could lead to an accident or serious injury.

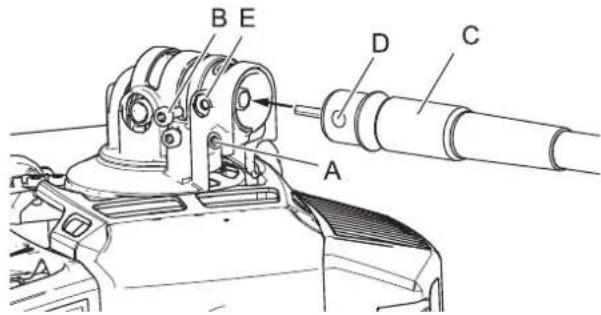

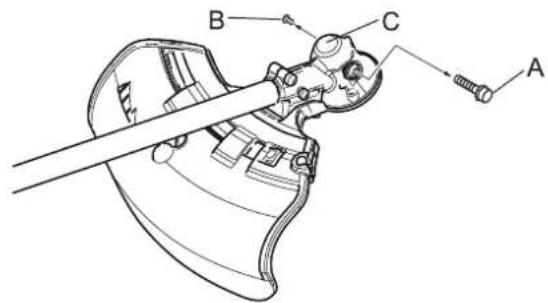

Operation shaft assembly

A B E D C

G H F

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view of a threaded component.

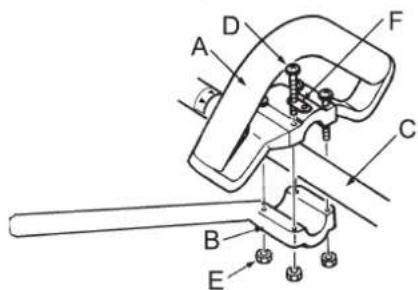

Loop handle assembly

Technical diagram of a mechanical device with labeled parts A through F

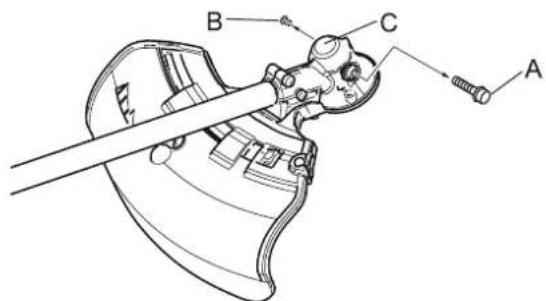

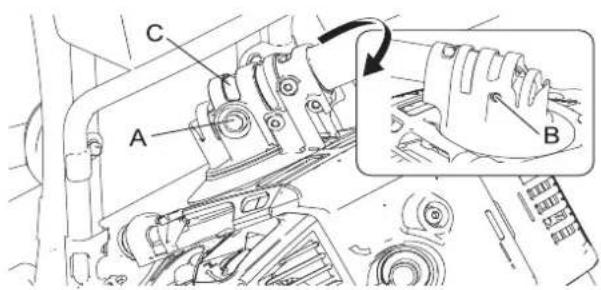

1. Loosen the bolt (A).
2. Remove the lock bolt (B).
3. Insert the flexible shaft assembly (C) into the angle transmission.
4. Align the hole of the flexible shaft assembly (D) with the hole of the angle transmission (E).

5. Tighten the lock bolt and bolt.

6. Remove the lock bolt (F).

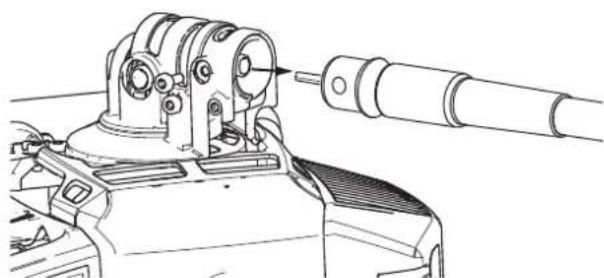

7. Insert the flexible shaft assembly (G) into the trigger tube.

8. Tighten the lock bolt.

9. Loosen the clamping knob (I).

10. Pull locator pin (J) out, and turn anticlockwise 1/4 turn to lockout position.

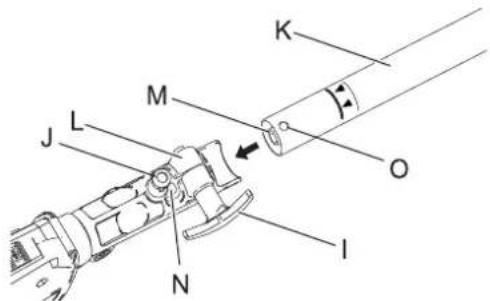

11. Insert the operation shaft assembly (K) into the coupler (L) as aligning the socket (M) with the flexible shaft (N).

12. Rotate locator pin 1/4 turn clockwise to engage operation shaft hole. Insure locator pin is fully engaged by twisting operation shaft. Locator pin should snap flush in coupler. Full engagement will prevent further shaft rotation.

13. Tighten the lock bolt.

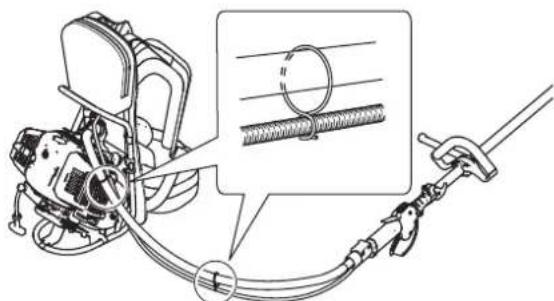

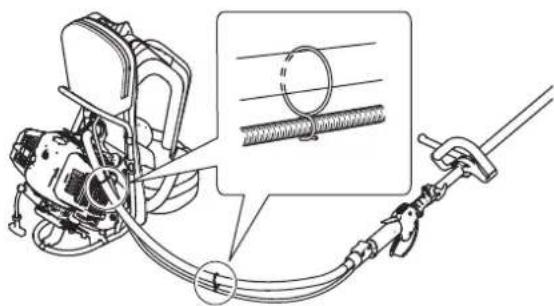

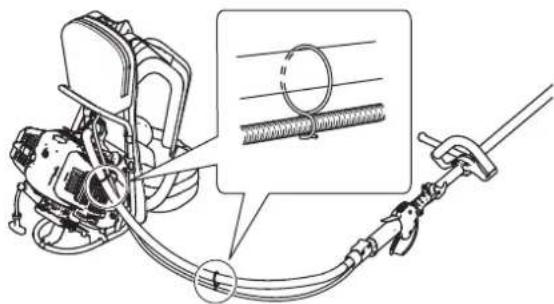

14. The two pieces of clip attached to flexible shaft assembly must be set to appropriate positions on the throttle cable (at equal distance on the whole length of the flexible shaft assembly).

NOTE

To disassemble, reverse assembly instructions. Insert the plastic cap to the coupler in order to prevent grease leakage

1. Assemble the front handle (A) and bracket (B) on the shaft tube (C) loosely.
2. Adjust the location of the front handle to a convenient position.
3. Tighten the screws (M5×35) (D) and nuts (E) securely. - One of the 4 screws must be tighten together with the hanger (F) as illustrated.

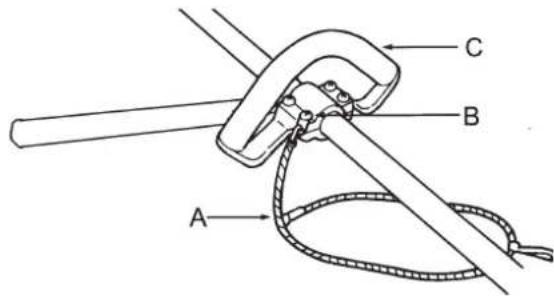

Shoulder harness

A B C

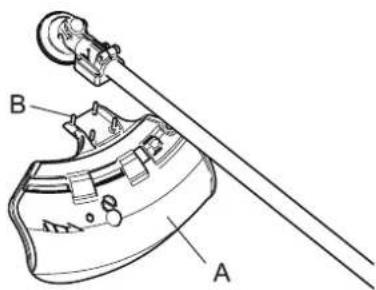

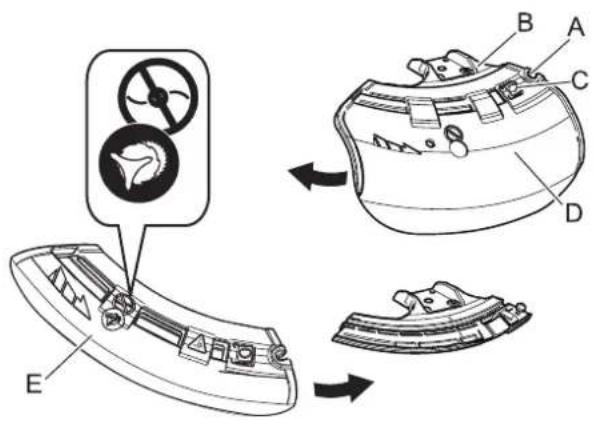

Installation of shield

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and assembly.

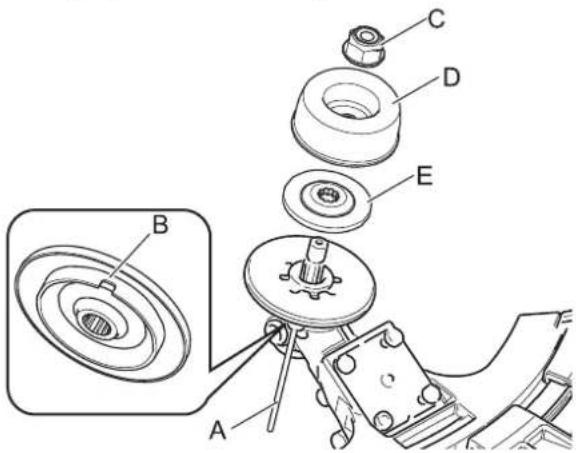

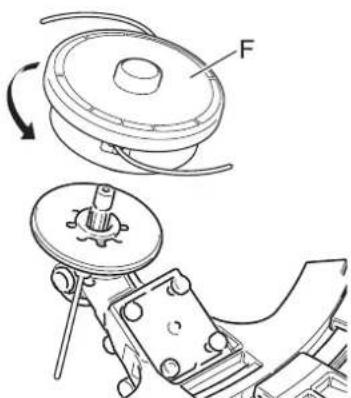

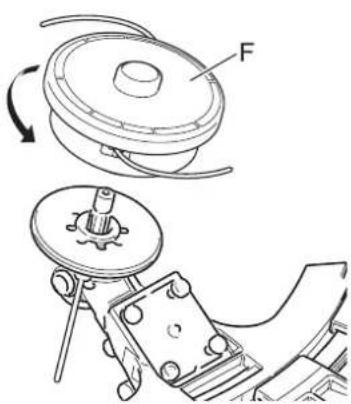

Installing nylon line cutting head

Technical diagram of a mechanical assembly with labeled parts A through E, showing exploded view and detail view.

Technical diagram showing mechanical assembly with labeled component F and directional arrow indicating rotation or motion

1. Suit the length of knapsack band to comfort.

2. As the strap is elastic and adjustable, it is preferable to connect the strap (A) to the hangers (B) located on the front handle (C) and the left or right knapsack band to maintain a fatigueless and comfortable operation.

3. Fit shield (A) to mounting portion of angle transmission and tighten 4 bolts (B).

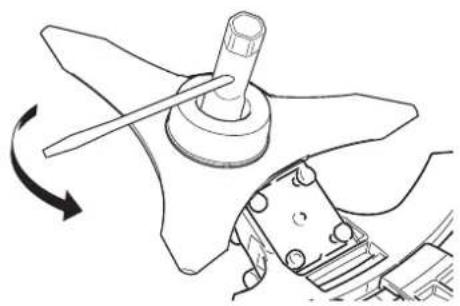

4. Insert locking tool (A) into a hole located on the right side of angle transmission while forcing retainer spring to the left side.

5. Insert locking tool further into blade retainer fixing slot (B) to fix output shaft.
6. Using the socket wrench, remove the nut (C), cup (D), and lower blade retainer (E).
   * Nut, cup, and lower blade retainer are not used with a nylon line cutting head.

CAUTION

☐ Fix output shaft securely using locking tool in order to prevent it form rotating when nylon cutting head is mounted.

1. Thread nylon line cutting head (F) onto shaft (anticlockwise) until it is tight.
2. Remove locking tool.

Preparing the fuel

DANGER

○ Do not fuel up while the engine is hot or in operation.
○ Do not smoke or hold a flame near when refuelling.

If you do so, the fuel could ignite and cause fire, leading to burns.

WARNING

Do not fill fuel tanks indoors. Always fill fuel tanks outdoors over bare ground. Do not refuel the product on the loading platform of a truck, or in other such places.
- Fuel tanks/cans may be under pressure. Always loosen fuel caps slowly allowing pressure to equalize. Otherwise, fuel may get spewed.
- Mop up any fuel that overflows or spills out due to overfilling. Fuel spills can cause fire and burns when ignited.
- After refuelling, always check that there are no leaks or discharges of fuel from the fuel pipe, fuel system grommets, or around the fuel tank cap. If you do find fuel leaks or discharges, stop using the product immediately and contact your dealer to have it repaired. Any fuel leaks could cause fire.

- Keep the refuelling tank in a shaded area away from fire.

○ Use an approved fuel container.

IMPORTANT

Fuel is a mixture of regular grade petrol and an air-cooled 2-stroke engine oil. Minimum 89 Octane unleaded petrol is recommended. Do not use fuel containing methyl alcohol or more than 10 % of ethyl alcohol.
○ Stored fuel ages. Do not mix more fuel than you expect to use in thirty (30) days.

Fuel

Fuel supply

A B

• Recommended mixture ratio; 50: 1 (2%) for ISO-L-EGD Standard (ISO 13738), JASO FC, FD grade and shindaiwa recommended oil.
• Never use two-stroke oil intended for water-cooled engines, motor-cycle engines.
  • Do not mix directly in engine fuel tank.
• Do not add so much fuel that it reaches the mouth of the fuel tank (A). Keep the fuel within the prescribed level (up to the shoulder level (B) of the fuel tank).
  • Tighten the fuel tank cap securely after refuelling.

Starting the engine

WARNING

Be particularly careful to observe the following precautions when starting the engine:

○ Move at least 3m from the place where you refuelled.

○ Place the product in a flat, well ventilated place.
○ Check that there are no fuel leaks.
○ Inspect metal blades for cracks.
○ Check that none of the nuts and bolts are loose.
○ Leave plenty of space around the product and do not allow people or animals near it.
○ Start the engine with the throttle trigger in the idle speed position.
○ Hold the product firmly to the ground when starting the engine.

Failure to observe the precautions could cause an accident or injury, or even lead to a fatality.

☐ Check that there are no abnormal vibrations or sounds once the engine starts. Do not use the product if there are abnormal vibrations or sounds. Contact your dealer to have it repaired.

Accidents involving parts that fall or shatter off can cause wounds or serious injury.

The exhaust fumes from the engine contain toxic gases. Do not operate the product indoors or in other ill ventilated places.

The exhaust fumes could cause poisoning.

Do not touch silencer, spark plug, angle transmission, and other high temperature components while the product is running or for some time after it stops.

You could burn yourself if you touch a high temperature component.

○ Do not touch spark plug, spark plug wire, and other high voltage components while the product is running.

You could receive an electric shock if you touch a high voltage component while the product is running.

○ If the cutting attachment rotates even though the throttle trigger is in the idle speed position when the engine is started, adjust the carburettor before using the product.

Failure to observe the precautions could cause an accident or injury, or even lead to a fatality.

NOTE

○ Pull out the starter grip gently at first, and then more rapidly. Do not pull the starter rope out to more than 2/3 of its length.
- Do not let go of the starter grip as it returns.

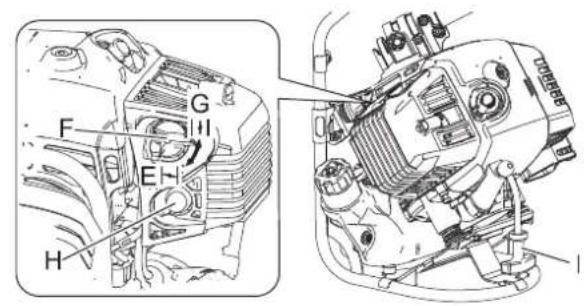

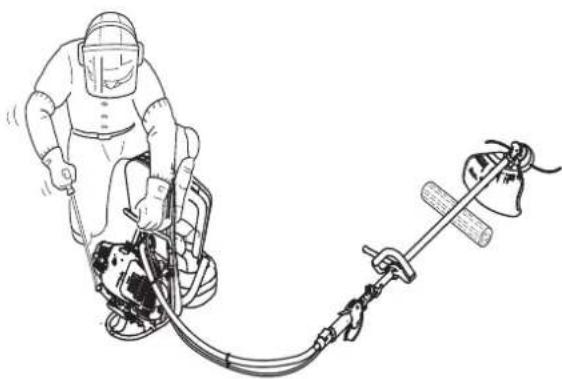

Starting a cold engine

A START D

(Connect the spark plug cap if the product has been in storage for a long period of time.)

1. Remove the blade cover.
2. Placing the product on level ground, check to ensure that the cutting attachment does not come into contact with the surface of the ground or any other impediment using a beam or other such implement.
3. Move the ignition switch (A) to the Start position.
4. Make sure that the throttle trigger (D) is at the idle speed position.

F G H EH H

Illustration of a person in protective gear using a handheld tool to lift a cylindrical object (no text or symbols present)

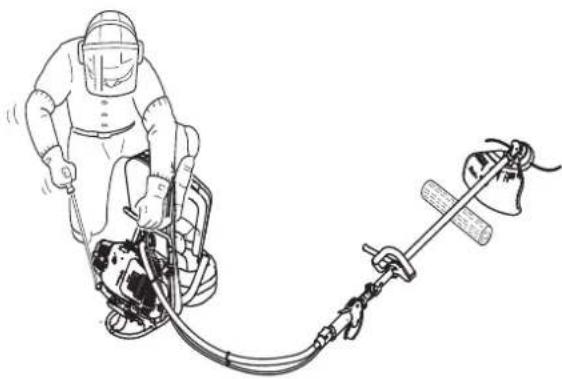

Starting a warm engine

A START D

Stopping the engine

A STOP B

1. Move the choke lever (F) to the "Cold Start" (E) position.
2. Alternately press and release the purge bulb (H) until the fuel is sucked up into it.
3. Checking that the area around you is safe, hold the position closest to the engine firmly as shown in the illustration, pulling several times on the starter grip (I).
4. If you hear an explosion-like sound and the engine stops immediately, move the choke lever to the "Run" (G) position and continue pulling on the starter grip to start the engine.
5. If the engine does not stop, return the choke lever gently to the "Run" position.

6. Leave the engine to warm up at idle speed for a while.

7. Move the ignition switch (A) to the Start position.

8. Make sure that the throttle trigger (D) is at the idle speed position.
9. Check that the choke lever is in the "Run" position.
10. If no fuel is visible in the purge bulb, alternately press and release the purge bulb until the fuel is sucked up into it.

11. Checking that the area around you is safe, hold the position closest to the engine firmly, and pull on the starter grip to start the engine.

12. Move the throttle trigger (B) to the idle speed position and set the engine to idling (i.e. low speed).

13. Move the ignition switch (A) to the Stop position.
14. In the event of an emergency, stop the engine immediately using the ignition switch.
15. If the engine fails to stop, move the choke lever to the "Cold Start" position. The engine will stall and come to a halt (an emergency stop).
    * If the engine fails to stop when the ignition switch is used, have the ignition switch checked and repaired by your dealer before you use the product again.
16. Always disconnect the spark plug wire from the spark plug to ensure the engine cannot be started before you work on the unit or leave it unattended.

DANGER

○ Always stop the engine when a cutting attachment jam occurs.

Severe injury can occur if a jam is removed and the cutting attachment suddenly starts.

○ Do not operate the product without the shield in place.

Any objects that ricochet off the cutting attachment could cause an accident or serious injury.

The area within a 15 m radius of the product is a danger zone. Be careful to observe the following precautions while working with the product.

• Do not allow children and other people or pets to enter the danger zone.
• If another person enters the danger zone, turn off the engine to stop the cutting attachment from rotating.
  When approaching the operator, signal to him by, for example, throwing twigs from outside the danger zone, and then check that engine has been switched off and the cutting attachment has stopped turning.
  If more than one person is working with the product, identify the way in which you will signal to each other and work at least 15 m apart.

15 m

Any objects that ricochet off the cutting attachment, and any contact with the cutting attachment, could cause blindness or a fatal accident.

WARNING

Before starting work, check the area where you will be working and remove any small stones and empty cans likely to ricochet off the cutting attachment, as well as any pieces of string or wire that might become twisted around the cutting attachment.

An accident or serious injury can occur if foreign objects ricochet off the cutting attachment or wire and other materials twisted round the product spring off it.

○ In the following situations, turn off the engine immediately and ensure that the cutting attachments have stopped before checking each area of the product. Replace any damaged parts.

- If the cutting attachment hits a rock, tree, post, or other such obstruction while you work.

If the product suddenly starts to vibrate abnormally.

Continuing to use parts when they are damaged could lead to an accident or serious injury.

Do not hold the cutting attachment up while you work. You must not work with the cutting attachments raised above knee level.

Raising the cutting attachment above knee level brings the plane of rotation closer to the face, and any objects that fly off the cutting attachments could cause an accident or serious injury.

Transport of the product

When transporting in the situations described below, turn off the engine and ensure that the trimmer blade has stopped rotating, then fit the trimmer blade cover and position the silencer away from yourself.

• Moving to the place where you are working.
• Moving to another area while you are working.
• Leaving the place where you have been working.

Failure to observe these precautions could cause burns or serious injury.

When transporting the product by car, empty the fuel tank, fit the blade cover, and secure the product firmly in place to prevent it from moving around.

Travelling by car with fuel in the fuel tank could lead to a fire.

• Never attempt to operate the product with one hand.
  ☐ Ensure that you hook your thumbs around the grips, wrapping them in your thumb and remaining fingers.

Trimming operation

1

Line drawing of a person using a long-handled tool to measure a mounted object (no text or symbols present)

2

Line drawing of a person wearing a hard hat and holding a long-handled tool (no text or symbols)

3

Line drawing of a person wearing a hard hat and holding a long-handled tool (no text or symbols)

4

Line drawing of a person wearing a hard hat and using a manual shoveling tool (no text or symbols)

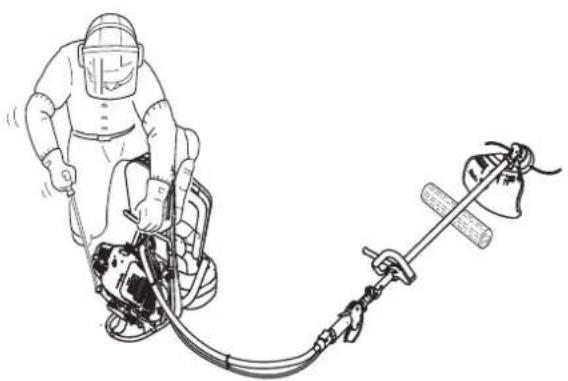

1. Hold the rear handle of shaft tube in left hand and hang the right knapsack band on the right shoulder.

2. Hold the rear handle of shaft tube in right hand and hang the left knapsack band on the left shoulder.

3. For even load on both sides of shoulder, joggle the unit on the shoulder a couple of times.

4. It is preferable to connect the strap to the hangers located on the loop handle the left or right knapsack band and adjust the length of the strap to maintain a comfortable operation.

Increase engine speed as necessary, heavy weeds will require more power than cutting grass.

Hold the front handle (loop handle) and rear handle both hands.

• When cutting weeds or grass, swing the blade right and left in an arc as you move forward.
• The blade rotates anticlockwise, so it is necessary to cut the object from the right to the left.
• The manner of walking is as follows: - Place the right foot in front of the left foot without fail. - Step the right foot forward firstly and secure your footing. - And then follow the left foot to the behind of the right foot.

Basic trimming operation with nylon line cutting head

WARNING

• Serious injury may result from the improper use of cutting attachment. Read and comply with all safety instructions listed in this manual.
  ○ Do not operate with a damaged cutter.
  ○ Use only cutting attachments recommended by YAMABIKO Corporation.
  ○ Excessive nylon line beyond cut off knife could fly off when the nylon line cutting head starts rotating after adjustment of nylon line length.

Failure to do so could lead to an accident or serious injury.

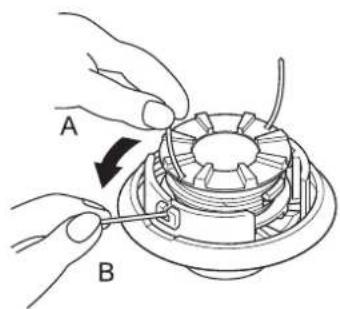

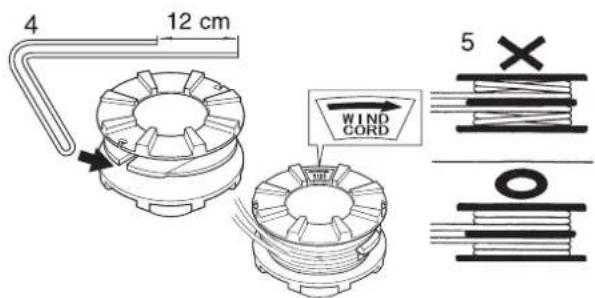

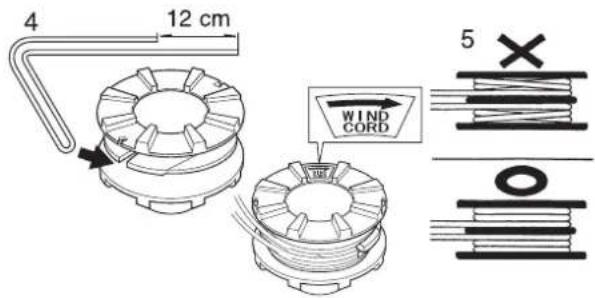

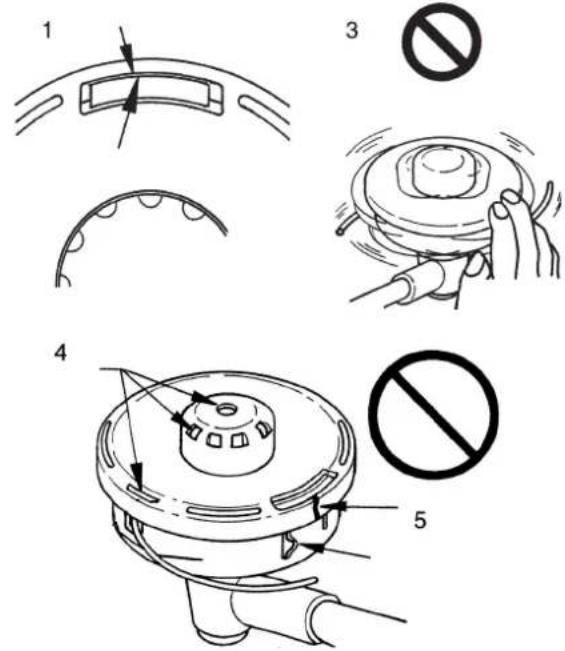

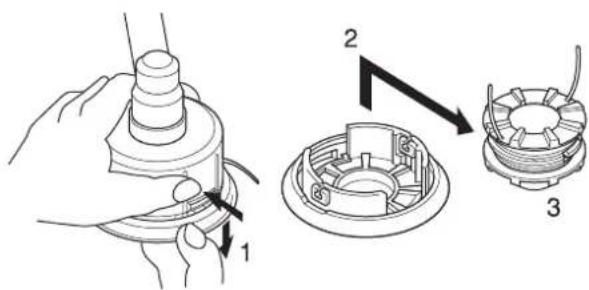

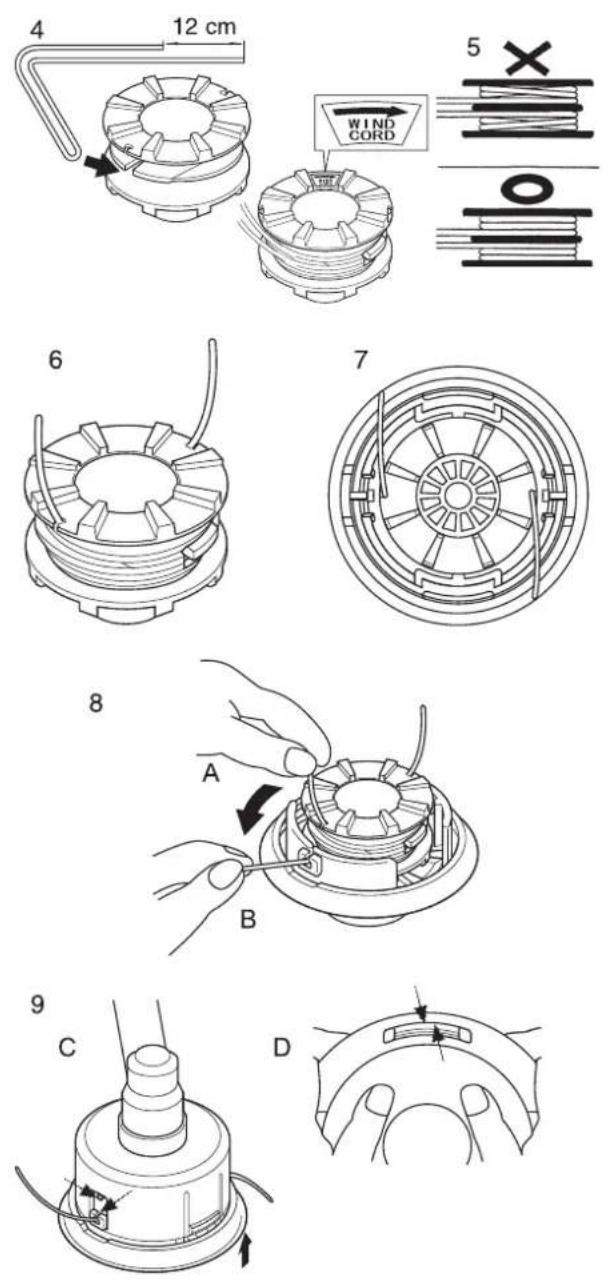

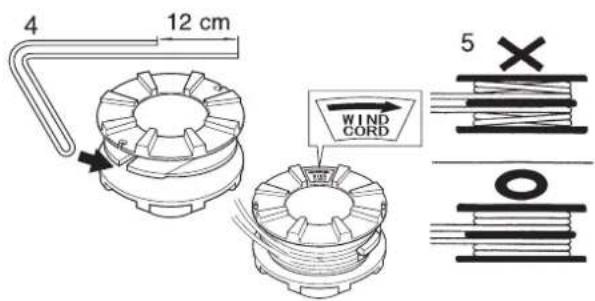

Adjusting nylon line

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

• Do not rotate the nylon line cutting head at more than 10000 r/min.
• When releasing nylon line from spool, hit tap knob of spool against the ground surface lightly at rotation speed lower than 4500 r/min.
• Cut off knife on the shield adjusts cutting swath automatically by cutting nylon lines evenly when attachment starts rotating.
• When operating with less than maximum cutting swath, cut two nylon lines in equal lengths.

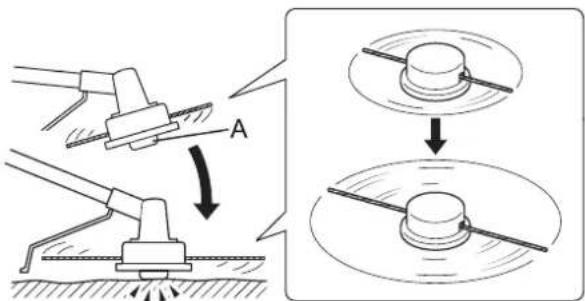

  When nylon line becomes shortened, hit tap knob (A) of spool against the ground surface lightly and the line is released from spool to come out.

Trimming

Technical diagram of a mechanical device with numbered components and dimension annotations

Scything

Illustration of a person using a tool to measure a circular object, with an arrow indicating upward motion (no text or symbols)

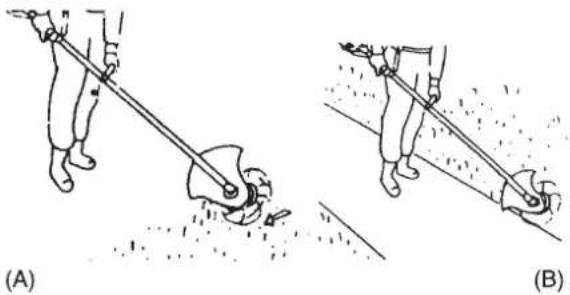

Scalping and edging

Illustration of two manual labor tools (A and B) showing different positions and motion patterns, with no visible text or symbols.

Diagram showing a mechanical device with labeled parts 1 and 2, indicating a rotating mechanism or assembly.

• This is feeding the trimmer carefully into the material you wish to cut. Tilt the head slightly to direct the debris away from you. If cutting up to a barrier such as a fence, wall or tree, approach from an angle where any debris ricocheting off the barrier will fly away from you.
• Move the nylon line cutting head slowly until the grass is cut right up to the barrier, but do not jam (overfeed) the line into the barrier. If trimming up wire mesh or chain link fencing, be careful to feed only up to the wire. If you go too far, the line will snap off around the wire.

• Trimming can be done to cut through weed stems one at a time. Place the nylon line cutting head near the bottom of the weed never high up, which could cause the weed to chatter and catch the line. Rather than cut the weed right through, just use the very end of the line to wear through the stem slowly.

• Angle to wall

• Debris
• Knife side raised
• Angle to ground

- This is the cutting or mowing of large grassy areas by sweeping or swinging the trimmer in a level arc. Use a smooth, easy motion. Do not try to hack or chop down the grass. Tilt the nylon line cutting head to direct the debris away from you on the scything stroke. Then return without cutting grass for another stroke. If you are well protected and do not care whether some debris is thrown in your direction, you may scythe in both directions.

• Both of these are done with the nylon line cutting head tilted at a steep angle. Scalping (A) is removing top growth, leaving the earth bare. Edging (B) is trimming the grass back where it has spread over a pavement or driveway. During both edging and scalping, hold the unit at a steep angle in a position where the debris, and any dislodged dirt and stone, will not come back towards you even if it ricochets off the hard surface.
• Although the pictures show how to edge and scalp, every operator must find for himself the angles which suit his body size and cutting situation.
• For nearly all cutting, it is good to tilt the nylon line cutting head so that contact is made on the part of line circle where the line is moving away from you and the shield (See appropriate picture). This results in the debris being thrown away from you.
• Tilting the head to the wrong side will shoot the debris toward you. If the nylon line cutting head is held flat to the ground so that cutting occurs on the whole line circle, debris will be thrown at you, drag will slow the engine, and you will use up a lot of line.

• Nylon line cutting head rotates anticlockwise. The knife will be on the left side of the shield.

• Debris

• Cut on this side

Diagram showing a fence with grass, a fence with a diagonal line, and a prohibition symbol in the background.

Illustration of a person using a power tool to lift a bucket into grass, with a post and tree stump nearby (no text or symbols)

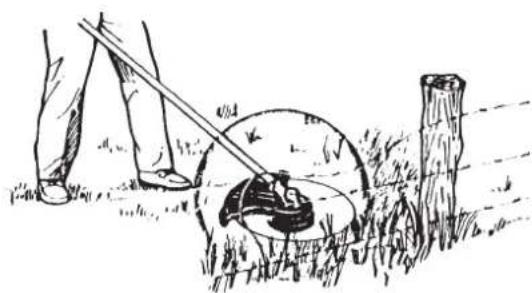

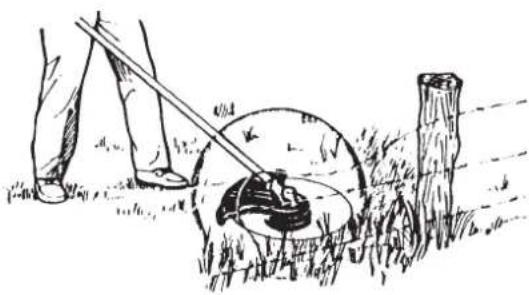

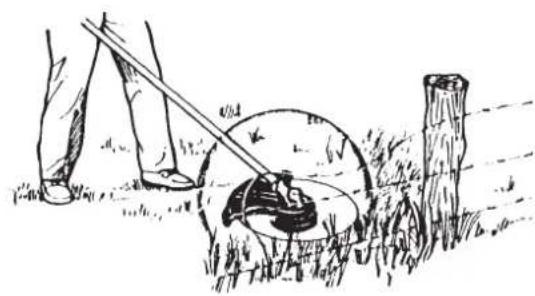

- Do not push the line into tough weeds, trees, or wire fences. - Pushing the line into chicken wire, chain link fencing or thick brush can result in snapped-off line ends being hurled back at the operator. The proper way is to cut right up to a barrier, such as any of those mentioned, but never run the line into or through the obstruction. Do not cut closely to obstruction or barrier.

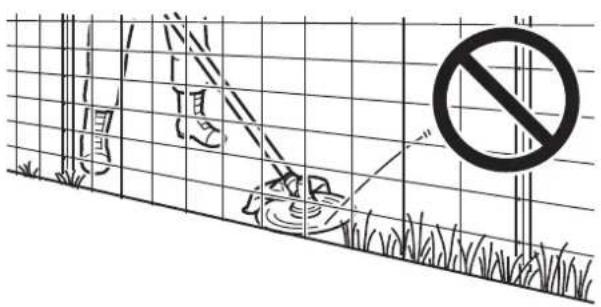

- Avoid nylon line contact with broken wire fencing. Pieces of wire broken off by the trimmer can be hurled at high speeds.

Basic trimming operation with metal blade

WARNING

Please observe the following instructions when trimming.

• Check to ensure that the trimmer blade has been tightened securely in place.
• Replace the shield if it is damaged or cracked.
• Replace the trimmer blade nut when it becomes worn.
  • Do not cut into the ground with the blade.
  Do not operate with a dull, bent, fractured or discoloured blade and worn or damaged nut.
• Do not run engine at full throttle without a load.

Failure to do so could lead to an accident or serious injury.

Use only cutting attachments recommended by YAMABIKO Corporation. YAMABIKO Corporation will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by YAMABIKO Corporation for use with this unit.
The type of blade used must be matched to the type and size of material cut. An improper or dull blade can cause serious personal injury. Blades must be sharp. Dull blades increase the chance of kick-out and injury to yourself and bystanders.

• Plastic/Nylon Grass/Weed Blades may be used where ever the nylon line head is used. Do not use this blade for heavy weeds or brush.
  The 3 cutter blade is designed especially to cut weeds and grass. To avoid injury due to kickback or blade fracture, do not use the 3 cutter blade to cut brush or trees.
  8 Tooth Weed/Grass Blade is designed for grass, garden debris and thick weeds. Do not use this blade for brush or heavy woody growth, 19 mm diameter or larger.
  22 Tooth Clearing Blade is designed for dense thickets and saplings up to 64 mm diameter.
  • 80 Tooth Brush Blade is designed for cutting brush and woody growth up to 13 mm diameter.

Damaged or shattered blades can cause accidents and serious injury.

Kickback

The phenomenon that occurs if the trimmer blade comes into contact with a tree, post, rock or other hard object while rotating at high speed and reacts by recoiling powerfully and instantaneously is known as kickback.
○ Causing kickback can result in a loss of control over the product and is highly dangerous.
In particular, if the front-right quadrant of the trimmer blade (B) strikes a shrub or other such object, the trimmer blade will cause the product to recoil sharply backwards to the right.
To prevent kickback, do not trim from left to right. Be careful to ensure that the trimmer blade does not strike any hard objects.
When trimming, ensure that the object you are cutting meets the portion of the blade 1/3 in from the front edge on the left-hand side (A).

Failure to do so could cause an injury or fatal accident.

A 1/3 2/3 B

Illustration of a person in protective gear using a mechanical device with motion arrows indicating movement (no text or symbols)

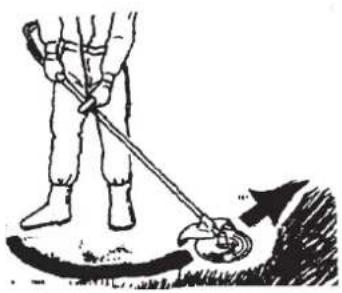

Scything weeds

Illustration of a person using a pole-mounted device to measure a small object, with an arrow indicating motion (no text or symbols)

• This is cutting by swinging the cutting attachment in a level arc. It can quickly clear areas of field grass and weeds. Scything should not be used to cut large, tough weeds or woody growths.
• If a sapling or shrub binds the cutting attachment, do not use the cutting attachment as a lever to free the bind, because this will cause cutting attachment failure.
• Instead, shut off the engine and push the sapling or shrub to free the blades.

WARNING

Observe the following precautions when checking and maintaining your product after use:

Turn the engine off and do not attempt to check or maintain the product until the engine has cooled.
You could burn yourself.

○ Remove the spark plug cap before performing checks and maintenance.

An accident could occur if the product starts unexpectedly.

IMPORTANT

☐ Checking and maintenance requires specialist knowledge. If you are unable to check and maintain the product or deal with a fault yourself, consult your dealer. Do not attempt to dismantle the product.
For spare parts and consumables, please use only genuine parts and designated products and components. Using parts from other manufacturers or non-designated components may result in a malfunction.

Servicing guidelines

Area Maintenance Page Before use Monthly
Air filter Clean/Replace 20 •
Fuel filter Inspect/Clean/Replace 21 •
Spark plug Inspect/Clean/Adjust/Replace 22 •
Carburettor	Adjust/Replace and adjust	21
Cooling system	Inspect/Clean	21	•
Silencer	Inspect/Tighten	22 •
Silencer	Clean	22
Flexible shaft	Grease	22
Angle transmission	Grease	23
Starter	Inspect	-	•
Cut off knife	Inspect/Clean	-	•
Fuel system	Inspect	21 •
Screws, bolts and nuts	Inspect, Tighten/Replace	-	•

* Or 18 hours, whichever occurs first. ** Or 50 hours, whichever occurs first. *** Or 100 hours, whichever occurs first.

IMPORTANT

○ Time intervals are maximum. Actual use and your experience will determine the frequency of required maintenance.

Maintenance and care

If you have any questions or problems, please contact your dealer.

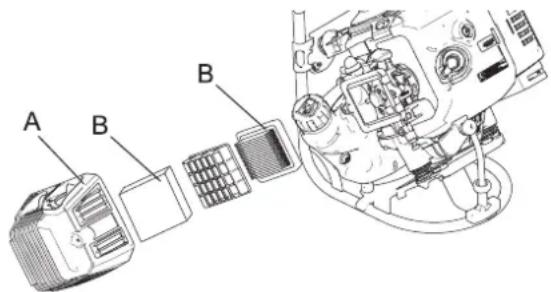

Cleaning air filter

Technical diagram of a vehicle's internal components with labeled parts A and B

1. Close choke. Loosen screw and remove air cleaner cover (A).
2. Remove air filter (B) (air filter is located inside air cleaner cover).
3. Brush dirt from filter or clean with compressed air.
4. Reinstall filter.
5. Reinstall cover and tighten screw.

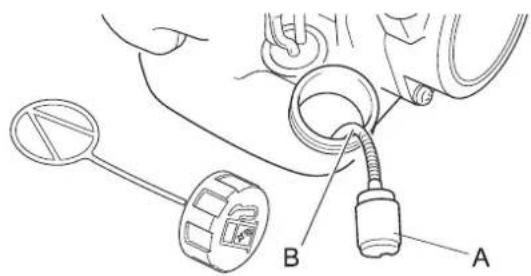

Replacing fuel filter

Diagram showing car component assembly with labeled parts A and B, including a connector and cable connection.

1. Use a piece of metal wire or the like to pick up fuel filter (A) through fuel tank opening.
2. Pull old filter from fuel line (B).
3. Install new fuel filter.

NOTE

○ If filter is excessive dirty or no longer fits properly, replace it

Carburettor adjustment

WARNING

○ YOU MAY ADJUST THE IDLE SPEED ONLY by turning the idle speed adjustment screw (T).
During carburettor adjustment, the cutting attachment may move. Pay utmost attention and care to the cutting attachment so as not to get injured by the moving cutter.
When carburettor adjustment is completed, the cutting attachment should not move at idle speed, otherwise serious personal injury may result.
☐ You must NOT carry out any Carburettor adjustment, other than the idle speed. All other adjustments MUST be performed by an authorized service dealer, or serious personal injury may result due to malfunction of the engine.

CAUTION

When there is trouble with the carburettor, contact an authorized service dealer.

Technical line drawing of a mechanical assembly with no visible text or symbols

Every unit is test run at the factory and the carburettor is fine tuned for maximum performance.

Before adjusting carburettor, clean or replace air filter, start engine and run several minutes to bring it to operating temperature.

To adjust the carburettor proceed as follow:

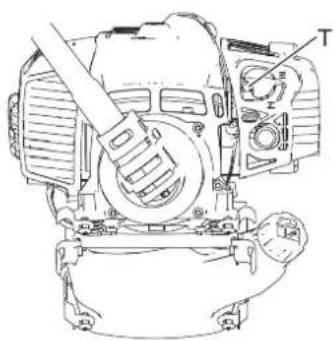

Turn "idle" speed adjustment screw (T) clockwise until cutting attachment begins to turn, then turn screw(T) out anticlockwise until cutting attachment stops turning. Turn screw (T) out, anticlockwise, and additional 1 turn.

NOTE

When the carburettor cannot be adjusted properly with the idle speed adjustment screw (T), you must contact an authorized service dealer.

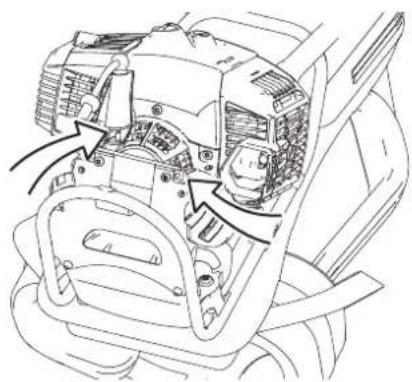

Cooling system maintenance

IMPORTANT

To maintain proper engine operating temperature, cooling air must pass freely through the cylinder fin area. This flow of air carries combustion heat away from the engine. Overheating and engine seizure can occur when:

• Air intakes are blocked, preventing cooling air from reaching the cylinder,
• Dust and grass build up on the outside of the cylinder. This build-up insulates the engine and prevents the heat from leaving.

Removal of cooling passage blockages or cleaning of cylinder fins is considered "Normal Maintenance". Any resultant failure attributed to lack of maintenance is not warranted.

Technical line drawing of an automotive engine compartment showing internal components and mounting brackets (no text or labels)

Air intake

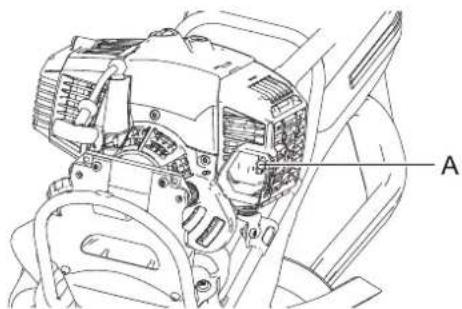

Cleaning silencer

Technical line drawing of an automotive engine compartment with labeled component A (no text or symbols beyond label)

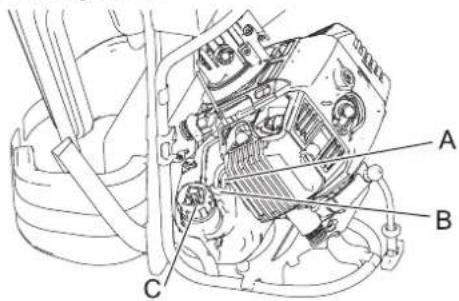

Check fuel system

Technical diagram of a mechanical assembly with labeled parts A, B, and C

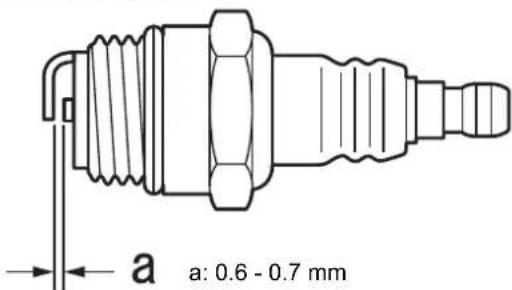

Check spark plug

a: 0.6 - 0.7 mm

Lubricating flexible shaft

Technical line drawing of a mechanical assembly with a cylindrical shaft and housing (no text or symbols)

- Keep dirt away from engine and air intake grid.

- Carbon deposits in silencer (A) will cause a drop in engine output and overheating. Clean deposits from silencer.

IMPORTANT

Do not remove the silencer cover. If necessary, Please consult your dealer.

- Check before every use.

• After refuelling, make sure fuel does not leak or exude from around fuel pipe (A), fuel grommet (B) or fuel tank cap (C).

- In case of fuel leakage or exudation, there is a danger of fire. Stop using the machine immediately and request your dealer to inspect or replace.

1. Check plug gap. Correct gap is 0.6 mm to 0.7 mm.

2. Inspect electrode for wear.

3. Inspect insulator for oil or other deposits.

4. If the spark plug is dirty, clean it. Do not sandblast to clean. Remaining sand will damage engine.

5. If the electrodes or terminals are worn, or if there are cracks in the ceramics, replace them with new parts. (see Specifications page 29)

6. Tighten to 15 N·m - 17 N·m (150kgf·cm to 170 kgf·cm).

* The spark test (for checking whether the spark plug is sparking) must be carried out by your dealer.

- All the surface of the flexible shaft should always be properly greased.

- At the time of delivery from the plant, this is greased, so evenly grease all the surface of the flexible shaft approximately 10 mL in every 18 hours.

Illustration of two hands holding a tool with a labeled point A (no text or symbols beyond label)

Angle transmission

Technical diagram of a mechanical device with labeled parts A, B, and C

A C B

Method to change shield

Diagram illustrating a device's internal components and assembly, labeled A, B, C, D, E with a warning symbol and directional arrows.

IMPORTANT

Use genuine Urea based grease (Part number: X695-000070) whose dropping point is 250^ C or above and do use the Lithium based grease.

1. Draw out the flexible shaft assembly from the angle transmission.
2. Draw out the flexible shaft from the flexible shaft assembly.
3. Use the same grease as the angle transmission's.

4. When reassemble, it is preferable to fit the flexible shaft reversely, and the stopper (A) must be fitted on the angle transmission side of the flexible shaft.

5. Remove the plug (A) and drain screw (B) from the angle transmission (C).

6. Add Lithium or Urea based grease into the transmission until old grease is pushed out. If necessary, use a low pressure pump.

7. Reinstall the drain screw and plug.

8. Remove the plug (A) and drain screw (B) from the angle transmission (C).

9. Add grease into the transmission until old grease is pushed out. If necessary, use a low pressure pump.

IMPORTANT

Use genuine Urea based grease (Part number: X695-000070) whose dropping point is 250°C or above and do use the Lithium based grease.

1. Reinstall the drain screw and plug.

2. There are two types of shields: namely the one used exclusively for nylon line cutting head and the other one used exclusively for metal blade. When metal blade is used, use the shield for metal blade.

3. Fully loosen the bolt (A) on the right side of the bracket (B) to slide the shield. The bolt itself cannot be removed from the bracket.
4. Pushing the button (C), slide the shield (D) to the left and remove it.
5. Put shield of other type (E) into groove and slide it to the right until it stops. Be sure to tighten the bolt.

Installing blade (option)

WARNING

○ Wear heavy duty gloves when working with the trimmer blade.
When replacing the trimmer blade during a trimming task, ensure that the engine is switched off and that the blades have stopped.
When turning the product over to replace the trimmer blade, ensure that the fuel tank cap is securely in place.
Do not attempt to fit the trimmer blade with one hand or without using the socket spanner. Fit the trimmer blade accurately using the supplied socket spanner and tighten firmly in position.
Do not use any tools other than the provided socket spanner to tighten the blade; a pneumatic or electric tool may tighten the blade more than necessary and cause the nut or the output shaft to break.
○ If worn nut and cup for blade are used, there is a danger of blade getting loose. Replace them with new one. Failure to do so could lead to an injury or serious accident, or cause a fire.

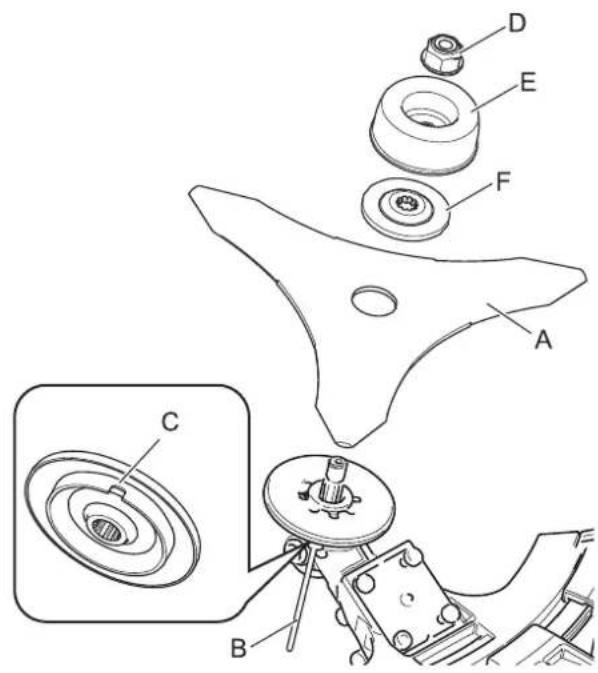

Technical diagram of a mechanical assembly with labeled parts A through F, including a detailed inset view of a circular component.

1. Inspect blades (A) before installation. Check for sharpness. Dull blades increase the risk of blade kickback reactions. Small cracks can develop into fractures resulting in a piece of blade flying off during operation. Discard cracked blades no matter how small the crack.
2. Insert locking tool (B) into a hole located on the right side of angle transmission while forcing retainer spring to the left side.
3. Insert locking tool further into blade retainer fixing slot (C) to fix output shaft.
4. Using the socket wrench, remove the nut (D), cup (E), and lower blade retainer (F).
5. Securely tighten the blade, lower blade retainer, cup, and nut by hand.

Technical line drawing of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

CAUTION

☐ Fix output shaft securely using locking tool in order to prevent it form rotating when blade is mounted. Otherwise, the blade fastening nut will not be tightened sufficiently.

1. Tighten the nut (turn anticlockwise) using a socket wrench. Never fasten while applying your weight. Otherwise the thread of nut could be broken.
2. Remove locking tool.

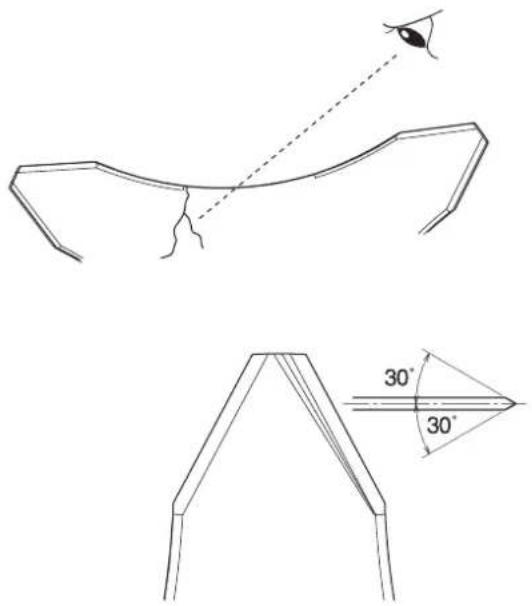

Checking the blade

Simple line drawing of a curved structure with a dashed line and an arrow pointing upward (no text or symbols)

• Use only blade designated for this model by the manufacturer.
• When a crack is noticed on the blade, do not use it but replace with a new one.
• Ensure that the blade is correctly fitted in accordance with the instructions.

30° 30°

Checking the nylon line cutting head

1 3 4 5

• When the cutting blade becomes dull due to wear reverse it for further use.
• When chip or bend occurs on the blade, vibration will increase. Replace with new one.

• When filing the blade file 3 cutting edges evenly using a flat file as shown in the illustration. Otherwise, the balance will be lost and vibration will increase.

• Make sure each periphery of the 2 retaining pawls of housing spreads almost fully up to the outer periphery of the respective cover window.

• Check mount of cutting head on trimmer and tighten if it is loose.

• Check the cutter head for deflection or abnormal noise rotating it by hand. Deflection or abnormal noise can cause abnormal vibration to occur or mount to trimmer to loosen during rotation which is dangerous.

• Inspect cover and tap knob for wear. When slot appears on bottom of the tap knob or when slot appears on cover bottom close to outlet for nylon line, replace them with new parts without fail.

• Check the cutting head for crack or chip. Replace parts that show any crack or chip with new ones without fail.

Replacing nylon line

DANGER

○ Shut down trimmer engine without fail and make sure nylon line cutting head has stopped rotating before starting replacement procedure.

To do so could lead to an accident or serious injury.

WARNING

○ Use only flexible, non-metallic line recommended by YAMABIKO Corporation.

Failure to do so could lead to an accident or serious injury.

Technical diagram showing a hand operating a mechanical component with labeled parts 1, 2, and 3.

1. Press "retaining pawls" (at two places) inward and remove cover. It is easier to remove one after another.
2. Remove spool.
3. When nylon line on the spool is almost exhausted, remove remaining line from spool and wind "new line" according to the procedures (4) and beyond. When the line on the spool is "melted and stuck" remove the entire line while peeling off the "melted and stuck" portion and wind the "removed line" anew according to procedures (4) and beyond.

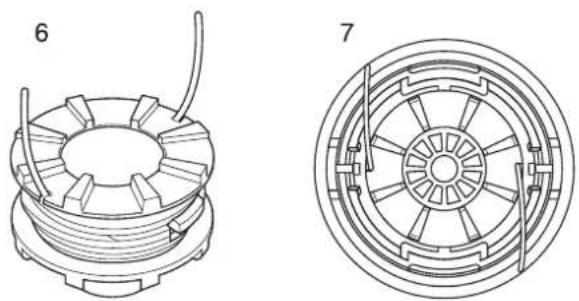

1. Bend the line at the point 12 cm away from the middle of whole length and hook the bent portion into the "notch" of the intermediate separator.

2. Wind the line firmly into groove of the spool following "winding direction for the arrow".

3. When the line is wound to the end hook both line ends into respective notch of spool for retaining tentatively the line while leaving line ends approximately 10 cm beyond notch.

4. Align notches of spool for the line with grooves of eyelets and fit spool into cover.

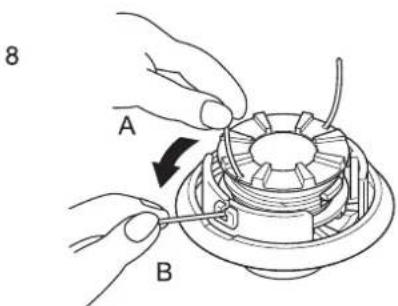

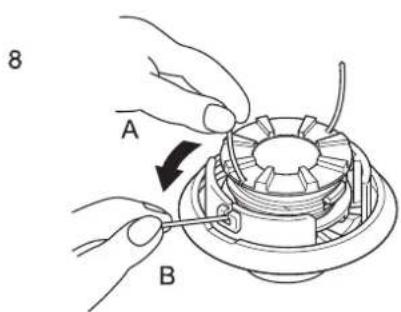

5. Pull out the line from cover. (A) Remove the line from "respective notch of spool", and (B) pass it through "groove of respective eyelet".
6. Fit cover and housing together. (C) Align "eyelets" of cover with "recesses" of housing, and (D) press pawls of housing into respective window of cover until the pawls are firmly fitted into the windows.

DANGER

Make sure each outer periphery of pawls of housing spreads almost fully up to the outer periphery of respective window of cover. If they are loosely fitted and the cutting head is turned, cover or inside components can fly off which is dangerous.

Troubleshooting table

IMPORTANT
○ For spare parts and consumables, please use only genuine parts and designated products and components.Using parts from other manufacturers or non-designated components may result in a malfunction.
Problem Diagnosis Cause Solution
The engine does not start		1. There is no fuel in the fuel tank2. The stop switch is in the Stop position3. Excess fuel suction4. Electrical fault5. Carburettor malfunction or internal sticking6. Internal engine malfunction	1. Fuel supply2. Move to the Start position3. Start the engine after servicing4. Consult your dealer5. Consult your dealer6. Consult your dealer
Engine is difficult to start, fluctuating rotation	Fuel is entering the overflow pipe	1. Fuel degradation2. Carburettor problem	1. Replace with new fuel2. Consult your dealer
	No fuel is entering the overflow pipe	1. Fuel filter is clogged2. Fuel system is clogged3. Internal carburettor parts sticking	1. Clean or replace2. Consult your dealer3. Consult your dealer
	The spark plug is dirty or damp	1. Fuel degradation2. Incorrect electrode gap3. Carbon deposits4. Electrical fault	1. Replace2. Adjust or replace3. Clean or replace4. Consult your dealer
Engine starts but no acceleration is possible		1. Dirty air filter2. Dirty fuel filter3. Blocked fuel passage4. Carburettor adjustment problem5. Blocked exhaust vent or silencer vent	1. Clean or replace2. Clean or replace3. Consult your dealer4. Adjust5. Clean
The engine stops 1.	Carburettor adjustment problem	2. Electrical fault	1. Adjust2. Consult your dealer
The engine fails to stop		1. Stop switch malfunction 1. Perform an emergency stop and consult your dealer
Cutting attachment rotates when the engine is idling		1. Carburettor adjustment problem2. Damaged clutch spring	1. Adjust2. Consult your dealer

- Consult your dealer in the event of a problem that is not covered in the table above, or other such concerns.

- Please contact your dealer in order to dispose of the product or its parts in compliance with national laws.

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
  For warranty service, find the nearest Authorised Service Dealer in our dealer locator map at www.echo australia.com.au/en_au/finder, or by calling 1300 274 447, or by emailing or writing to [e-mail] ,Briggs & Stratton Australia Pty Ltd, Locked bag 5004, St Clair, NSW 2759.

Storage

Long-term storage (30 days or more)

WARNING

Do not store in sealed locations filled with fuel gas, or close to naked flames or sparks. You could cause a fire.

When storing the product for long periods of time (30 days or more), ensure that the following preparations for storage are carried out.

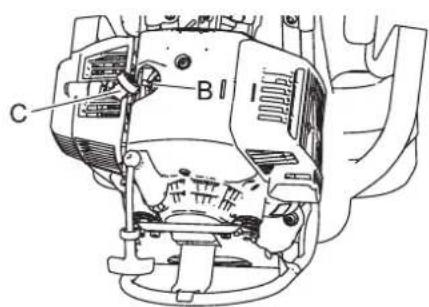

STOP A

C B I

1. Drain the fuel tank completely outdoors over bare ground. Do not drain fuel indoors.
2. Alternately press and release the purge bulb a number of times to remove the fuel from the purge bulb.
3. Start the engine and run it at idle speed until it comes to a natural stop.
4. Move the ignition switch (A) to the Stop position.
5. Once the product is sufficiently cool, wipe clean any grease, oil, dust, dirt and other materials on the outside of the trim-mer.
6. Perform the periodic checks prescribed in this manual.

7. Check that the screws and nuts are tightened. Tighten up any that are loose.

8. Remove the spark plug (B) and add the appropriate quantity (around 10 mL) of clean, new 2-stroke engine oil to the cylinder via the spark plug hole.

9. Place a piece of clean cloth over the spark plug hole.
10. Pull 2 or 3 times on the starter grip to distribute the engine oil into the cylinder.
11. Observe the piston location through the spark plug hole. Pull the recoil starter handle slowly until the piston reaches the top of its travel and leave it there.
12. Fit the spark plug. (Do not connect the spark plug cap (C).)
13. Fit the blade cover onto the trimmer blade and wrap the engine section in a plastic bag or other covering, and store in a dry, dust-free location out of reach of children.

		BP510S
External dimensions: Length × Width × Height (without cutting at- tachment)		2824 × 449 × 564 mm
Mass:Unit without fuel, cutting attachment and harness (ISO 11806-1: 2011)Unit with fuel, specified cutting attachment, guard and harnessUnit without fuel, cutting attachment, guard and harness		12.3kg13.5 kg11.9 kg
Volume: Fuel tank (full) 1070 mL
Fuel: GasolineOilMixture ratio		Regular grade petrol. Minimum 89 Octane unleaded petrol is recommended. Do not use fuel containing me-thyl alcohol or more than 10% of ethyl alcohol.ISO-L-EGD Standard (ISO 13738), JASO FC, FD grade and Shindaiwa recommended oil.50:1 part (2%)
Cutting attachment:Nylon line cutting head (Cutting swath)ThreadNylon cord size (diameter)Nylon cord length		Z-5 (430)Left-handed thread M10×1.25 pitch3.0 mm5.0 m
Gear Case: Gear ratio and lubricationRotational direction of output shaft viewed from above maximum rotational frequency of the spindle		1.33 reduction and high-temperature, long-life greaseAnticlockwise8570 r/min
Engine: TypeCarburettorMagnetoSpark plugStarterPower transmissionEngine displacementMaximum shaft brake power (ISO 8893)Fuel consumption at maximum engine powerRecommended maximum engine speed (With STD attachment in-stalled)Recommended engine idling speed		Air cooled two stroke, single cylinderDiaphragm typeFlywheel magneto - CDI systemNGK BPMR8YRecoil starterAutomatic centrifugal clutch50.2 cm32.2 kW1.23 L/h10900 r/min2800 (-100~0) r/min
Vibration (ISO 22867) ahv,eq	Left handleRight handleUncertainty K	5.3 m/s24.0 m/s21.2 m/s2
Sound pressure level (ISO 22868) LpAeq	Uncertainty KpA	99.7 dB(A)1.5 dB(A)
Sound power level (ISO 22868) LWAeq	Uncertainty KWA	111.0 dB(A)2.1 dB(A)

These specifications are subject to change without notice.

The undersigned manufacturer:

YAMABIKO CORPORATION

1-7-2 Suehirocho, Ohme, Tokyo 198-8760 JAPAN

This declaration of conformity is issued under the sole responsibility of the manufacturer.

declares that the hereunder specified new unit:

GRASS-TRIMMER/BRUSHCUTTER

Brand: shindaiwa Type: BP510S

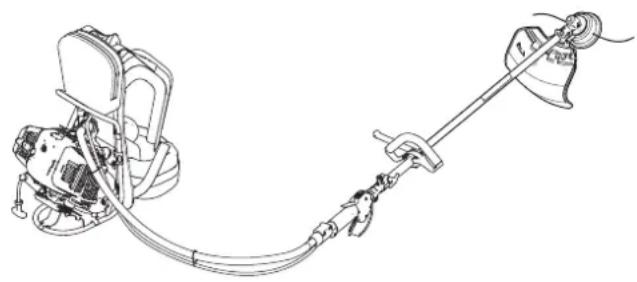

Technical line drawing of a mechanical device with hoses and a bell (no text or symbols)

complies with:

* the requirements of Directive 2006/42/EC (use of harmonized standard ISO 11806-2: 2011)
* the requirements of Directive 2014/30/EU (use of harmonized standard EN ISO 14982: 2009, EN 55012: 2007+A1: 2009)
* the requirements of Directive 2011/65/EU (use of harmonized standard EN IEC 63000: 2018)
* the requirements of Directive 2000/14/EC

Conformity assessment procedure followed ANNEX V

Measured sound power level: 111 dB(A)

Guaranteed sound power level: 114 dB(A)

Serial Number 38001001 to 38100000

U22738011001 to U22738100000

Tokyo, July 1st, 2021

YAMABIKO CORPORATION

Husahn.K

The authorized representative in Europe who is authorized to compile the technical file.

Company: CERTIFICATION EXPERTS B.V.

Address: Amerlandseweg 7, 3621 ZC Breukelen, The Netherlands

Hisashi Kobayashi Mr. Richard Glaser

General Manager

Quality Assurance Dept.

MEMORANDUM

YAMABIKO CORPORATION

1-7-2 Suehirocho, Ohme, Tokyo 198-8760 JAPAN

PHONE: [phone]. FAX: [phone].

shindaiwa®

GB

X753222-0107

MANUEL D'UTILISATION COUPE-HERBE/DÉBROUSSAIL- LEUSE

BP510S

AVERTISSEMENT

CE

LIRE ATTENTIVEMENT LES INSTRUCTIONS ET SUIVRE LES RÈGLES DE SECURITÉ. LE NON-RESPECT DES RÈGLES DE SÉCURITÉ ENTRAÎNE UN RISQUE DE BLESSURE GRAVE.

Illustration showing a prohibition symbol over food waste, with people and items like bottles, documents, and a bottle nearby.

AVERTISSEMENT

Illustration of various clothing and objects including a shirt, necklace, handbag, and no clear sign (no text or symbols present)

AVERTISSEMENT

Labeled diagram of a person wearing a helmet and standing with multiple arms and legs numbered 1 to 8

Line drawing of a medical kit, a fabric swatch, and a smartphone (no text or symbols)

Warning symbols and safety icons including warning, hazard, safety gear, and hazard signs with technical specifications.

Technical line drawing of a mechanical clamp or tool assembly with no visible text or symbols

Technical diagram of a mechanical device with numbered components, including a close-up and exploded view of the internal structure.

Technical diagram of a mechanical device with numbered parts and exploded views for assembly or maintenance.

Barre de travail

Technical line drawing of two mechanical components labeled 13 and 14, with no visible text or symbols beyond labels.

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled parts and a magnified detail view of a threaded component.

Technical diagram of a mechanical assembly with labeled parts A through F

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and assembly.

Technical diagram of a mechanical assembly with labeled parts A, B, C, D, E and an inset view of a circular component.

Technical diagram showing mechanical assembly with labeled component F and rotation arrow

A START D

F G H E H

Illustration of a person in protective gear using a handheld tool to lift a helmet (no text or symbols present)

A START D

Arrêt du moteur

STOP A B

Safety warning illustration showing no hazard and hand holding a tool, with no text labels

1

Line drawing of a person using a handheld tool to clean or spray the surface (no text or symbols)

2

Line drawing of a person wearing a hard hat and holding a long-handled tool (no text or symbols)

3

Line drawing of a person wearing a protective gear and holding a long-handled tool (no text or symbols)

4

Line drawing of a worker using a shoveling tool (no text or symbols)

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Fauchage

Illustration of a person using a pole-mounted device to lift a curved surface, with an arrow indicating upward motion (no text or symbols)

Illustration of two manual labor methods: (A) using a shoveling machine and (B) using a tool, with no visible text or symbols.

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or rotation.

Diagram showing a fence with grass, a fence with a diagonal line, and a prohibition symbol in the background.

Illustration of a person using a polel tool to lift a bucket into a circular opening, with grass and a post nearby (no text or symbols)

1. Couper de ce côté

Illustration of a worker in protective gear using a tool to lift a curved ramp, with motion arrows indicating speed (no text or symbols)

Illustration of a person using a pole to lift a small object, with an arrow indicating upward motion (no text or symbols)

Technical diagram of a mechanical assembly with labeled components A and B, showing internal components and assembly structure.

Diagram showing car air intake system with labeled components A and B, including a valve and connector

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Admission d'air

Technical line drawing of an automotive engine compartment with labeled component A (no text or symbols beyond label)

Technical diagram of a mechanical assembly with labeled parts A, B, and C

Technical line drawing of a mechanical assembly with a cylindrical shaft and housing (no text or symbols)

Illustration of two hands holding a tool with a labeled point A (no text or symbols beyond label)

Renvoi d'angle

Technical diagram of a mechanical device with labeled parts A, B, and C

C A B

Diagram illustrating a device's internal components and assembly, labeled A through E with directional arrows indicating movement.

Technical diagram of a mechanical assembly with labeled parts A through F, including a detailed inset view of a circular component.

Mechanical diagram showing a rotating component with a shaft and base, no text or symbols present

Technical diagram showing a mechanical component with angular annotations and an eye symbol, including 30° angles.

Technical diagram showing a hand operating a mechanical component with labeled parts 1, 2, and 3.

4 12 cm WIND CORD 5

Technical line drawings of a mechanical component, showing front and side views (no text or symbols)

8

A B

Diagram of a curved mechanical component with force arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with hoses and a bell (no text or symbols)

est conforme aux :

Illustration showing a person holding a bottle and a cigarette with a 'no alcohol' symbol above, surrounded by other items including bottles, documents, and a glass.

Illustration of a person's clothing including a jacket, tie, and sandal (no text or symbols)

WARNUNG

Labeled diagram of a person wearing a hard hat and standing with numbered parts for identification.

Line drawing of medical supplies including a first aid kit, a rolled document, a smartphone, and a small plug (no text or symbols)

Warning symbols and safety icons including warning, hazard, safety gear, and hazard signs with Chinese text.

Technical line drawing of a mechanical clamp and lever assembly (no text or symbols)

Technical diagram of a mechanical device with numbered components and an inset view of the engine assembly.

Technical diagram of a vacuum cleaner with labeled parts and exploded views

Antriebswelle

Technical line drawing of two mechanical components labeled 13 and 14, with no visible text or symbols beyond labels.

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating movement or force

Technical diagram showing mechanical assembly with labeled components and a magnified detail view of a threaded component.

Technical diagram of a mechanical assembly with labeled parts A through F

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and assembly.

Technical diagram of a mechanical assembly with labeled parts A through E, showing exploded view and detail view.

Technical diagram showing mechanical assembly with labeled component F and directional arrow indicating rotation or motion

A START D

F G H E H

Illustration of a person in protective gear using a handheld tool, with no visible text or symbols

A START D

Stoppen des Motors

STOP A B

Line drawing of a person using a handheld tool (no text or symbols)

2

Line drawing of a person wearing a hard hat and holding a long-handled tool (no text or symbols)

3

Line drawing of a person wearing a protective gear and holding a long-handled tool (no text or symbols)

4

Line drawing of a worker using a manual shoveling tool (no text or symbols)

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

Technical diagram of a mechanical device with numbered components and dimension annotations

Mähen

Illustration of a person using a pole to measure a small object, with an arrow indicating direction (no text or symbols)

Illustration of two manual laborers using a long-handled tool to lift or push a piece of material (no text or symbols present)

(A)
(B)

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or rotation.

Safety warning illustration showing a grid with debris and a prohibition symbol

Illustration of a person using a grassy net to cut a circular object, with a stick and tree stump nearby (no text or symbols)

Illustration of a worker in protective gear using a tool on a mechanical device (no text or symbols)

Unkraut mähen

Illustration of a person using a pole to lift a small object near a large pile (no text or symbols)

Technical diagram of a mechanical device with labeled components A and B, showing internal assembly and housing layout.

Technical diagram showing a car's internal components with labeled parts A, B, and a connector or sensor.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Luftzufuhröffnung

Technical line drawing of an automotive engine component with labeled parts (A), showing internal components and mounting brackets (no text or symbols beyond label)

Technical diagram of a mechanical assembly with labeled parts A, B, and C

Technical line drawing of a mechanical assembly with a cylindrical component inserted (no text or symbols)

Illustration of two hands holding a tool with a labeled point A (no text or symbols beyond label)

Winkelgetriebe

Technical diagram of a mechanical device with labeled parts A, B, and C

C A B

Diagram showing exploded view of a device with labeled parts A, B, C, D and component E, including a circular diagram with a steering wheel.

Montage des Messers (option)

Technical diagram of a mechanical assembly with labeled parts A through F, including a detailed inset view of a circular component.

Mechanical diagram showing a rotating component with a shaft and base, no text or symbols present

Simple line drawing of a human head with an eye and dashed line indicating sight (no text or symbols)

30° 30°

Technical diagram showing a hand operating a mechanical component with labeled parts 1, 2, and 3.

4 12 cm WIND CORD 5

Technical line drawings of two mechanical components, one showing a circular assembly with internal blades and a labeled part (6), the other a detailed top view (7) with internal structure.

8 A B

Diagram of a curved mechanical component with force arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical device with hoses and a lever (no text or symbols)

Illustration of a person's clothing including a shirt, necklace, handbag, and tennis racket (no text or symbols)

Labeled diagram of a person wearing a helmet and standing with eight numbered parts for identification.

AVVERTENZA

Line drawing of a medical kit with a bandage, a smartphone, and a small plug (no text or symbols)

Warning symbols and safety icons including warning, hazard, contact, and no-contact conditions

Technical line drawing of a mechanical clamp or pump assembly with hoses and components (no text or symbols)

Technical diagram of a mechanical device with numbered components and an inset view of the engine assembly.

Technical diagram showing exploded view of a mechanical device with numbered parts and corresponding close-ups of labeled components.

Technical line drawing of two mechanical components labeled 13 and 14, with no visible text or symbols beyond labels.

K M J L O N I

Technical diagram of a mechanical assembly with hoses and a magnified inset showing a threaded component (no text or symbols present)

Technical diagram of a mechanical device with labeled parts A through F

Technical diagram of a mechanical device with labeled parts A and B, showing internal components and assembly.

Technical diagram of a mechanical assembly with labeled parts A, B, C, D, E and an inset view of a circular component.

Technical diagram showing mechanical assembly with labeled component F and directional arrow indicating rotation or motion

A START D

F G H E H

Illustration of a person in protective gear using a handheld tool to lift a helmet (no text or symbols present)

A START D

Arresto del motore

A STOP B

Safety warning illustration showing no hazard and two hand positions with a circular symbol

1

Line drawing of a person using a manual shaver (no text or symbols)

2

Line drawing of a person in protective gear holding a long-handled tool (no text or symbols)

3

Line drawing of a person wearing a protective gear and holding a long-handled tool (no text or symbols)

4

Line drawing of a worker using a shoveling tool (no text or symbols)

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Falciatura

Illustration of a person using a handheld device to measure a circular object, with an arrow indicating direction (no text or symbols)

Illustration of two manual labor tools (A and B) showing different positions and angles, with no visible text or symbols.

Diagram showing a mechanical device with labeled parts 1 and 2, indicating a rotating mechanism or assembly.

Safety warning illustration showing a fence with debris and a prohibition symbol

Illustration of a person using a grass power saw to lift a bucket into a net, with a wooden post nearby (no text or symbols)

Illustration of a worker in safety gear using a mechanical device with motion arrows (no text or symbols)

Illustration of a person using a pole-mounted device to lift a large object, with an arrow indicating upward motion (no text or symbols)

Technical diagram of a mechanical device with labeled components A and B, showing internal assembly and component layout.

Diagram showing car air intake system with labeled components A, B, and a valve-like component

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Presa d'aria

Technical line drawing of an automotive engine component with labeled parts (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts A, B, and C

Technical line drawing of a mechanical assembly with a cylindrical component and a shaft (no text or symbols)

Illustration of two hands holding a tool with a labeled point A (no text or symbols beyond label)

Technical diagram of a mechanical device with labeled parts A, B, and C

C A B

1. Serrare a 15 N·m - 17 N·m (150 kgf·cm to 170 kgf·cm).

Diagram illustrating a device's internal components and assembly, labeled A through E with directional arrows indicating movement.

Technical diagram of a mechanical assembly with labeled parts A through F, including a detailed inset view of the component.

Technical line drawing of a mechanical component with rotation arrow (no text or symbols)

Verifica della lama

Technical diagram showing a mechanical part with an eye and a 30-degree angled cut, including dimension lines.

Technical diagram showing a hand operating a mechanical component with labeled parts 1, 2, and 3.

4 12 cm 5 WIND CORD

Technical line drawings of two mechanical components, one showing a circular assembly with internal blades and a labeled part (6), the other a detailed top view (7) with no visible text or symbols.

8 A B

Technical line drawing of a mechanical device with hoses and a lever (no text or symbols)

è conforme a:

da U22738011001 a U22738100000

Illustration showing a prohibition symbol over food waste, with people and items like bottles, documents, and a bottle nearby.

ADVERTENCIA

Illustration of clothing items including a shirt, shorts, a tie, a no-smoking symbol, and a pair of shoes (no text or labels)

Póngase indumentaria protectora

Labeled diagram of a person wearing a helmet and standing with eight numbered parts for identification.

Line drawing of a first aid kit, medical device, and smartphone (no text or symbols)

Warning symbols and safety icons including warning, hazard, safety gear, and hazard signs with technical specifications.

Technical line drawing of a mechanical clamp or pump assembly with no visible text or symbols

Technical diagram of a mechanical device with numbered components and an inset view of the engine assembly.

Technical diagram of a mechanical device with numbered parts and exploded views for assembly or maintenance.

Technical line drawing of two mechanical components labeled 13 and 14, with no visible text or symbols beyond labels.

K M J L O N I

Technical diagram of a mechanical assembly with hoses and a magnified inset showing a threaded component (no text or symbols present)

Technical diagram of a mechanical device with labeled parts A through F

Technical diagram of a mechanical device with labeled parts A and B, likely for assembly or maintenance instructions.

Technical diagram of a mechanical assembly with labeled parts A through E, showing exploded view and detail view.

Technical diagram showing mechanical assembly with labeled component F and directional arrow indicating rotation or motion

A START D

F G H E H I

Illustration of a person in protective gear using a handheld tool to lift a helmet (no text or symbols present)

Arranque de un motor caliente

A START D

Parada del motor

A STOP B

Safety warning illustration showing no hazard and hand holding a tool, with correct and incorrect signs.

Line drawing of a person using a manual shaver (no text or symbols)

2

Line drawing of a person wearing a hard hat and holding a long-handled tool (no text or symbols)

3

Line drawing of a person wearing a hard hat and holding a long-handled tool (no text or symbols)

4

Line drawing of a worker using a shoveling tool (no text or symbols)

Technical diagram illustrating a mechanical assembly process with labeled components and directional arrows

Technical diagram of a mechanical device with numbered components and dimension annotations

Siega

Illustration of a person using a tool to measure a circular object, with an arrow indicating direction (no text or symbols)

Illustration of two manual labor tools (A and B) showing different positions and motion patterns, with no visible text or symbols.

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or flow.

Diagram showing a fence with grass, a fence with a diagonal line, and a prohibition symbol with a circle.

Illustration of a person using a tool to clean grass with a circular object nearby (no text or symbols)

Illustration of a person in protective gear using a tool to lift a curved pipe (no text or symbols)

Illustration of a person using a pole to lift a small object, with an arrow indicating upward motion (no text or symbols)

Technical diagram of a mechanical device with labeled components A and B, showing internal components and assembly.

Diagram showing car safety components with labeled parts A and B, including a connector and cable connection.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of an automotive engine compartment showing internal components and directional arrows (no text or labels)

Entrada de aire

Technical line drawing of an automotive engine compartment with labeled component A (no text or symbols beyond label)

Technical diagram of a mechanical assembly with labeled parts A, B, and C

Technical line drawing of a mechanical assembly with a cylindrical component inserted (no text or symbols)

Illustration of two hands holding a tool with a labeled point A (no text or symbols beyond label)

Technical diagram of a mechanical device with labeled parts A, B, and C

C A B

Diagram illustrating the process of a device's internal components, showing labeled parts A, B, C, D and a warning symbol for mechanical assembly.

Technical diagram of a mechanical assembly with labeled parts A through F, including a detailed inset view of the component C.

Mechanical diagram showing a rotating component with a shaft and base, no text or symbols present

Diagram of a human head with a dashed line indicating the eye and a dashed line showing the eyelid (no text or labels)

30° 30°

PRECAUCIÓN

Technical diagram showing mechanical assembly steps with labeled components 1, 2, and 3

4 12 cm WIND CORD 5

Technical line drawings of a mechanical component, showing cross-sectional and top views (no text or symbols)

8

A B

CORTABORDES/DESBROZADORA

Marca: shindaiwa Tipo: BP510S

Technical line drawing of a mechanical device with hoses and a bell (no text or symbols)

cumple con:
