Product type	Digital dual kitchen timer
Brand	ADE
Model	KT101
Power supply	2 LR03/R03 (AAA) batteries, 1.5 V
Number of batteries	2
Rated current	25 mA
Display	Digital (minutes and seconds)
Timer range	0 to 99 h 59 min 59 s
Main functions	Dual timer (T1/T2), stopwatch, memory (recordable duration)
Sound volume	Adjustable: HIGH, LOW, OFF
Attachment	Magnets on back, foldable hanging eyelet, foldable stand
Material	Plastic
Approximate dimensions	7 x 7 x 3 cm (estimated)
Approximate weight	100 g (with batteries, estimated)
Color	White / Black (not specified)
Cleaning	Dry or slightly damp cloth; do not immerse
Safety	Do not immerse, keep batteries away from children, respect polarity
Warranty	2 years (material and manufacturing defects)
Repairs	Only by a specialized workshop; do not modify components
Package contents	Timer, 2 AAA batteries, instruction manual
Disposal	Electronic device: take to recycling center; batteries: collection point
Declaration of conformity	Directives 2014/30/EU and 2011/65/EU

Frequently Asked Questions - KT101 ADE

How to set the quick timer?

Select T1 or T2 with the selection keys, then use the HR, MIN and SEC keys to set the duration. Press START/STOP to start the countdown.

How to use the stopwatch?

Select T1 or T2, press START/STOP to start. Press again to stop. To reset, stop then press HR and MIN simultaneously.

How to save a duration in memory?

Select T1 or T2, stop and reset. Hold down the M button until the display flashes, set the duration then press M to save. To recall, press M then START/STOP.

How to change the sound volume?

Use the slide switch on the side of the device. Three positions: HIGH (loud), LOW (low), OFF (no sound, only visual flashing).

What to do if the device does not turn on?

Check that the batteries are not discharged or inserted incorrectly. Replace with two new LR03/R03 (AAA) batteries respecting polarity (+/-).

How to attach the timer to a surface?

You have three options: use the magnets on the back on a metal surface (e.g., refrigerator), fold the hanging eyelet to hang on a nail, or unfold the stand to place on a work surface.

What is the maximum duration that can be set?

The maximum duration is 99 hours, 59 minutes and 59 seconds for timer and stopwatch.

How to reset a timer or stopwatch?

First stop with the START/STOP button, then press the HR and MIN buttons simultaneously to reset the display.

How to clean the timer?

Use a dry, soft cloth to remove dust, or a slightly damp cloth. Never immerse the device in water and do not use harsh chemicals.

Where to dispose of used batteries?

Batteries should not be thrown away with household waste. Drop them off at a collection point for batteries in your area or return them to your retailer.

USER MANUAL KT101 ADE

ADE 0:00:00 0:00:00 M NR MIN SEC START STEP CLEAR

Bedienungsanleitung

KT101

Operating Manual | Manual de instrucciones | Mode d'emploi | Istruzioni per l'uso | Instrukcja obsługi

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Simple black lowercase 'i' inside a circle, no text or symbols present

37:23:28 91:56:45 M HR MIN SEC START STOP CLEAR

9 10 11 12 OPEN

2x LR3/R03 (AAA), 1,5 V ---

22143 Hamburg, Germany

You have chosen to purchase a high-quality product, which combines intelligent functions with an exceptional design. This timer is a practical companion private households or professionals. Our wealth of experience ensures a high technical standard and proven quality.

We wish you a lot of success with perfect time management!

Your ADE Team

General information

About this operating manual

Simple icon of a person using a laptop inside a circle (no text or symbols)

This operating manual describes how to operate and maintain your product safely.

Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well. Failure to observe this operating manual may result in injuries or damage to your product.

Pull the protective film off the display.

Explanation of symbols

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol combined with the word DANGER warns of serious injuries.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol combined with the word WARNING warns of moderate and mild injuries.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol combined with the word NOTE warns of material damage.

Simple black information icon inside a circle (no text or symbols)

This symbol indicates additional information and general notes.

Table of Contents

General information ......27

Safety....30

Intended use....33

Overview....34

Scope of delivery....36

Start-up 36

Securing the timer....37

Using the timer 38

Using the stopwatch function ....40

Memory function....41

Other functions ....42

Cleaning....43

Fault and remedy 44

Technical data 44

Declaration of conformity ....45

Warranty 46

Disposal 46

Safety

- This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.

• Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries, when swallowed, can be life-threatening. Keep the product and batteries out of reach of small children. If batteries have been swallowed, seek medical help immediately.

DANGER for children

- Keep children away from packaging material. There is a risk of choking if swallowed.

RISK of fire/burning and/or explosion

• There is a risk of explosion if the battery is replaced improperly. Replace batteries only with the same or equivalent battery type. Observe the “Technical data”.
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape!
• Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor.

BEWARE of material damage

• Protect the timer from strong shocks, vibrations, and moisture.
• Remove the batteries from the product if they are depleted or if the timer is not to be used for a while. This prevents damage that may be caused by leakage.
• When inserting and changing batteries, pay attention to the correct polarity (+/-).

• Do not expose the batteries to extreme conditions, for example, by storing them on radiators or under direct sunlight. Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.

• Do not make any changes to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user.

Intended use

The digital timer is designed as a timer for private use.

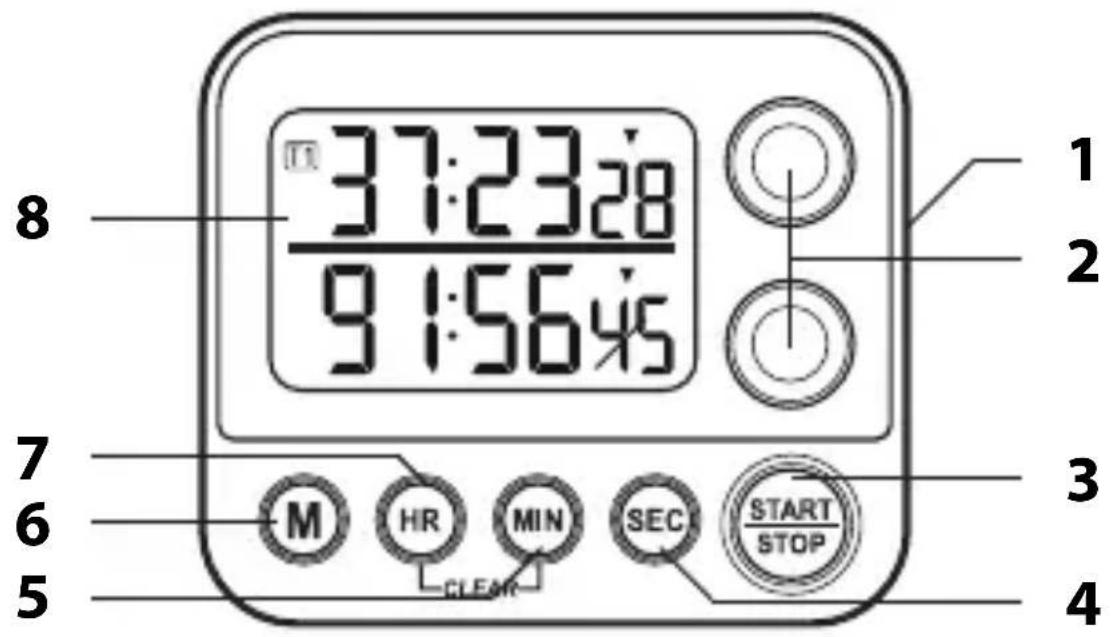

Overview

37:23:28 91:56:45 M HR MIN SEC START STOP CLEAR

1 Beep volume button
2 Timer selection buttons with LED for T1 or T2
3 START/STOP button
4 SEC button
5 MIN button
6 M button
7 HR button
8 Display showing minutes and seconds

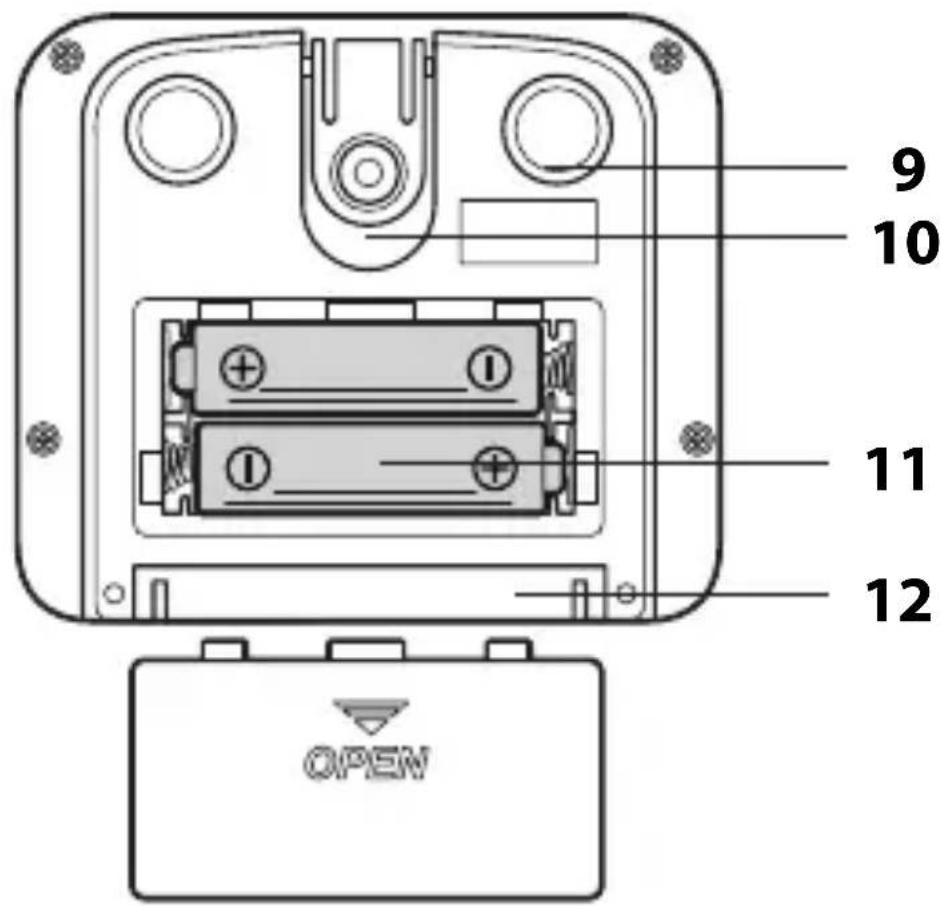

9 10 11 12 OPEN

9 2x wall mount magnets
10 Foldable hanging loop
11 Battery compartment LR03/R03 (AAA)
12 Foldable stand

Scope of delivery

Timer
- 2x 1.5 V LR03/R03 (AAA) batteries
- Operating Manual

Start-up

Inserting/changing the battery

1. Slide the battery compartment cover towards OPEN and remove it.

2. Insert the batteries as shown on the bottom of the battery compartment. Observe the correct polarity (+/-).

3. Replace the battery compartment cover. Notes on changing the battery:

- You need to change the batteries if the display shows nothing.

- Only use the battery type specified in the "Technical Data".

• Always change all batteries at once.
• Dispose of old batteries in an environmentally friendly manner, see "Disposal".

Securing the timer

NOTE on material damage

Do not slide the timer over the surface as this could cause scratches.

• Attach the timer with the magnet on its back to a metallic surface such as a fridge door.
• Alternatively, hang the timer on a nail in the wall using the foldable hanging loop.
• Third option: set up the timer on a countertop using the foldable foot.

Using the timer

When timing, you start a countdown. The timer enables to perform two measurements simultaneously, which are set and operated in exactly the same way.

Max. adjustable time: 99 hours, 59 minutes and 59 seconds.

1. Use the timer selection buttons to toggle the display between "T1" or "T2" (follow the display).
2. Use HR, MIN, and SEC to set the duration of the short-time measurement.
   Keeping HR, MIN or SEC pressed speeds up the progress of displayed values.
3. Press START/STOP to start the timer.
   The edging of the respective timer selection button flashes green.
   Once the set time has elapsed, the timer will beep for approx. 1 minute.

The edging of the respective timer selection button flashes red.

1. Press START/STOP to interrupt beeps or flashing, or wait approx. 1 minute until the timer automatically stops to beep.

Instructions for use:

• Via START/STOP you can interrupt the countdown at any time and then start it running again.
• To reset the timer back to zero, press START/STOP to stop it and then press HR and MIN simultaneously.
• Symbol displayed during countdown.

Using the stopwatch function

The timer enables to perform two measurements simultaneously, which are handled in exactly the same way.

Max. time measurement: 99 hours, 59 minutes and 59 seconds.

1. Use the timer selection buttons to toggle the display between T1 or T2 (follow the display).

2. Press HR and MIN simultaneously to reset the display to zero.

3. Press START/STOP to start the timer.

Instructions for use:

• With START/STOP you can interrupt the timer at any time and resume it.

• To reset the display back to zero, press START/STOP to stop the timer and then press HR and MIN simultaneously.

• Symbol displayed while the timer is running: ▲.

• Seconds are displayed as 1/100 only in the first hour of timing, then as whole seconds.

Memory function

If you often use the same time period for a countdown, you can save it and call it up later with the push of a button.

You can save a different duration for each timer.

1. Use the timer selection buttons to toggle between "T1" or "T2" (follow the display).
2. You can interrupt the running timer with START/STOP and reset it to zero with HR and MIN.

3. Keep the M button pressed until the display flashes.

4. Use HR, MIN and SEC to set the time period you wish to save.

5. Press the M button to save the settings. To call up the setting at a later time:

6. Select the timer ("T1" or "T2").

7. Press M.

8. Press START/STOP.

To delete the M value:

1. Display the M value.

2. Press HR and MIN simultaneously.

3. Enter a new value, if necessary, and press M.

Other functions

Combining functions

You can also combine the “Short-time measurement” and “Stopwatch” functions by performing a short-time measurement with

Timer 1 and using the stopwatch function with Timer 2 at the same time.

-Proceed as described in the respective sections.

Adjusting the beep volume

- Use the slide switch on the side to set the desired beep volume:

HIGH - maximum volume

LOW - low volume

OFF - no beeping, only visual display with the edging of the selection buttons for timer 1 or 2 flashing red.

Cleaning

NOTE on material damage

Do not immerse the timer in water or other liquids. Do not use rough, scratching or abrasive cleaning agents.

- If necessary, remove dust with a soft, dry cloth, or wipe with a slightly damp cloth.

Fault and remedy

No function.

- Are the batteries empty or inserted the wrong way around?

The START/STOP button seems to have no function.

- Probably, both timers are running. First press the timer selection button, then press START/STOP.

Technical data

Model: KT101digital dual kitchen timer

Battery:

2x LR3/R03 (AAA), 1.5 V

Rated current: 25 mA

Distributor (no service address):

ADE Germany GmbH

Neuer Höltigbaum 15

22143 Hamburg, Germany

Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.

Declaration of conformity

ADE Germany GmbH hereby declares that the KT101 digital dual kitchen timer complies with Directives 2014/30/EU and 2011/65/EU.

The declaration will lose its validity if any modification is made to the device without our consent.

Hamburg, March 2022

ADE Germany GmbH

Warranty

ADE Germany GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange. In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Dispose of the packaging according to type. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot. For more information, contact your local waste disposal firm or your local administrative body.

Standard and rechargeable batteries should not be disposed of along with household waste

All batteries and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such batteries and rechargeable batteries can thus be disposed of in an environmentally friendly way.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Simple black lowercase 'i' inside a circle, no text or symbols present

37:23:28 91:56:45 M HR MIN SEC START STOP CLEAR

9 10 11 12 OPEN

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

37:23:28 91:56:45 M HR MIN SEC START STOP CLEAR

9 10 11 12 OPEN

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Simple black lowercase 'i' inside a circle, no text or symbols present

37:23:28 91:56:45 M HR MIN SEC START STOP CLEAR

9 10 11 12 OPEN

37:23:28 91:56:45 M HR MIN SEC START STOP CLEAR

9 10 11 12 OPEN
