AF3 - Effect machine Antari - Free user manual and instructions

Product type	Special effects fan
Brand	Antari
Model	AF-3
Power supply	AC 100-120 V / 220-240 V, 50/60 Hz
Power consumption	100 W
Max airflow	900 m³/h (50 Hz) / 1020 m³/h (60 Hz)
Fan speed	750-2550 rpm (50 Hz) / 750-2800 rpm (60 Hz)
Dimensions (W x H)	332.9 x 370 mm
Weight	6.3 kg
Control modes	Manual, wireless (AF-3R/AF-3XR), DMX (1 or 2 channels), Z-3 remote (optional)
DMX connectors	XLR 3 and 5 pins
Remote connector	3.5 mm jack
Power output	Powercon (except AF-3X)
LED indicator	Green (standby), Orange (running)
Use	Indoor use only
Safety	Adult use, do not insert objects, avoid water splashes, do not block openings
Included accessories	Wireless remote (AF-3R/AF-3XR models)
Optional accessories	Z-3 remote

Frequently Asked Questions - AF3 Antari

How to adjust the fan speed manually?

Use the rotary switch on the machine. Turn it between the minimum (-) and maximum (+) positions to adjust the speed. The LED turns green in standby and orange when the fan is running.

How to use the wireless remote (AF-3R / AF-3XR models)?

Make sure DIP switch 10 is set to ON. Press the A button on the remote to turn on the fan, and the B button to turn it off. The speed is adjusted with the rotary switch.

How to pair a new wireless remote?

Power on the machine, set DIP switch 10 to OFF then ON. The LED flashes for about 10 seconds. During this time, press the A or B button on the remote to be paired. The green LED flashes to confirm.

What DMX control modes are available?

The unit can operate in 1-channel mode (0-5 stop, 6-255 linear speed) or 2-channel mode (0-127 stop, 128-255 on). The mode is selected via DIP switch 11.

How to set the DMX address?

Use DIP switches 1 to 9 to set the address in binary (values 1, 2, 4, 8, 16, 32, 64, 128, 256). DIP switch 10 enables/disables the wireless connection, and DIP 11 selects 1 or 2-channel mode.

Can I use the unit outdoors?

No, the unit is designed for indoor use only. Do not expose it to rain or water splashes.

What accessories are available for this fan?

Accessories include a wireless remote (supplied with AF-3R and AF-3XR models) and a Z-3 wired remote (optional). The unit also has a Powercon output to power another device.

What does the LED indicator mean?

The LED is green when the unit is in standby, and orange when the fan is running.

What is the maximum power consumption?

The power consumption is 100 W, at 120 V or 230 V.

Can I daisy-chain multiple fans?

Yes, thanks to the Powercon output (except on the AF-3X model), you can power a second device. Make sure to respect the total allowable power.

USER MANUAL AF3 Antari

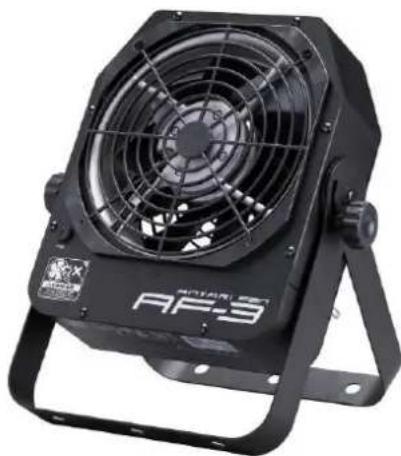

Compact Special Effects Fan User Manual

Black industrial fan with visible blades and mounting bracket (no text or symbols)

Congratulations on the purchase of your new Antari AF-3 Compact Special Effects Fan. Prior to use, we suggest that you carefully read all of the instructions. By following the suggestions found in this user manual, you can look forward to the reliable and satisfactory performance of your Antari AF-3 Compact Special Effects Fan for years to come.

Caution

1. Operate only with adult supervision.
2. Keep hands off and do not insert any objects into the fan.
3. This fan is not water-resistant. Avoid splash water.
4. Unplug the machine when it is not in use or unattended.
5. Prevent the vents from being blocked by anything.

Wind Speed Control

The wind speed of the fan can be adjusted linearly using the rotary switch, the wireless remote control, or a DMX controller.

1. Manual Control

Manual Control Knob

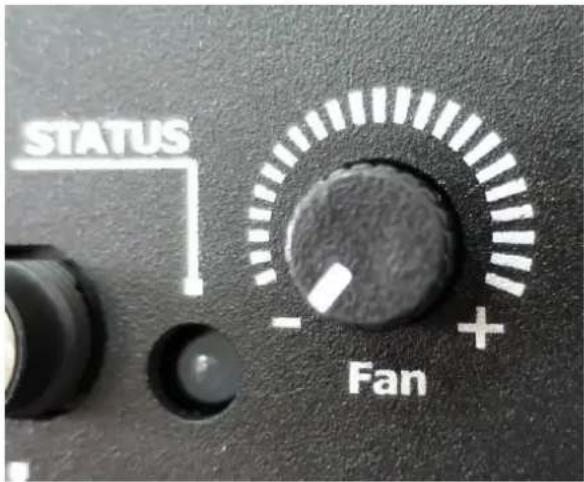

For manual control, turn the rotary knob to linearly adjust the wind output from minimum (-) to maximum (+).

The flashing green light indicates the fan is in stand-by state. When the orange light is on, the fan is running.

2. Wireless Control (For AF-3R and AF-3XR versions only)

Close-up of a metallic wireless remote control device with no visible text or symbols on the body.

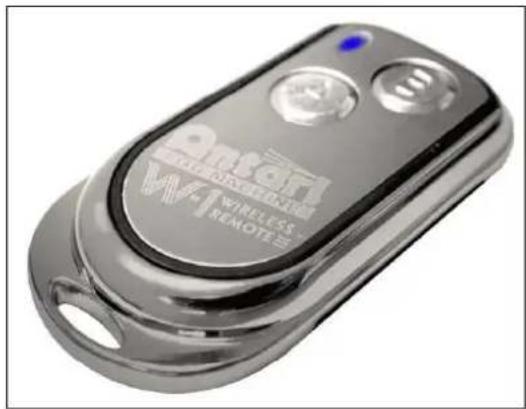

W-1 Wireless Remote Control

Black plastic object with a curved top and side slot, no visible text or symbols

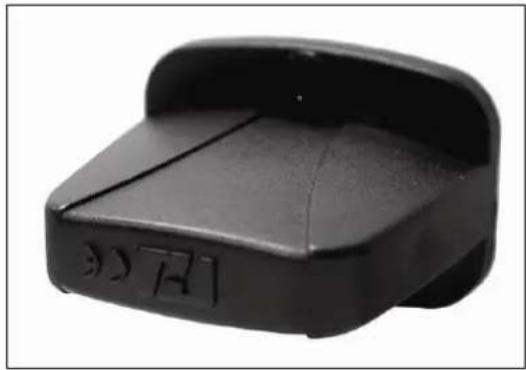

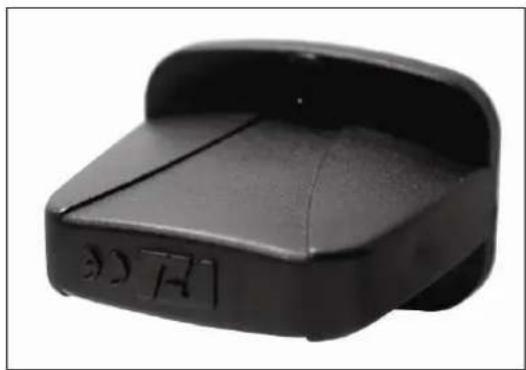

Receiver

For wireless remote control, set DIP switch no. 10 to position ON.

All wireless transmitters included in the boxes, have been paired with the wireless receiver during production at the factory. Users can press button A on the transmitter to run the fan. Pressing button B stops the fan. Please note, under wireless remote control mode, the wind output is still controlled by the rotary knob.

If you wish to pair additional wireless transmitters on the same fan, please follow the instructions below:

1. Plug in the fan.
2. Set DIP switch no. 10 to position OFF.
3. And then set DIP switch no. 10 to position ON. At this moment, the red light is on for about 10 seconds. During the 10 seconds, you can press any button (A or B) on the transmitter to pair it. When the wireless receiver has the signal, the green light will flash to confirm the registration.
4. When the light starts flashing green, the wireless transmitters are good to go.

Please note that wireless remote function is optional, and it is only applicable to AF-3R or AF-3XR versions.

Z-3 Remote Control Operation (Optional)

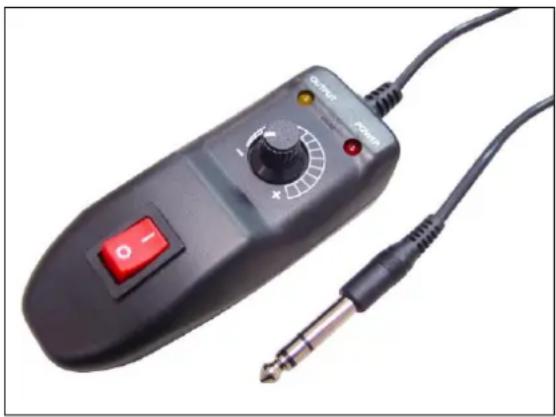

To operate the machine by remote control, connect the remote to the microphone jack located on the rear of machine. Use the switch to turn wind on/off, and use the rotary knob to adjust the output volume from 0\~100%.

Close-up of a black analog oscilloscope with a red switch and power cord, connected to a black cable (no visible text or symbols)

3. DMX Control

DMX Connector Pin Assignment

The machine provides 3-pin or 5-pin XLR connectors for DMX connection. Please advise the DMX specifications requested while ordering. The diagram below indicates pin assignment information.

3 Pin XLR

5 Pin XLR

Pin	Function
1	Ground
2	Data-
3	Data+

The machine uses one DMX channel for adjusting the fan speed.

DMX setting:

DMX value	Function
0~5	Fan off
6~254	Speed up linearly
255	Maximum speed

DMX control will override both manual and wireless control functions.

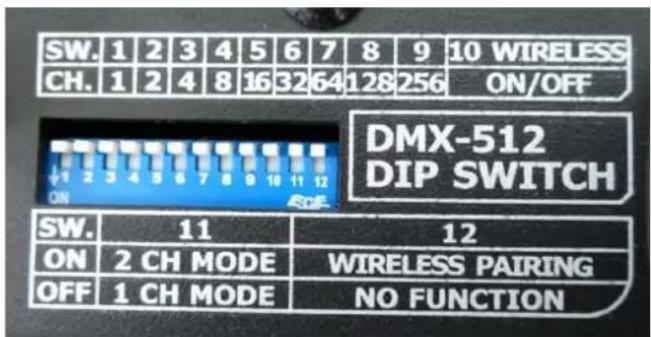

DMX addressing by DIP switches:

DIP	1	2	3	4	5	6	7	8	9	10
Ch.	1	2	4	8	16	32	64	128	256	Wireless pairing, control on/off

SW.	11	12
ON	2 CH Mode	Wireless Pairing
OFF	1 CH Mode	No Function

4. Optional Remote Control

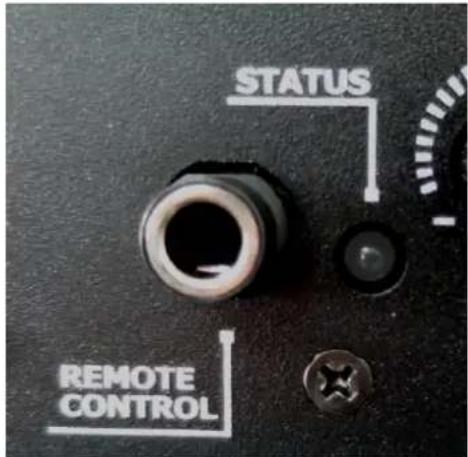

There is a 1/4 inch jack socket available on each AF-3 fan. This allows users to choose optional Z-3 remote to control the wind output.

Power Output Connector

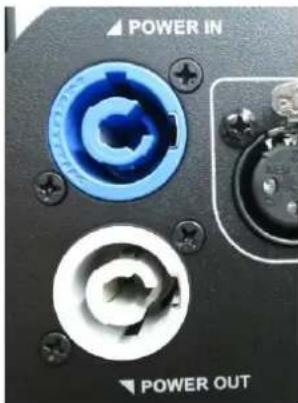

The AF-3 features a Powercon output connector (not available for model AF-3X) for the joint application with another effect machine without occupying an extra electric socket.

Technical Specifications

Model	AF-3 / AF-3R
Voltage	AC-100V/120V/220V/230V/240V, 50Hz-60Hz
Power Consumption	AC-120V/230V, 100W
Maximum Airflow	900m3/hr, 530CFM (50Hz)1020m3/hr, 600CFM (60Hz)
Fan Speed	750~2550 rpm (50Hz)750~2800 rpm (60Hz)
DMX Mode	1 Channel (0-5 Off, 6-255 speed up linearly)2 Channel (0-127 Off, 128-255 On)
Dimensions (mm)	332.9 (W) x 370 (H)
Weight	6.3 kg

*Please read and save these instructions*

ANTARI FAN AF-3

Antari AF-3 Compact Special Effects Fan Mode d'emploi

Close-up of a metallic remote control device with visible branding and buttons (no readable text beyond branding)

Black plastic object with engraved markings, no visible text or symbols

Récepteur

Close-up of a black analog ammeter with control knob and external cord (no visible text or symbols)

3. Opération DMX

Configuration de la connexion DMX

Close-up of a metallic remote control device with visible branding and buttons (no readable text beyond branding)

Black plastic object with engraved markings, no visible text or symbols

Empfänger

Close-up of a black analog oscilloscope with a red switch and power cord, connected to a black cable (no visible text or symbols)

3. DMX-Steuerung

Close-up of a metallic remote control device with visible branding and buttons (no readable text beyond branding)

W-1 無線發射器

Black plastic object with a curved top and rectangular base, no visible text or symbols

無線接收器

Close-up of a black analog electrical device with a switch, power cord, and cable (no visible text or symbols)

3. DMX 控制：

DMX 連接 Pin 的接點說明

For current product information visit Antari at:www.antari.com For information requests please contact us at:[e-mail]
