HMM5400W - Hand blender BEKO - Free user manual and instructions

Product type	Hand blender (electric mixer)
Brand	Beko
Model	HMM5400W
Power supply	220-240 V~, 50/60 Hz
Power	425 W
Main functions	Beating, kneading
Adjustable speeds	4 levels (1-4) + Turbo function
Included accessories	2 beaters, 2 dough hooks
Accessory release button	Yes
Removable motor unit	Yes
Accessory material	Metal with coating
Use	Household only
Maximum capacity (dough)	Not specified (suitable for light batters)
Continuous operation time	10 seconds max (beating), 2 minutes max (kneading)
Cooling time between cycles	1 minute
Cleaning the motor unit	Damp cloth
Cleaning accessories	Dishwasher safe (mild detergent)
Safety	Do not immerse, do not use with hot foods, do not use non-recommended accessories
Protection class	Class II (double insulation)
Compliance	WEEE, RoHS, recyclable packaging
Country of manufacture	Not specified (Turkey likely)
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - HMM5400W BEKO

Can I blend hot foods with this blender?

No, do not use the appliance to process hot foods. Wait for them to cool before blending.

How long can I use the blender continuously?

For beating, do not exceed 10 seconds of continuous use. For kneading, maximum 2 minutes. Allow 1 minute cooling between cycles.

How to clean the accessories?

The beaters and dough hooks can be hand washed or placed in the dishwasher with mild detergent. The motor unit should be wiped with a damp cloth.

Can I use the beaters and hooks at the same time?

No, use the beaters OR the hooks. The two sets of accessories should not be used simultaneously.

What if the blender does not start?

Check that the plug is connected and the speed setting button is not at 0. If the problem persists, contact an authorized service center.

Can I chop dry or hard foods?

No, this appliance is not suitable for chopping dry or hard foods. Use it only for soft or liquid ingredients.

How to use the Turbo function?

Press and hold the Turbo button for maximum speed. Do not use it for more than one minute continuously.

What types of containers can I use?

Use a suitable container, preferably non-teflon coated to avoid scratches. Place it on a flat and stable surface.

How to detach the accessories?

Ensure the appliance is turned off and unplugged. Press the accessory release button (4) and gently remove them.

Can children use this blender?

No, this appliance should not be used by children. Keep the appliance and cord out of reach of children.

USER MANUAL HMM5400W BEKO

White and blue beiko electric mixer with whisk, no visible text or symbols on body

HMM5400W

EN MK SQ FR SR

PL DE IT RO

01M-8835033200-2217-05

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Meanings of the symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING:Warnings for dangerous situations concerning the safety of life and property.

Suitable for contact with food.

Do not immerse the appliance in water

Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

CONTENTS

ENGLISH	04-12
MAKEДОНСКИ	13-23
SHQIPTARE	24-33
FRANÇAIS	34-45
СРБИН	46-55
POLSKI	56-70
DEUTSCH	71-82
ITALIANO	83-94
ROMÂNĂ 95-107

1

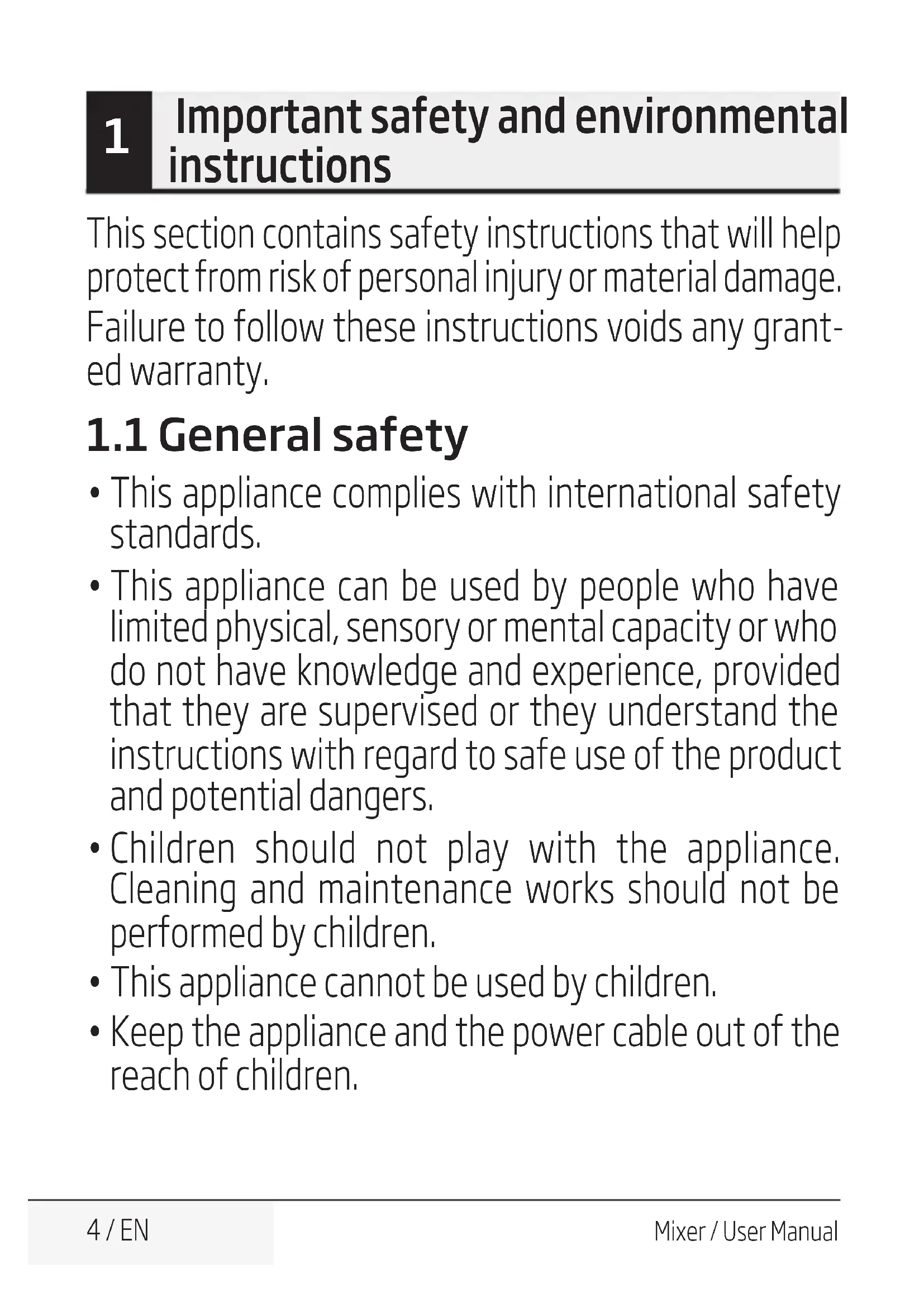

Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage. Failure to follow these instructions voids any granted warranty.

1.1 General safety

• This appliance complies with international safety standards.
• This appliance can be used by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers.
• Children should not play with the appliance. Cleaning and maintenance works should not be performed by children.
• This appliance cannot be used by children.
• Keep the appliance and the power cable out of the reach of children.

1

Important safety and environmental instructions

• Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.
• Only use the original parts or parts recommended by the manufacturer.
• Do not attempt to dismantle the appliance.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• Do not use the appliance with an extension cable.
• Do not pull the power cable when unplugging the appliance.
• Unplug the appliance when left unattended and wait for it to stop completely while installing/removing accessories or before cleaning.
• Do not touch the plug of the appliance with damp or wet hands.
• Do not use the device for hot food.
• This appliance is not suitable for dry or hard foods.

1

Important safety and environmental instructions

• To prevent overheating, do not use the appliance continuously for more than 10 seconds. Leave to cool for 1 minute in between each 10 seconds of operation.
• To prevent overheating, do not use mixing with spirals continuously for more than 2 minutes. Leave to cool for 1 minute in between each 2 minutes of operation.
• Use the appliance only with the supplied base and container.
• Do not operate the appliance without the ingredients in the bowl.
• Remove bones and stones from food to prevent the blades and the appliance from getting damaged.
• This appliance is not suitable for dry or hard foods as this will quickly cause the blades to become dull.
• Follow all warnings to prevent injuries due to incorrect use.
• When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use. Use the plastic section trying to hold the chopping blade.

1

Important safety and environmental instructions

• After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
- Do not immerse the appliance, power cable, or power plug in water or any other liquids.
- Do not operate or place any part of this appliance or its parts on or near hot surfaces.
- If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1

Important safety and environmental instructions

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.5 Things to do for energy saving

Switch off and unplug the appliance after using it.

2 Your Mixer

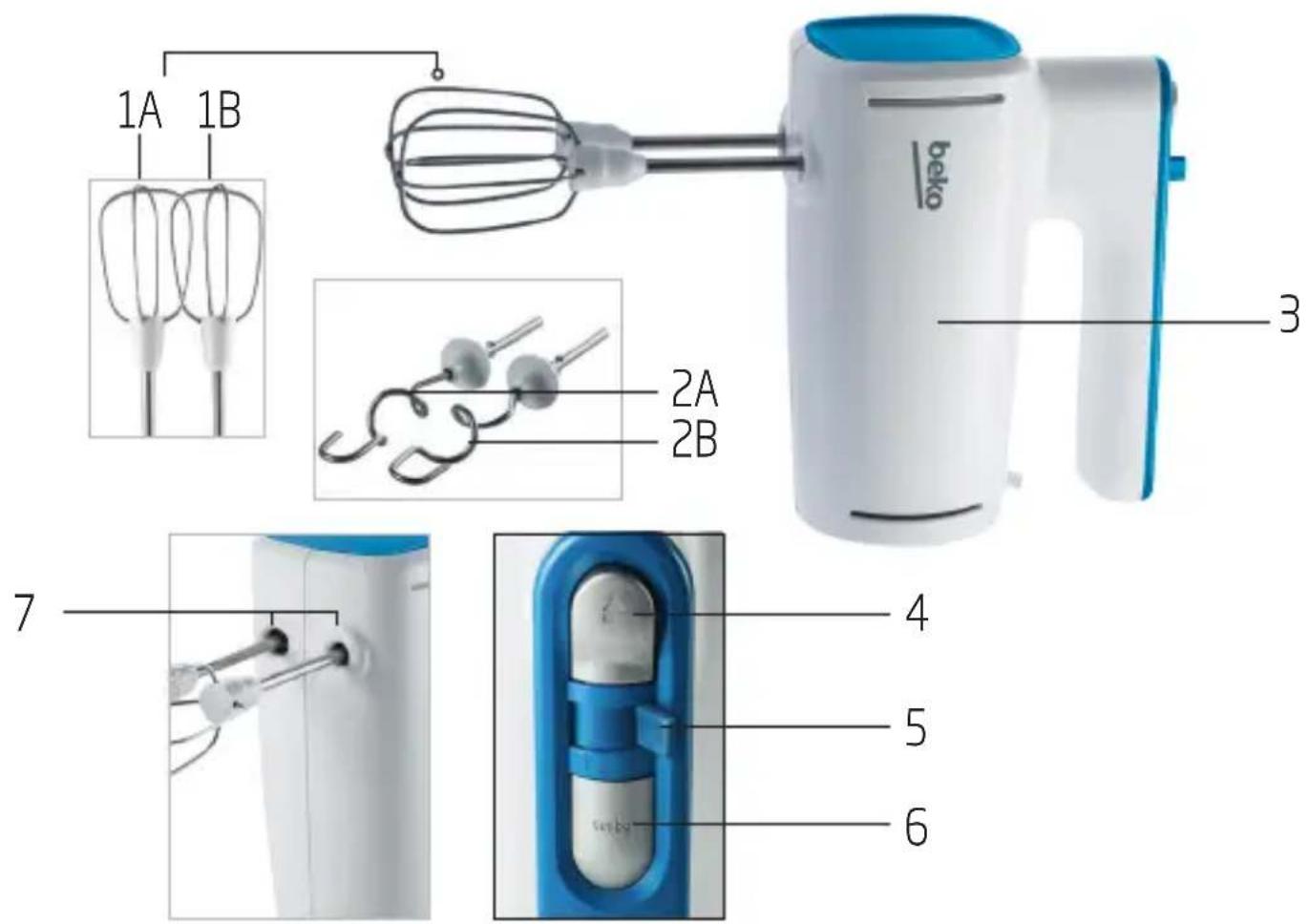

2.1 Overview

1. Whiskers (1A/1B)
2. Dough kneading accessories (2A/2B)
3. Motor unit
4. Accessory release button
5. Operation and speed adjustment button
6. TURBO Button
7. Accessory slots

2.2 Technical data

Power supply: 220 - 240 V \~, 50/60 Hz

Power:425 W

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Usage

3.1 Intended use

This appliance is intended only for household use; it is not suitable for professional use.

3.2 Initial use

Clean the appliance parts before initial use (see 4.1).

3.3 Whisking/Dough kneading

1. Insert whisking and kneading accessories in the slots (7) under the mixer.

WARNING: Do not use the whisker and the kneading accessories together.

WARNING:Leave the speed adjustment button at "0" position.

1. Plug in the appliance.

2. Hold the appliance above the container in which you previously prepared the ingredients for whisking or mixing in an inclined position, pointing the base of the container.

WARNING: Place the container to be used for processing on a stable and flat surface.

1. Run the appliance moving the operation button gradually (5) to desired speed level.

WARNING:Speed levels range between 1-4. It should be increased incrementally starting from 1.

1. When whisking/mixing is completed, move operation button (5) to "0" position and wait for it to stop completely.
2. Unplug the appliance.
3. Press the accessory release button (4) and remove accessories.

3 Usage

3.3.1 Whiskers

• Always use both of the whiskers together.

WARNING: Teflon-coated pots can be scratched.

- Use for whisking liquid ingredients such as cake batter, sauces and soups.

3.4 TURBO button

When you need extra high speed, press and hold TURBO button and release when you do not need.

WARNING: Do not use TURBO feature for more than 1 minute.

3.3.2 Dough kneading accessories

• Always use both of the kneading accessories together.

WARNING: Teflon-coated pots can be scratched.

- Use for blending ingredients like dough and raw minced meat.

4 Cleaning and care

4.1 Cleaning

Warning: Never use gasoline, solvents or abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

1. Unplug the appliance before cleaning.
2. Make sure that the whisking or kneading accessories are at complete stop and remove them.
3. Wipe appliance motor unit (3) with a damp cloth.
4. Removed accessories can be washed using a sponge and dish-washing detergent.
5. Dry all parts of the appliance after cleaning.

4.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before lifting the appliance and its cable.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

4.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Symbol of a waste bin crossed out by a diagonal line, with no text or numbers present.

Ovaj proizvod je proizveden korišćenjem visokokvalitetnih de- lova i materijala koji se mogu ponovo iskoristiti i koji su pogodni za reciklažu. Ne odlăžite ovaj otpad zajedno sa normalnim kućnim i drugim otpadom na kraju radnog veka. Odnesite ga u centar za prikupljanje za reciklažu električne i elektronske opreme. Konsultujte se sa svojim lokalnim vlastima da biste saznali o ovim centrima za sakupljanje otpada.

1

4.3 Prenos i transport

• Tokom prenosa i transporta, nosite aparat u njegovom originalnom pakovanju. Pakovanje aparata ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na aparat ili njegovo pakovanje. Aparat se može oštetiti.
• Ako vam aparat ispadne, to može izazvati trajno oštećenje, odnosno aparat može postati nefunkcionalan.

Symbol of a waste bin crossing over a surface, no text or numbers present

White and blue beke mixer with whisk, no visible text or symbols on the device body

HMM5400W

AR

beko

01M-8835033200-2217-05
