Charly little - Fan STADLERFORM - Free user manual and instructions

Product type	Fan
Brand	STADLERFORM
Model	Charly little
Weight	3.5 kg (7.2 lbs)
Power supply	120 V, 60 Hz (alternating current)
Power consumption	Not specified
Speeds	3 speeds (off, low, medium, high)
Oscillation	Yes, with on/off button
Airflow direction	4 adjustable positions (motor block tilt)
Noise level	Less than 52 dB(A)
Blade material	Plastic (not precisely specified)
Protective grille	Removable front and rear grilles
Assembly	Requires mounting of parts (base, motor, grilles, blades)
Maintenance	Clean the blades with a damp cloth; do not immerse
Safety	Polarized plug; do not use with TRIAC dimmer; keep at least 3 m away from a bathtub
Overload protection	5 A, 125 V fuse in the plug
Use	Indoor only
Warranty	1 year limited (parts and labor)
Repairs	Only by a qualified electrician
Disposal	Do not dispose of with household waste; take to a recycling center

Frequently Asked Questions - Charly little STADLERFORM

How to assemble the Charly little fan?

Follow the steps in the manual: attach the connector to the base, then the motor block, the rear grille, the blades, the front grille, and tighten all nuts. Make sure the front grille is properly secured with the fixing clips.

How to clean the fan blades?

First unplug the appliance. Remove the fixing nut and the front grille clips. Lift the front grille, clean the blades with a damp cloth, then dry. Reassemble everything by tightening the clips well.

What to do if the fuse blows?

Unplug the fan. Open the fuse compartment in the plug, remove the fuse and replace it with a 5 A, 125 V fuse. Close the compartment. If the new fuse blows, contact an authorized service center.

How to adjust the fan speed?

Use the regulator (15) to choose among 3 speeds: position 1 for light breeze, 2 for medium wind, 3 for strong wind. The 'off' position turns off the device.

How to activate oscillation?

Press the oscillation button (16) to make the fan pivot from left to right. To stop, lift the button.

Can I use the fan with a speed controller?

No, never use a TRIAC dimmer. This could cause a fire or electric shock. Use only the built-in regulator.

Can the fan be used in a bathroom?

No, the device is not protected against water splashes. Keep a distance of at least 3 meters from a bathtub, shower, or pool.

How to change the airflow direction?

Manually tilt the motor block (4) up or down. There are 4 clickable positions. You will hear a click at each position.

What to do if the plug does not insert fully into the outlet?

The plug is polarized: one blade is wider. Turn it over and try again. If it still does not insert, consult an electrician. Do not force or modify the plug.

How to get warranty service?

Contact Swizz Style at 1-877-663-7893 (Mon-Fri, 9am-4pm EST). You will need to provide proof of purchase, a description of the problem, your contact information, and a payment of $10 (US) or $15 (Canada) for return shipping.

USER MANUAL Charly little STADLERFORM

Operating instructions

Mode d'emploi

READ AND SAVE THESE INSTRUCTIONS

LISEZ ET CONSERVEZ CES INSTRUCTIONS

LEA Y GUARDE ESTAS INSTRUCCIONES

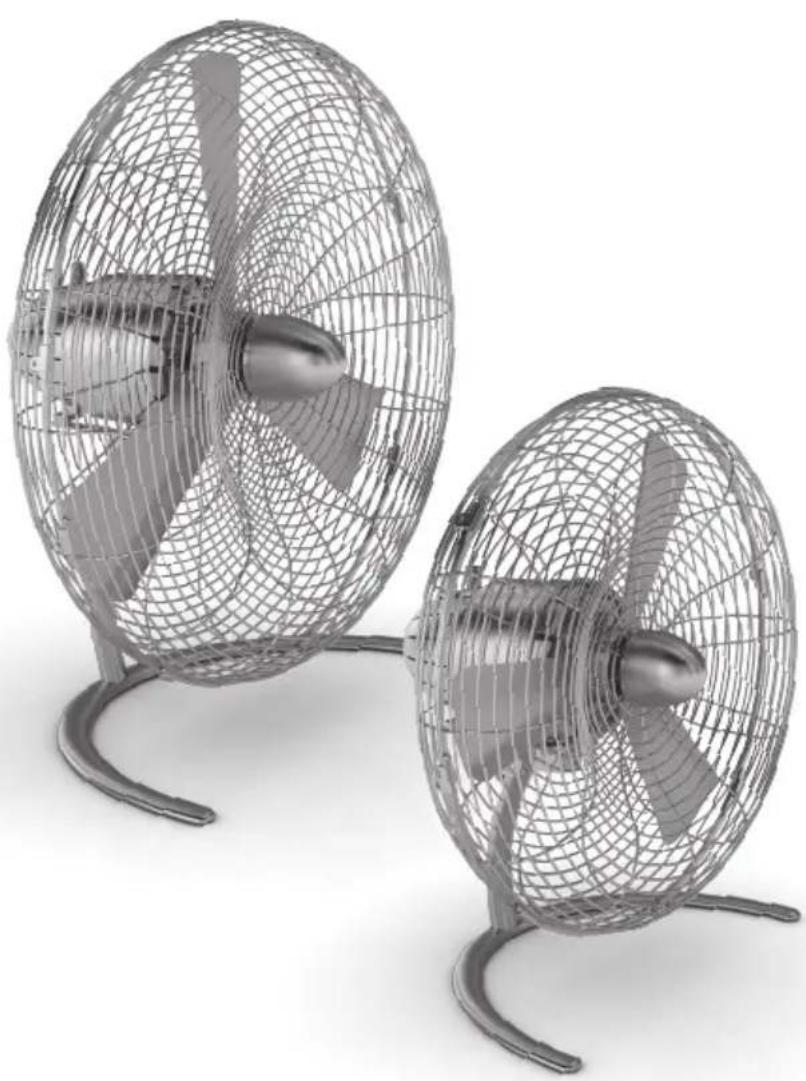

Two identical wire mesh fans with blades, placed side by side on a stand (no text or symbols visible)

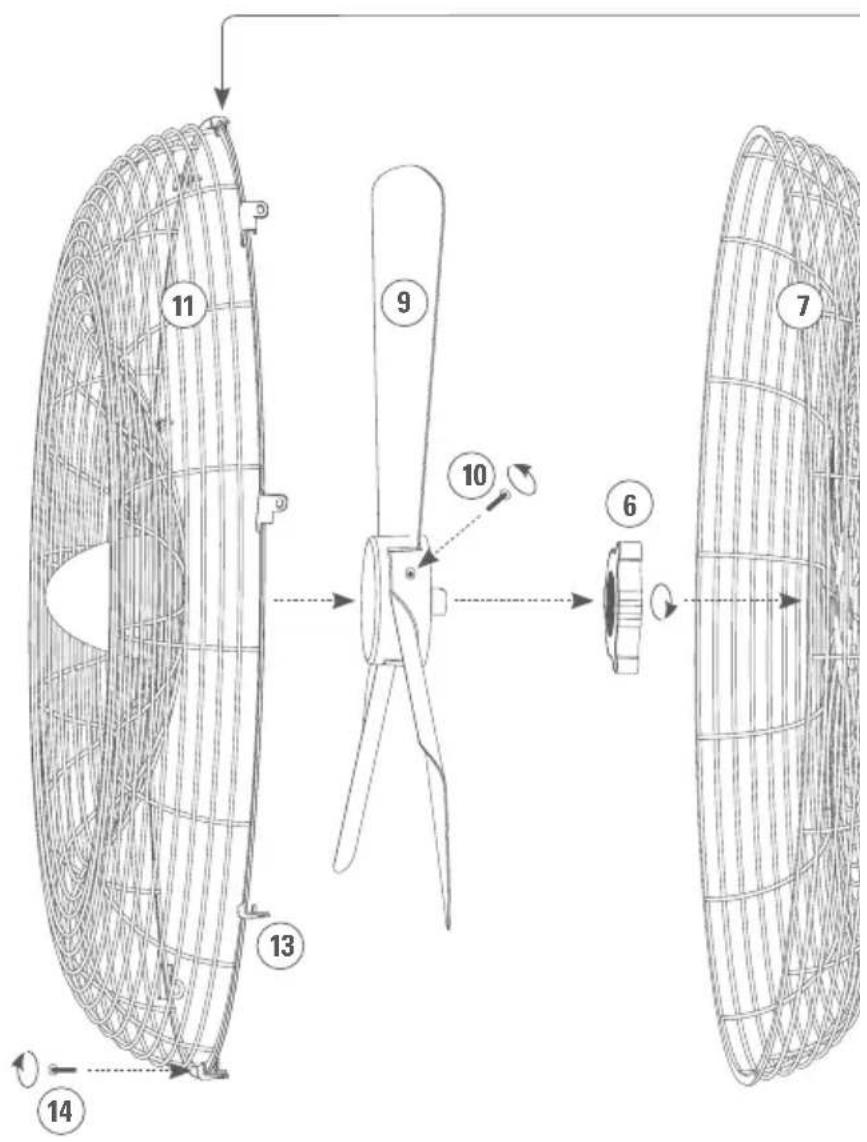

Technical diagram of a fan blade assembly with numbered parts and directional arrows indicating assembly steps.

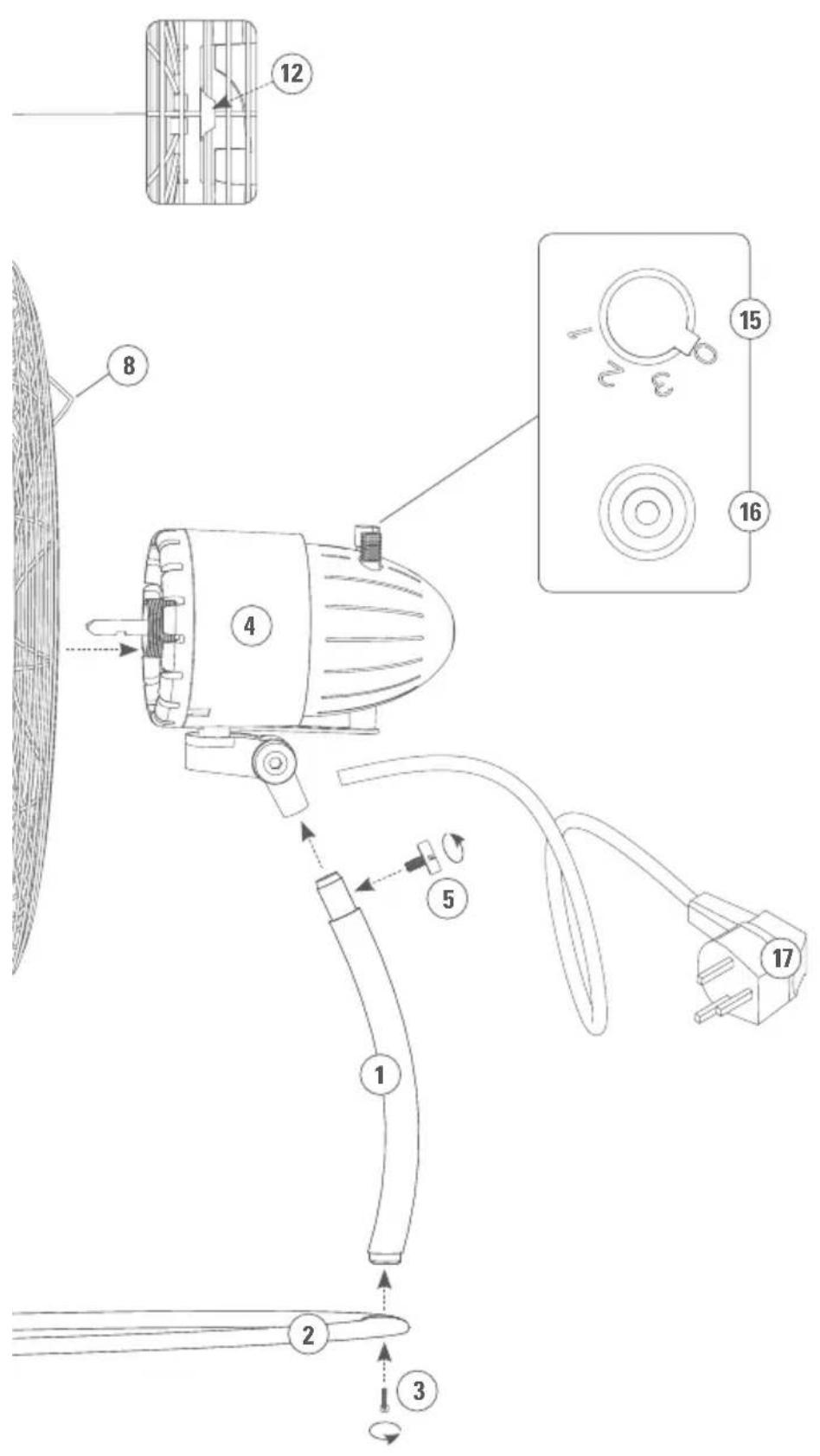

Technical diagram of a fan assembly with numbered components and labeled parts

Congratulations! You have just purchased the exceptional CHARLY fan. He will give you great pleasure and improve the indoor air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

Description of the appliance

The appliance consists of the following main components:

1. Connector
2. Foot
3. Fixing screw for foot and connector
4. Motor housing
5. Fixing screw for motor housing and foot
6. Securing nut for grille
7. Protection grille rear
8. Handle
9. Fan blades
10. Fixing screw for fan blades and motor housing
11. Protection grille front
12. Positioning clip
13. Fixing clips (8 pieces Charly floor, 7 pieces Charly little)
14. Securing screw
15. Controller for switching on/off and setting the three fan speeds (off, high, medium, low)
16. Oscillating knob on/off
17. Power cord

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.
• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Never leave any parts of the packing within the reach of children.

- Check the condition of the appliance after removing it from the packaging. Ensure that all component parts of the appliance are within the packaging and have not been damaged (see description of the appliance).

- Assemble the appliance in accordance with the instructions for Assembly. Follow the instructions for assembly exactly and ensure that all screws are firmly tightened so as to avoid damage and hazards.

- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

- WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

- Never insert objects into the grille of the fan. Do not cover the appliance during operation.

- Always disconnect the power cord from the socket before removing the protection grille.

- Only connect the cable to alternating current. Observe the voltage information given on the appliance.

- Do not use damaged extension cords.

- Do not run the power cord over sharp edges and make sure that it does not get trapped.

- Do not pull the plug from the socket with wet hands or by holding on to the power cord.

- Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 10 ft / 3 m). Place the appliance such that a person in the bath tub cannot touch the appliance.

- Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.

- See to it that the appliance is properly positioned to ensure a high stability during its operation and make sure that no one can trip over the power cord.

• The appliance is not splash-proof.

- For indoor use only.

- Do not store the appliance outdoors.

- Store the appliance in a dry place inaccessible to children (pack the appliance).

- If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a qualified person in order to avoid a hazard.

- Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable from the socket.

- Repairs to electrical appliances must only be carried out by a qualified electrical technician.

- This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product.

If the replacement fuse blows, a shortcircuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Assembly (see page 2 and 3)

Attention: The protection grille must be properly closed prior to switching on the appliance so as to avoid any damage or hazards. Ensure that all screws and securing nuts are firmly tightened. Only connect the power cable to the socket once assembly has been completed.

A. Remove fixing screw (3) on underside of connector (1). Insert connector

(1) into foot (2) and secure with fixing screw for foot and connector (3).

B. Undo fixing screw (5) on connector (1). Locate motor housing (4) on connector (1) and secure with fixing screw for motor housing and foot (5).

C. Remove securing nut for grille (6) from motor housing (4) and locate protection grille rear (7) on motor housing (4). When locating, ensure that the handle (8) on protection grille rear (7) is on the top. Now screw securing nut for grille (6) back on to motor housing (4) so as to fix protection grille rear (7) in position.

D. Attach fan blades (9) to motor housing (4) and secure in position with fixing screw for fan blades and motor housing (10) (loosely attached to fan blade). Tighten screw to secure fan blades (9).

E. Locate protection grille front (11) on protection grille rear (7). In doing so, take care to ensure that positioning clip (12) on protection grille front is fitted on protection grille rear as shown in illustration on page 2-3. Close the two grilles by fastening the 8 fixing clips (13) (or 7 in the case of Charly little). Ensure that all fixing clips (13) are fastened.

F. Secure the two grilles (7 and 11) with securing screw (14).

Setting-Up/Operation

1. Place Charly at the desired position on a flat surface. Connect the mains cable (17) to a suitable plug socket.

2. Switch on the Charly fan at the controller (15) and set the desired speed (Positions 1-3, from gentle breeze to powerful circulation).

3. Push the oscillating knob (16) down to switch on the oscillation and pull the oscillating knob up to switch off the oscillation.

4. The direction of airflow can be set in 4 positions. By carefully moving the motor housing (4) up and down, the direction can be adjusted (clicking noise).

Cleaning

Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable (17) from the socket.

Attention: Never submerge the appliance in water (danger of short-circuit).

- For external cleaning, rub with a damp cloth and then dry thoroughly.

- To clean the fan blades, remove securing screw (14), undo all fixing clips (13) and carefully lift off protection grille front (11). Now you can wipe the fan blades (9) with a damp cloth and dry well afterwards. After cleaning, replace protection grille front (11) on appliance (fit top positioning clip: 12), fasten all fixing clips (13) and fasten securing screw (14) tightly.

Repairs

- Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.

- Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).

- Do not push any object into the appliance.

- If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.

User Servicing Instructions

A. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord.
B. Slide open fuse access cover on top of attachment plug towards blades.
C. Remove fuse carefully
D. Risk of fire. Replace fuse only with 5 Amp, 125 Volt fuse.
E. Slide closed the fuse access cover on top of attachment plug.

Attention: Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that should not be removed. Discard product if the attachment plug is damaged.

Disposal

• Do not dispose of electrical appliances in the domestic waste. Please use the communal collection points.
• Ask your local authority if you do not know where the communal collection points are located.
• If electrical appliances are disposed of thoughtlessly, exposure to the elements may cause hazardous substances to find their way into the groundwater and from there into the food chain, or to poison the flora and fauna for many years to come.

Specifications

Article number Charly floor C-050A

Charly little C-040A

Rated voltage 120 V / 60 Hz

Rated power Charly floor 36 - 56 W

Charly little 25 - 33 W

Dimensions Charly floor 17.1 x 19.1 x 11 inch / 450 x 485 x 280 mm

Charly little 13.9 x 15.6 x 10 inch / 352 x 395 x 255 mm

(width x height x depth)

Weight Charly floor 10 lbs / 4.5 kg, Charly little 7.2 lbs / 3.5 kg

Sound level Charly floor < 56 dB(A), Charly little < 52 dB(A)

Complies with

regulations cETLus

All rights for any technical modifications are reserved

1 year Limited Warranty

A. This 1 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

SWIZZ STYLE IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION

OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Swizz Style will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period purchaser should contact Swizz Style at 1-877-663-7893 Monday – Friday 9 am – 4 pm EST for product return information.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

D. If the product has replaceable filters, these are not covered under this warranty, except for material or workmanship defects.

E. The following must accompany all products returned for service: 1) Proof of purchase 2) Brief description of the problem 3) Full contact information (including return shipping address) 4) Check or money order for \10 (\15 if in Canada) for return handling, packaging and shipping charges. All funds are in US dollars.

F. Swizz Style is not responsible for items lost, stolen or damaged during return shipping.

Charly little C-040A

Tension nominale 120 V / 60 Hz

Puissance nominale Charly floor 36 - 56 W

Charly little 25 - 33 W

Dimensions Charly floor 450 x 485 x 280 mm / 17,1 x 19,1 x 11 inch

Charly little 352 x 395 x 255 mm / 13,9 x 15,6 x 10 inch

Charly little C-040A

Charly little 25 - 33 W

Dimensiones Charly floor 450 x 485 x 280 mm / 17.1 x 19.1 x 11 inch

Charly little 352 x 395 x 255 mm / 13.9 x 15.6 x 10 inch

(ancho x alto x largo)

Peso Charly floor 4.5 kg / 10 lbs, Charly little 3.5 kg / 7.2 lbs

Nivel de intensidad

acústica Charly floor < 56 dB(A), Charly little < 52 dB(A)

Cumple la norma cETLus
