Congratulations! You have just purchased the exceptional PETER little fan. He will give you great pleasure and improve the indoor air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

Description of the appliance

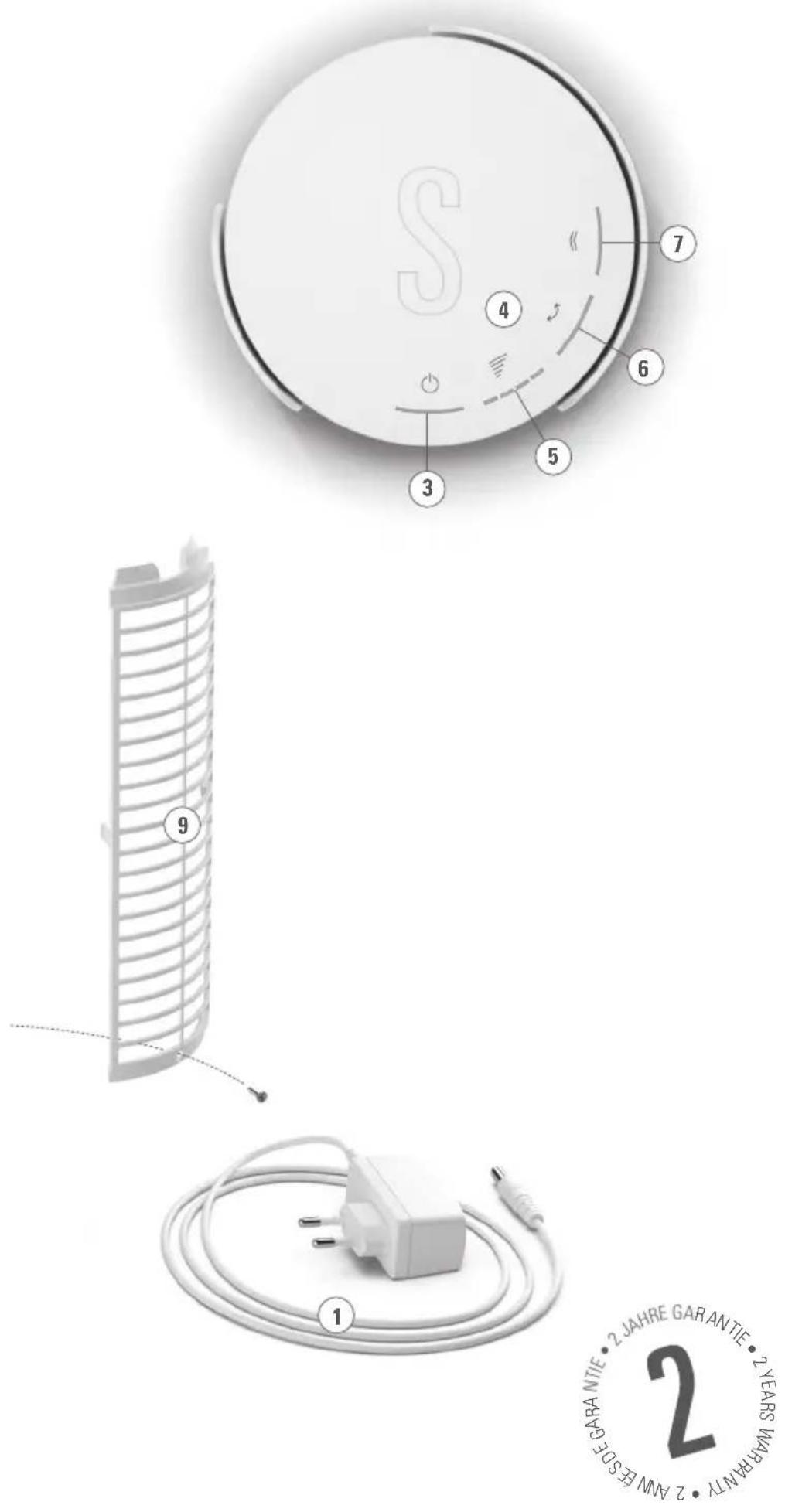

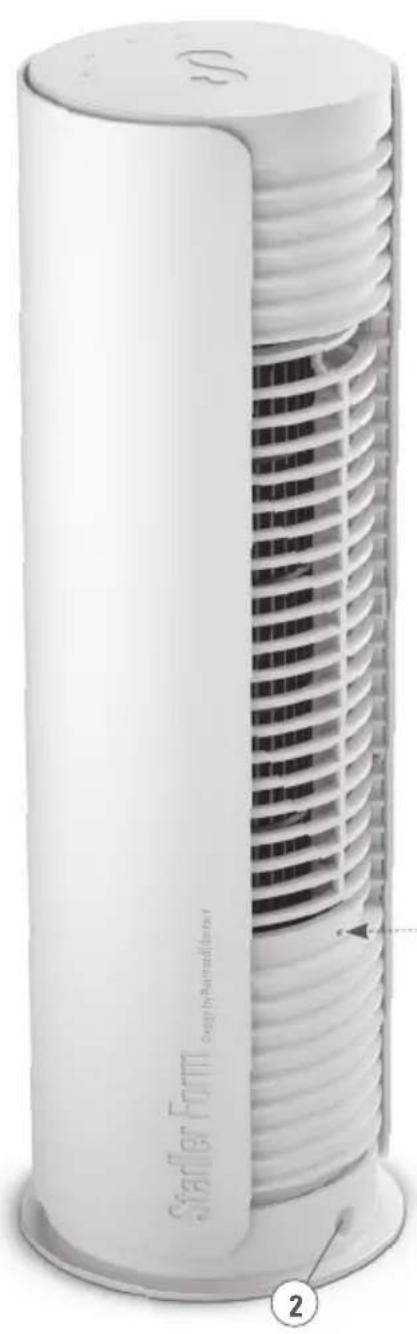

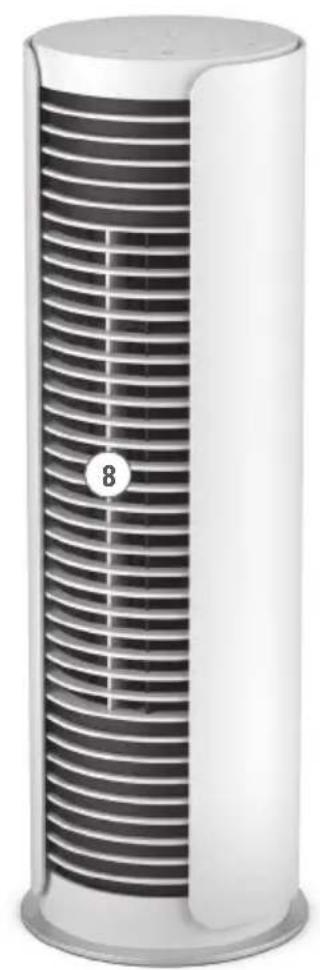

The appliance consists of the following main components:

1. Network adapter
2. Connection for network adapter
3. On/off button
4. Control panel
5. Button for the selection of the speed level: 1-4
6. Button for swing mode
7. Button for the selection of „Natural Breeze“ mode / LED dimmer
8. Air outlet
9. Air inlet with washable air filter

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.
• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Never leave any parts of the packing within the reach of children.

• If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a qualified person in order to avoid a hazard.

• Never insert objects into the grille of the fan. Do not cover the appliance during operation.

• Always disconnect the power cord from the socket before removing the protection grille.
• Only connect the cable to alternating current. Observe the voltage information given on the appliance.

• Do not use damaged extension cords.

• Do not run the power cord over sharp edges and make sure that it does not get trapped.

• Do not pull the plug from the socket with wet hands or by holding on to the power cord.
• Do not use the appliance in immediate vicinity of a bath tub, a shower or a swimming pool (observe a minimum distance of 3 m). Place the appliance such that a person in the bath tub cannot touch the appliance.
• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.
• See to it that the appliance is properly positioned to ensure a high stability during its operation and make sure that no one can trip over the power cord.
• The appliance is not splash-proof.
• For indoor use only.
• Do not store the appliance outdoors.
• Store the appliance in a dry place inaccessible to children (pack the appliance).
• Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable from the socket.
• Repairs to electrical appliances must only be carried out by a qualified electrical technician.
• Only use the adapter provided by the manufacturer.

Setting up / operation

1. Place Peter little in the desired location on a flat surface. Connect the power adapter (1) to the appliance (2) and insert the adapter into a suitable mains socket.
2. Switch on the appliance by pressing the On/Off button (3). The appliance gives an audible signal when a setting is changed via the control panel (4).
3. Press the button for the selection of the speed level (5) to change the fan speed (levels 1–4). Pressing once increases the speed by one level. If you would like to increase the speed by another level, press again.
4. Activate swing mode by pressing the swing mode button (6). The appliance now swings at an angle of approx. 70^ to ensure optimum distribution of cooling air throughout the room. Press the swing mode button (6) again if the appliance is to remain at a certain angle.
5. Press the button for the selection of "Natural Breeze" mode (7) for natural wind conditions. The blue LED beneath the button (7) will now light up. This mode provides an even more pleasant cooling effect, simulating a natural breeze. The fan speed of this breeze automatically varies depending on the selected speed level.
6. Switch off the appliance by pressing the on/off button (3).
7. If you find the lamps too bright (in a bedroom for example), you may reduce the light intensity by pressing the "Natural Breeze" button (7). You can choose between three different modes:

• Normal mode (default mode)
- Dimmed mode (push once for 3 seconds)
- Lights-out mode (push twice for 3 seconds)
- By pushing the "Natural Breeze" button once more for 3 seconds, you can go back into normal mode.

Cleaning

Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable (1) from the socket.

Attention: Never submerge the appliance in water (danger of short-circuit).

• For external cleaning, rub with a damp cloth and then dry thoroughly.
• Make sure that the air inlet (9) and air outlet (8) are cleaned regularly to prevent the build-up of dust. The air outlet (8) can be cleaned with a dry brush or a vacuum cleaner. The air inlet screen (9) is fitted with an air filter which can be removed and cleaned with a damp cloth. Remove the filter by removing the screw on the air inlet screen (9). After cleaning, ensure that the air filter is completely dry and that the screw is firmly tightened again.

Repairs

• Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.
• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).
• Do not push any object into the appliance.
• If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Specifications

Rated voltage DC 24 V

Rated power 9 W

Dimensions Housing: 109 x 361 mm (diameter x height)

Foot: 117 mm (diameter)

Weight 1.2 kg

Sound level 28–54 dB(A)

Complies with EU

regulations CE / WEEE / RoHS / EAC

All rights for any technical modifications are reserved

Deutsch

Rangert spenning DC 24 V

Utgangseffekt 9 W

This warranty covers defects of construction, manufacturing and material. Excluded are all wearing parts and improper usage, or consequential damages due to lack of cleaning and/or descaling of the appliance.
