HmIPPSM2 - Wall socket Homematic IP - Free user manual and instructions

Product type	Homematic IP switchable socket with power measurement
Brand	Homematic IP
Model	HmIP-PSM2
Dimensions (W x H x D)	70 x 70 x 39 mm (without plug)
Weight	154 g
Power supply	230 V / 50 Hz, 13 A max, standby < 0.3 W
Max. switching power	3 kW (ohmic load, cos φ ≥ 0.95)
Main functions	Remote on/off, power measurement (0-3 kW), current (0-13 A), voltage (200-255 V), frequency (40-60 Hz), consumption and cost display via app, router function for range extension
Protection type	IP20
Protection class	I
Ambient temperature	-10 to +35 °C
Radio frequency	868.0-868.6 MHz / 869.4-869.65 MHz
Radio range (free field)	400 m
Duty Cycle	< 1% per h / < 10% per h
Overload protection	Automatic cutoff if current > 13 A or power > 3 kW
Temperature monitoring	Automatic cutoff in case of overheating
Factory reset	Possible via system button (press and hold for 4 s during plug-in)
Maintenance and cleaning	Disconnect before cleaning, use a dry or slightly damp cloth, no solvents
Spare parts and repairability	No user-serviceable parts; repair by a specialist only
General information	Homematic IP smart home system, HmlP protocol, configuration via smartphone app, compatible with Homematic IP Access Point

Frequently Asked Questions - HmIPPSM2 Homematic IP

How to install the Homematic IP HmIP-PSM2 socket?

Plug the socket into a wall outlet, then open the Homematic IP app. Select 'Device pairing'. The socket is automatically detected. Confirm by entering the last 4 digits of the SGTIN or scanning the QR code. The green LED confirms pairing.

What to do if the LED flashes red?

A long red flash indicates an operation failure. Check the radio connection (range, obstacles). If the LED flashes 6 times red, the device is defective; contact your dealer.

How to reset the socket to factory settings?

Unplug the socket, then plug it back in while holding the system button for 4 seconds until the LED flashes orange quickly. Release, then press again for 4 seconds until the LED turns green. Release to finish.

What is the maximum supported power?

The socket supports a maximum switching power of 3 kW (ohmic load, cos φ ≥ 0.95) and a maximum current of 13 A. Beyond that, an automatic cutoff is triggered.

How to measure energy consumption?

After pairing, the Homematic IP app displays real-time power, current, voltage, and frequency. You can also view cumulative consumption and estimate energy costs (€/kWh).

What does a short orange flash every 10 seconds mean?

This indicates that the pairing mode is active. You must confirm the device in the app by entering the last 4 digits of the SGTIN or scanning the QR code.

Can the socket be used as a router?

Yes, the socket can function as an optional router to extend the radio range of the Homematic IP system, thus improving coverage throughout the house.

What to do in case of socket overheating?

The socket has an integrated temperature monitoring. In case of overheating, it automatically cuts off the load. Once cooled down, it can be reactivated. Check that the socket and plug are in good condition.

How to clean the socket?

Always unplug the socket before cleaning. Use a dry cloth or slightly damp cloth (no solvents). Avoid moisture penetration into the device.

What does the error code 'Duty Cycle reached' mean?

The 'Duty Cycle' is a legal limit of 1% transmission per hour (36 seconds). If exceeded, three long red flashes appear and the device becomes temporarily inactive. Wait up to one hour for it to become operational again.

USER MANUAL HmIPPSM2 Homematic IP

Pluggable Switch and Meter p. 26

Schakel-meetcontactoos p. 46

White home power socket with a square button and 'homematic' branding (no other text or symbols visible)

Lieferumfang

Anzahl Bezeichnung

Printed in Hong Kong

Line drawing of a hand holding a wall-mounted electrical socket with a separate panel (no text or symbols)

Line drawing of a hand holding a small electrical socket with a button, no text or symbols present

Inhalt

1 Homematic IP Pluggable Switch and Meter
1 Operating manual

Documentation © 2021 eQ-3 AG, Germany

All rights reserved. Translation from the original version in German. This manual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher.

Typographical and printing errors cannot be excluded. However, the information contained in this manual is reviewed on a regular basis and any necessary corrections will be implemented in the next edition. We accept no liability for technical or typographical errors or the consequences thereof.

All trademarks and industrial property rights are acknowledged.

Printed in Hong Kong

Changes may be made without prior notice as a result of technical advances.

157334 (web)

Version 1.0 (10/2021)

Table of contents

1 Information about this manual....28
2 Hazard information....28
3 Function and device overview ....32
4 General system information ....33
5 Start-up 33
5.1 Installation and teaching-in.... 33
6 Operation....35
7 Behaviour after power recovery 36
8 Troubleshooting 36
8.1 Command not confirmed....36
8.2 Duty cycle 37
8.3 Automatic disconnection in case of overload .....37
8.4 Error codes and flashing sequences 38
9 Restore factory settings....39
10 Maintenance and cleaning 40
11 General information about radio operation......41
12 Technical specifications....42

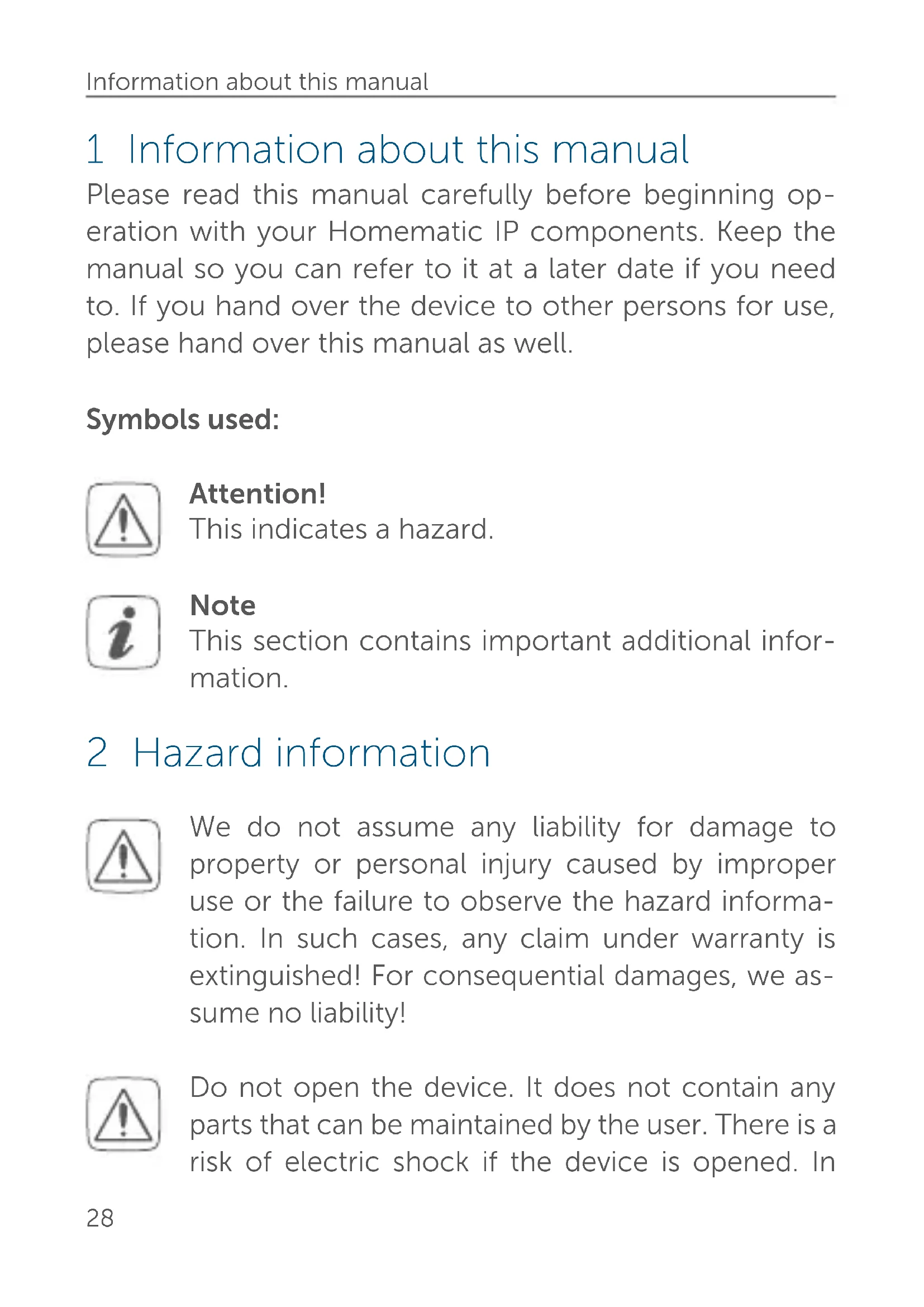

1 Information about this manual

Please read this manual carefully before beginning operation with your Homematic IP components. Keep the manual so you can refer to it at a later date if you need to. If you hand over the device to other persons for use, please hand over this manual as well.

Symbols used:

Attention!

This indicates a hazard.

Note

This section contains important additional information.

2 Hazard information

We do not assume any liability for damage to property or personal injury caused by improper use or the failure to observe the hazard information. In such cases, any claim under warranty is extinguished! For consequential damages, we assume no liability!

Do not open the device. It does not contain any parts that can be maintained by the user. There is a risk of electric shock if the device is opened. In

the event of an error, please have the device checked by an expert.

Do not use the device if there are signs of damage to the housing, control elements or connecting sockets, for example, or if it demonstrates a malfunction. If you have any doubts, have the device checked by an expert.

For safety and licensing reasons (CE), unauthorized change and/or modification of the device is not permitted.

The device may only be operated indoors and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and mechanical loads.

The device is not a toy; do not allow children to play with it. Do not leave packaging material lying around, plastic films/bags, pieces of polystyrene etc., can be dangerous in the hands of a child.

Please take the technical data (in particular the maximum permissible switching capacity of the relay and the type of load to be connected) into account before connecting a load! Do not exceed the capacity specified for the device. Exceeding

this capacity could lead to the destruction of the device, to a fire or to an electrical accident.

The device may only be connected to an easily accessible power socket outlet. In case of danger, disconnect the device from the power socket outlet.

Only use the device with properly installed wall outlets with earth contacts and not with multiple socket outlets or extension cables.

Do not connect devices to the pluggable switch and meter which could cause fire or other types of damage in unattended operation (e.g. irons).

Remove the plug of the connected device from the pluggable switch and meter, whenever you make changes or modifications to the device.

Always lay cables in such a way that they do not become a risk to people and domestic animals.

The device has not been designed to support safety disconnection. The load is not isolated from the mains. Voltage-free only when the plug is pulled out!

Using the device for any purpose other than that described in this operating manual does not fall within the scope of intended use and shall invalidate any warranty or liability. This also applies to any conversion or modification work. The device is intended for private use only.

Do not connect multiple pluggable switches into one another.

If you use the device in a security application it has to be operated in connection with an UPS (uninterruptible power supply) in order to bridge possible power failure according to EN 50130-4.

Devices with electronic power supply units (e.g. TV or high voltage LED light sources) are no ohmic loads. They can generate inrush currents with more than 100 A. Switching such kind of loads may lead to premature wear of the actuator.

The device may only be operated within residential buildings.

3 Function and device overview

With the Homematic IP Pluggable Switch and Meter you can comfortably switch on and off connected loads and meter the corresponding energy consumption as well as voltage, current and power of the connected devices. The energy consumption of connected loads and their energy costs (€/kWh) are displayed via the Homematic IP app.

The pluggable switch and meter is connected quickly and without any tools. Simply plug in the device to a socket and it is immediately ready for use. Thanks to the compact design, the pluggable switch and meter does not block the surrounding sockets.

The device can optionally be used as router to extend the wireless range.

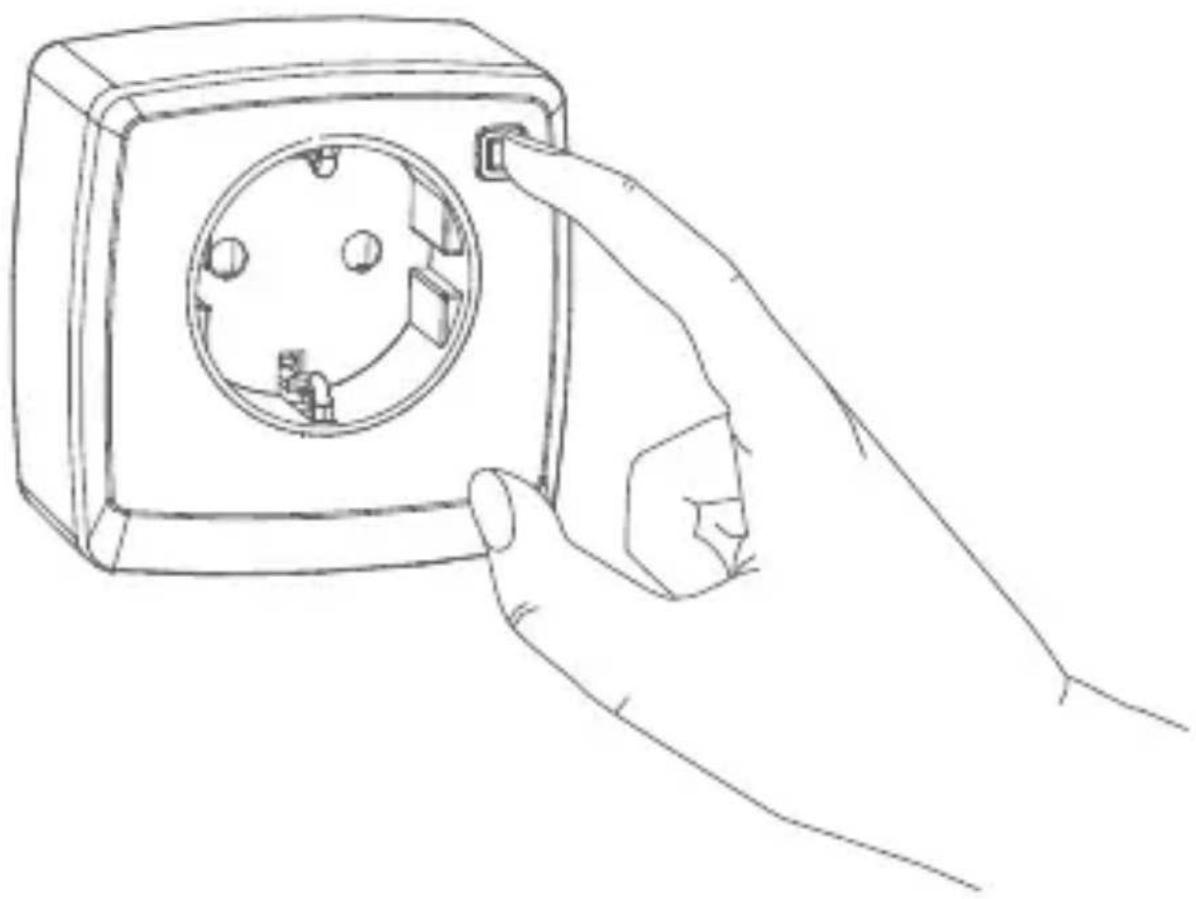

Device overview (see figure 1):

(A) System button (teaching-in, switching connected loads on and off, LED)
(B) Pluggable switch

4 General system information

This device is part of the Homematic IP smart home system and works with the Homematic IP radio protocol. All devices of the system can be configured comfortably and individually with the Homematic IP smartphone app. Alternatively, you can operate the Homematic IP devices via the Homematic Central Control Unit CCU2/CCU3 or in connection with various partner solutions. The available functions provided by the system in combination with other components are described in the Homematic IP User Guide. All current technical documents and updates are provided at www.homematic-ip.com.

5 Start-up

5.1 Installation and teaching-in

Please read this entire section before starting the teach-in procedure.

First set up your Homematic IP Access Point via the Homematic IP app to enable operation of other Homematic IP devices within your system. For further information, please refer to the operating manual of the Access Point.

To integrate the pluggable switch and meter into your system and enable it to communicate with other Homematic IP devices, you must teach-in the device to your Homematic IP Access Point first.

To teach-in the pluggable switch and meter, please proceed as follows:

• Open the Homematic IP app on your smartphone.
• Select the menu item "Teach-in device".
• Plug in the pluggable switch and meter into the desired socket (see figure 2).
• Teach-in mode remains activated for 3 minutes.

You can manually start the teach-in mode for another 3 minutes by pressing the system button (A) shortly (see figure 3).

• Your device will automatically appear in the Homematic IP app.
• To confirm, please enter the last four digits of the device number (SGTIN) in your app or scan the QR code. Therefore, please see the sticker supplied or attached to the device.
• Please wait until teach-in is completed.
• If teaching-in was successful, the LED lights up green. The device is now ready for use.

• If the LED lights up red, please try again.

• Select the desired solution for your device.

• In the app, give the device a name and allocate it to a room.

After teaching-in, connected loads can be easily switched on and off or the energy consumption can be measured.

6 Operation

After teaching-in and installing have been performed, simple operations are available directly on the device.

- Press the system button (A) shortly to switch on and off connected loads.

Improper usage or a defective installation (e.g. low-quality or defective plugs or sockets) can lead to overheating of the pluggable switch and meter. The integrated temperature control automatically switches off the load. The devices is protected against overheating and secure operation is ensured. As soon as the temperature reaches a non-critical value, you can switch on the pluggable switch and meter again. Always observe the permitted ambient temperature of the device and, if necessary, have the installation checked for possible error sources by an expert.

7 Behaviour after power recovery

After the device has been inserted to a socket or after power recovery the pluggable switch and meter performs a self-test/restart (approx. 2 seconds). The device LED flashes orange and green briefly (LED test display). The LED will flash if an error is detected during this test (see „8.4 Error codes and flashing sequences“ on page 38). This is repeated continuously and the device does not perform its function. If the test is completed without errors, the pluggable switch and meter transmits a wireless telegram containing its status information.

8 Troubleshooting

8.1 Command not confirmed

If at least one receiver does not confirm a command, the device LED lights up red at the end of the failed transmission process. The failed transmission may be caused by radio interference (see „11 General information about radio operation“ on page 41). This may be caused by the following:

• Receiver cannot be reached
• Receiver is unable to execute the command (load failure, mechanical blockade, etc.)
• Receiver is defective

8.2 Duty cycle

The duty cycle is a legally regulated limit of the transmission time of devices in the 868 MHz range. The aim of this regulation is to safeguard the operation of all devices working in the 868 MHz range.

In the 868 MHz frequency range we use, the maximum transmission time of any device is 1% of an hour (i.e. 36 seconds in an hour). Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. Homematic IP devices are designed and produced with 100% conformity to this regulation.

During normal operation, the duty cycle is not usually reached. However, repeated and radio-intensive teach-in processes mean that it may be reached in isolated instances during start-up or initial installation of a system. If the duty cycle is exceeded, this is indicated by three long flashes of the device LED, and may manifest itself in the device temporarily working incorrectly. The device starts working correctly again after a short period (max. 1 hour).

8.3 Automatic disconnection in case of overload

If the device is overloaded with load currents greater than 13 A or with loads with more than 3 kW power, after a short delay time, this leads to the device's automatic disconnection. The safety disconnection is reported with an error message via the app or WebUI.

To be able to use the device again, you must remove the overload and unplug the device once from the socket then plug it back in again. Alternatively, you can wait 30 minutes after removing the overload ("restart lock"). The device can then be switched on again. The device is not automatically switched on after the restart lock has expired.

8.4 Error codes and flashing sequences

Flashing code Meaning Solution
Short orange flashing	Radio transmission/at-tempting to transmit	Please wait, until transmission has been confirmed.
1x long green lighting	Transmission confirmed	You can continue operation.
1x long red lighting	Transmission failed	Please try again (s. „8.1 Command not confirmed“ on page 36).
Slow orange flashing (every 10 seconds)	Teach-in mode active	Please enter the last four numbers of the device number to confirm (see „5.1 Installation and teaching-in“ on page 33).
1x long red lighting	Duty cycle exceeded or transmission failed	Please try again (see „8.1 Command not confirmed" on page 36 or „8.2 Duty cycle" on page 37).
6x long red flashing	Device defective	Please see your app for error message or contact your retailer.
1x orange and 1 x green lighting (after plugging into a socket)	Test display Once	the test display has stopped, you can continue.

9 Restore factory settings

The factory settings of the device can be restored. If you do this, you will lose all your settings.

To restore the factory settings of the pluggable switch and meter, please proceed as follows:

• Unplug the device from the socket (see figure 2).

- Plug in the device into the socket again while

pressing and holding down the system button (A) for 4s at the same time, until the LED will quickly start flashing orange (see figure 3).

• Release the system button again.
• Press and hold down the system button again for 4s, until the status LED lights up green.
• Release the system button to finish the procedure. The device will perform a restart.

10 Maintenance and cleaning

The device does not require you to carry out any maintenance. Enlist the help of an expert to carry out any repairs.

Before cleaning the device, unplug it from the socket outlet. Use a dry linen cloth to clean the device. If the device is particularly dirty, you can slightly dampen the cloth to clean it. Do not use any detergents containing solvents, as they could corrode the plastic housing and label. Make sure that no moisture will ingress into the housing.

11 General information about radio operation

Radio transmission is performed on a non-exclusive transmission path, which means that there is a possibility of interference occurring. Interference can also be caused by switching operations, electrical motors or defective electrical devices.

The range of transmission within buildings can differ greatly from that available in the open air. Besides the transmitting power and the reception characteristics of the receiver, environmental factors such as humidity in the vicinity have an important role to play, as do on-site structural/screening conditions.

Hereby, eQ-3 AG, Maiburger Str. 29, 26789 Leer/Germany declares that the radio equipment type Homematic IP HmIP-PSM-2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.homematic-ip.com

12 Technical specifications

Device short description: HmlP-PSM-2

Supply voltage: 230 V/50 Hz

Current consumption: 13 A max.

Standby power consumption: < 0.3 W

Max. switching capacity: 3 kW

Kind of load: ohmic load, ≥0.95

Life expectancy relay/

switching cycle: 40000 (13 A, ohmic load)

Relay: NO contact, 1-pole, μ

contact

Switch type: independently mounted

switch

Operating mode: S1

Withstand voltage: 2500 V

Protection class: I

Method of operation: Type 1

Degree of protection: IP20

Ambient temperature: -10 to +35 °C

Degree of pollution: 2

Dimensions (W x H x D): 70 x 70 x 39 mm

(not incl. mains plug)

Weight: 154 g

Radio frequency band: 868.0–868.6 MHz

869.4–869.65 MHz

Maximum radiated power: 10 dBm

Receiver category: SRD category 2

Typ. open area RF range: 400 m

Duty cycle: < 1 % per h/< 10 % per h

Temperature of ball pressure

test: 125^ C

Temperature of glow wire test: 850 °C

	Measuring range	Resolution Accuracy
Power 0 to 3 kW	0.01 W 1 %		± 0.03 W*
Current 0 to 13 A	1 mA 1 %		± 1 mA*
Voltage	200 to 255 V	0.1 V 0.5 %	± 0.1 V
Frequency 40 to 60 Hz	0.01 Hz	0.1 % ± 0.01 Hz

*Frequency range: 2 Hz to 2 kHz

Load type Relay
Ohmic load		10 A
Incandescent lamp load		1500 W
Self-ballasted lamps(LED/compact fluorescent lamp)		200 W
HV halogen lamps 1500 W
Electronic transformers for NVhalogen lamps		1500 W
Iron core transformers for NVhalogen lamps		1500 W
Fluorescent lamps (uncompensated)		1500 W
Fluorescent lamps (parallelcompensated)		1500 W
Electric radiators and other electricheating systems (ohmic load)		8 A (200.000switching cycles)
Motor load		2.2 A

Subject to technical changes.

Instructions for disposal

Do not dispose of the device with regular domestic waste! Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with the Waste Electrical and Electronic Equipment Directive.

Information about conformity

The CE sign is a free trading sign addressed exclusively to the authorities and does not include any warranty of any properties.

For technical support, please contact your retailer.

Leveringsomvang

Aantal Naam

1 Homematic IP-schakel-meetcontactdoos
1 Handleiding

Printed in Hong Kong

Blue QR code image, scannable for digital information retrieval

Download on the App Store

Blue QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

ANDROID APP ON Google play

Bevollmächtigter des Herstellers: Manufacturer's authorised representative:

eQ-3 AG Maiburger Straße 29 26789 Leer / GERMANY www.eQ-3.de
