Thermup - Bottle warmer Lionelo - Free user manual and instructions

Brand	Lionelo
Model	Thermup
Product type	Bottle warmer
Power supply	220-240 V ~ 50/60 Hz
Maximum bottle capacity	240 ml (8 oz)
Functions	Defrosting, quick heating, milk heating, food heating, disinfection
Display	Digital display with function selection
Housing material	Heat-resistant plastic
Recommended ambient temperature	15-30 °C
Recommended ambient humidity	50-80 %
Safety	Automatic shutdown at end of cycle (disinfection), overheat protection, mandatory grounding
Cleaning	Damp cloth; do not immerse
Descaling	Every 4 weeks with white vinegar (50 ml) and water (100 ml)
Included accessories	Bottle basket
Type of use	Domestic use only
Target audience	Babies (feeding and bottle disinfection)
Compliance	CE (directives 2014/30/EU, 2014/35/EU, 2011/65/EU)
Manufacturer	BrandLine Group Sp. z o. o., Poznan, Poland
Warranty	See website lionelo.com
Country of origin	Poland

Frequently Asked Questions - Thermup Lionelo

How to use the quick heating function?

Place the bottle in the appliance, pour 40 ml of water (see table according to bottle type and initial temperature), select the function defrosting/quick heating and wait for the light to turn on. Always use the lid.

How much water should I put in the bottle warmer?

For normal heating, fill with water up to the level of the milk or food in the bottle, without exceeding about 1.5 cm below the top edge. For quick heating, use exactly 40 ml. For disinfection, pour 50 to 100 ml of water.

Can I heat frozen food directly?

No, first use the defrosting function, then heat. Never heat milk or food that is still frozen.

How to clean the appliance?

Unplug the appliance, let it cool down, empty the water, then wipe the inside and outside with a damp cloth. Dry with a clean cloth. Do not use abrasive or corrosive products.

How often should I descale the appliance?

It is recommended to descale every 4 weeks. Mix 50 ml of white vinegar and 100 ml of cold water, run the appliance in milk heating mode for 10 minutes, let it sit, then rinse.

How to disinfect bottles with this appliance?

Wash and rinse the bottle and accessories thoroughly. Place them in the appliance, open end up. Pour 50 to 100 ml of water, select the disinfection function. The appliance turns off automatically after water evaporation.

Is the appliance compatible with all bottles?

Yes, it works with glass and plastic bottles. Use the included basket to hold small accessories. Maximum capacity is 240 ml.

What to do if the appliance does not heat?

Check that the appliance is properly plugged into a grounded outlet and that there is enough water (never turn on empty). If the problem persists, contact authorized after-sales service.

Can I leave the appliance unattended while operating?

No, it is not recommended to leave the appliance unattended, especially with hot water. Always supervise the process and check food temperature before giving to baby.

How to check milk temperature before giving to baby?

Shake the bottle to homogenize temperature, then test a few drops on the inside of your wrist. The milk should be lukewarm, not hot. Do not reheat milk a second time.

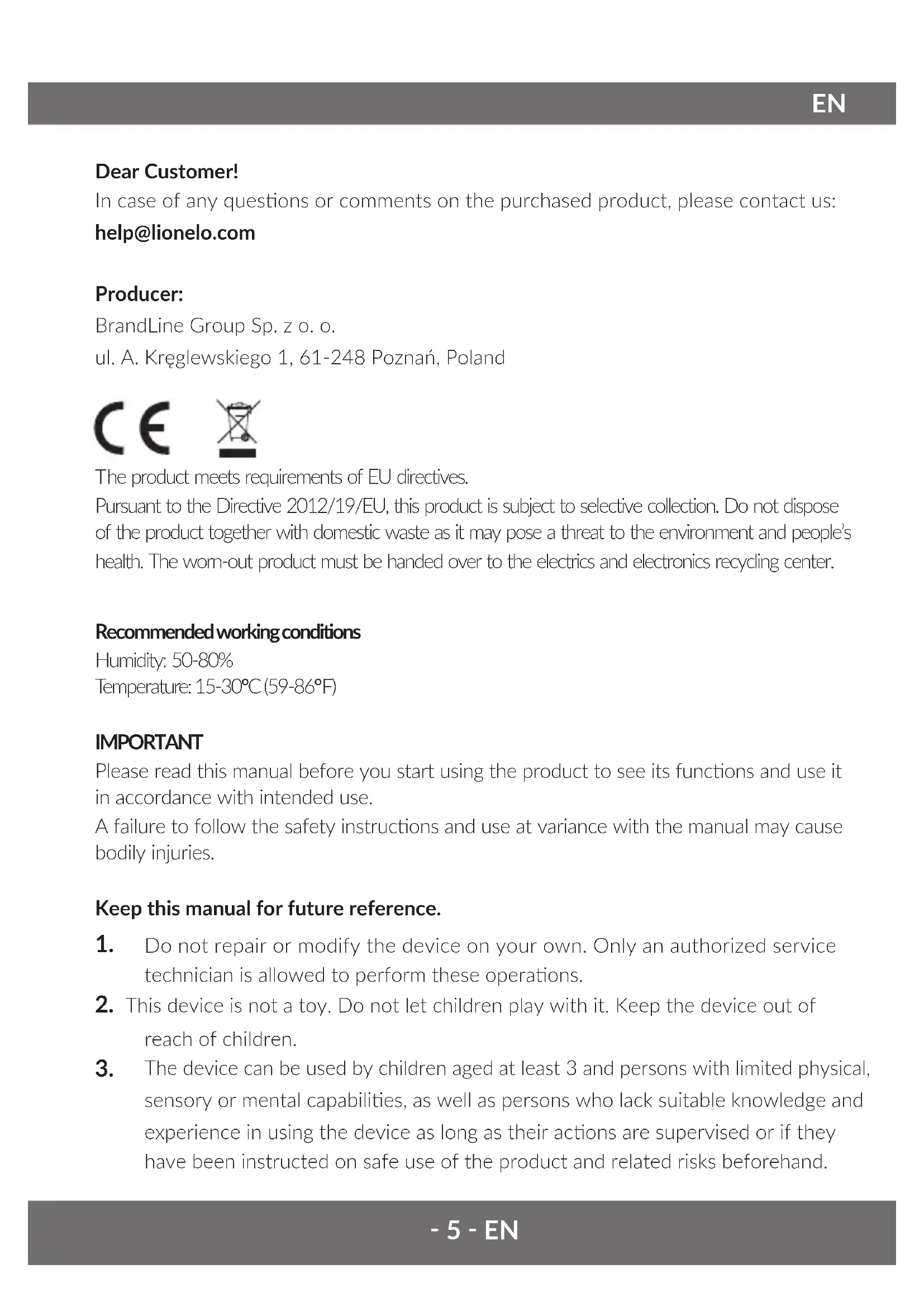

USER MANUAL Thermup Lionelo

In case of any questions or comments on the purchased product, please contact us:

[e-mail]

Producer:

BrandLine Group Sp. z o. o.

ul. A. Kriegewskiego 1, 61-248 Poznan, Poland

The product meets requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. Do not dispose of the product together with domestic waste as it may pose a threat to the environment and people's health. The worn-out product must be handed over to the electrics and electronics recycling center.

Recommended working conditions

Humidity: 50 - 80%

Temperature: 15^ 30^ C( 59 - 86^ F)

IMPORTANT

Please read this manual before you start using the product to see its functions and use it in accordance with intended use.

A failure to follow the safety instructions and use at variance with the manual may cause bodily injuries.

Keep this manual for future reference.

1. Do not repair or modify the device on your own. Only an authorized service technician is allowed to perform these operations.
2. This device is not a toy. Do not let children play with it. Keep the device out of reach of children.

3. The device can be used by children aged at least 3 and persons with limited physical, sensory or mental capabilities, as well as persons who lack suitable knowledge and experience in using the device as long as their actions are supervised or if they have been instructed on safe use of the product and related risks beforehand.

4. Cleaning and maintenance of the device can be performed by children aged at least 8 and under supervision. Keep the device and power cable out of reach of children below the age of 3.

5. The device is intended for home use only. The device is not suitable for use in the open air. Do not use it for other purposes, at variance with intended use.
6. Do not let the power cable hang on the edge of the table or top. Make sure the power cable does not contact hot pieces. Do not pull it through sharp edges.
7. Connect the device only to a mains socket with earthing. Make sure the power cable has been correctly connected to the source of power supply.
8. To supply power to the device, use networks whose parameters correspond to parameters on the device label.
9. Regularly check the device for potential damage. Do not use the device if it is damaged. Do not try to repair the device on your own - contact the authorized repair center. If the network cable gets damaged, it should be replaced by the manufacturer in order to avoid hazards.
10. After use, during assembly, disassembly and cleaning, the device must be deactivated and unplugged.
11. Keep the device away from sharp edges and sources of heat and moisture. Do not expose the device to direct sunlight.
12. Do not immerse the device or power cable in water or other liquids.
13. Make sure the device does not overheat.
14. Before you put the bottle into the warmer and pour water, make sure it is tight.
15. Before you switch the device on, make sure there is water inside. Never turn the device on when water is missing.
16. Hot water may cause serious burning. If there is hot water in the device, please remain careful.
17. The surface of the device may get hot under the influence of hot water. Please remain careful.
18. Do not move the device which contains hot water.
19. When food reaches the desired temperature, take the bottle out of the warmer. Do not heat food too long.
20. Always check food temperature before you feed the child.
21. Before you start cleaning the device, wait until the device cools down.

List of parts (fig. A)

1. Cover

2. On/off switch

3. Bottle/container holder

4. Value up

5. Warmer

6. Food heating

7. Status LED

8. Disinfect

9. Defrost/quick heat

10. Change mode

11. Milk heating

12. Value down

Defrosting

1. Place a bottle or container with food in the warmer (fig. 1).
2. Pour water into the warmer until you reach food or milk level. In case of a large amount of food or milk, the maximum amount of water in the warmer is about 1,5 cm below the upper edge of the device (fig. 2).
3. Choose defrost/quick heat in the display (fig. 3). Wait for the status LED to glow.

NOTE

Due to high diversity of baby food consistency, it is advisable to frequently stir and inspect the temperature of food defrosted.

Do not serve milk/food shortly after defrosting.

Quick heating

1. Place a bottle or container with food in the warmer (fig. 1).
2. Pour 40ml of water into the warmer (see: table below) (fig. 2).
3. Select defrost/quick heat in the display (fig. 3). Wait for the status LED to glow.
4. Do not heat frozen milk or food. Remember to heat milk or food after defrosting.

NOTE

In case of quick heating, use the device together with a cover.

Bottle Initial temp. Amount of water			Amount of milk
			60ml/2oz 120ml/4oz 180ml/6oz 240ml/8oz
Glass	4°C/41°F	40ml/1.4oz	3 min 4 min	5 min 6 min
	20°C/68°F		2,5 min	3 min	4 min	4,5 min
Plastic	4°C/41°F		4 min	5,5 min	6 min	7 min
	20°C/68°F		3 min	3,5 min	4,5 min	5 min

Milk heating

1. Place a bottle with milk or water in the warmer (fig. 4).
2. Pour water into the warmer until you reach milk or water level in the bottle. In case of a large amount of water or milk, the maximum amount of water in the warmer

is about 1,5cm below the upper edge of the device (fig. 5).

1. Select heating in the display (fig. 6). Wait for the status LED to glow.
2. Heating time may vary, depending on the amount of milk or water and initial temperature.

NOTE

It is advisable to serve milk to the child shortly after heating. Avoid milk reheating. Always check milk temperature before you serve it to the child (fig .7).

Food heating

1. Place a container with food in the warmer (fig. 8).
2. Pour water into the warmer until you reach food level in the container. In case of a large amount of milk or water, the maximum amount of water in the warmer is about 1,5cm below the upper edge of the device (fig. 9).
3. Select food heating in the display (fig. 10). Wait for the status LED to glow.
4. It is advisable to stir food while heating (fig. 11).
5. Before serving, always check food temperature (fig. 12).

NOTE

Due to high diversity of baby food consistency, it is advisable to frequently stir it and inspect the temperature. It is not possible to precisely specify food heating time.

Disinfecting

1. Before you start disinfecting, wash and carefully rinse the bottle and accessories.
2. Place accessories and a bottle upside down in the warmer (fig. 13).
3. Pour about 50 - 100ml of water into the warmer (fig. 14).
4. Select disinfection in the display (fig. 15). Wait for the status LED to glow.
5. When water evaporates, the device shuts down automatically.

Cleaning

1. After every use and before cleaning, unplug the device. Wait so that the device can cool down before you start cleaning.
2. Remove water from the device (fig. 16).
3. If you have heated food in the device, make sure there are no remains at the bottom.
4. Wipe the housing and interior of the warmer with a soft wet cloth, and then wipe it dry with a clean cloth or paper towel (fig. 17).
5. For cleaning, do not use scrub sponges, scrub agents or any other caustic substances or chemicals.

Dscaling

1. It is advisable to perform descending on a regular basis, that is every four weeks, to assure correct operation of the device.
2. Pour 50ml of white vinegar and 100ml of cold water into the device.
3. Turn the device on and then select milk heating. Let the device work for 10 minutes.

4. Leave the solution in the device until descaling is successful.

5. Before you empty the device, remember to unplug it.

6. Pour the solution out. Pour water into the device, rinse remains of the solution and then empty the device.

NOTE

You can also use descalers based on citric acid.

Do not use other kinds of descalers.

The pictures are for reference only. The real design of the products may differ from the pictures presented.

PL

Drogi Kliencie!

B clyuae noBHeHnB BonpocOB nI IN K pOdyKTy, KOToPbI Bbl npNo6peJI, NOxKaIyIcTa CBXkITecb C HAM: [e-mail]

Pon3BODnteIb:

BrandLine Group Sp. n3 o.o.
yI.A. Kreglewskiego 1, 61-248 Πo3HaNb, ΠoIbSha

EN: Simplified EU declaration of conformity

BrandLine Group Sp. z o. o. hereby declares that the "Thermup" product complies with the directive: 2014/30/EU - EMC Directive, 2014/35/EU - LVD Directive, 2011/65/EU - RoHS Directive.

Full content of EU declaration of conformity is available on the following website:

Detailed warranty conditions are available on the website:
