Product type	Dummy alarm siren
Brand	KONIG
Model	SASDUMMYFL20
Use	Light deterrent, professional effect
Housing	Plastic
IP rating	IP44 (splash and dust proof)
Power supply	3 AA 1.5 V batteries (not included)
Dimensions	280 x 198 x 98 mm
Weight	706 g
Light function	Continuously flashing indicator light
Package contents	Dummy alarm indicator, safety sticker, manual
Battery installation	Remove screw, open housing, insert batteries respecting polarity, close
Maintenance and cleaning	Dry or slightly damp cloth; no solvents or abrasives
Warranty	Void if product modified; no liability for incorrect use
Waste disposal	Do not dispose with household waste; appropriate collection point
Compliance	Conforms to European Union directives and regulations
Available documentation	Declaration of conformity, safety data sheet, test reports (on request)
Customer service	http://www.nedis.com/en-us/contact/contact-form.htm ; [e-mail] ; [phone]
Manufacturer	NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS

Frequently Asked Questions - SASDUMMYFL20 KONIG

How to install batteries in the SASDUMMYFL20?

Remove the screw using a screwdriver, open the housing. Insert 3 AA 1.5 V batteries respecting polarity marks (+ and -). Close and tighten the screw.

What are the dimensions of the SASDUMMYFL20?

The dimensions are 280 x 198 x 98 mm.

What is the weight of the SASDUMMYFL20?

The weight is 706 g.

What is the IP rating of this dummy siren?

The IP rating is IP44, meaning it is protected against splashes and dust.

How to clean the housing?

Use a dry or slightly damp cloth. Do not use solvents or abrasive products.

Is the warranty valid if the product is modified?

No, any alteration or modification voids the warranty.

How to dispose of the SASDUMMYFL20 at end of life?

Do not dispose of it with household waste. Take it to an appropriate collection point for electronic waste.

What to do if the light does not flash after battery installation?

Check battery polarity and that they are properly inserted. Ensure the compartment is properly closed.

Is the SASDUMMYFL20 intended for outdoor use?

Yes, thanks to IP44 rating, it can be used outdoors, protected from direct water splashes.

Where to find customer service for this product?

You can contact customer service via the website http://www.nedis.com/en-us/contact/contact-form.htm, by email at [e-mail], or by phone at [phone].

USER MANUAL SASDUMMYFL20 KONIG

MANUAL DE USO (p. 17)

MANUAL (p. 20)

HASZNÁLATI ÚTMUTATÓ (o. 23)

KÄYTTÖOHJE (s. 26)

White rectangular device with a red circular lens, resembling a medical or industrial sensor (no text or symbols visible)

Close-up of a white and orange electronic device with horizontal lines and a small black dot (no visible text or symbols)

Dummy Alarm Flashlight

KÖNIG

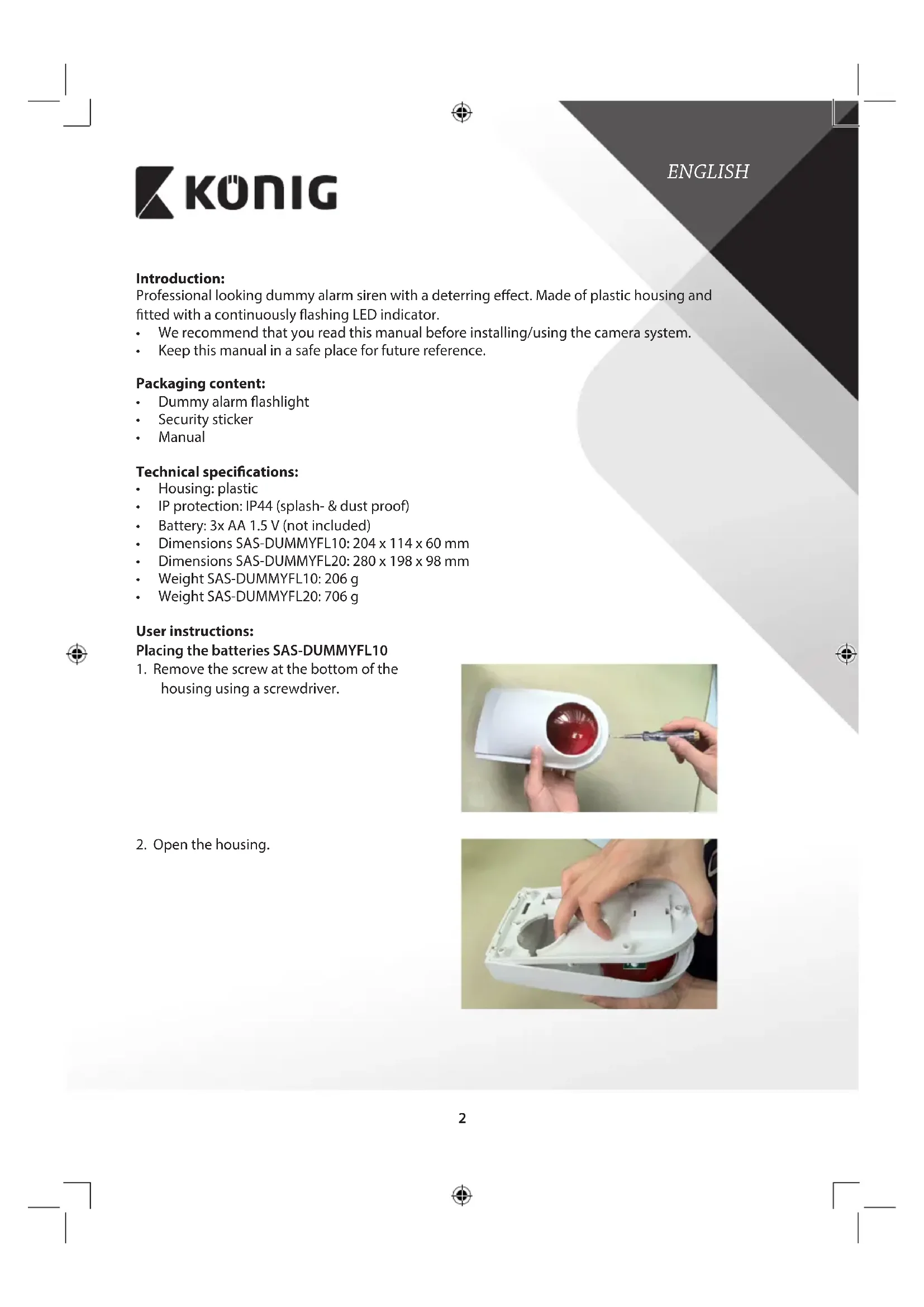

ENGLISH

Introduction:

Professional looking dummy alarm siren with a deterring effect. Made of plastic housing and fitted with a continuously flashing LED indicator.

• We recommend that you read this manual before installing/using the camera system.
- Keep this manual in a safe place for future reference.

Packaging content:

• Dummy alarm flashlight
• Security sticker
- Manual

Technical specifications:

• Housing: plastic
  • IP protection: IP44 (splash- & dust proof)
  • Battery: 3x AA 1.5 V (not included)
  • Dimensions SAS-DUMMYFL10: 204 x 114 x 60 mm
  • Dimensions SAS-DUMMYFL20: 280 x 198 x 98 mm
  • Weight SAS-DUMMYFL10: 206 g
  • Weight SAS-DUMMYFL20: 706 g

User instructions:

Placing the batteries SAS-DUMMYFL10

1. Remove the screw at the bottom of the housing using a screwdriver.

Close-up of hands using a screwdriver to apply red liquid into a white container (no text or symbols visible)

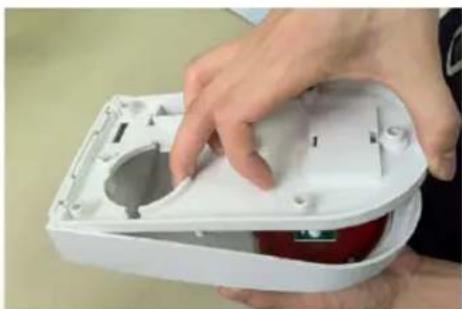

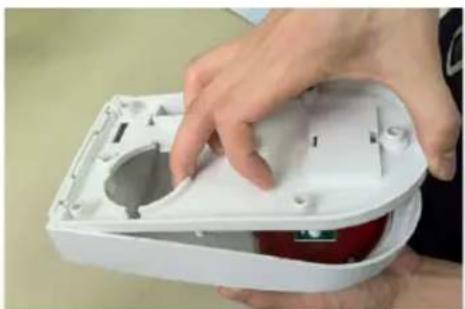

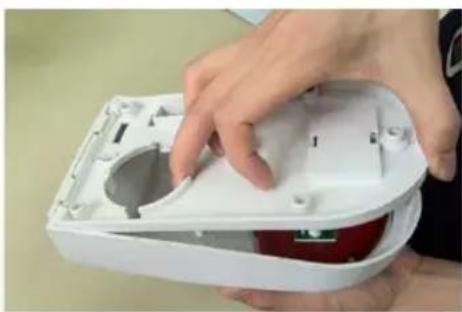

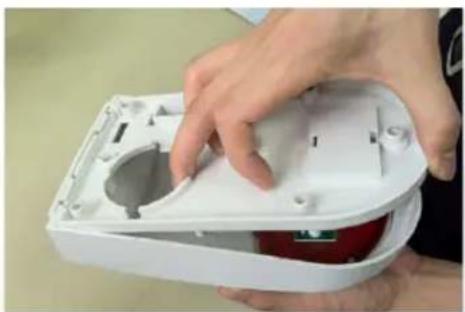

1. Open the housing.

Close-up of hands installing or adjusting a white plastic housing with a red component (no visible text or symbols)

KÖNIG

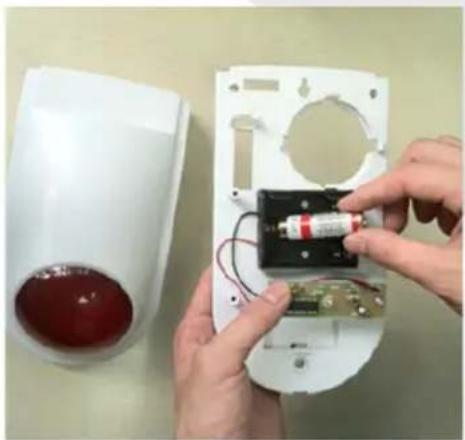

1. Place 3x AA 1.5 V batteries in the battery compartment, matching the polarity markings (+ and -) to activate the flashing LED. Close the housing and replace the screw after placing the batteries.

Placing the batteries SAS-DUMMYFL20

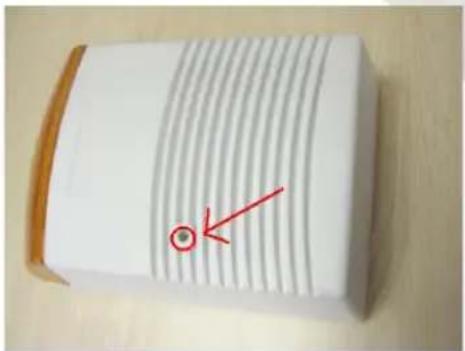

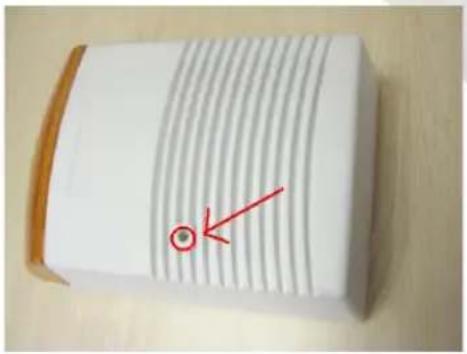

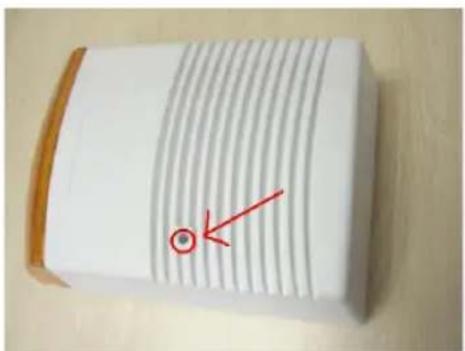

1. Remove the screw marked in the image, using a screwdriver.

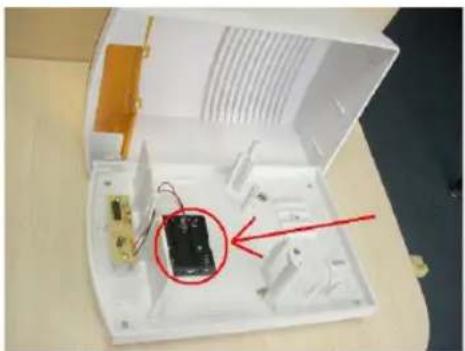

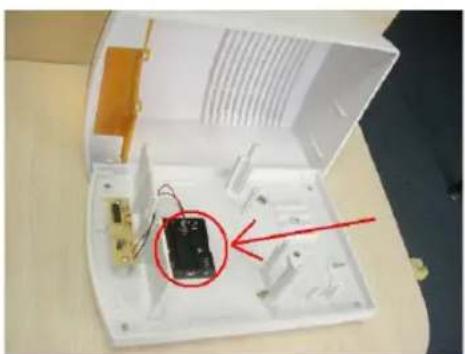

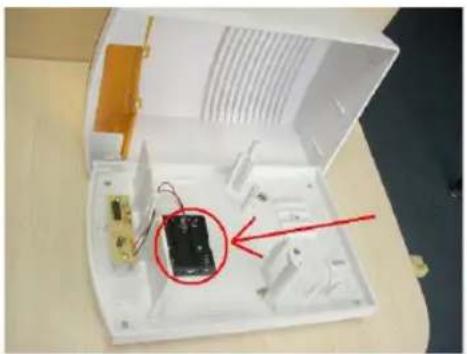

2. Open the housing. Place 3x AA 1.5 V batteries in the battery compartment, matching the polarity markings (+ and -) to activate the flashing LED. Close the housing and replace the screw after placing the batteries.

Close-up of hands installing a small electronic component into a white housing with visible wiring and components (no text or symbols)

White rectangular object with horizontal striped pattern and a red arrow pointing to a circular mark on the surface (no text or symbols)

Open electronic device casing with exposed internal components and a red circle highlighting a small black component (no text or symbols visible)

ENGLISH

Maintenance:

Clean the housing with a dry or damp cloth.

Do not use cleaning solvents or abrasives.

Warranty:

Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Disposal:

• This product is designated for separate collection at an appropriate collection point.
Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specifications and regulations in the country of sales. Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS
